Schematic and parts list for: CleanMax Model: ZM-400

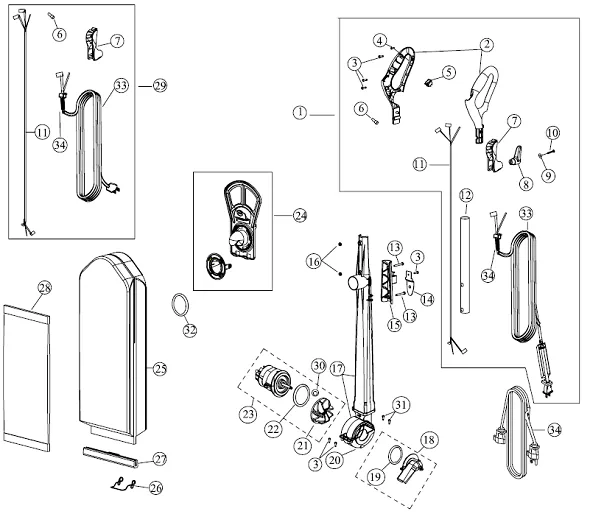

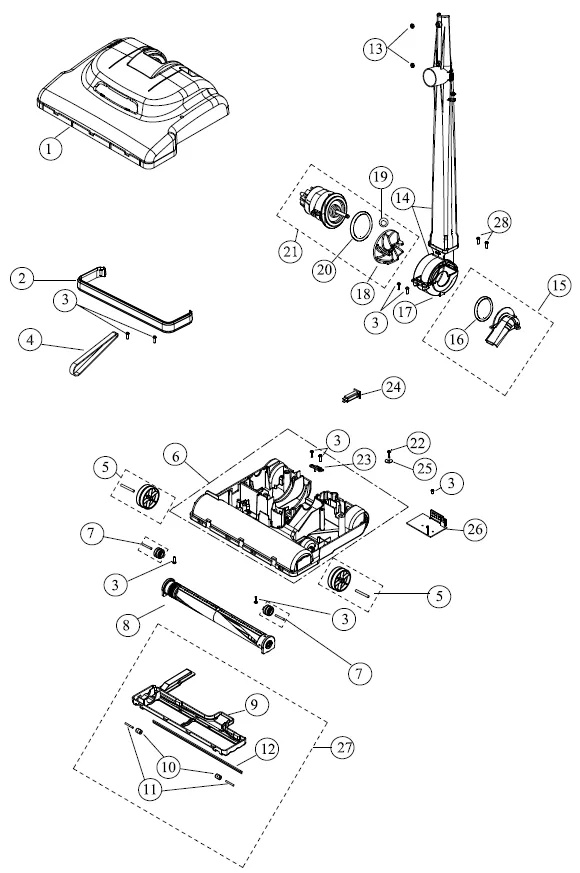

This is a list of parts and a diagram and schematic for: CleanMax Model: ZM-400 Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE Parts for: ZM-400 Upright Vacuum

Popular Supplies



# Part image Description SKU Price
xxProduct ThumbnailE-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,M1200,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30PET.4,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30PET.4,R40.LE, R40, R40.2, R40P.LE, R40P, R40P.2, R40P.4

More Product Details

A7323000

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
xxNot AvailableCleanMax Papter Bag (6 Pack) CMZM-P6Not Available
1Product ThumbnailTwo Speed Handle Assembly Household (F3600) Part Number D431-3714 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C

More Product Details

D4313714

$91.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailCommercial Handle Grip Assembly for Ultralight Weight Uprights

More Product Details

WP10644

$10.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
3No Images10s r10s screw hi lo

More Product Details

WP10362

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
4Product ThumbnailScrew HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 7350, 7450, 7750, 7850, 7950,7200, 7250, 7300, 7350, 7400, 7450, 7700, 7750, 7850, 7900, 7950,6100, 6370, 6400, 6470, 6550, 6570, 6600, 6670, 6700, 6770, 6770T, 6-5AE, 6800, 6870, 6900, 6970,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,GUSTO,M1200,M1200,M500,M700,MOXIE,SPB-200S, SPB-220S

More Product Details

A7328414

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
5Product ThumbnailTwo Speed Main Switch for Simplicity Freedom F3600 F3700

More Product Details

WP10664

$2.99Add to cart

6Product ThumbnailWire Connector Md. Part Number B123-0100 for Simplicity and Cleanmax and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M700,SPB-200S, SPB-220S, SPB-224S, SPB-300S, SPB-226S.4,R20S, R20D, R20P, R20UP,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S20S, S20D, S20P, S20UP,SCRD.FETCH,SHD-1T,SPB-200S, SPB-220S, SPB-224S, SPB-300S, SPB-226S.4, SPB-F,SC

More Product Details

B1230100

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailTacony B431-3314C Handle Back New Strain Relief Commercial ULW Black Xenoy

More Product Details

WP11178

$4.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
8Product ThumbnailUpper Cord Hook Part Number B384-0900 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30D.8, R30PET.4,R40.LE, R40, R40.2, R40P.LE, R40P, R40P.2, R40P.4, R40P.6,RAD, RADP,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S30D, S30P, S30P.DS, S30PET,S40, S40.2, S40P.LE, S40P, S40P.2,SCRD.FETCH,SCRS, SCRD, SCRD.FETCH, SCRD.LE, SCRP,X9, G9

More Product Details

B3840900

$7.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
9No ImageCleanMax Upper Cord Hook Washer for ZM-400

More Product Details

A4301100

$1.99Read more

10No ImageCleanMax 8-16 x 2.500 Phillips Pan Head Screw

More Product Details

A4300205

$1.99Read more

11No ImageCleanMax Handle Wire Harness for ZM-500 ZM700 ZM-800 Vacuums

More Product Details

A4343514

$13.99Read more

12Product ThumbnailSteel Handle Tube Part Number B431-3504E for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C

More Product Details

B4313504E

$7.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
13No ImageScrews #10 Handle Bolts S10E r10E

More Product Details

A432-0705

$1.99Add to cart

14Product ThumbnailCord Hook Part Number B430-1205 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C

More Product Details

B4301205

$3.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
15Product ThumbnailHandle Tube Bracket S10E R10e

More Product Details

B431-2914E

$3.99Add to cart

16Product ThumbnailHex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4

More Product Details

A4320805

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
17Product ThumbnailHandle and Upper Fan Housing Assembly for Riccar Ultralite Vacuums

More Product Details

WP10164

$39.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
18Product ThumbnailFan Duct Cover Assembly with Seal for Ultralight Weight

More Product Details

D1233814

$5.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
19Product ThumbnailULW Motor Seal Kit RSL ZM200 ZM400 ZM600

More Product Details

C1210000

$8.99Add to cart

20Product ThumbnailLower Fan Housing ULW Four Screw Style

More Product Details

WP10165

$2.99Add to cart

21Product ThumbnailMotor Fan ULW Xenoy Material

More Product Details

B123-3000

$5.99Add to cart

23Product ThumbnailUltralight Weight Motor Assembly for Simplicity, Riccar, and CleanMax

More Product Details

D1131500

$119.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
24Product ThumbnailHinged Bag Holder Kit for Riccar Ultra Light Weight

More Product Details

D2113614

$11.99Add to cart

25Not AvailableCleanMax Cloth Bag B211-6500DNot Available
26Product ThumbnailLower Bag Spring Part Number B211-1204 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C

More Product Details

B2111204

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
27Product ThumbnailLower Bag Clip Commercial Print (F3300C) Part Number B211-1914F for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C

More Product Details

B2111914F

$3.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
28No ImageRiccar HEPA Vacuum Bags Type F for Supralite Models - 6pk

More Product Details

RFH6

$25.99Add to cart

28Product ThumbnailBulk 25 Pack Riccar and Simplicity Type F Bags for Commercial Light Weight and CleanMax Zoom 200

More Product Details

F25PK

$64.99Add to cart

28Product ThumbnailAftermarket Riccar Paper Bags Type F - 6pk

More Product Details

RSR-1437

$14.99Add to cart

28Not AvailableCleanMax Hepa Bag (6 Pack) CMZM-H6Not Available
29No ImageCleanMax Cord Upgrade Kit for ZM400 ZM600 - Includes Pigtail and Extension Cord

More Product Details

D4343714

$85.99Read more

30Product ThumbnailBehind Fan Washer (Ametek Motor) Part Number A732-9305 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,X9, G9

More Product Details

A7329305

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
31Product ThumbnailScrew #5X0.5 Hi-Lo Self Threading

More Product Details

A7329206

$1.99Add to cart

32Not AvailableCleanMax Bag Collar Seal D211-5700Not Available
33No ImageCleanMax Yellow Power Cord for ZM-200

More Product Details

A4343341

$51.99Read more

34No ImageCleanMax Commercial Strain Relief for ZM-400

More Product Details

A4342714C

$1.99Read more





# Part image Description SKU Price
xxNot AvailableCleanMax Belt 2Pk CMZM-B2Not Available
xxProduct ThumbnailE-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,M1200,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30PET.4,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30PET.4,R40.LE, R40, R40.2, R40P.LE, R40P, R40P.2, R40P.4

More Product Details

A7323000

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
1No ImageCleanMax Nozzle Cover w/o Lens for ZM-400 ZM-600

More Product Details

B0174714

$20.99Read more

2Product ThumbnailFurniture Guard Part Number B029-0314 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C

More Product Details

B0290314

$3.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
3No Images10s r10s screw hi lo

More Product Details

WP10362

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
4No ImageRubber Stretch Belt for Riccar Supralight Simplicity Freedom - 2pk

More Product Details

RBS2

$5.99Add to cart

4Not AvailableCleanMax Bulk Belt CMZM-BBNot Available
4Product ThumbnailReplacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell style 1 and 4 pn: ULW-B2

More Product Details

36310001

$4.99Add to cart

5Product ThumbnailLarge Rear Wheel and Axle Part Number D350-6631 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C

More Product Details

D3506631

$9.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailULW Basetray Assembly with Plastic Stop RSL1-5 F3300-3700

More Product Details

D016-1114

$43.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailWheel Assembly and Axle Part Number * D010-2631 for Riccar Models R100, R200, R300, R300C, R500, R600, R700, R800, R800C, 4-5AE

More Product Details

* D0102631

$0.00


Product is special order please allow 2-4 weeks for delivery.
8No ImageAgitator Wood ULW Assembly S10E, R10E,F3300

More Product Details

D012-2800

$31.99Add to cart

9Product ThumbnailBase Tray cover Tacony- B015-3114

More Product Details

WP11350

$4.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
10Product ThumbnailBase Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4,WONDERP.TAD, WONDERP.TAP

More Product Details

B3701843

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
11Product ThumbnailBottom Plate Axle Part Number B370-1700 for Riccar Models PRIMAP.TAD, PRIMA.TAP, R50TAP

More Product Details

B3701700

$0.00


Product is special order please allow 2-4 weeks for delivery.
12Product ThumbnailBaseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4,WONDERP.TAD, WONDERP.TAP

More Product Details

B0153000B

$4.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
13Product ThumbnailHex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4

More Product Details

A4320805

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
14Product ThumbnailHandle and Upper Fan Housing Assembly for Riccar Ultralite Vacuums

More Product Details

WP10164

$39.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
15Product ThumbnailFan Duct Cover Assembly with Seal for Ultralight Weight

More Product Details

D1233814

$5.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
16Product ThumbnailULW Motor Seal Kit RSL ZM200 ZM400 ZM600

More Product Details

C1210000

$8.99Add to cart

17Product ThumbnailLower Fan Housing ULW Four Screw Style

More Product Details

WP10165

$2.99Add to cart

18Product ThumbnailMotor Fan ULW Xenoy Material

More Product Details

B123-3000

$5.99Add to cart

19Product ThumbnailBehind Fan Washer (Ametek Motor) Part Number A732-9305 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,X9, G9

More Product Details

A7329305

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
21Product ThumbnailUltralight Weight Motor Assembly for Simplicity, Riccar, and CleanMax

More Product Details

D1131500

$119.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
22Product ThumbnailCombination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag and Riccar Models 7300, 7350, 7850,7200, 7250, 7400, 7450, 7700, 7750, 7900, 7950,6100, 6370, 6400, 6470, 6550, 6570, 6600, 6670, 6700, 6770, 6770T, 6-5AE, 6800, 6870, 6900, 6970,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P,

More Product Details

A7322500

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
23No ImageULW UPRIGHT STOP - PLASTIC RED

More Product Details

B016-1230

$1.99Add to cart

24Product ThumbnailCircuit Breaker 5 Amp for Riccar

More Product Details

A028-0114B

$3.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
25Product ThumbnailStrain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30PET.4,R40.LE, R40, R40.2, R40P.LE, R40P, R40P.2, R40P.4, R40P.6,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S1

More Product Details

B0340100

$1.99Add to cart

Product is special order please allow 2-4 weeks for delivery.
27Product ThumbnailBaseplate Assembly w/ Squeegee for Riccar and Simplicity Ultralite Vacuums

More Product Details

WP11665

$12.99Add to cart

28Product ThumbnailScrew #5X0.5 Hi-Lo Self Threading

More Product Details

A7329206

$1.99Add to cart
