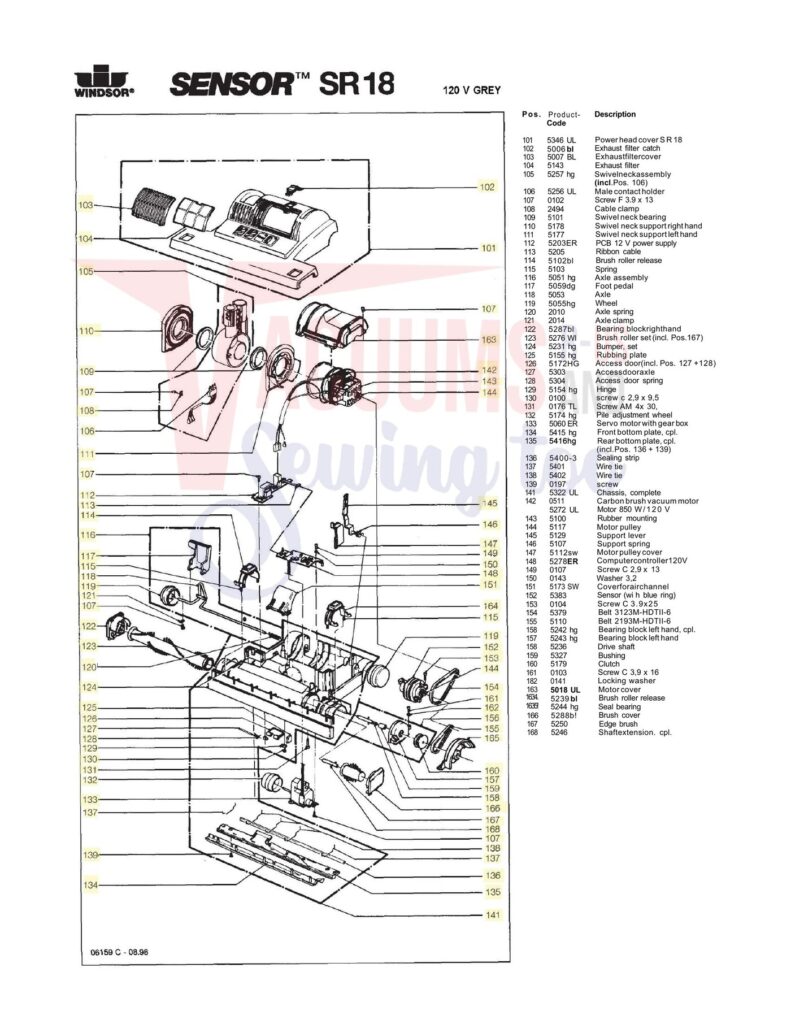

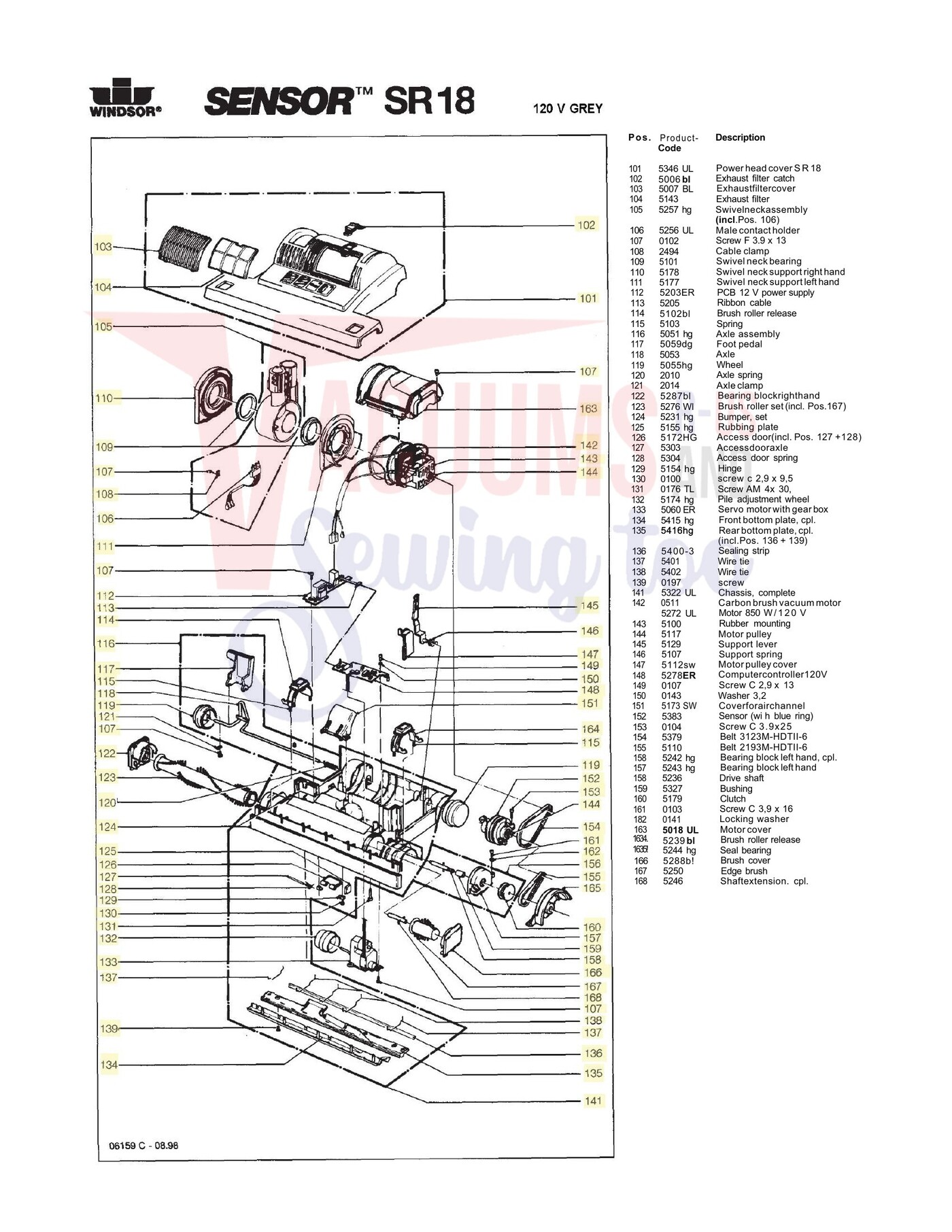

Schematic and parts book for Windsor SR18 Sensor. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 101 | Not Available | Power head cover S R | 5346UL | Not Available |
| 102 |  | Bottom Plate Assy-Oem Oreck Bigfoot For: oreck | 5006 | $70.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 103 | Not Available | Exhaustfiltercover | 5007BL | Not Available |
| 104 | Not Available | Exhaust filter | 5143 | Not Available |
| 105 | Not Available | hg Swivelneckassembly | 5257 | Not Available |
| 106 | Not Available | Male contact holder | 5256UL | Not Available |
| 107 |  | Screw F 3.9 x 13 DIN 7981 (single), for X, G, 370, 300/350, C & D, ET-C, ET-H, and DISCO | 0102 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 108 |  | Powerclean Rewind | 2494 | $0.00Read more |
| 109 |  | Swivel Neck Bearing, R.H., for X series Sebo vacuum cleaner repair part | 5101 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 |  | Swivel Neck Support, R.H., (2 screws), for X1, X4 (for old-style chassis, #5320UL, S/N < #N400... | 5178 | $10.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 111 |  | Swivel Neck Support, L.H., for X1 and X2 Sebo vacuum cleaner repair part | 5177 | $12.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 112 |  | Refer to 5850ER PCB 12 V Power supply for X series. Sebo vacuum cleaner repair part | 5203ER | $94.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 113 |  | Ribbon Cable for X series Sebo vacuum cleaner repair part | 5205 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 115 |  | Spring for Brush Roller Release, for X1/X2, X4/X5, and G series Sebo vacuum cleaner repair part | 5103 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 116 | Not Available | hg Axle assembly | 5051 | Not Available |
| 118 |  | Axle for chassis, on X1, X2, X4, X5, and G series Sebo vacuum cleaner repair part | 5053 | $14.00Add to cart |
| 120 |  | Axle Spring, for X1, X2, X4, X5, G series, 370 ELECTRONIC, and ET-C Sebo vacuum cleaner repair part | 2010 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 121 |  | Axle Clamp (single), for X1, X2, X4, X5, G series, 300/350, 370 series, and ET-C Sebo vacuum clea... | 2014 | $0.50Add to cart |
| 123 | Not Available | Wl Brush roller set (incl. Pos.167) | 5276 | Not Available |
| 124 | Not Available | hg Bumper set | 5231 | Not Available |
| 125 | Not Available | hg Rubbing plate | 5155 | Not Available |
| 126 | Not Available | Access door(incl. Pos. 127 +128) | 5172HG | Not Available |
| 127 |  | Access Door Axle, for X and G series Sebo vacuum cleaner repair part | 5303 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 128 |  | Access Door Spring, for X and G series Sebo vacuum cleaner repair part | 5304 | $0.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 129 | Not Available | hg Hinge | 5154 | Not Available |
| 130 | | Screw C 2.9 x 9.5, DIN 7981 (single), for X1/X2/X4/X5 | 0100 | $0.25Read more |
| 131 |  | Screw, AM4 x 30 DIN 7985 TL (single), for X and G series, 370 COMFORT, 300/350, ET-1, ET-2, and d... | 0176TL | $0.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 132 | Not Available | hg Pile adjustment wheel | 5174 | Not Available |
| 133 |  | Servo Motor with gear box, for X series Sebo vacuum cleaner repair part | 5060ER | $42.00Add to cart |
| 134 |  | Motor Mount Front Part Number 54.15 for Simplicity Models SHD-1T | 5415 | |
| 136 |  | COVER, MOTOR CARPET PRO YELLOW Part Number: 54.003 for Carpet Pro | 54003 | $8.03Read more |
| 137 |  | Wire Tie (short/outer), for X1/X4/ET-2/G series (1 right), X2/X5 (1 right/1 left) Sebo vacuum cle... | 5401 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 137 |  | Compatible alternateProteam Crevice Tool 17'' Proteam Backpack More Product Details | 100108 | $29.80Add to cart Special order — allow 2-4 weeks. |
| 137 |  | Compatible alternateCrevice Tool, Black 11"1 1/2" for ProTeam carpet pro commercial backpacks More Product Details | PV100108 | $11.58Add to cart |
| 138 |  | Wire Tie (long), for X and G series, and ET-1/ET-2 Sebo vacuum cleaner repair part | 5402 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 139 |  | Screw M 4 x 12, w/washer (single), for X and G series, 370 COMFORT, and 300/350 Sebo vacuum clean... | 0197 | $0.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 141 | Not Available | Chassis complete | 5322UL | Not Available |
| 142 | Not Available | Carbon brush vacuum motor | 0511 | Not Available |
| 143 |  | Rubber Mounting, G series and X4/X5, X7/X8 (for 5468 motor), and X1/X2 (for 5211UL motor) Sebo va... | 5100 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 144 | Not Available | Motor pulley | 5117 | Not Available |
| 145 |  | Support Lever, for X1, X2, X4, X5, G1, and G2 Sebo vacuum cleaner repair part | 5129 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 146 | Not Available | Support spring | 5107 | Not Available |
| 148 | Not Available | Computercontroller120V | 5278ER | Not Available |
| 149 |  | Screw C 2.9 x 13 DIN 7981 (single), for X1/X2/X4/X5, G series, 300/350, and ET-H Sebo vacuum clea... | 0107 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 |  | Washer 3.2 DIN 125 (single), for X1/X2/X4/X5, and G series Sebo vacuum cleaner repair part | 0143 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 151 |  | Cover for Air Channel, for X1, X2, X4, and X5 (black) Sebo vacuum cleaner repair part | 5173SW | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 152 |  | Sensor for X2, with pulley and screws (has blue ring) Sebo vacuum cleaner repair part | 5383 | $39.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 153 |  | Screw C 3.9 x 25 DIN 7981 (single), for X and G series, and 300/350 Sebo vacuum cleaner repair part | 0104 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 154 |  | Belt 312 3M HTDII-6, for X1 and X2 (motor to Sensor), and 300/350 Sebo vacuum cleaner repair part | 5379 | $12.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 155 | Not Available | Belt 2193M-HDTII-6 | 5110 | Not Available |
| 157 | Not Available | hg Bearing block left hand | 5243 | Not Available |
| 158 | Not Available | hg Bearing block left hand cpl. | 5242 | Not Available |
| 158 |  | Drive Shaft for X2/X5 Sebo vacuum cleaner repair part | 5236 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 159 | Not Available | Bushing | 5327 | Not Available |
| 160 | Not Available | Clutch | 5179 | Not Available |
| 161 |  | Screw C 3.9 x 16 DIN 7981 (single), for X series, FELIX series, G series, 370 series, ET-C, and duo | 0103 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 163 |  | Motor Cover, for X1, X2, X4, and X5 Sebo vacuum cleaner repair part | 5018UL | $14.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 167 |  | Edge Brush For X5
5A : Brush Rollers And Polishing Pads For: sebo | 5250 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 168 | | Shaft Extension for X2, X5, and X8 Sebo vacuum cleaner repair part | 5246 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 182 |  | Locking Washer (single), for X1/X2/X4/X5, 370 ELECTRONIC, ET-C, and duo Sebo vacuum cleaner repai... | 0141 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |

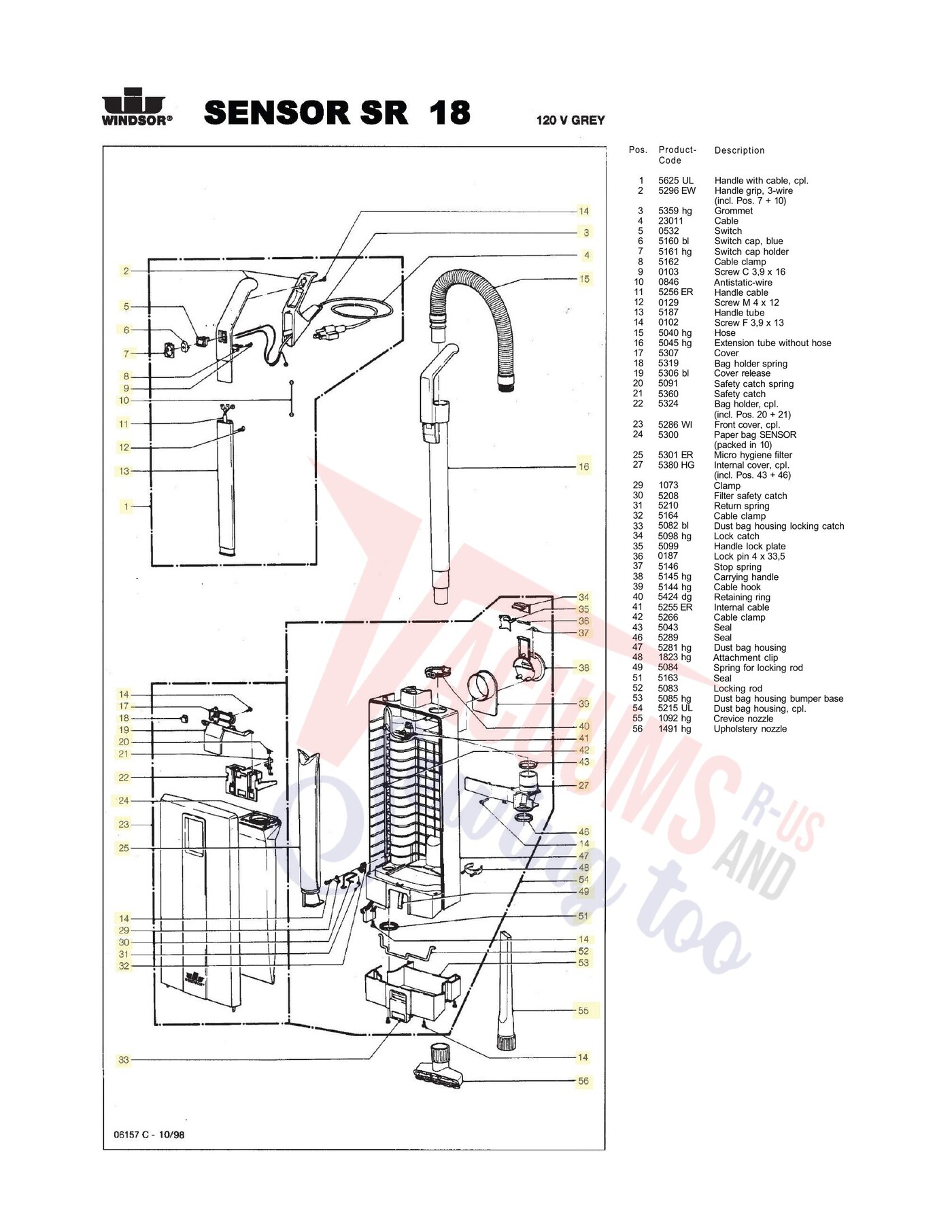

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle with cable cpl. | 5625UL | Not Available |
| 2 | Not Available | Handle grip 3-wire | 5296EW | Not Available |
| 3 | Not Available | hg Grommet | 5359 | Not Available |
| 4 | Not Available | Cable | 23011 | Not Available |
| 5 | Not Available | Switch | 0532 | Not Available |
| 6 | Not Available | bl Switch cap blue | 5160 | Not Available |
| 7 | | Upholstery tool Part Number 5.161 for Cleanmax Models CMBP-6 | 5161 | |
| 8 |  | Cable Clamp, cable to handle, for X and G series Sebo vacuum cleaner repair part | 5162 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | Screw C 3.9 x 16 DIN 7981 (single), for X series, FELIX series, G series, 370 series, ET-C, and duo | 0103 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Antistatic-wire | 0846 | Not Available |
| 11 |  | Cable - Inner Handle - Windsor Sr12 Sensor For: windsor | 5256ER | $82.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Screw M4 x 12 DIN 966 (single), for X series, G series, and DUO | 0129 | $0.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Handle Tube, 345mm, for X and G series Sebo vacuum cleaner repair part | 5187 | $14.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | Screw F 3.9 x 13 DIN 7981 (single), for X, G, 370, 300/350, C & D, ET-C, ET-H, and DISCO | 0102 | $0.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | hg Hose | 5040 | Not Available |
| 16 | Not Available | hg Extension tube without hose | 5045 | Not Available |
| 17 |  | Cover for latch, on X1 and X2 Sebo vacuum cleaner repair part | 5307 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Bag Holder Spring, for X and G series Sebo vacuum cleaner repair part | 5319 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | bl Cover release | 5306 | Not Available |
| 20 |  | Safety Catch Spring, for X, G, and 370 series Sebo vacuum cleaner repair part | 5091 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Safety Catch for bag holder, for X series and G1/G2 Sebo vacuum cleaner repair part | 5360 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Bag Holder, complete, for X series and G1/G2 Sebo vacuum cleaner repair part | 5324 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Wl Front cover cpl. | 5286 | Not Available |
| 24 | Not Available | Paper bag SENSOR | 5300 | Not Available |
| 25 | Not Available | Micro hygiene filter | 5301ER | Not Available |
| 27 |  | Internal Cover, complete, for G1 and G2 (light gray) Sebo vacuum cleaner repair part | 5380HG | $12.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Clamp for filter safety catch, for X series, G series, and 370 series Sebo vacuum cleaner repair ... | 1073 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Filter Safety Catch, for X and G series Sebo vacuum cleaner repair part | 5208 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Return Spring for microfilter holder, on X and G series Sebo vacuum cleaner repair part | 5210 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Cable Clamp, microfilter holder, for X and G series Sebo vacuum cleaner repair part | 5164 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | bl Dust bag housing locking catch | 5082 | Not Available |
| 34 | Not Available | hg | 5098 | Not Available |
| 35 |  | Handle Lock Plate, for X1, X2, G1, and G2 Sebo vacuum cleaner repair part | 5099 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Lock Pin for handle catch, 4 x 33.5 (single), for X1/X2 and G1/G2 | 0187 | $0.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Stop Spring, for X, G, and 370 series Sebo vacuum cleaner repair part | 5146 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | hg Carrying handle | 5145 | Not Available |
| 39 | Not Available | hg Cable hook | 5144 | Not Available |
| 40 | Not Available | dg Retaining ring | 5424 | Not Available |
| 41 |  | Internal Cable - 3 Wire - Windsor Xp12 Commercial For: windsor | 5255ER | $89.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | Seal | 5043 | Not Available |
| 46 |  | Seal, Filter Tube, for X series, G1/G2, 300/350, and 370 series Sebo vacuum cleaner repair part | 5289 | $4.00Add to cart |
| 47 | Not Available | hg Dust bag housing | 5281 | Not Available |
| 48 | No Image | Cleanview Plus Rewind | 1823 | $215.98Read more |
| 49 |  | Spring for locking rod, for X and G series Sebo vacuum cleaner repair part | 5084 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | Seal, bag housing to swivel neck, for X1, X2, X4, X5, G1, and G2 Sebo vacuum cleaner repair part | 5163 | $4.00Add to cart |
| 52 |  | Locking Rod, bag holder, for X and G series Sebo vacuum cleaner repair part | 5083 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | Not Available | hg Dust bag housing bumper base | 5085 | Not Available |
| 54 | Not Available | Dust bag housing cpl. | 5215UL | Not Available |
| 55 | Not Available | hg Crevice nozzle | 1092 | Not Available |
| 56 | Not Available | hg Upholstery nozzle | 1491 | Not Available |
