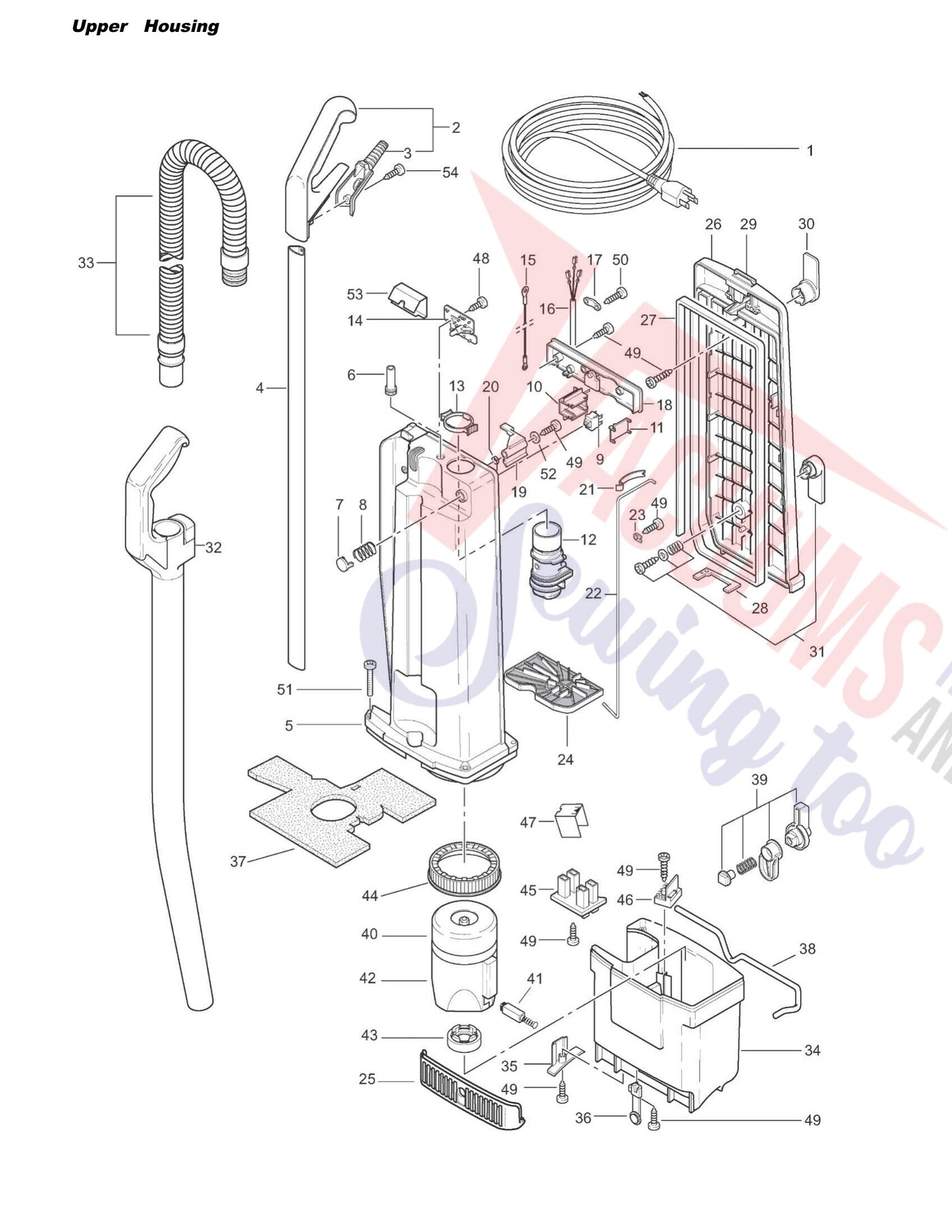

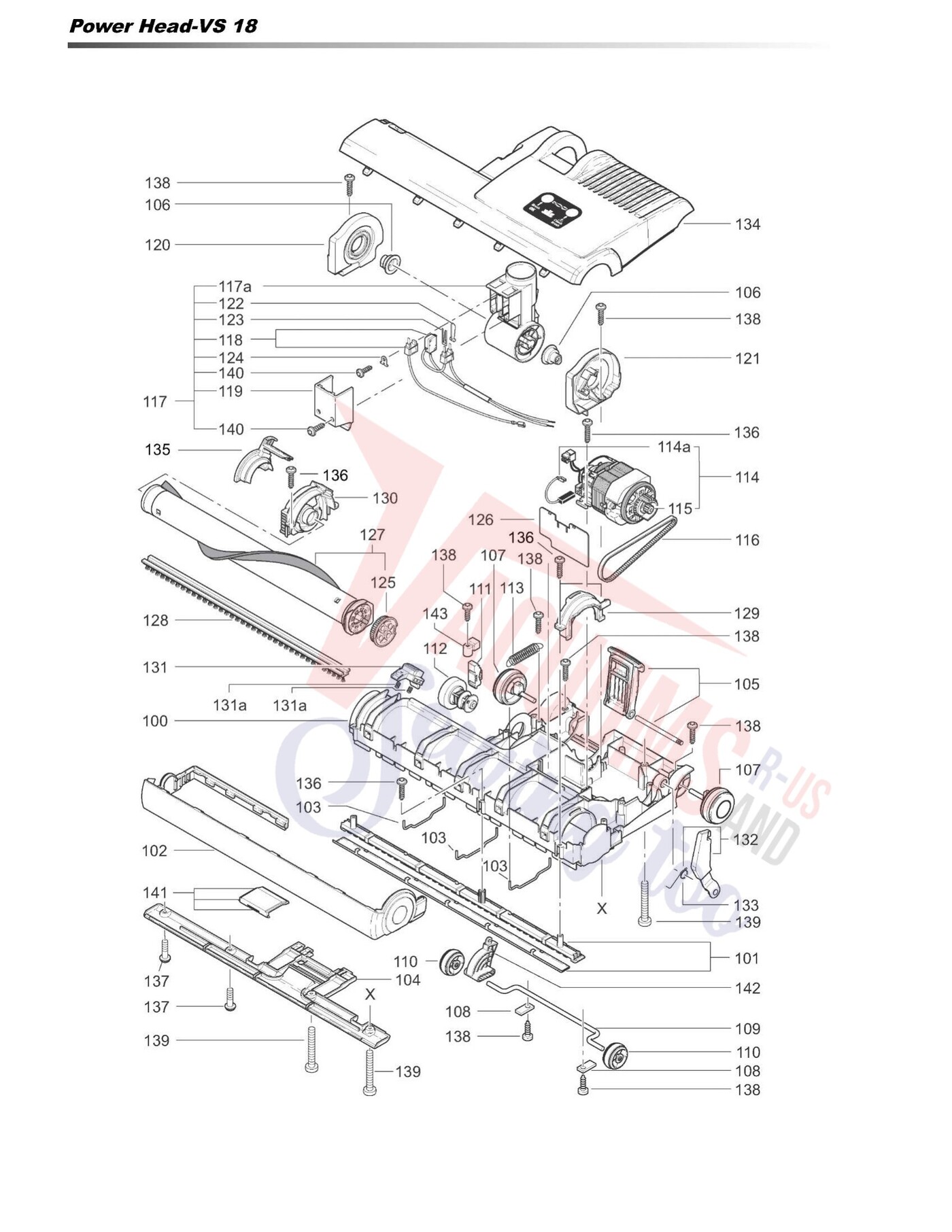

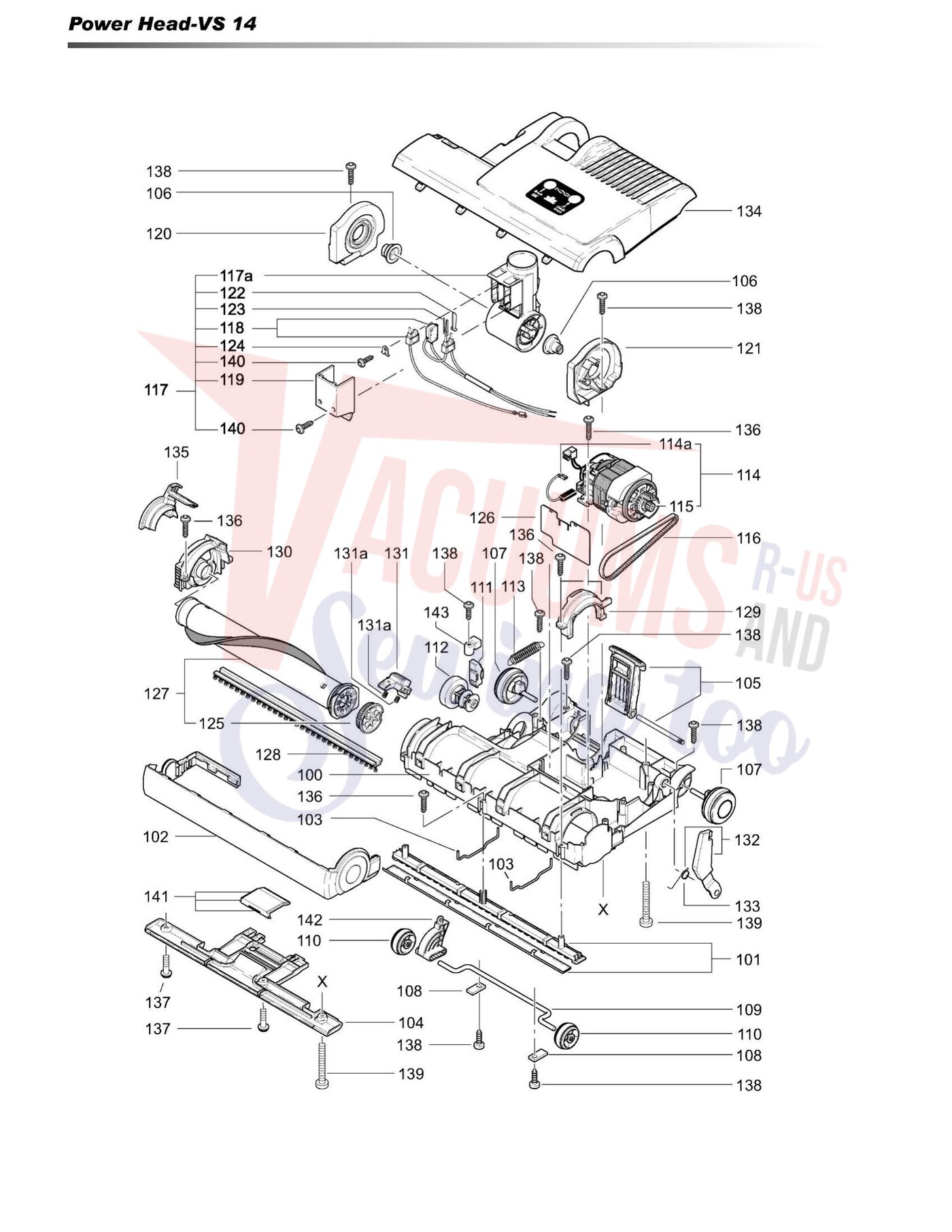

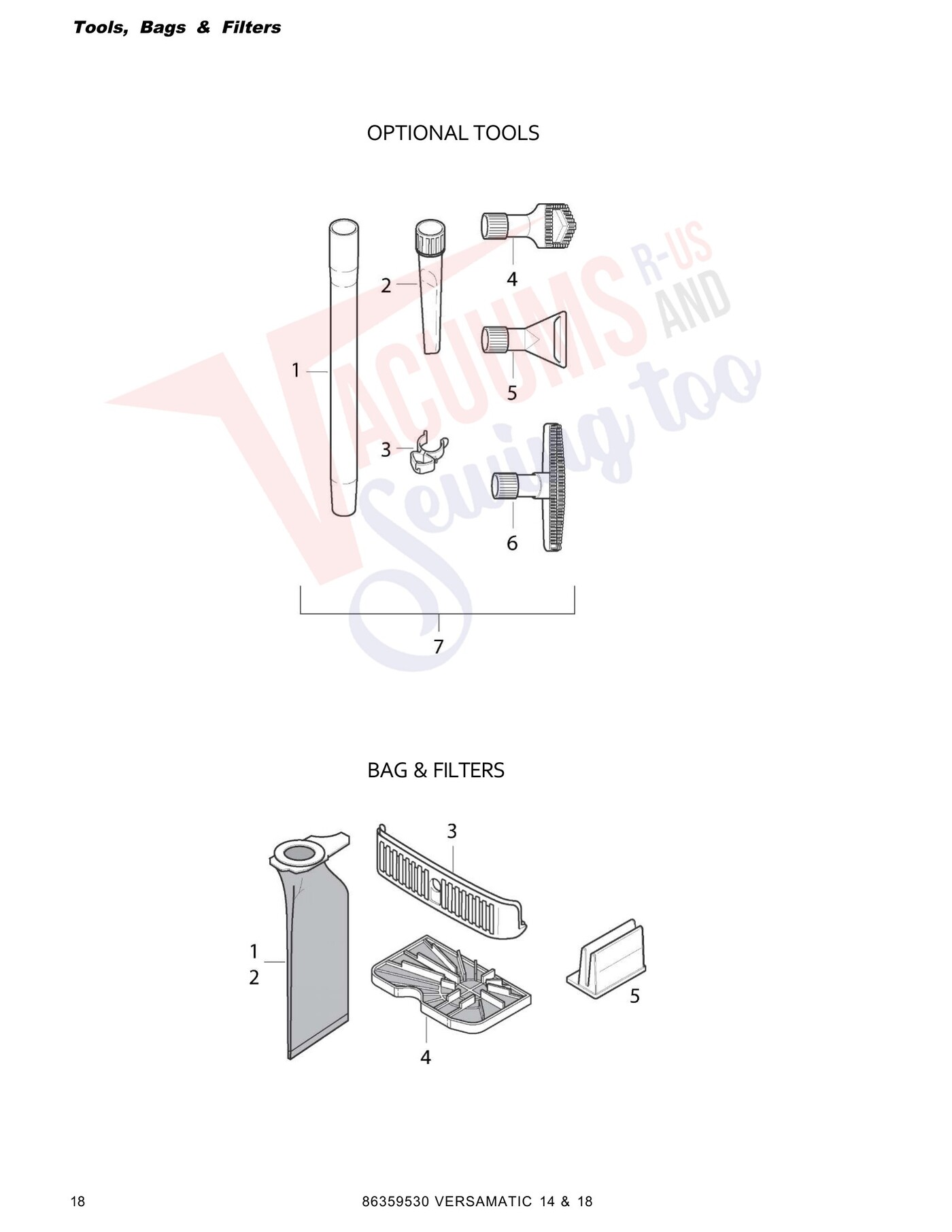

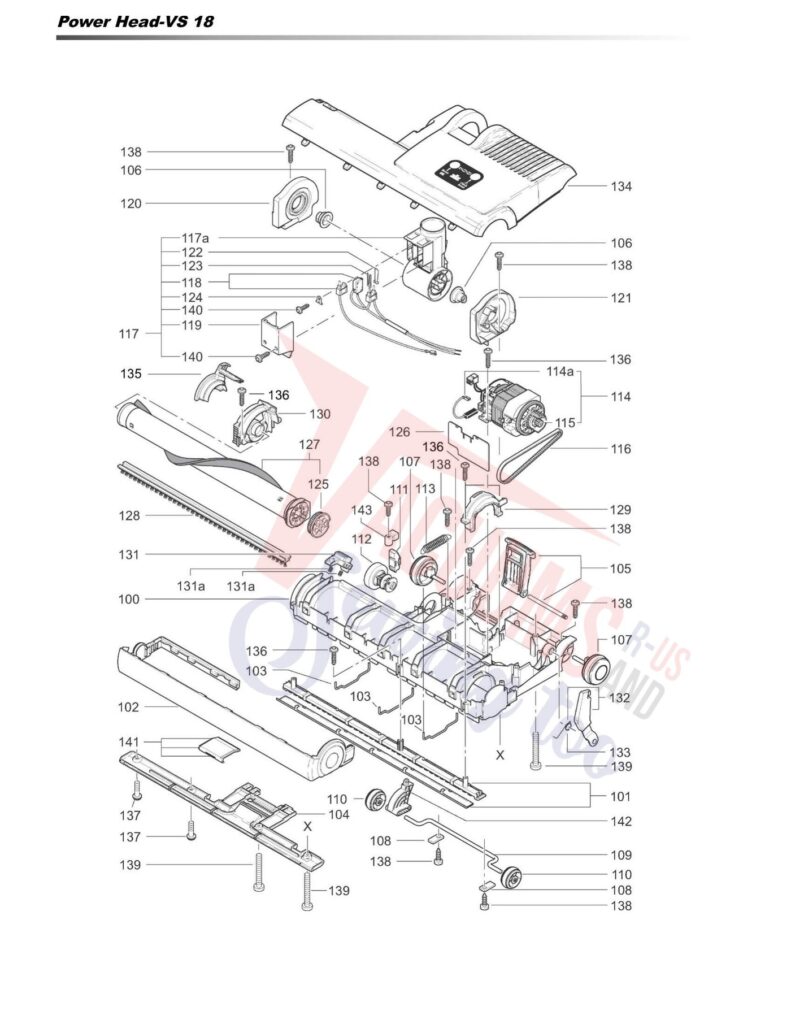

Schematic and parts book for Windsor 1084 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | - EXTENSION | 861415101084 | Not Available |
| 1 | Not Available | - FILTER BAG | 860004602003 | Not Available |
| 2 | Not Available | 1092ws - CREVICE | 86140870 | Not Available |
| 2 | Not Available | - CLOTH BAG | 860010401079 | Not Available |
| 3 | Not Available | - CLIP VSCLP | 861400701081 | Not Available |
| 3 |  | Filter, Exhaust Versamatic Plus W/ Off White Frame Part Number: 8.614-135.0 for Windsor | 86141350 | $60.08Read more |
| 4 | Not Available | - ROUND BRUSH | 861446801094 | Not Available |
| 4 | Not Available | - MOTOR FILTER | 861433301044 | Not Available |
| 5 | Not Available | - UPHOLSTERY | 861462601090 | Not Available |
| 5 | Not Available | - FLR HOSP | 860017901435 | Not Available |
| 6 | Not Available | 1325ws - UPHOLSTERY | 86146280 | Not Available |
| 7 | Not Available | VSMTK - VERSAMATIC | 86284890 | Not Available |
| 18 | Not Available | VERSAMATIC 14 & | 86359530 | Not Available |
| 19 | Not Available | VERSAMATIC | 86359530 | Not Available |
| # | Part image | Description | SKU | Price |
| 1A | Not Available | CABLE VS14 | 861391901910 | Not Available |
| 1B | Not Available | CABLE VS18 - 17/3 | 861392101918 | Not Available |
| 2 | Not Available | HANDLE GRIP COMPLETE | 861420501037EH | Not Available |
| 3 |  | Cover, White Plastic Handle Versamatic Part Number: 8.614-212.0 for Windsor | 86142120 | $29.37Read more |
| 4 | Not Available | HANDLE | 861421401794 | Not Available |
| 5 | Not Available | 1949hg DUST BAG HOUSING | 86363600 | Not Available |
| 6 | Not Available | 1420hg GROMMET | 86141950 | Not Available |
| 7 | Not Available | 1966hg SWITCH BUTTON | 86349900 | Not Available |
| 8 | Not Available | SPRING VS SWITCH | 863455701962 | Not Available |
| 9 | Not Available | SWITCH-VS (NEW) | 861456101957ER | Not Available |
| 10 | Not Available | SWITCH HOLDER | 863636101955 | Not Available |
| 11 | Not Available | SWITCH COVER | 863499101956 | Not Available |
| 12 | Not Available | 1038hg CONNECTING TUBE | 86363620 | Not Available |
| 13 |  | Retainer Ring, Versamatic VS14/VS18 Part Number: 8.614-460.0 for Windsor | 86144600 | $18.01Read more |
| 14 | Not Available | PC BOARD 115V | 861437501477UL | Not Available |
| 15 | Not Available | ANTISTATIC WIRE | 861377600835UL | Not Available |
| 16 | Not Available | INTERNAL CABLE | 861428101283UL | Not Available |
| 17 | Not Available | CABLE CLAMP | 861391101030UL | Not Available |
| 18 | Not Available | SWITCH HSG COVER | 861455301026UL | Not Available |
| 19 | Not Available | DUST BAG LEVER | 861409901040 | Not Available |
| 20 | Not Available | RETURN SPRING | 861446401041 | Not Available |
| 21 | Not Available | LEAF SPRING | 861430101027 | Not Available |
| 22 | Not Available | CONNECTING ROD | 861401701025 | Not Available |
| 23 | Not Available | CLAMP | 861399701073 | Not Available |
| 24 | Not Available | MOTOR FILTER U19836 | 861433301044 | Not Available |
| 25 | | Filter, Exhaust Versamatic Plus W/ Off White Frame Part Number: 8.614-135.0 for Windsor | 86141350 | $60.08Read more |
| 26 | Not Available | 1139hg BACK COVER | 86363630 | Not Available |
| 27 | Not Available | BACK COVER SEAL | 861380101059 | Not Available |
| 28 | Not Available | GASKET | 861418901061 | Not Available |
| 29 | Not Available | LATCH WITH SPRING | 863636401057HG | Not Available |
| 30 | Not Available | 1461hg UPPER CORD HOOK | 86363650 | Not Available |
| 31 | Not Available | LOWER CORD HOOK | 863636601462HG | Not Available |
| 32 | Not Available | EXTENSION TUBE | 861415301783N | Not Available |
| 33 | No Image | HOSE, COMPLETE VS14 Part Number: 8.614-264.0 for Windsor | 86142640 | $205.11Read more |
| 34 | Not Available | MOTOR HOUSING | 863636701797WI1 | Not Available |
| 35 | No Image | COVER, COVER HOUSING R.H. Part Number: 8.614-271.0 for Windsor | 86142710 | $9.85Read more |
| 36 | Not Available | 1798dg SP FILTER RETAINING | 86141610 | Not Available |
| 37 | Not Available | SINSULATION SOUND | 861427701896 | Not Available |
| 38 | Not Available | LOCKING ROD | 861430901553 | Not Available |
| 39 | Not Available | 0819dg LOCKING CATCH | 86143070 | Not Available |
| 40 | Not Available | VAC MOTOR 120V | 861464201887UL | Not Available |
| 41 | Not Available | CARBON BRUSH | 8613940005117S | Not Available |
| 42 | Not Available | MOTOR COVER | 861434101821UL | Not Available |
| 43 | Not Available | MOTOR SUPPORT | 861433401411 | Not Available |
| 44 | Not Available | VAC MOTOR SEAL | 861463801047 | Not Available |
| 45 | Not Available | FEMALE CONTACT | 861415701545UL | Not Available |
| 46 | Not Available | TERMINAL BLOCK | 861462001265UL | Not Available |
| 47 | Not Available | COVER TERMINAL | 861404201524 | Not Available |
| 48 | Not Available | SCR M39 X 95 MM | 861962900101ER | Not Available |
| 49 | Not Available | SCR M39 X 13 MM | 861470300102ER | Not Available |
| 50 | Not Available | SCR M39 X 16 MM | 861470400103ER | Not Available |
| 51 | Not Available | SCR M5 X 30 MM | 861470700111ER | Not Available |
| 52 | Not Available | WASHER VS14/18 | 861465400140ER | Not Available |
| 53 | Not Available | PC BOARD COVER | 861437301281 | Not Available |
| 54 | Not Available | SCR M4 X | 861448300127ER | Not Available |
| 54 | Not Available | (8") | 205MM | Not Available |
| 54 | Not Available | (7") | 180MM | Not Available |
| # | Part image | Description | SKU | Price |
| 100 | Not Available | CHASSIS 14" | 8636313020200HG | Not Available |
| 101 | Not Available | REAR BOTTOM PLATE | 8636314020204ER | Not Available |
| 102 | Not Available | BUMPER | 8636315020109ER | Not Available |
| 103 | Not Available | RETAINING BRACKET | 8636316020115 | Not Available |
| 104 | Not Available | REAR BOTTOM PLATE | 8636317020107ER | Not Available |
| 105 | Not Available | FOOT PEDAL | 8636318020230ER | Not Available |
| 106 | Not Available | SWIVEL NECK BEARING | 8636319020136ER | Not Available |
| 107 | Not Available | WHEEL | 861466002306HG | Not Available |
| 108 | Not Available | AXLE CLAMP | 863632002014ER | Not Available |
| 109 | Not Available | PILE ADJUSTMENT AXLE | 8636321020126ER | Not Available |
| 110 | No Image | WHEEL, PILE ADJUSTMENT VSP14 VSP18 Part Number: 8.614-661.0 for Windsor | 86146610 | $31.26Read more |
| 111 | Not Available | THRUST MEMBER | 861462202833 | Not Available |
| 112 | Not Available | ADJUSTMENT BUTTON | 8636322020128ER | Not Available |
| 113 | Not Available | SPRING | 861452704019 | Not Available |
| 114 | Not Available | MOTOR BRUSH 120V 175W | 861435002973ER | Not Available |
| 114A | Not Available | BRUSH SET CARBON VAC MTR | 8613839005141S | Not Available |
| 115 | Not Available | BRUSH MOTOR PULLEY FM | 863090302319 | Not Available |
| 116 | Not Available | BELT 333 3M HTDII-6 | 861382202923 | Not Available |
| 117 | Not Available | SWIVEL NECK CPL | 8636323020219ER | Not Available |
| 117A | Not Available | SWIVEL NECK | 8636324020133ER | Not Available |
| 118 | Not Available | WIRE COMPL. SET-3 WIRE WITH MICRO SWITCH | 863632500893WI | Not Available |
| 119 | No Image | COVER, SWIVEL NECK VS14 VS18 Part Number: 8.614-582.0 for Windsor | 86145820 | $36.12Read more |
| 120 | Not Available | SWIVEL NECK SUPPORT | 8636326020217ER | Not Available |
| 121 | Not Available | SWIVEL NECK SUPPORT L.H. | 8636327020218ER | Not Available |
| 122 | Not Available | LEVER VSE SWITCH | 861430502534 | Not Available |
| 123 | Not Available | SPRING VSE LEAF | 861452402546 | Not Available |
| 124 | Not Available | CLAMP | 861399701073 | Not Available |
| 125 | Not Available | BRUSH PULLEY | 863632802919ER | Not Available |
| 126 | Not Available | PRINTED CIRCUIT BOARD (120V 175W) | 8636329020152ER | Not Available |
| 127 | Not Available | BRUSH ASSEMBLY CPL | 863633004098ER | Not Available |
| 128 | Not Available | BRUSH STRIP 14" | 860024402046 | Not Available |
| 129 | Not Available | BEARING BLOCK L.H. | 8636331020123ER | Not Available |
| 130 | Not Available | BEARING BLOCK R.H. | 8636332020117ER | Not Available |
| 131 | Not Available | BRUSH ROLLER RELEASE | 8636333020120ER | Not Available |
| 131A | Not Available | SPRING | 8636334020121ER | Not Available |
| 132 |  | LEVER WITH SPRING, SUPPORT VSP14 VSP18 Part Number: 8.614-544.0 for Windsor | 86145440 | $78.10Read more |
| 133 | Not Available | SPRING VSE RETURN | 863455802651 | Not Available |
| 134 | Not Available | POWER HEAD COVER VERSAMATIC VS | 8636335020220VS | Not Available |
| 135 | Not Available | SIDE PLATE | 8636336020118ER | Not Available |
| 136 | Not Available | SCR 4X20-T20 STS | 8614479001017ER | Not Available |
| 137 | Not Available | SCRM4X12 MM W/WASHER | 861448500197ER | Not Available |
| 138 | Not Available | SCREW M4 x | 8636337001036ER | Not Available |
| 139 | Not Available | SCREW M4 x | 861471700176 | Not Available |
| 140 | Not Available | SCR M39 X 13 MM DIN 7981 | 861470300102ER | Not Available |
| 141 | Not Available | ACCESS DOOR | 8636339020124ER | Not Available |
| 142 | Not Available | LEVER | 8636340020127ER | Not Available |
| 143 | Not Available | LEAF | 8636341020129ER | Not Available |
| # | Part image | Description | SKU | Price |
| 100 | Not Available | CHASSIS 18" | 8636346020202HG | Not Available |
| 101 | Not Available | REAR BOTTOM PLATE | 8636347020205ER | Not Available |
| 102 | Not Available | BUMPER | 8636348020110ER | Not Available |
| 103 | Not Available | RETAINING BRACKET | 8636316020115 | Not Available |
| 104 | Not Available | REAR BOTTOM PLATE | 8636349020108ER | Not Available |
| 105 | Not Available | FOOT PEDAL | 8636318020230ER | Not Available |
| 106 | Not Available | SWIVEL NECK BEARING | 8636319020136ER | Not Available |
| 107 | Not Available | WHEEL | 861466002306HG | Not Available |
| 108 | Not Available | AXLE CLAMP | 863632002014ER | Not Available |
| 109 | Not Available | PILE ADJUSTMENT AXLE | 8636321020126ER | Not Available |
| 110 | No Image | WHEEL, PILE ADJUSTMENT VSP14 VSP18 Part Number: 8.614-661.0 for Windsor | 86146610 | $31.26Read more |
| 111 | Not Available | THRUST MEMBER | 861462202833 | Not Available |
| 112 | Not Available | ADJUSTMENT BUTTON | 8636322020128ER | Not Available |
| 113 | Not Available | SPRING | 861452704019 | Not Available |
| 114 | Not Available | BRUSH MOTOR 120V | 863635003261ER | Not Available |
| 114A | Not Available | BRUSH SET CARBON VAC MTR | 8613839005141S | Not Available |
| 115 | Not Available | BRUSH MOTOR PULLEY FM | 863090302319 | Not Available |
| 116 | Not Available | BELT 333 3M HTDII-6 | 861382202923 | Not Available |
| 117 | Not Available | SWIVEL NECK CPL | 8636323020219ER | Not Available |
| 117A | Not Available | SWIVEL NECK | 8636324020133ER | Not Available |
| 118 | Not Available | WIRE COMPL. SET-3 WIRE WITH MICRO SWITCH | 863632500893WI | Not Available |
| 119 | No Image | COVER, SWIVEL NECK VS14 VS18 Part Number: 8.614-582.0 for Windsor | 86145820 | $36.12Read more |
| 120 | Not Available | SWIVEL NECK SUPPORT | 8636326020217ER | Not Available |
| 121 | Not Available | SWIVEL NECK SUPPORT L.H. | 8636327020218ER | Not Available |
| 122 | Not Available | LEVER VSE SWITCH | 861430502534 | Not Available |
| 123 | Not Available | SPRING VSE LEAF | 861452402546 | Not Available |
| 124 | Not Available | CLAMP | 861399701073 | Not Available |
| 125 | Not Available | BRUSH PULLEY | 863632802919ER | Not Available |
| 126 | Not Available | PRINTED CIRCUIT BOARD (120V 200W) | 8636329020156ER | Not Available |
| 127 | Not Available | BRUSH ASSEMBLY CPL | 863633004099ER | Not Available |
| 128 | Not Available | BRUSH STRIP 18" MODEL U19840 | 860016404028 | Not Available |
| 129 | Not Available | BEARING BLOCK L.H. | 8636331020123ER | Not Available |
| 130 | Not Available | BEARING BLOCK R.H. | 8636332020117ER | Not Available |
| 131 | Not Available | BRUSH ROLLER RELEASE | 8636333020120ER | Not Available |
| 131A | Not Available | SPRING | 8636334020121ER | Not Available |
| 132 | | LEVER WITH SPRING, SUPPORT VSP14 VSP18 Part Number: 8.614-544.0 for Windsor | 86145440 | $78.10Read more |
| 133 | Not Available | SPRING VSE RETURN | 863455802651 | Not Available |
| 134 | Not Available | POWER HEADS VERSAMATIC VS | 8636338020221VS | Not Available |
| 135 | Not Available | SIDE PLATE | 8636336020118ER | Not Available |
| 136 | Not Available | SCR 4X20-T20 STS | 8614479001017ER | Not Available |
| 137 | Not Available | SCRM4X12 MM W/WASHER | 861448500197ER | Not Available |
| 138 | Not Available | SCREW 4 x | 8636337001036ER | Not Available |
| 139 | Not Available | SCREW M4 x | 861471700176 | Not Available |
| 140 | Not Available | SCR M39 X 13 MM DIN 7981 | 861470300102ER | Not Available |
| 141 | Not Available | ACCESS DOOR | 8636339020124ER | Not Available |
| 142 | Not Available | LEVER | 8636340020127ER | Not Available |
| 143 | Not Available | LEAF | 8636341020129ER | Not Available |
Report errors on this page HERE
