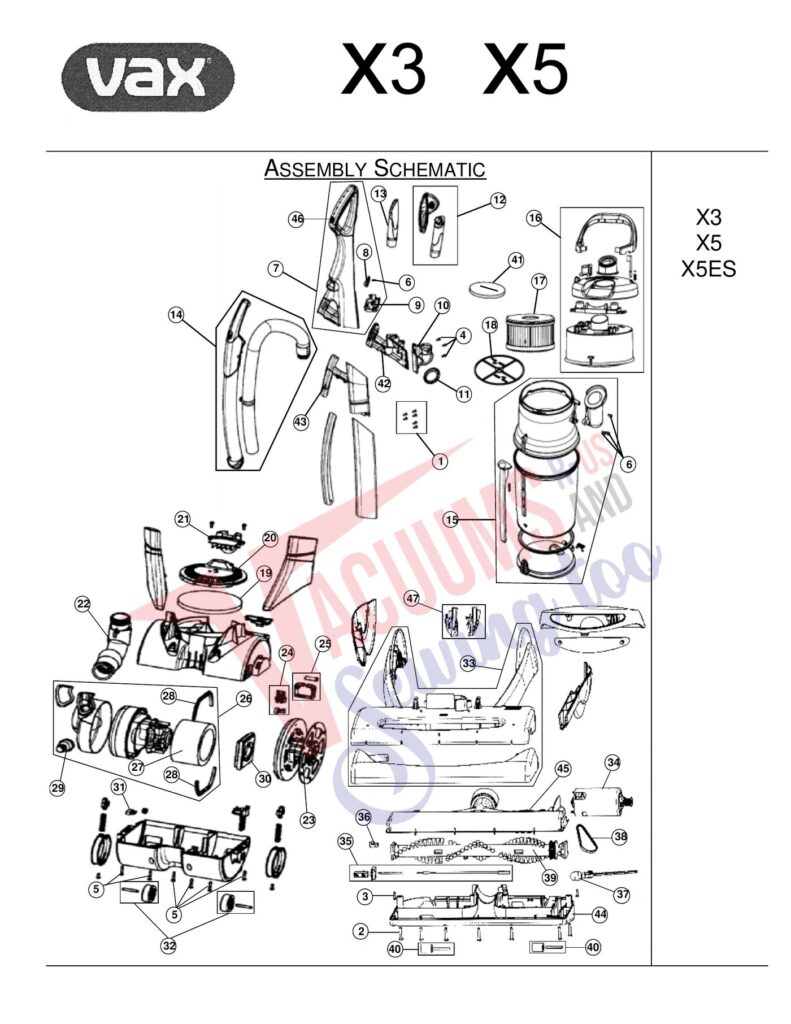

Schematic and parts book for Vax X3;X5;X5ES . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| (19) | Not Available | SCENT FILTER - SUMMER TROPICAL BREEZE (1) | 3VX53T | Not Available |
| (19) | Not Available | SCENT FILTER - FALL BAKED APPLE (1) | 3VX50A | Not Available |
| (19) | Not Available | SCENT FILTER - WINTER CINNAMON (1) | 3VX51C | Not Available |
| (19) |  | FILTER, SCENTED SPRING VERBENA 6 TO A CASE Part Number: 3VX52L for Royal | 3VX52L | $14.89Read more |
| 1 | No Image | SCREW, HANDLE SCREW PACKAGE Part Number: 2LJ0709000 for Royal | 2LJ0709000 | $1.63Read more |
| 2 | Not Available | SCREW - BODY X5 | 1LJ0701000 | Not Available |
| 3 | Not Available | SCREW - NOZZLE BASE | 1LJ0070200 | Not Available |
| 4 | Not Available | SCREW - INLET ELBOW | 1LJ0709000 | Not Available |
| 5 | Not Available | SCREW - MOTOR HOUSING | 1LJ0900000 | Not Available |
| 6 | Not Available | SCREW - CORD HOOK / DIRT INLET | 1LJ0708000 | Not Available |
| 7 | Not Available | UPPER HANDLE ASSEMBLY - ORANGE | 2LJ0260000 | Not Available |
| 7 |  | X5 Upper Handle Assembly For: royal | 2LJ0909000 | $53.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | CORD HOOK - GREY | 1LJ0280000 | Not Available |
| 9 | Not Available | TOOL CLIP - GREY | 1LJ0285000 | Not Available |
| 10 | Not Available | INLET ELBOW HOSE ADAPTOR | 1LJ0290000 | Not Available |
| 11 | Not Available | INLET ELBOW HOSE ADAPTOR SEAL | 1LJ0291000 | Not Available |
| 12 | Not Available | UPHOLSTERY / STAIR TOOL ASSY - GREY | 2LJ0500000 | Not Available |
| 13 | Not Available | CREVICE TOOL - GREY | 2LJ0510000 | Not Available |
| 14 | No Image | HOSE, UPPER W/WAND X3 X5 Part Number: 2LJ0400000 for Royal | 2LJ0400000 | $79.99Read more |
| 15 | Not Available | DIRT CUP ASSEMBLY - SMOKE | 2LJ0300000 | Not Available |
| 16 | Not Available | DIRT CUP LID ASSEMBLY - GREY | 2LJ0330000 | Not Available |
| 17 | Not Available | HEPA FILTER ASSEMBLY | 3VX10A | Not Available |
| 18 | Not Available | FILTER SCREEN ASSEMBLY | 2LJ0370000 | Not Available |
| 19 |  | Filter, :( HEPA Exhaust X3 X5 Vax 2Pk Part Number: 3VX13U for Royal | 3VX13U | $13.60Read more |
| 20 | No Image | HOUSING, EXHAUST FILTER VAX X3 Part Number: 1LJ0245000 for Royal | 1LJ0245000 | $10.00Read more |
| 21 | Not Available | EXHAUST FILTER HOUSING LOCK | 1LJ0247000 | Not Available |
| 22 | Not Available | LOWER HOSE ASSEMBLY | 2LJ0065600 | Not Available |
| 23 | Not Available | CORD REWIND ASSEMBLY | 2LJ0180000 | Not Available |
| 24 | No Image | PEDAL, W/BREAK 130005 Part Number: 2LJ0226000 for Royal | 2LJ0226000 | $1.96Read more |
| 25 | Not Available | CORD GUIDE - ORANGE | 2LJ0221000 | Not Available |
| 26 | Not Available | MOTOR ASSEMBLY | 2LJ0170000 | Not Available |
| 27 | Not Available | MOTOR SOUND FOAM | 1LJ0174000 | Not Available |
| 28 | Not Available | MOTOR SUPPORT RING | 1LJ0172600 | Not Available |
| 29 | Not Available | AIR BLEED VALVE ASSEMBLY | 2LJ0175600 | Not Available |
| 30 | Not Available | MOTOR GROMMET | 1LJ0173000 | Not Available |
| 31 |  | Switch, Red Micro X5 Part Number: 1LJ0205000 for Royal | 1LJ0205000 | $4.07Read more |
| 32 | Not Available | REAR WHEEL & PIN ASSEMBLY | 2LJ0230000 | Not Available |
| 33 | No Image | COVER, NOZZLE Part Number: 2LJ0015CB0 for Royal | 2LJ0015CB0 | $36.27Read more |
| 33 | Not Available | NOZZLE COVER ASSEMBLY - PURPLE | 2LJ0015CC0 | Not Available |
| 34 | No Image | MOTOR, BRUSHROLL VAX X3/ X5 Part Number: 2LJ0050000 for Royal | 2LJ0050000 | $65.63Read more |
| 35 | Not Available | RECTIFIER ASSEMBLY | 2912177000 | Not Available |
| 36 | Not Available | CIRTCUIT BREAKER RESET ASSEMBLY | 1UA0210000 | Not Available |
| 37 | Not Available | LIGHT BULB | 1920906000 | Not Available |
| 38 | Not Available | DRIVE BELT | 1LJ0055600 | Not Available |
| 39 | Not Available | BRUSH ROLL ASSEMBLY | 2LJ0030000 | Not Available |
| 40 | No Image | WHEEL, FRONT X5 Part Number: 2QC0185600 for Royal | 2QC0185600 | $2.62Read more |
| 41 | Not Available | FOAM FILTER | 1LJ0371000 | Not Available |
| 42 | Not Available | UPPER HANDLE BACK SUPPORT - ORG | 1LJ0255000 | Not Available |
| 43 | Not Available | UPPER HANDLE FRONT SUPPORT - ORG | 1LJ0256000 | Not Available |
| 44 | Not Available | NOZZLE BASE | 1LJ0010000 | Not Available |
| 45 | No Image | HOUSING, BRUSHROLL CLEAR X3 Part Number: 1LJ0016X00 for Royal | 1LJ0016X00 | $10.13Read more |
| 46 | Not Available | SWITCH | 1LJ0270000 | Not Available |
| 47 | Not Available | PIVOT CLAMP - SET 2 RIGHT/LEFT | 1LT1014000 | Not Available |
| 47 | Not Available | VAX TOOL BIT | 1VAX000000 | Not Available |
| 47 | Not Available | TURBO TOOL - PURPLE | XVX12T | Not Available |
| 47 | Not Available | FLEX WAND - PURPLE | XVX11W | Not Available |
