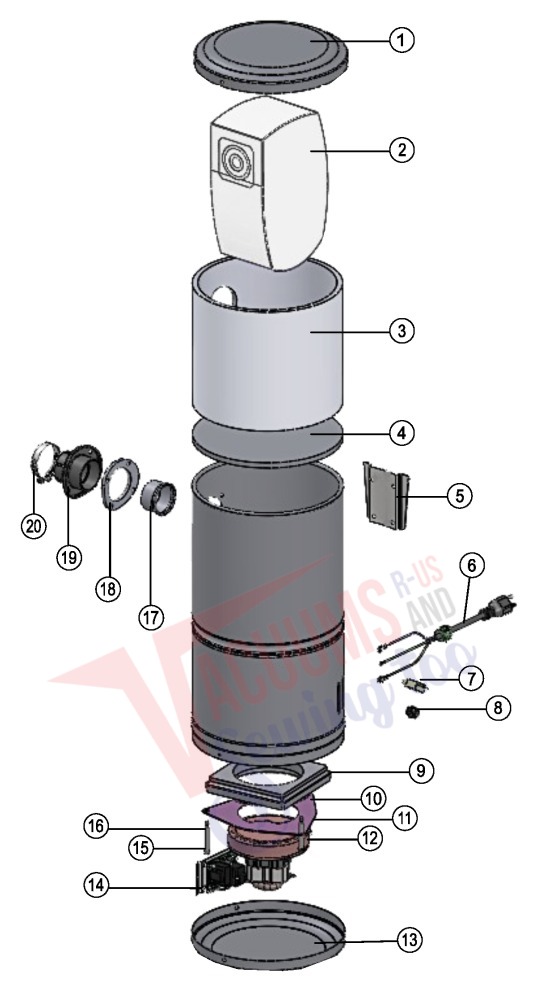

Schematic and parts book for VacuFlo MX2500 Builder Unit, MX2500 MX2500 Builder Unit. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown | Not Available | Wall Mounting Bracket | 9368 | Not Available |
| 1 | Not Available | Top Cover with Gasket | 10062-15-TOP | Not Available |
| 2 | Not Available | MX2500 Replacement Bags (3-Pack) | 80150 | Not Available |
| 3 | Not Available | Canister Foam Liner | 80158 | Not Available |
| 4 | Not Available | Secondary Filter | 80157 | Not Available |
| 5 | Not Available | Can Mounting Bracket | 9367 | Not Available |
| 6 | Not Available | Power Cord Supply Assembly | 7110-01 | Not Available |
| 7 |  | Titan Circuit Protector Titan Tcs8575 Central Vac | 875601 | $26.48Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Low Voltage Connector | 7106-01 | Not Available |
| 9 | Not Available | Motor Gasket | 7758 | Not Available |
| 10 | Not Available | Motor Bracket | 9935 | Not Available |
| 11 | Not Available | Motor Bracket Gasket | 9936 | Not Available |
| 12 | Not Available | Ametek Lamb Motor | 122348-07 | Not Available |
| 13 | Not Available | Bottom Cover | 10062-15 | Not Available |
| 14 |  | Relay - Vacuflo Central Vac
Fits Vacuflo 260 - 360 - 460 - Dd - Cv950 - Bud 5807 &9915 For: t... | 7090 | $111.71Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | 1/4 Washer Bonded Seal | 9748 | Not Available |
| 16 | Not Available | Shoulder Bolt #10-24 x 2" | 9746-04 | Not Available |
| 17 | Not Available | O-Ring Insert | 9903 | Not Available |
| 18 | Not Available | Inlet Gasket | 9808 | Not Available |
| 19 | Not Available | Inlet Filling | 9809 | Not Available |
| 20 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
