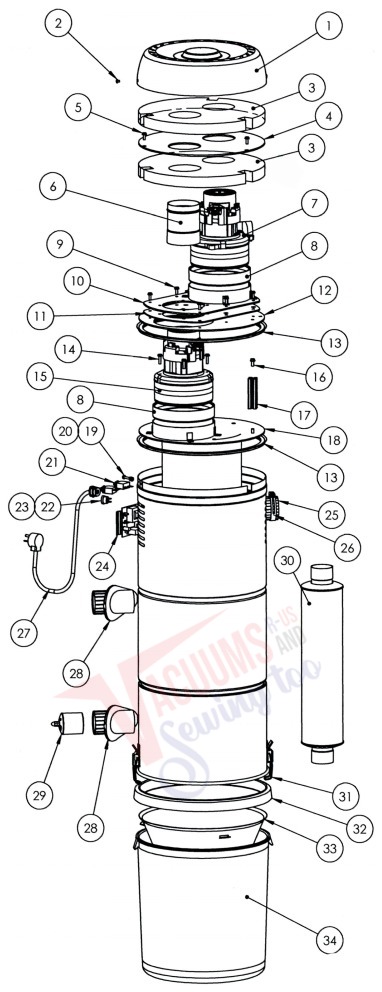

Schematic and parts book for VacuFlo MaxAir MaxAir. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Top Cover | 7873-02 | Not Available |
| 2 | Not Available | Screw, Top Cover | 9024-01 | Not Available |
| 3 | Not Available | Barrier Plate Foam | 9053 | Not Available |
| 4 | Not Available | Barrier Plate | 9059 | Not Available |
| 5 | Not Available | Screw, Barrier Plate | 4957-01 | Not Available |
| 6 | Not Available | Motor Support Tube | 9054 | Not Available |
| 7 | Not Available | Ametek Lamb Motor (Top) | 122101-07 | Not Available |
| 8 | Not Available | Motor Gasket | 0046 | Not Available |
| 9 | Not Available | Screw, Motor Plate Assembly | 4962-02 | Not Available |
| 10 | Not Available | Removable Motor Plate with Ring | 9055-ASSY | Not Available |
| 11 | Not Available | Removable Motor Plate Gasket | 9061 | Not Available |
| 12 | Not Available | Upper Motor Plate | 9060 | Not Available |
| 13 | Not Available | Motor Plate Gasket | 7405-02 | Not Available |
| 14 | Not Available | Screw, Peripheral Motor | 9067 | Not Available |
| 15 | Not Available | Ametek Lamb Motor (Bottom) | 122100-07 | Not Available |
| 16 | Not Available | Screw, Motor Plate Spacer | 9068 | Not Available |
| 17 | Not Available | Motor Plate Spacer | 9062 | Not Available |
| 18 | Not Available | Lower Motor Plate Assembly with Ring | 9058-ASSY | Not Available |
| 19 | Not Available | Ground Screw | 7539-01 | Not Available |
| 20 | Not Available | Ground Screw Nut | 7108 | Not Available |
| 21 | Not Available | 10 Amp Circuit Protector | 8756-02 | Not Available |
| 22 | Not Available | Low Voltage Connector | 7106-01 | Not Available |
| 23 |  | Extractor Drain Valve Commercial For: fit all, commercial | 7105 | $41.37Read more |
| 24 | Not Available | PC Board | 7417-CE | Not Available |
| 25 | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| 26 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 27 | Not Available | 240V Power Cord | 9052 | Not Available |
| 28 | No Image | Inlet Fitting,Flexible-Titan Tcs5525,Tcs8575 | 7092 | $25.55Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Air Relief Valve | 9056-01 | Not Available |
| 30 | Not Available | Muffler Assembly | 9074 | Not Available |
| 31 | Not Available | Wire Loop | 4835 | Not Available |
| 32 | No Image | GASKET (DK.GRY) 99160, 99175 Part Number: 4775-06 for HP Products | 477506 | $17.77Read more |
| 33 | Not Available | Small Cone | 3708 | Not Available |
| 34 | Not Available | Small Dirt Bin | 6988-02 | Not Available |
| # | Part image | Description | SKU | Price |
