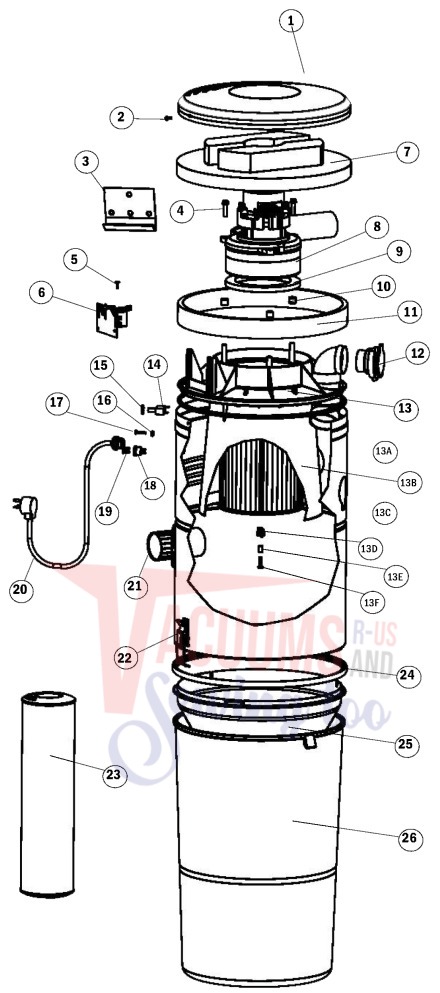

Schematic and parts book for VacuFlo FC650 FC650. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| Not Shown | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 1 | Not Available | Top Cover | 8174-01 | Not Available |
| 2 | Not Available | Screw, Top Cover | 7064-02 | Not Available |
| 3 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Motor Bracket Screw | 28426-15 | Not Available |
| 5 | Not Available | PC Board Screw | 8148 | Not Available |
| 6 |  | Relay - Pc Board - Titan Tcs-5525 Central Vac
Tcs8575 For: titan | 812501 | $116.41Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Foam Air Separator | 8523 | Not Available |
| 8 |  | Motor, 5.7" 2 Stage 120 Volt Acustek Tangential BP Part Number: 119914-45 for Lamb | 11991445 | $335.84Read more |
| 9 | Not Available | Motor Gasket | 8133-01 | Not Available |
| 10 | Not Available | Motor Spacer | 8522 | Not Available |
| 11 | Not Available | Acoustic Foam Liner | 8503 | Not Available |
| 12 |  | Inlet Valve Assembly - Titan Tcs-5525 Central Vac For: titan | 8123 | $43.38Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Motor Plate and Filter Assembly | 8103-01 | Not Available |
| 13A | Not Available | Motor Plate Gasket | 30278 | Not Available |
| 13B | Not Available | Filter Shroud | 8147 | Not Available |
| 13C | Not Available | 7" Cartridge Filter | 8106-01 | Not Available |
| 13D | Not Available | Filter Latch (White) | 9431 | Not Available |
| 13E | Not Available | T-Latch Bushing | 8124 | Not Available |
| 13F | Not Available | T-Latch Mounting Screw | 28426-16 | Not Available |
| 14 |  | Titan Circuit Protector Titan Tcs8575 Central Vac | 875601 | $26.48Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Nylon Hex Nut | 7693 | Not Available |
| 16 | Not Available | Grounding Screw Hex Nut | 7108 | Not Available |
| 17 | Not Available | Grounding Screw | 7539-01 | Not Available |
| 18 | Not Available | Low Voltage Connector | 7106-01 | Not Available |
| 19 |  | Extractor Drain Valve Commercial For: fit all, commercial | 7105 | $41.37Read more |
| 20 | Not Available | 120V Power Cord | 8757 | Not Available |
| 21 | No Image | Inlet Fitting,Flexible-Titan Tcs5525,Tcs8575 | 7092 | $25.55Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Wire Loop | 4835 | Not Available |
| 23 | Not Available | 12" Round Muffler | 8080 | Not Available |
| 24 |  | Titan Gasket Dirt Cone-titan Tcs-5525 Tcs-8575 | 810801 | $14.36Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Titan Dirt Cone Titan Tcs5525 Tcs8575 Central Vac | 810401 | $40.43Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Titan Dirt Receptacle Titan Tcs-8575 Central Vacclear Will Work On Tcs-5525 | 810201 | $94.32Add to cart Special order: ships in 2 to 4 weeks |
