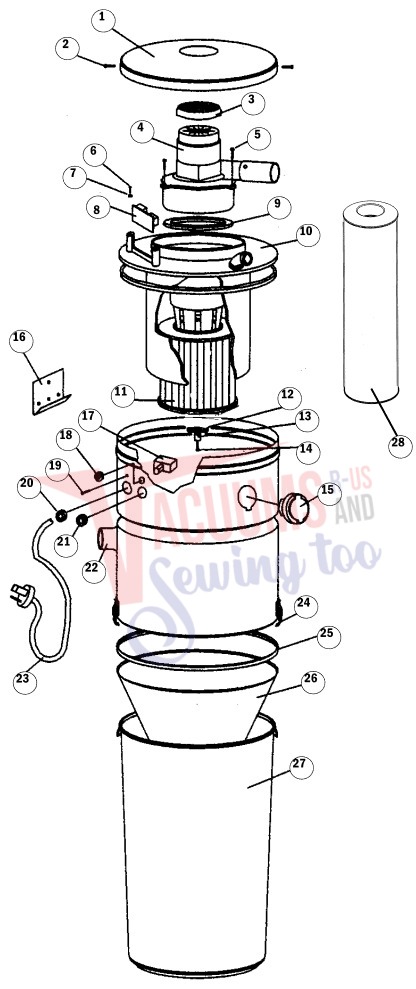

Schematic and parts book for VacuFlo FC610 FC610. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| Not Shown | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 1 | Not Available | Top Cover (Black) | 8174-12 | Not Available |
| 2 | Not Available | Screw, Top Cover | 7064-02 | Not Available |
| 3 | Not Available | Motor Cap | 7726 | Not Available |
| 4 | Not Available | Ametek Lamb Motor | 119633-00 | Not Available |
| 5 | Not Available | Motor Bracket Screw | 28426-15 | Not Available |
| 6 | Not Available | PC Board Screw | 28426-13 | Not Available |
| 7 | Not Available | Washer | 29719-05 | Not Available |
| 8 |  | Relay - Pc Board - Titan Tcs-5525 Central Vac
Tcs8575 For: titan | 812501 | $116.41Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Motor Gasket | 8133-01 | Not Available |
| 10 | Not Available | Motor Plate | 8103-01 | Not Available |
| 11 | Not Available | 7" Cartridge Filter | 8106-01 | Not Available |
| 12 | Not Available | Filter Latch (White) | 9431 | Not Available |
| 13 | Not Available | T-Latch Bushing | 8124 | Not Available |
| 14 | Not Available | Motor Screw | 28426-16 | Not Available |
| 15 |  | Inlet Valve Assembly - Titan Tcs-5525 Central Vac For: titan | 8123 | $43.38Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | 15 Amp Circuit Protector | 7107-01 | Not Available |
| 18 | Not Available | Nylon Hex Nut | 7693 | Not Available |
| 19 | Not Available | Screw, 8-32 x 3/4" | 7539-01 | Not Available |
| 20 | Not Available | Bushing | 2478-04 | Not Available |
| 22 | No Image | Inlet Fitting,Flexible-Titan Tcs5525,Tcs8575 | 7092 | $25.55Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Power Supply Cord | 7451-01 | Not Available |
| 24 | Not Available | Wire Loop | 4835 | Not Available |
| 25 |  | Titan Gasket Dirt Cone-titan Tcs-5525 Tcs-8575 | 810801 | $14.36Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Titan Dirt Cone Titan Tcs5525 Tcs8575 Central Vac | 810401 | $40.43Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Titan Dirt Receptacle Titan Tcs-8575 Central Vacclear Will Work On Tcs-5525 | 810201 | $94.32Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | 12" Round Muffler | 8080 | Not Available |
