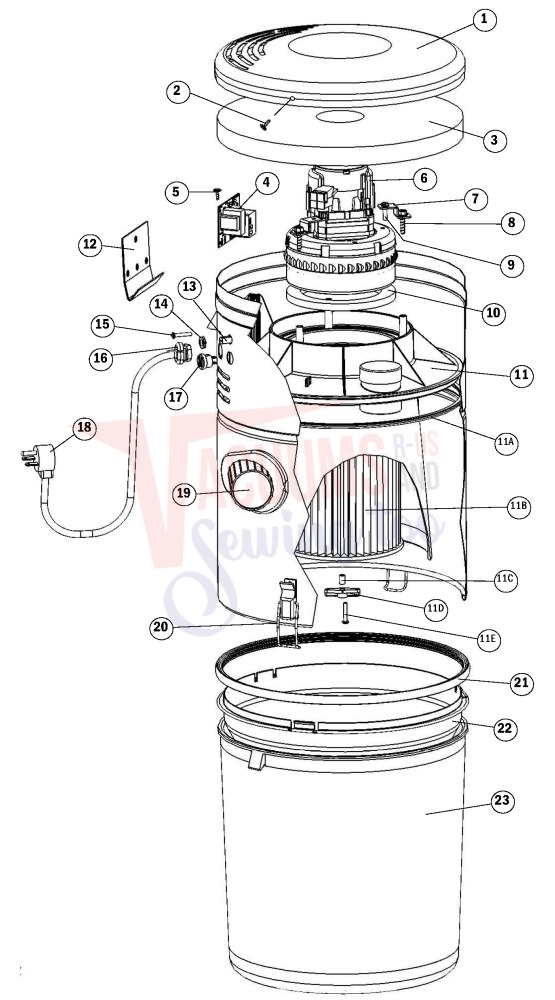

Schematic and parts book for VacuFlo FC250 FC250. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Top Cover | 8174-01 | Not Available |
| 2 | Not Available | Screw, Top Cover | 7064-02 | Not Available |
| 3 | Not Available | Foam Air Separator | 8225 | Not Available |
| 4 | Not Available | PC Board | 7091 | Not Available |
| 5 | Not Available | PC Board Screw | 8148 | Not Available |
| 6 | No Image | MOTOR, CV1800 CENTRAL VACUUM Part Number: 8224-01 for HP Products | 822401 | $206.40Read more |
| 7 | Not Available | Motor Bracket | 8202 | Not Available |
| 8 | Not Available | Motor Bracket Screw | 28426-15 | Not Available |
| 9 | Not Available | Motor Screw | 4962-01 | Not Available |
| 10 | Not Available | Motor Gasket | 8133-01 | Not Available |
| 11 | Not Available | Motor Plate and Filter Assembly | 8103-06 | Not Available |
| 11A | Not Available | Motor Plate Gasket | 30278 | Not Available |
| 11B | Not Available | 7" Cartridge Filter | 8106-01 | Not Available |
| 11C | Not Available | T-Latch Bushing | 8124 | Not Available |
| 11D | Not Available | Filter Latch (White) | 9431 | Not Available |
| 11E | Not Available | T-Latch Mounting Screw | 28426-16 | Not Available |
| 12 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Titan Circuit Protector Titan Tcs8575 Central Vac | 875601 | $26.48Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Nylon Hex Nut | 7693 | Not Available |
| 15 | Not Available | Grounding Screw | 7539-01 | Not Available |
| 16 | Not Available | Bushing | 2478-04 | Not Available |
| 17 | Not Available | Low Voltage Connector | 7106-01 | Not Available |
| 18 | Not Available | Power Cord Supply Assembly | 7110-01 | Not Available |
| 19 | No Image | Inlet Fitting,Flexible-Titan Tcs5525,Tcs8575 | 7092 | $25.55Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Wire Loop | 4835 | Not Available |
| 21 |  | Titan Gasket Dirt Cone-titan Tcs-5525 Tcs-8575 | 810801 | $14.36Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Titan Dirt Cone Titan Tcs5525 Tcs8575 Central Vac | 810401 | $40.43Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Short Dirt Bucket | 6988-01 | Not Available |
