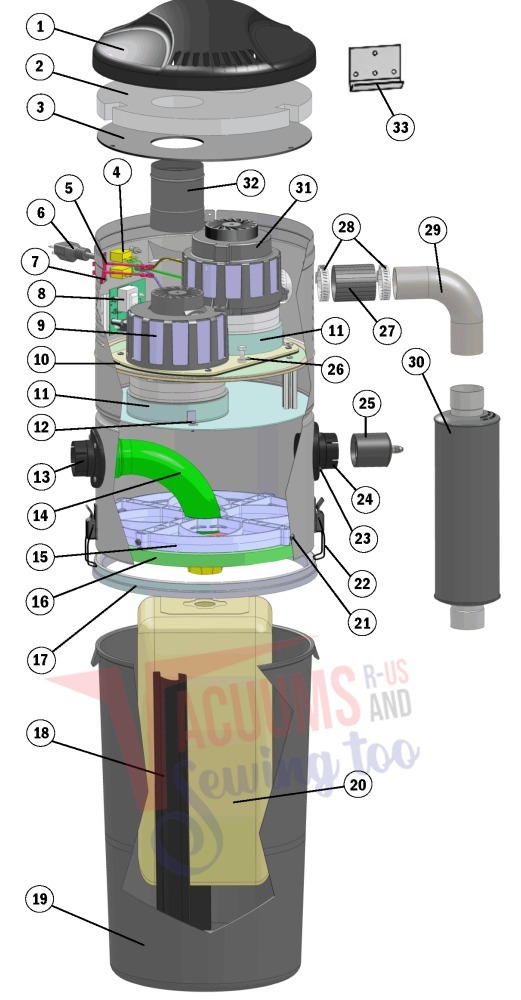

Schematic and parts book for VacuFlo DB9000 Maxum9, DB9000 DB9000 Maxum9. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown | Not Available | #10 Self-Drilling Screw | 4957-01 | Not Available |
| 1 | Not Available | Top Cover for DB Units | 9348 | Not Available |
| 2 | Not Available | Barrier Plate Foam | 9944 | Not Available |
| 3 | No Image | DISPLAY, PANASONIC QUIETFORCE Part Number: 9945 for Panasonic | 9945 | $0.00Read more |
| 4 | Not Available | Circuit Protector (240V, 10A) | 8756-02 | Not Available |
| 5 | Not Available | Low Voltage Connector | 9942 | Not Available |
| 6 | Not Available | Power Cord, 240V, NEMA 6-15P | 9052 | Not Available |
| 7 | Not Available | Screw, Lg #10-24 x 1/2" Hi-Lo Voltage Connector | 9252-01 | Not Available |
| 8 | Not Available | PC Board Assembly Relay | 7417-CE | Not Available |
| 9 | Not Available | Ametek Lamb Motor (Bottom Motor) | 122100-01 | Not Available |
| 10 | Not Available | Removable Motor Plate w/Ring | 9055-ASSY | Not Available |
| 11 | Not Available | Bottom Motor Gasket | 0046 | Not Available |
| 12 | Not Available | Screw, #10-16 x 3/4" | 9067 | Not Available |
| 13 | Not Available | Inlet Assembly | 9900 | Not Available |
| 14 | Not Available | Adapter Elbow Assembly | 9920 | Not Available |
| 15 | Not Available | Elbow Support Plate | 9901 | Not Available |
| 16 | Not Available | Secondary Filter | 9931 | Not Available |
| 17 | Not Available | DB & Inverted Filter Unit Dirt Canister Gasket | 9472 | Not Available |
| 18 | Not Available | Vacuum Tap Extrusion | 9531 | Not Available |
| 19 | Not Available | Tall Dirt Bucket | 8102-02 | Not Available |
| 20 | Not Available | Maxum Cleanshield Filter Bags (3-Pack) | 9520 | Not Available |
| 21 | Not Available | Screw, 1" Lg 10-24, Elbow Support | 9929 | Not Available |
| 22 | Not Available | Wire Loop | 4835 | Not Available |
| 23 | Not Available | Screw, Lg 10-24 x 1/2 | 9827 | Not Available |
| 24 | Not Available | Bolt on Inlet Fitting | 9809 | Not Available |
| 25 | Not Available | Automatic Air Relief Valve Preset | 9056-01 | Not Available |
| 26 | Not Available | Screw, #10-24 x 1/2" | 9827 | Not Available |
| 27 | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| 28 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 29 | Not Available | 90 Degree Metal Exhaust Elbow | 1196 | Not Available |
| 30 | Not Available | Muffler Assembly with Metal Ends | 9074 | Not Available |
| 31 | Not Available | Ametek Lamb Motor (Top Motor) | 122101-07 | Not Available |
| 32 | Not Available | Motor Support Tube | 9054 | Not Available |
| 33 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
