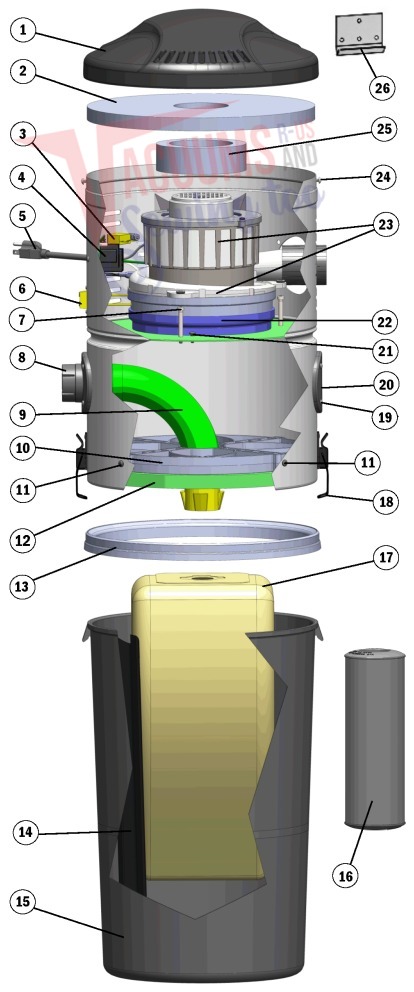

Schematic and parts book for VacuFlo DB8000 Maxum8, DB8000 DB8000 Maxum8. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown | Not Available | Screw, Lg #10-24 x 1/2" for Hi-Lo Voltage Connector | 9252-01 | Not Available |
| 1 | Not Available | Top Cover for DB Units | 9348 | Not Available |
| 2 | Not Available | Acoustic Foam | 9402 | Not Available |
| 3 | Not Available | Circuit Protector (120V, 20A) | 9939 | Not Available |
| 4 |  | Relay - Vacuflo Central Vac
Fits Vacuflo 260 - 360 - 460 - Dd - Cv950 - Bud 5807 &9915 For: t... | 7090 | $111.71Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | 120V Power Cord | 8757 | Not Available |
| 6 | Not Available | Low Voltage Connector | 9942 | Not Available |
| 7 | Not Available | Shoulder Bolts #10-24 x 2-1/2" | 9746-01 | Not Available |
| 8 | Not Available | Inlet Assembly | 9900 | Not Available |
| 9 | Not Available | Adapter Elbow Assembly | 9920 | Not Available |
| 10 | Not Available | Elbow Support Plate | 9901 | Not Available |
| 11 | Not Available | Screw, 1" Lg 10-24 for Elbow Support Plate | 9929 | Not Available |
| 12 | Not Available | Secondary Filter | 9931 | Not Available |
| 13 | Not Available | DB & Inverted Filter Unit Dirt Canister Gasket | 9472 | Not Available |
| 14 | Not Available | Vacuum Tap Extrusion | 9531 | Not Available |
| 15 | Not Available | Tall Dirt Bucket | 8102-02 | Not Available |
| 16 | Not Available | 12" Round H-P Muffler | 8080 | Not Available |
| 17 | Not Available | Maxum Cleanshield Filter Bags (3-Pack) | 9520 | Not Available |
| 18 | Not Available | Wire Loop | 4835 | Not Available |
| 19 | Not Available | Screw, Lg #10-24 1/2 | 9827 | Not Available |
| 20 | Not Available | Inlet Hole Cover | 9904 | Not Available |
| 21 | Not Available | Screw, #10-24 x 1/2" | 9827 | Not Available |
| 22 | Not Available | Motor Gasket | 9701 | Not Available |
| 23 | Not Available | Ametek Lamb Motor | 122503-07 | Not Available |
| 24 | Not Available | Top Cover Screw | 9024-01 | Not Available |
| 25 | Not Available | Chimney Foam | 9943 | Not Available |
| 26 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
