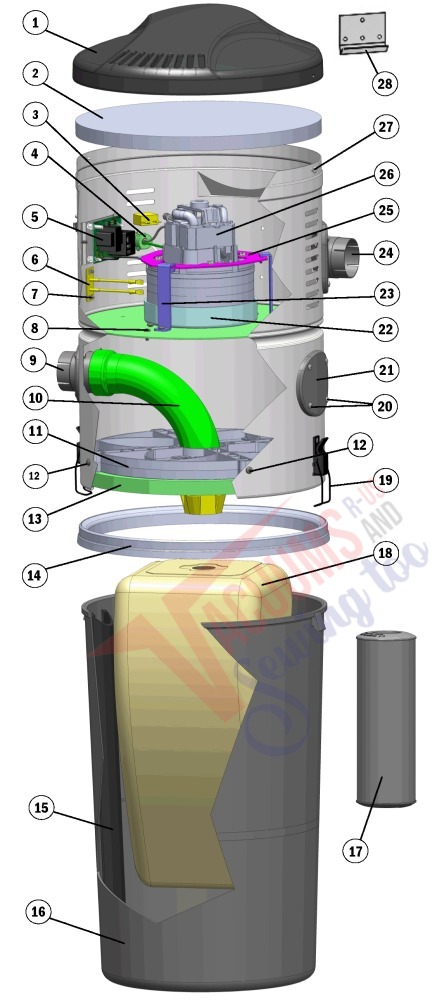

Schematic and parts book for VacuFlo DB5000 Maxum5, DB5000 DB5000 Maxum5. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown | Not Available | Foam Canister Liner | 9937 | Not Available |
| 1 | Not Available | Top Cover for DB Units | 9348 | Not Available |
| 2 | Not Available | Acoustic Foam Insert for DB Units | 9966 | Not Available |
| 3 |  | Titan Circuit Protector Titan Tcs8575 Central Vac | 875601 | $26.48Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | 120V Power Cord | 8757 | Not Available |
| 5 |  | Relay - Vacuflo Central Vac
Fits Vacuflo 260 - 360 - 460 - Dd - Cv950 - Bud 5807 &9915 For: t... | 7090 | $111.71Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Low-Voltage Connector | 9942 | Not Available |
| 7 | Not Available | Screw, Lg #10-24 x 1/2" Hi-Lo Voltage Connector | 9252-01 | Not Available |
| 8 | Not Available | Screw, Lg #10-24 1/2" | 9827 | Not Available |
| 9 | Not Available | Inlet Assembly | 9900 | Not Available |
| 10 | Not Available | Adapter Elbow Assembly | 9920 | Not Available |
| 11 | Not Available | Elbow Support Plate | 9901 | Not Available |
| 12 | Not Available | Screw, 1" Lg 10-24, Elbow Support Plate | 9929 | Not Available |
| 13 | Not Available | Secondary Filter | 9931 | Not Available |
| 14 | Not Available | DB & Inverted Filter Unit Dirt Canister Gasket | 9472 | Not Available |
| 15 | Not Available | Vacuum Tap Extrusion | 9531 | Not Available |
| 16 | Not Available | Tall Dirt Bucket | 8102-02 | Not Available |
| 17 | Not Available | 12" Round H-P Muffler | 8080 | Not Available |
| 18 | Not Available | Maxum Cleanshield Filter Bags (3-Pack) | 9520 | Not Available |
| 19 | Not Available | Wire Loop | 4835 | Not Available |
| 20 | Not Available | Screw, Lg 10-24 x 1/2 | 9827 | Not Available |
| 21 | Not Available | Inlet Hole Cover | 9904 | Not Available |
| 22 | Not Available | Bottom Motor Gasket | 0046 | Not Available |
| 23 | Not Available | Motor Bracket | 9511 | Not Available |
| 24 | Not Available | Exhaust Fitting | 9898 | Not Available |
| 25 | Not Available | Motor Attach Plate | 9526 | Not Available |
| 26 | Not Available | Ametek Lamb Motor | 122287-07 | Not Available |
| 27 | Not Available | Top Cover Screw | 9024-01 | Not Available |
| 28 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
