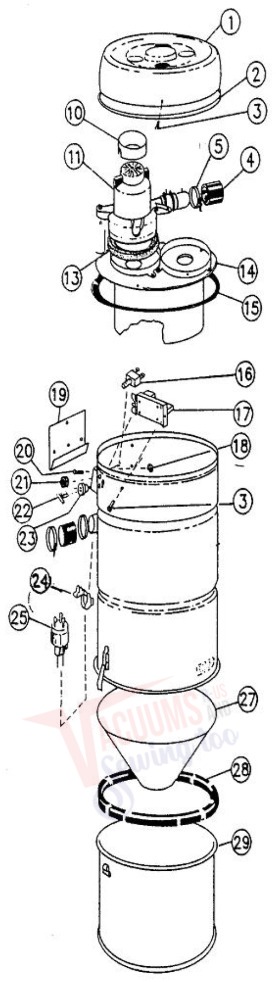

Schematic and parts book for VacuFlo 960 960. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Top Cover with Edge Protector | 7398 | Not Available |
| 2 | Not Available | Edge Protector | 7062-01 | Not Available |
| 3 | Not Available | Screw, 8-32 x 3/8" | 7064-02 | Not Available |
| 4 | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| 5 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 10 | Not Available | Motor Spacer | 7411 | Not Available |
| 11 | Not Available | Ametek Lamb Motor (Left) | 117549-07 | Not Available |
| 13 | Not Available | Bottom Motor Gasket | 0010 | Not Available |
| 14 | Not Available | Motor Plate Assembly | 7424 | Not Available |
| 15 | Not Available | Motor Plate Gasket | 7405-01 | Not Available |
| 16 | Not Available | 15 Amp Circuit Protector | 7107-01 | Not Available |
| 17 | Not Available | PC Board | 7416 | Not Available |
| 18 | Not Available | Hex Nut 8-32 | 7108 | Not Available |
| 19 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Screw, 8-32 x 3/4" | 7539-02 | Not Available |
| 21 | Not Available | Nylon Hex Nut | 7693 | Not Available |
| 22 |  | Extractor Drain Valve Commercial For: fit all, commercial | 7105 | $41.37Read more |
| 23 | Not Available | Low Voltage Connector | 7106-01 | Not Available |
| 24 | Not Available | Strain Relief Bushing | 2478-05 | Not Available |
| 25 | Not Available | 120V Power Supply Cord | 6868-01 | Not Available |
| 27 | Not Available | Plastic Cone Assembly | 7386 | Not Available |
| 28 | Not Available | Gasket | 7299-04 | Not Available |
| 29 | Not Available | Dirt Canister | 6515 | Not Available |
