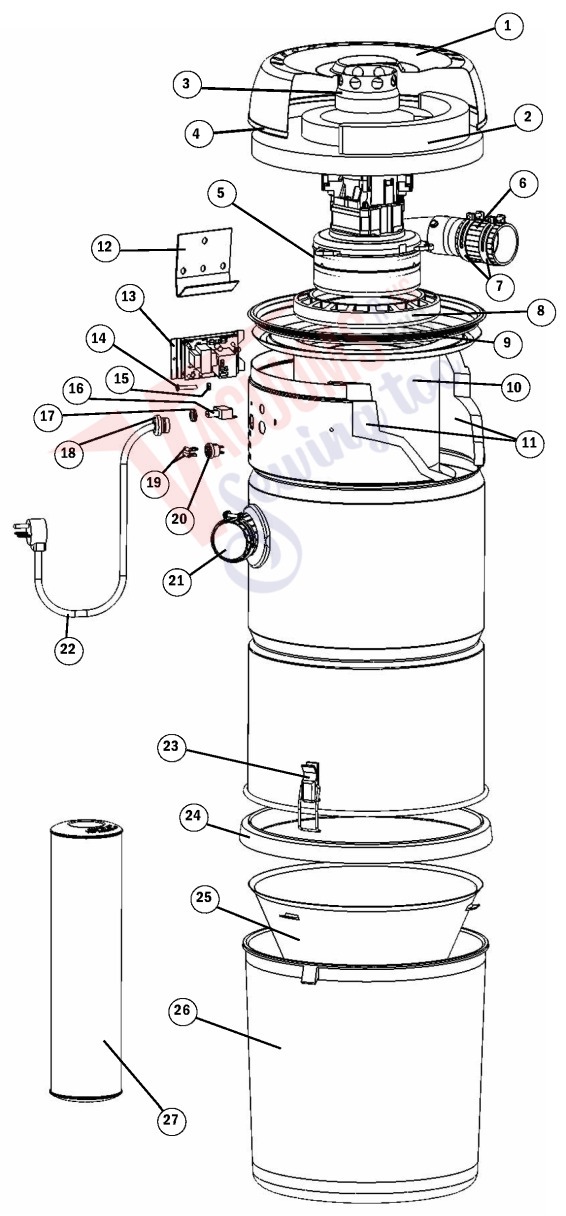

Schematic and parts book for VacuFlo 466Q 466Q. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown | Not Available | Screw, 8-32 x 3/8" | 7064-02 | Not Available |
| 1 | Not Available | Top Cover Assembly | 8539 | Not Available |
| 2 | Not Available | Acoustic Foam Ring | 8393 | Not Available |
| 3 | Not Available | Motor Chimney | 8543 | Not Available |
| 4 | Not Available | Edge Protector | 7062-01 | Not Available |
| 5 | No Image | MOTOR, 5.7" 2 STAGE 120 VOLT ACUSTEK VACUFLO 466Q Part Number: 119915-07 for Lamb | 11991507 | $353.66Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| 7 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 8 | Not Available | Bottom Motor Gasket | 7697 | Not Available |
| 9 | Not Available | Motor Plate Gasket | 0009 | Not Available |
| 10 | Not Available | Motor Plate Assembly | 0002 | Not Available |
| 11 | Not Available | Acoustic Foam Canister Liner | 8386 | Not Available |
| 12 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Relay - Vacuflo Central Vac
Fits Vacuflo 260 - 360 - 460 - Dd - Cv950 - Bud 5807 &9915 For: t... | 7090 | $111.71Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Grounding Screw | 7539-01 | Not Available |
| 15 | Not Available | Hex Nut 8-32 | 7108 | Not Available |
| 16 |  | Titan Circuit Protector Titan Tcs8575 Central Vac | 875601 | $26.48Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Nylon Hex Nut | 7693 | Not Available |
| 18 | Not Available | Strain Relief Bushing | 2478-04 | Not Available |
| 19 |  | Extractor Drain Valve Commercial For: fit all, commercial | 7105 | $41.37Read more |
| 20 | Not Available | Low Voltage Connector | 7106-01 | Not Available |
| 21 | No Image | Inlet Fitting,Flexible-Titan Tcs5525,Tcs8575 | 7092 | $25.55Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | 120V Power Cord | 8757 | Not Available |
| 23 | Not Available | Wire Loop | 4835 | Not Available |
| 24 | No Image | GASKET (DK.GRY) 99160, 99175 Part Number: 4775-06 for HP Products | 477506 | $17.77Read more |
| 25 | Not Available | Small Cone | 3708 | Not Available |
| 26 | Not Available | Small Dirt Bin | 6988-02 | Not Available |
| 27 | Not Available | 12" Round Muffler | 8080 | Not Available |
| # | Part image | Description | SKU | Price |
