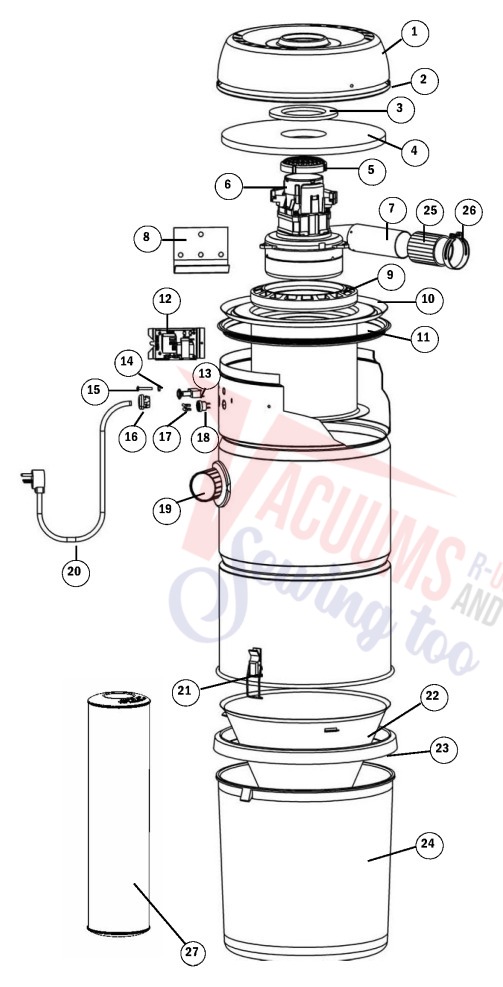

Schematic and parts book for VacuFlo 260 260. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown |  | Carbon Brush-Lamb 117795-00 Motor For: ametek | 334239 | $19.71Add to cart Special order: ships in 2 to 4 weeks |
| 1 | Not Available | Top Cover Assembly | 7188 | Not Available |
| 2 | Not Available | Edge Protector | 7062-01 | Not Available |
| 3 | Not Available | Cooling Air Seal | 7078 | Not Available |
| 4 | Not Available | Acoustic Foam Ring | 7115 | Not Available |
| 5 | Not Available | Motor Cap | 7726 | Not Available |
| 6 | Not Available | Ametek Lamb Motor | 122159 | Not Available |
| 7 | Not Available | Motor Exhaust Tube | 7315 | Not Available |
| 8 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Bottom Motor Gasket | 7697 | Not Available |
| 10 | Not Available | Motor Plate Assembly | 0002 | Not Available |
| 11 | Not Available | Motor Plate Gasket | 0009 | Not Available |
| 12 |  | Relay - Vacuflo Central Vac
Fits Vacuflo 260 - 360 - 460 - Dd - Cv950 - Bud 5807 &9915 For: t... | 7090 | $111.71Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Titan Circuit Protector Titan Tcs8575 Central Vac | 875601 | $26.48Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Hex Nut | 7108 | Not Available |
| 15 | Not Available | Screw, 8-32 x 3/4" | 7539-01 | Not Available |
| 16 | Not Available | Bushing | 2478-04 | Not Available |
| 17 |  | Extractor Drain Valve Commercial For: fit all, commercial | 7105 | $41.37Read more |
| 18 | Not Available | Low Voltage Connector | 7106-01 | Not Available |
| 19 | No Image | Inlet Fitting,Flexible-Titan Tcs5525,Tcs8575 | 7092 | $25.55Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Power Cord Supply Assembly | 7110-01 | Not Available |
| 21 | Not Available | Wire Loop | 4835 | Not Available |
| 22 | Not Available | Plastic Cone | 3708 | Not Available |
| 23 | No Image | GASKET (DK.GRY) 99160, 99175 Part Number: 4775-06 for HP Products | 477506 | $17.77Read more |
| 24 | Not Available | Small Dirt Bin | 6988-02 | Not Available |
| 25 | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| 26 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 27 | Not Available | 12" Round Muffler | 8080 | Not Available |
| # | Part image | Description | SKU | Price |
