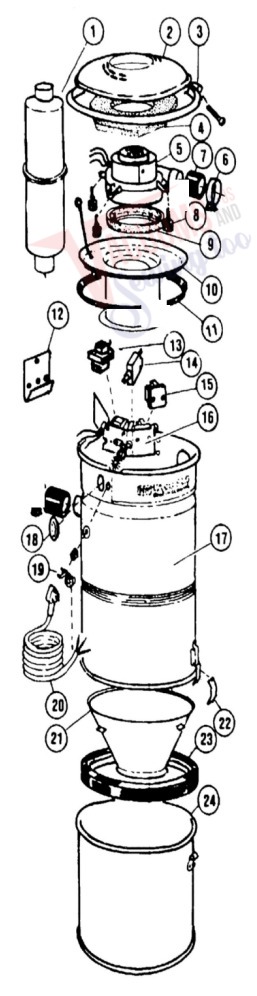

Schematic and parts book for VacuFlo 26 26. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Muffler | 4535W | Not Available |
| 3 | Not Available | Ring with Bolt | 0027-02 | Not Available |
| 4 | Not Available | Acoustic Foam Ring | 7115 | Not Available |
| 5 |  | Ametek Motor(7.2''diam)2fan Bypass-120v-w/horn | 115334 | $381.35Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Metal Exhaust & Intake Clamp | 5156 | Not Available |
| 7 | No Image | Febreze Shark Navigator Liftaway Vacuum Filter | 1209 | $24.98Read more |
| 9 | Not Available | Bottom Motor Gasket | 0010 | Not Available |
| 10 | Not Available | Motor Plate Assembly | 0002 | Not Available |
| 11 | Not Available | Motor Plate Gasket | 0009 | Not Available |
| 12 |  | Wall Bracket - Titan Tcs5575 - Tcs8575 Central Vac For: titan | 7318 | $7.87Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Circuit Protector | 0796 | Not Available |
| 16 | Not Available | PC Board (Serial #000A000) | 7280 | Not Available |
| 19 | Not Available | Bushing | 2478-04 | Not Available |
| 21 | Not Available | Small Plastic Cone | 3708 | Not Available |
| 22 | Not Available | Wire Loop | 4835 | Not Available |
| 23 | No Image | GASKET (DK.GRY) 99160, 99175 Part Number: 4775-06 for HP Products | 477506 | $17.77Read more |
| 24 | Not Available | Small Dirt Bin | 6988-02 | Not Available |
