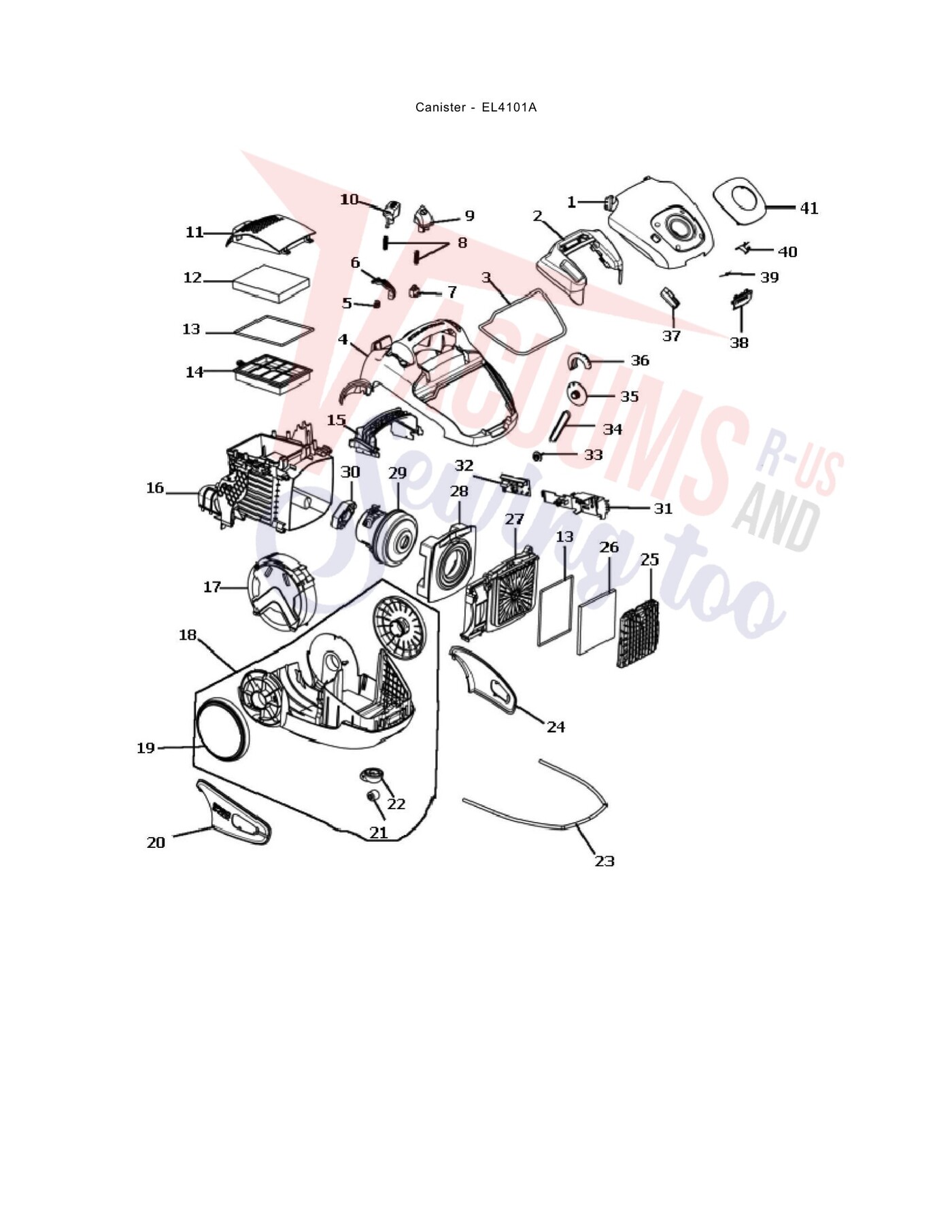

Schematic and parts book for unknown EL4101A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Cover, Dust Bag Ergospace Canister EL4101A Part Number: 2193581-11 for Eureka | 219358111 | $59.42Read more |
| 2 | Not Available | DUST BAG | 1181504-03 | Not Available |
| 3 | Not Available | DUST BAG | 1096847-03 | Not Available |
| 4 | Not Available | CONTROL | 2193688-05 | Not Available |
| 5 | Not Available | SPRING | 63157-2 | Not Available |
| 6 | Not Available | CORD REEL | 1181511-01 | Not Available |
| 7 | Not Available | SWITCH | 2191305-04 | Not Available |
| 8 | Not Available | SPRING | 63157-3 | Not Available |
| 9 | Not Available | ON/OFF | 1181508-03 | Not Available |
| 10 | Not Available | CORD REEL | 1181530-03 | Not Available |
| 11 | Not Available | FILTER GRILL | 2193582-18 | Not Available |
| 12 | Not Available | EXHAUST | 1180215-02 | Not Available |
| 13 | Not Available | GASKET | 2192645-02 | Not Available |
| 14 | Not Available | WASHABLE | EL012W | Not Available |
| 15 | Not Available | HANDLE | 1181510-05 | Not Available |
| 16 | Not Available | MOTOR | 1181518-02 | Not Available |
| 17 | Not Available | CORD REEL | 2198345-38 | Not Available |
| 18 | Not Available | BOTTOM | 2193580-22 | Not Available |
| 20 | Not Available | RIGHT SIDE | 2193689-02 | Not Available |
| 21 | Not Available | FRONT WHEEL | 6680981-64 | Not Available |
| 22 | Not Available | WHEEL SUPPORT | 1096042-01 | Not Available |
| 23 | Not Available | BUMPER | 1181532-07 | Not Available |
| 24 | Not Available | LEFT SIDE | 2193692-02 | Not Available |
| 25 | Not Available | HOLDER | 1130538-03 | Not Available |
| 26 | Not Available | FILTER - | 1130535-01 | Not Available |
| 27 | Not Available | MOTOR | 1181519-02 | Not Available |
| 28 | Not Available | SUSPENSION | 1181520-01 | Not Available |
| 29 | Not Available | MOTOR | 63160-3 | Not Available |
| 30 | Not Available | SUSPENSION | 2191811-01 | Not Available |
| 31 | Not Available | PCB HOLDER | 1181534-02 | Not Available |
| 32 | Not Available | PCB ASSEMBLY | 2192379-16 | Not Available |
| 33 | Not Available | PCB AXLE | 1181512-01 | Not Available |
| 34 | Not Available | PCB BELT | 1181528-01 | Not Available |
| 35 | Not Available | POWER | 1181507-01 | Not Available |
| 36 | Not Available | POWER | 1181533-02 | Not Available |
| 37 | Not Available | DUST BAG | 6681003-51 | Not Available |
| 38 | Not Available | DUST BAG | 1181531-04 | Not Available |
| 39 | Not Available | SPRING | 63147-1 | Not Available |
| 40 | Not Available | DEVICE | 1130523-03 | Not Available |
| 41 | Not Available | HOSE CONNECTOR | 1181514-05 | Not Available |

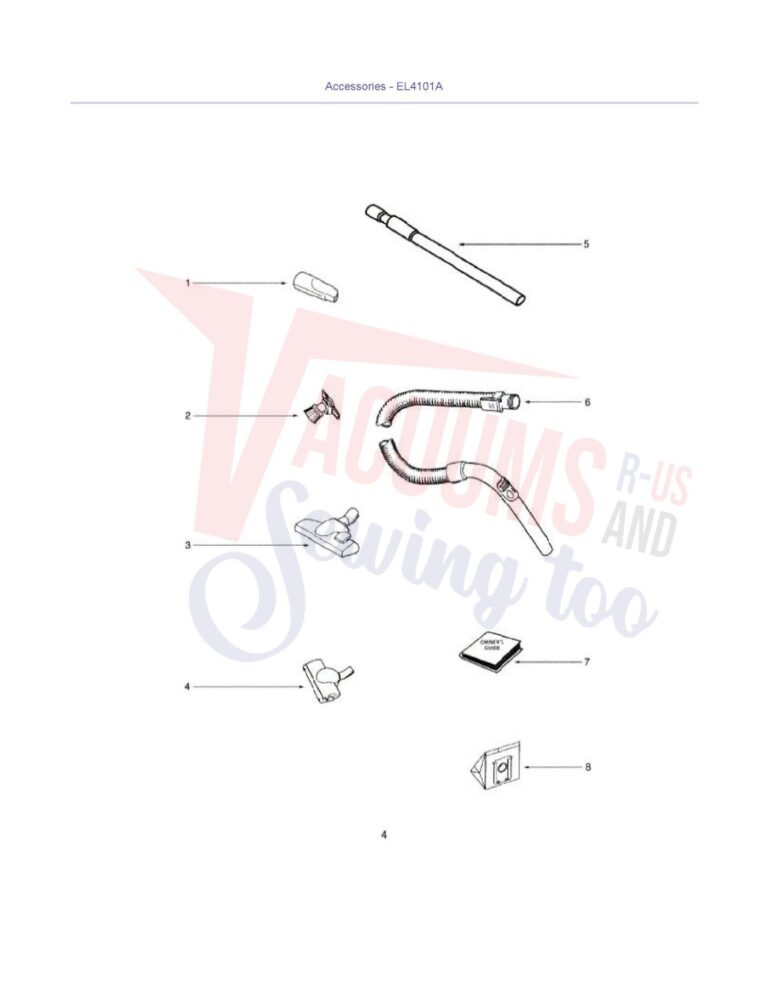

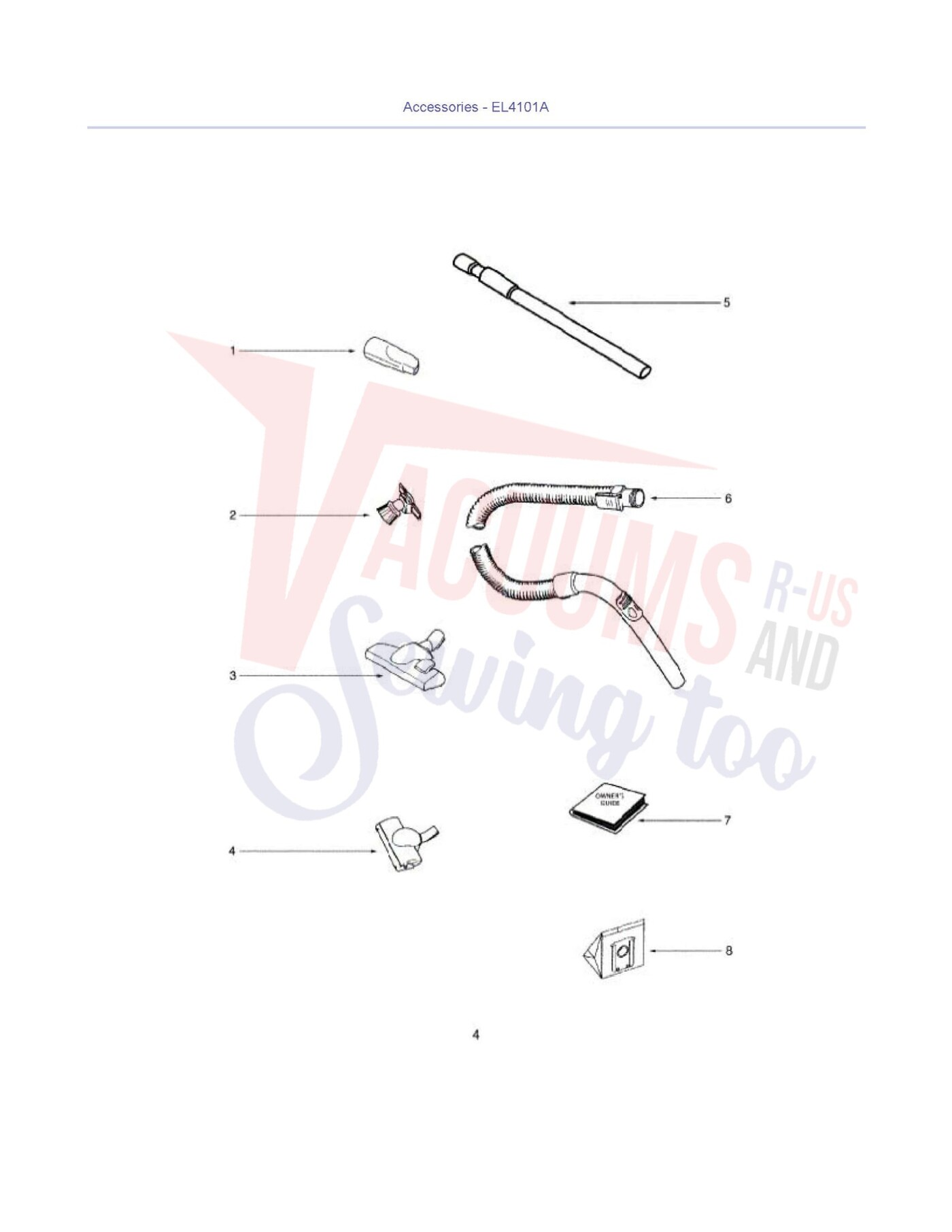

| # | Part image | Description | SKU | Price |
| 1 | Not Available | TELESCOPIC CREVICE | 1096534-01 | Not Available |
| 2 | Not Available | MULTI NOZZLE ASSY | 2193659-04 | Not Available |
| 3 | No Image | ***USE E-2193354-16 FLOOR BRUSH,:( EL1401 Part Number: 2193354-31 for Eureka | 219335431 | $148.50Read more |
| 4 | Not Available | TURBO NOZZLE | 2192334-04 | Not Available |
| 5 | Not Available | TELESCOPIC WAND | 2197037-03 | Not Available |
| 6A | Not Available | HOSE ASSY | 2193686-02 | Not Available |
| 6B | Not Available | BENTEND SOFT (BLACK/BLAC | 1099156-05 | Not Available |
| 7 | Not Available | OWNERS GUIDE | 81783 | Not Available |
| 8 | Not Available | ELECTROLUX S BAG CLASSIC | EL200F | Not Available |
| 8 | Not Available | ELCTRLX SYNTHTC S BAG CLA | EL201 | Not Available |
| 8 | Not Available | S BAG CLINIC | EL202F | Not Available |
