Schematic and parts book for unknown 93016B-1, 93016C-1 PV 6 ROAM . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

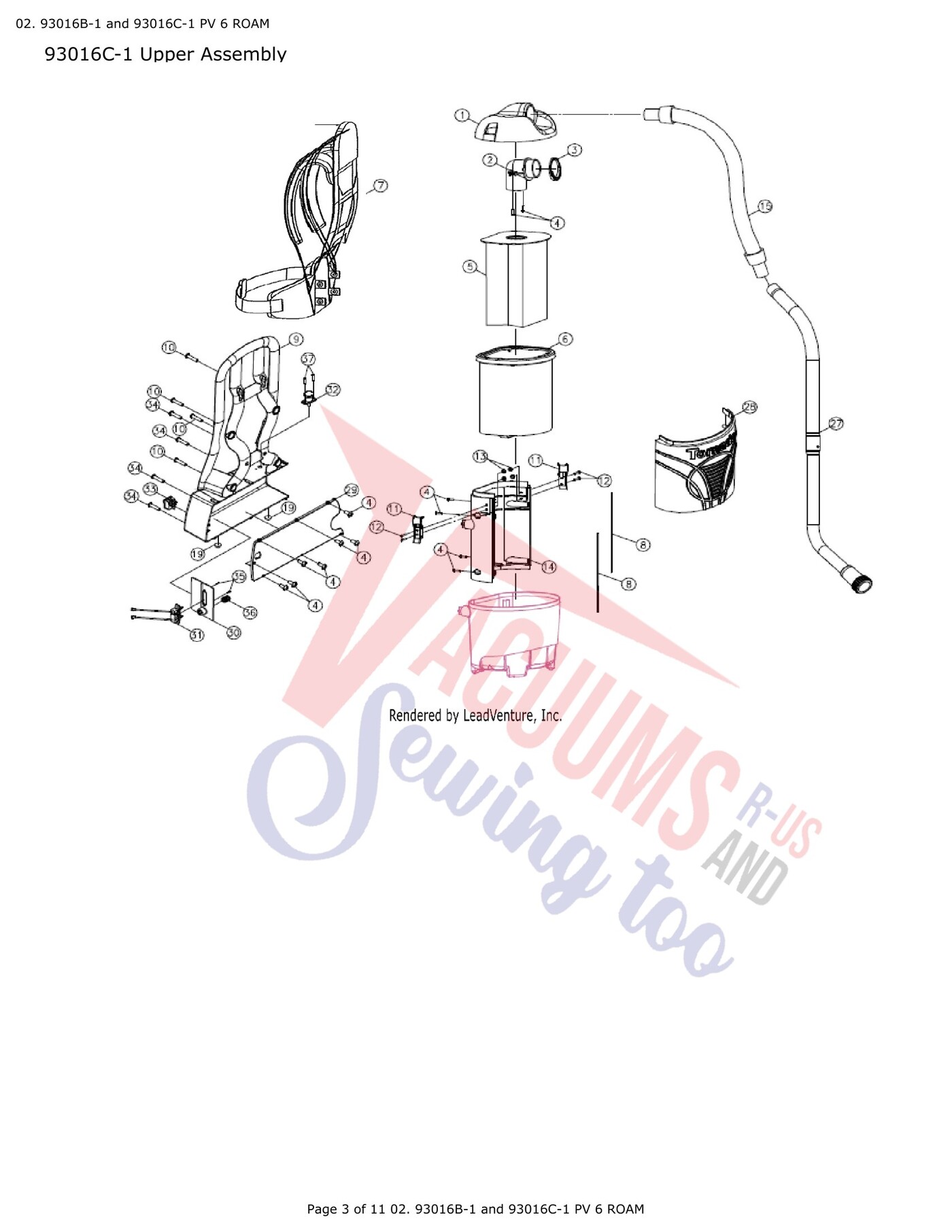

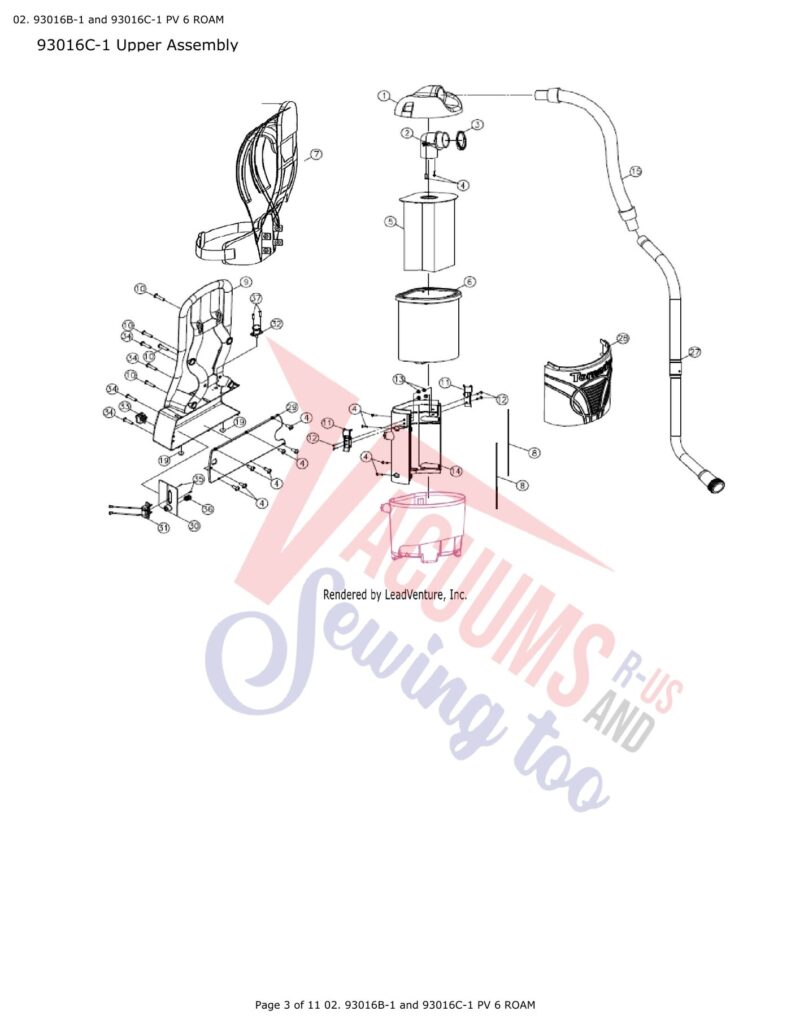

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Charger Vacuum 36 Lithium 5A | X1194A | $395.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | Battery Vacuum 36 Lithium Moli Cell | X1200C | $969.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | Wand Ring (Copper) | 32494 | $0.00Read more |
| 1 |  | Cover Part Number B352-0500 for Cleanmax Models CMBP-6 | B3520500 | $23.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Hose,Inlet,Backpack | B3520600 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Inlet seal Part Number B352-4800 for Cleanmax Models CMBP-6 | B3524800 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Phillps pan head screw 8.625 Part Number A732-8300 for Cleanmax Models CMBP-6,CMBP-6,CMBP-6 | A7328300 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | BAG PAPER VACUUM 6QT 10PK 24/CASE | C3522500 | $34.99Add to cart |
| 6 |  | Cloth Bag, SC412 Backpack Part Number: C3521400 for Eureka | C3521400 | $39.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tornado Backpack Shoulder Harness, Pac-Vac Aircomfort From Deuter | X1152 | $162.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7a |  | SHOULDER RIVET MALE BPV PF300BP CFR30BP SCBP-1 | A3529402 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7b |  | ''Shldr Strp - Rvt (Nut) Female'' For: eureka,sanitaire | A3529401 | $4.98Read more |
| 7c | No Image | TOOL BELT CLIP W/ RETAINER CP STYLE BP | X1241 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Bag compartment seal Part Number B352-6100 for Cleanmax Models CMBP-6 | B3526100 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | FRAME, HARNESS, BATTERY BPV | X1382 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Phillips pan head screw 10.750 Part Number A352-8100 for Cleanmax Models CMBP-6 | A3528100 | $0.00Read more |
| 11 | Not Available | Metal Latch | A352-3300 | Not Available |
| 12 |  | RIVET, COMFORT PRO LATCHES | X9758 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Washer | 01575 | Not Available |
| 14 |  | Cover,Backpack,Smokey Gray,Back Plate, 6QT Vac | B3520443 | $22.99Read more |
| 15 |  | Hose, Black Stretch SC412 Backpack Part Number: A3526900 for Eureka | A3526900 | $70.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Foot Rubber .75d .35h Adhesive Back 3M Sj5017 | X1260 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Tornado BackPack Wand Assembly | CT171CS | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Kit, Commercial 1 1/2" 6Pc Metal Wand Plastic Tls | CM5712 | $66.48Add to cart |
| 28 | No Image | Tornado 6 qt Yellow Front Cover | BAA0013108 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | BATTERY BOX COVER | X1383 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | WALL, TERMINAL, BATTERY BPV | X1384 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Terminal Block, BPV | X1201 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Plunger, Spring Loaded | X1207 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 35 | No Image | SCREW, No 4 X .5 HIGH-LOW (ZP) PHIL FLAT HEAD | X1198 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | SPRING, 29MM LONG X 12 MM OD | X1206 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | SCREW, 8-18 PLASTITE 3/8 ZP PHIL FLAT HEAD | X1263 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

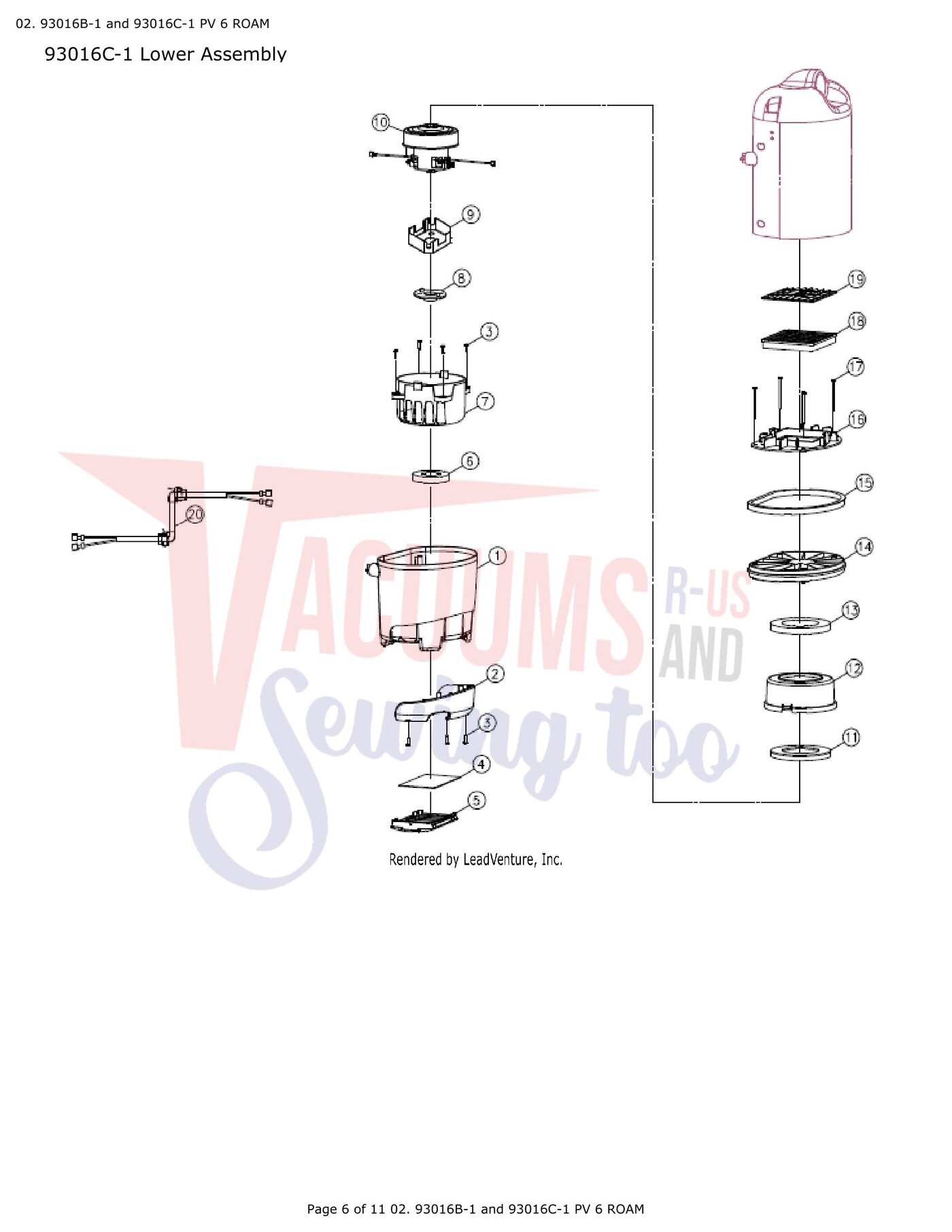

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Compartment | 39190 | Not Available |
| 2 | No Image | Bumper | B3520200 | $0.00Read more |
| 3 | | Phillps pan head screw 8.625 Part Number A732-8300 for Cleanmax Models CMBP-6,CMBP-6,CMBP-6 | A7328300 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Filter,Backpack,Post | B3522400 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Filter,Frame,Backpack,Post | B3521100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Bottom motor mount Part Number B352-1900 for Cleanmax Models CMBP-6 | B3521900 | $5.99Read more |
| 7 |  | Motor shroud cover – bottom Part Number B352-5300 for Cleanmax Models CMBP-6 | B3525300 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Bottom Motor Seal | BA01963582 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Bottom Motor Mount | BA1213000 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Motor Vacuum 36 VCD Tornado Motor | X1208J | Not Available |
| 11 | No Image | Top Motor Seal | BA1243582 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Motor shroud cover - top Part Number B352-5400 for Cleanmax Models CMBP-6 | B3525400 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Top motor mount Part Number B352-1800 for Cleanmax Models CMBP-6,CMBP-6 | B3521800 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Motor cover Part Number B352-0700 for Cleanmax Models CMBP-6 | B3520700 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Body seal Part Number B352-1200 for Cleanmax Models CMBP-6 | B3521200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Secondary filter plate Part Number B352-0800 for Cleanmax Models CMBP-6 | B3520800 | $4.99Add to cart |
| 17 |  | CleanMax 8-16 x 2.500 Phillips Pan Head Screw | A4300205 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | HEPA Filter for Clean Max and Carpet Pro Back Pack Vac alternate pn 6.011 | WP11164 | $4.00Add to cart |
| 19 |  | Secondary Filter Cap BPV PF300BP | B3521000 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | WIRING HARNESS FOR 93016 STYLE BACKPACK | X1261T | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

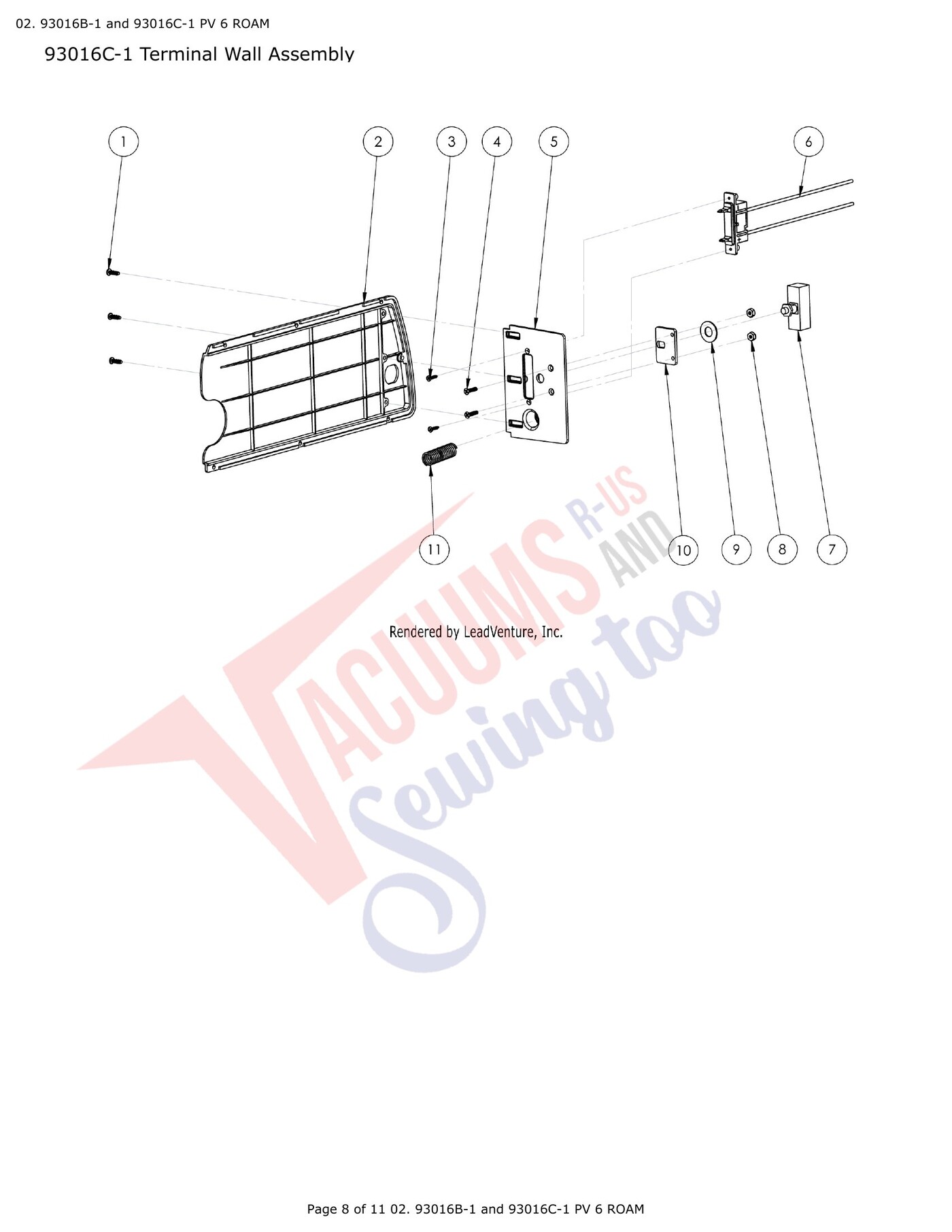

| # | Part image | Description | SKU | Price |
| XX | No Image | Terminal Wall Assy Battery Backpack w/switch | X2527 | $88.99Read more |
| 1 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 2 | No Image | BATTERY BOX COVER | X1383 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | SCREW, No 4 X .5 HIGH-LOW (ZP) PHIL FLAT HEAD | X1198 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | SCREW, 6-32 X 5/8 PHIL FLAT HEAD BLACK | X9748 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | WALL, TERMINAL, BATTERY BPV | X1384 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Terminal Block, BPV | X1201 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Switch, Momentary, 42VDC 40A Inrush | X1523 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | NUT, 6-32 LOCK W/NYLON INSERT ZINC | X8257 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | WASHER, 3/8 USS FLAT 18-8 SS | 7CM004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | BRACKET, MOMENTARY SWITCH MOUNTING CPF | X1526 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | SPRING, 29MM LONG X 12 MM OD | X1206 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

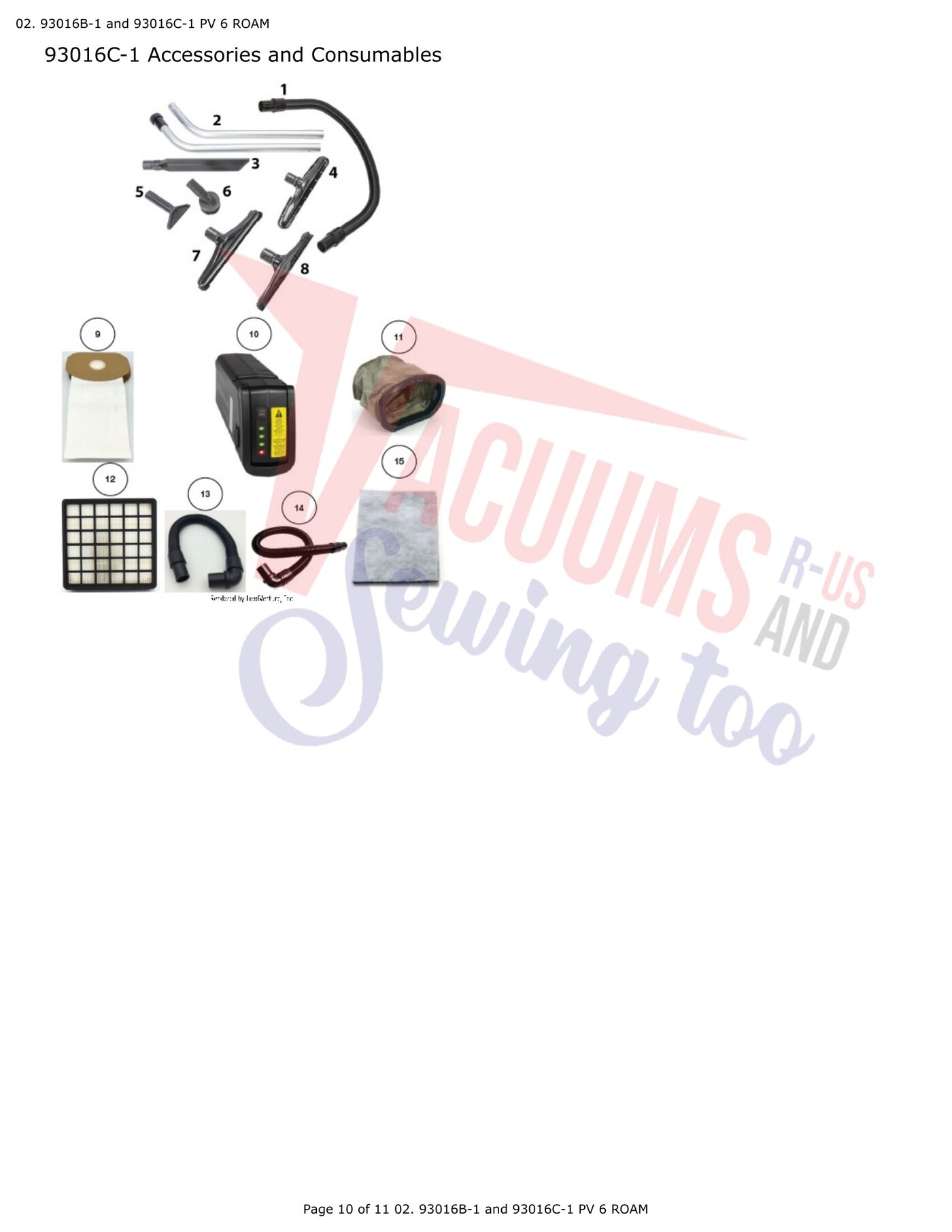

| # | Part image | Description | SKU | Price |
| 1 | | Hose, Black Stretch SC412 Backpack Part Number: A3526900 for Eureka | A3526900 | $70.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Wand Backpack 54in Button | B3524000B | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Tool Crevice 17in Blk Plastic Ring Clip Backpack | CT176 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Tool,Vac,Backpack,14 IN,Carpet,W/screw in clip | B352PF10 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Upholstery Tool, SCBP1 Backpack Part Number: CT188 for Carpet Pro | CT188 | $42.85Read more |
| 6 | No Image | Dust Brush 3in Blk Plastic screw in clip | CT184 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tool Hard Floor w/screw in clip 14in Backpack | C352PF20 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Floor Tool, Black commercial for backpacks 1-1/2"x 14" Nylon Bristles | CM5525 | $27.04Add to cart |
| 8 |  | powr-glide tool carpet too for tacony backpacks | CT190 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | BAG PAPER VACUUM 6QT 10PK 24/CASE | C3522500 | $34.99Add to cart |
| 10 | No Image | Battery Vacuum 36 Lithium Moli Cell | X1200C | $969.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Cloth Bag, SC412 Backpack Part Number: C3521400 for Eureka | C3521400 | $39.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | HEPA Filter for Clean Max and Carpet Pro Back Pack Vac alternate pn 6.011 | WP11164 | $4.00Add to cart |
| 13 | No Image | Hose Stretch 1-1/2 in 2 ft 90 degree cuff | J1005 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Hose Rigid 1-1/2 in 4 ft 90 degree cuff Backpack | J1006 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Filter,Backpack,Post | B3522400 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
