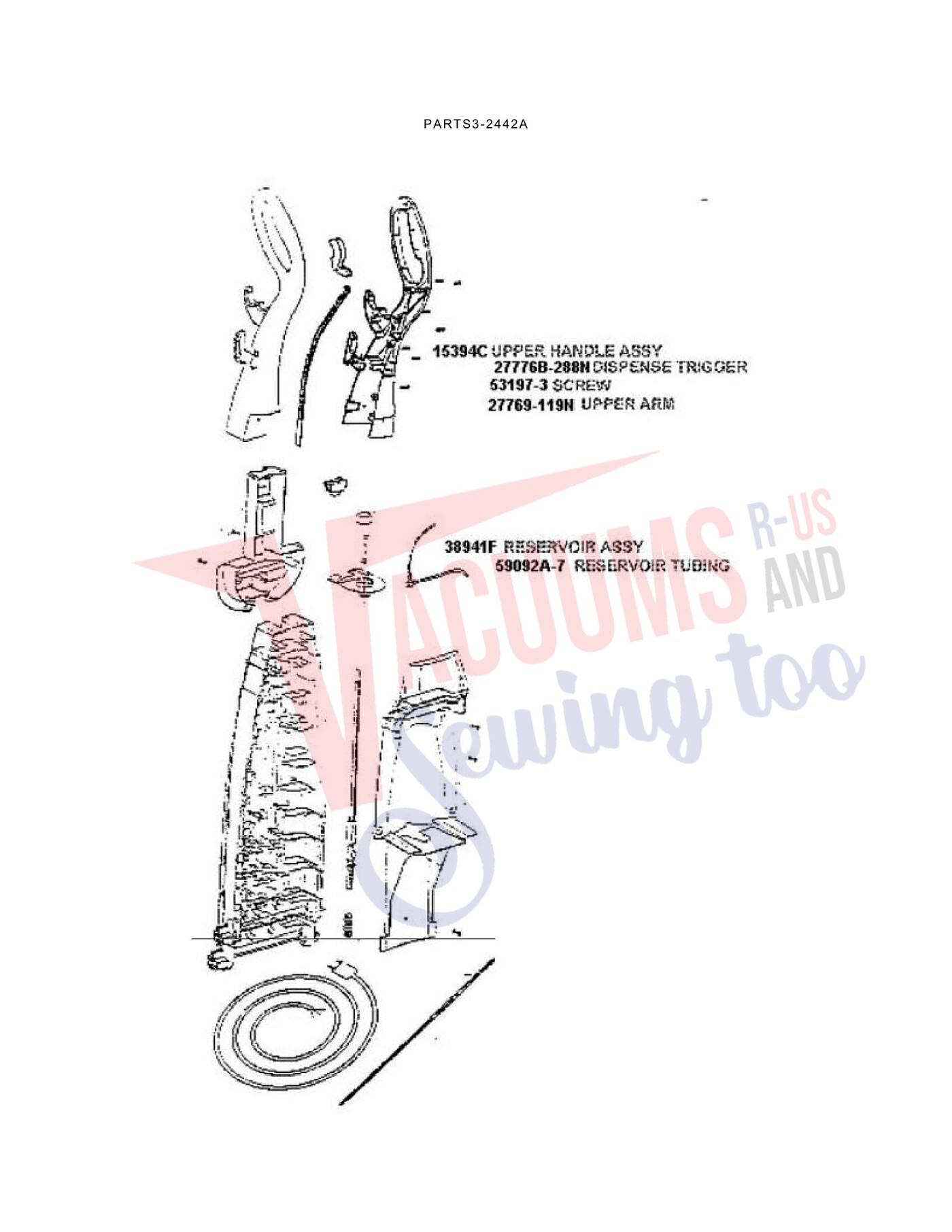

Schematic and parts book for unknown 2442A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | REAR HOUSING ASSEMBLY | 119N | Not Available |
| 1 | Not Available | Het # Part Description comments Qty | 02191 | Not Available |
| 3 | Not Available | ARM - UPPER | 27769-119N | Not Available |
| 7 | Not Available | SWITCH - ROCKER | 36052-3 | Not Available |
| 8 | Not Available | CORD - SUPPLY | 38752-119N | Not Available |
| 9 | Not Available | WARP - CORD | 38836-119N | Not Available |
| 10 | Not Available | SEAL - BOOT | 38845-119N | Not Available |
| 11 | Not Available | CORD - HANDLE | 38874-1 | Not Available |
| 14 | Not Available | DISPENSE VALVE ASSY (3 PO | 39017 | Not Available |
| 15 | Not Available | SCREW PACKAGE | 53197-3 | Not Available |
| 16 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 19 | Not Available | FILTER PACKAGE | 60207 | Not Available |
| 20 | Not Available | SPRING PKG | 60219 | Not Available |

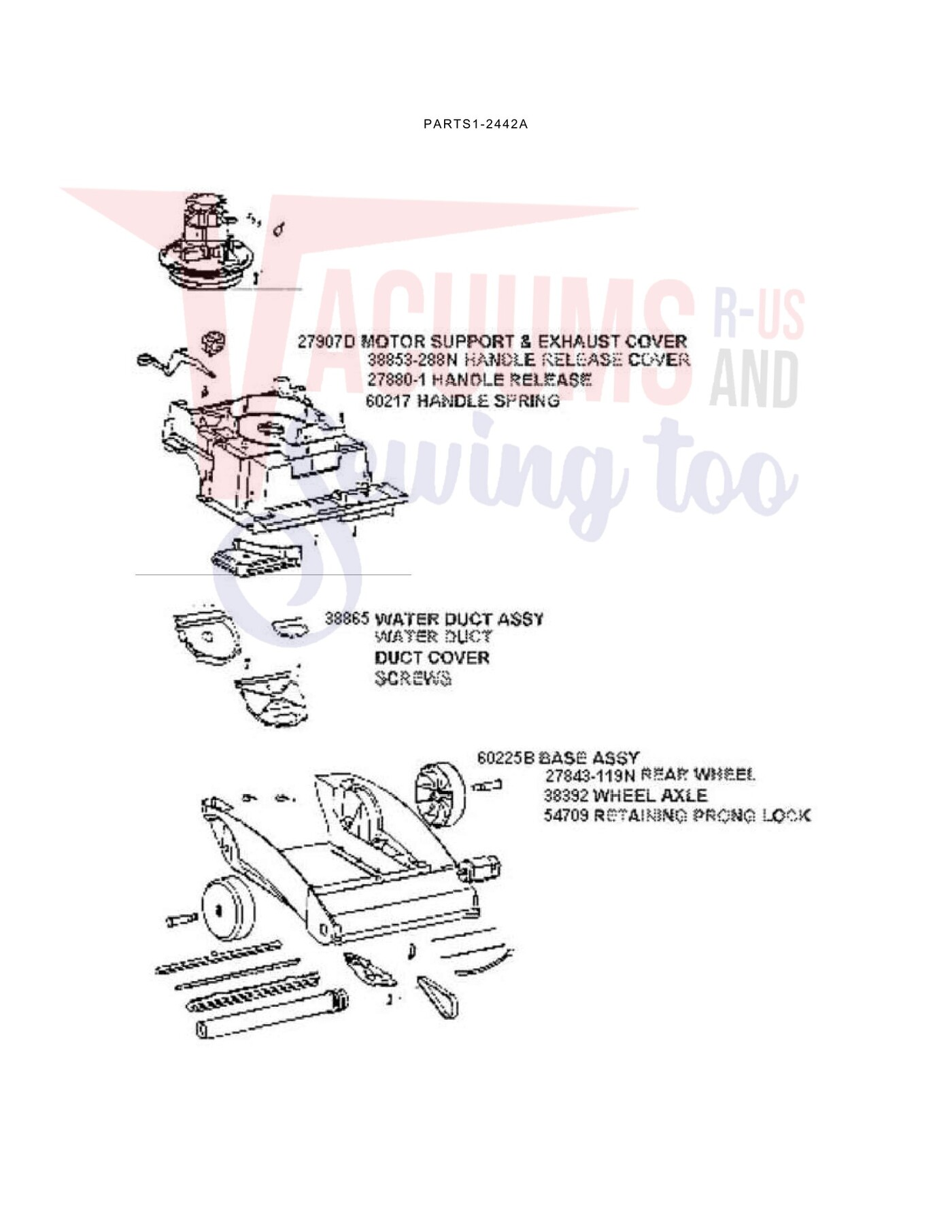

| # | Part image | Description | SKU | Price |
| 1 | Not Available | WHEEL - REAR | 27843-119N | Not Available |
| 2 | Not Available | RELEASE - HANDLE | 27880-1 | Not Available |
| 4 | No Image | WHEEL AXLE, DREAM MACHINE UPRIGHT EXTRACTOR 2450A Part Number: 38392 for Eureka | 38392 | $6.66Read more |
| 7 | Not Available | COVER - HANDLE RELEASE | 38853-288N | Not Available |
| 8 | Not Available | WATER DUCT ASSEMBLY | 38865 | Not Available |
| 9 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 10 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 11 | Not Available | SCREW PACKAGE | 53238-8 | Not Available |
| 12 | Not Available | SCREW PACKAGE | 54669-3 | Not Available |
| 13 | No Image | CLIP, REAR WHEEL EXCALIBAR Part Number: 54709 for Eureka | 54709 | $7.48Read more |
| 14 | Not Available | WIRE & TERMINAL ASSEMBLY | 58739 | Not Available |
| 15 | Not Available | WIRE & TERMINAL ASSEMBLY | 58743 | Not Available |
| 16 | Not Available | WIRE & TERMINAL ASSY | 59323 | Not Available |
| 17 | Not Available | BELT PACKAGE | 60129 | Not Available |
| 18 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | DISTURBULATOR ASSY - CRTN | 60203 | Not Available |
| 20 | No Image | SPRING, HANDLE RELEASE UPRIGHT EXT. 2450 5 PK Part Number: 60217 for Eureka | 60217 | $33.61Read more |
| 21 | Not Available | MOTOR & GASKET -PKG | 60218 | Not Available |
| 22 | Not Available | MOTOR & PULLEY ASSY - CRT | 60623 | Not Available |

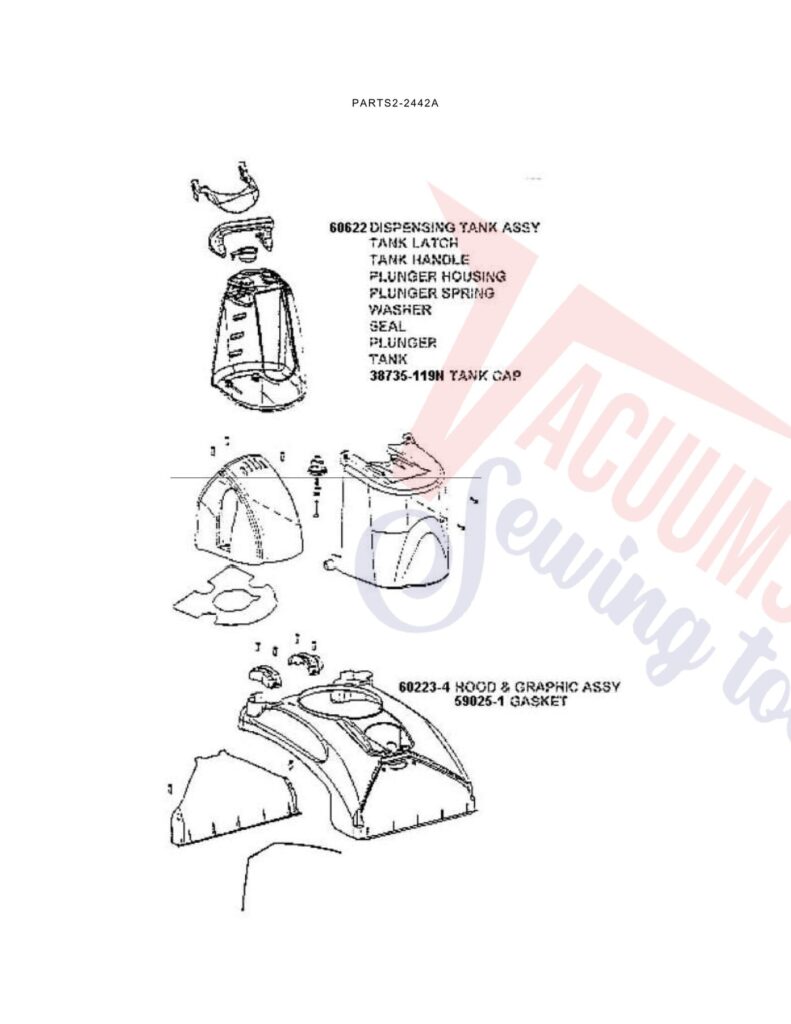

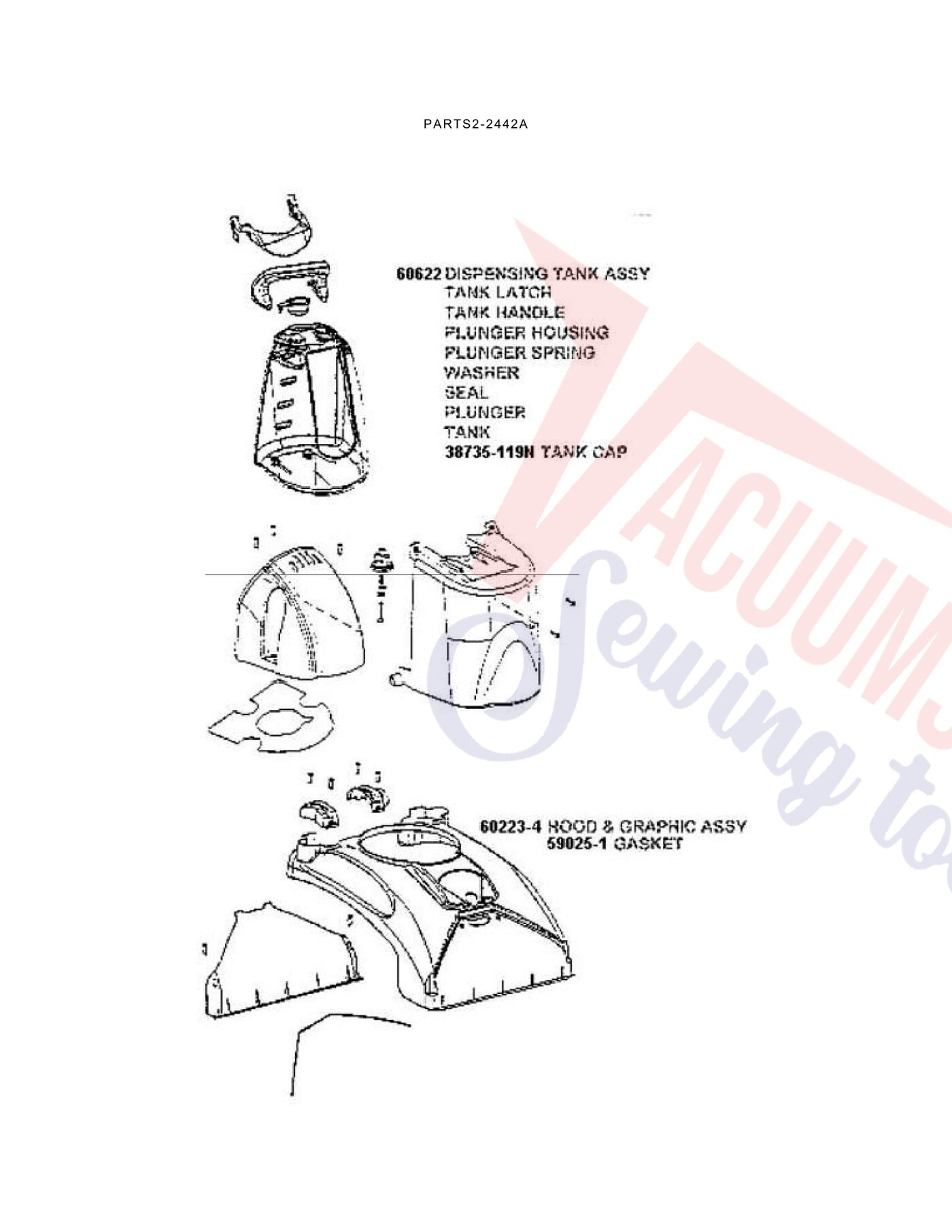

| # | Part image | Description | SKU | Price |
| 1 | Not Available | AIR SEPARATOR | 27981 | Not Available |
| 2 | Not Available | CAP - TANK | 38735-119N | Not Available |
| 3 | Not Available | COVER - AXLE (LH) | 38737-119N | Not Available |
| 4 | Not Available | COVER - AXLE (RH) | 38861-119N | Not Available |
| 5 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 6 | Not Available | SEAL - GASKET | 59025-1 | Not Available |
| 7 | Not Available | SUCTION COVER - PACKAGED | 60204 | Not Available |
| 8 | Not Available | HOOD & GRAPHICS ASSY - PK | 60223-4 | Not Available |
| 9 |  | SCREW, HOOD DREAM MACH. 10PK Part Number: 60224 for Eureka | 60224 | $6.52Read more |
| 10 | Not Available | SHROUD & GRAPHICS ASSY - | 60226-4 | Not Available |
| 11 | Not Available | SCREW PKG (10) | 60227 | Not Available |
| 12 | Not Available | DISPENSING TANK ASSY - PK | 60622 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | RECOVERY TANK ASSY -PKGD | 15309-324N | Not Available |
| 3 | Not Available | RECOVERY TANK ASSY -PKGD | 38743-119N | Not Available |
| 4 | Not Available | HARDWARE PACKAGE | 59052 | Not Available |
| 5 | Not Available | EXTRACTOR SHAMPOO PACKAGE | 60170 | Not Available |
| 6 | Not Available | RECOVERY TANK ASSY -PKGD | 60205 | Not Available |
| 7 | Not Available | FILTER PACKAGE | 60207 | Not Available |
