Schematic and parts book for Tornao 98480 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

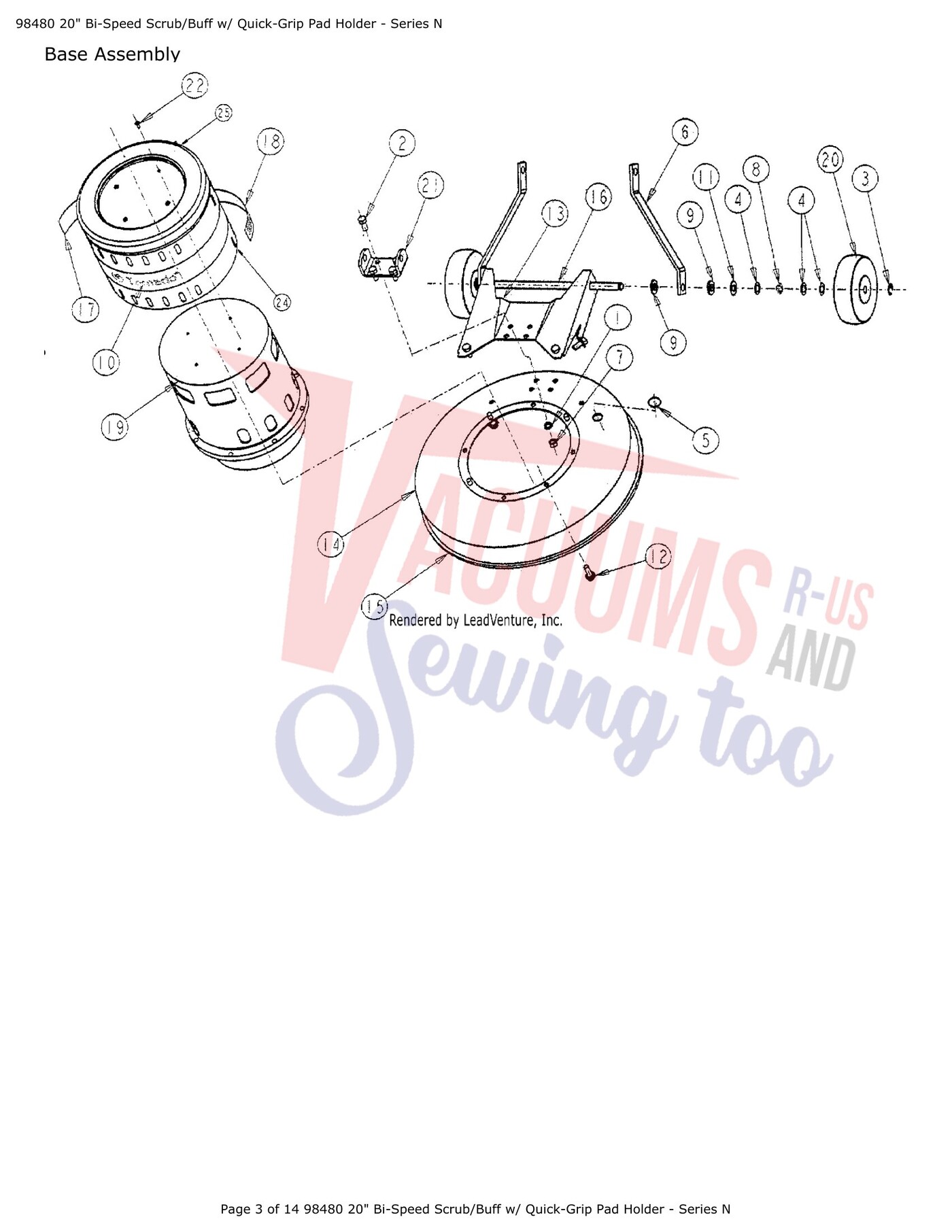

| # | Part image | Description | SKU | Price |
| XX |  | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | Not Available | Screw 5/16-18 x 3/4" | 02109 | Not Available |
| XX | No Image | Nut | 07719 | $0.00Read more |
| 1 | | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw 5/16-18 x 3/4" | 02109 | Not Available |
| 3 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Hole Plug 11/16" | 04054 | $0.00Read more |
| 6 | Not Available | ARM HANDLE TUBE PIVOT SUPPORT | 07517 | Not Available |
| 7 | No Image | Nut | 07719 | $0.00Read more |
| 8 | No Image | WASHER SPRING 1/2 (3 WAVE) | 07723 | $1.99Read more |
| 9 |  | WASHER Part Number 12554 for Simplicity Models SCE,SCE | 12554 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Tornado w/Logo Label 2-1/4" x 9- 1/2" (White) | 30817 | Not Available |
| 11 | No Image | Washer | 16581 | $0.00Read more |
| 12 | No Image | Screw 5/16-18 X 1" (Flange Head) | 17617 | $0.00Read more |
| 16 | No Image | Axle | 19335 | $0.00Read more |
| 20 |  | WHEEL BLUE 5X1.25 5/16 BORE | 19447 | $25.99Read more |
| 21 | Not Available | BRACKET YOKE MOUNT | 07519 | Not Available |
| 22 | No Image | Screw #8-32 X 3/8" | 01896 | $0.00Read more |
| 23 | Not Available | Baffle | 13000 | Not Available |
| 24 | Not Available | Warning Label | 19365 | Not Available |
| 25 | Not Available | Motor Cover | 12909 | Not Available |
| 26 | No Image | Grommet | 04145 | $0.00Read more |
| 27 | No Image | Screw | 10886 | $0.00Read more |
| 28 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

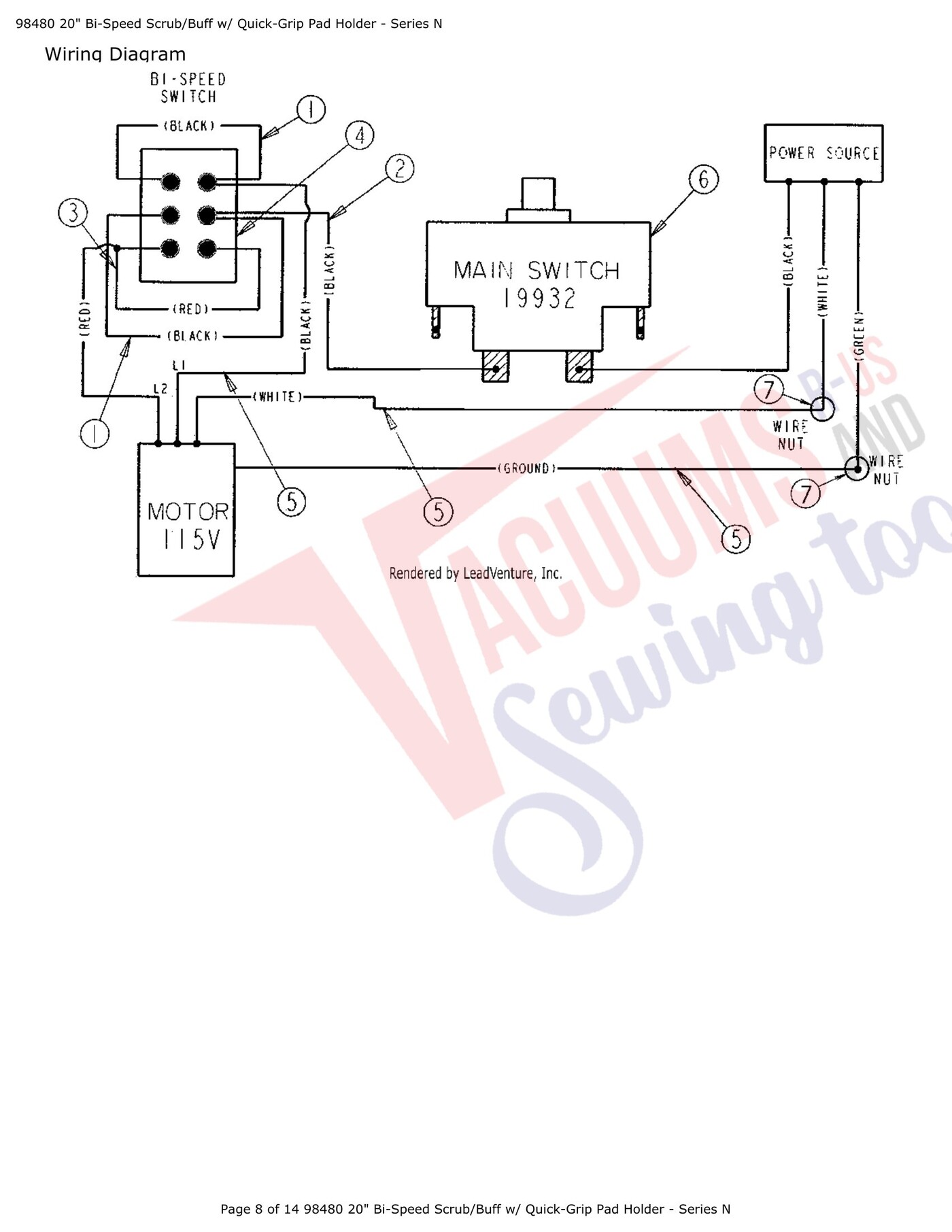

| 4 |  | SWITCH ROCKER(BI SPEED) (F/M HANDLE) 20A 125 277 | 30212 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Pushbutton Switch | 19932 | $0.00Read more |
| 7 | No Image | Closed End Crimp Terminal | 06824 | $0.00Read more |
| # | Part image | Description | SKU | Price |

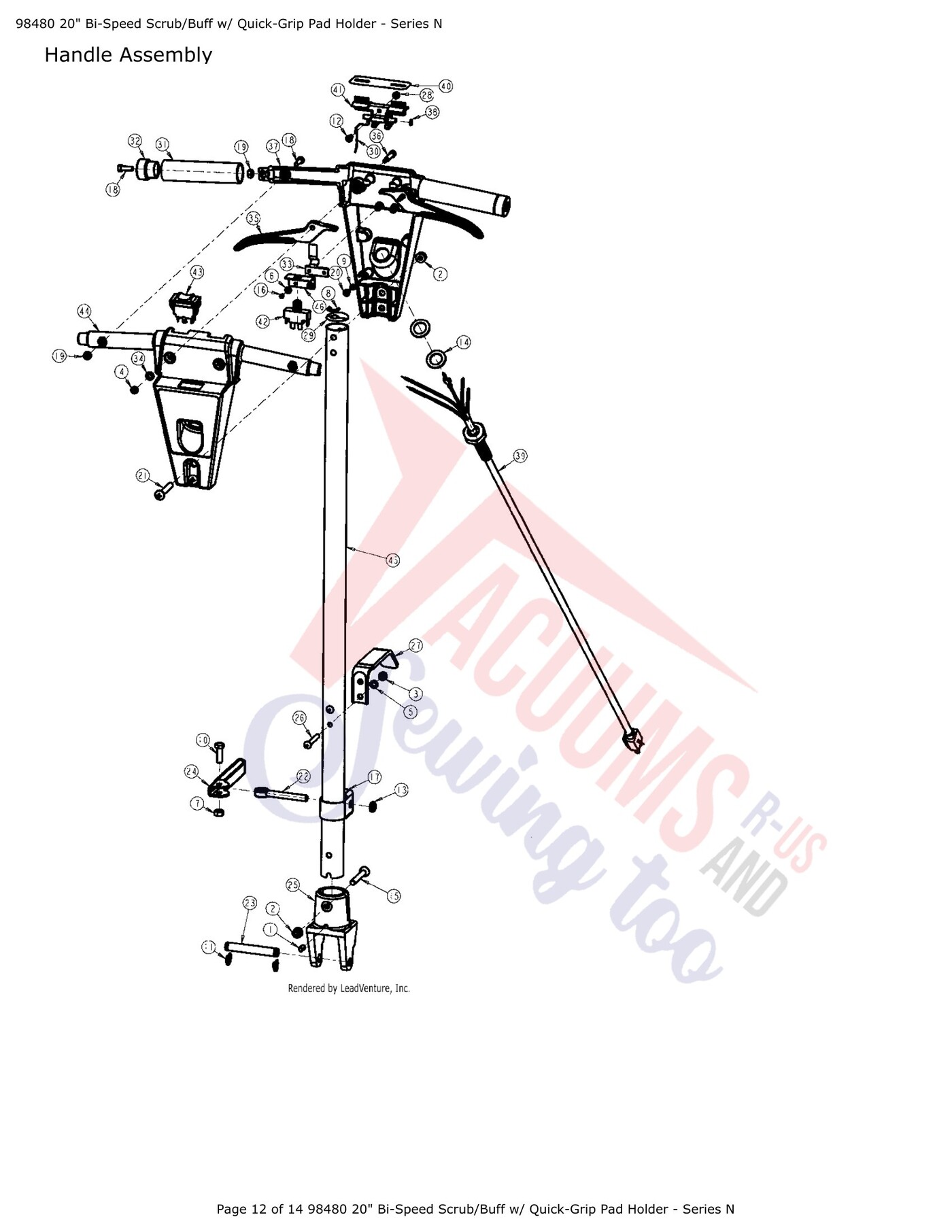

| 1 | Not Available | Grooved Pin | 00058 | Not Available |
| 2 | No Image | Nut | 00067 | $0.00Read more |
| 3 |  | NUT, 1/4 20 ACORN NICKEL | 00685 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | NUT, No 10 24 FINISHED HEX ZP | 01477 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Lock Washer | 01574 | $0.00Read more |
| 6 | Not Available | Washer | 01575 | Not Available |
| 7 |  | NUT FINISHED HEX W/ LOCTITE 5/16 18 (ZP) | 01589 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Hog Ring | 01608 | $0.00Read more |
| 9 | Not Available | Lock Washer | 01713 | Not Available |
| 10 |  | SCREW HEX HD CAP 5/16 18 X 1.00 (ZP) | 03361 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Screw #10-24 X 7/16" | 03660 | $0.00Read more |
| 13 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | WASHER PLAIN 25/32 ID (ZP) | 03960 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Screw 5/16-18 x 2-1/4" | 04349 | Not Available |
| 16 | Not Available | Screw #6-32 x 1/4" | 05768 | Not Available |
| 17 | No Image | Handle Tube Clamp Bracket | 07526 | $0.00Read more |
| 18 | No Image | Screw 1/4-20 X 3/4" | 07532 | $0.00Read more |
| 19 | No Image | Nut Hex Lock P/T 1/4 20 | 07533 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Screw 10-32 X 3/8" | 07534 | $0.00Read more |
| 21 | No Image | SCREW PAN HEAD 5/16 18 X 2 | 07536 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Clamp, Lever Pivot Handle Tube | 07547 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Handle Yoke Pivot Pin | 07551 | Not Available |
| 24 | Not Available | Handle Tube Clamp Lever Assembly | 07883 | Not Available |
| 25 | Not Available | Yoke Handle | 10019 | Not Available |
| 26 | No Image | Screw PH Rnd Hd Machine 1/4 20x1-7/8 ZP | 10398 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Cable Hook Assembly | 10407 | $0.00Read more |
| 28 |  | Nut 10-24 Nylon Insert Lock Zn | 10894 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Strain Relief Washer | 15226 | $0.00Read more |
| 30 | No Image | Lock Lever Return Spring | 17157 | $0.00Read more |
| 34 | No Image | Washer | 17245 | $0.00Read more |
| 35 | No Image | Switch Activation Lever | 18969 | $0.00Read more |
| 36 | No Image | Screw 1/4" X 1" | 18991 | $0.00Read more |
| 38 | No Image | Washer | 19211 | $0.00Read more |
| 41 | No Image | Lever Lock (Start Guard) | 19651 | $0.00Read more |
| 42 | No Image | Pushbutton Switch | 19932 | $0.00Read more |
| 43 | | SWITCH ROCKER(BI SPEED) (F/M HANDLE) 20A 125 277 | 30212 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
