Schematic and parts book for Tornado YA1105A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

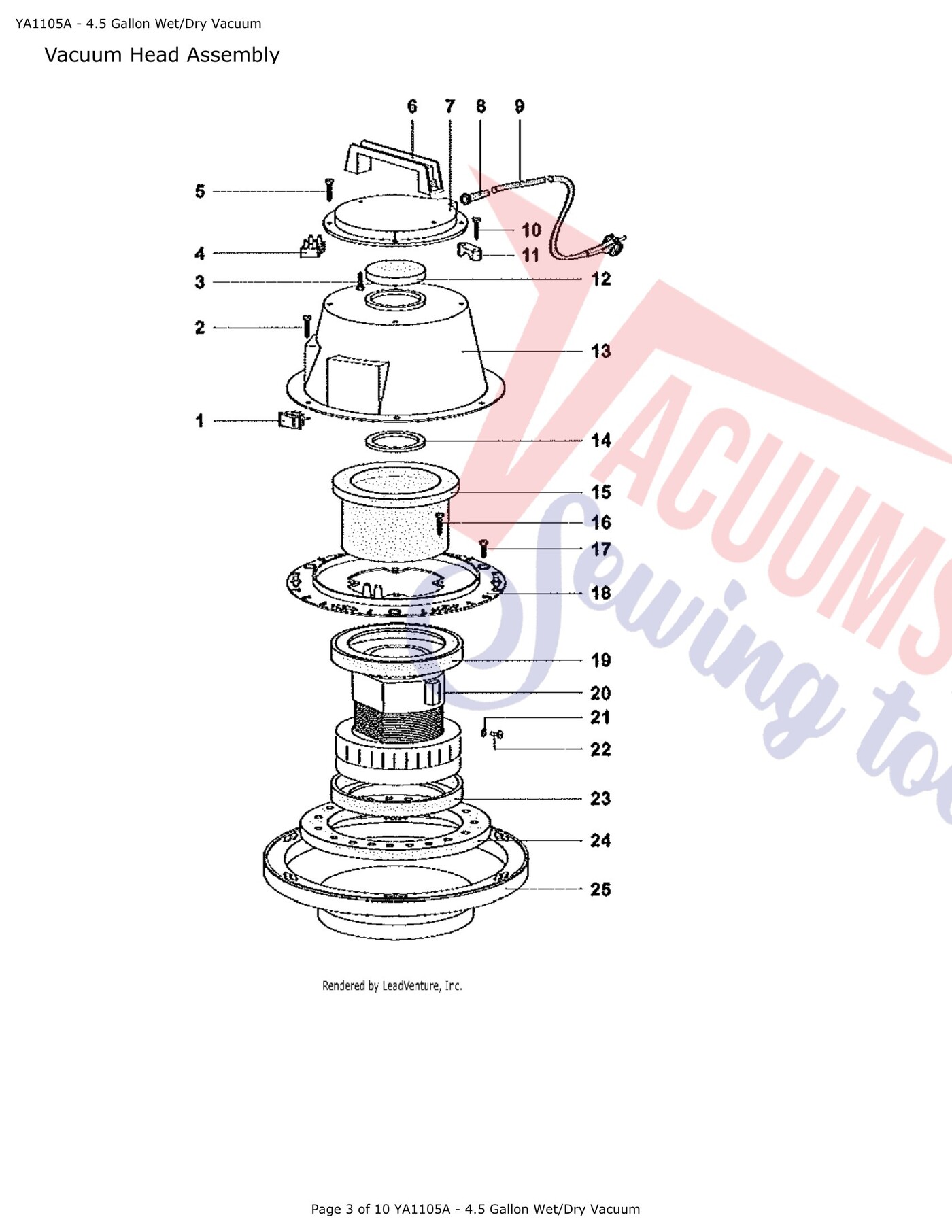

| # | Part image | Description | SKU | Price |
| 1 | No Image | Power Switch | YAT24142 | $0.00Read more |
| 2 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 3 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 4 | No Image | Terminal Board | YAT24140 | $0.00Read more |
| 5 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 6 | No Image | Red Handle | YAT24171 | $0.00Read more |
| 7 | No Image | Top Cover | YAT24155 | $0.00Read more |
| 8 | No Image | Strain Relief | YAT24138 | $0.00Read more |
| 9 | No Image | Power Cord | YAT24153 | $0.00Read more |
| 10 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 11 | No Image | Cord Clamp | YAT24139 | $0.00Read more |
| 12 | No Image | FILTER | YAT24475 | $20.99Read more |
| 13 | No Image | VAC HEAD COVER | YAT24477 | $18.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Gasket | YAT24478 | $0.00Read more |
| 15 | No Image | Foam Filter | YAT24480 | $0.00Read more |
| 16 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 17 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 18 | No Image | Baffle Plate | YAT24174 | $0.00Read more |
| 19 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 20 |  | Motor Extractor 115 VAC Bypass SS 2stg 50 60hz | 14800 | $245.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Washer | YAT24145 | $0.00Read more |
| 22 | No Image | Screw M4 X 8 | YAT24147 | $0.00Read more |
| 23 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 24 | No Image | Gasket | YAT24485 | $0.00Read more |
| 25 | No Image | Base | YAT24263 | $0.00Read more |

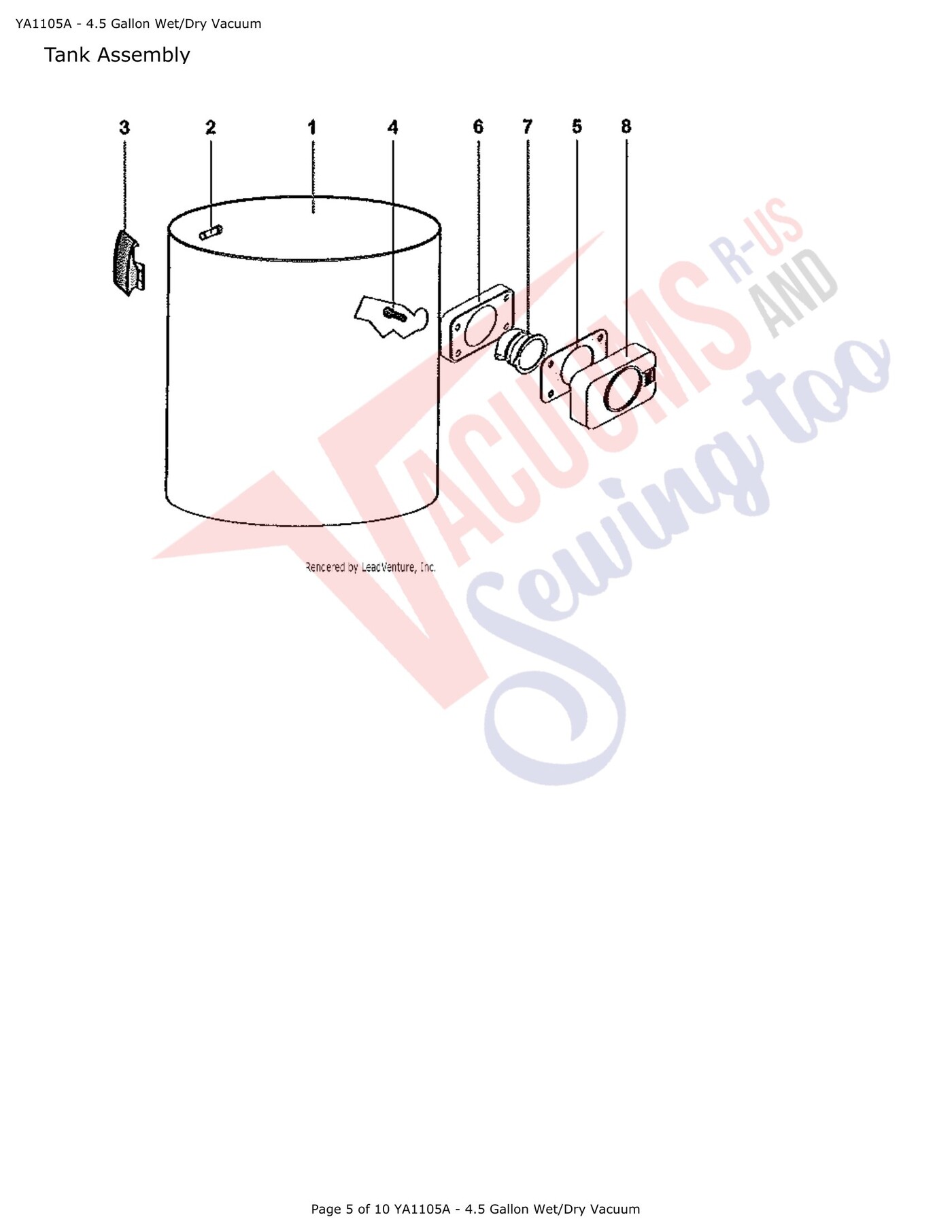

| # | Part image | Description | SKU | Price |
| 1 | No Image | Tank | YAT24268 | $0.00Read more |
| 2 | No Image | Rivet | YAT24269 | $0.00Read more |
| 3 | No Image | Tank Latch | YAT24158 | $0.00Read more |
| 4 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 5 | No Image | Gasket | YAT24168 | $0.00Read more |
| 6 | No Image | Gasket | YAT24505 | $0.00Read more |
| 7 | No Image | Intake Deflector | YAT24163 | $0.00Read more |
| 8 | No Image | Intake | YAT24272 | $0.00Read more |

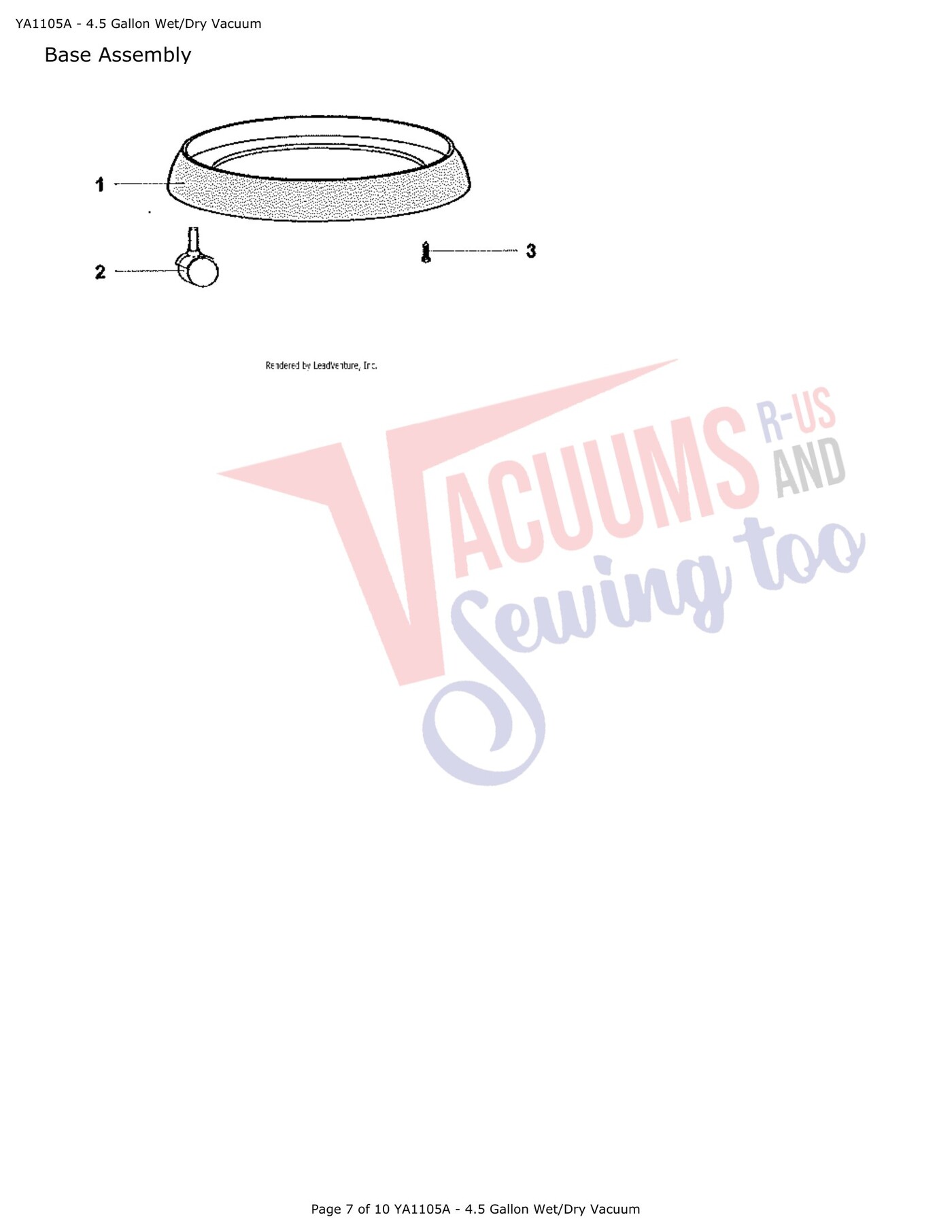

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Support Ring | YAT24264 | Not Available |
| 2 | Not Available | Caster | YAT24259 | Not Available |
| 3 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
