Schematic and parts book for Tornado TV280, TV280W12U, TV280-W12-U TV280. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 |  | Black Furniture Bumper for Riccar Simplicity CleanMax R10 S10 R17 ZM500 ZM700 ZM800 | WP11778 | $5.99Add to cart |
| 3 |  | Lens Part Number B018-0415 for Maytag and Riccar Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV,... | B0180415 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Motor Assembly for Riccar and Simplicity ULW S10 | D2204000 | $151.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW | B2204314 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Pivot Bushing for Riccar Vacuums | WP10773 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Direct Air Motor Inlet Seal ULW | WP10774 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Belt (2 Pack) | CMZMB2 | $0.00Read more |
| 8 |  | Single Belt for Riccar, Simplicity, and CleanMax Lightweight Vacuums | B0140814B | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Compatible alternateBelt-Panasonic - Flat - Ub3/Ub7 - Mc6210 - Mc6640
Also Fits Simplicity Freedom - Replacement For:... More Product Details | 17394 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Compatible alternateReplacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell styl... More Product Details | 36310001 | Original price was: $6.00.$4.99Current price is: $4.99.Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Compatible alternateRubber Stretch Belt for Riccar Supralight Simplicity Freedom - 2pk More Product Details | RBS2 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Basetray Assembly M500 S10 R10 | D220-0114 | $42.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Available ReconditionedReconditioned Basetray Assembly M500 S10 R10 More Product Details | D220-0114R | $36.99Add to cart |
| 10 |  | Foot spring for riccar r10 and simplicity s10 freedom supralights | B2200900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom | B2200714 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 | B2200800 | $3.99Add to cart |
| 13 |  | UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 | D2200714 | $13.99Add to cart |
| 15 |  | Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TA... | B2200214 | $3.99Add to cart |
| 16 |  | Light Socket Part Number A018-0900 for Simplicity and Maytag and Riccar Models F3100, F3300, F330... | A0180900 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Prolite Light Bulb 12v Xenon for Tornado Uprights Riccar Supralites Simplicity Freedom vacuums al... | WP11393 | $2.99Add to cart |
| 18 |  | PC Board (F3600) Part Number B317-0000K for Simplicity and Maytag and Riccar Models F3400, F3500,... | B3170000K | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Available ReconditionedReconditioned PC Board (F3600) Part Number B317-0000K for Simplicity and Maytag and Riccar Models... More Product Details | B3170000KR | $18.99Add to cart |
| 19 |  | Screw #4 X 5/16 Part Number A732-7300 for Simplicity and Cleanmax and Maytag and Riccar Models 72... | A7327300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Large Wheel Axis for Riccar and Simplicity Machines | WP11836 | $2.99Add to cart |
| 21 |  | Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PR... | C2200531C | $4.99Add to cart Special order: ships in 2 to 4 weeks |

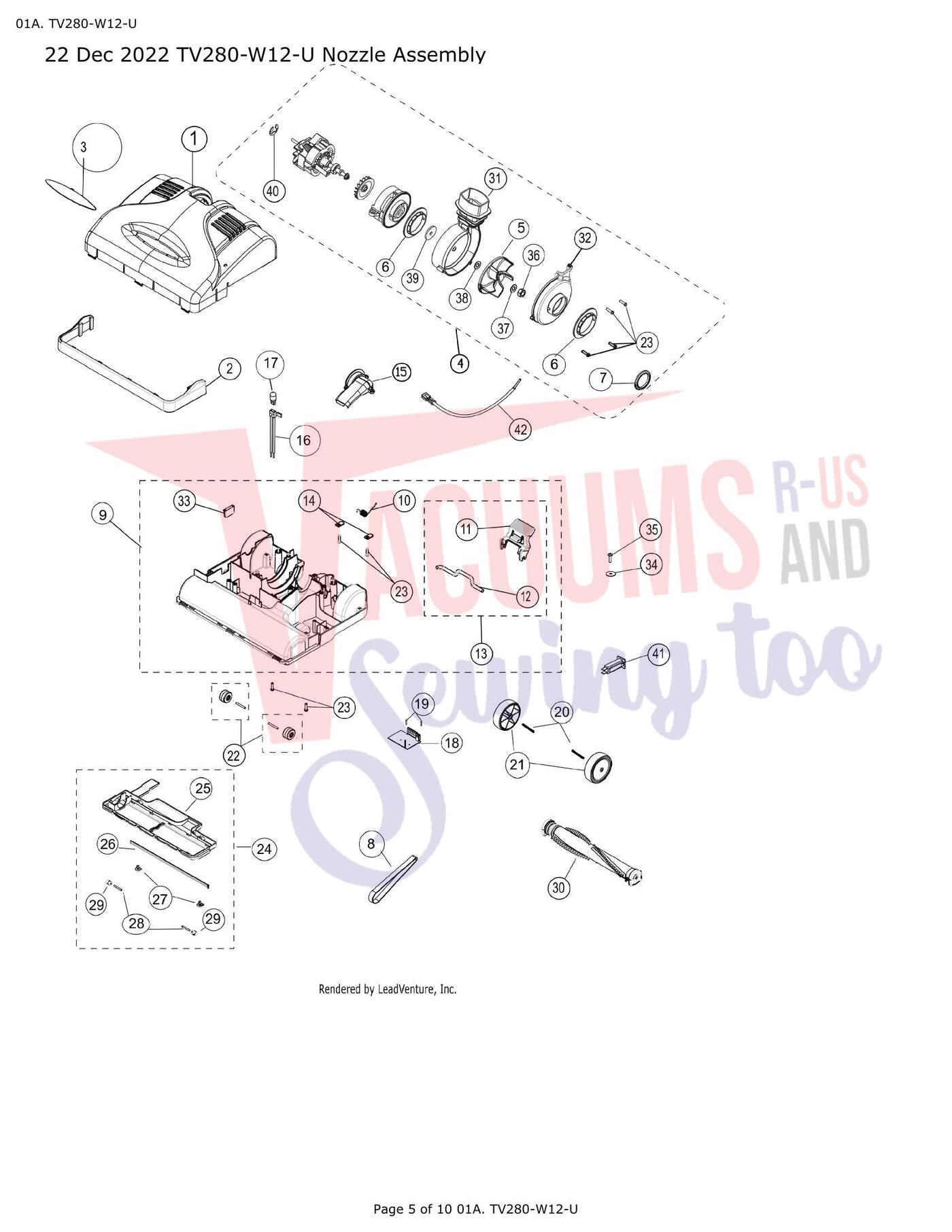

| 22 | Not Available | Dec 2022 Nozzle | TV280 | Not Available |
| 22 |  | Front Wheel Assembly and Axle for UltraLightWeights | WP11198 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAN... | D2200414 | $15.99Add to cart |
| 24 |  | ULW Baseplate Assembly for Soft Carpet | D220-1414 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F350... | B0153000B | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Base Plate Cover Screw Black for R10 and S10 | B2200414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701700B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701843 | $2.99Add to cart |
| 30 |  | Agitator Wood ULW Assembly S10E, R10E,F3300 | D012-2800 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $4.99Add to cart |
| 33 |  | Basetray Plug Non Hall Sensor Models (F3400 F3500 F3500C F3600) Part Number B016-1914 for Simplic... | B0161914 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD... | B0340100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... | A7322500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | HANDLE BOLT NUT 4000 & 6000 1/4-20 for R10 and other Motors | WP10349 | $2.99Add to cart |
| 37 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500... | A7332200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F... | A7333300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIM... | B2204500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | E-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.US... | A7323000 | $2.99Add to cart |
| 41 |  | Circuit Breaker 5 Amp for Riccar | A028-0114B | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | No Image | CleanMax Commercial Ground Wire ULW for ZM-500 | B3331100B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 |  | Handle Grip Assembly Part Number C220-3514 for Maytag and Riccar Models M500,R10S, R10D, R10P, R1... | C2203514 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 3 |  | Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | B3526900 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Riccar and Simplicity 2 Speed Round Switch for Supralites | A3281700 | $3.99Add to cart |
| 5 | | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Nylon Washer Part Number B017-2500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, ... | B0172500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2... | B2203400 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R... | B2203114 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 10 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Swivel Cord Hook Part Number B220-3314 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAN... | B2203314 | $2.99Add to cart |
| 12 |  | Upper Cork Hook Spring | B430-0200 | $2.99Add to cart |
| 13 |  | s10s r10s Back Neck Coupling | WP10361 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... | A4320805 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

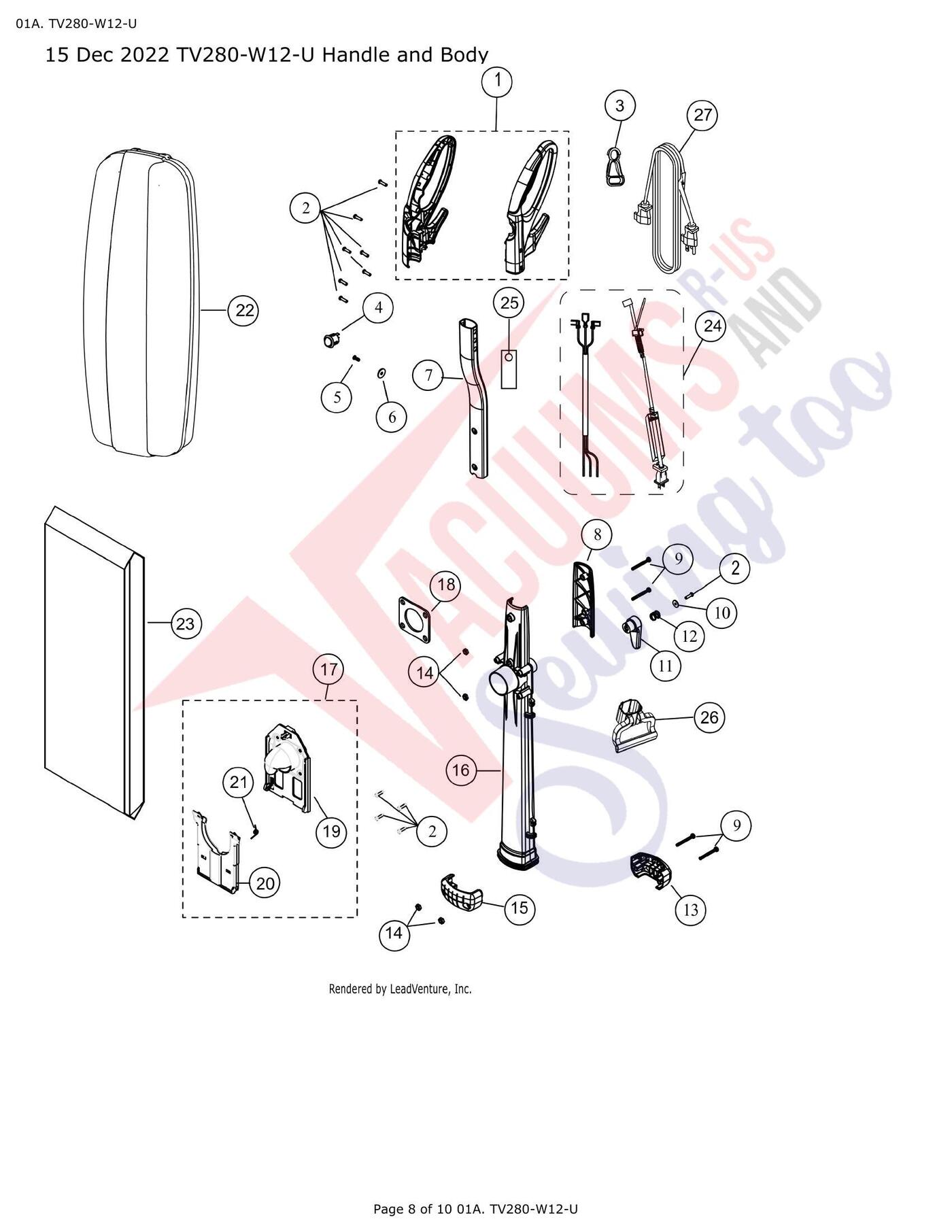

| 15 | Not Available | Dec 2022 Handle and | TV280 | Not Available |
| 15 |  | Neck Coupling Front Black | WP10347 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.... | B2203014C | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, ... | D4842282 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10C... | B2203900 | $2.99Add to cart |
| 19 | No Image | Bag Mount for CleanMax and Riccar Vacuums R10S ZM-500 R10D ZM-700 R10P R17 | B2203814 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bag Mount (Green) for Riccar Simplicity and CleanMax Vacuum Models R10S S10S ZM-500 R10D S10D ZM-... | B4342282 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Bag Collar Spring | B434-3400 | Not Available |
| 22 | No Image | BAG HARD SHELL VACUUM NO VELCRO ROAM | B2206700 | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | HEPA Bag (Bulk Single) Part Number B220-5382C for Maytag and Riccar and Simplicity Models M500,R1... | B2205382C | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | CleanMax Zoom Series HEPA Filtration Bags - 6pk | CLH6 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Paper Bag (Bulk Single) Part Number B211-8800 for Maytag and Riccar and Simplicity Models M500,R1... | B2118800 | $3.29Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Pigtail And Handle Harness Assembly ZM-500 ZM-700 | D4343714B | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | D434-3814 Pigtail Cord Assembly For Zoom 500 & 700 | D4343814 | $31.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500... | B3885900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Carry Handle Part Number B220-6214 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2206214 | $5.99Add to cart |
