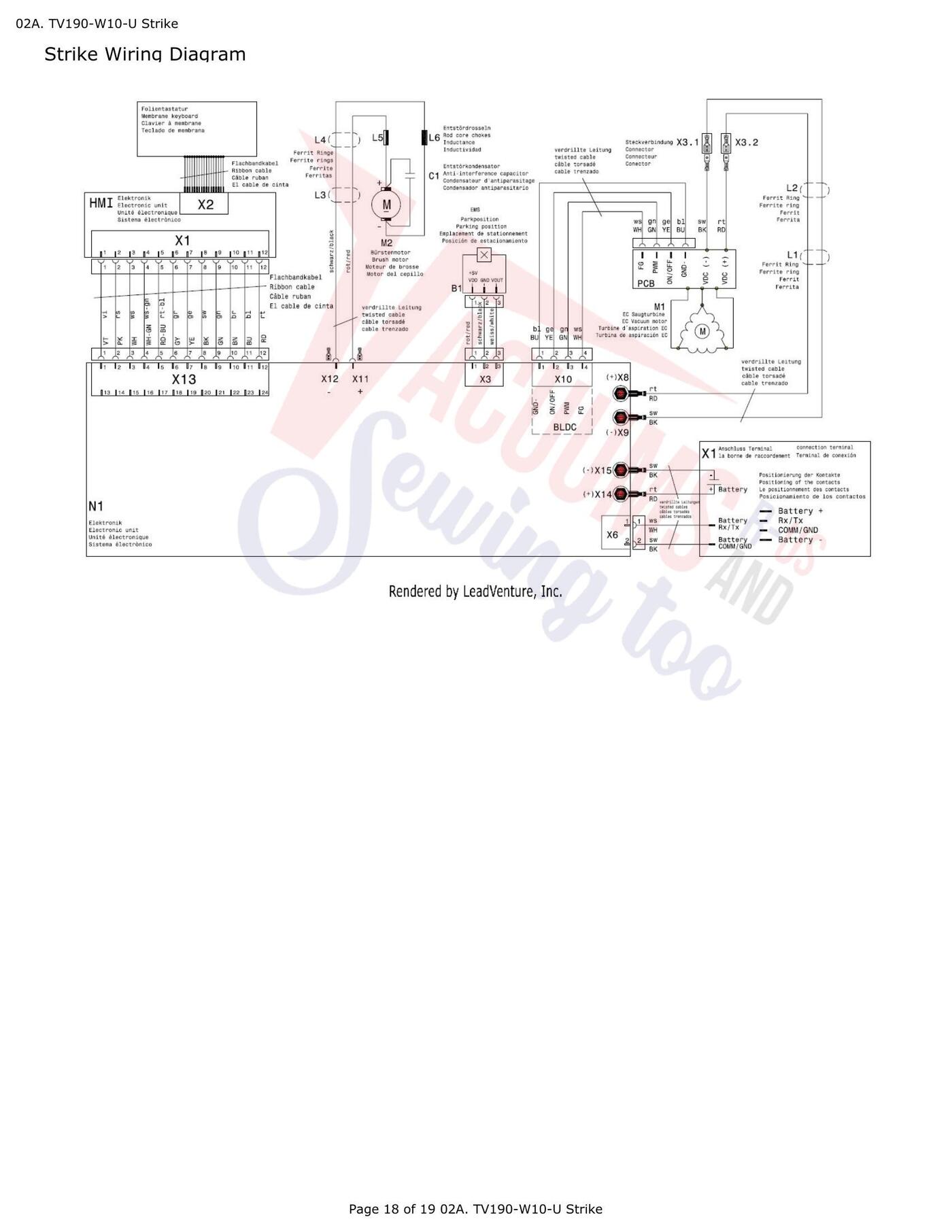

Schematic and parts book for Tornado TV190-W10, TV190, Strike Strike. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

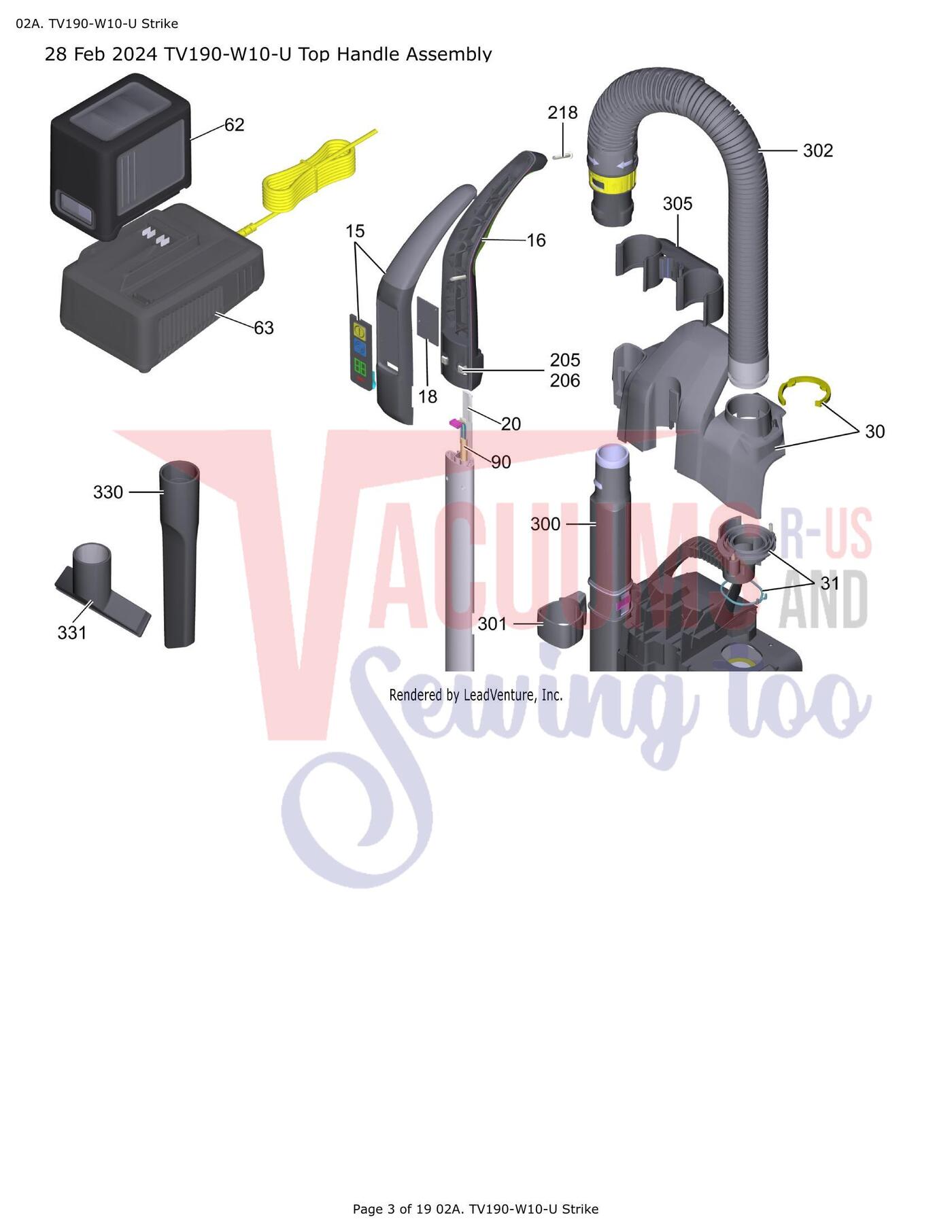

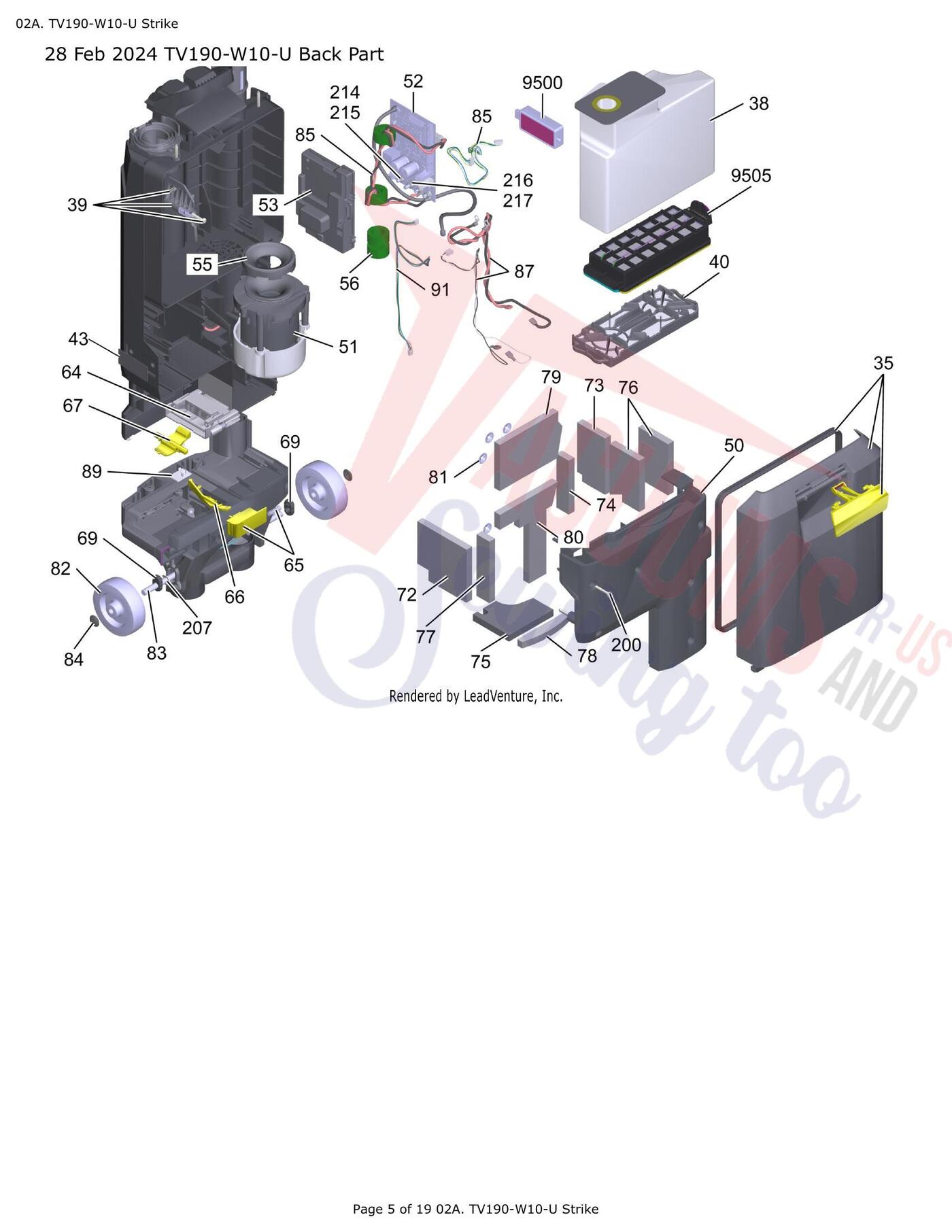

| # | Part image | Description | SKU | Price |
| 15 | No Image | Handle Front with Controls and Display Strike | K47756210 | $135.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Handle Rear Strike | K53224713 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Electronic Board, Handle, Strike | K46832583 | $79.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Covering Strip Handle Strike | K50301363 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Feb 2024 Top Handle | TV190 | Not Available |
| 30 | Not Available | Top Assembly | K47756200 | Not Available |
| 31 | No Image | Suction Hose Inlet, Strike | K47754990 | $2.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | 36/75 Battery 36V 7.5 Ah Fits TV190-W10-U TV400-W26-U TV570-Q03-U | K24450750 | $502.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | Quick Charger 36V Fits TV190-W10-U TV400-W26-U TV570-Q03-U | K24450530 | $226.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | No Image | Wiring, Handle, Strike | K66517690 | $51.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 205 | No Image | Screw M4x25, Handle, Strike | K73062110 | $0.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 206 | No Image | Square nut M4 -04, Handle, Strike | K73115690 | $0.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 218 | No Image | Screw 4x16, Handle, Strike | K73031290 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 300 | No Image | Wand, Strike | K54812423 | $44.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 301 | Not Available | Wand Holder | K50410080 | Not Available |
| 302 | No Image | Suction Hose Complete, Top Housing, Strike | K44402013 | $94.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 305 | No Image | Accessories Holder, Strike | K50410043 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 330 | No Image | Crevice Tool, Strike | K28892900 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 331 | No Image | Upholstery Tool, Strike and Zephyr | K69059980 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Feb 2024 Back | TV190 | Not Available |
| 35 | No Image | Filter Cover with Seal, Strike | K47755820 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Fleece Bag 10-pack Fits TV190-W10-U 6pks per case | K28893570 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Ejector Complete, Filter cover, Strike | K47755830 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | Label | K54028113 | Not Available |
| 50 | No Image | Rear Cover, Strike | K50696153 | $20.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Vacuum Motor, Strike and Zephyr | K46101083 | $187.99Read more |
| 52 | No Image | Motherboard, Strike | K46832563 | $424.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | Not Available | Electronics Housing | K50696230 | Not Available |
| 55 | Not Available | Seal | K53635510 | Not Available |
| 56 | No Image | Ferrite Ring, Motherboard, Strike | K63460430 | $1.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | Battery Contact Connector, Zephyr | K40513683 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | No Image | Battery Ejector with Springs, Strike | K41011170 | $33.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | Ejector Slider, Strike | K50394600 | $1.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | No Image | Locking Latch, Strike | K40716360 | $1.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | No Image | Sleeve, Axle, Strike | K47755840 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | Not Available | Foam 1 | K62861863 | Not Available |
| 73 | Not Available | Foam 2 | K62861873 | Not Available |
| 74 | Not Available | Foam 3 | K62861883 | Not Available |
| 75 | Not Available | Foam 4 | K62861903 | Not Available |
| 76 | Not Available | Foam 5 | K62861933 | Not Available |
| 77 | Not Available | Foam 6 | K62861963 | Not Available |
| 78 | Not Available | Foam 7 | K62861973 | Not Available |
| 79 | Not Available | Foam 8 | K62861983 | Not Available |
| 80 | Not Available | Foam 9 | K62862193 | Not Available |
| 81 | No Image | Lock Washer, Foam, Strike | K63431450 | $0.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | No Image | Wheel, Strike | K64354490 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | No Image | Axle, Strike | K51101340 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | No Image | WHEEL CAP | K63431320 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | No Image | Wiring, Vacuum Motor, Strike | K47755850 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | No Image | Wiring, Battery, Strike | K47755860 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | No Image | Parking Position Sensor Strike | K41011190 | $233.99Read more |
| 91 | No Image | Wiring, Sensor, Strike | K66519020 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 200 |  | Screw 4x25, Rear Cover, Strike | K73030840 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 207 | No Image | LOCK WASHER | K73433000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 214 | Not Available | Spring Washer | K66456640 | Not Available |
| 215 | Not Available | Nut | K73110010 | Not Available |
| 216 | Not Available | Spring Washer | K73130020 | Not Available |
| 217 | Not Available | Nut | K73110020 | Not Available |
| 9500 | No Image | Communication Adapter | K26830130 | $0.00Read more |
| 9505 | No Image | HEPA Filter Fits TV190-W10-U TV570-Q03-U | K28893420 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Feb 2024 Base | TV190 | Not Available |
| 42 | No Image | Label | K54028483 | $0.00Read more |

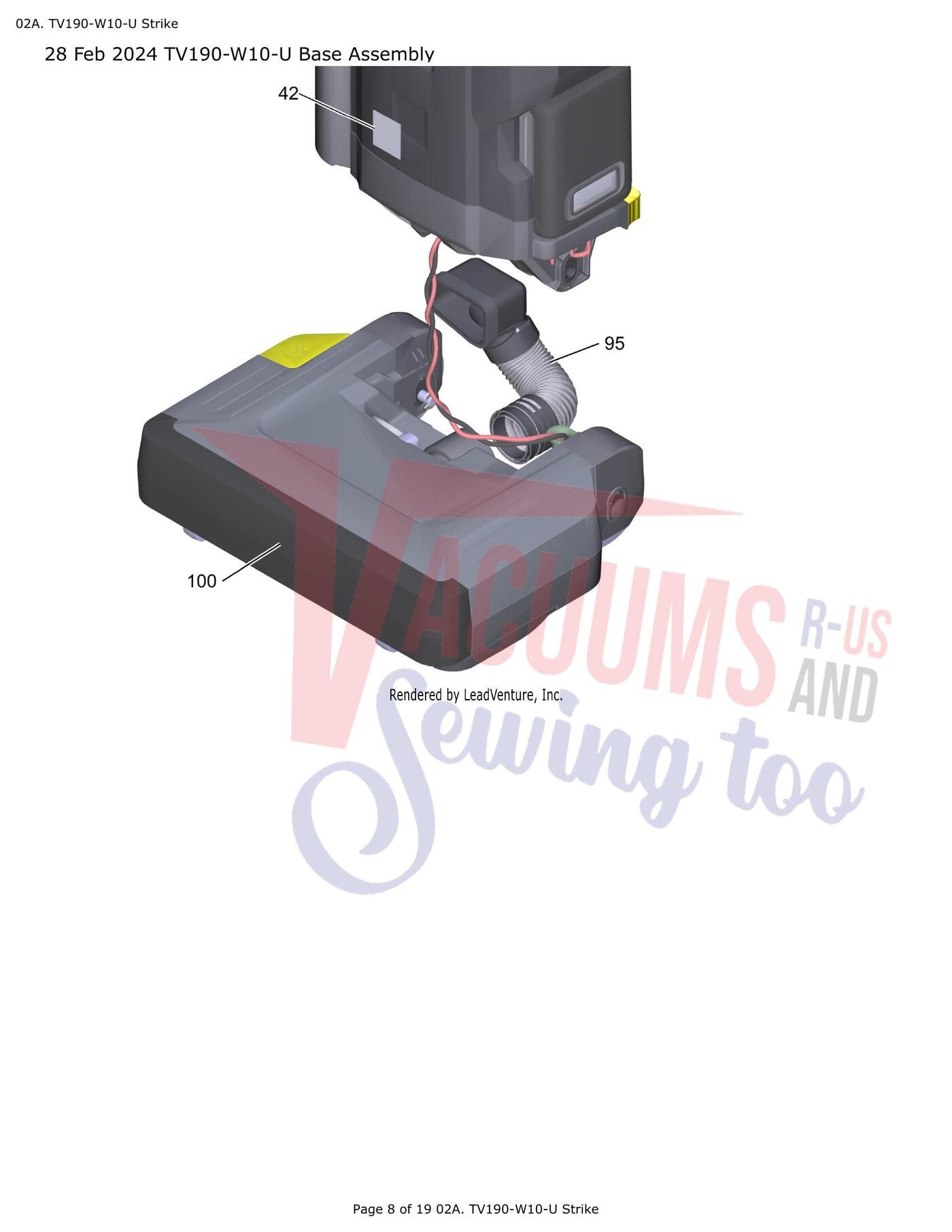

| 95 | No Image | Hose Complete, Bottom Housing, Strike | K44410983 | $31.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Feb 2024 Brush | TV190 | Not Available |

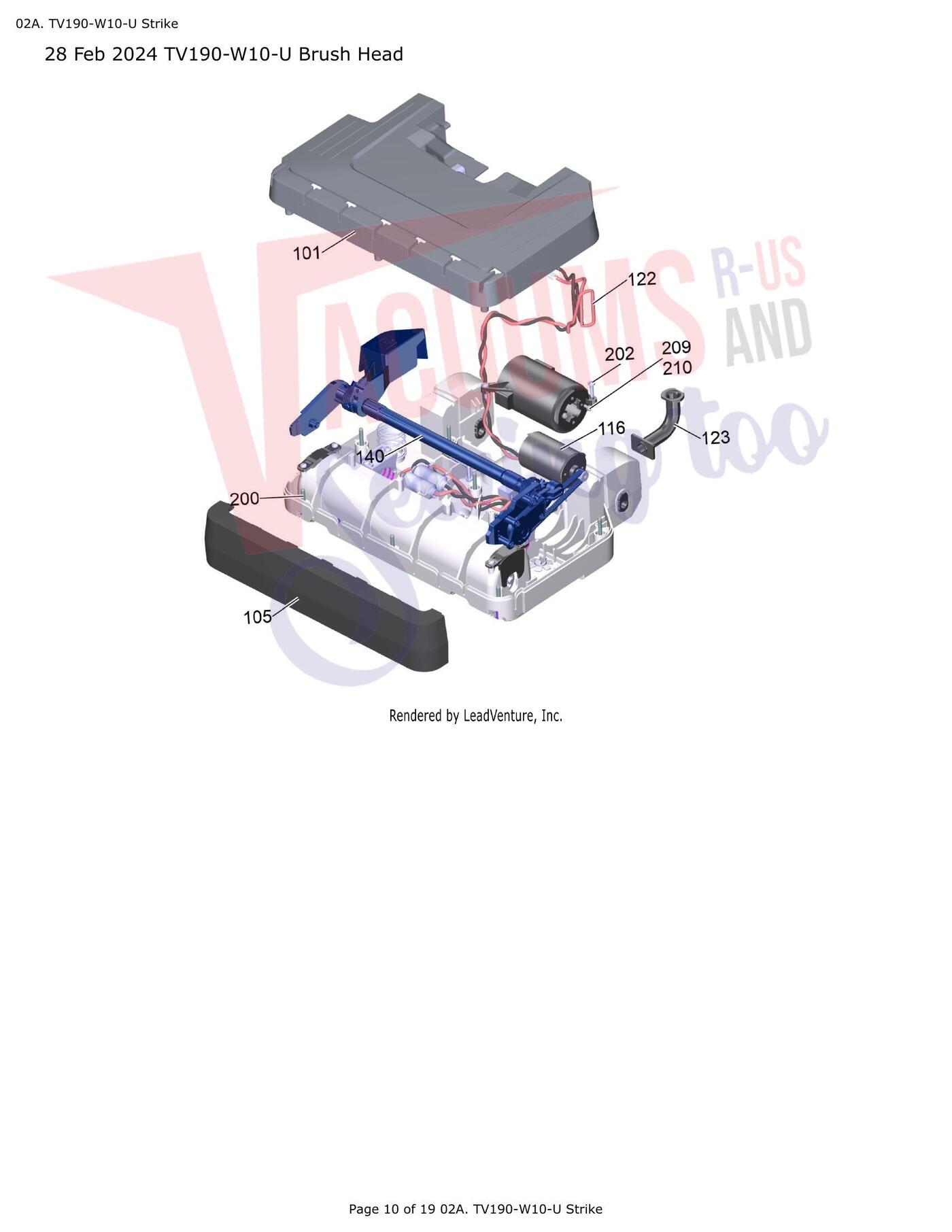

| 101 | No Image | Top Cover, Brush Housing, Strike | K47756190 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 105 | No Image | Bumper, Brush Housing, Strike | K55210153 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 116 |  | Brush Motor, Strike | K47755900 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 122 | No Image | Capacitor with Cable Strike | K66517763 | $90.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 123 | No Image | Cable Routing | K53637590 | $0.00Read more |
| 140 |  | Brush Lifting Assembly Strike | K43220803 | $253.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 200 | | Screw 4x25, Rear Cover, Strike | K73030840 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 202 | No Image | Screw M3.5 X 16 | K73032060 | $0.00Read more |
| 209 | No Image | Screw M3 X 6 | K73060510 | $0.00Read more |
| 210 | No Image | Serrated Lock Washer | K73122340 | $0.00Read more |
| 211 | No Image | Belt Strike | K63480593 | $21.99Read more |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Feb 2024 Glide Sole | TV190 | Not Available |

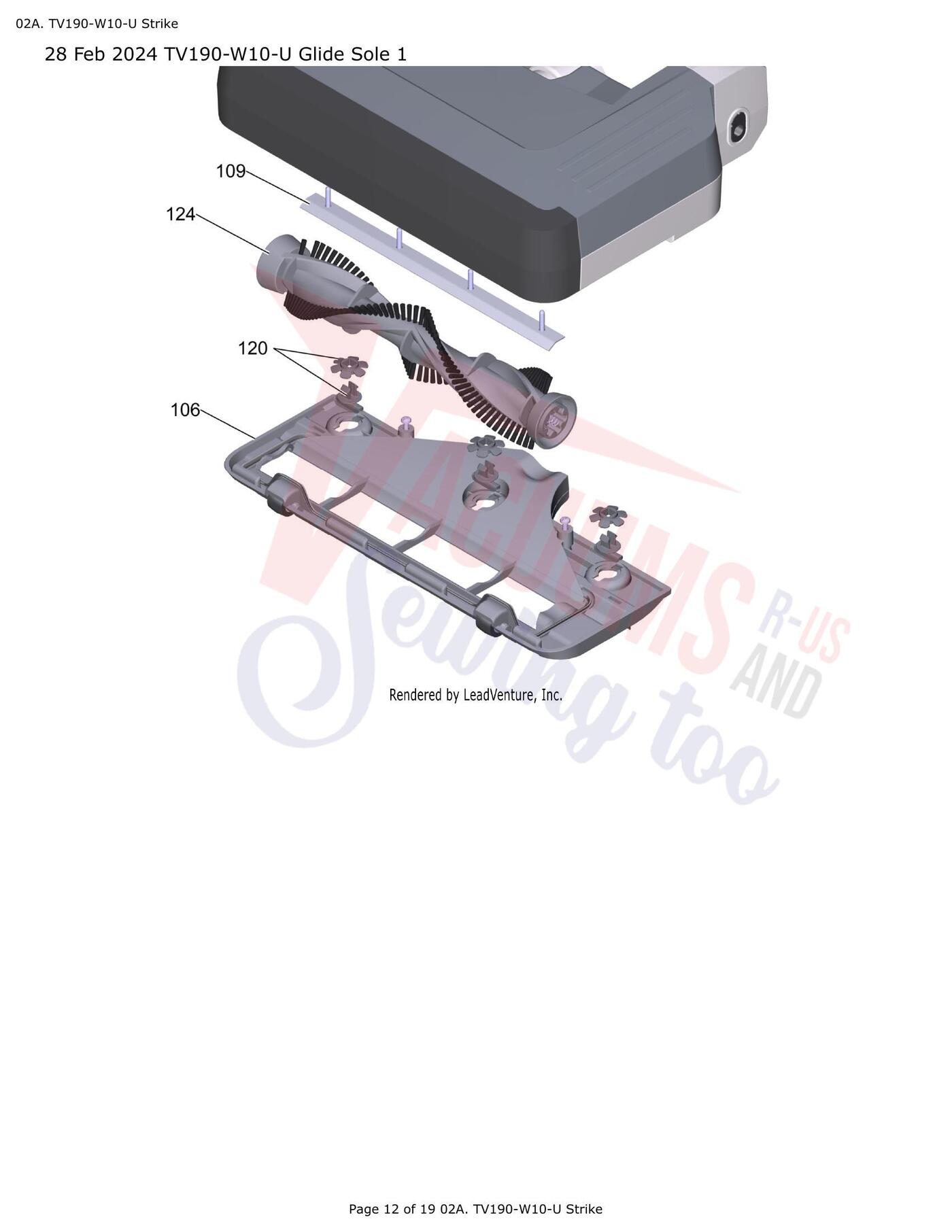

| 106 |  | Glide Sole Assembly, Strike, includes wheels with screws, and squeegee | K41011240 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 109 | No Image | Scraper | K47755880 | $0.00Read more |
| 120 | No Image | Lock Piece Kit (4Sets) | K28842730 | $0.00Read more |
| 124 |  | Brushroll Complete, Strike | K47626443 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Feb 2024 Glide Sole | TV190 | Not Available |

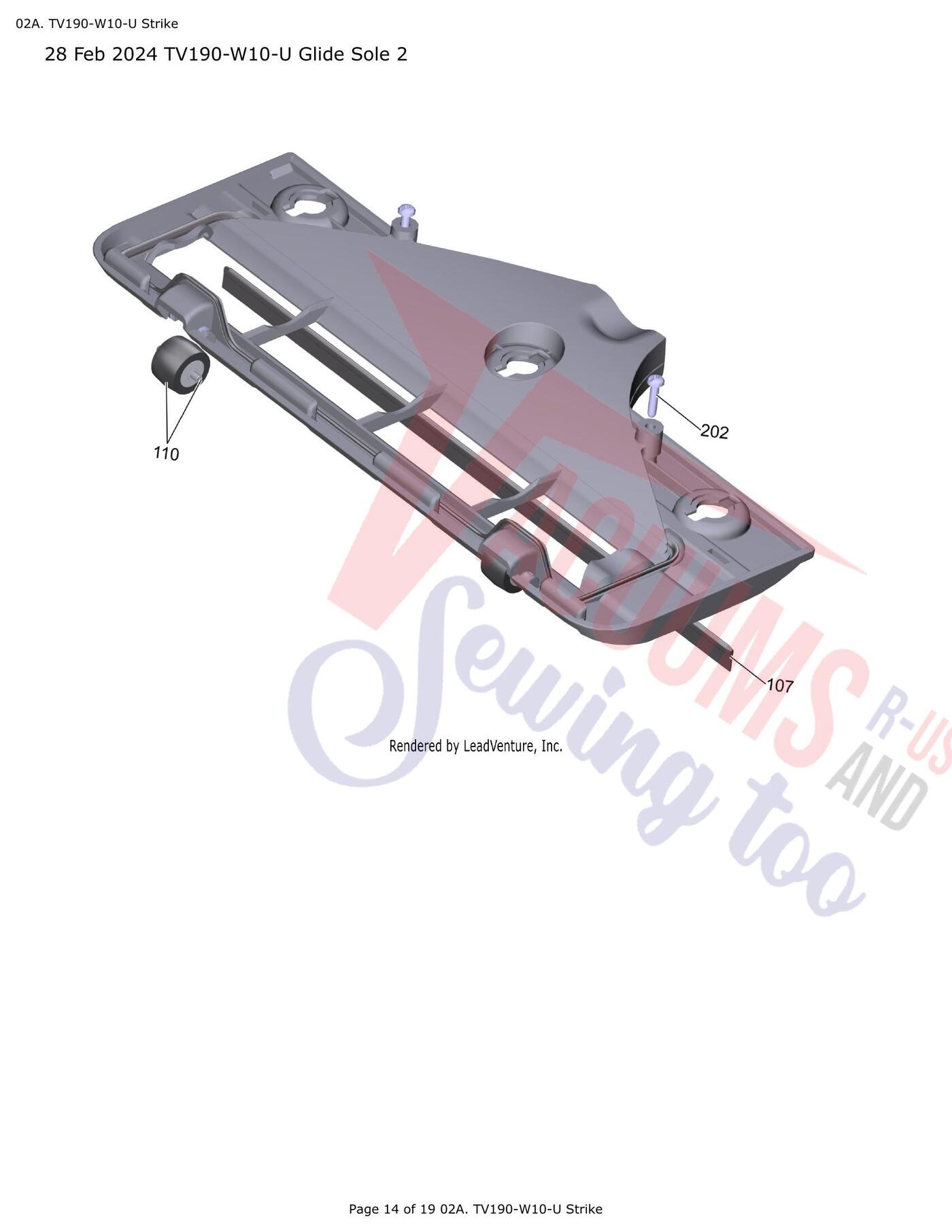

| 107 | No Image | Sealing Strip | K53650770 | $0.00Read more |
| 110 | No Image | Wheel and Axle Strike 2 sets | K47755890 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 202 | No Image | Screw M3.5 X 16 | K73032060 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Feb 2024 | TV190 | Not Available |
| 111 | No Image | Sleeve, Axle, Strike | K47755840 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

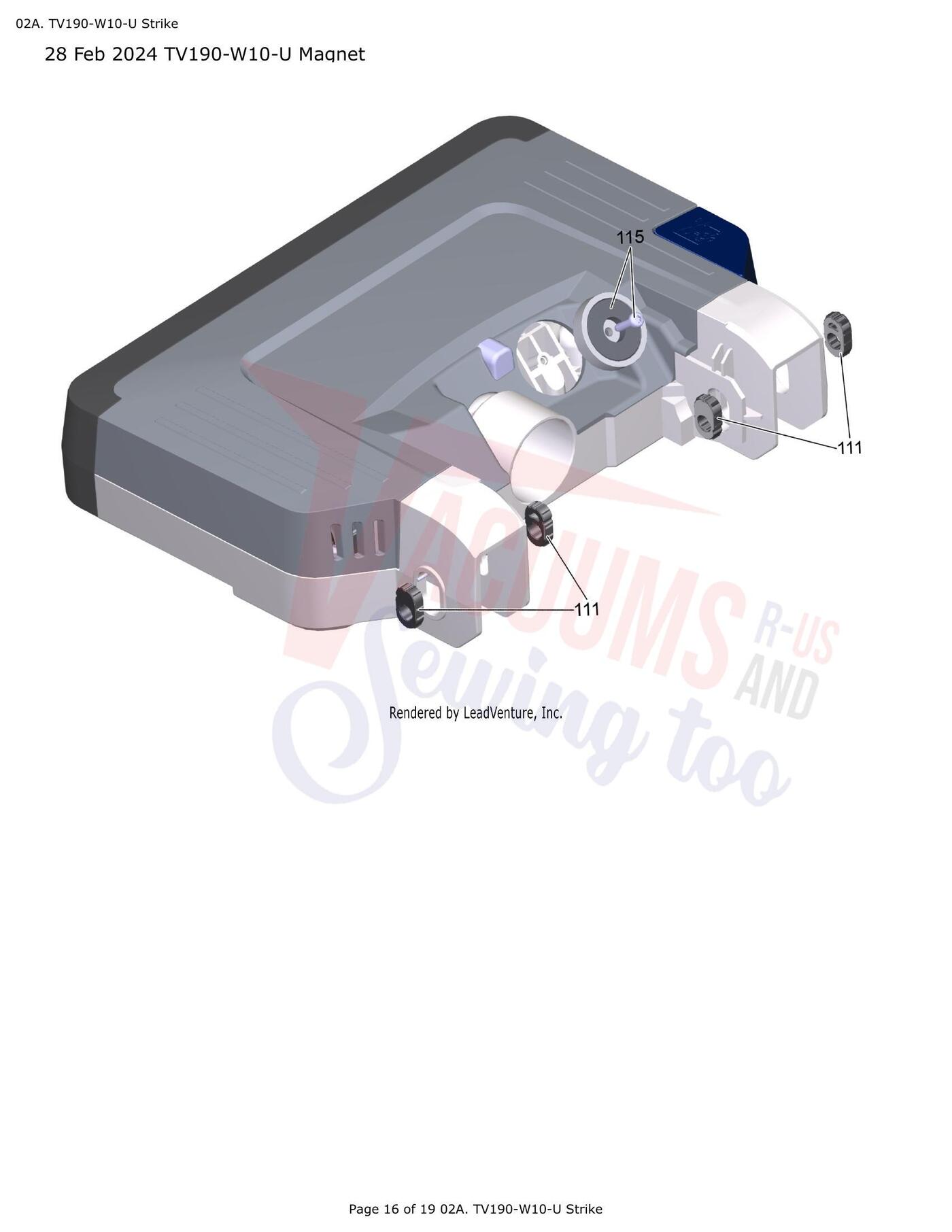

| 115 | No Image | Magnet with Screw, Strike | K41011180 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Strike | TV190 | Not Available |
| xx | Not Available | Strike | TV190 | Not Available |
