Schematic and parts book for Tornado TS070-W13-UG BR 13/1 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

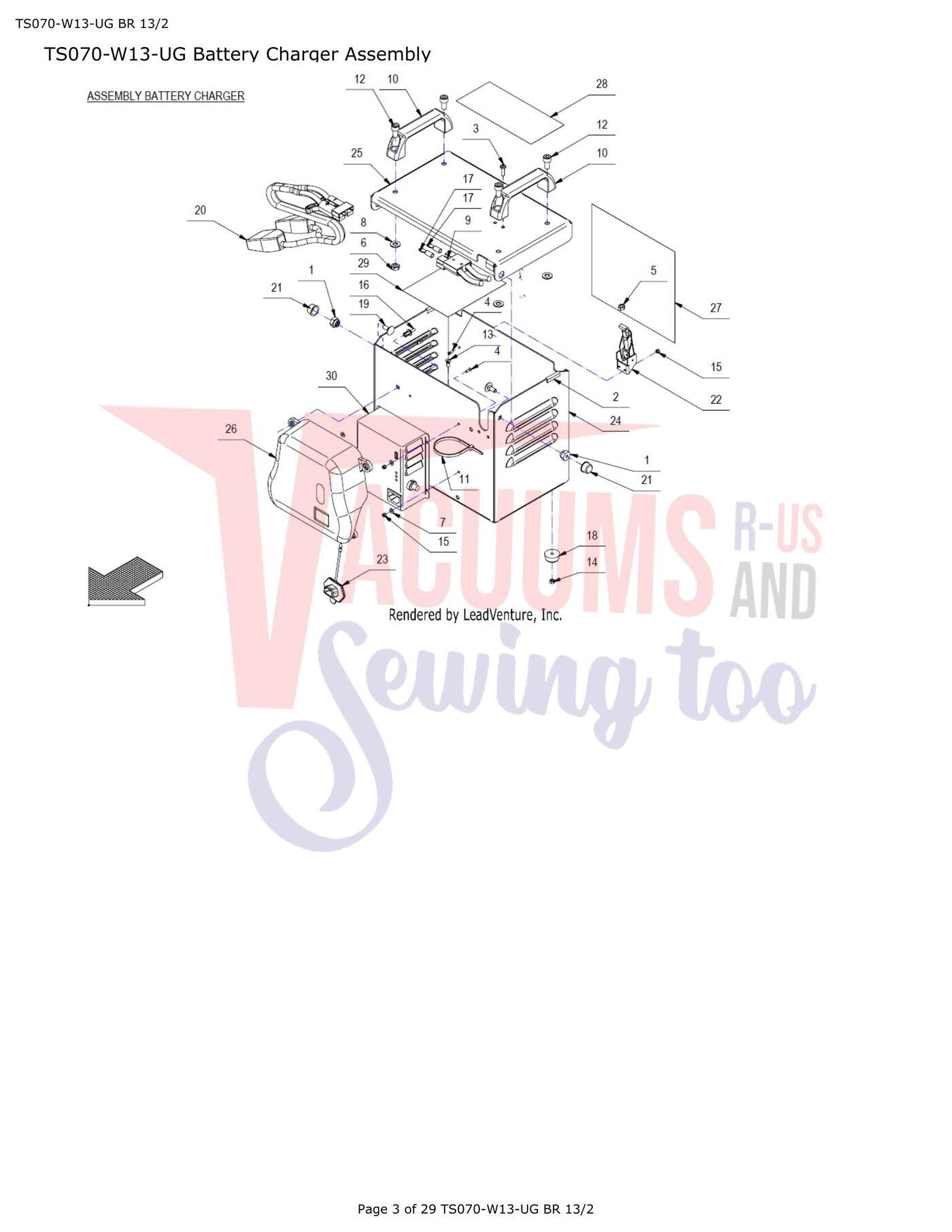

| # | Part image | Description | SKU | Price |
| 1 | Not Available | M6 BUSHING | 212368 | Not Available |
| 2 | Not Available | PROFILO | 213322 | Not Available |
| 3 | Not Available | .5 X 17 SCREW | 408893 | Not Available |
| 4 | Not Available | M3 X 10 A2 SCREW | 408922 | Not Available |
| 5 | Not Available | M6 X 5 ZINC NUT | 409040 | Not Available |
| 6 | Not Available | M8 X 5 ZINC NUT | 409054 | Not Available |
| 7 | Not Available | 4 X 9 .8 ZINC WASHER | 409142 | Not Available |
| 8 | Not Available | 8 X 17 1.6 ZINC WASHER | 409175 | Not Available |
| 9 | No Image | CONNECTOR RED BATTERY CHARGER PAS16 20DX 28DX 32DX | PAS59R | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | HANDLE BATTERY COVER | C410272 | Not Available |
| 11 | Not Available | 4.8 X 200 CLAMP | 410277 | Not Available |
| 12 | Not Available | M8 X 16 ZINC SCREW | 415765 | Not Available |
| 13 | Not Available | M5 X 12 TSP SCREW | 415817 | Not Available |
| 14 | Not Available | M5 A2 NUT | 415886 | Not Available |
| 15 | Not Available | M3 A2 LOCKNUT | 415897 | Not Available |
| 16 | Not Available | 6.4 X 10 NYLON RIVET | 415952 | Not Available |
| 17 | Not Available | CONNECTOR CONTACT | 416048 | Not Available |
| 18 | Not Available | RUBBER CAP | 416319 | Not Available |
| 19 | Not Available | M6 X 16 A2 SCREW | 421080 | Not Available |
| 20 | Not Available | BATTERY CABLE | C424503 | Not Available |
| 21 | Not Available | CAP | 422540 | Not Available |
| 22 | Not Available | HOOK | 422541 | Not Available |
| 23 | Not Available | PROTECTION | 422693 | Not Available |
| 24 | Not Available | BATTERY HOUSING | C423660 | Not Available |
| 25 | Not Available | COVER | 423661 | Not Available |
| 26 | Not Available | COVER ABS | 423670 | Not Available |
| 27 | Not Available | DECAL | 423787 | Not Available |
| 28 | Not Available | DECAL | 423788 | Not Available |
| 29 | Not Available | DECAL | 423789 | Not Available |
| 30 | Not Available | CHARGER | 432354 | Not Available |

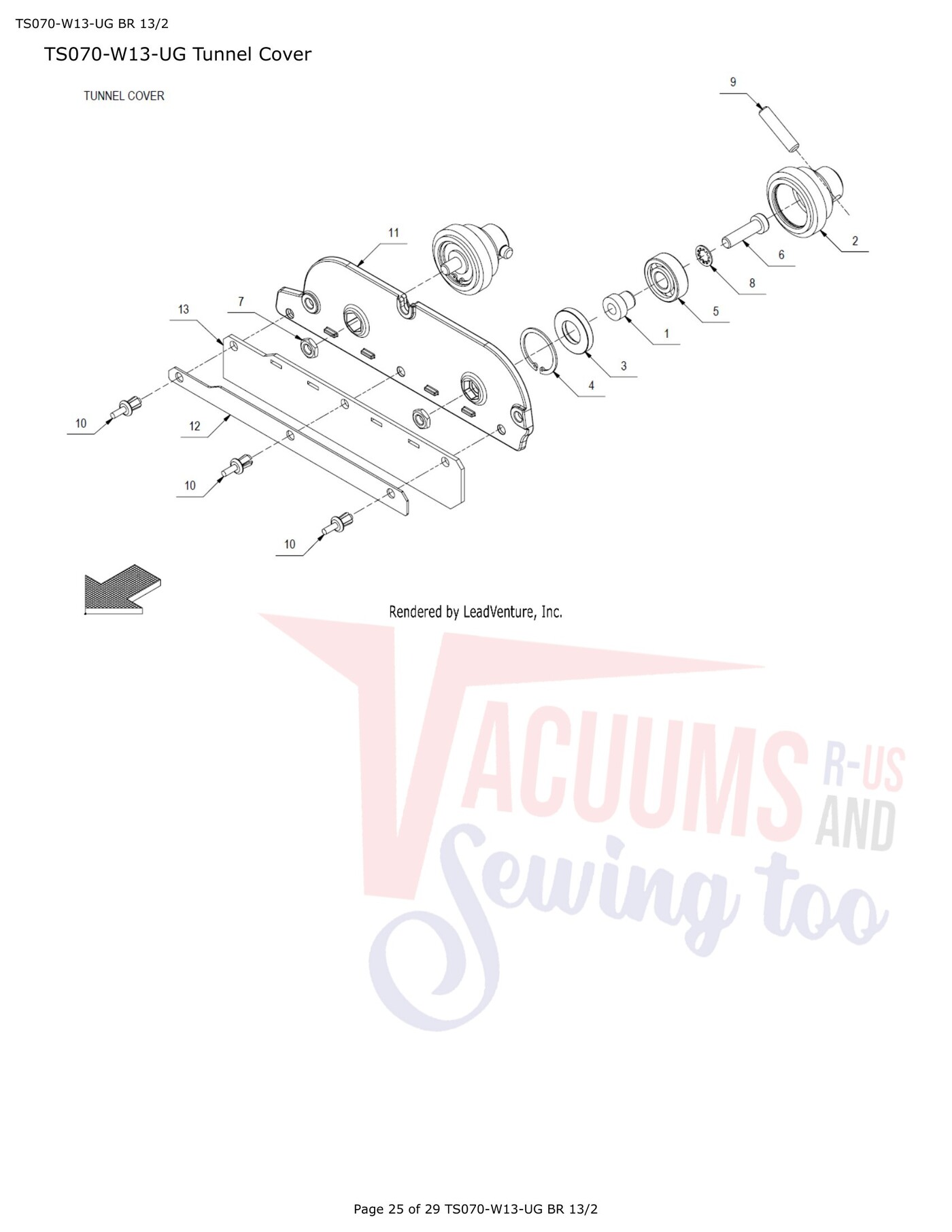

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BUSHING | 210198 | Not Available |
| 2 | Not Available | RIGHT HUB | C400822 | Not Available |
| 3 | No Image | Oil Seal Brush Hardware | C407608 | $0.00Read more |
| 4 | Not Available | RING | 408338 | Not Available |
| 5 | No Image | Brush Bearing 6201-2Rs1 | C408422 | $0.00Read more |
| 6 | Not Available | M8 X 30 A2 SCREW | C408821 | Not Available |
| 7 | Not Available | M8 X 4 A2 NUT | 409057 | Not Available |
| 8 | Not Available | M8 ZINC LOCK WASHER | 409342 | Not Available |
| 9 | Not Available | 8 X 35 INOX SPRING PIN | C409380 | Not Available |
| 10 | Not Available | 6.4 X 10 NYLON RIVET | 415952 | Not Available |
| 11 | Not Available | TUNNEL COVER | 428983 | Not Available |
| 12 | Not Available | RIGHT SQUEEGEE RETAINER | C428984 | Not Available |
| 13 | Not Available | SIDE SQUEEGEE RIGHT | C428986 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Bushing Brush Hardware | C210199 | $0.00Read more |
| 2 | No Image | Tunnel Side Cover Assembly | C218069 | $0.00Read more |
| 3 | No Image | Hopper | C218075 | $0.00Read more |
| 4 | No Image | Hub Brush Hardware | C400821 | $0.00Read more |
| 5 | No Image | Bearing Support Brush Hardware | C400824 | $0.00Read more |
| 6 | No Image | Left Brush Shaft | C400825 | $0.00Read more |
| 7 | No Image | Oil Seal Brush Hardware | C407608 | $0.00Read more |
| 8 | No Image | M5 X 16 A2 Screw | 407646 | $0.00Read more |
| 9 | No Image | M5 S 20 A2 Screw | 407650 | $0.00Read more |
| 10 | No Image | M6 X 10 A2 Screw | 407658 | $0.00Read more |
| 11 | No Image | Rear Bushing Brush Hardware | C408033 | $0.00Read more |
| 12 | No Image | Brush Bearing 6201-2Rs1 | C408422 | $0.00Read more |
| 13 | No Image | Brush Bearing 6202 2Rs | C408427 | $0.00Read more |
| 14 | No Image | M4 X 20 Inox Screw | 408640 | $0.00Read more |
| 15 | No Image | M4 X 6 A2 Nut | 409079 | $0.00Read more |
| 16 | No Image | M5 X 7 A2 Lock Nut | 409081 | $0.00Read more |
| 17 | No Image | M6 X 8 A2 Nut | 409083 | $0.00Read more |
| 18 | No Image | M8 Inox Lock Nut | 409087 | $0.00Read more |
| 19 | No Image | 5 X 11 X 1 Zinc Washer | 409150 | $0.00Read more |
| 20 | No Image | 5 X 15 X 1.5 A2 Washer | 409152 | $0.00Read more |
| 21 | Not Available | 8 X 17 X 1.6 A2 WASHER | 409177 | Not Available |
| 22 | Not Available | 1 X 18 X 1 DENT WASHER | 409338 | Not Available |
| 23 |  | Coveralls, :( Tvk w/ Hood & Elas, LG TY127 Part Number: 415935 for Jansan | 415935 | $21.10Read more |
| 24 | Not Available | POLY V BELT PJ769/303 | C421111 | Not Available |
| 25 | Not Available | M5 PVC WING NUT | 421733 | Not Available |
| 26 | Not Available | TUNNEL HOUSING | C428994 | Not Available |
| 27 | Not Available | BRUSH BLADE | C429073 | Not Available |
| 28 | Not Available | LEFT SQUEEGEE RETAINER | C429074 | Not Available |
| 29 | Not Available | SIDE SQUEEGEE LEFT | C429076 | Not Available |
| 30 | Not Available | SOLUTION LINE 7 X | C429077 | Not Available |
| 31 | Not Available | GROOVED PULLEY | C429078 | Not Available |
| 32 | Not Available | SMOOTH PULLEY | C429079 | Not Available |
| 33 | Not Available | M8 X 40 A2 SCREW | 429081 | Not Available |
| 34 | Not Available | RIVET 04 X | C429082 | Not Available |
| 35 | Not Available | MEDIUM BRUSH PPL 0.5 | C429090 | Not Available |
| 36 | Not Available | SOFT BRUSH PPL 0.3 | C429091 | Not Available |
| 37 | No Image | LOCK NUT M5 SS H5 UNI 7474 | 60220503 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | M5 X 16 A2 SCREW | 430409 | Not Available |

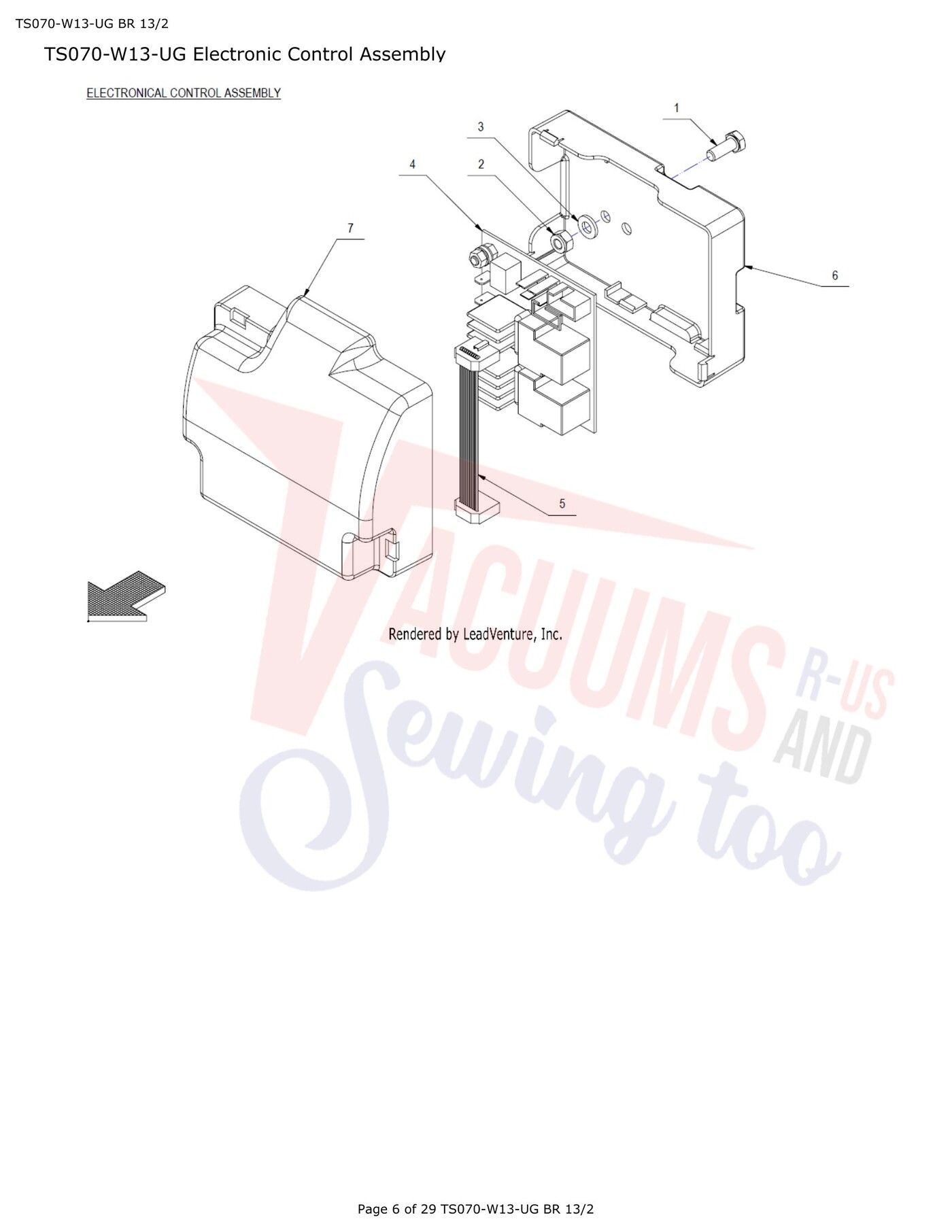

| # | Part image | Description | SKU | Price |

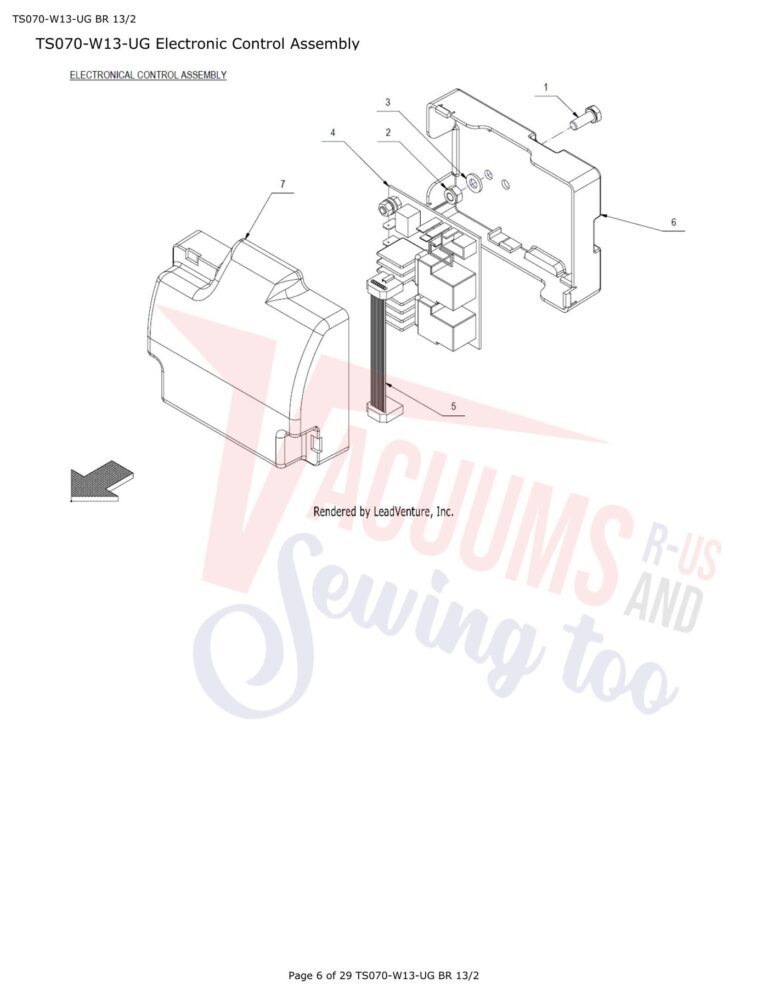

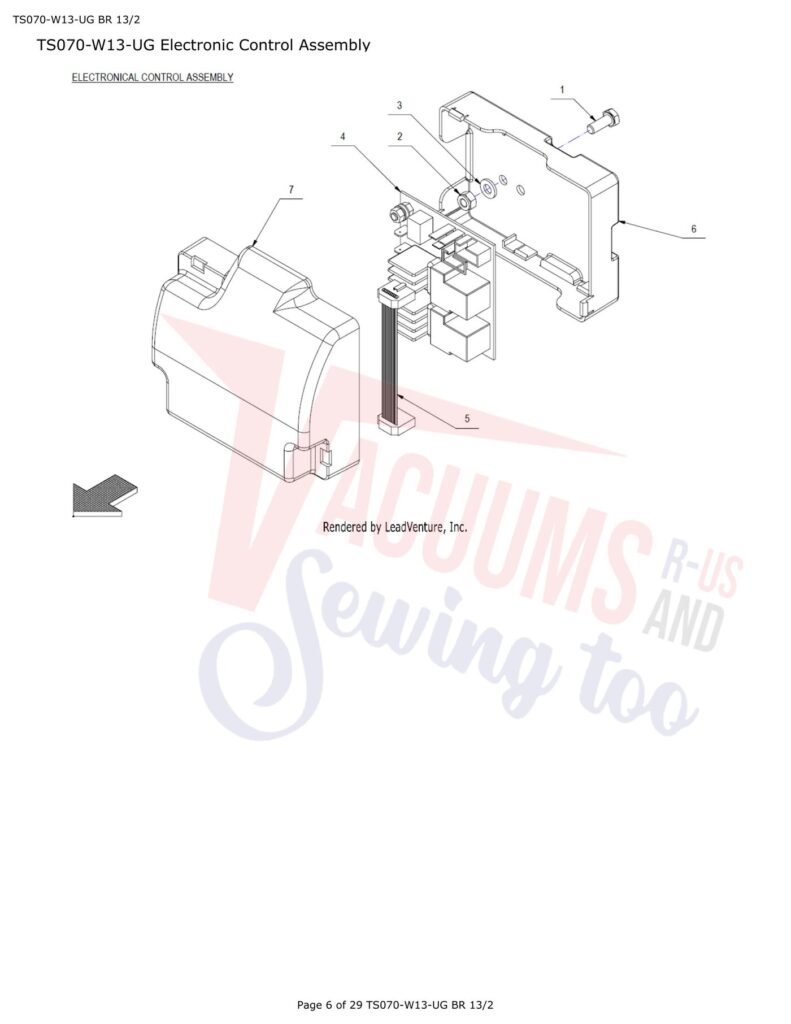

| 1 | Not Available | M6 X 18 ZINC SCREW | 407663 | Not Available |
| 2 | Not Available | M6 X 6 ZINC LOCK NUT | 409082 | Not Available |
| 3 | Not Available | 6 X 12 1.6 ZINC WASHER | 409156 | Not Available |
| 4 | Not Available | OVERLOAD PROTECTION BOARD 12V | C421243 | Not Available |
| 5 | Not Available | RIBBON CABLE 10 X | C423047 | Not Available |
| 6 | Not Available | OVERLOAD BOARD REAR PANEL | C423067 | Not Available |
| 7 | Not Available | OVERLOAD BOARD FRONT COVER | C423068 | Not Available |

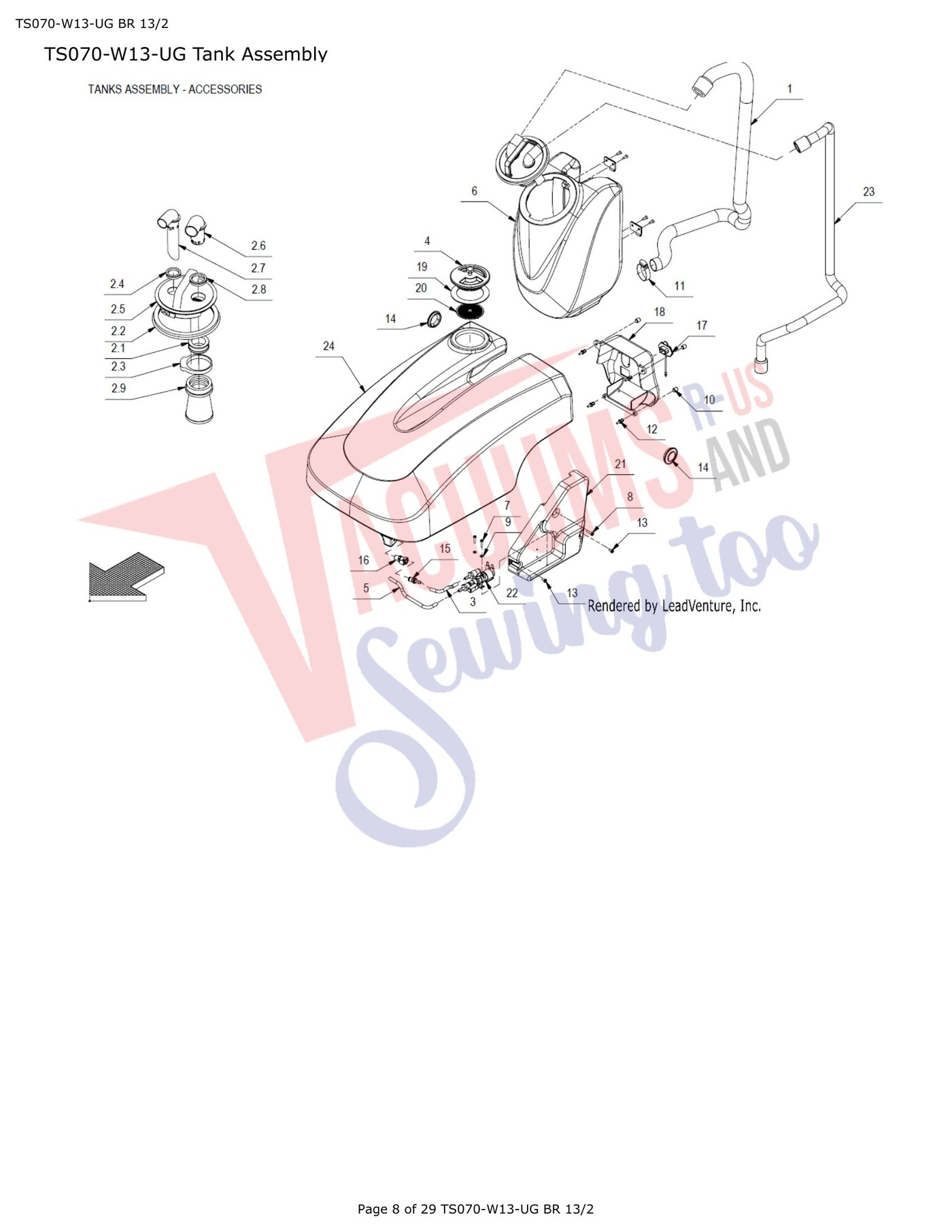

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SUCTION HOSE VACUUM MOTOR | C213041 | Not Available |
| 2 | Not Available | RECOVERY TANK LID ASSEMBLY | C213190 | Not Available |
| 2.1 | Not Available | SUPPORT | 212372 | Not Available |
| 2.2 | Not Available | GASKET RECOVERY TANK LID | C405466 | Not Available |
| 2.3 | Not Available | CLAMP | 411988 | Not Available |
| 2.4 | Not Available | V-RING | 416771 | Not Available |
| 2.5 | Not Available | CAP | 420604 | Not Available |
| 2.6 | Not Available | FITTING | 420606 | Not Available |
| 2.7 | Not Available | FITTING | 420607 | Not Available |
| 2.8 | Not Available | V-RING | 421109 | Not Available |
| 2.9 | Not Available | FILTER ASSEMBLY RECOVERY TANK | C421662 | Not Available |
| 3 | Not Available | SOLUTION TANK TO SOLENOID TUBE | C213251 | Not Available |
| 4 | Not Available | CAP BREATHER SOLUTION TANK | C216411 | Not Available |
| 5 | Not Available | SOLENOID TO SQUEEGEE TUBE | C218198 | Not Available |
| 6 | Not Available | RECOVERY TANK | C234981 | Not Available |
| 7 | Not Available | M4 X 20 A2 SCREW | 408843 | Not Available |
| 8 | Not Available | M5 X 20 ZINC SCREW | 408855 | Not Available |
| 9 | Not Available | 4 X 9 .8 ZINC WASHER | 409142 | Not Available |
| 10 | Not Available | RUBBER CAP | 409868 | Not Available |
| 11 | Not Available | CLAMP | 410290 | Not Available |
| 12 | Not Available | 6.4 X 10 NYLON RIVET | 415952 | Not Available |
| 13 | Not Available | M5 X 10 ZINC SCREW | 418311 | Not Available |
| 14 | Not Available | CAP FOR LARGE WHEEL | C421675 | Not Available |
| 15 | Not Available | MALE COUPLING SOLENOID | C421743 | Not Available |
| 16 | Not Available | FEMALE COUPLING SOLUTION TANK | C421744 | Not Available |
| 17 | Not Available | BATTERY CHARGER PLUG COVER | C422693 | Not Available |
| 18 | Not Available | BATTERY CHARGER COVER | C462564 | Not Available |
| 19 | Not Available | GASKET SOLUTION TANK CAP | C424090 | Not Available |
| 20 | Not Available | FILTER | 425742 | Not Available |
| 21 | Not Available | LEFT SIDE HOUSING COVER | C429032 | Not Available |
| 22 | Not Available | SOLENOID VALVE ASSEMBLY | C429193 | Not Available |
| 23 | Not Available | SUCTION HOSE SQUEEGE | C429215 | Not Available |
| 24 | Not Available | Solution Tank Assembly TS070- W13-U | C234986 | Not Available |

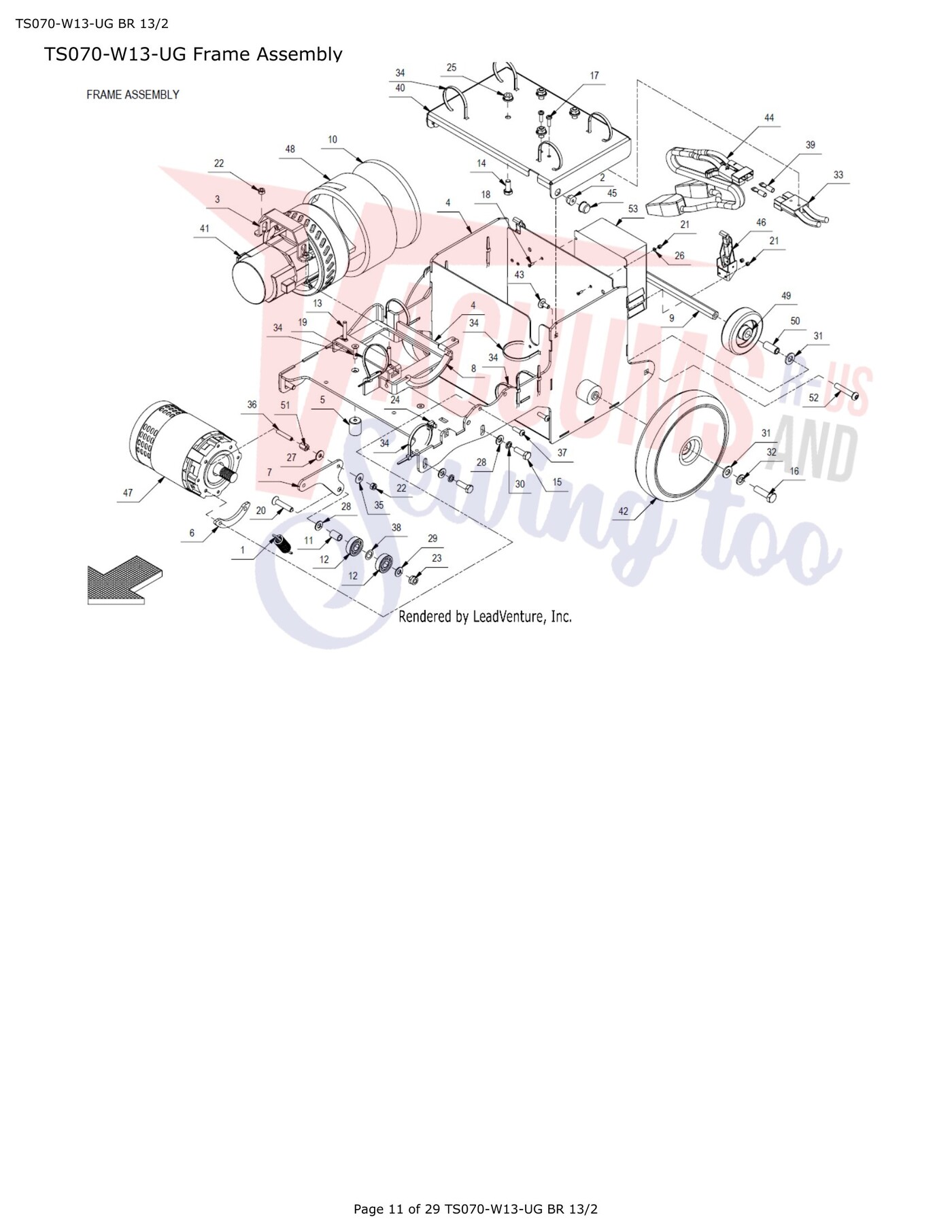

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SPRING 17.5 X 2.5 X 69 BRUSH MOTOR | C202475 | Not Available |
| 2 | Not Available | M6 BUSHING | 212368 | Not Available |
| 3 | Not Available | VACUUM MOTOR SUPPORT | C216663 | Not Available |
| 4 | Not Available | MACHINE FRAME | C218141 | Not Available |
| 5 | Not Available | STOP ROUND | 218145 | Not Available |
| 6 | Not Available | SHIM SUPPORT | 218146 | Not Available |
| 7 | Not Available | Brush Motor Support | C218147 | Not Available |
| 8 | Not Available | Vacuum Motor Rubber Support | C218148 | Not Available |
| 9 | Not Available | Rear Wheel Axle | C218963 | Not Available |
| 10 | Not Available | Bottom Gasket Vacuum Motor | C405832 | Not Available |
| 11 | Not Available | BUSHING | 408033 | Not Available |
| 12 | No Image | Brush Bearing 6201-2Rs1 | C408422 | $0.00Read more |
| 13 | Not Available | M6 X 40 ZINC SCREW | 408618 | Not Available |
| 14 | Not Available | M8 X 20 ZINC SCREW | 408670 | Not Available |
| 15 | Not Available | M8 X 25 ZINC SCREW | 408674 | Not Available |
| 16 | Not Available | Screw M10 X 35 Large Wheel | C408714 | Not Available |
| 17 | Not Available | .5 X 17 SCREW | 408893 | Not Available |
| 18 | Not Available | M3 X 10 A2 SCREW | 408922 | Not Available |
| 19 | Not Available | M6 X 25 A2 SCREW | 408972 | Not Available |
| 20 | Not Available | M8 X 40 ZINC SCRE | 408983 | Not Available |
| 21 | Not Available | M3 X 4.5 ZINC LOCK NUT | 409077 | Not Available |
| 22 | Not Available | M6 X 6 ZINC LOCK NUT | 409082 | Not Available |
| 23 | No Image | M8 Inox Lock Nut | 409087 | $0.00Read more |
| 24 | Not Available | M5 CAGE NUT | 409118 | Not Available |
| 25 | Not Available | M8 NUT | 409126 | Not Available |
| 26 | Not Available | 3 X 7 X .5 INOX WASHER | 409138 | Not Available |
| 27 | Not Available | 6 X 18 1.5 ZINC WASHER | 409160 | Not Available |
| 28 | Not Available | 8 X 17 1.6 ZINC WASHER | 409175 | Not Available |
| 29 | Not Available | 8 X 17 X 1.6 A2 WASHER | 409177 | Not Available |
| 30 | Not Available | 8 X 13 X 2.2 ZINC LOCK WASHER | 409181 | Not Available |
| 31 | Not Available | Washer 10 X 21 X 2 A2 Large Wheel | C409192 | Not Available |
| 32 | Not Available | Lock Washer 10 X 18 X 2.2 Large Wheel | C409196 | Not Available |
| 33 | No Image | CONNECTOR RED BATTERY CHARGER PAS16 20DX 28DX 32DX | PAS59R | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | 4.8 X 200 CLAMP | 410277 | Not Available |
| 35 | Not Available | 18 X 6.2 X .7 SPRING | 411968 | Not Available |
| 36 | Not Available | M6 X 35 DOWEL | 415813 | Not Available |
| 37 | Not Available | M6 X 20 ZINC SCREW | 415855 | Not Available |
| 38 | | Coveralls, :( Tvk w/ Hood & Elas, LG TY127 Part Number: 415935 for Jansan | 415935 | $21.10Read more |
| 39 | Not Available | CONNECTOR CONTACT | 416048 | Not Available |
| 40 | Not Available | Battery Cover | C420601 | Not Available |
| 41 | Not Available | Vacuum Motor | C420672 | Not Available |
| 42 | Not Available | Large Wheel | C420674 | Not Available |
| 43 | Not Available | M6 X 16 A2 SCREW | 421080 | Not Available |
| 44 | Not Available | Charger Cable | C421604 | Not Available |
| 45 | Not Available | CAP | 422540 | Not Available |
| 46 | Not Available | Battery Compartment Latch | C422541 | Not Available |
| 47 | Not Available | Brush Motor 12V 360W | C422660 | Not Available |
| 48 | Not Available | Motor Vac Deadner | C423870 | Not Available |
| 49 | Not Available | Rear Wheel | C427251 | Not Available |
| 50 | Not Available | Bushing Rear Wheel | C429116 | Not Available |
| 51 | Not Available | M6 X 13 SPACER | 429120 | Not Available |
| 52 | Not Available | Screw M8 X 45 Rear Wheel | C430420 | Not Available |
| 53 | Not Available | On Board Charger | C432354 | Not Available |
| # | Part image | Description | SKU | Price |

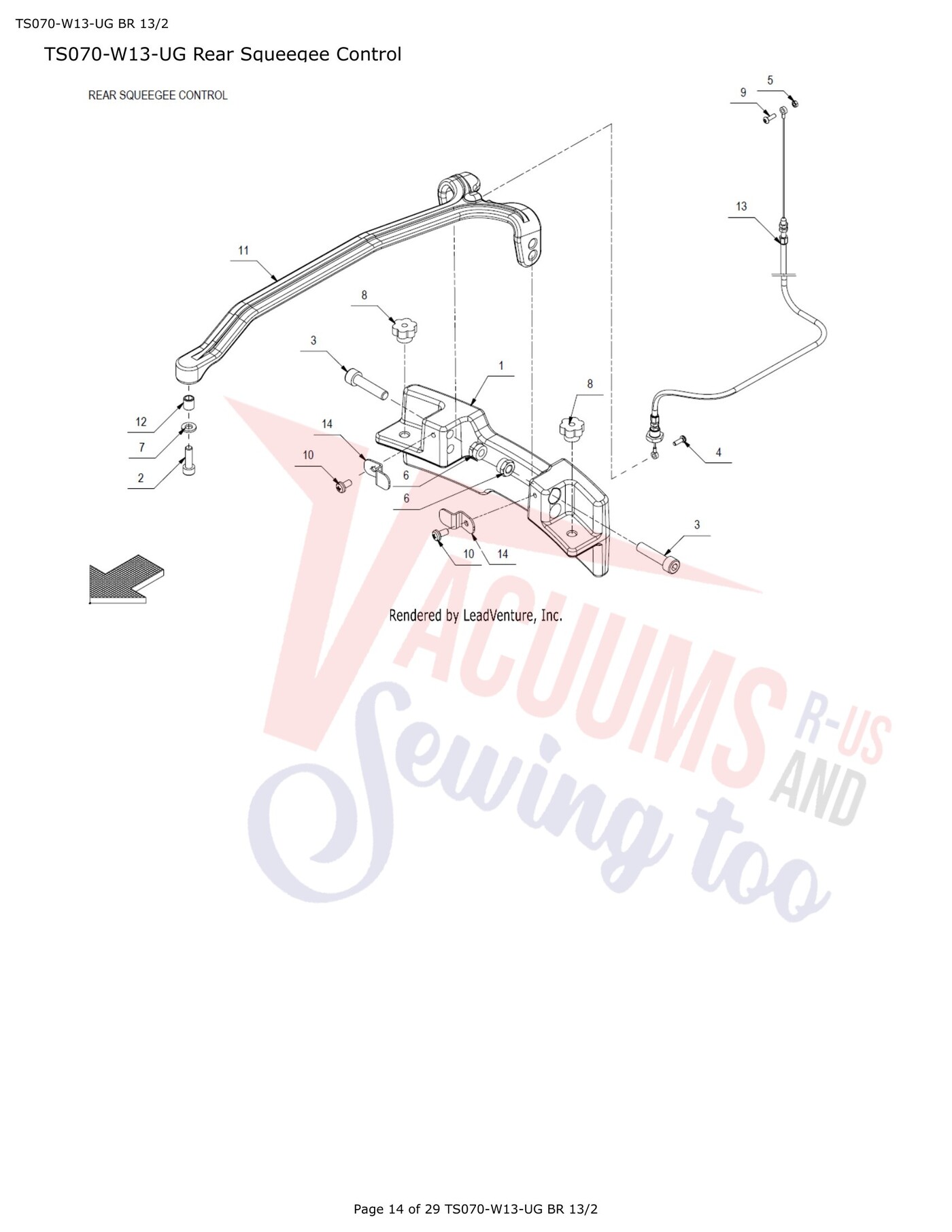

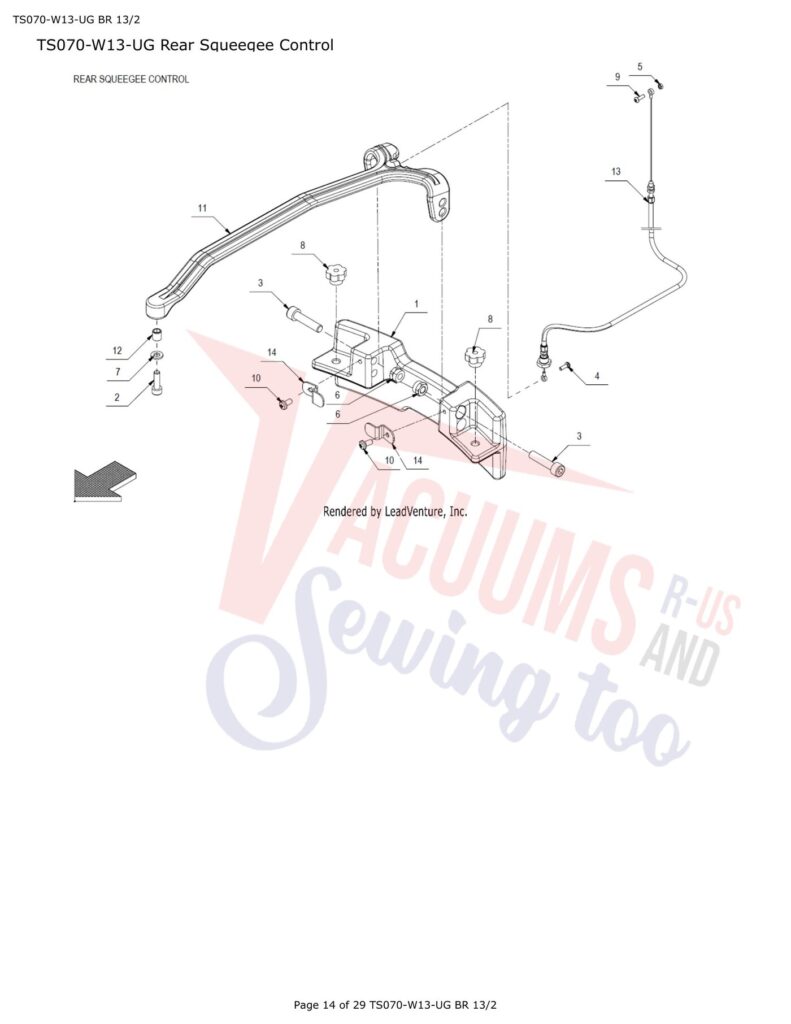

| 1 | Not Available | CAST IRON WEIGHT | 218108 | Not Available |
| 2 | Not Available | M6 X 20 ZINC SCREW | 408796 | Not Available |
| 3 | Not Available | M8 X 35 SCREW | 408818 | Not Available |
| 4 | Not Available | M5 X 16 SCREW | 408854 | Not Available |
| 5 | Not Available | M5 X 3.5 ZINC LOCK NUT | 409038 | Not Available |
| 6 | Not Available | M8 X 8.5 ZINC LOCK NUT | 409085 | Not Available |
| 7 | Not Available | 6 X 12 1.6 ZINC WASHER | 409156 | Not Available |
| 8 | Not Available | REAR SQUEEGEE KNOB M6 | C410225 | Not Available |
| 9 | Not Available | M5 X 16 ZINC SCREW | 415846 | Not Available |
| 10 | Not Available | M5 X 10 ZINC SCREW | 418311 | Not Available |
| 11 | Not Available | REAR SQUEEGEE ARM | C429057 | Not Available |
| 12 | Not Available | BUSHING | 429064 | Not Available |
| 13 | Not Available | REAR SQUEEGEE CABLE | C429066 | Not Available |
| 14 | Not Available | SQUEEGEE WEIGHT SUPPORT | C429067 | Not Available |
| # | Part image | Description | SKU | Price |

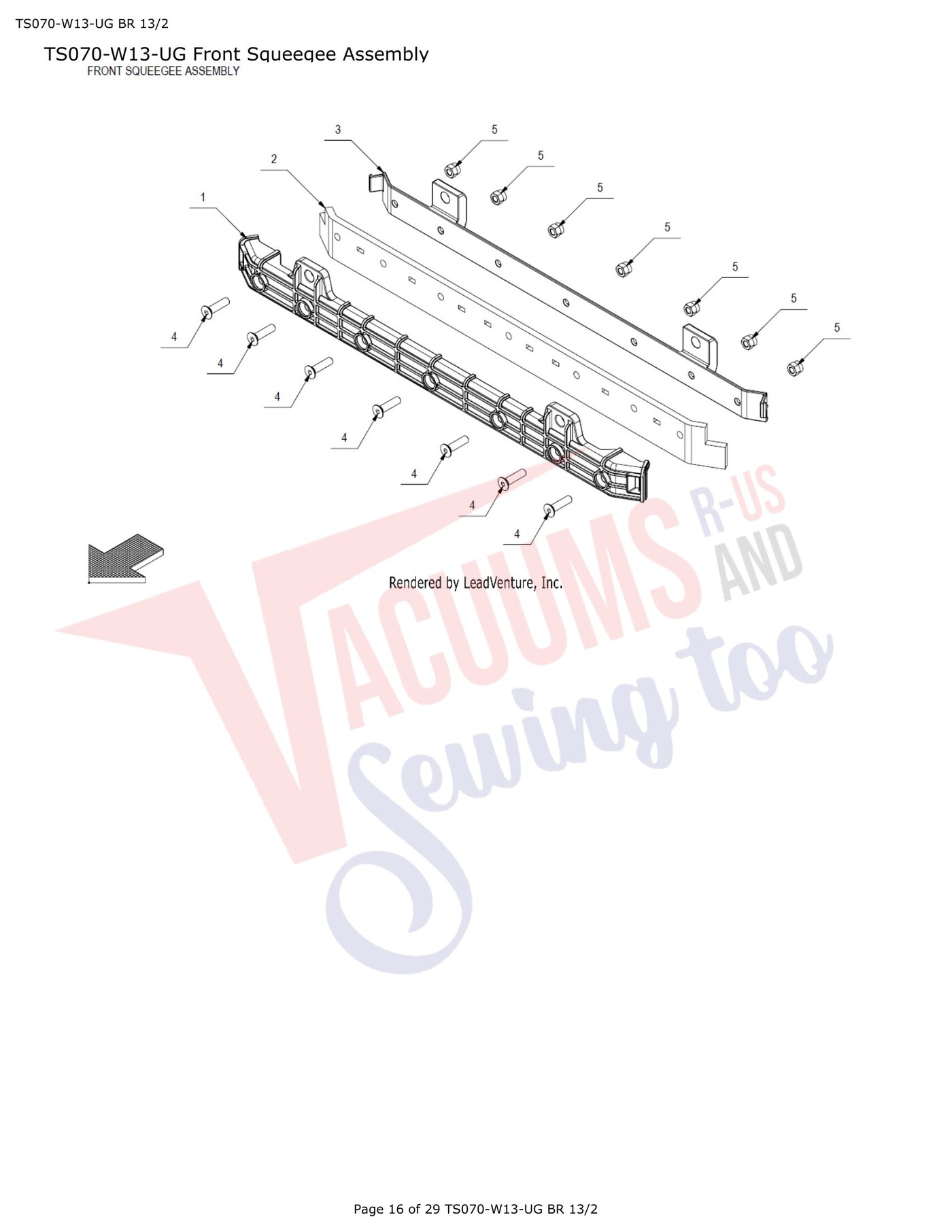

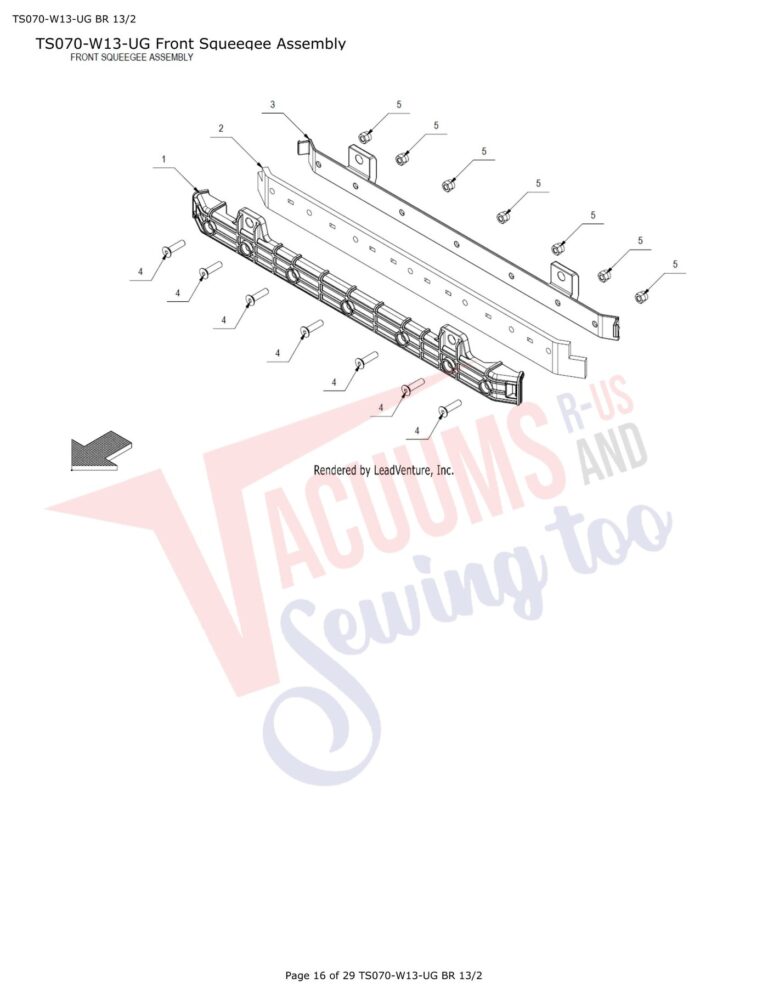

| 1 | Not Available | FRONT SQUEEGEE BODY | C428951 | Not Available |
| 2 | Not Available | FRONT SQUEEGEE | C428953 | Not Available |
| 3 | Not Available | FRONT SQUEEGEE RETAINER | C428952 | Not Available |
| 4 | Not Available | M5 X 20 A2 SCREW | 408958 | Not Available |
| 5 | No Image | M5 X 7 A2 Lock Nut | 409081 | $0.00Read more |
| # | Part image | Description | SKU | Price |

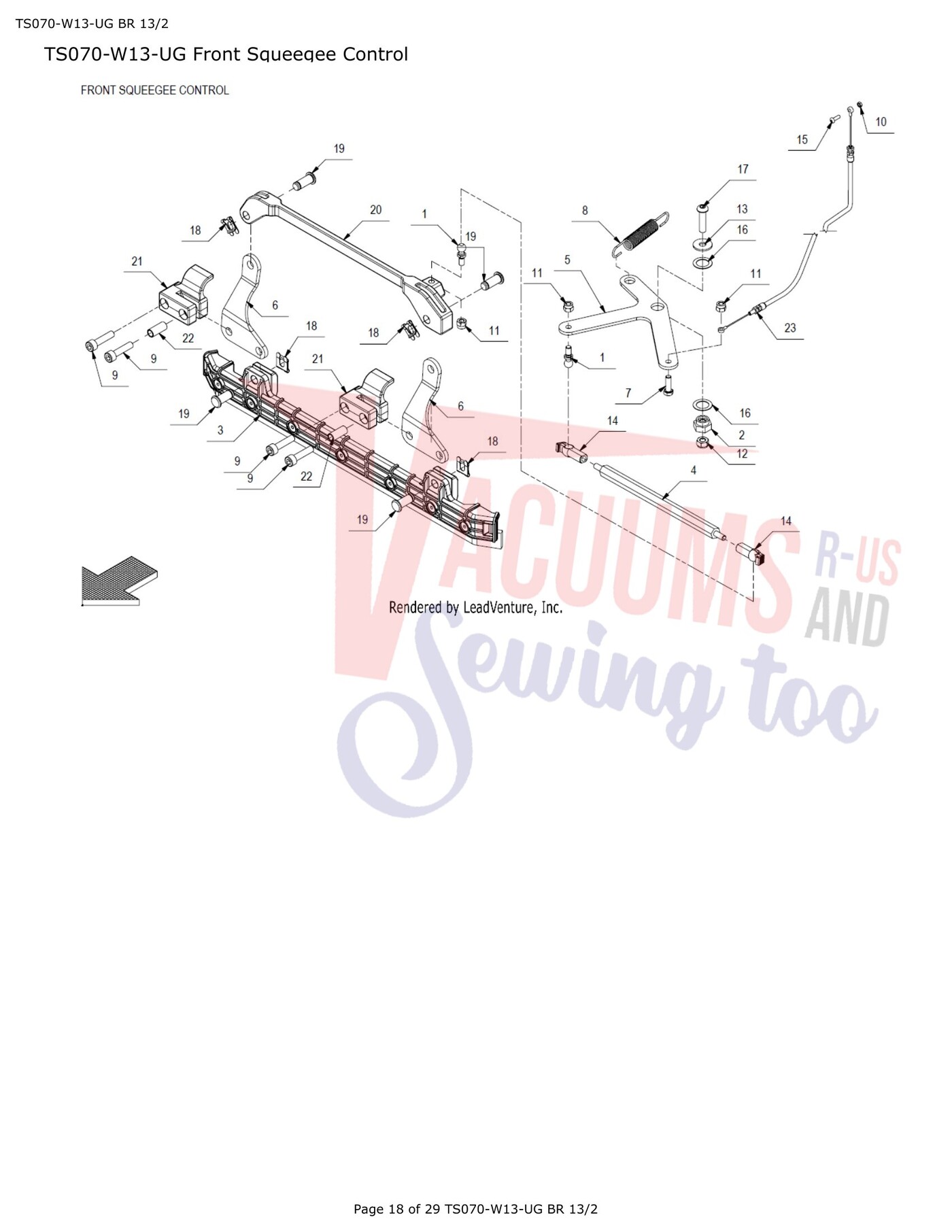

| 1 | Not Available | M5 PIN FRONT SQUEEGEE | C203279 | Not Available |
| 2 | Not Available | M6 BUSHING | 212368 | Not Available |
| 3 | Not Available | FRONT SQUEEGEE ASSEMBLY | C218040 | Not Available |
| 4 | Not Available | TIE ROD M5 FRONT SQUEEGEE | C218061 | Not Available |
| 5 | Not Available | SUPPORT | 218062 | Not Available |
| 6 | Not Available | SUPPORT | 218063 | Not Available |
| 7 | Not Available | M5 X 16 ZINC SCREW | 407645 | Not Available |
| 8 | Not Available | SPRING 12 X 80 X 1.5 FRONT SQUEEGEE | C408119 | Not Available |
| 9 | Not Available | M6 X 25 ZINC SCREW | 408797 | Not Available |
| 10 | Not Available | M5 X 3.5 ZINC LOCK NUT | 409038 | Not Available |
| 11 | No Image | M5 X 7 A2 Lock Nut | 409081 | $0.00Read more |
| 12 | Not Available | M6 X 6 ZINC LOCK NUT | 409082 | Not Available |
| 13 | Not Available | 6 X 18 1.5 ZINC WASHER | 409160 | Not Available |
| 14 | Not Available | PIVOT HEAD M5 FRONT SQUEEGEE | C410316 | Not Available |
| 15 | Not Available | M5 X 16 ZINC SCREW | 415846 | Not Available |
| 16 | | Coveralls, :( Tvk w/ Hood & Elas, LG TY127 Part Number: 415935 for Jansan | 415935 | $21.10Read more |
| 17 | Not Available | M6 X 25 ZINC SCREW | 416778 | Not Available |
| 18 | Not Available | CLIP FRONT SQUEEGEE | C422570 | Not Available |
| 19 | Not Available | PIN | 428971 | Not Available |
| 20 | Not Available | FRONT SQUEEGEE ARM | C428972 | Not Available |
| 21 | Not Available | SUPPORT BLOCK FRONT SQUEEGEE | C428973 | Not Available |
| 22 | Not Available | BUSHING | 428977 | Not Available |
| 23 | Not Available | CABLE FRONT SQUEEGEE | C428980 | Not Available |
| # | Part image | Description | SKU | Price |

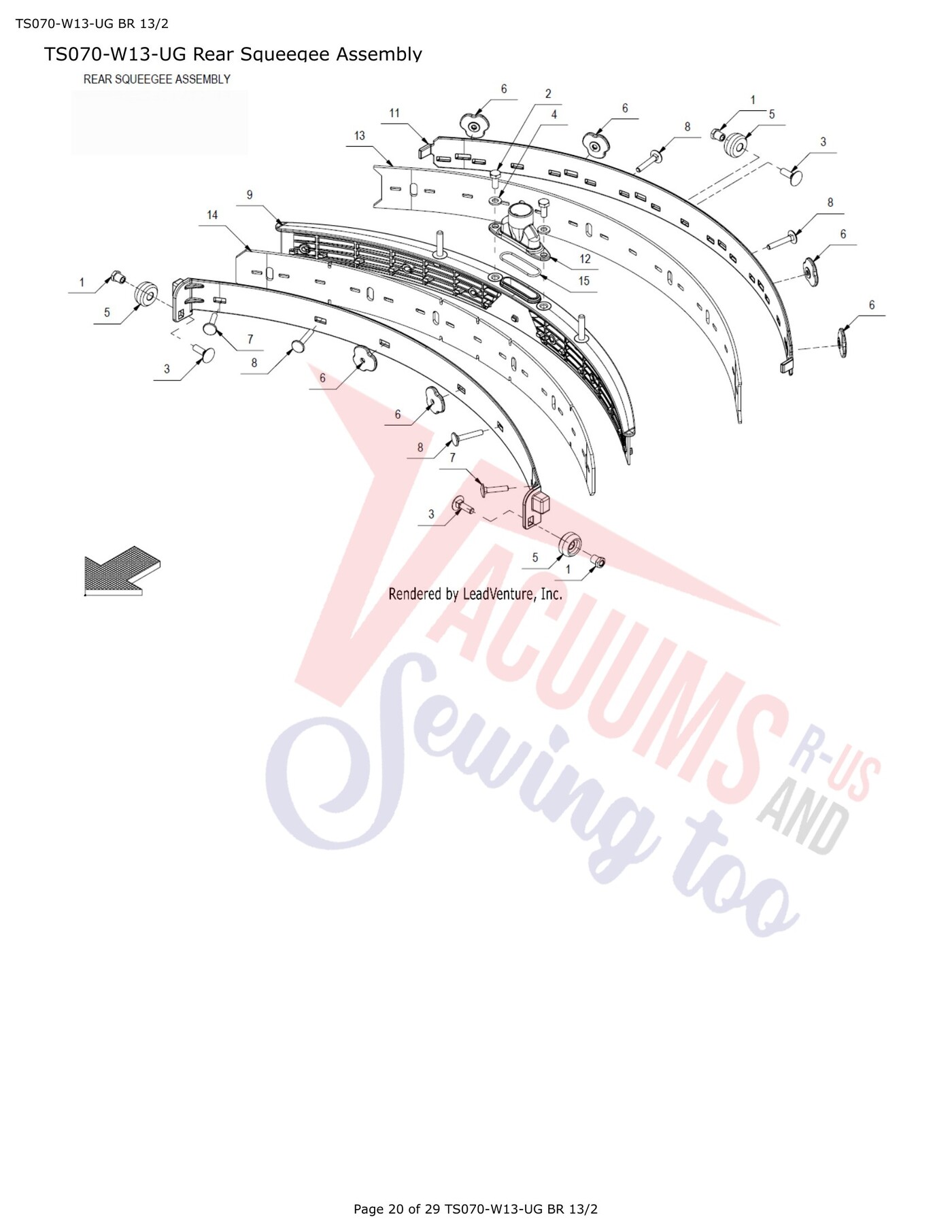

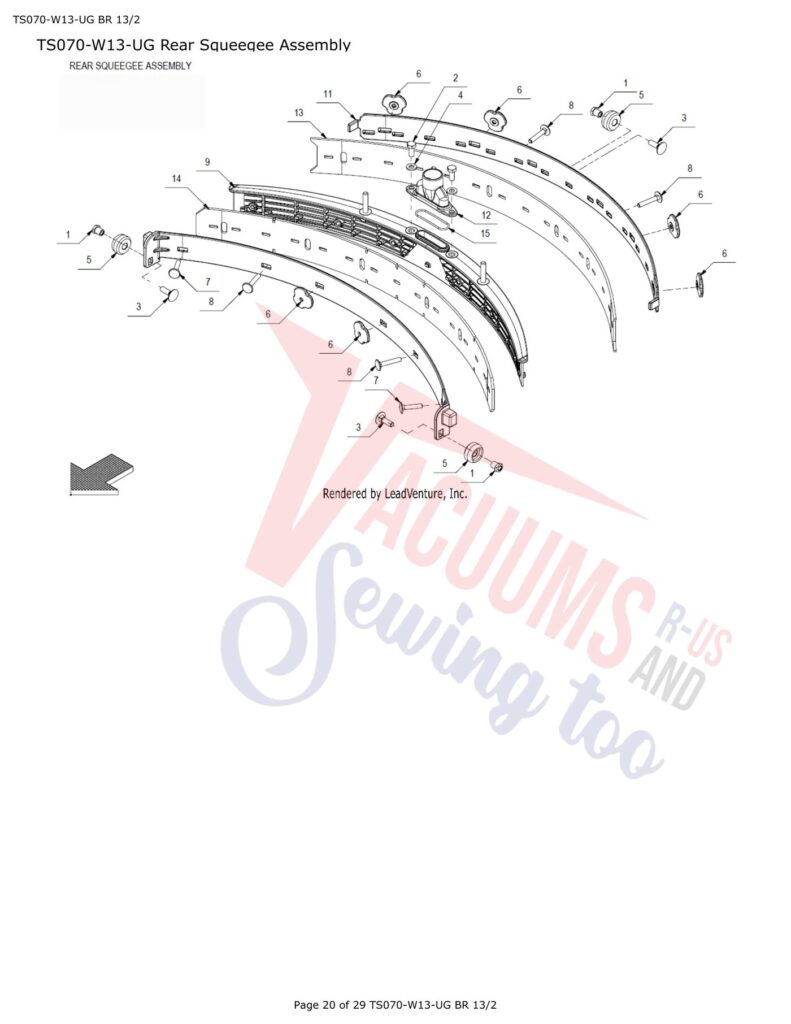

| C429040 | Not Available | REAR OIL-RESISTANT SQUEEGEE REAR | C429040 | Not Available |
| 1 | Not Available | BUSHING M8 SQUEEGEE WHEEL | C431335 | Not Available |
| 2 | Not Available | M6 X 14 ZINC SCREW | 407661 | Not Available |
| 3 | Not Available | SCREW M6 X 20 A2 SQUEEGEE WHEEL | C408622 | Not Available |
| 4 | Not Available | 6 X 12 1.6 INOX WASHER | 409157 | Not Available |
| 5 | Not Available | REAR SQUEEGEE WHEEL | C421101 | Not Available |
| 6 | Not Available | WING NUT REAR SQUEEGEE M5 | C421733 | Not Available |
| 7 | Not Available | REAR RETAINER SCREW M5 X 25 INOX | C421930 | Not Available |
| 8 | Not Available | REAR SQUEEGEE SCREW M5 X 30 INOX | C421931 | Not Available |
| 9 | Not Available | REAR SQUEEGEE BODY | C428996 | Not Available |
| 10 | Not Available | REAR SQUEEGEE FRONT RETAINER | C429012 | Not Available |
| 11 | Not Available | REAR SQUEEGEE REAR RETAINER | C429014 | Not Available |
| 12 | Not Available | REAR SQUEEGEE MANIFOLD | C429016 | Not Available |
| 13 | Not Available | REAR SQUEEGEE REAR | C429039 | Not Available |
| 14 | Not Available | REAR SQUEEGEE FRONT | C429041 | Not Available |
| 15 | Not Available | O-RING SQUEEGEE MANIFOLD 1.78 X 34.9 | C429072 | Not Available |
| # | Part image | Description | SKU | Price |

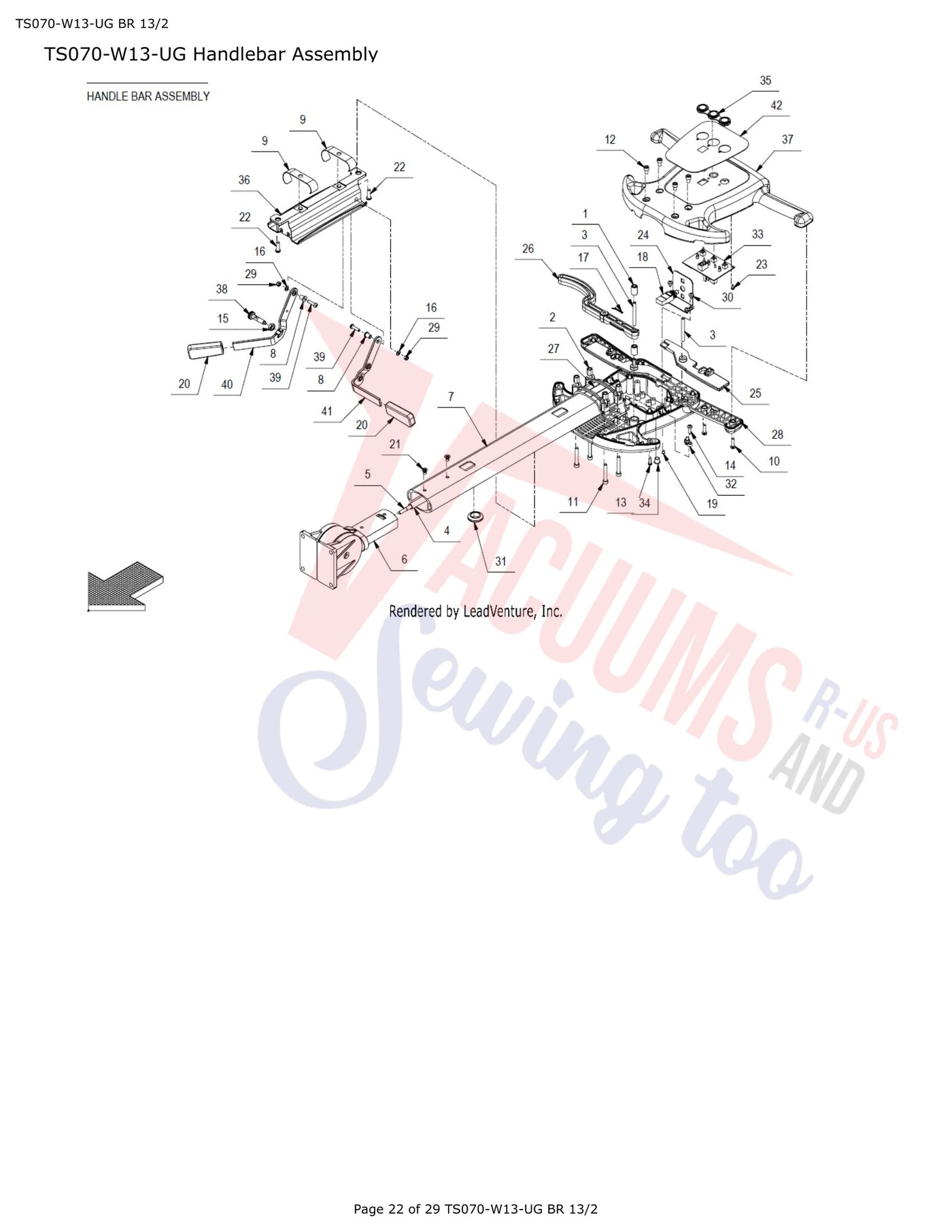

| 1 | Not Available | BUSHING | 204392 | Not Available |
| 2 | Not Available | M6 STUD BOLT | 204428 | Not Available |
| 3 | Not Available | SPRING PIN HANDLE HARDWARE | C204524 | Not Available |
| 4 | Not Available | HANDLE INTERNAL CABLE | C212371 | Not Available |
| 5 | Not Available | TIE ROD HANDLE | C212902 | Not Available |
| 6 | Not Available | HANDLE BAR JOINT ASSY | C213812 | Not Available |
| 7 | Not Available | HANDLE BAR PIPE | 218174 | Not Available |
| 8 | Not Available | BUSHING | 218175 | Not Available |
| 9 | Not Available | HOSE SUPPORT CLIP | C218178 | Not Available |
| 10 | Not Available | HANDLE LOCK SCREW 5 X | C408506 | Not Available |
| 11 | Not Available | SHAFT SCREW M6 X 40 ZINCD | C408802 | Not Available |
| 12 | Not Available | M6 X 10 ZINC SCREW | 408805 | Not Available |
| 13 | Not Available | 3.9 X 16 SCREW | 408872 | Not Available |
| 14 | Not Available | 4.8 X 19 SCREW | 408885 | Not Available |
| 15 | Not Available | M8 X 5 ZINC NUT | 409054 | Not Available |
| 16 | No Image | 5 X 11 X 1 Zinc Washer | 409150 | $0.00Read more |
| 17 | Not Available | HANDLE SPLIT PIN D2 X | C409382 | Not Available |
| 18 | Not Available | SWITCH HANDLE | C409505 | Not Available |
| 19 | Not Available | PLUG 4.8 HEYCO | 409827 | Not Available |
| 20 | Not Available | 70 X 30 KNOB | 410251 | Not Available |
| 21 | Not Available | M6 X 10 ZINC SCREW | 415805 | Not Available |
| 22 | Not Available | M6 X 20 ZINC SCREW | 415855 | Not Available |
| 23 | Not Available | 2.9 X 9.5 SCREW | 415866 | Not Available |
| 24 | Not Available | INTERNAL HANDLE SUPPORT | C416489 | Not Available |
| 25 | Not Available | HANDLE LEVER | C416491 | Not Available |
| 26 | Not Available | HANDLE ADJUSTMENT LEVER | C416493 | Not Available |
| 27 | Not Available | HANDLE TO SHAFT SUPPORT | C416500 | Not Available |
| 28 | Not Available | HANDLE BAR BODY REAR | C416747 | Not Available |
| 29 | Not Available | M5 X 5 ZINC LOCK NUT | 416781 | Not Available |
| 30 | Not Available | 4.8 X 9.5 SCREW | 416788 | Not Available |
| 31 | Not Available | FAIRLEAD | C416820 | Not Available |
| 32 | Not Available | 4.8 X 200 CLAMP | 416828 | Not Available |
| 33 | Not Available | CONTROL BOARD | C421244 | Not Available |
| 34 | Not Available | CAP | 422110 | Not Available |
| 35 | Not Available | SET OF PUSH BUTTONS | C424143 | Not Available |
| 36 | Not Available | HOSE RETAINER | C462561 | Not Available |
| 37 | Not Available | HANDLE BAR BODY FRONT | C429150 | Not Available |
| 38 | Not Available | PIN SPRING | 429152 | Not Available |
| 39 | Not Available | M5 X 20 ZINC SCREW | 429154 | Not Available |
| 40 | Not Available | FRONT SQUEEGEE LEVER | C429155 | Not Available |
| 41 | Not Available | REAR SQUEEGEE LEVER | C429156 | Not Available |
| 42 | Not Available | CONTROL PANEL INLAY | C429158 | Not Available |
Report errors on this page HERE
