Schematic and parts book for Tornado TS040-W17-U . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Recovery Tank Assembly | TMS011 | $101.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Recovery / Solution Tank Cap Set, Microburst | TMS010 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Recovery Tank Elbow with Recovery Tank Seal | TMS012 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| Not Shown | Not Available | Squeegee Elbow with Hardware | TMS015 | Not Available |
| 1 |  | Complete Squeegee Assembly, Microburst | TMS030 | $177.99Read more |
| 2 |  | Squeegee Hardware Set, Microburst | TMS031 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Squeegee Mounting Hardware Kit, Microburst | TMS038 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Squeegee Set | TMS032 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Blade, Squeegee Set Oil Resistant Microburst | TMS037 | $67.99Add to cart |
| 5 |  | Standard Brush Set, Microburst | TMS028 | $103.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Brush Set Soft Clear Microburst | TMS041 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Brush Set Hard Black Microburst | TMS042 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 |  | Solution Tank Assembly | TMS009 | $67.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Recovery / Solution Tank Cap Set, Microburst | TMS010 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Filter Assembly Solution Tank Microburst | TMS039 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

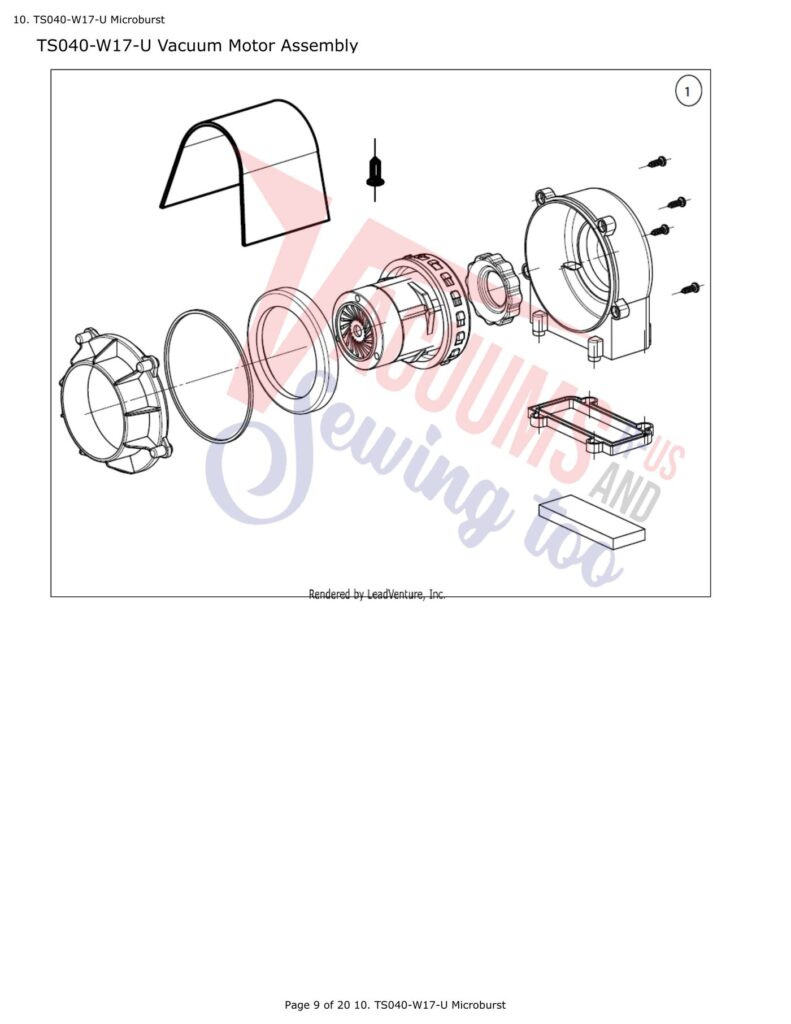

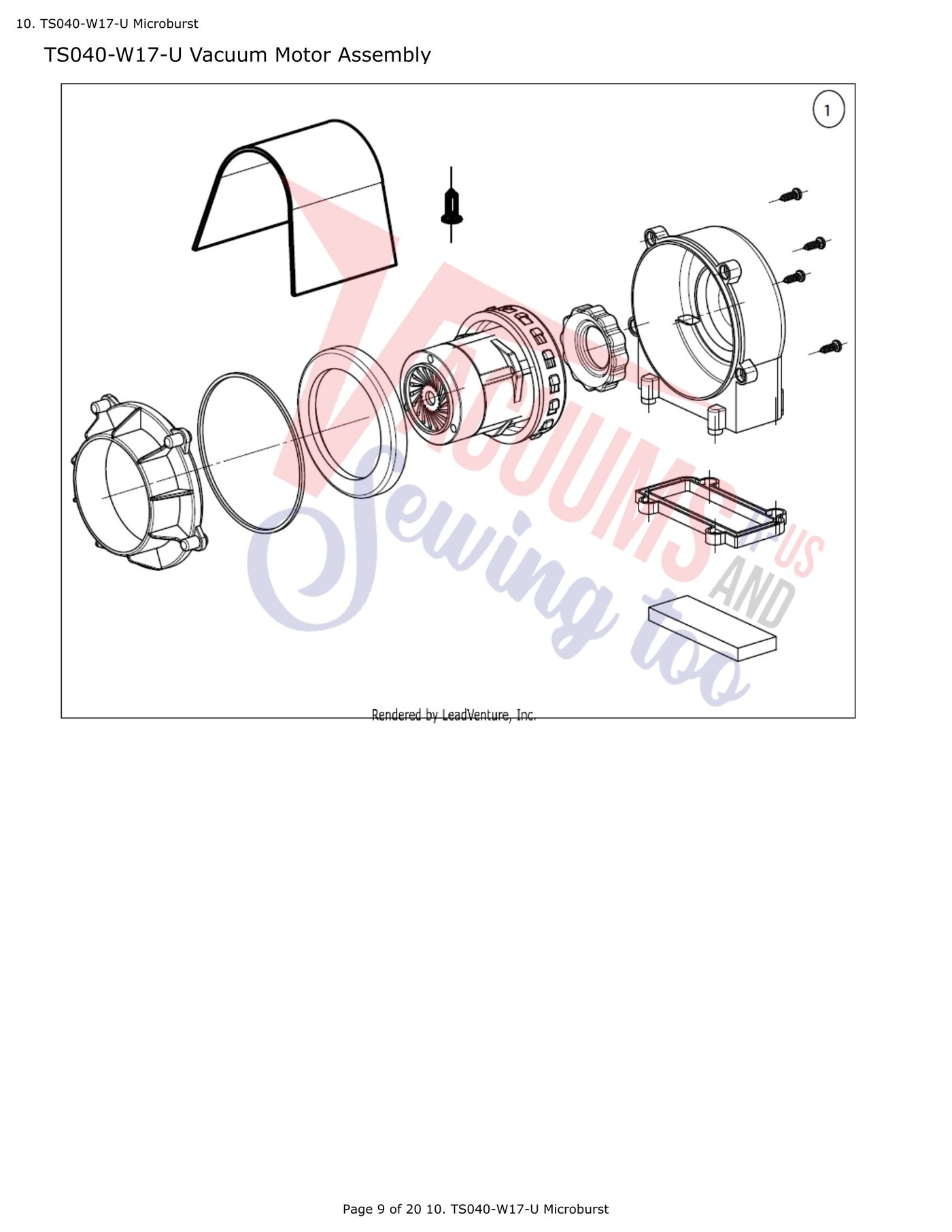

| 1 |  | Vacuum Motor Assembly, Microburst | TMS029 | $209.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Pad Driver Set Microburst Microfiber Pads Only | TMS034 | $127.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Set of Mop Pads, Microburst | TMS035 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Pad Driver Set Microburst, For 8 Inch Pads | TMS043 | $113.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Soft White Pad 10pk Microburst | TMSSP | $78.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Medium Red Pad 10pk Mircroburst | TMSMP | $78.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Hard Blue Pad 10pk Mircroburst | TMSHP | $78.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Standard Brush Set, Microburst | TMS028 | $103.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Brush Set Soft Clear Microburst | TMS041 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Brush Set Hard Black Microburst | TMS042 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Battery for Microburst | MB027 | $390.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Battery Charger, Micro Burst | TMS033 | $192.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

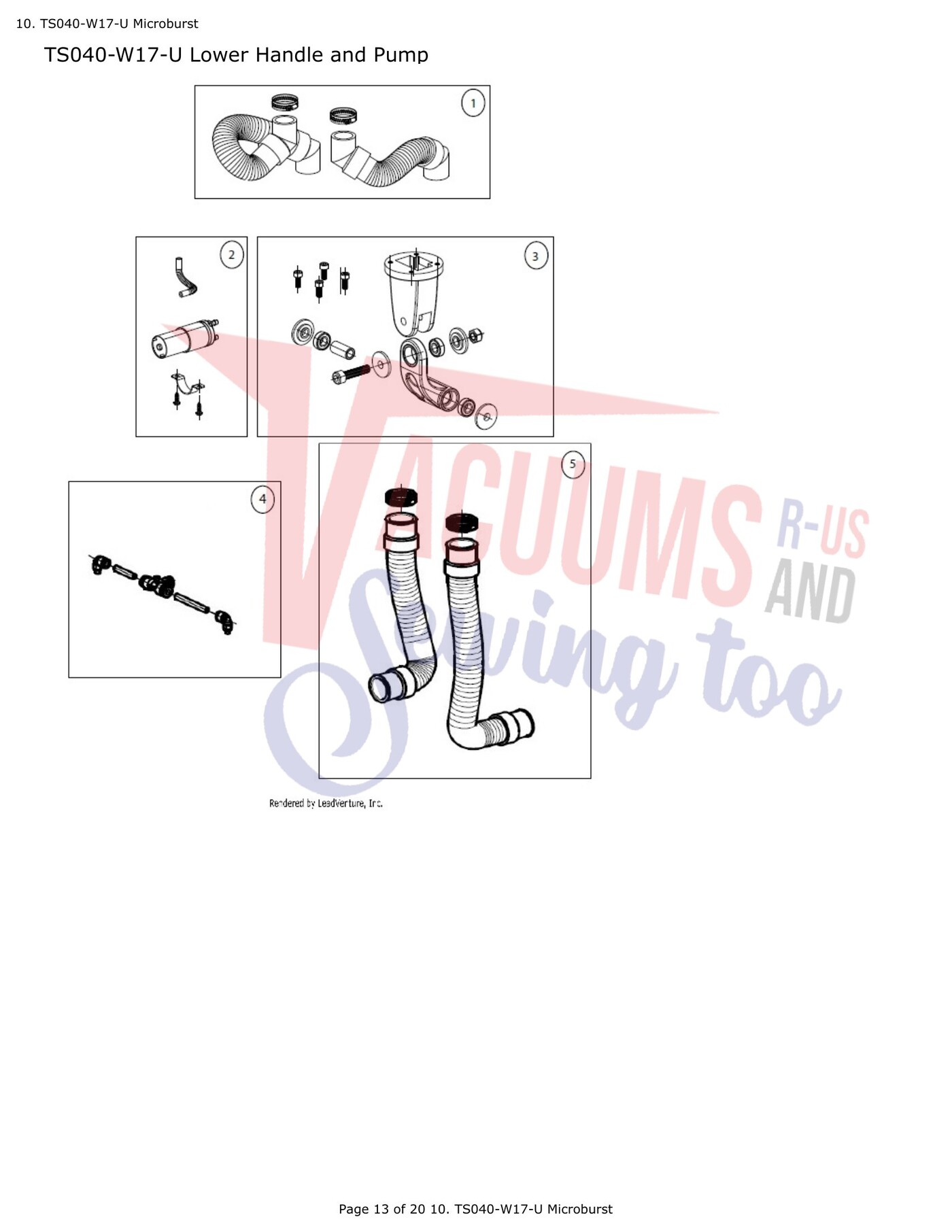

| 1 |  | Upper Vacuum Hose Assembly | TMS006 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Pump Assembly | TMS007 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Swivel Connector Assembly | TMS008 | $72.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Water Tube Assembly | TMS023 | $48.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Lower Vacuum Hose Assembly | TMS022 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| TMS014 | Not Available | Recovery Filter Microburst | TMS014 | Not Available |

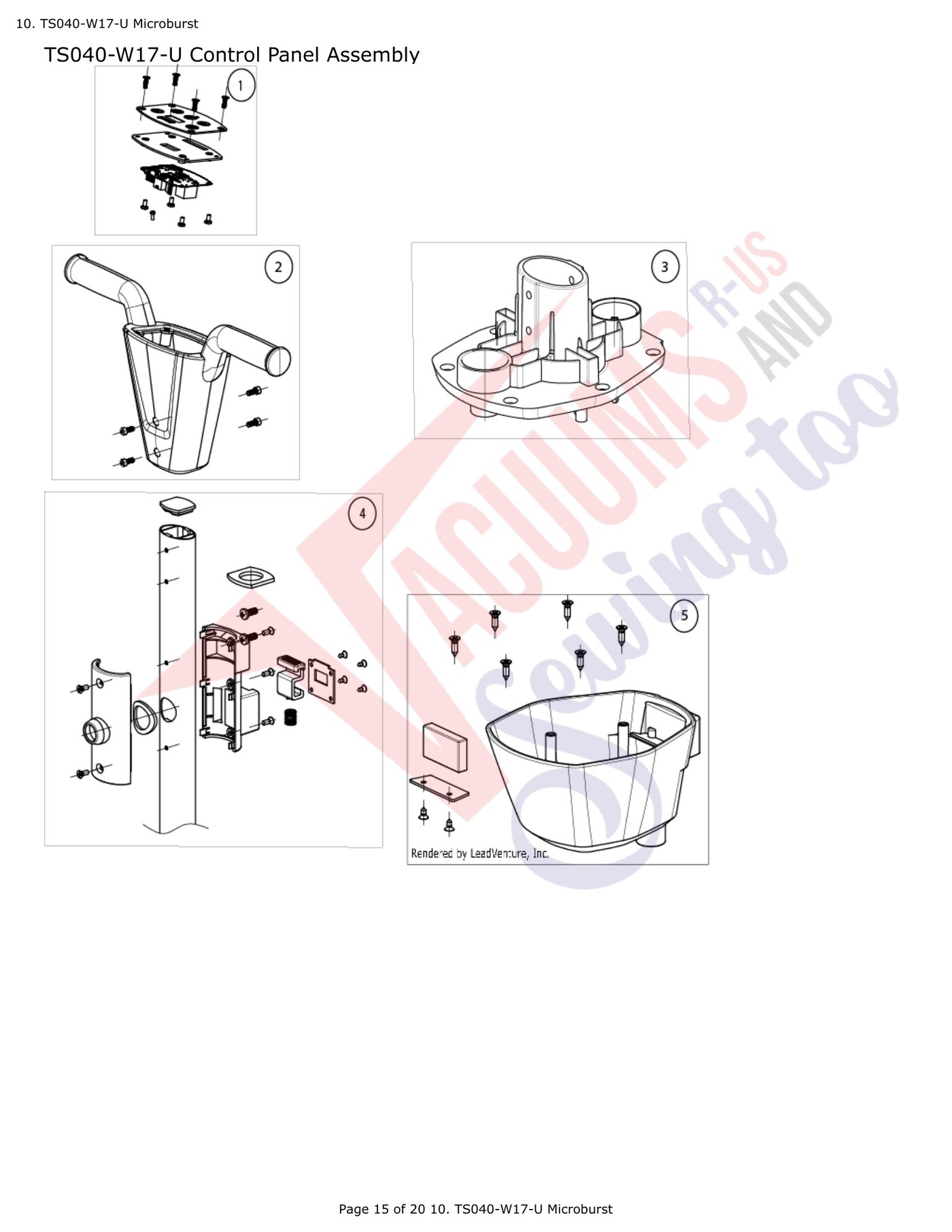

| 1 | No Image | Control Board Assembly | TMS001 | $145.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Handle Assembly | TMS002 | $103.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Tank Base with Gasket Microburst | TMS044 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Handle Tube Assembly | TMS003 | $141.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Pump Housing with Magnet and Hardware | TMS004 | $87.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| TMS036 | Not Available | 16A Fuse for Overcurrent Protection | TMS036 | Not Available |

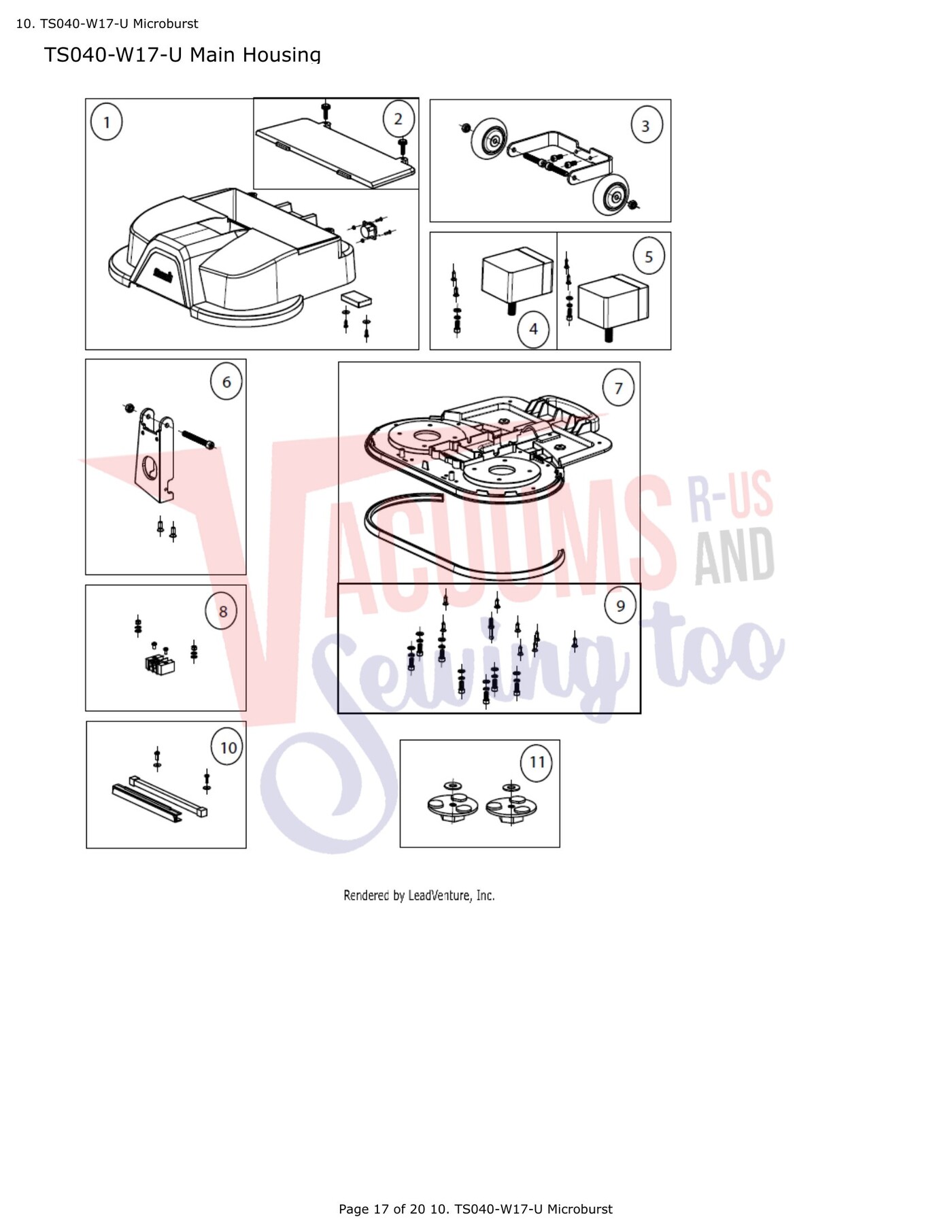

| 1 | No Image | Lower Housing Assembly | TMS017 | $189.99Read more |
| 2 |  | Battery Lid Assembly | TMS005 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Transport Wheel and Frame Assembly | TMS018 | $65.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Left Brush Motor Assembly | TMS019 | $293.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Right Brush Motor Assembly | TMS020 | $293.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Lower Handle Mount Assembly | TMS021 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Lower Housing Kit w/ Handle and Bumper, Microburst | TMS026 | $177.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Wire Connector Assembly | TMS024 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Squeegee Mount Stud Set | TMS013 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | LED Light Kit, Microburst | TMS025 | $26.99Read more |
| 11 |  | Magnetic Brush Driving Kit, Microburst | TMS027 | $87.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
