Schematic and parts book for Tornado TE60-G15-U Surge 100. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Nozzle V11006 1/8 Npt | PX20 | $0.00Read more |
| 2 | No Image | Handle | AC11 | $0.00Read more |
| 3 | No Image | VALVE BRACKET PX19B | PX44A | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | BRASS ANGLE VALVE AND TRIGGER 1200 PSI NEW STYLE WANDS | PX19B | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | NIPPLE CLOSE 1/4 BRASS | PX32 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

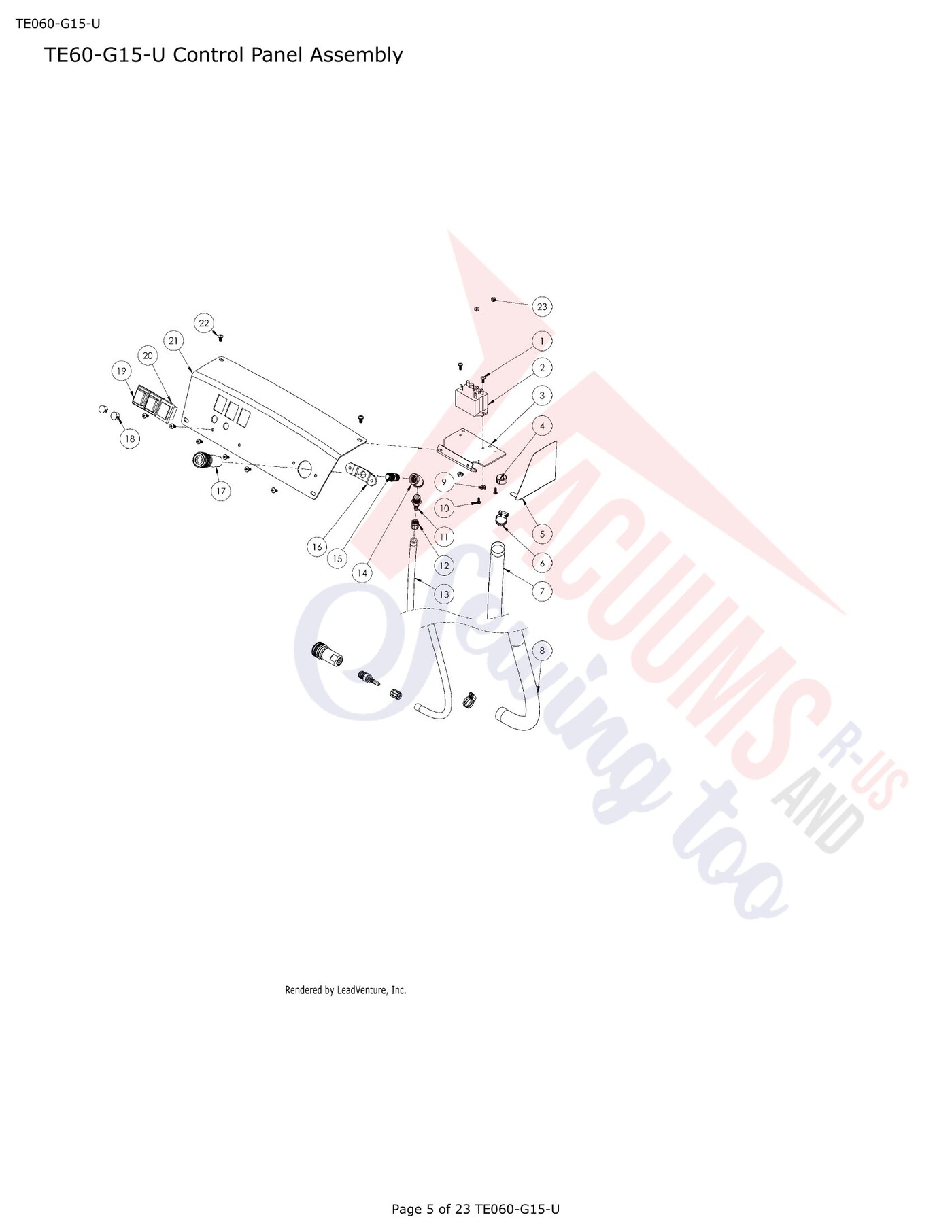

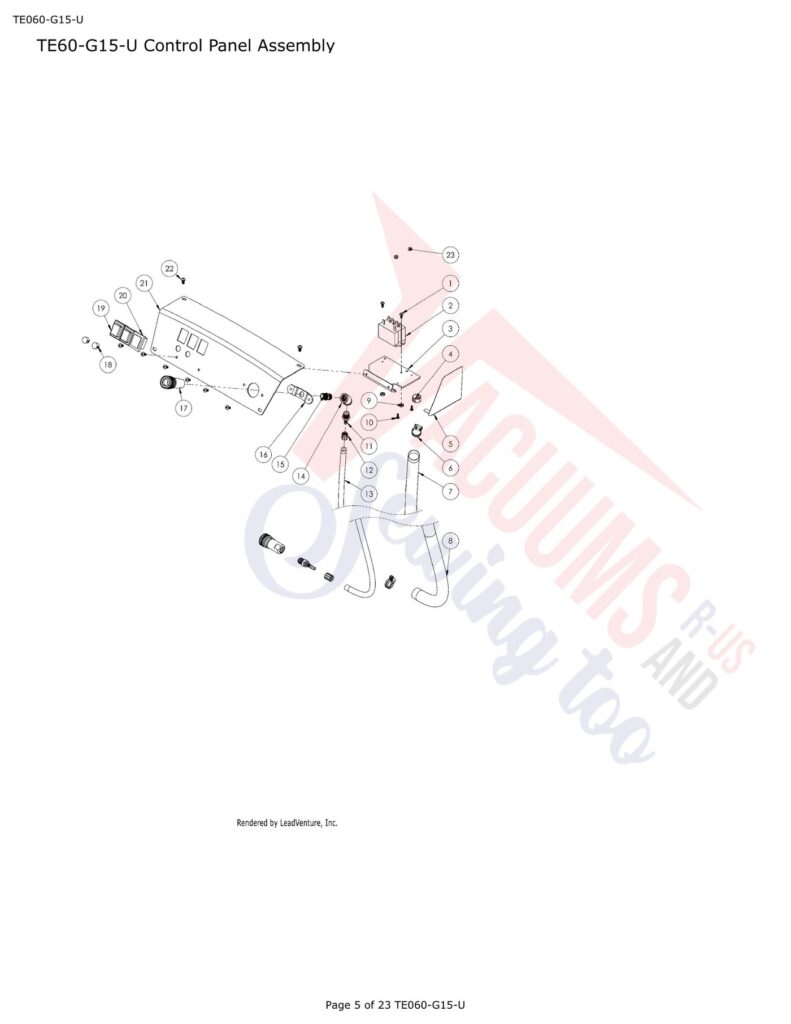

| # | Part image | Description | SKU | Price |
| 1 |  | Screw 8-32 X 3/8 Phil Pan TCS Type F ZINC | X8284 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Relay 25A 120V | 71379A | $81.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Bracket, Relay | X1977 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Grommet | X2286 | $0.00Read more |
| 5 | No Image | Control Panel Splash Guard | X2285 | $0.00Read more |
| 6 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | 1" Heat Shrink | X3004 | $0.00Read more |
| 8 | No Image | 1" Heat Shrink | X3004 | $0.00Read more |
| 9 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Screw, 6-32 X 3/8 Phil Pan Ms Zinc | 1734 | $0.00Read more |
| 11 | No Image | Barb 1/4 X 1/4 Male Pipe Steel | X9492 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Ferrule Hose .59 OD | PX161 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Hose Solution 1/4 ID X 1/2 OD 1250 PSI | X1440 | $0.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Fitting, Union Elbow 45 degrees 1/4 NPT | X1965 | $74.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Nipple Hex 1/4 MPT | 7CX002 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Bracket, QD | X1988 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Quick Disconnect .25 Female | PX6 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Plug, 1/2 Inch Black Nylon | 71804A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Plug, Switch Hole PFX1350 Series | X9173 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Control Panel | X1987 | $0.00Read more |
| 22 | No Image | SCREW, 10-24 X 3/8 BZ | X2033 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | NUT, No 6-32 KEP ZINC | 7BF001 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

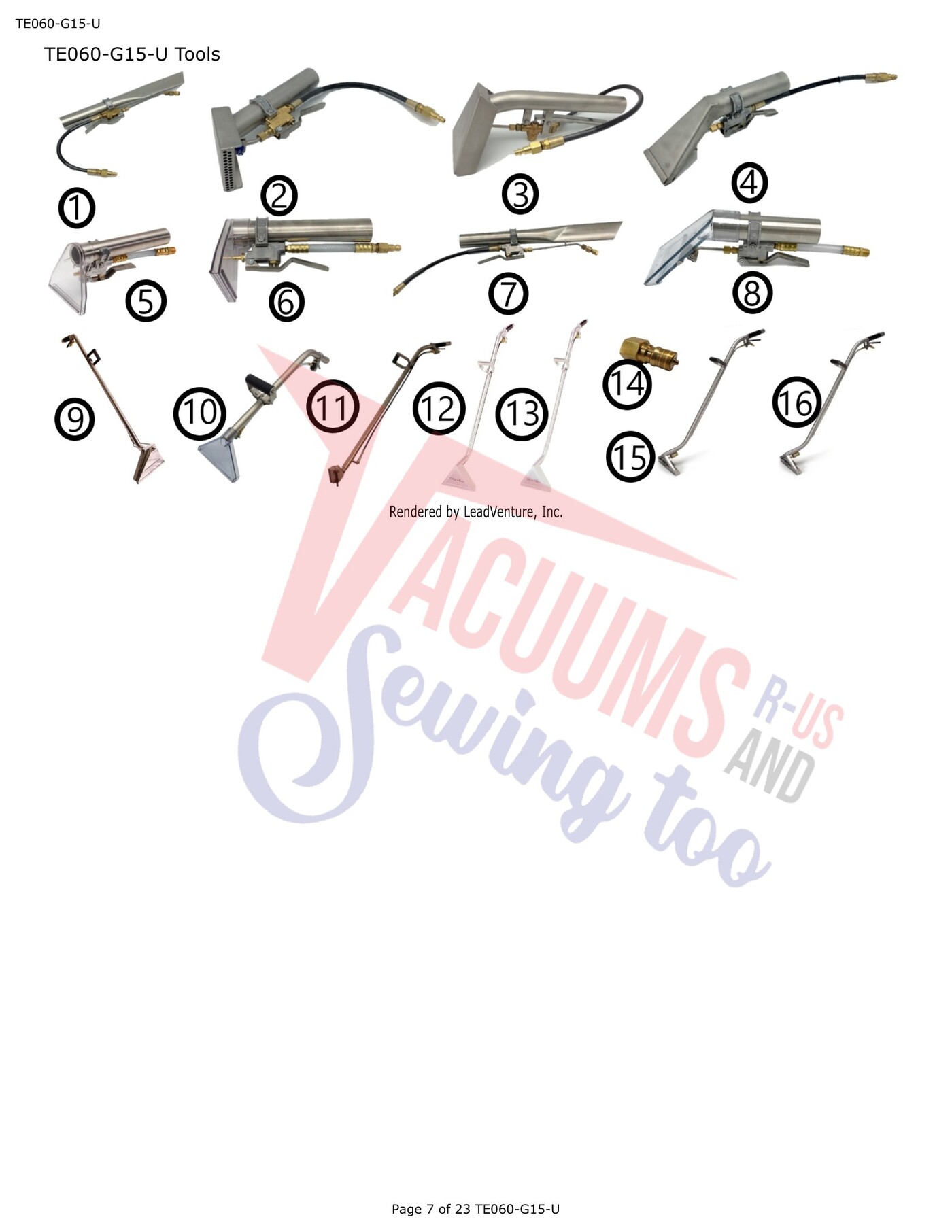

| # | Part image | Description | SKU | Price |
| XX |  | Spray Tip Detail Tool AA151 AA155 X8860 | AA139 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | | Spray Tip Detail Tool AA151 AA155 X8860 | AA139 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| 2 | No Image | Metal Upholstery Tool 500 P.S.I. | 98343 | $0.00Read more |
| 3 |  | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |
| 4 | No Image | 1-1/2" X 3-1/2" Detail Tool | 98350 | $0.00Read more |
| 5 | No Image | 1-1/2" X 3-3/4" Upholstery Tool 120 P.S.I. Plastic Head | AA151 | $0.00Read more |
| 6 | No Image | 1-1/2" X 3-3/4" Upholstery Tool 120 P.S.I. Plastic Head External 1/8" Quick Disconnect | AA155 | $0.00Read more |
| 7 | | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| 8 |  | Detail Tool 1-1/2in SS 3.5in plastic head | AA1631 | $255.99Read more |
| 9 | No Image | 100PSI 12 DOUBLE BEND WAND WITH 2 JETS | 98397 | $710.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Stair Tool Wand 1-1/2in SS 8 plastic head 120 psi | AA1741 | $309.99Read more |
| 11 |  | Wand Hard Floor Extractor 1.5in SS | PFXHF1 | $1,208.99Read more |
| 12 |  | Wand 200psi Dble Bend w/Brass Valve 1-11003 Nozzle | PFXKIT1 | $543.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | WAND 12IN DBL BEND BRASS VALVE 100PSI 11006 NZL W/PX5 | PFXNS1 | $585.99Read more |
| 14 | | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Wand Wonder 1000 PSI 3 Jet | WW1000 | $2,112.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Wand Wonder 1000 PSI 2 Jet | WW10002 | $1,496.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Tools Marked * require a PX5 to be added to the tool to fit the machine | ADDPX5* | Not Available |

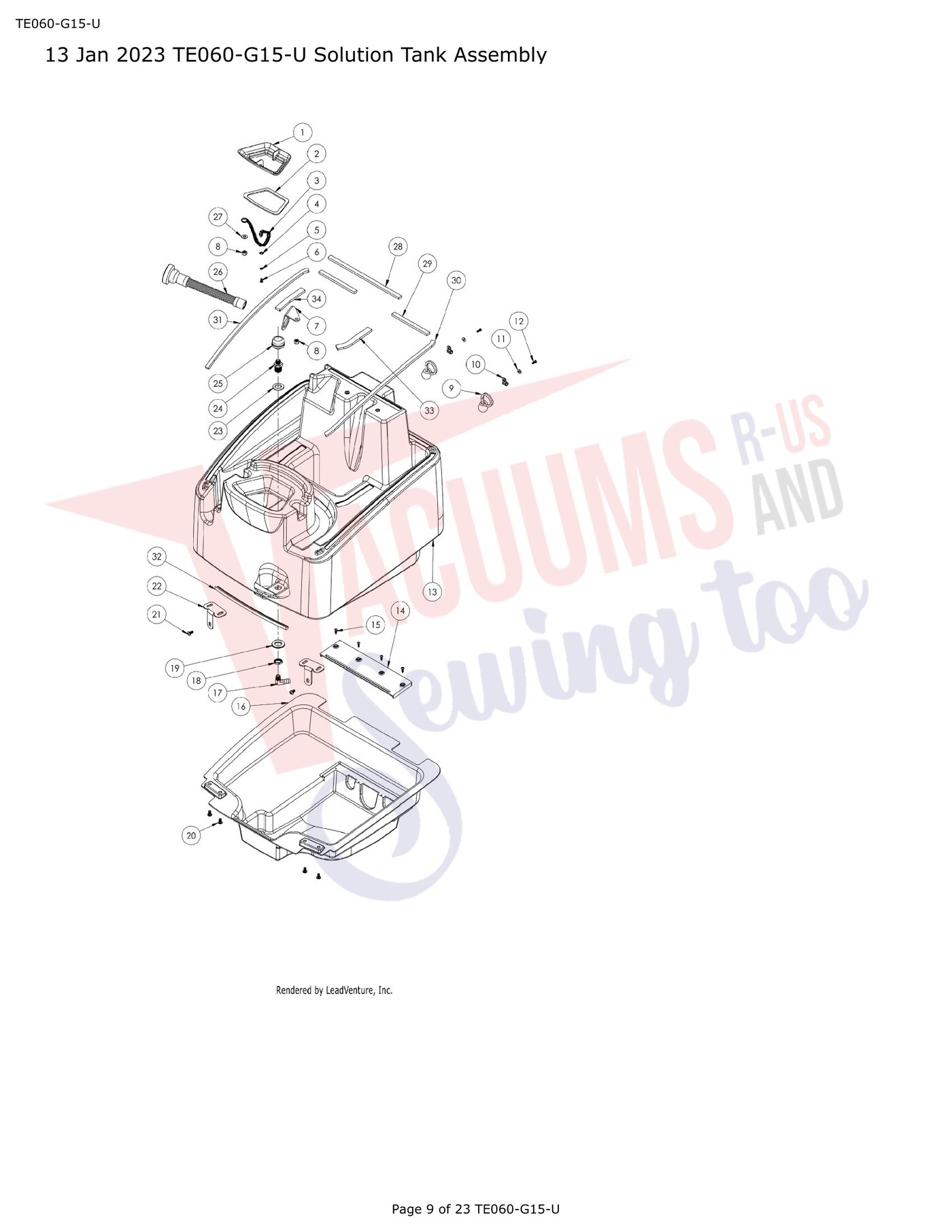

| # | Part image | Description | SKU | Price |
| 1 | No Image | Lid, Sol Tank | X1936 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Gasket, Solution Tank Lid | X1959 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Tether, 18-8 SS Lanyard, Loop-to-Eye, 12In Long, 1/16In Rope Dia, PVC Coated | X2330 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Split Ring, 7/16IN OD, 5/1IN ID | X2328 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Washer No.8 Int Tooth Lock 18-8 SS | 7CY006 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Screw 8-32X3/8 PHMS SS | 7DM004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Bracket, Feed Hose | X1986 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Strap, Hose/Cord | X2169 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Clamp, Hose/Cord Strap | X2170 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Washer No.10 Flat SAE Blk | X9747 | $2.99Read more |
| 12 | No Image | Screw 8-32x1/2 Pan Hd PH Blk Zinc | X8278 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Tank, Solution, 15 Gallon Tornado | X2002BLK | $498.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Tray Cover | X2278 | $0.00Read more |
| 15 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Tank Leak Tray | X1995 | $0.00Read more |
| 17 | Not Available | Brass Elbow Fitting 90° 1/2” HB x 1/4” MPT | X1984 | Not Available |
| 18 | No Image | Nut, Bulkhead | X1963 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Washer 3/4 Neoprene-Bond Galvanized | 72274A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Screw 1/4 20x1/2 Phil PH Blk 18-8 SS | 7BS003BLK | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Bracket, tank to Base Attaching | X1953 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Gasket Fiber 1.125 OD X .75 ID X .156 Thick | PX48G | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Bulkhead Fitting | x1942 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Filter Extractor Solution Tank Mesh 1/4 FPT | PX30 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Solution Tank Filling Hose PAS14G | 30002400 | $48.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Washer 5/16 SS .688OD .344ID .062TH Flat | X9171 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Foam Strip, 3/4W x 1/4T | X2021 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Foam Strip, 3/4W x 1/4T | X2021 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

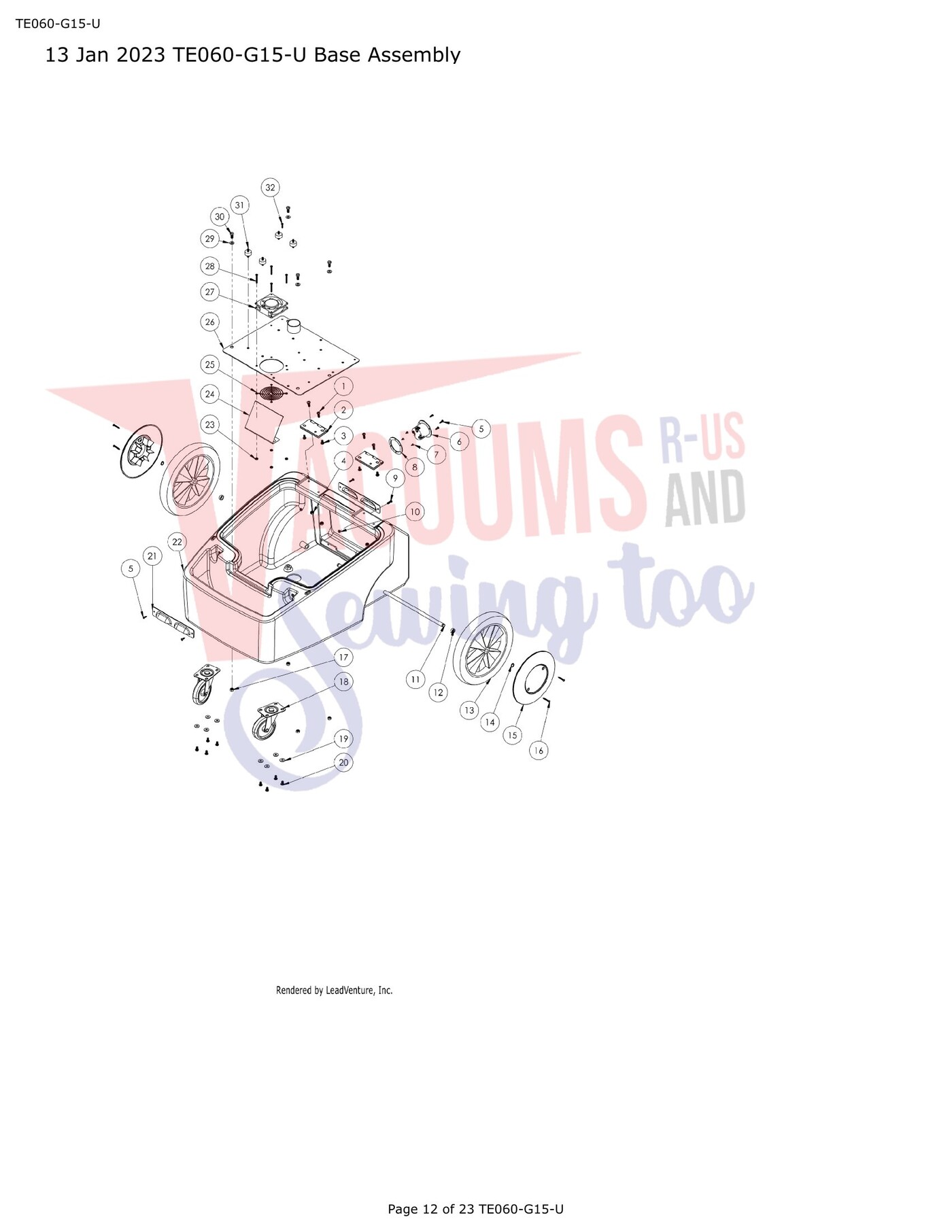

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Cord, Power Supply, 25 ft, 15 Amp 3 STJW, Yellow, Twist Lock | X2019 | $90.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown |  | Hose Insider 20ft | 1504WDSI | $271.99Read more |
| 1 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Tank Hinge PFX900S PFX1350 | X9014 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Power Socket 20 Amp | X1983 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | SCREW, No 8 X 3/8 SS FH PHILLIPS | X2032 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Plate, Power Inlet Mounting | X1979 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Screw 10-24 X 3/4 Phil Pan MS Blk Zinc | X8276 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Axle | x1941 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Spacer 1/2 ID X 3/4 OD X 1/4 Long | 72635A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Wheel 12x1-3/4 Blk with Gray Tire | X9066 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Snap Ring Part Number 30507 for Cleanmax and Simplicity Models CM-WAV,SCE | 30507 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Hub Cap | X1935 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Screw 8x1.25in Blk Oxide | X2037 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Nut 5/16-18 Hex Finish Zinc | X8231 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Caster Assembly, Wheel 4 In., Grey, Extractors | X9153 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Louver | x1947 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Base, LLDPE | X2000BLK | $528.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Deflector Tray Drain | X2280 | $0.00Read more |
| 25 | No Image | Cover Fan | 72702A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Component Mounting Plate | X1951E | $0.00Read more |
| 27 | No Image | Fan Cooling 120V 92MM 35 Cfm | 72700A | $101.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | SCREW, 8-32 X 1.5 PH PHILLIPS | X2034 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Screw 5/16-18 x 3/4 Hex Cap 8-18 SS | 71480AP | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Motor Chock Mount 1/4 - 20 x 1/2 | 72149A | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

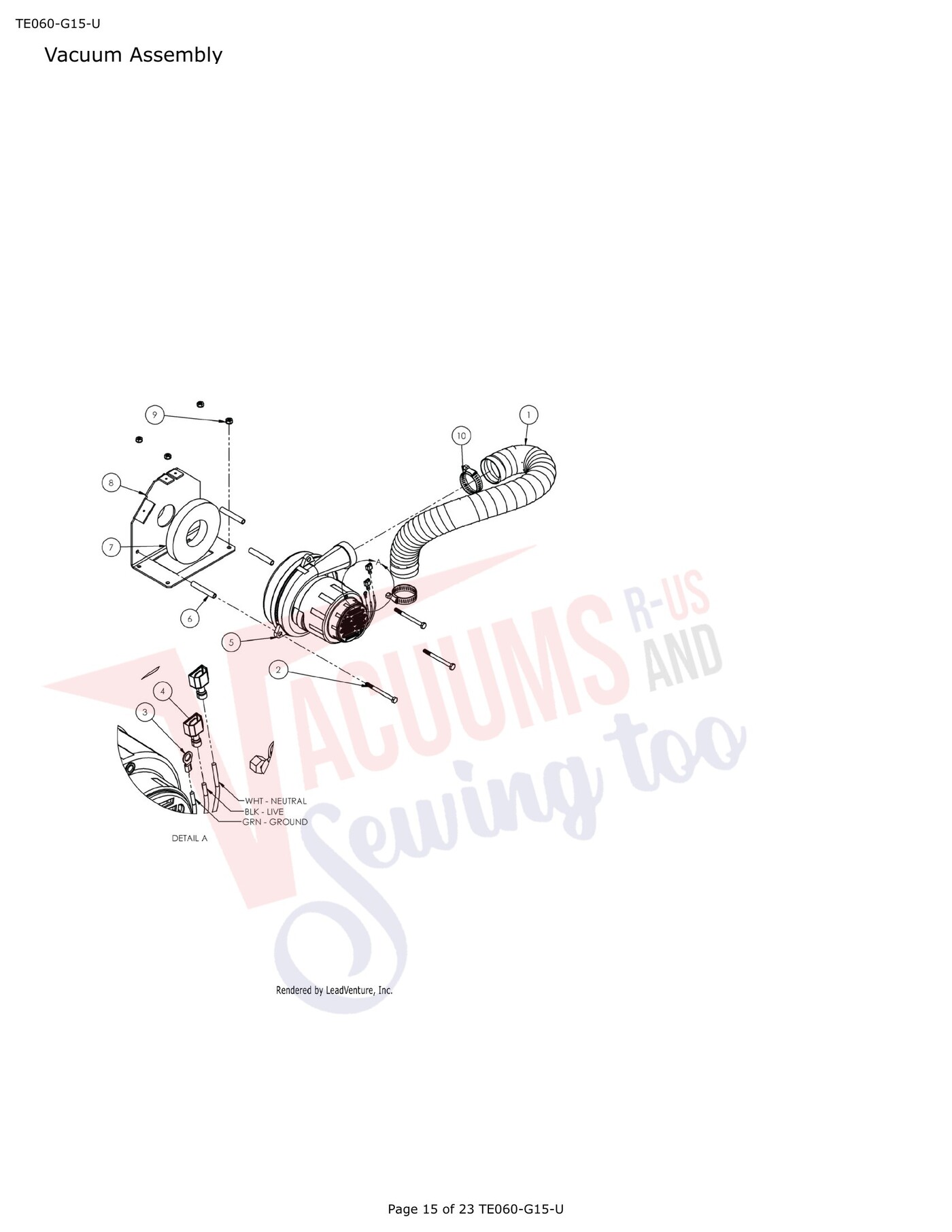

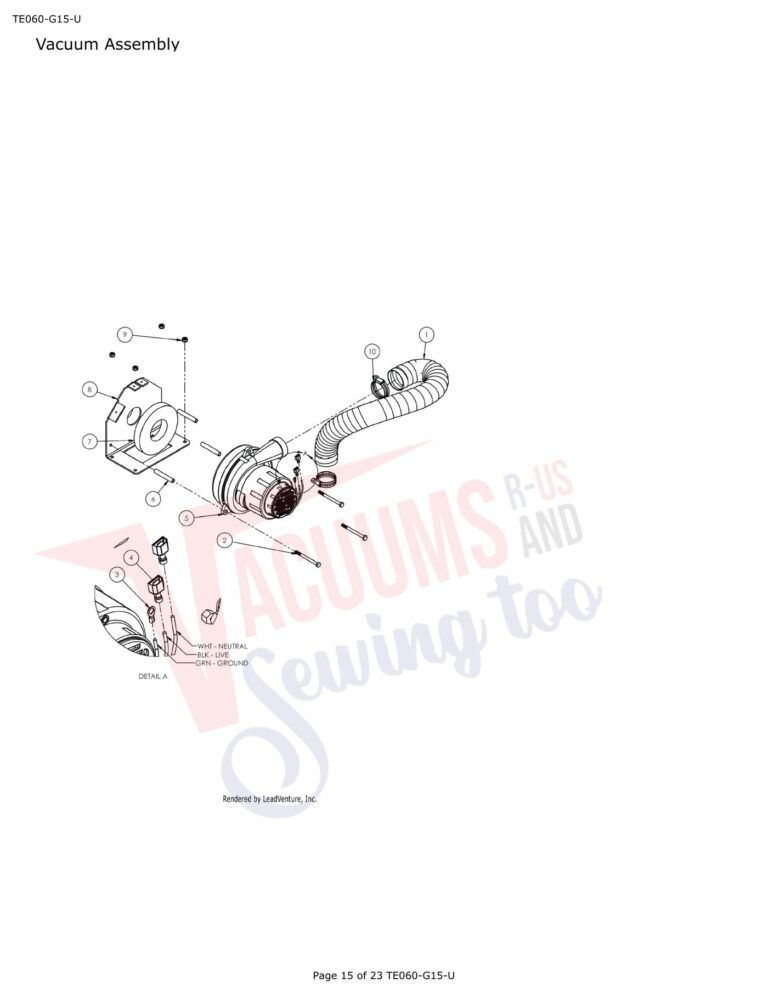

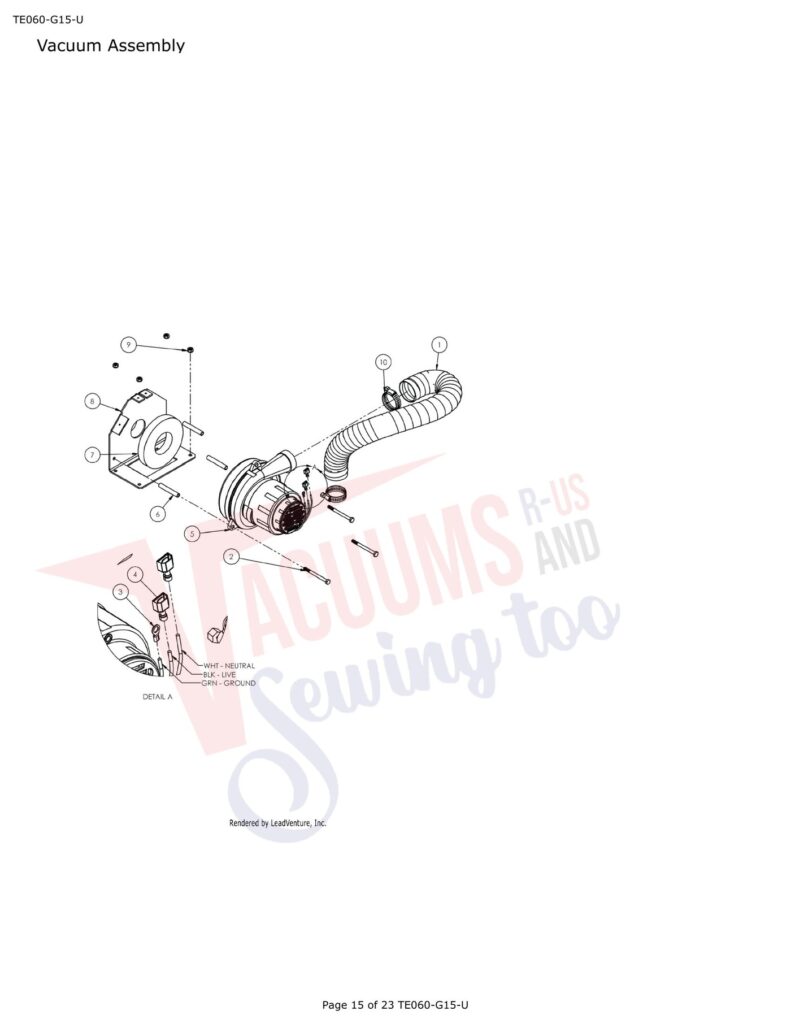

| # | Part image | Description | SKU | Price |
| 1 |  | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Screw 1/4 20x3 Hex Head Cap Zinc Plated | X1143 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Terminal Ring No 10 14-16 AWG | F21 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Terminal Spade 1/4 Male .032 X 250 14-16AWG | F27 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Motor Extractor 115 VAC Ametek 6.6 2Stg Airwatt | 72855A1151 | $254.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Spacer, Vac Motor 2.375 | 72651B | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Vacuum Motor Gasket | X1990 | Not Available |
| 8 | No Image | Bracket, Vacuum Motor Mounting | x1944 | $59.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

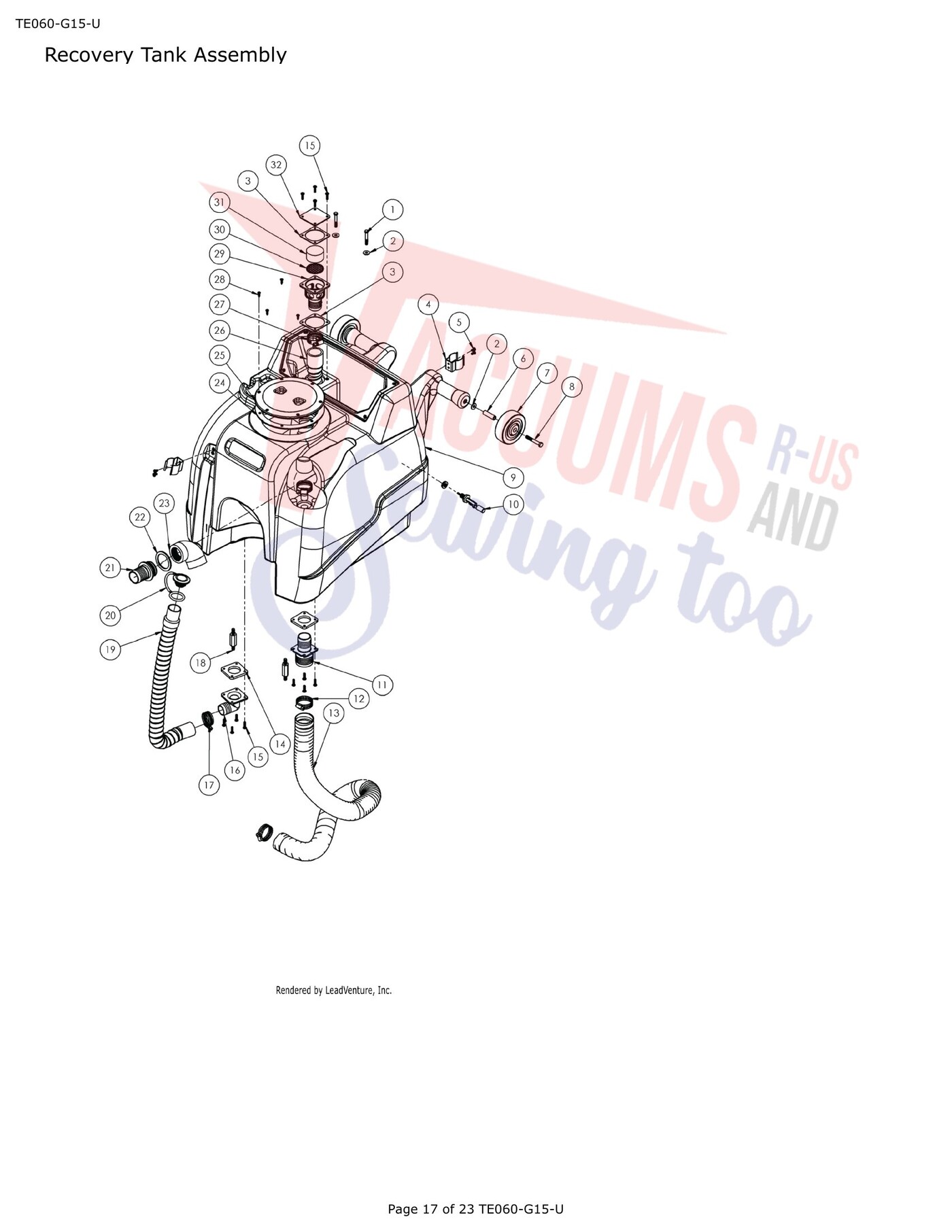

| # | Part image | Description | SKU | Price |
| 1 | No Image | Shoulder Bolt ¼-20 x 1-3/4 | 18641 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Gasket, Air Path Fitting | X1939 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | SCREW, 10-24 X 3/8 BZ | X2033 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Bolt 5/16-18 X 2-1/4 Hex | 72645A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Tank, Recovery, 15 gallon TOR | X1961YEL | $202.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Switch Float Horizontal CFR Midsize | 72798A | $218.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Fitting, Double Barb | X1933 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Gasket, Drain Elbow | X1940 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Screw 10-24 X 3/4 Phil Pan MS Blk Zinc | X8276 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Elbow, Drain | X1934 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | STANDOFF, 5/16-18 | X2030 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Hose Vacuum Recovery Tank Pulsar and Surge 15gal | 71656A | $105.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Fitting, Air Path | X1932 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Support, Filter | X1958 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Filter, PPI | X1938 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Cover, Air Path, Fitting | x1945 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

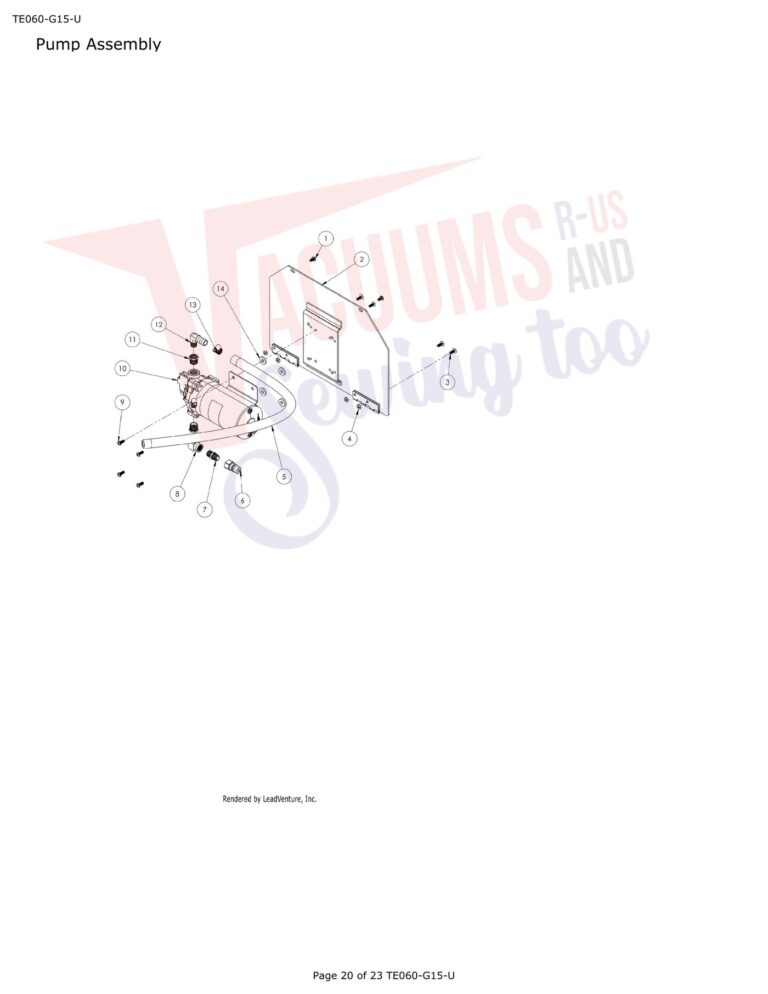

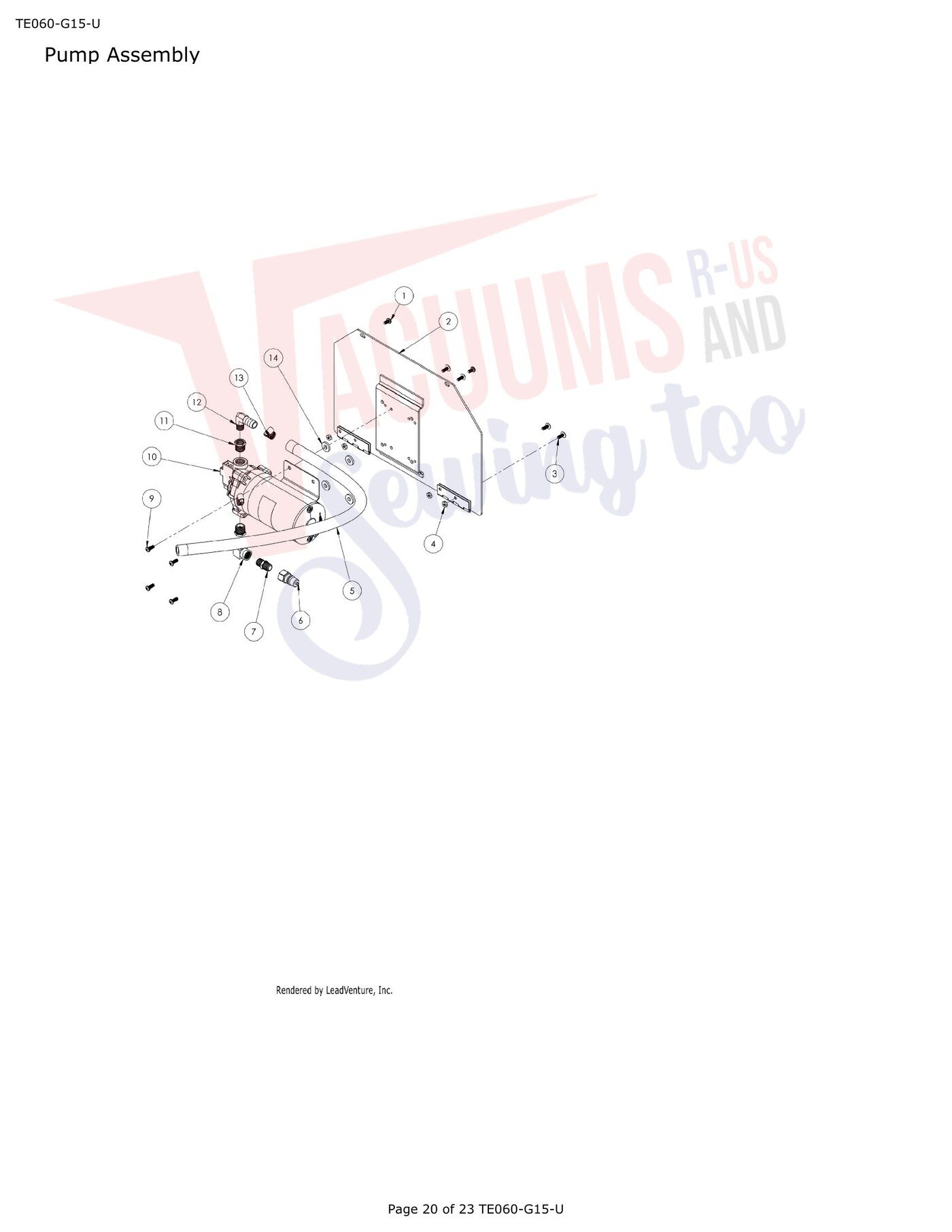

| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, 10-24 X 3/8 BZ | X2033 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Panel, Pump Mount | X1950 | $58.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Screw Ph Truss HD No.10 24x1/2 SS | 17848 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Hose 1/2 Wire Reinforced | 70079C | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Nipple Hex 1/4 MPT | 7CX002 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Pump,Extractor,110,VAC,120psi,Aquatec | AQ120 | $302.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Reducer Bushing, 3/8 - 1/4 | X2010 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Brass Elbow Fitting 90° 1/2” HB x 1/4” MPT | X1984 | Not Available |
| 13 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | WASHER, RUBBER .29ID .688OD 1/8 80 DURO | 72667A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
Report errors on this page HERE
