Schematic and parts book for Tornado TE310-G15-U Surge 500. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

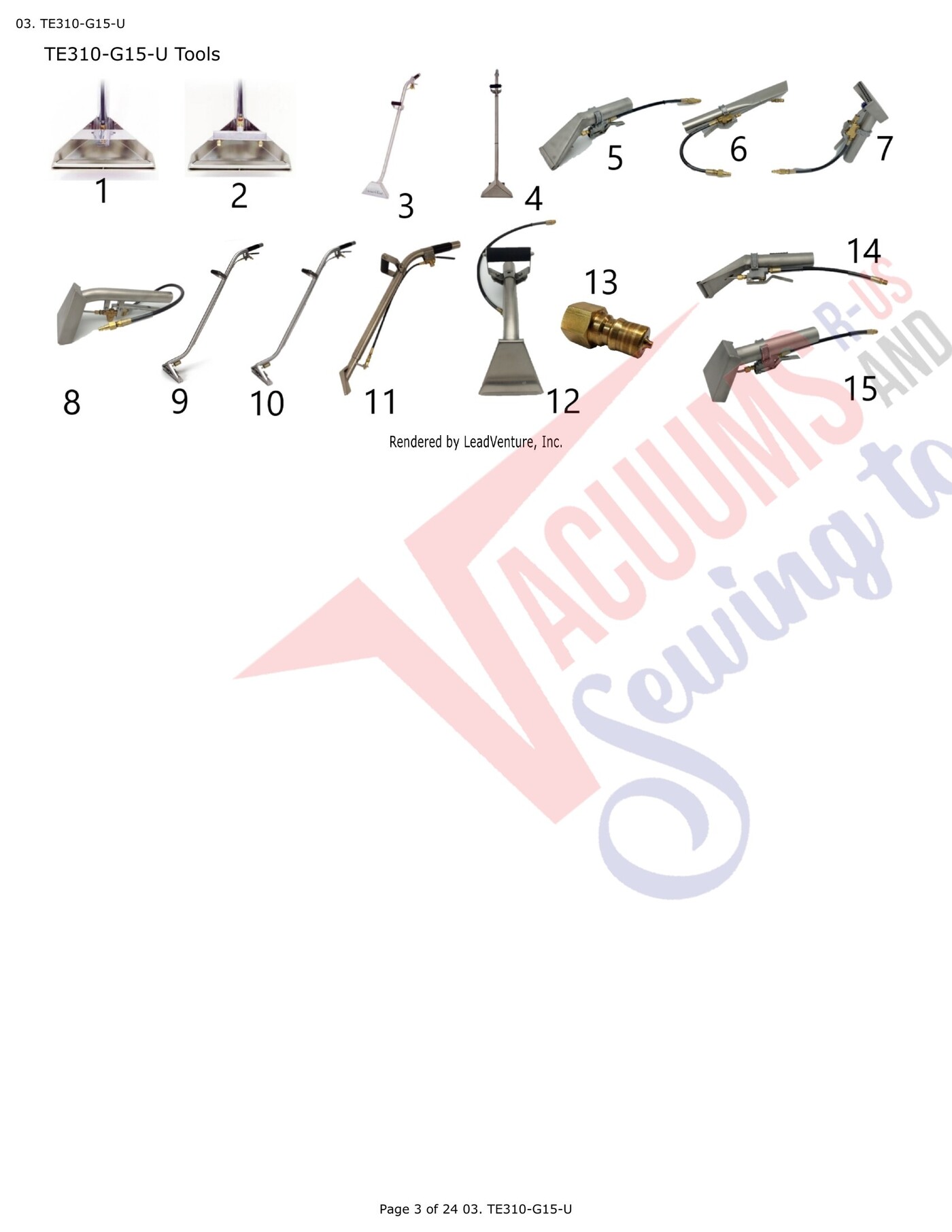

| # | Part image | Description | SKU | Price |
| XX | No Image | Tools Below Require S Px5 To Be Added To The Tool To Fit The Machine | PX5ADD | $0.00Read more |
| 1 | No Image | Wand 500psi Dbl Bend w/Brass Valve 1-11002 Nozzle | PFXKIT2 | $619.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Wand 500psi Dbl Bend w/Brass Valve 2-11001 Nozzle | PFXKIT3 | $697.99Read more |
| 3 | No Image | Wand 800 PSI Double Bend W/ Brass Valve Dual Jet | PFXTM | $925.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Wand, 500 PSI Double Bend With Brass Valve, 3 80067 Nozzles | PFX3DX | $1,358.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | 1-1/2" X 3-1/2" Detail Tool | 98350 | $0.00Read more |
| 6 |  | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| 7 | No Image | Metal Upholstery Tool 500 P.S.I. | 98343 | $0.00Read more |
| 8 |  | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |
| 9 | No Image | Wand Wonder 1000 PSI 3 Jet | WW1000 | $2,112.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Wand Wonder 1000 PSI 2 Jet | WW10002 | $1,496.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Stair Tool 30high 10wide SS head 500psi | AA1731 | $745.99Read more |
| 12 | | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |
| 13 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Detail Tool 1-1/2in SS Internal 3.5in head 500psi | AA1611 | $285.99Read more |
| 15 | No Image | Upholstery Tool 1-1/2in SS Perforated 500psi | AA1761 | $486.99Read more |
| # | Part image | Description | SKU | Price |

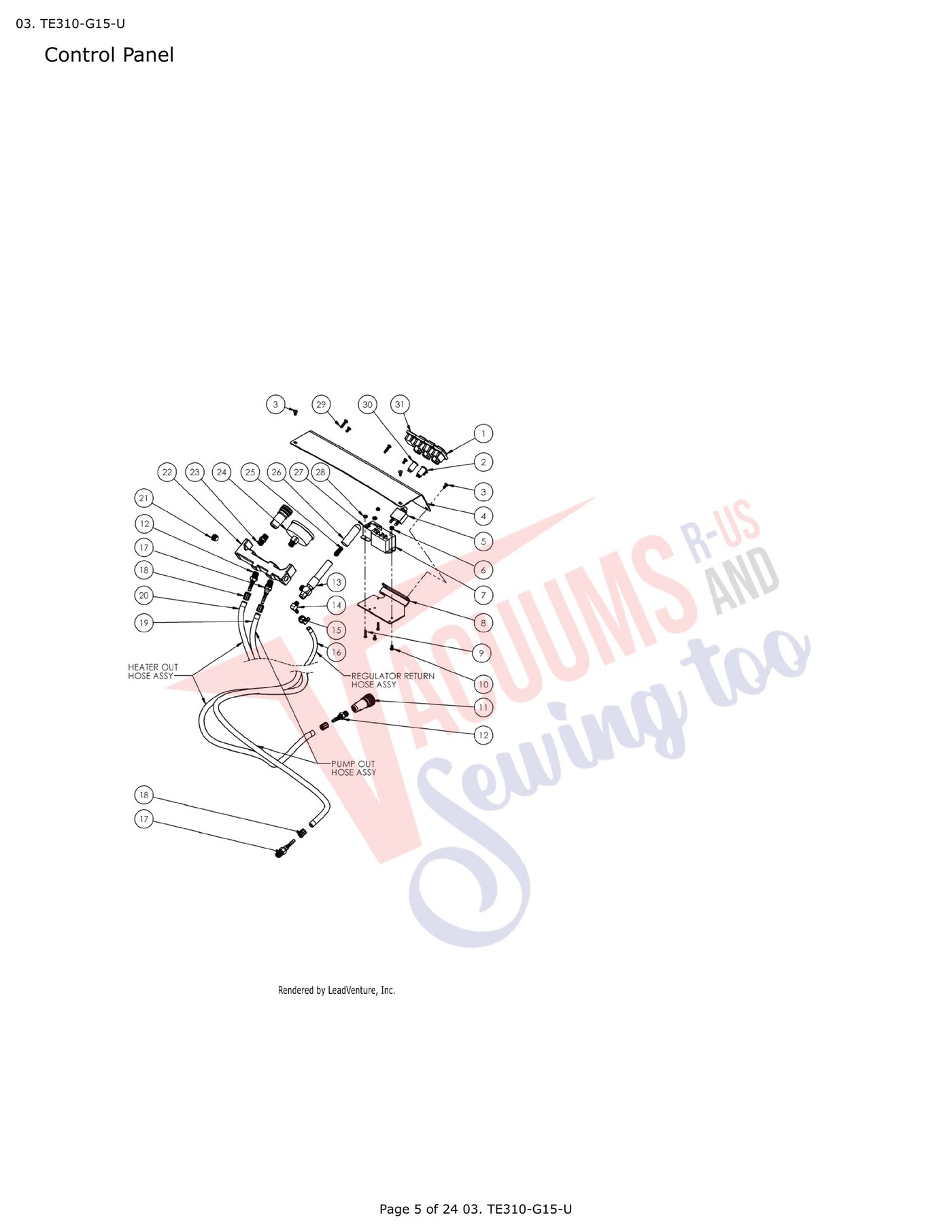

| 1 |  | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Light, Indicator Green | PX86 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | SCREW, 10-24 X 3/8 BZ | X2033 | $0.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Panel, PF Control Style 2 | x1948 | $52.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Circuit Breaker Extractor 5 amp | X9324 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Relay 25A 120V | 71379A | $81.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Bracket, Relay | X1977 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Screw 8-32 X 3/8 Phil Pan TCS Type F ZINC | X8284 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Quick Disconnect .25 Female | PX6 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Barb 1/4 X 1/4 Male Pipe Steel | X9492 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Regulator Pressure Knurled Handle | 72059A | $282.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Barb Elbow 90 1/4-1/8 | 7AT006 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Solution Hose | X8542 | $0.00Read more |
| 17 | No Image | Barb Swivel 1/4H X 1/4M | X9316 | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Ferrule Hose .59 OD | PX161 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Hose Solution 1/4 ID X 1/2 OD 1250 PSI | X1440 | $0.65Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Hose Solution 1/4 ID X 1/2 OD 1250 PSI | X1440 | $0.65Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Plug 1/4 NPT | 7AF001 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Control Panel Manifold | X2290 | Not Available |
| 23 | No Image | Nipple Hex 1/4 MPT | 7CX002 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Gauge Pressure 1000 PSI Back Mount | 70066A | $193.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | Screw 3/8-24X1 Set Press Reg | 7EE003 | $2.99Read more |
| 26 | No Image | Sleeve Regulator ECO 500 | 72808A | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Relay SPDT | X1976 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | NUT, No 6-32 KEP ZINC | 7BF001 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Screw 10-24 X 3/4 Phil Pan MS Blk Zinc | X8276 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Light, Neon W/ Lens 120V Amber | X8102 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Plug, Switch Hole PFX1350 Series | X9173 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

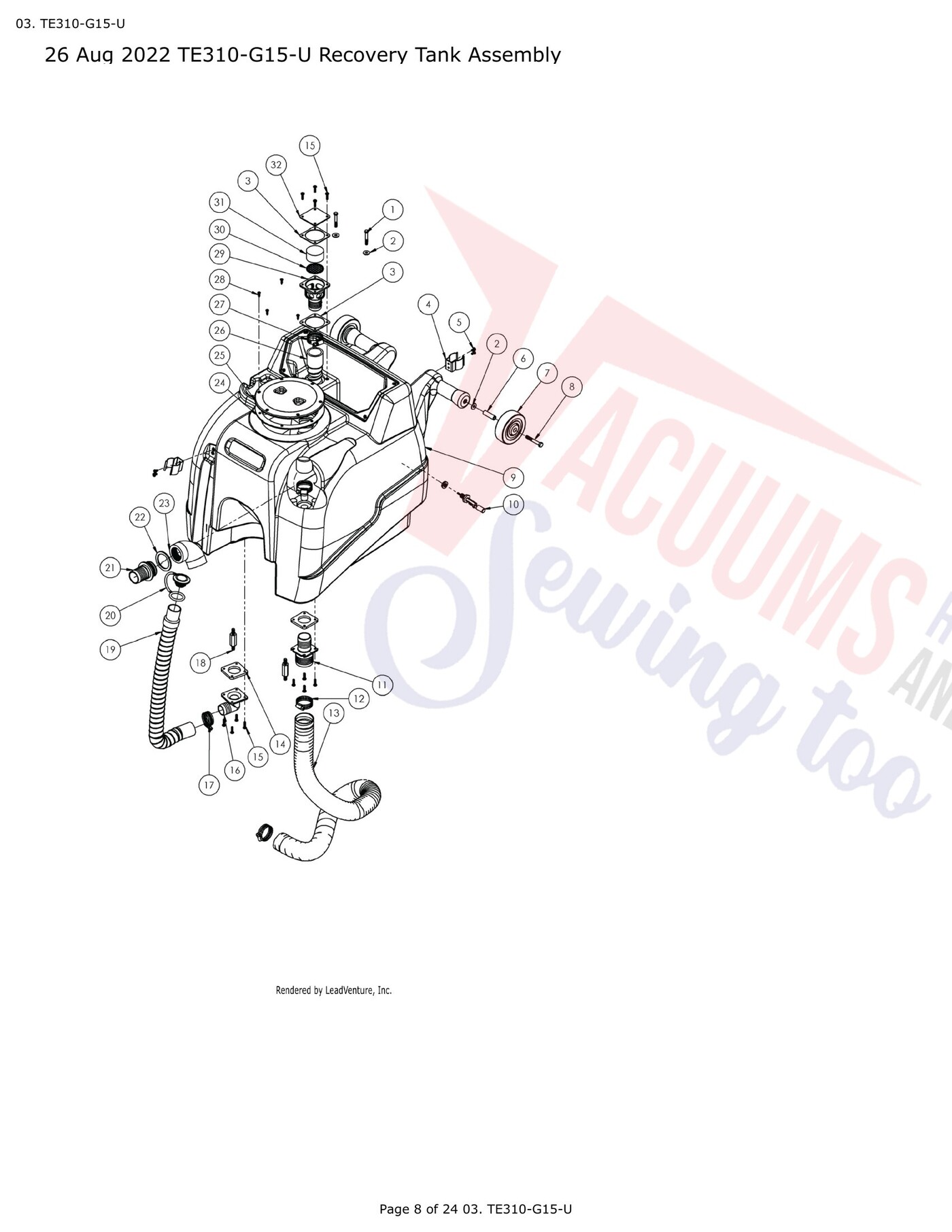

| 1 | No Image | Shoulder Bolt ¼-20 x 1-3/4 | 18641 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Gasket, Air Path Fitting | X1939 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | SCREW, 10-24 X 3/8 BZ | X2033 | $0.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Bolt 5/16-18 X 2-1/4 Hex | 72645A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Tank, Recovery, 15 gallon TOR | X1961YEL | $202.82Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Switch Float Horizontal CFR Midsize | 72798A | $218.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Fitting, Double Barb | X1933 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Gasket, Drain Elbow | X1940 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Screw 10-24 X 3/4 Phil Pan MS Blk Zinc | X8276 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Elbow, Drain | X1934 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | STANDOFF, 5/16-18 | X2030 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Hose Vacuum Recovery Tank Pulsar and Surge 15gal | 71656A | $105.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Fitting, Air Path | X1932 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Support, Filter | X1958 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Filter, PPI | X1938 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Cover, Air Path, Fitting | x1945 | $7.99Add to cart Special order: ships in 2 to 4 weeks |

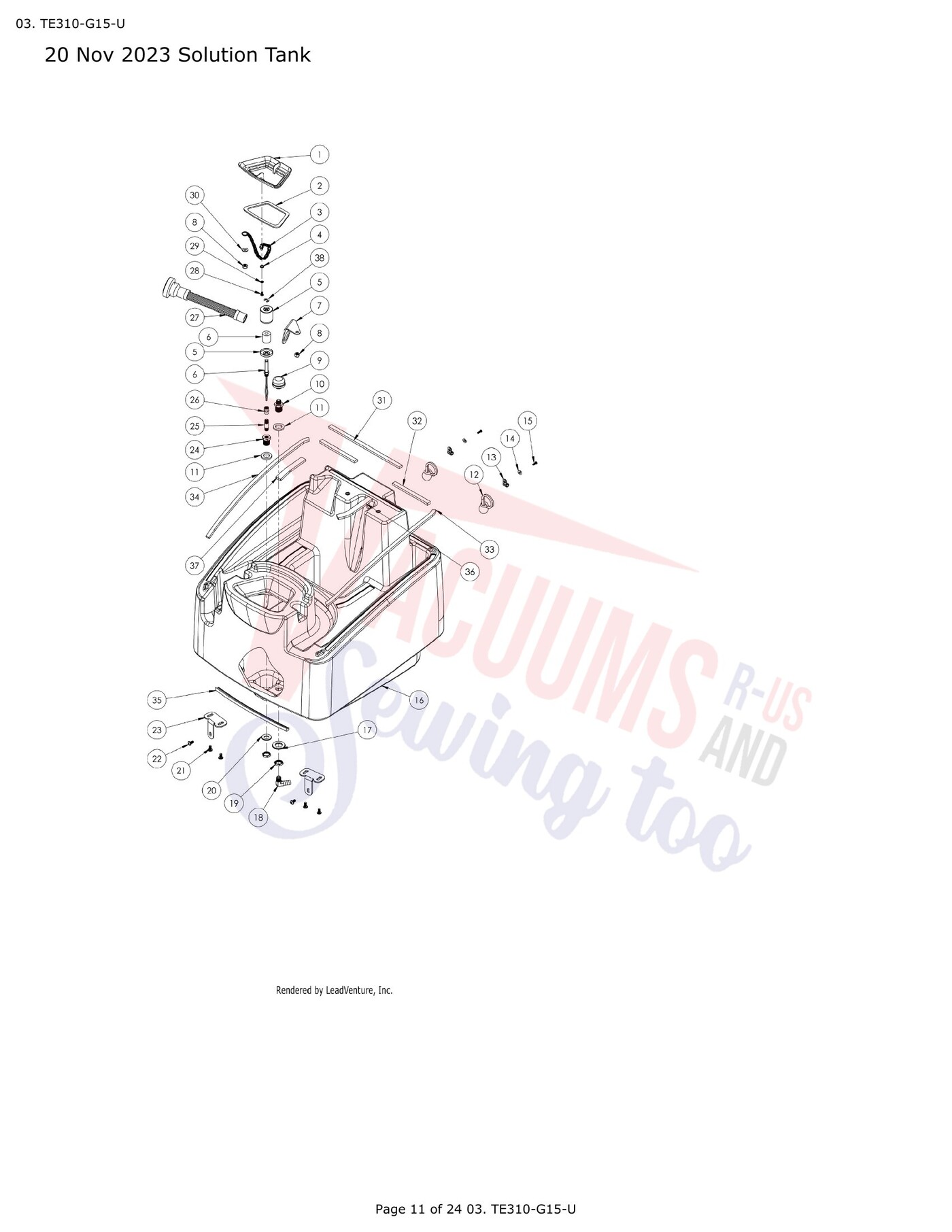

| # | Part image | Description | SKU | Price |
| 1 | No Image | Lid, Sol Tank | X1936 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Gasket, Solution Tank Lid | X1959 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Tether, 18-8 SS Lanyard, Loop-to-Eye, 12In Long, 1/16In Rope Dia, PVC Coated | X2330 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Split Ring, 7/16IN OD, 5/1IN ID | X2328 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Shield Float Switch | 71328A | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Switch Float 2 Pole | 70343A | $89.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Bracket, Feed Hose | X1986 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Filter Extractor Solution Tank Mesh 1/4 FPT | PX30 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Bulkhead Fitting | x1942 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Gasket Fiber 1.125 OD X .75 ID X .156 Thick | PX48G | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Strap, Hose/Cord | X2169 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Clamp, Hose/Cord Strap | X2170 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Washer No.10 Flat SAE Blk | X9747 | $2.99Read more |
| 15 | No Image | Screw 8-32x1/2 Pan Hd PH Blk Zinc | X8278 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Tank, Solution, 15 Gallon Tornado | X2002BLK | $498.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Washer 3/4 Neoprene-Bond Galvanized | 72274A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Brass Elbow Fitting 90° 1/2” HB x 1/4” MPT | X1984 | Not Available |
| 19 | No Image | Nut, Bulkhead | X1963 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Washer 5/8x1-3/16 Bonded Seal Galvanized | 72115A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Screw 1/4 20x1/2 Phil PH Blk 18-8 SS | 7BS003BLK | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Bracket, tank to Base Attaching | X1953 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Connector Anchor 1/8 NPT | 7AJ004 | $20.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | Nipple Extended 1/8 x 1-1/4 Long Brass | SW149 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Coupling 1/8-1/8 Pipe | 7DA001 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Solution Tank Filling Hose PAS14G | 30002400 | $48.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Screw 8-32X3/8 PHMS SS | 7DM004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Washer No.8 Int Tooth Lock 18-8 SS | 7CY006 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Washer 5/16 SS .688OD .344ID .062TH Flat | X9171 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Foam Strip, 1/2W x 1/4T | X2020 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Foam Strip, 3/4W x 1/4T | X2021 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | Foam Strip, 3/4W x 1/4T | X2021 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | E Ring 5/16 Shaft 1/4 Groove .025 SS | 71553A | $4.99Add to cart Special order: ships in 2 to 4 weeks |

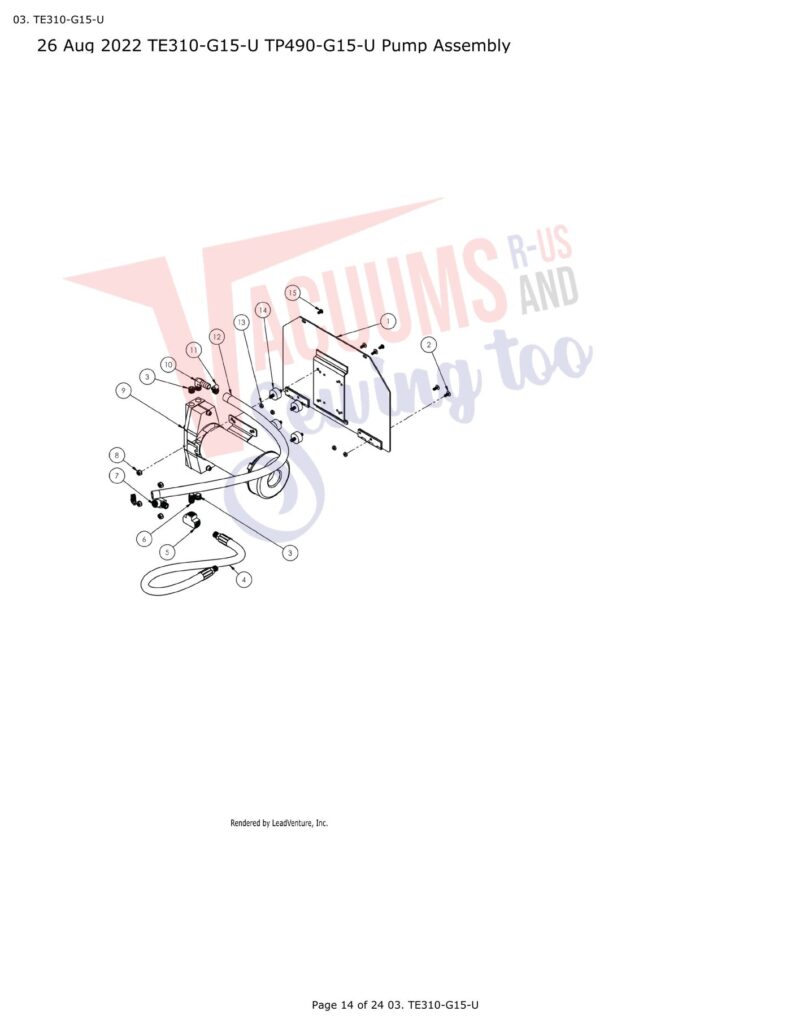

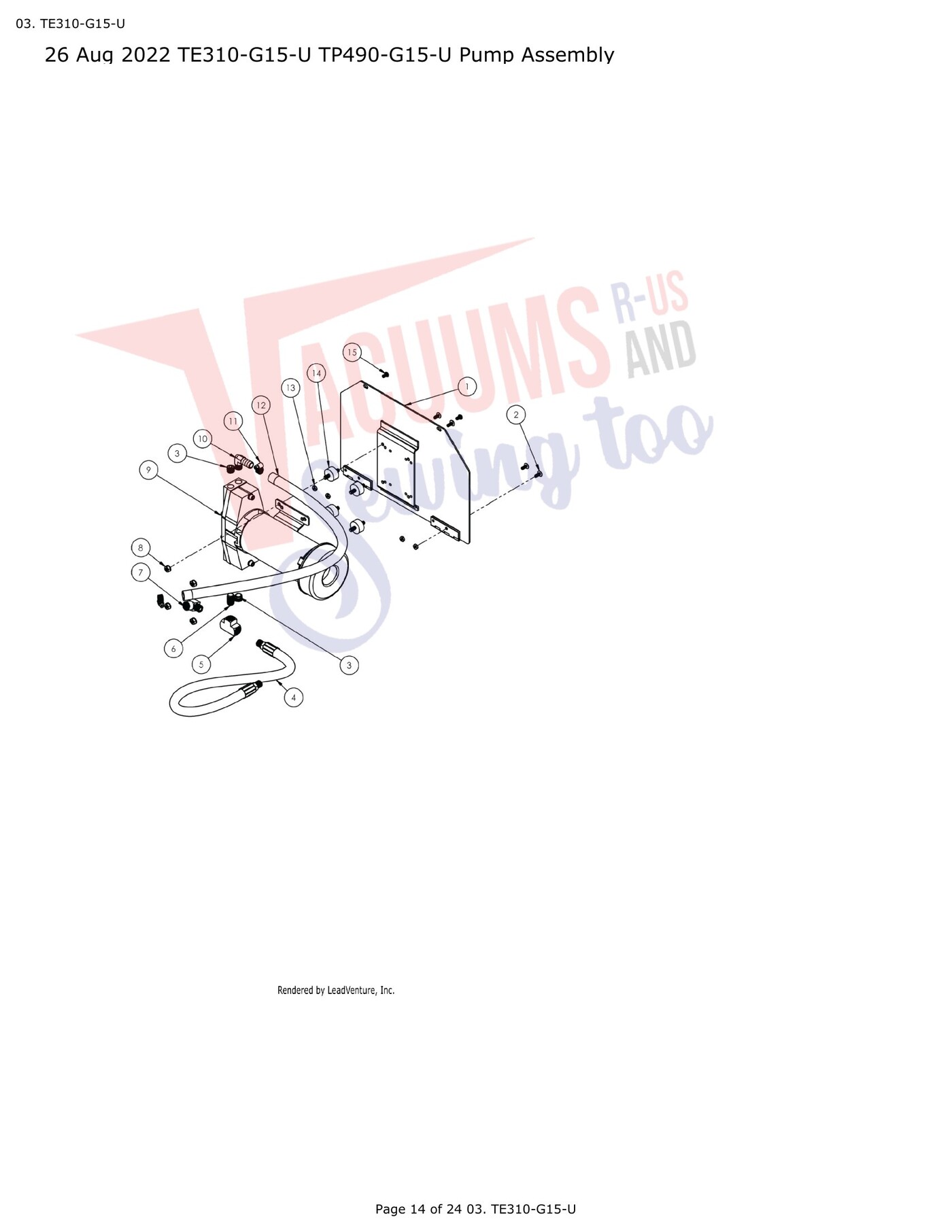

| # | Part image | Description | SKU | Price |
| 1 | No Image | Panel, Pump Mount | X1950 | $58.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Screw Ph Truss HD No.10 24x1/2 SS | 17848 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Plug 1/4 NPT | 7AF001 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Pulse Hose | X1957 | $123.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Tee Union 1/4 NPT | 7AV001 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Nipple Hex 1/4 MPT | 7CX002 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Pump 500 psi | X1981 | $882.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Brass Elbow Fitting 90° 1/2” HB x 1/4” MPT | X1984 | Not Available |
| 11 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Hose 1/2 Wire Reinforced | 70079C | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Motor Chock Mount 1/4 - 20 x 1/2 | 72149A | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | SCREW, 10-24 X 3/8 BZ | X2033 | $0.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

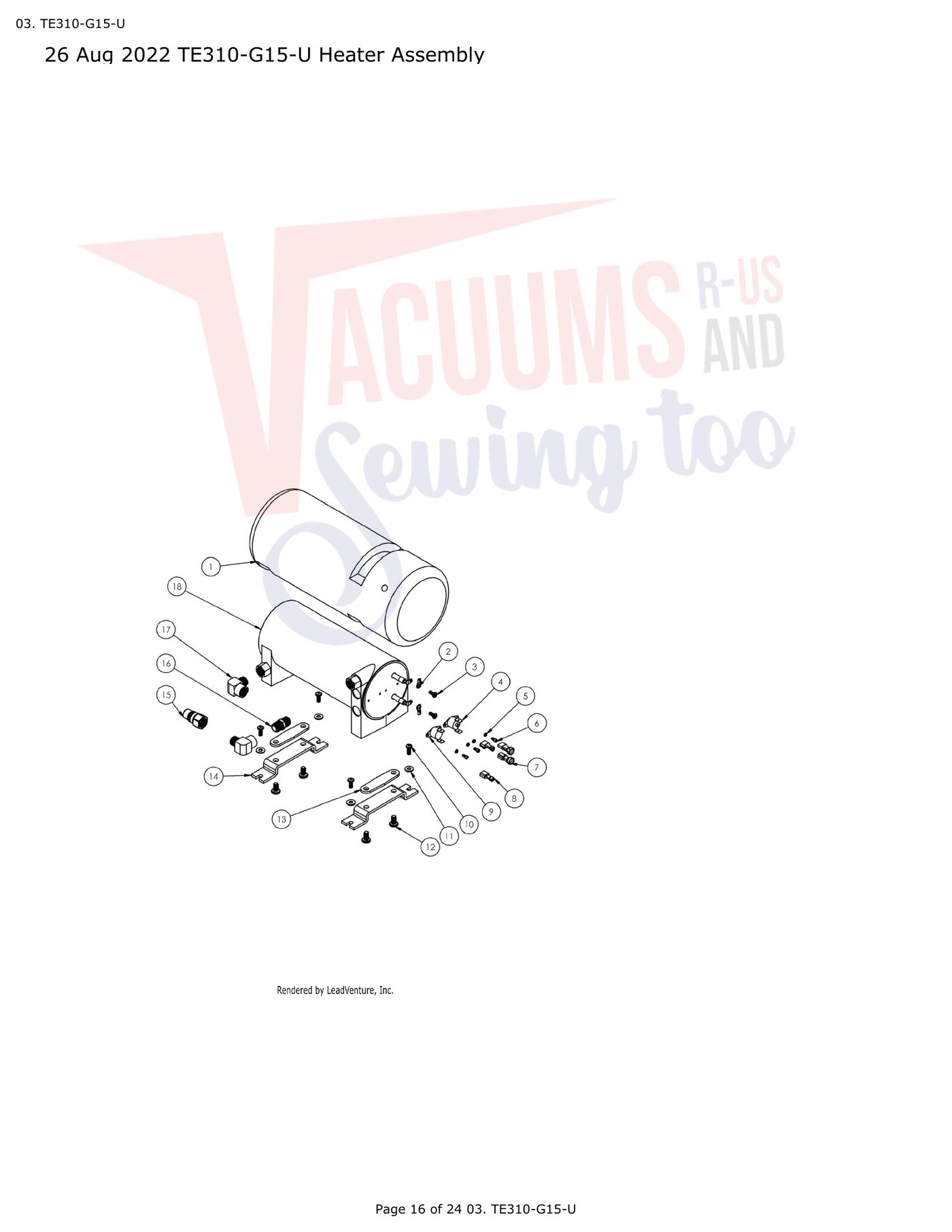

| 1 |  | Foam, Insulation for Heater | X9226 | $43.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Terminal Ring No 10 14-16 AWG | F21 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Screw 8-32X3/8 PHMS SS | 7DM004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Thermostat, Disc Manual Reset .50 250F | PX158 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | WASHER NO 4 SPLIT LOCK 18-8 SS X9869 | X9869W | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | CAP SCREW 4-40X1/4 18-8 SS | X9869 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | WIRE CONNECTOR FEMALE 12-10 YLW 250 AMP FULL INSULATED QD | F35 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Terminal, Female .250 Blue .032 Amp | F25 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Thermostat, Disc Auto Reset .50 190F | PX160 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Washer No.10 Flat SAE Blk | X9747 | $2.99Read more |
| 12 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | PAD INSULATION HEATER | X9255 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | MOUNTING BRACKET HEATER | X9254 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Nipple Hex 1/4 MPT | 7CX002 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Heater, 1710W 120Vac Single Element 9 Ohm | X9256B | $529.99Add to cart Special order: ships in 2 to 4 weeks |

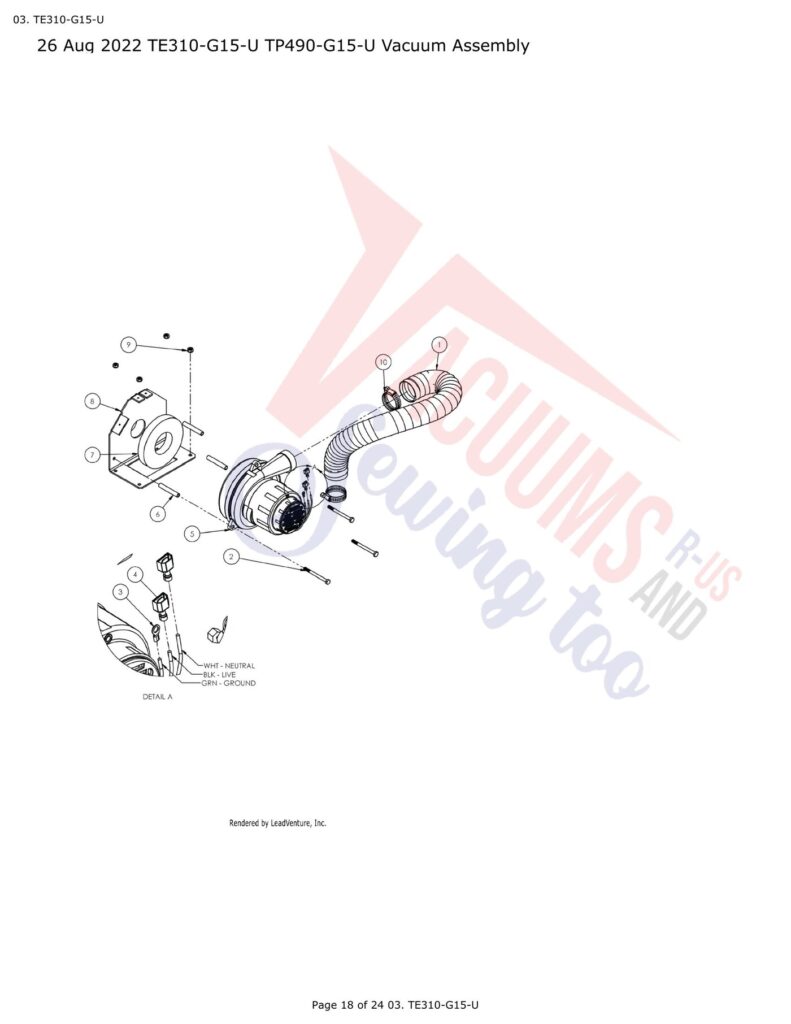

| # | Part image | Description | SKU | Price |

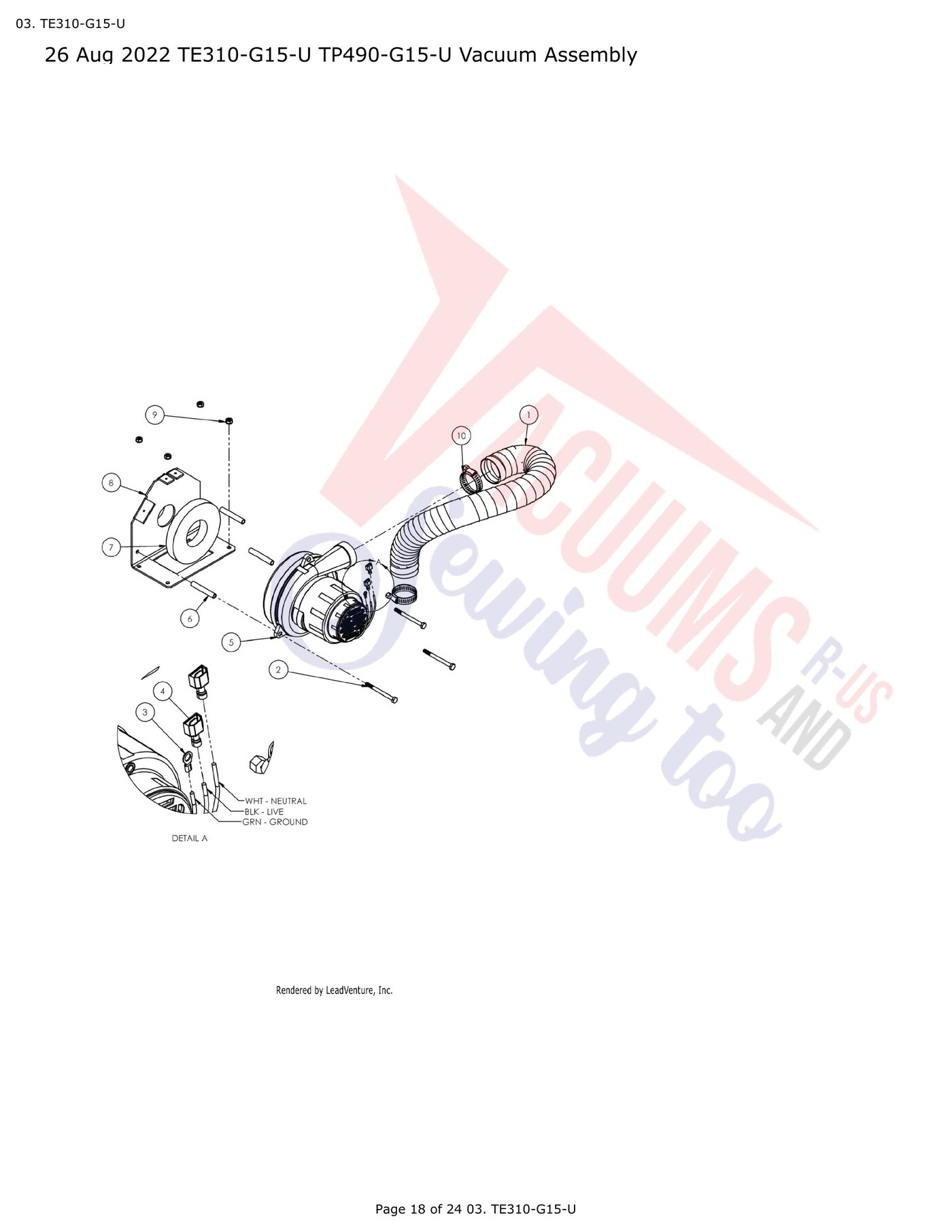

| 1 | | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Screw 1/4 20x3 Hex Head Cap Zinc Plated | X1143 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Terminal Ring No 10 14-16 AWG | F21 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Terminal Spade 1/4 Male .032 X 250 14-16AWG | F27 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Motor Extractor 115 VAC Ametek 6.6 2Stg Airwatt | 72855A1151 | $254.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Spacer, Vac Motor 2.375 | 72651B | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Vacuum Motor Gasket | X1990 | Not Available |
| 8 | No Image | Bracket, Vacuum Motor Mounting | x1944 | $59.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Cord, Power Supply, 25 ft, 15 Amp 3 STJW, Yellow, Twist Lock | X2019 | $90.99Add to cart Special order: ships in 2 to 4 weeks |
| Not Shown | No Image | Hose Insider High Pressure 20ft Assembly 1250psi | 1504WDSIHP | $477.99Add to cart Special order: ships in 2 to 4 weeks |

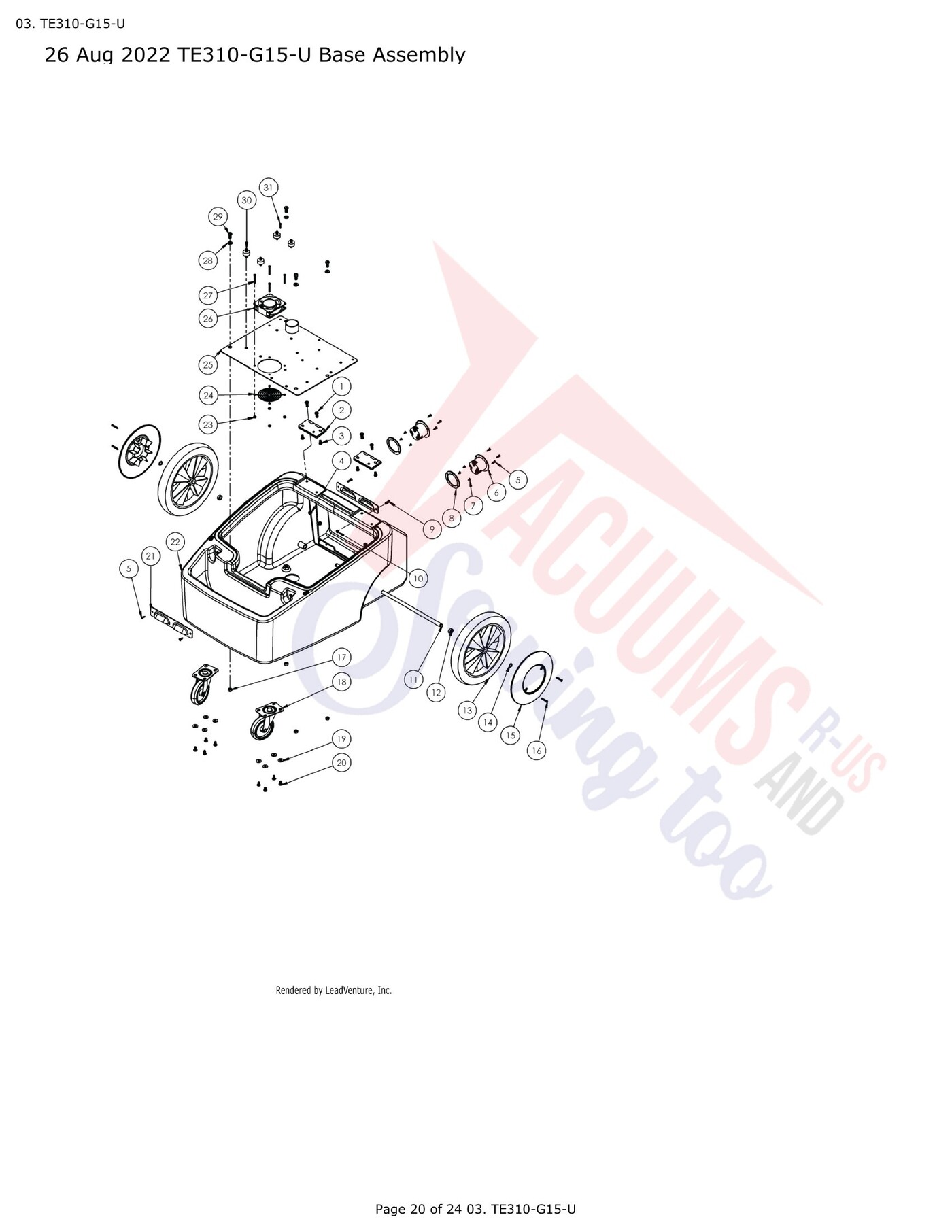

| 1 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Tank Hinge PFX900S PFX1350 | X9014 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Power Socket 20 Amp | X1983 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | SCREW, No 8 X 3/8 SS FH PHILLIPS | X2032 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Plate, Power Inlet Mounting | X1979 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Screw 10-24 X 3/4 Phil Pan MS Blk Zinc | X8276 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Axle | x1941 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Spacer 1/2 ID X 3/4 OD X 1/4 Long | 72635A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Wheel 12x1-3/4 Blk with Gray Tire | X9066 | $57.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Snap Ring Part Number 30507 for Cleanmax and Simplicity Models CM-WAV,SCE | 30507 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Hub Cap | X1935 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Screw 8x1.25in Blk Oxide | X2037 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Nut 5/16-18 Hex Finish Zinc | X8231 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Caster Assembly, Wheel 4 In., Grey, Extractors | X9153 | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Louver | x1947 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Base, LLDPE | X2000BLK | $528.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Cover Fan | 72702A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | Component Mounting Plate | X1951E | $0.00Read more |
| 26 | No Image | Fan Cooling 120V 92MM 35 Cfm | 72700A | $101.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | SCREW, 8-32 X 1.5 PH PHILLIPS | X2034 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Screw 5/16-18 x 3/4 Hex Cap 8-18 SS | 71480AP | $0.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Motor Chock Mount 1/4 - 20 x 1/2 | 72149A | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
Report errors on this page HERE
