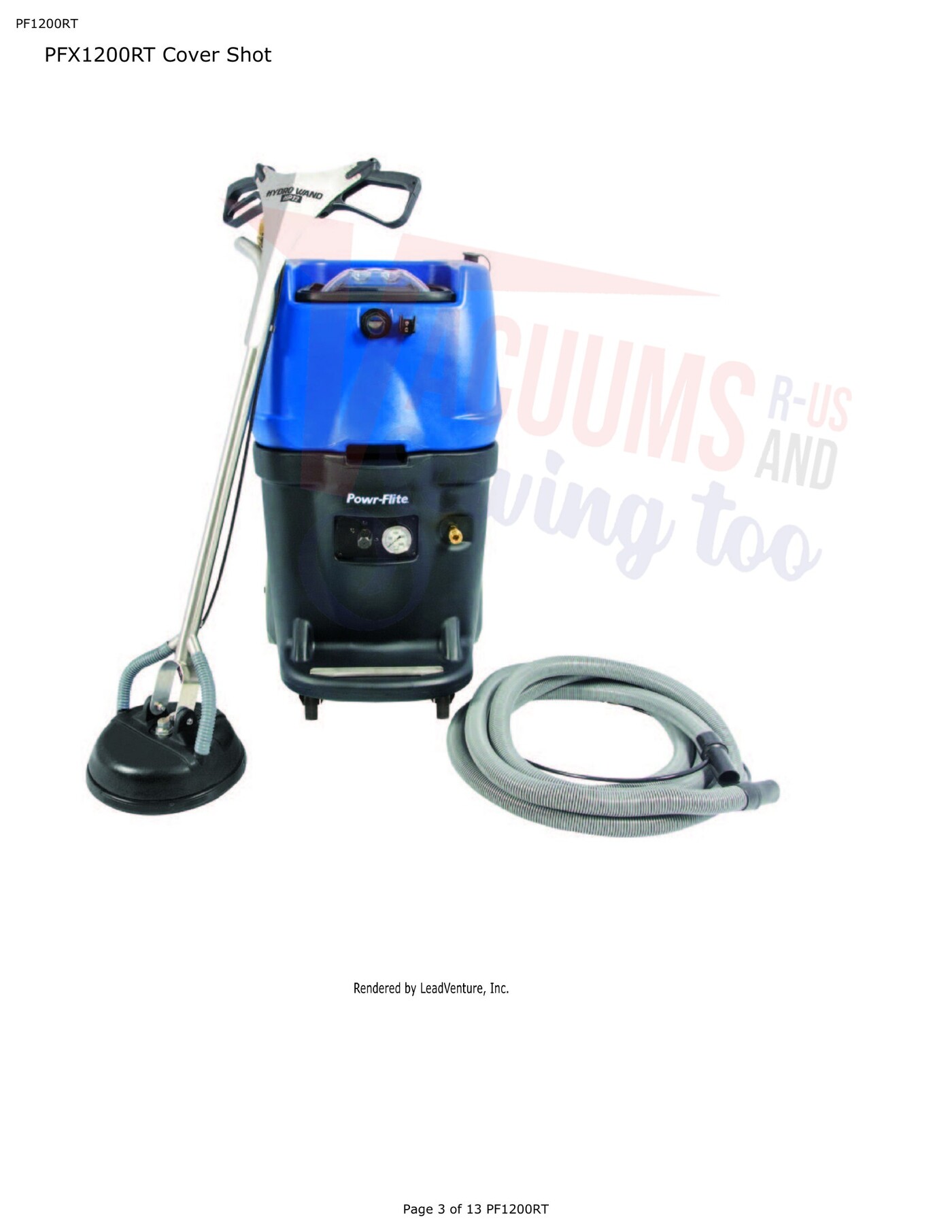

Schematic and parts book for Tornado PFX1200RT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

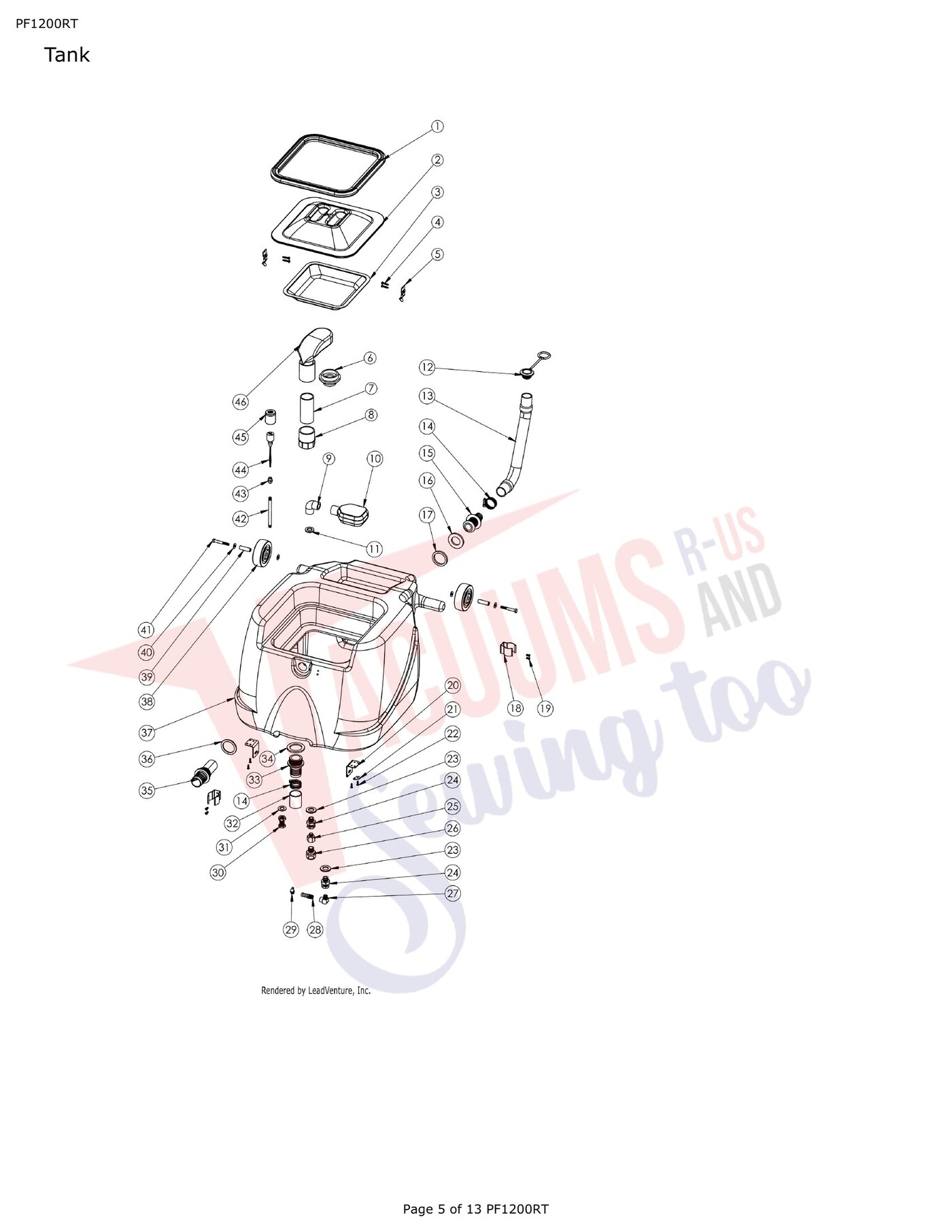

| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Gasket, Lid Cascade 43.5 | 72323B | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Lid, Tank Cascade | 72321A | $127.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Filter,Extractor,Inlet,Cascade | 72326A | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | SCREW, No 10X1 PHIL PAN TS TYPE A 18-8 SS | 71644A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | HOLD-DOWN LATCH FOR GULPER II INLET FILTER | X9221 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | FILTER VAC INLET PROTECTION GULPER II and RIPTIDE | X9236 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | PIPE PVC SCHEDULE 40 1-1/2 9.5 LONG | X9154 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Coupler, Plastic 1.50 Slip X 1.50 FPT | PX63 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | ELBOW PVC 1/2 NPT | X9239 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Switch,Extractors,Flood Pumper,Float,Gulper II | X9213 | $245.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Gasket Fiber 1.125 OD X .75 ID X .156 Thick | PX48G | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Drain Fitting, 1 Pro Series With Nut | 72677A | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | GASKET DRAIN OUTER 1.330 ID 2.330 OD .25 THICK | 72680A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | GASKET DRAIN INNER 1.330 ID 1.825 OD .25 THICK | 72679A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | SCREW, 10-32X3/8 PHIL PAN MS 18-8 SS | 7BH004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | LATCH BRACKET PRO 500 | 72631A | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | End Loop, With Two Holes 16G | X9069 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | SCREW, No 10 x 5/8 TAPPING PHILLIPS SS PAN HEAD | 72388A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Washer 3/4 Neoprene-Bond Galvanized | 72274A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Bulkhead, Fitting Brass .75 | PX48 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Adapter, 1/2 To 1/4 NPT | X9224 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Strain Relief 1/2” Part Number PD8 for Cleanmax Models CM-WAV | PD8 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Barb, 1/2 Hose 1/4 NPT Male | 7AT004 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Connector Anchor 1/8 NPT | 7AJ004 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Washer 5/8x1-3/16 Bonded Seal Galvanized | 72115A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Hose 1-1/2 Wire-Reinforced Black | 72656A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Gasket, Dump Valve .1875 Thick 1.75 ID X 2.50 OD | PX14 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | INLET FITTING SHORT PRO 500 | 72666A | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | TANK RECYCLING BLUE PRO RAL 5005 | 72619ABU | $1,353.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Bolt 5/16-18 X 2-1/4 Hex | 72645A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | 5 LONG 1/8 THREADED PIPE 1/8 NPT | 72799B | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Coupling 1/8-1/8 Pipe | 7DA001 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | Switch Float 2 Pole | 70343A | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Shield Float Switch | 71328A | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Tube, Vacuum with Coupling - Sub Assembly | PX33SUB | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

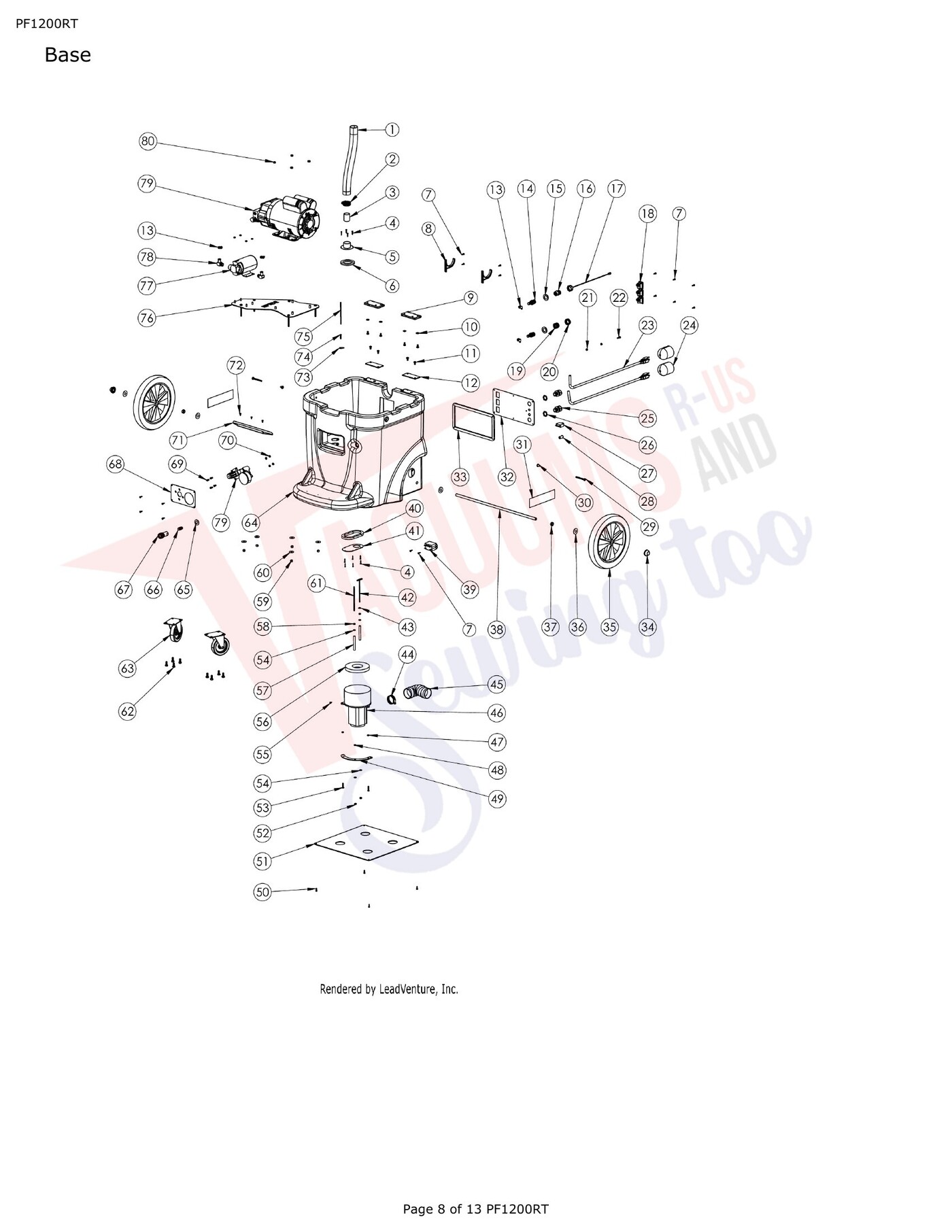

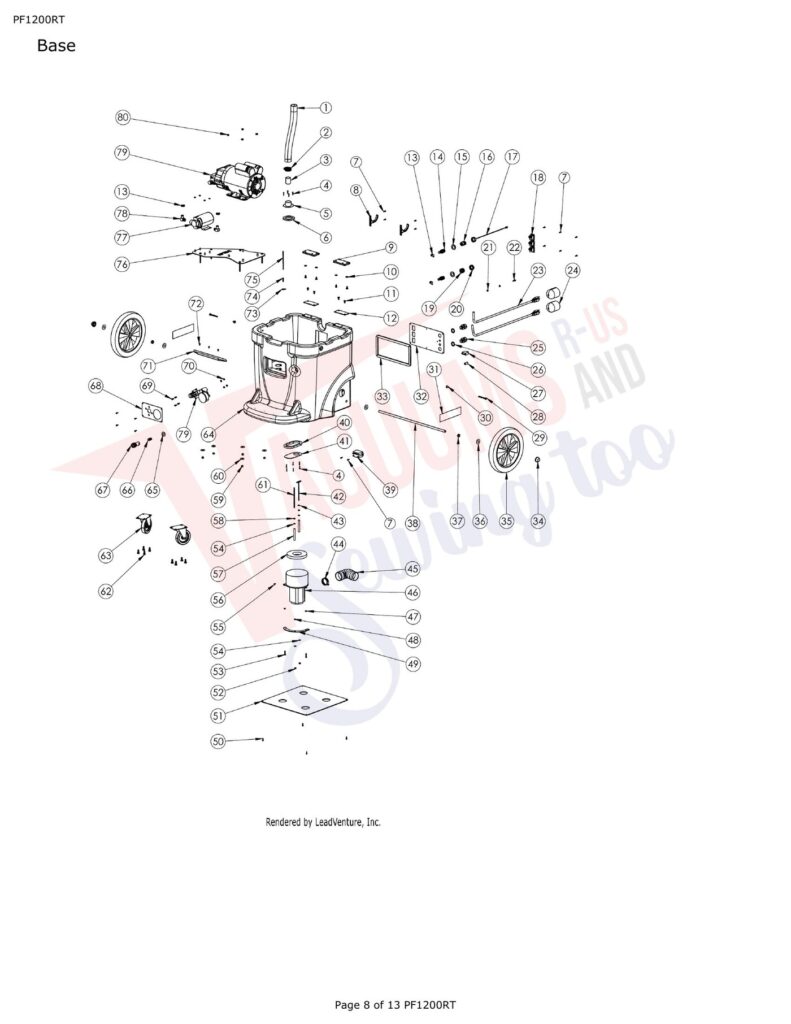

| # | Part image | Description | SKU | Price |
| 1 | | Hose 1-1/2 Wire-Reinforced Black | 72656A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Tubing, Vinyl 1 ID 1-1/4 OD Pro Series Drain | 72678A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | SCREW, No 6X3/4 PHIL PAN TS TYPE A 18-8 SS | 7CW002 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Cover, Vacuum Manifold Circle Pro 500 / PFX1350 | 72625A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Gasket, Vac Manifold, Circle | 72642A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Hook, Cord,Backpack,Autoscrubber,Extractor | X9718 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Tank Hinge PFX900S PFX1350 | X9014 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | WASHER, ID.299 OD.622 THK.055 ZINC PLATED | X8858 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SPACER PAD HINGE PFX1350 | X9168 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | BARB 1/2 X 1/2 MALE/MALE | PC25 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | WASHER 20MM FLAT ZN LAT 21MM ID X 37MM OD X 2.7MM | X8551 | $2.99Read more |
| 16 | Not Available | Garden Hose Connector | X1335 | Not Available |
| 17 |  | CAP WITH CHAIN PF75 PF75DX | FP8 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | GARDEN HOSE FITTING 1/2 NPT X 3/4 GHT | PX154 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | FILTER, FOR GARDEN HOSE INLET INCLUDES RUBBER WASHER | X1442 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | SCREW 10-32 X 1 PHIL PAN M/S BLK ZINC | X8851 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Cord,Extractors,39 in,Black,12/3 SJTW,Pigtail | PX112 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Water Resistant Plug | X1367 | Not Available |
| 25 | | Strain Relief 1/2” Part Number PD8 for Cleanmax Models CM-WAV | PD8 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Circuit Breaker Extractor 5 amp | X9324 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Light, Indicator Green | PX86 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | SCREW, 1/4-20 2-1/2 PHIL PAN MS ZINC | 72684A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | INSERT, 1/4-20 THREAD 1/2 HIGH .305 BARREL DIAMETER TEE NUT | 72665A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Label | X9208 | $0.00Read more |
| 32 | No Image | Panel, Switch 3 Switch 2 Cord Circuit Breaker Dual Circuit | 72632C | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | GASKET, CONTROL PANEL FULL SIZE EXTRACTOR BASE | X1316 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Wheel 12x1-3/4 Blk with Gray Tire | X9066 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | WASHER, 1/2 USS FLAT 18-8 SS | 7CM007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Spacer 1/2 ID X 3/4 OD X 1/4 Long | 72635A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Axle, 1/2 Dia. Pro500 PFX1350 PFX1380 PF85 | 72633A | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Relay 25A 120V | 71379A | $81.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Gasket, Vac Manifold Short Pro 500 / PFX1350 | 72641A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Cover, Vacuum Manifold Flat Pro 500 / PFX1350 | 72630A | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | T-bolt, ROD 10 24 Stainless | X9204 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Washer | 00696 | $0.00Read more |
| 44 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Motor,Extractor,120,VAC,Ametek,3 STG,ETL | X1038 | $195.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | SPACER, 1/8 | 72820A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Bracket ,Extractors, Vac Motor Bracket | 72853A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | SCREW, No 10 x 5/8 TAPPING PHILLIPS SS PAN HEAD | 72388A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | Cover, Bottom Base PFX1350 / Pro 500 | 72636A | $62.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 |  | NUT, 10-24 NYLON INSERT LOCK 18-8 SS | 7BF030 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | SCREW 10-24X1 PHIL PAN MS 18-8 SS | 7CU001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | No Image | Screw TFT B PanHd Zn No.10 16x1/2 | 19565 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Gasket, Flat Airwatt Motor 5/8in Neoprene Blend | X9740 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | No Image | Spacer, Vac Motor (98190) | 30070 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 |  | Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV | 10892 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | No Image | Nut 1/4-20 Lock Nylon Insert | X8237 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Washer Flat Fender 1/4 x 1 OD | X8235A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | No Image | Rod, 10/24 5.5 All Thread Stud 18-8 SS | 72000A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | BOLT, 5/16-18X5/8 HEX TAP ZINC | 7DT001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | Wheel, 4 In Caster Black | PX65 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 |  | Base, Black PFX1350 PF85 PF85DX. Black RAL No 9017 | 72620ABREPRO | $683.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 |  | WASHER .400 ID 1.50 OD ZP | X8239 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | Nipple Hex 1/4 MPT | 7CX002 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 |  | Quick Disconnect .25 Female | PX6 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | No Image | GAUGE AND UNLOADER PLATE 1200 PSI MACHINE | X1334 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | No Image | SCREW 8-32 X 1/2 TRUSS/PHIL BLK ZINC | X8272 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 71 | No Image | Holder, Wand For Full Size | 72661B | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | No Image | SCREW, No 10 X 1/2 FLAT PHIL SM BLACK UNDERCUT HEAD | 72662A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 73 | No Image | End Loop, With Two Holes 16G | X9069 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 74 | No Image | SCREW, No 10X1 PHIL PAN TS TYPE A 18-8 SS | 71644A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | No Image | ROPE SOLID BRAID | 72660A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 76 | No Image | Plate, Pump, RiptIDe Rev 01 | X1468 | $150.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 77 |  | Pump,Extractor,VAC,1/10HP,360GPH,With 6ft Power Cord | X9253 | $451.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 |  | Elbow, 1/2 H - 3/8 MPT | 71507A | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 79 | No Image | Pump Assembly | X1278 | $0.00Read more |
| 80 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

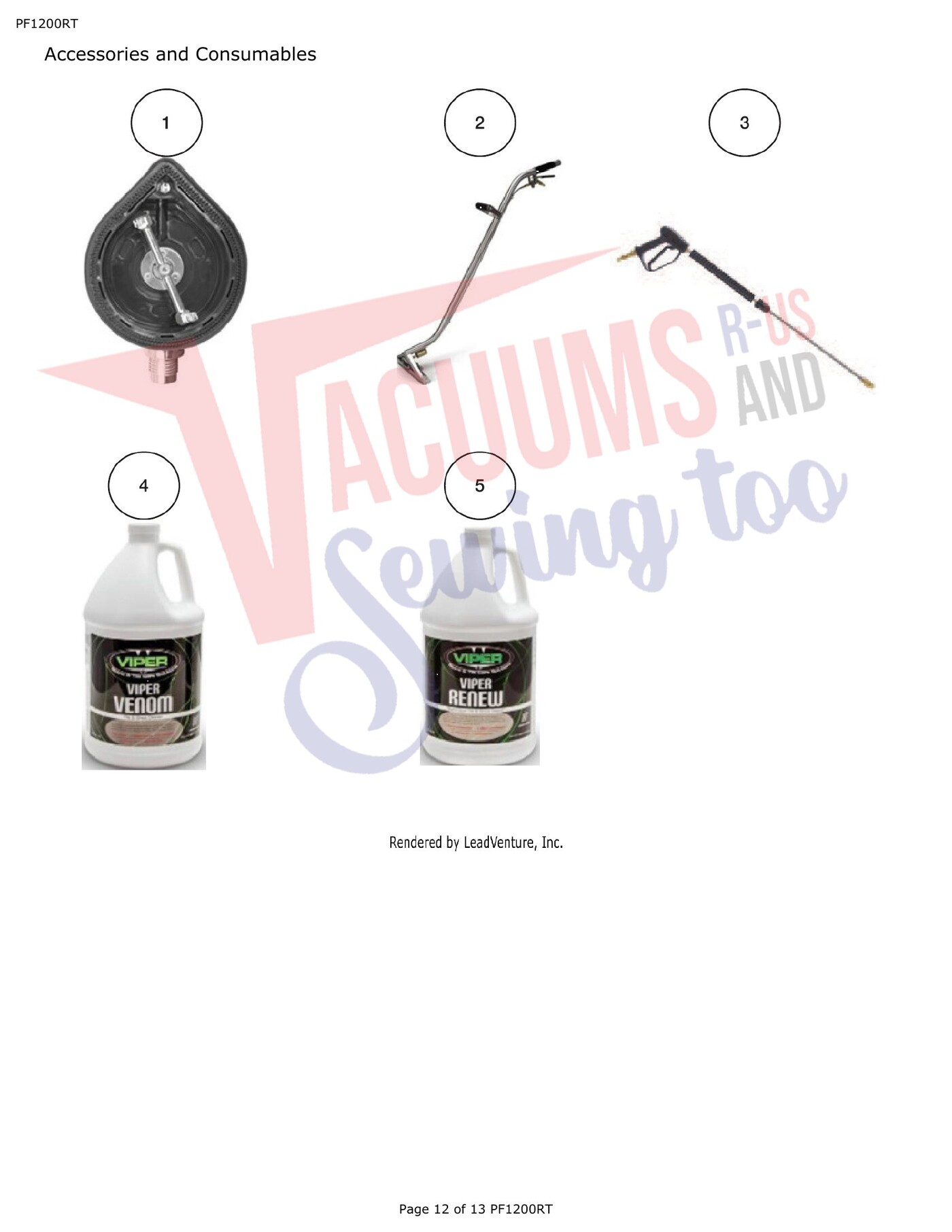

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Gun Spray HP Hydroforce | 100010PF | $94.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Riptide Spinner Hand Tool | HP7 | Not Available |
| 2 | No Image | Wand Wonder 1000 PSI 3 Jet | WW1000 | $2,112.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Pressure Washer Sprayer Assembly | X1470 | $411.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Viper Venom Tile Cleaner 4pk 1gal case | VV4 | $330.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Viper Renew Tile Cleaner 4pk 1gal case | VR4 | $408.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
