Schematic and parts book for Tornado PFX1085MAZ-T-HDS . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

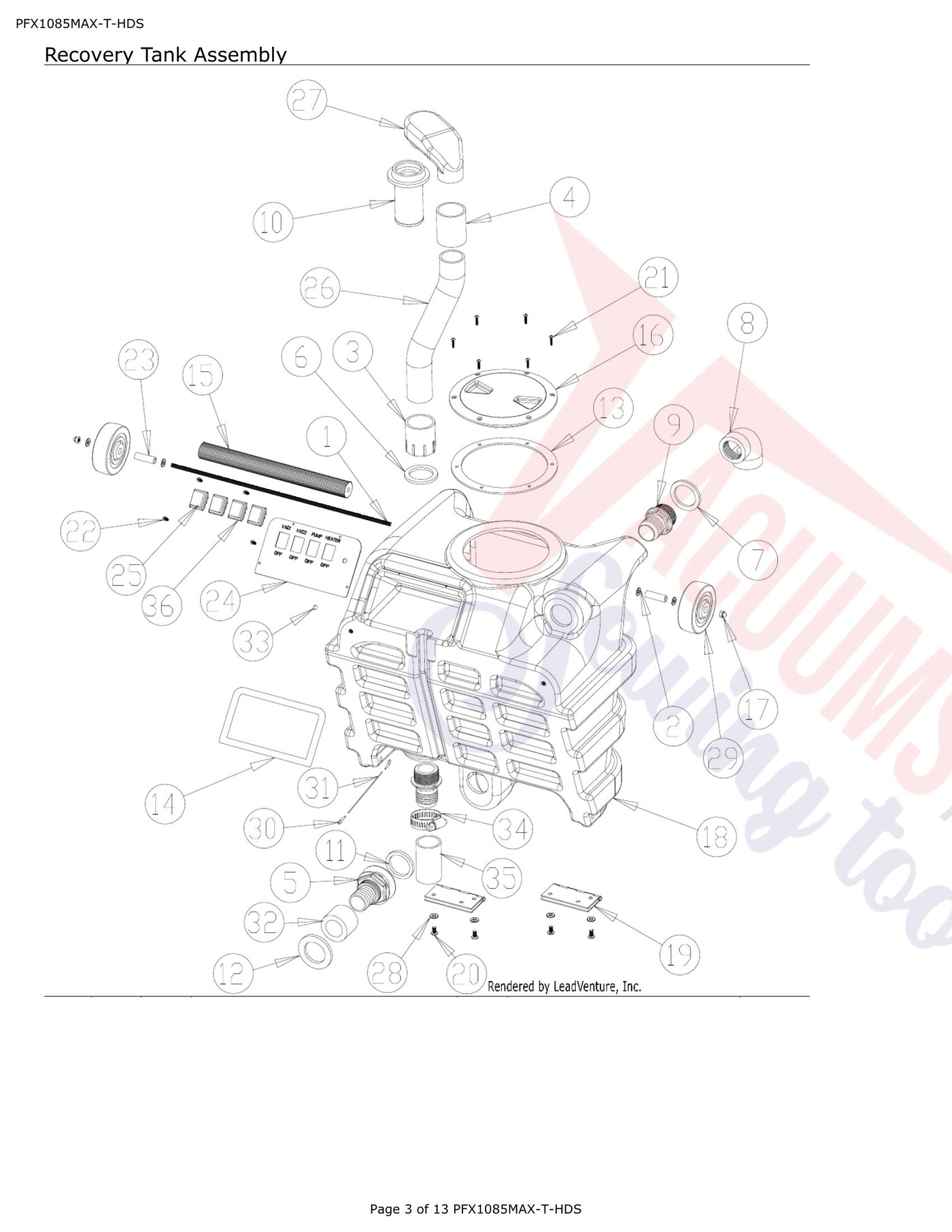

| # | Part image | Description | SKU | Price |
| 1 | No Image | All Thread, 5/16-18 X 18.75 Zinc | X9452 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Coupler, Plastic 1.50 Slip X 1.50 FPT | PX63 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | COUPLING PVC 1-1/2 SLIP X SLIP | 72615A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | WASHER, RUBBER .29ID .688OD 1/8 80 DURO | 72667A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Gasket, Dump Valve .1875 Thick 1.75 ID X 2.50 OD | PX14 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Float, Cage W/Heavy Ball | PX31 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | GASKET DRAIN INNER 1.330 ID 1.825 OD .25 THICK | 72679A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | GASKET DRAIN OUTER 1.330 ID 2.330 OD .25 THICK | 72680A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Gasket, Switch Plate Medex | X9484 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Handle, Mid Size Extractor | X9453 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | NUT, 5/16-18 CAP ZP | 72148A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | TANK RECOVER MD SZ EXTRACTOR BLK RAL NO 9017 | X1051BLK | $436.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Tank Hinge PFX900S PFX1350 | X9014 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Plate, Switch Mid-Size Extractor | X9801 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Standpipe, Midsize Extractor | 72628B | $64.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Tube, Vacuum | PX33 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | WASHER, ID.299 OD.622 THK.055 ZINC PLATED | X8858 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | End Loop, With Two Holes 16G | X9069 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | ROPE SOLID BRAID | 72660A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Tubing, Vinyl 1 ID 1-1/4 OD Pro Series Drain | 72678A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Plug, 1/2 Inch Black Nylon | 71804A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Hose 1-1/2 Wire-Reinforced Black | 72656A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Plug, Switch Hole PFX1350 Series | X9173 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

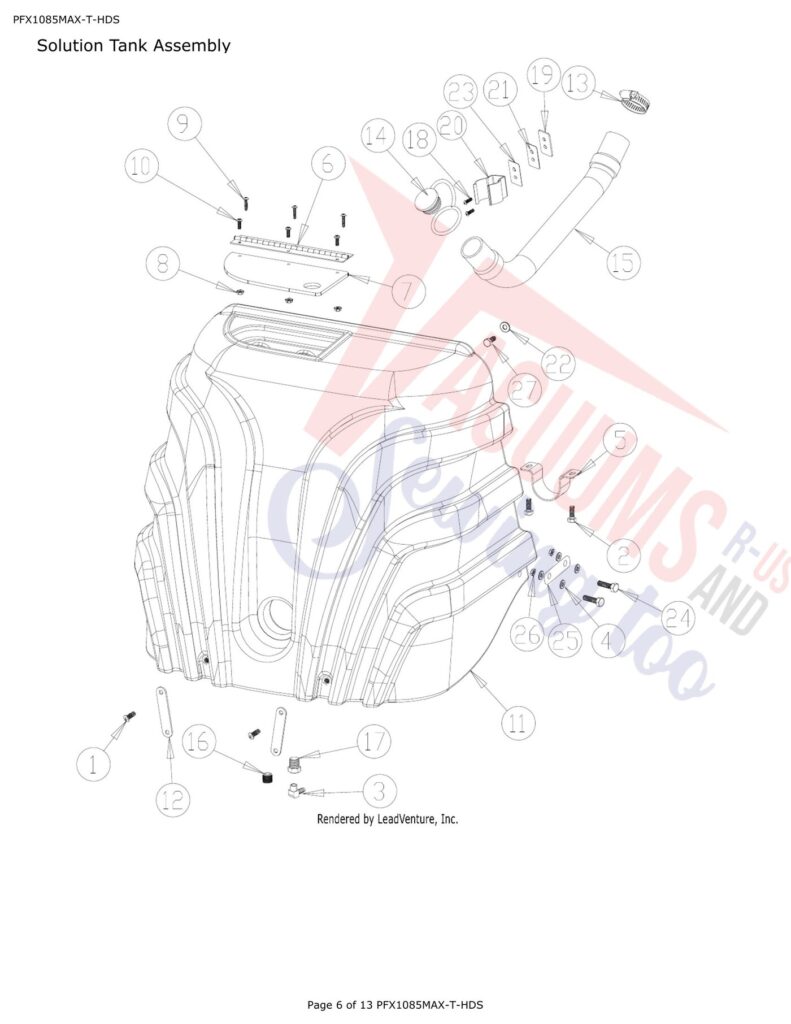

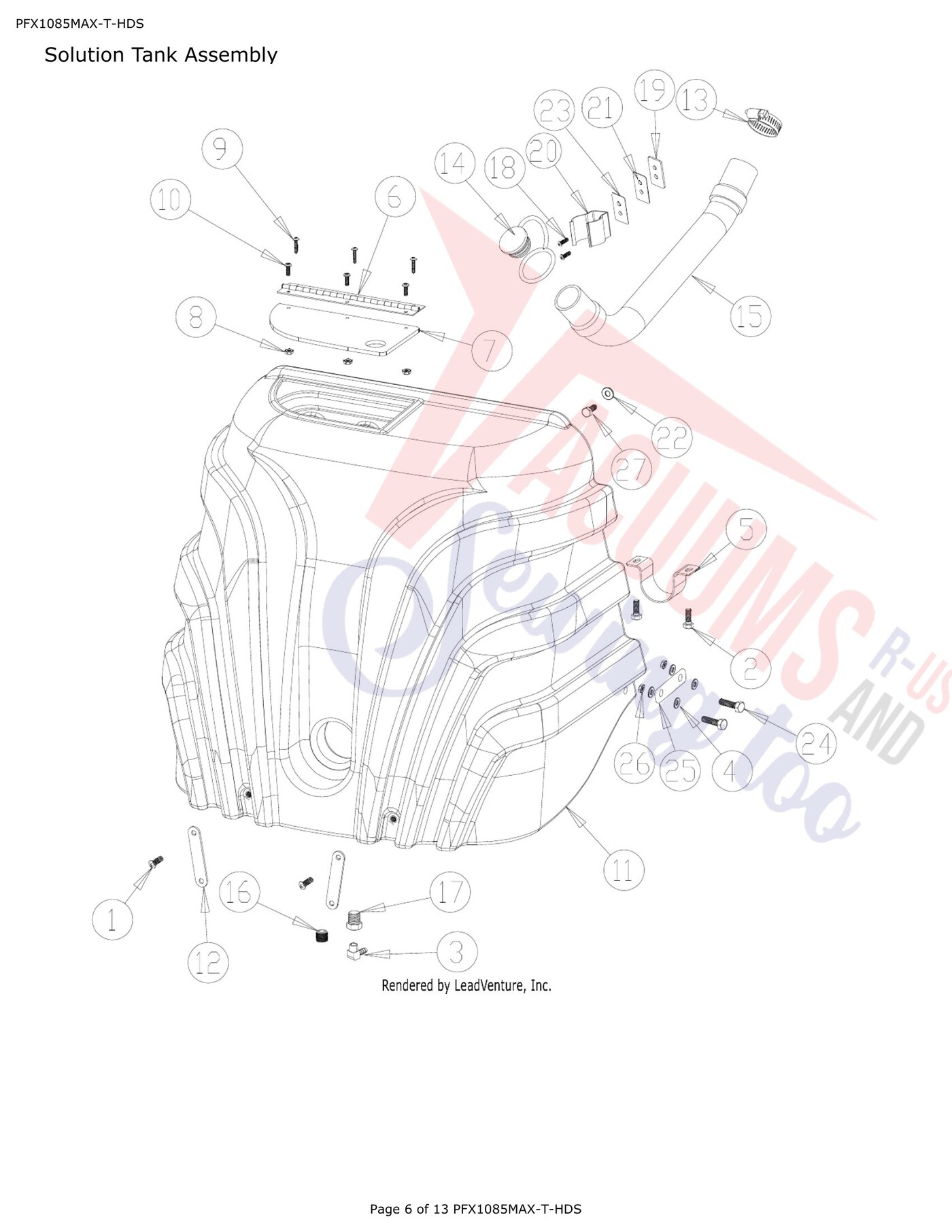

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw 1/4 20x1/2 Phil PH Blk 18-8 SS | 7BS003BLK | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Elbow, Nylon 90 Deg 3/8 NPT X 3/8 Hose Barb | PX15 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Bracket, Drain Hose | X9448 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Hinge, Solution Tank Lid | X9450 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | LID SOLUTION TANK MID SIZE REV03 | X9451 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Screw 6x1/2 Pan Hd PH Blk Self Tapping | X8261 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Screw 8-32x1/2 Pan Hd PH Blk Zinc | X8278 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Solution Tank Yellow Mid-Sz RAL 1018 | X1052TOR | $317.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Strap, Front, Mid Size Extractor | X9444 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Plug, Counter Hex 1/2 | 7AF003 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | REDUCER 1/2 TO 3/8 | PC22 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | SCREW, 10-32X1/2 PHIL PAN MS 18-8 SS | 71651A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Clip, Nut Plate Midsize Extractor | 72170A | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | GASKET NUT PLATE PFMA ELITE | 72175A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | WASHER, RUBBER .29ID .688OD 1/8 80 DURO | 72667A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | PAD SPRING CLIP | 72669A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | BOLT, 1/4-20X2-1/2 HEX TAP18-8 SS | 71639A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Side Strap, Mid Size Extractor | X9475 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |

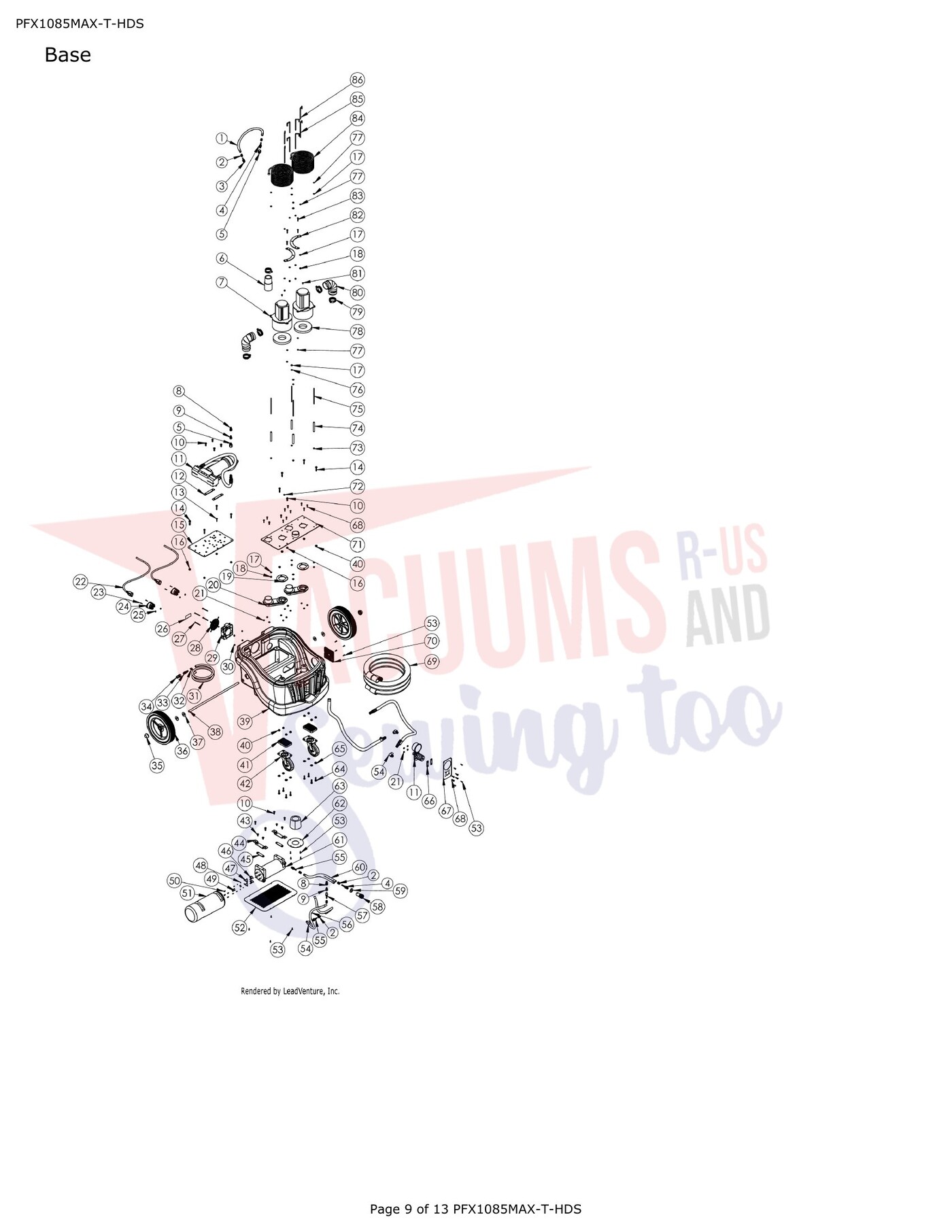

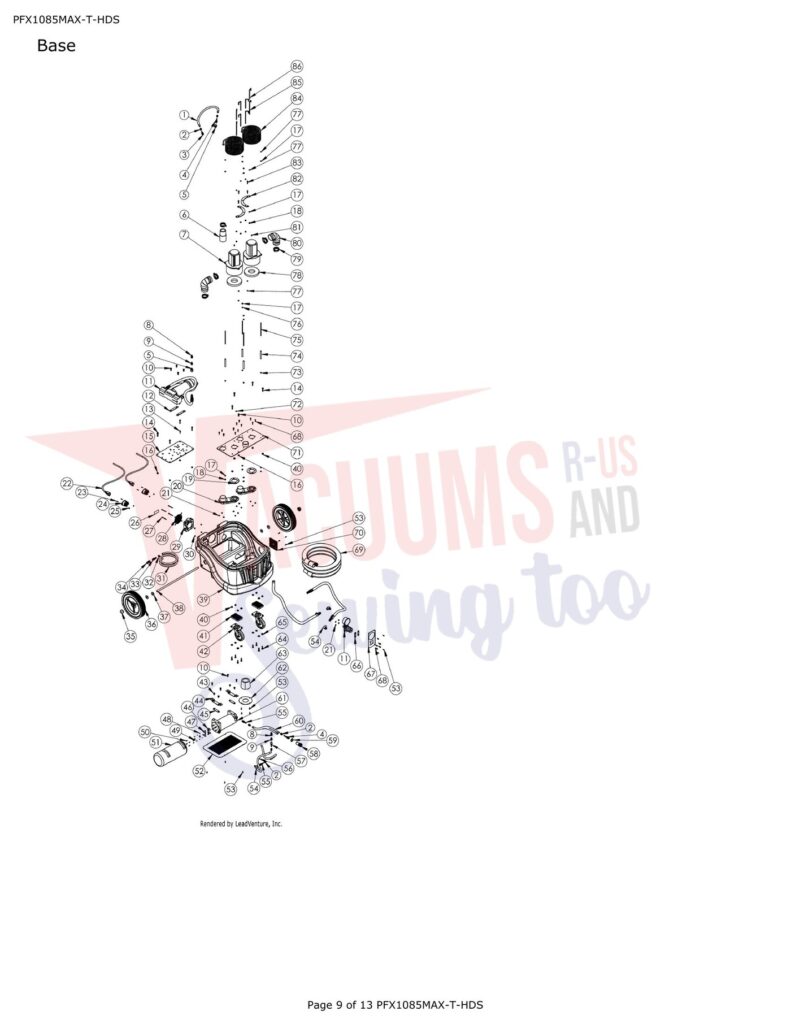

| # | Part image | Description | SKU | Price |
| 1 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 2 | No Image | Ferrule Hose .59 OD | PX161 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Barb, 1/4 X 1/8 Male Pipe | X9527 | $13.99Read more |
| 4 | No Image | Barb Swivel 1/4H X 1/4M | X9316 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | ADAPTER 1/4 FNPT X 1/8 MNPT | PC30 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Cuff, Hose End 1.5 to 2 Wire Reinforced | HJ7 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Motor Kit X1038 10gal 13gal Blackmax Extractor | X1038KITBLACKMAX | $333.99Read more |
| 8 |  | Quick Disconnect Female X 1/8 MPT | 71130A | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Quick Disconnect male X 1/8 FPT | 70101A | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Pump, Assembly 500PSI 10g units | PT400DC120 | $1,928.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | PAD MOTOR MOUNT S-V | 7GF033 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Screw, 8-18 X 1 PHIL ROUND TEK ZINC | X8245 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Screw Hex Head Cap 1/4-20x1-1/4 ZP Gr5 | X8226 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Plate, Heater/Pump Mid Size Extractor | X9465 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | NUT, 10-24 NYLON INSERT LOCK 18-8 SS | 7BF030 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | GASKET, VACUUM CHAMBER | X9468 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Housing,Extractors,Vacuum Chamber,Self Contained | X9467 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Cord,Extractors,25ft,Yellow,12/3 SJTW | M1374 | $149.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | SCREW, No 6-32X5/8 PHIL PAN MS SS | 7DW001 | $1.99Read more |
| 24 | No Image | Receptacle, Flanged Inlet Straight Blade | X9429 | $25.99Read more |
| 25 | No Image | NUT, 6-32 LOCK W/NYLON INSERT ZINC | X8257 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Warning Label Dryer and Spotter | X8976 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | SCREW, 8-32X2 PHIL PAN M/S ZINC BULK | 72703A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Cover Fan | 72702A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Fan Cooling 120V 92MM 35 Cfm | 72700A | $101.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Nut 8-32 Lock with Nylon Insert | X8260 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Hose 300PSI Solution 3/8 ID X 1/8 Wall | PX3H | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Clamp Single Ear 18.5 mm | PX61A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Barb 1/4 X 3/8 Male/Male | PX85 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Wheel 10-1/2bore Blk with Gray Tire Midsize Ext | X9063 | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | WASHER, 1/2 USS FLAT 18-8 SS | 7CM007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Rear Axle, .50 Dia X 20.25 Mid Size Extractor | X9463 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Base, Mid Size Extractor 120V, Black Ral No 9017 | X1050120 | $379.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | 1/4 X 20 FLANGED SERRATED NUT | X9528 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | SPACER, CASTER CFR MID SIZE | 72783A | $6.99Read more |
| 42 |  | Caster Assembly, Wheel 4 In., Grey, Extractors | X9153 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | Bracket,Extractors,Mid-Size,Heater | X9474 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | PAD INSULATION HEATER | X9255 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 |  | Thermostat, Disc Manual Reset .50 250F | PX158 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 |  | Thermostat, Disc Auto Reset .50 190F | PX160 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | WASHER NO 4 SPLIT LOCK 18-8 SS X9869 | X9869W | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | CAP SCREW 4-40X1/4 18-8 SS | X9869 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | Screw 8-32X3/8 PHMS SS | 7DM004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | Foam, Insulation for Heater | X9226 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Cover, Heater Mid Size Extractor | X9464 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | No Image | Barb 1/4 X 1/4 Male Pipe Steel | X9492 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 57 | No Image | Barb, 1/4 X 1/8 Male Pipe | X9527 | $13.99Read more |
| 58 |  | Quick Disconnect .25 Female | PX6 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 |  | WASHER .400 ID 1.50 OD ZP | X8239 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 61 | No Image | Heater, 1800W 120Vac Dual Element 17 Ohm Each | X9590A | $542.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 |  | Plate, Muffler Mid Size Extractor | X9471 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 |  | FOAM, MUFFLER MID SIZE EXTRACTOR | X9470 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 |  | Screw Hex Head Cap 1/4-20x1 | X8211 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 |  | GASKET PAD MOUNTING REGULATOR PRO 500 / PFX 1350 | 72639A | $2.99Read more |
| 67 | No Image | Plate, Pressure Regulator Mid Size | 72638B | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | No Image | SCREW 10-32 X 1 PHIL PAN M/S BLK ZINC | X8851 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | Vacuum/Solution Hose 20' 500 P.S.I. | 20500WDS-T | Not Available |
| 70 | No Image | INLET COVER, PLASTIC MID SIZE | X9808 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 71 |  | Plate, Vacuum | X9466 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 73 |  | Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV | 10892 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 74 | No Image | Spacer, Vac Motor (98190) | 30070 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | No Image | Rod, 10/24 5.5 All Thread Stud 18-8 SS | 72000A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 76 | No Image | SPACER, 1/8 | 72820A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 77 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | No Image | Gasket, Flat Airwatt Motor 5/8in Neoprene Blend | X9740 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 79 | | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 | No Image | Screw TFT B PanHd Zn No.10 16x1/2 | 19565 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | No Image | Bracket ,Extractors, Vac Motor Bracket | 72853A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 |  | SCREW 10-24X1 PHIL PAN MS 18-8 SS | 7CU001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | No Image | Coil Heater 3-Stage Vacuum | 72713B | $276.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | Not Available | J-Hook | X9423 | Not Available |
| 86 | No Image | HEAT SHRINK TUBING BLACK 3/16 | X9517 | $1.99Read more |
