Schematic and parts book for Tornado Floorkeeper 20 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | Brush Kit Replacement Tranaxel 75237 and 75121 | 75150 | $248.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | Not Available | Motor for Transaxle | 855206 | Not Available |
| 1 | No Image | Frame, Scrubber, 20 Traction Drive | 75048 | $494.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 3 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 4 | Not Available | Washer | W243D | Not Available |
| 5 | No Image | Transaxle, 24Vdc, 20 In | 75121 | $2,444.99Read more |
| 6 | No Image | Bracket, Retaining, Trans | 75025 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Nylock Nut | 75278 | Not Available |
| 9 | No Image | Wheel, Traction, 200mm | 75125 | $417.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Ext. Retaining Ring | 75014 | Not Available |
| 11 | Not Available | Keyed Washer | 75348 | Not Available |
| 12 | Not Available | Square Key | 75272 | Not Available |
| 13 | Not Available | Washer | 75342 | Not Available |
| 14 | Not Available | Lock Washer | 75329 | Not Available |
| 15 | Not Available | Screw M6 X | 75321 | Not Available |
| 16 | Not Available | 3" Caster Frame w/Axle | 857502 | Not Available |
| 17 | Not Available | 3" Caster Wheel | 859709 | Not Available |
| 18 | Not Available | Washer | 75337 | Not Available |
| 19 | Not Available | Lock Washer | 75332 | Not Available |
| 20 | Not Available | Nut | 75281 | Not Available |
| 21 | No Image | Kit Valve Scrubber Replacement | 75074 | $331.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Hose Clamp | S453P | Not Available |
| 23 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Filter, Screen, Bowl | 75013 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Fitting, Reducer, 1/2 Inch to 1/4 Inch | 75050 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Tubing, 1/4 Inch X 19 Inch | 75355 | $6.99Read more |
| 29 | No Image | Guide, Spacer, Round | 75058 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Screw Socket Cap .31 x 1 ss | 75311 | Not Available |
| 31 | Not Available | Nylock Nut | 75279 | Not Available |
| 32 | Not Available | Brake Bracket | 850810 | Not Available |
| 33 | No Image | BRAKE CLAMP | 852001 | $70.99Read more |
| 34 | Not Available | Screw 1/4-20 x 1" | 75299 | Not Available |
| 35 | No Image | NUT | W405D | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | BRAKE PAD | 858401 | $129.99Read more |
| 37 | No Image | Switch, Snap, Bent Lever | 75264 | $101.99Read more |
| 38 | No Image | NUT | W385D | $7.99Read more |
| 39 | Not Available | Washer | 75347 | Not Available |
| 40 | Not Available | Screw #4-40 x 7/8" | 75307 | Not Available |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Harness, Signal, Pad Assist | 75268 | $248.99Read more |
| Not Shown | No Image | Harness, Power, Orbital, S-20 | 75263 | $754.99Read more |
| Not Shown | No Image | Harness, Power, Traction, S-20 | 75253 | $694.99Read more |
| Not Shown | No Image | HOW TO INSTALL CV DVD Part Number: 075269 for Eureka | 75269 | $7.64Read more |
| 1 | No Image | Panel, Controls | 75102 | $245.99Read more |
| 2 | No Image | Label, Control, Traction | 75081 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Mount, Bearing, Plastic | 75088 | $5.99Read more |
| 4 | No Image | Bail, Molded | 75035 | $34.99Read more |
| 5 | Not Available | Washer | W104D | Not Available |
| 6 | Not Available | Nylock Nut | 75278 | Not Available |
| 7 | Not Available | Screw 1/4-20 x 1-3/4" | 75301 | Not Available |
| 8 | No Image | -Lever Bracket Black/Brown | 75112 | $36.00Read more |
| 9 | Not Available | Screw #10-32 x 1-1/2" | 75297 | Not Available |
| 10 | Not Available | Nut | 75280 | Not Available |
| 11 | Not Available | Nylock Nut | 75291 | Not Available |
| 12 | No Image | Switch, Key | 75256 | $93.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Key, Replacement, Scrubber | 75073 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Switch, Round, On Mom | 75257 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Potentiometer Assy, 5K | 75260 | $183.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Knob, Adjust, .25 Bore | 75069 | $63.99Read more |
| 17 | No Image | Circuit Breaker, 30 Amps | 75250 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Meter Battery | 75249 | $242.99Read more |
| 19 | No Image | Nut, Nylock, No 6-32, SS | 75282 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Switch, Snap, With Roller | 75255 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Screw #4-40 x 7/8" | 75307 | Not Available |
| 22 | Not Available | Washer | 75347 | Not Available |
| 23 | No Image | NUT | W385D | $7.99Read more |
| 24 | No Image | Gasket, Motor Mounting SC3683D Part Number: 75079 for Eureka | 75079 | $10.28Read more |
| 25 | No Image | Knob, Oval, .31-18 | 75070 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Nut | 75286 | Not Available |
| 27 | No Image | Bearing, Rod End, .31-24 | 75244 | $79.99Read more |
| 28 | Not Available | Nylock Nut | 75279 | Not Available |
| 29 | No Image | Guide, Spacer, Round | 75058 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Screw 5/16-18 x 1-3/4" | 75305 | Not Available |
| 31 | No Image | Bracket, Plug | 75024 | $26.99Read more |
| 32 | No Image | Harness, Charger, Post | 75254 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | SCREW | W132D | $7.99Read more |
| 34 | Not Available | Washer | 75336 | Not Available |
| 35 | No Image | Cable, Lift, Clevis | 75044 | $59.99Read more |
| 36 | No Image | Screw 1/4-20 X 1" | 75314 | $0.00Read more |
| 37 | Not Available | Screw 1/4-20 x 5/8" | 75300 | Not Available |
| 38 | No Image | Meter, Hour, Digital (Optional) | 75258 | $218.99Read more |
| 44 | Not Available | External Star Washer | 75335 | Not Available |
| 45 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Cord 18/3 X 10' Sjt | 75252 | $0.00Read more |
| 1 | No Image | Charger Mounting Bracket | 75022 | $0.00Read more |
| 2 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Lock Washer | 75329 | Not Available |
| 4 | Not Available | Washer | W104D | Not Available |
| 5 | No Image | Charger 24V 25A Universal Flooded/Agm/Gel | 75045 | $849.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Screw #10-32 X 1" | 75298 | $0.00Read more |
| 7 | No Image | WASHER | W401D | $7.99Read more |
| 8 | Not Available | Nylock Nut | 75291 | Not Available |
| 9 | No Image | Nut, Nylock, No 6-32, SS | 75282 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | SCREW | W132D | $7.99Read more |
| 11 | No Image | Bracket, Mounting, Cord | 75023 | $45.99Read more |
| 12 | Not Available | Screw 1/4-20 x 5/8" | 75300 | Not Available |
| 13 | No Image | Harness, Charger, Post | 75254 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Bumper | 75005 | $18.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Frame, Scrubber, 20 Traction Drive | 75048 | $494.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 3 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 4 | Not Available | Washer | W243D | Not Available |
| 5 | No Image | Transaxle, 24Vdc, 20 In | 75121 | $2,444.99Read more |
| 6 | No Image | Bracket, Retaining, Trans | 75025 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Nylock Nut | 75278 | Not Available |
| 9 | No Image | Wheel, Traction, 200mm | 75125 | $417.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Ext. Retaining Ring | 75014 | Not Available |
| 11 | Not Available | Keyed Washer | 75348 | Not Available |
| 12 | Not Available | Square Key | 75272 | Not Available |
| 13 | Not Available | Washer | 75342 | Not Available |
| 14 | Not Available | Lock Washer | 75329 | Not Available |
| 15 | Not Available | Screw M6 X | 75321 | Not Available |
| 16 | No Image | Wheel Caster 3 Inch | 75126 | $174.99Read more |
| 17 | Not Available | Washer | 75337 | Not Available |
| 18 | No Image | NUT | W502D | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | 24V Solenoid Valve | 859401 | Not Available |
| 20 | No Image | COMPRESSION SPRING | 858305 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Knob | 850201 | Not Available |
| 22 | No Image | SET SCREW 8-32 X .38 | 962281 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Knob, Adjust, .25 Bore | 75069 | $63.99Read more |
| 24 | Not Available | Water Control Label | 855109 | Not Available |
| 25 | Not Available | Hose Clamp | S453P | Not Available |
| 26 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Filter, Screen, Bowl | 75013 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Fitting, Reducer, 1/2 Inch to 1/4 Inch | 75050 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Tubing, 1/4 Inch X 19 Inch | 75355 | $6.99Read more |
| 32 | No Image | Guide, Spacer, Round | 75058 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Screw Socket Cap .31 x 1 ss | 75311 | Not Available |
| 34 | Not Available | Nylock Nut | 75279 | Not Available |
| 35 | Not Available | Brake Bracket | 850810 | Not Available |
| 36 | No Image | BRAKE CLAMP | 852001 | $70.99Read more |
| 37 | Not Available | Screw 1/4-20 x 1" | 75299 | Not Available |
| 38 | No Image | NUT | W405D | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | BRAKE PAD | 858401 | $129.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Frame, Scrubber, 20 Traction Drive | 75048 | $494.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 3 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 4 | Not Available | Washer | W243D | Not Available |
| 5 | No Image | Transaxle, 24Vdc, 20 In | 75121 | $2,444.99Read more |
| 6 | No Image | Bracket, Retaining, Trans | 75025 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Nylock Nut | 75278 | Not Available |
| 9 | No Image | Wheel, Traction, 200mm | 75125 | $417.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Ext. Retaining Ring | 75014 | Not Available |
| 11 | Not Available | Keyed Washer | 75348 | Not Available |
| 12 | Not Available | Square Key | 75272 | Not Available |
| 13 | Not Available | Washer | 75342 | Not Available |
| 14 | Not Available | Lock Washer | 75329 | Not Available |
| 15 | Not Available | Screw M6 X | 75321 | Not Available |
| 16 | No Image | Wheel Caster 3 Inch | 75126 | $174.99Read more |
| 17 | Not Available | Washer | 75337 | Not Available |
| 18 | No Image | NUT | W502D | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | 24V Solenoid Valve | 859401 | Not Available |
| 20 | No Image | COMPRESSION SPRING | 858305 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Knob | 850201 | Not Available |
| 22 | No Image | SET SCREW 8-32 X .38 | 962281 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Knob, Adjust, .25 Bore | 75069 | $63.99Read more |
| 24 | Not Available | Water Control Label | 855109 | Not Available |
| 25 | Not Available | Hose Clamp | S453P | Not Available |
| 26 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Filter, Screen, Bowl | 75013 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Fitting, Reducer, 1/2 Inch to 1/4 Inch | 75050 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Tubing, 1/4 Inch X 19 Inch | 75355 | $6.99Read more |
| 32 | No Image | Guide, Spacer, Round | 75058 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Screw Socket Cap .31 x 1 ss | 75311 | Not Available |
| 34 | Not Available | Nylock Nut | 75279 | Not Available |
| 35 | Not Available | Brake Bracket | 850810 | Not Available |
| 36 | No Image | BRAKE CLAMP | 852001 | $70.99Read more |
| 37 | Not Available | Screw 1/4-20 x 1" | 75299 | Not Available |
| 38 | No Image | NUT | W405D | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | BRAKE PAD | 858401 | $129.99Read more |
| 40 | No Image | Switch, Snap, Bent Lever | 75264 | $101.99Read more |
| 41 | No Image | NUT | W385D | $7.99Read more |
| 42 | Not Available | Washer | 75347 | Not Available |
| 43 | Not Available | Screw #4-40 x 7/8" | 75307 | Not Available |

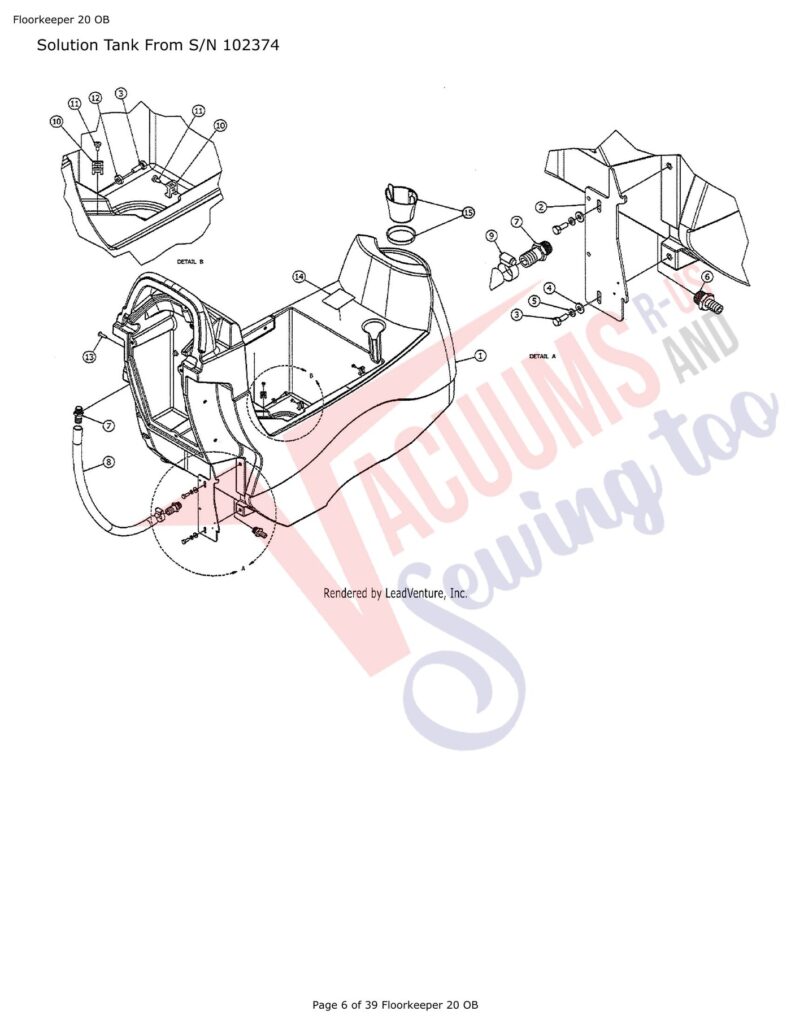

| # | Part image | Description | SKU | Price |
| 1 | No Image | Swivel Neck Cable, for SOFTCASE | 75117 | $10.00Read more |
| 2 | No Image | Bracket, Support, Lever | 75029 | $77.99Read more |
| 3 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Washer | W104D | Not Available |
| 5 | Not Available | Lock Washer | 75329 | Not Available |
| 7 | Not Available | Screw #4-40 x 7/8" | 75307 | Not Available |
| 8 | Not Available | Washer | 75347 | Not Available |
| 9 | No Image | NUT | W385D | $7.99Read more |
| 10 | No Image | Casing Bottom Light Grey | 75001 | $269.00Read more |
| 11 |  | Fitting, Straight, for Sight tube | 75051 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Support Lever, for SOFTCASE | 75122 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hose Clamp | S453P | Not Available |
| 14 | No Image | Pad, Wire Tie | 75004 | $12.99Read more |
| 15 | No Image | Screw #10 X 3/8" | 75306 | $0.00Read more |
| 16 | No Image | Nut | 75285 | $0.00Read more |
| 17 | No Image | Screw 1/4-20 X 1" | 75314 | $0.00Read more |
| 18 | No Image | Label, Instruction, Battery | 75080 | $7.99Read more |
| 19 | No Image | Switch, Snap, Bent Lever | 75264 | $101.99Read more |
| 20 | No Image | Kit, Strainer, Port, Fill | 75183 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

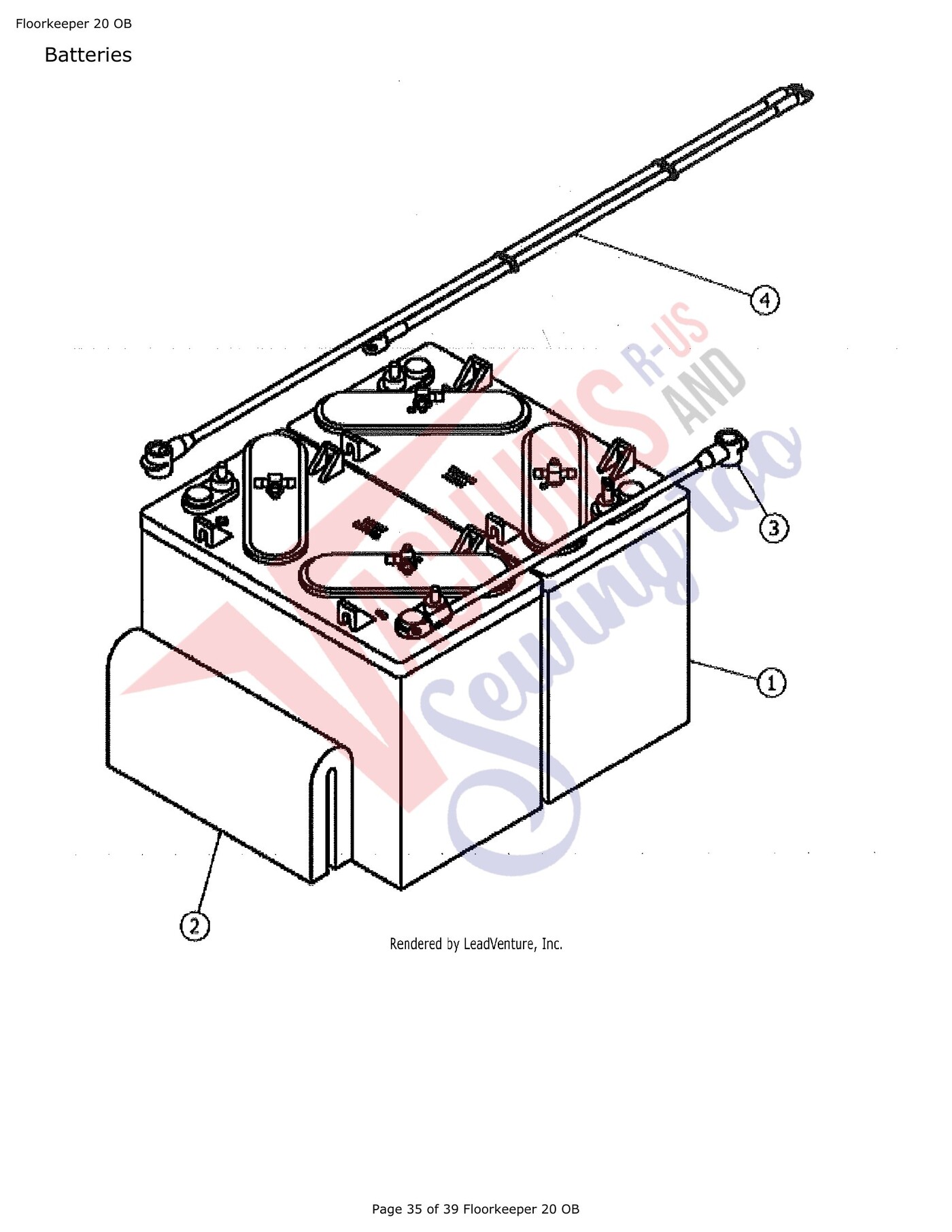

| 1 |  | BATTERY,Scrubber,12,Trojan,130A, Wet Lead Acid | 99508 | $640.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Battery ,Scrubber,12V, Lead Acid | 98275 | $1,170.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Foam, Spacer, Battery | 75108 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Harness, Conn, Battery | 75251 | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Harness, Conn, Battery | 75251 | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Harness, Batt-Machine | 75318 | $114.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| XX |  | Hose Drain Capped Chem Resist | 75065 | $362.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | Cap Hose Drain - Repl For 75062 | 75037 | $91.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | Hose Squeegee S-20 Chem Resist | 75066 | $334.99Read more |

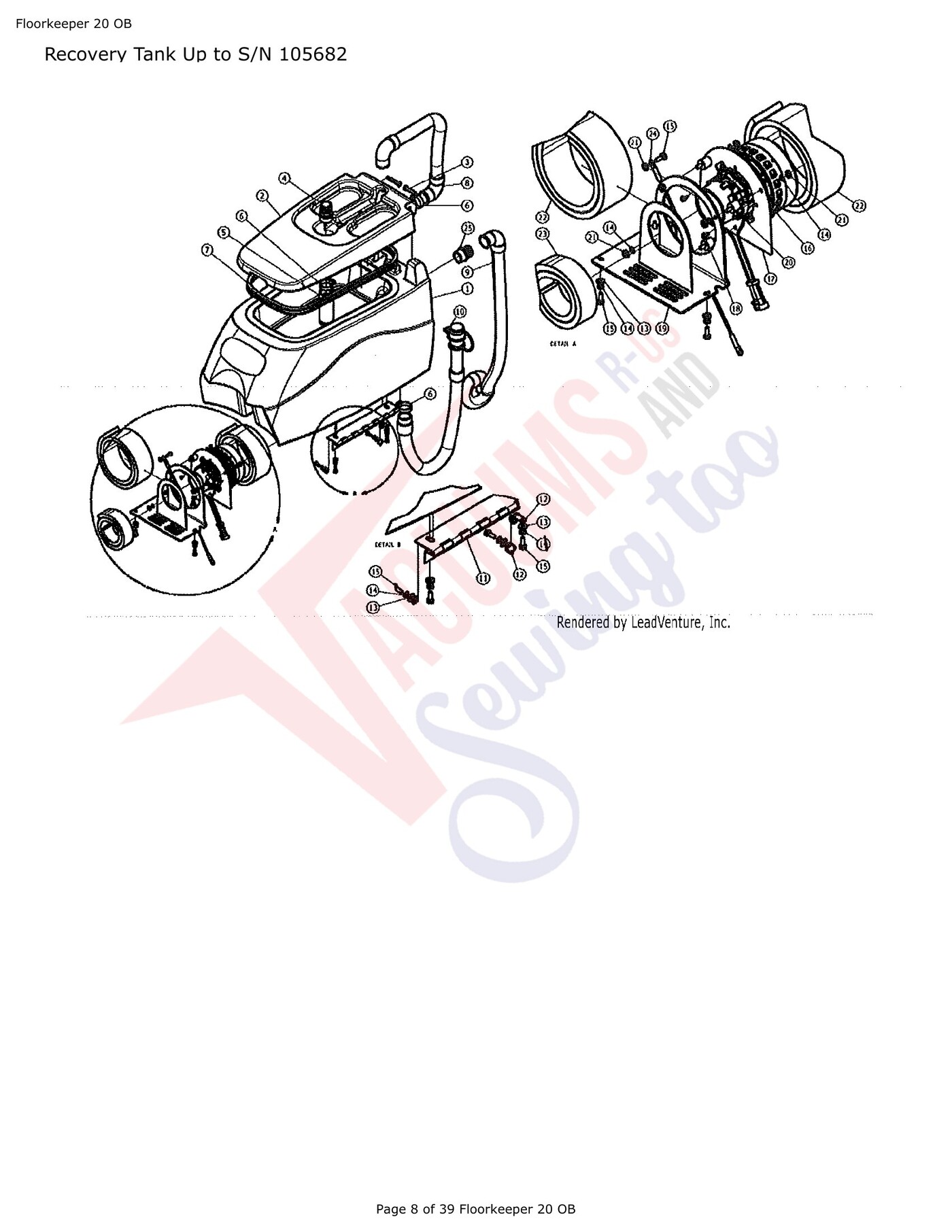

| 1 | Not Available | 11 Gallon Recovery Tank | 858603 | Not Available |
| 2 | Not Available | Recovery Tank Lid | 852301 | Not Available |
| 3 | Not Available | Screw 3/8 x 1-3/4" | 75316 | Not Available |
| 4 | Not Available | Straight Fitting | 75052 | Not Available |
| 5 | No Image | Float, Shutoff | 75002 | $265.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Clamp, Hose, Worm | 75377 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Gasket Cover Press-In | 75056 | $31.99Read more |
| 8 |  | Hose, Vacuum, 1.5 Inch | 75064 | $151.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Hose, Squeegee, 90 Cuff | 75063 | $188.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Hose, Drain, Capped | 75062 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Hinge, Tank, Recovery | 75068 | $61.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Washer | W104D | Not Available |
| 15 | Not Available | Lock Washer | 75329 | Not Available |
| 16 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Slider Height Adjustment, for SOFTCASE | 75086 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Isolator Mounting Bracket | 75027 | Not Available |
| 19 | No Image | Screw #10 X 1/2" | 75325 | $0.00Read more |
| 20 | No Image | Cover, Mtg, Vacuum | 75042 | $138.99Read more |
| 21 | No Image | Rubber Mount | 75089 | $0.00Read more |
| 22 | No Image | Nut | 75285 | $0.00Read more |
| 23 |  | Foam, Noise, Vacuum | 75053 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Tank Retention Cable | 852402 | Not Available |
| 25 | No Image | Fitting, Modified 1.5 Inch Squeegee hose | 75054 | $69.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Noise Deadening Foam | 853309 | Not Available |
| 27 | No Image | Gasket, Foam, Vacuum | 75169 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Swivel Neck Cable, for SOFTCASE | 75117 | $10.00Read more |
| 2 | No Image | Bracket, Support, Lever | 75029 | $77.99Read more |
| 3 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Washer | W104D | Not Available |
| 5 | Not Available | Lock Washer | 75329 | Not Available |
| 6 | No Image | Casing Bottom Light Grey | 75001 | $269.00Read more |
| 7 | | Fitting, Straight, for Sight tube | 75051 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Support Lever, for SOFTCASE | 75122 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Hose Clamp | S453P | Not Available |
| 14 | No Image | Pad, Wire Tie | 75004 | $12.99Read more |
| 15 | No Image | Screw #10 X 3/8" | 75306 | $0.00Read more |
| 16 | No Image | Nut | 75285 | $0.00Read more |
| 17 | No Image | Screw 1/4-20 X 1" | 75314 | $0.00Read more |
| 18 | No Image | Label, Instruction, Battery | 75080 | $7.99Read more |
| 22 | No Image | Kit, Strainer, Port, Fill | 75183 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

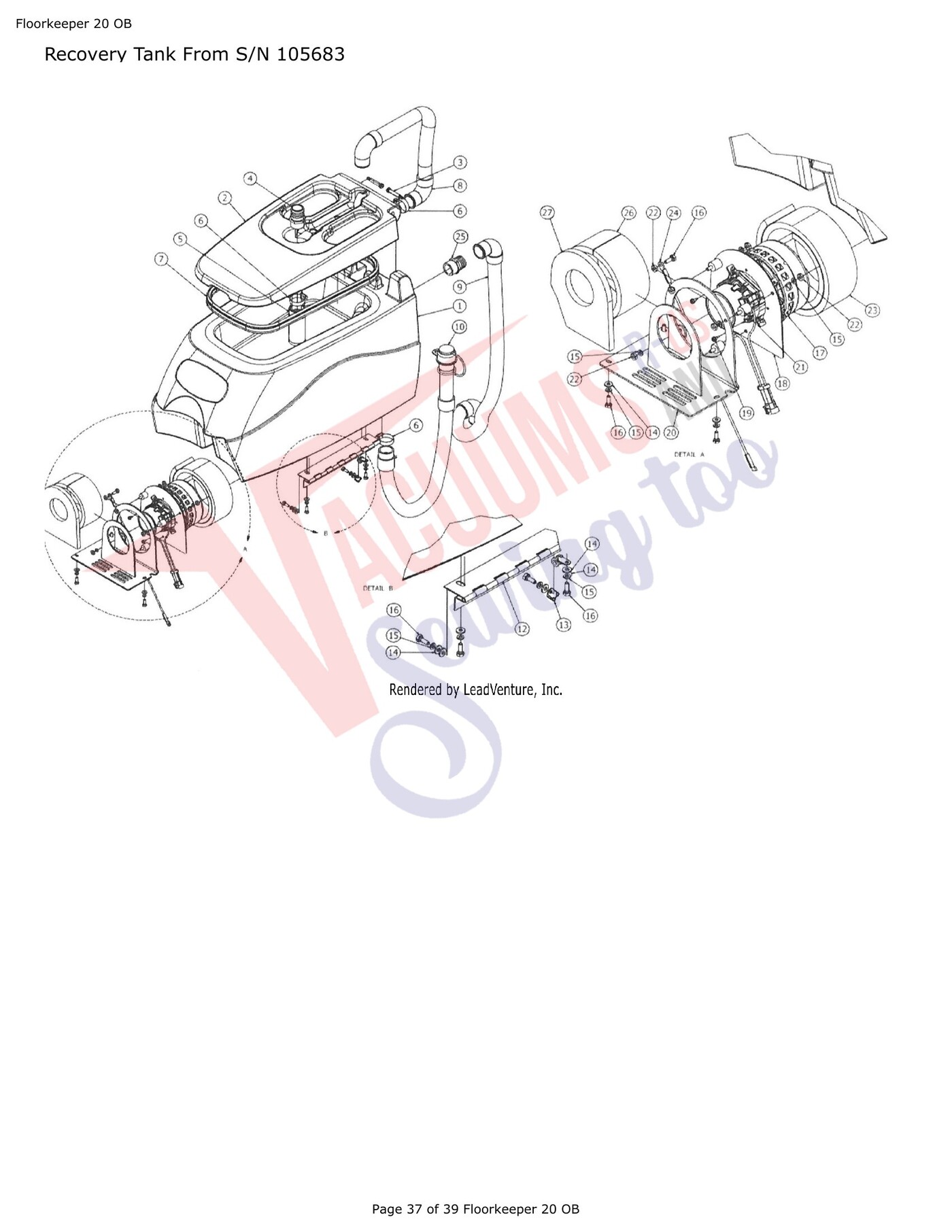

| 1 | Not Available | 11 Gallon Recovery Tank | 858603 | Not Available |
| 2 | Not Available | Recovery Tank Lid | 852301 | Not Available |
| 3 | Not Available | Screw 3/8 x 1-3/4" | 75316 | Not Available |
| 4 | Not Available | Straight Fitting | 75052 | Not Available |
| 5 | No Image | Float, Shutoff | 75002 | $265.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Clamp, Hose, Worm | 75377 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Gasket Cover Press-In | 75056 | $31.99Read more |
| 8 | | Hose, Vacuum, 1.5 Inch | 75064 | $151.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Hose, Squeegee, 90 Cuff | 75063 | $188.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Hose, Drain, Capped | 75062 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Hinge, Tank, Recovery | 75068 | $61.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Washer | W104D | Not Available |
| 14 | Not Available | Lock Washer | 75329 | Not Available |
| 15 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Slider Height Adjustment, for SOFTCASE | 75086 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Isolator Mounting Bracket | 75027 | Not Available |
| 18 | No Image | Screw #10 X 1/2" | 75325 | $0.00Read more |
| 19 | No Image | Cover, Mtg, Vacuum | 75042 | $138.99Read more |
| 20 | No Image | Rubber Mount | 75089 | $0.00Read more |
| 21 | No Image | Nut | 75285 | $0.00Read more |
| 22 | | Foam, Noise, Vacuum | 75053 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Noise Deadening Foam | 853306 | Not Available |
| 24 | Not Available | Tank Retention Cable | 852402 | Not Available |
| 25 | No Image | Fitting, Modified 1.5 Inch Squeegee hose | 75054 | $69.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

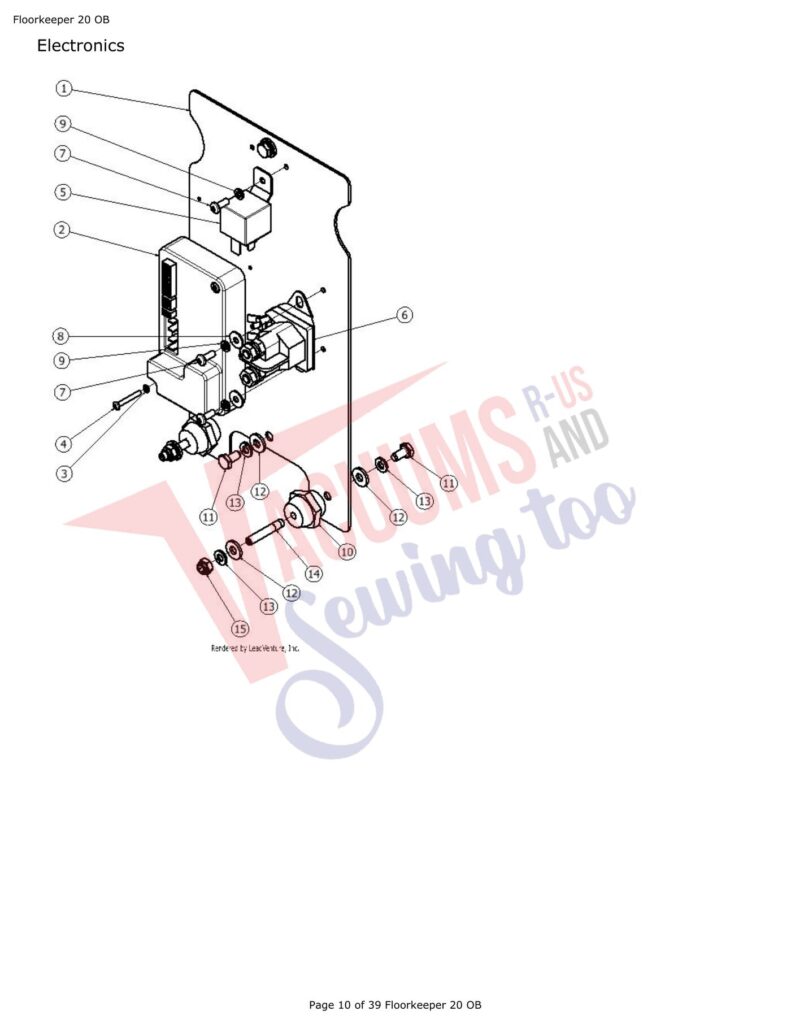

| 1 | No Image | Panel, Electronics | 75127 | $99.99Read more |
| 2 | No Image | Controller, I-Drive, S-20 | 75120 | $1,018.99Read more |
| 3 | Not Available | Lock Washer | 75334 | Not Available |
| 4 | No Image | SCREW | W323D | $6.99Read more |
| 5 | No Image | Contactor, 24Vdc, 70A | 75271 | $33.99Read more |
| 6 | No Image | Contactor, 24V, 100A | 75270 | $174.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Screw #10-32 x 1/2" | 75313 | Not Available |
| 8 | No Image | WASHER | W401D | $7.99Read more |
| 9 | Not Available | Lock Washer | 75333 | Not Available |
| 10 | No Image | Stand-Off, Insulated, .25-20 | 75115 | $19.99Read more |
| 11 | Not Available | Screw | W169D | Not Available |
| 12 | Not Available | Washer | W104D | Not Available |
| 13 | Not Available | Lock Washer | 75329 | Not Available |
| 14 | Not Available | Set Screw 1/4-20 x 1- 1/4" | 75309 | Not Available |
| 15 | Not Available | Lock Nut | 75293 | Not Available |

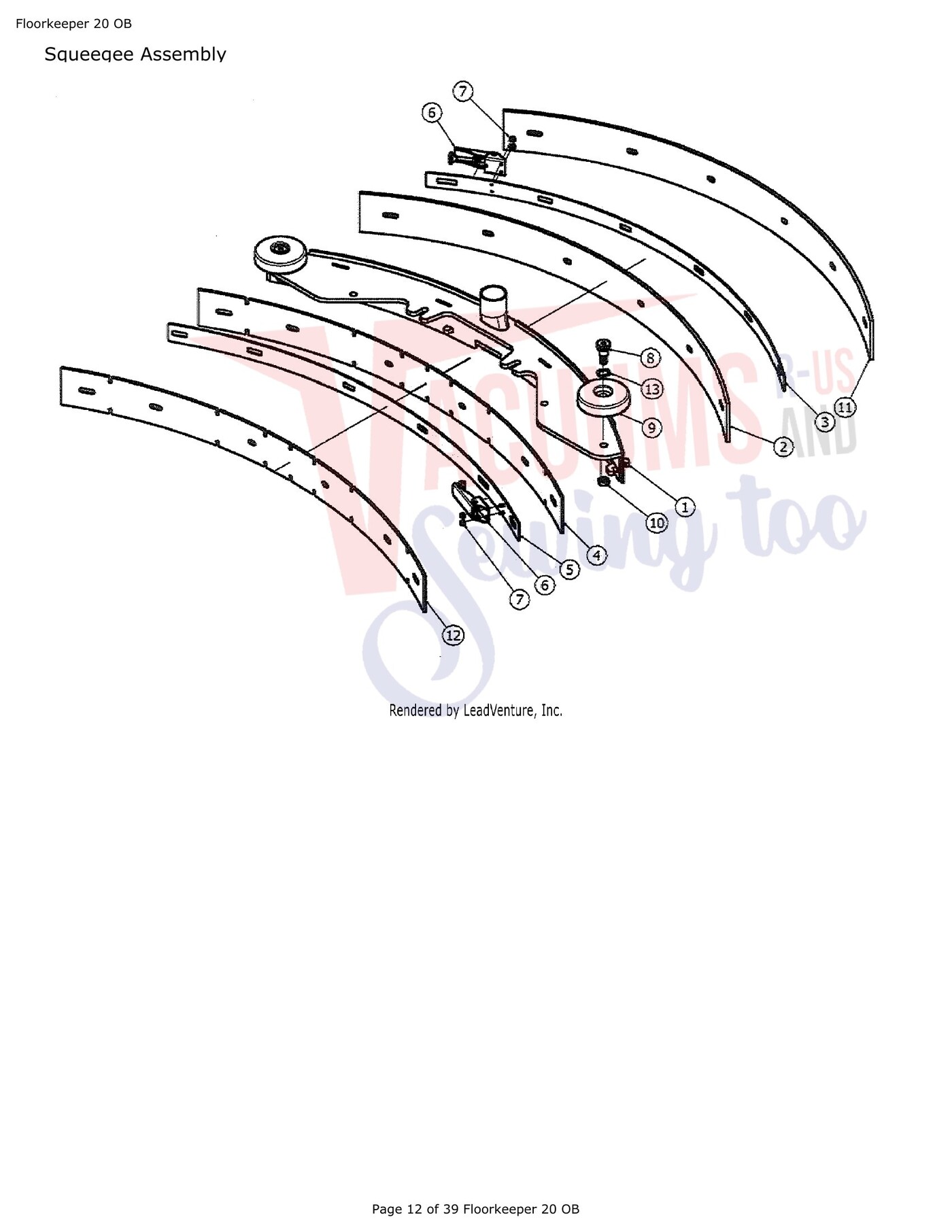

| # | Part image | Description | SKU | Price |
| XX | No Image | Clamp, Over-Center, Band | 75038 | $90.99Read more |
| 1 | No Image | Frame, Squeegee, 30 Inch | 75049 | $403.99Read more |
| 2 | No Image | Squeegee, Rear, 30 Inch | 75018 | $121.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | 75103 Retainer, Squeegee Rear, 31.25 Inch | 75103 | $88.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Squeegee, Front, 30 Inch | 75017 | $78.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | 75104 Retainer, Squeegee Front, 29.75 Inch | 75104 | $71.99Read more |
| 7 | No Image | Nut, Nylock, No 6-32, SS | 75282 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Screw, Shoulder, .50X.50 | 75319 | $30.99Read more |
| 9 | No Image | Wheel, Guide | 75124 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Nut, Nyloc, .38-16, SS | 75283 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Squeegee, Rear, 30 In, Ureth (Optional) | 75020 | $189.99Read more |
| 12 | No Image | Squeegee, Front, 30 Inch, Ureth (Optl) | 75019 | $147.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | WASHER WAVE .50INCH | 75363 | Not Available |

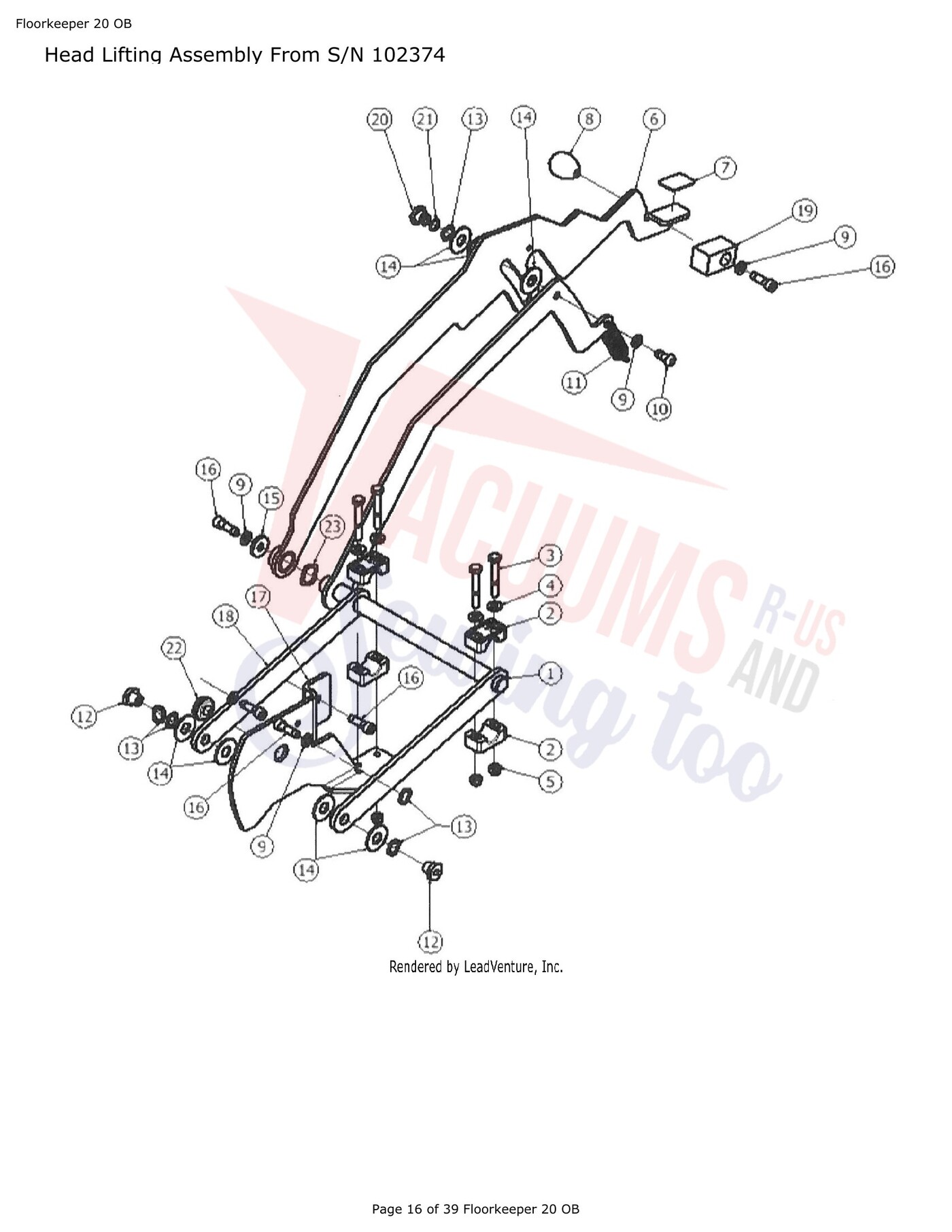

| # | Part image | Description | SKU | Price |
| 1 | No Image | Bracket, Lift, Head | 75021 | $221.99Read more |
| 2 | No Image | Mount, Bearing, Plastic | 75088 | $5.99Read more |
| 3 | Not Available | Screw | W117D | Not Available |
| 4 | Not Available | Washer | W104D | Not Available |
| 5 | Not Available | Nylock Nut | 75278 | Not Available |
| 6 | No Image | Dual Downpressure Lever | 75078 | $0.00Read more |
| 7 | No Image | Pedal Label | 75077 | $0.00Read more |
| 8 | No Image | Knob, Oval, .31-18 | 75070 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 10 | No Image | Screw 5/16-18 X 3/4" | 75302 | $0.00Read more |
| 11 | Not Available | Spring | 75113 | Not Available |
| 12 |  | Guide, Lever | 75057 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | WASHER WAVE .50INCH | 75363 | Not Available |
| 14 | No Image | Washer, Nyl, .50 X 1.25 X .062 | 75345 | $0.00Read more |
| 15 | Not Available | Washer | 75343 | Not Available |
| 16 | Not Available | Screw Socket Cap .31 x 1 ss | 75311 | Not Available |
| 17 | No Image | HEAD GUIDE BRACKET | 850811 | $189.99Read more |
| 18 | Not Available | Nylock Nut | 75279 | Not Available |
| 19 | No Image | Block, Weight, Balance | 75036 | $86.99Read more |
| 20 | No Image | Guide, Lever, With Groove | 75061 | $38.99Read more |
| 21 | No Image | O-Ring, .44X.56X.062 | 75091 | $16.99Read more |

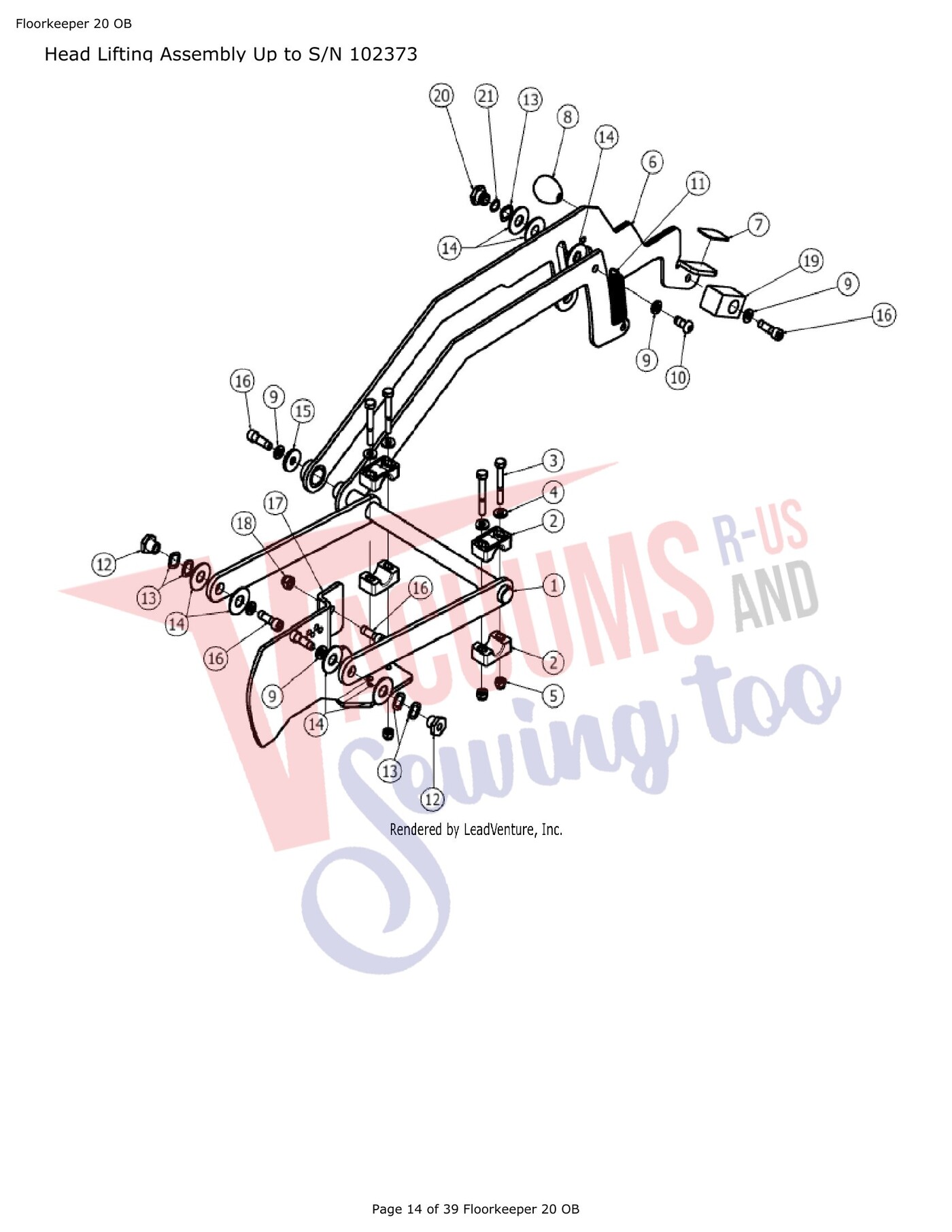

| # | Part image | Description | SKU | Price |
| 1 | No Image | Bracket, Lift, Head | 75021 | $221.99Read more |
| 2 | No Image | Mount, Bearing, Plastic | 75088 | $5.99Read more |
| 3 | Not Available | Screw | W117D | Not Available |
| 4 | Not Available | Washer | W104D | Not Available |
| 5 | Not Available | Nylock Nut | 75278 | Not Available |
| 6 | No Image | Dual Downpressure Lever | 75078 | $0.00Read more |
| 7 | No Image | Pedal Label | 75077 | $0.00Read more |
| 8 | No Image | Knob, Oval, .31-18 | 75070 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 10 | No Image | Screw 5/16-18 X 3/4" | 75302 | $0.00Read more |
| 11 | Not Available | Spring | 75113 | Not Available |
| 12 | | Guide, Lever | 75057 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | WASHER WAVE .50INCH | 75363 | Not Available |
| 14 | No Image | Washer, Nyl, .50 X 1.25 X .062 | 75345 | $0.00Read more |
| 15 | Not Available | Washer | 75343 | Not Available |
| 16 | Not Available | Screw Socket Cap .31 x 1 ss | 75311 | Not Available |
| 17 | No Image | HEAD GUIDE BRACKET | 850811 | $189.99Read more |
| 18 | Not Available | Nylock Nut | 75279 | Not Available |
| 19 | No Image | Block, Weight, Balance | 75036 | $86.99Read more |
| 20 | No Image | Guide, Lever, With Groove | 75061 | $38.99Read more |
| 21 | No Image | O-Ring, .44X.56X.062 | 75091 | $16.99Read more |
| 22 | Not Available | Grommet | 873804 | Not Available |
| 23 | No Image | Wave Washer | 75349 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Handle Rod, for SOFTCASE | 75033 | $24.00Read more |
| 1 | Not Available | SUB ASSY - HEAD 20 INCH ORBITAL | NONE | Not Available |
| 2 | Not Available | Orbital Head Mounting Bracket | 75028 | Not Available |
| 3 | No Image | Wheel, Guide | 75124 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Guide Wheel Spacer | 75109 | Not Available |
| 5 | No Image | Spring, for foot pedal, for SOFTCASE | 75093 | $4.00Read more |
| 6 | No Image | Screw .31-18 x 1.5In | 75303 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Washer | W243D | Not Available |
| 8 | Not Available | Screw M6-1 x | 75322 | Not Available |
| 9 | No Image | Clamp, P-Shaped, .62 Dia | 75039 | $6.99Read more |
| 10 | Not Available | Screw 1/4-20 x 5/8" | 75300 | Not Available |
| 11 | Not Available | Nylock Nut | 75290 | Not Available |
| 12 | No Image | Bushing, Rubber | 75034 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Spacer, Rubber | 75111 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | WATER TUBE ASSEMBLY | 859001 | $423.99Read more |
| 15 | No Image | -Lever Bracket Black/Brown | 75105 | $30.00Read more |
| 16 | No Image | Motor, 24V, 2200 Rpm, .75Hp | 75085 | $1,867.99Read more |
| 17 | Not Available | Weight (21 Lbs./9.5 Kg) | 75097 | Not Available |
| 18 | Not Available | Screw | W117D | Not Available |
| 19 | Not Available | Screw 5/16-18 x 1-3/4" | 75305 | Not Available |
| 20 | No Image | ELBOW FITTING | 853307 | $20.99Read more |
| 21 | No Image | Key, 8mm X 7mm X 28mm | 75274 | $5.99Read more |
| 22 | Not Available | WASHER WAVE .50INCH | 75363 | Not Available |
| 23 | No Image | Flat Washer Zinc | 75340 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 25 | No Image | NUT | W405D | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Nylock Nut | 75279 | Not Available |
| # | Part image | Description | SKU | Price |
| 3 | No Image | Kit, Plate, Repl, Orbital | 75072 | $757.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Screw 1/4-20 x 5/8" | 75308 | Not Available |
| 9 | Not Available | Orbital Bearing Replacement Kit | 75071 | Not Available |
| 10 | Not Available | Screw 5/16-18 x 7/8" | 75310 | Not Available |
| 11 | Not Available | Set Screw 1/4-20 x 1/2" | 75312 | Not Available |
| 12 | No Image | Pile Adjustment Axle, for SOFTCASE | 75095 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Spring Pile Adjustment, for SOFTCASE | 75090 | $4.00Read more |
| 14 | Not Available | Washer | 75344 | Not Available |
| 15 |  | Pad Orbital Hard Black Strip 14x20 5/case | BK1420 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Floor Pad Orbital Spray Buff Medium Red 14x20 5/cs | RD1420 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | 14" X 20" Green Grout Cleaner Pad (Case Of 2) | GR1420 | $0.00Read more |
| 15 | | Pad Orbital Hard Black Strip 14x20 5/case | BK1420 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | RETAINING PAD 20 X 12 FOR ORB1420 | 855909 | $210.99Read more |
| 20 | | Floor Pad Orbital Spray Buff Medium Red 14x20 5/cs | RD1420 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
Report errors on this page HERE
