Schematic and parts book for Tornado FloorKeep 28 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

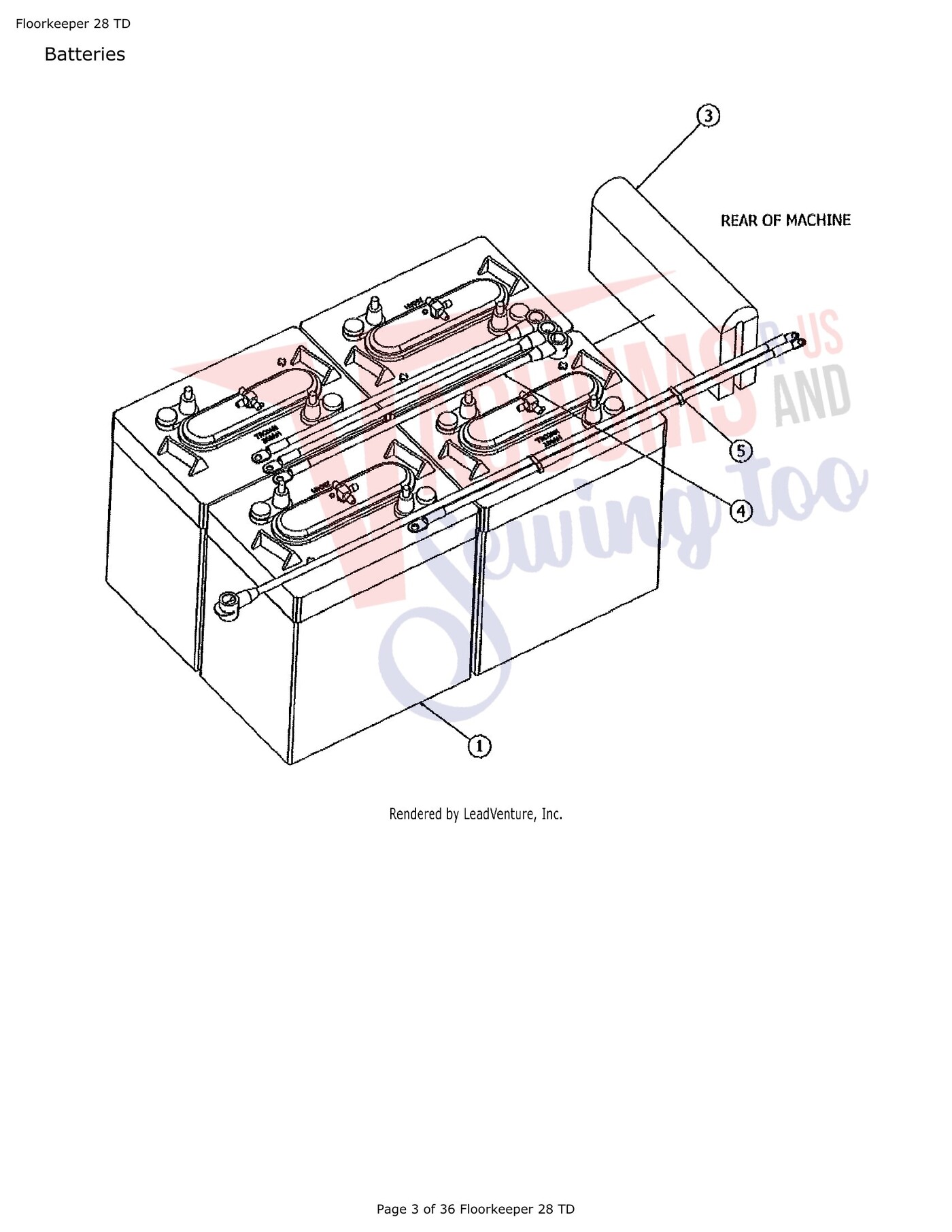

| # | Part image | Description | SKU | Price |
| 1 |  | BATTERY SCRUBBER 6 TROJAN | 99506 | $731.99Read more |
| 2 | No Image | Battery 6V AGM 220 AH EVGC | 99558 | $1,085.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Foam, Spacer, Battery | 75108 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Harness, Conn, Battery | 75251 | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Harness, Batt-Machine | 75318 | $114.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

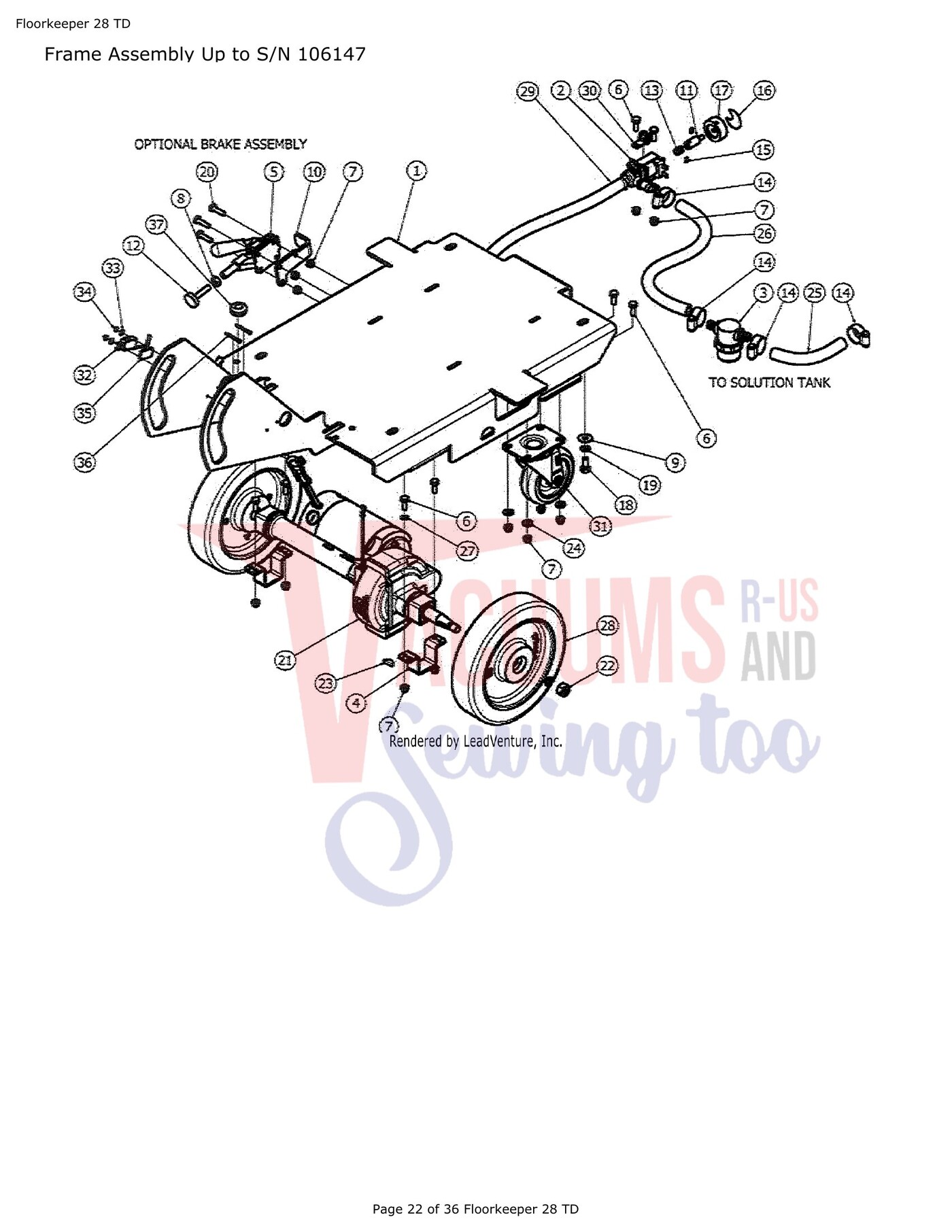

| # | Part image | Description | SKU | Price |
| XX | No Image | Brush Kit Replacement Tranaxel 75237 and 75121 | 75150 | $248.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | Motor Repl For Transaxle 75237 | 75192 | $634.99Read more |

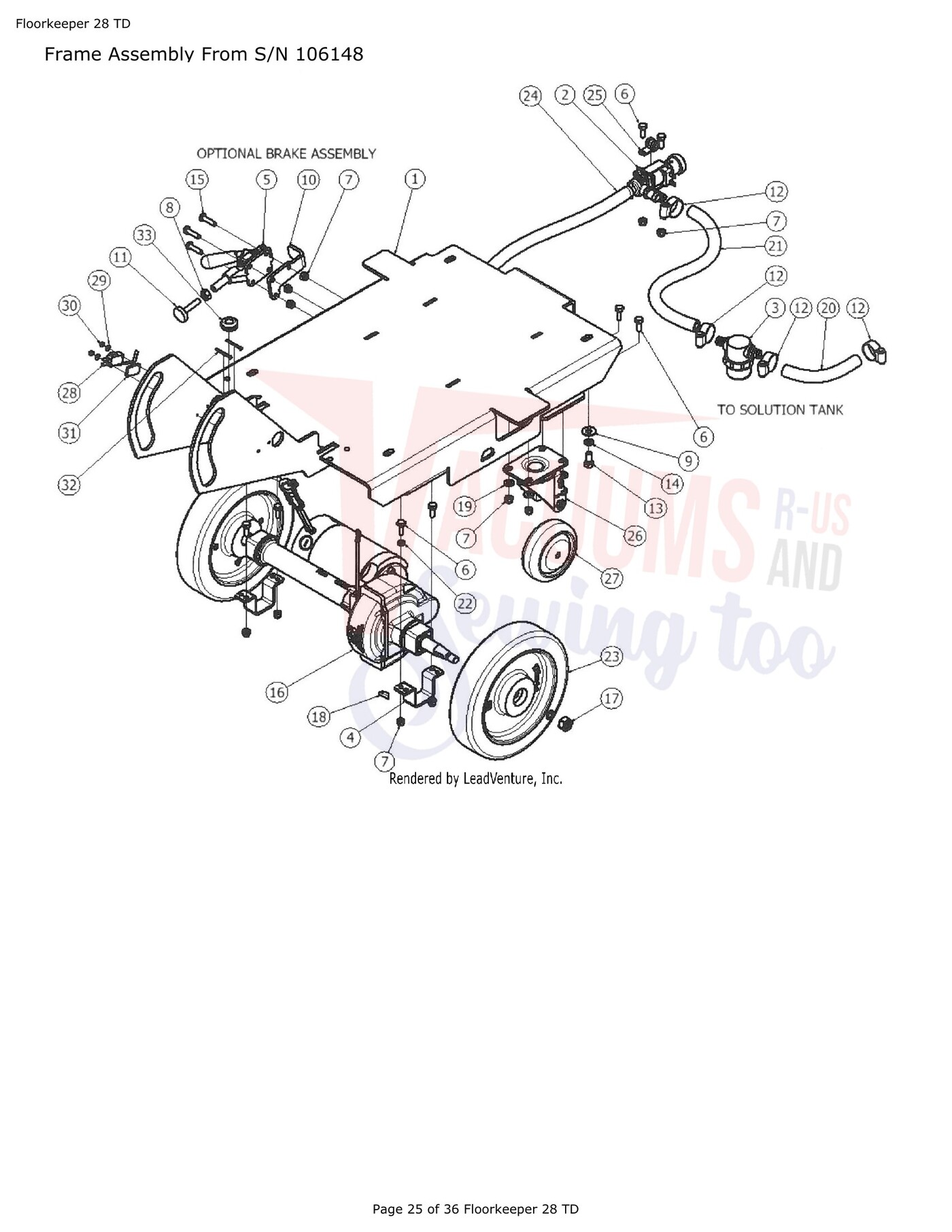

| 1 | No Image | Frame, Scrubber, 20 Inch Traction Drive | 75163 | $879.99Read more |
| 2 | No Image | Kit Valve Scrubber Replacement | 75074 | $331.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Filter, Screen, Bowl | 75013 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Bracket, Retaining, Trans | 75025 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | BRAKE CLAMP | 852001 | $70.99Read more |
| 6 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Nylock Nut | 75278 | Not Available |
| 8 | No Image | NUT | W405D | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Washer | W243D | Not Available |
| 10 | Not Available | Brake Bracket | 850810 | Not Available |
| 11 | No Image | BRAKE PAD | 858401 | $129.99Read more |
| 12 | Not Available | Hose Clamp | S453P | Not Available |
| 13 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 14 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 15 | Not Available | Screw 1/4-20 x 1" | 75299 | Not Available |
| 16 | No Image | Transaxle, 24Vdc | 75237 | $2,474.99Read more |
| 17 | Not Available | Nylock Nut | 75289 | Not Available |
| 18 | No Image | Key, Woodruff, 5mm | 75275 | $15.99Read more |
| 19 | Not Available | Washer | W104D | Not Available |
| 20 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | External Star Washer | 75335 | Not Available |
| 23 | No Image | Wheel, Urethane, 222mm | 75240 | $394.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | 4" Caster Rig w/Axle | 877502 | Not Available |
| 27 | No Image | Wheel Only, Caster 4in | 75241 | $80.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Switch, Snap, Bent Lever | 75264 | $101.99Read more |
| 29 | Not Available | Washer | 75347 | Not Available |
| 30 | No Image | NUT | W385D | $7.99Read more |
| 31 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 32 | Not Available | Screw #4-40 x 1-1/4" | W317D | Not Available |
| 33 | Not Available | Grommet | 873804 | Not Available |

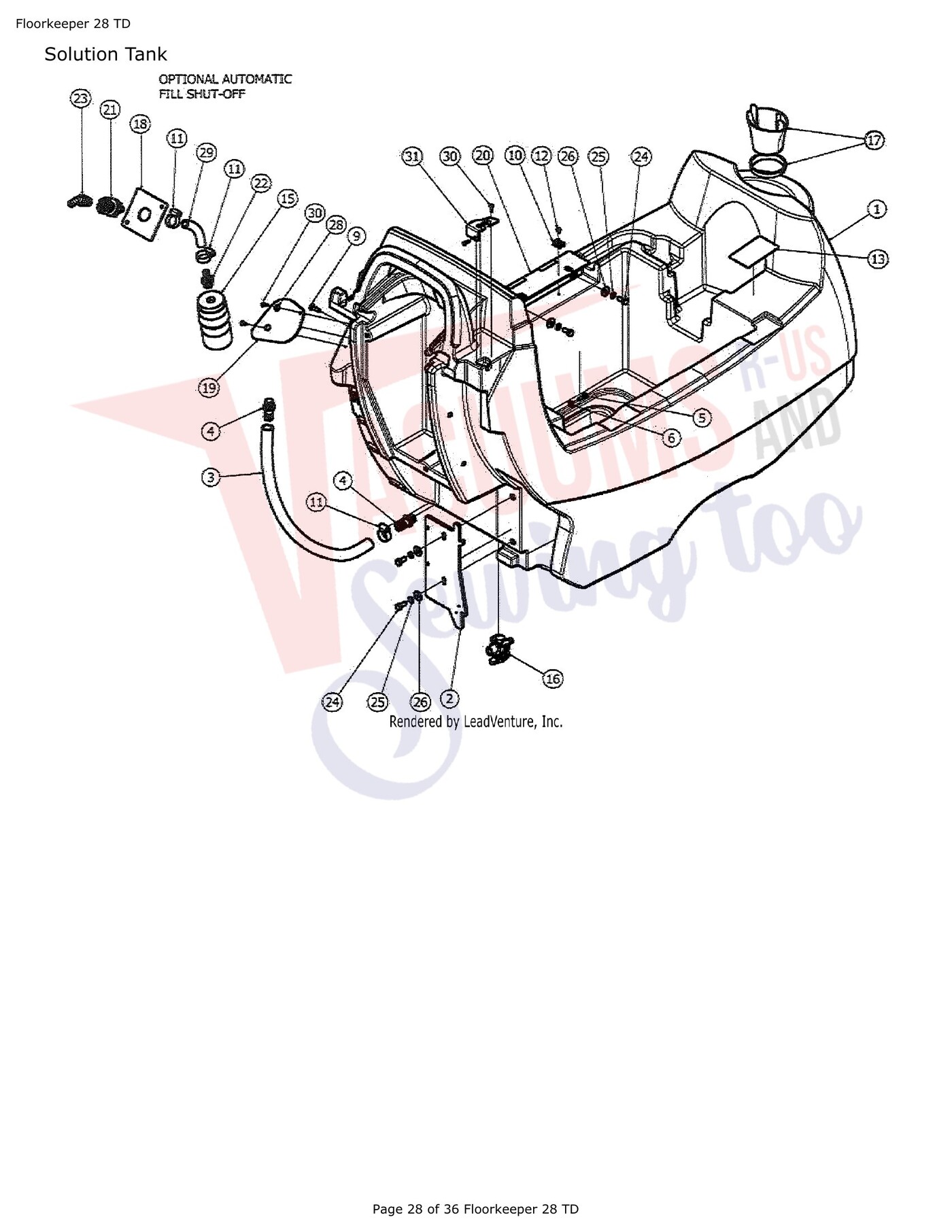

| # | Part image | Description | SKU | Price |
| 1 | No Image | Tank, Solution, 22 Gal | 75231 | $1,138.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Bracket, Support, Lever | 75140 | $126.99Read more |
| 3 | No Image | Support Lever, for SOFTCASE | 75122 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Fitting, Straight, for Sight tube | 75051 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Nut | 75285 | $0.00Read more |
| 9 | No Image | Screw 1/4-20 X 1" | 75314 | $0.00Read more |
| 10 | No Image | Pad, Wire Tie | 75004 | $12.99Read more |
| 11 | Not Available | Hose Clamp | S453P | Not Available |
| 12 | No Image | Screw #10 X 3/8" | 75306 | $0.00Read more |
| 13 | No Image | Label, Instruction, Battery | 75186 | $8.99Read more |
| 15 | Not Available | Shut Off Float | 873303 | Not Available |
| 16 | No Image | Valve, Shut-Off, Ball | 75238 | $151.99Read more |
| 17 | No Image | Kit, Strainer, Port, Fill | 75183 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Fill Port Cover Plate | 876605 | Not Available |
| 19 | No Image | Cover, Port, Fill | 75158 | $28.99Read more |
| 20 | Not Available | Hinge | 75178 | Not Available |
| 21 | Not Available | QD Female Fitting | 873307 | Not Available |
| 22 | No Image | Casing Bottom Light Grey | 75001 | $269.00Read more |
| 23 | Not Available | QD Elbow Fitting | 873306 | Not Available |
| 24 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 25 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 26 | Not Available | Washer | W243D | Not Available |
| 28 | No Image | WASHER | W401D | $7.99Read more |
| 29 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Screw #8 x 3/4" | 75315 | Not Available |
| 32 | Not Available | Hanger Bracket | 75149 | Not Available |

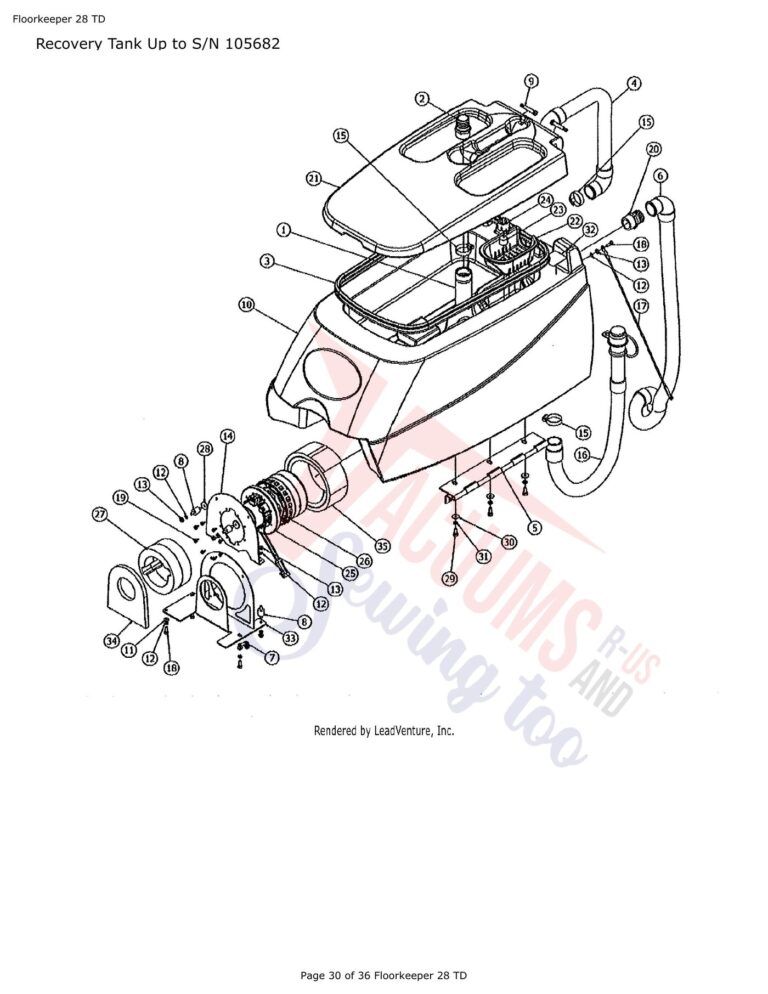

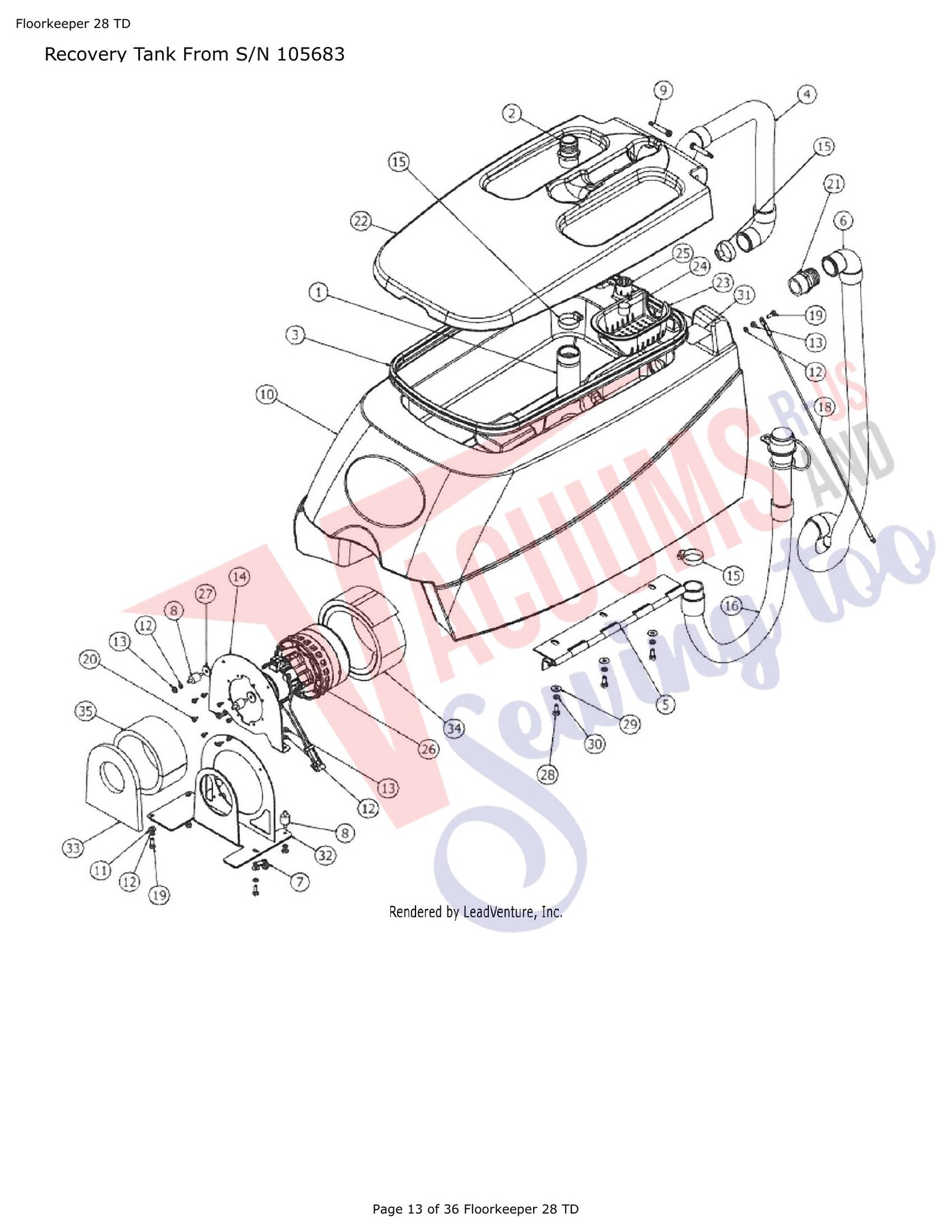

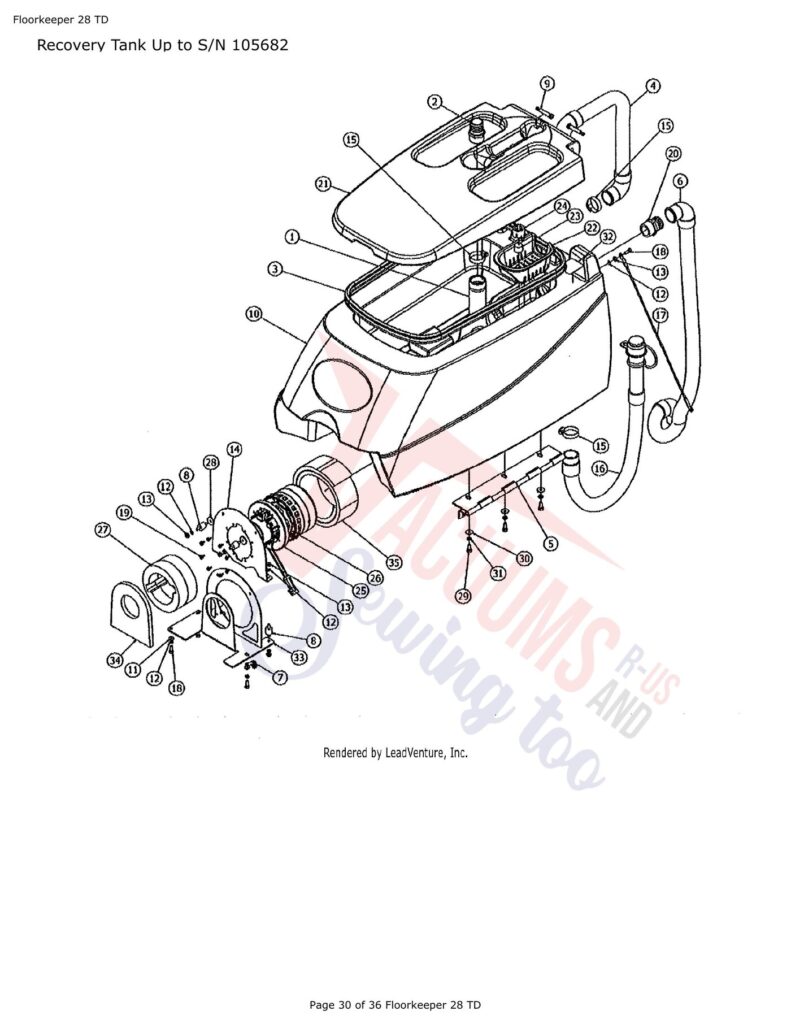

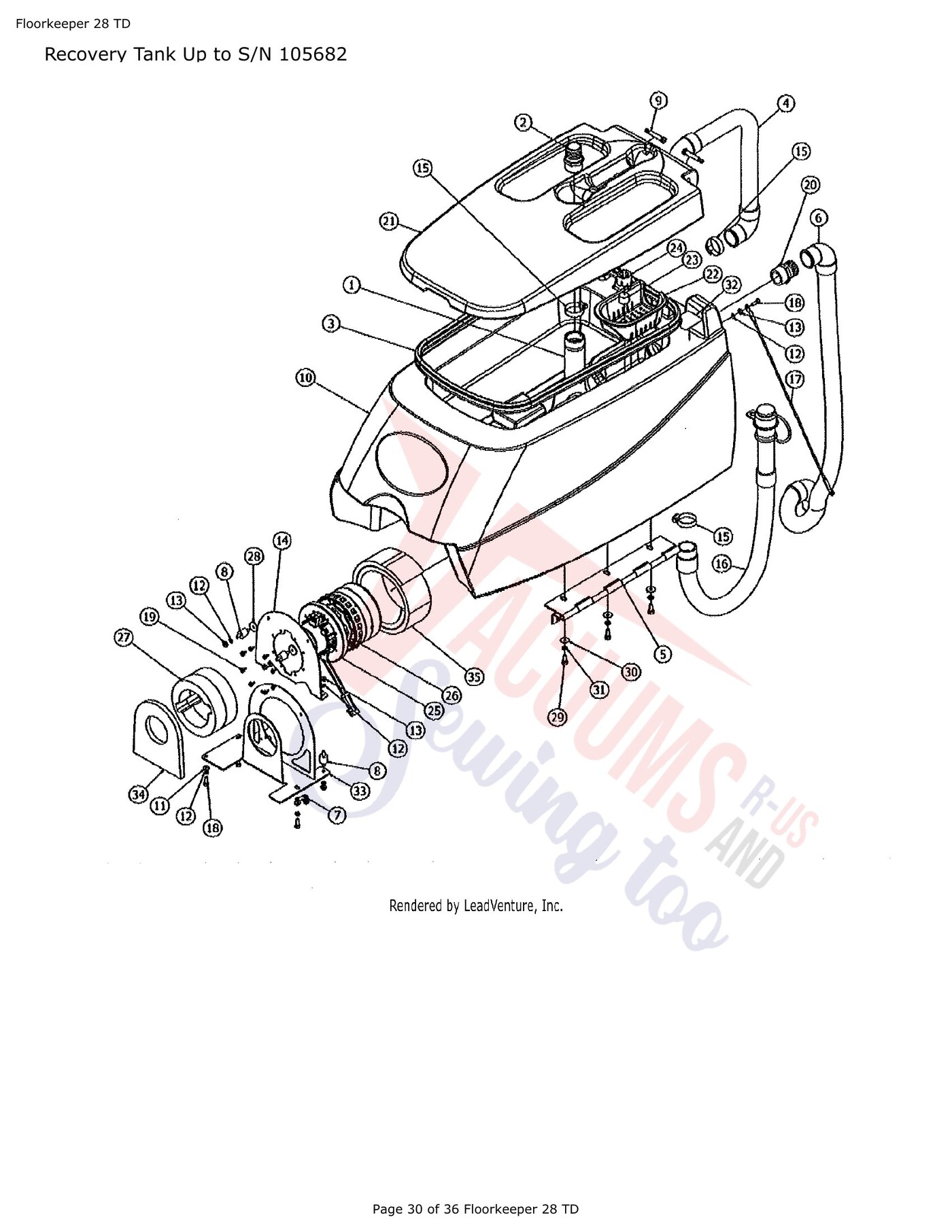

| # | Part image | Description | SKU | Price |
| 1 | No Image | Float, Shutoff | 75002 | $265.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Straight Fitting | 75052 | Not Available |
| 3 | No Image | Gasket Cover Press-In | 75171 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Hose, Vacuum, 1.5 Inch | 75064 | $151.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hinge | 75178 | Not Available |
| 6 | No Image | Hose, Squeegee, 90 Cuff | 75174 | $197.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Rubber Mount | 75089 | $0.00Read more |
| 9 | Not Available | Screw 3/8 x 1-3/4" | 75316 | Not Available |
| 10 | Not Available | Recovery Tank | 878603 | Not Available |
| 11 | Not Available | Washer | W104D | Not Available |
| 12 | Not Available | Lock Washer | 75329 | Not Available |
| 13 | No Image | Nut | 75285 | $0.00Read more |
| 14 | No Image | Bracket, Mounting, Isolator | 75141 | $109.99Read more |
| 15 |  | Clamp, Hose, Worm | 75377 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Hose, Drain, Capped | 75062 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Cable Retention Mid Long | 75162 | $155.99Read more |
| 18 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Screw #10 X 1/2" | 75325 | $0.00Read more |
| 20 | No Image | Fitting, Modified 1.5 Inch Squeegee hose | 75054 | $69.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Recovery Tank Lid | 872301 | Not Available |
| 22 | No Image | Tray, Debris | 75235 | $16.99Read more |
| 23 | No Image | Puck, Bromine (4-Pack) | 75208 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Tray, Puck | 75236 | $32.99Read more |
| 25 | Not Available | Vacuum Motor Filter w/Gasket | 75195 | Not Available |
| 26 | No Image | Motor, Vacuum, 24Vdc, 3-Stage | 75191 | $765.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Foam, Noise, Vacuum | 75053 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Washer | 75342 | Not Available |
| 29 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 30 | Not Available | Washer | W243D | Not Available |
| 31 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 32 | No Image | Label, Instruct, Bromine | 75189 | $6.99Read more |
| 33 | No Image | Cover, Mounting, Vacuum | 75157 | $144.99Read more |
| 34 | No Image | Gasket, Foam, Vacuum | 75169 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | | Foam, Noise, Vacuum | 75053 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

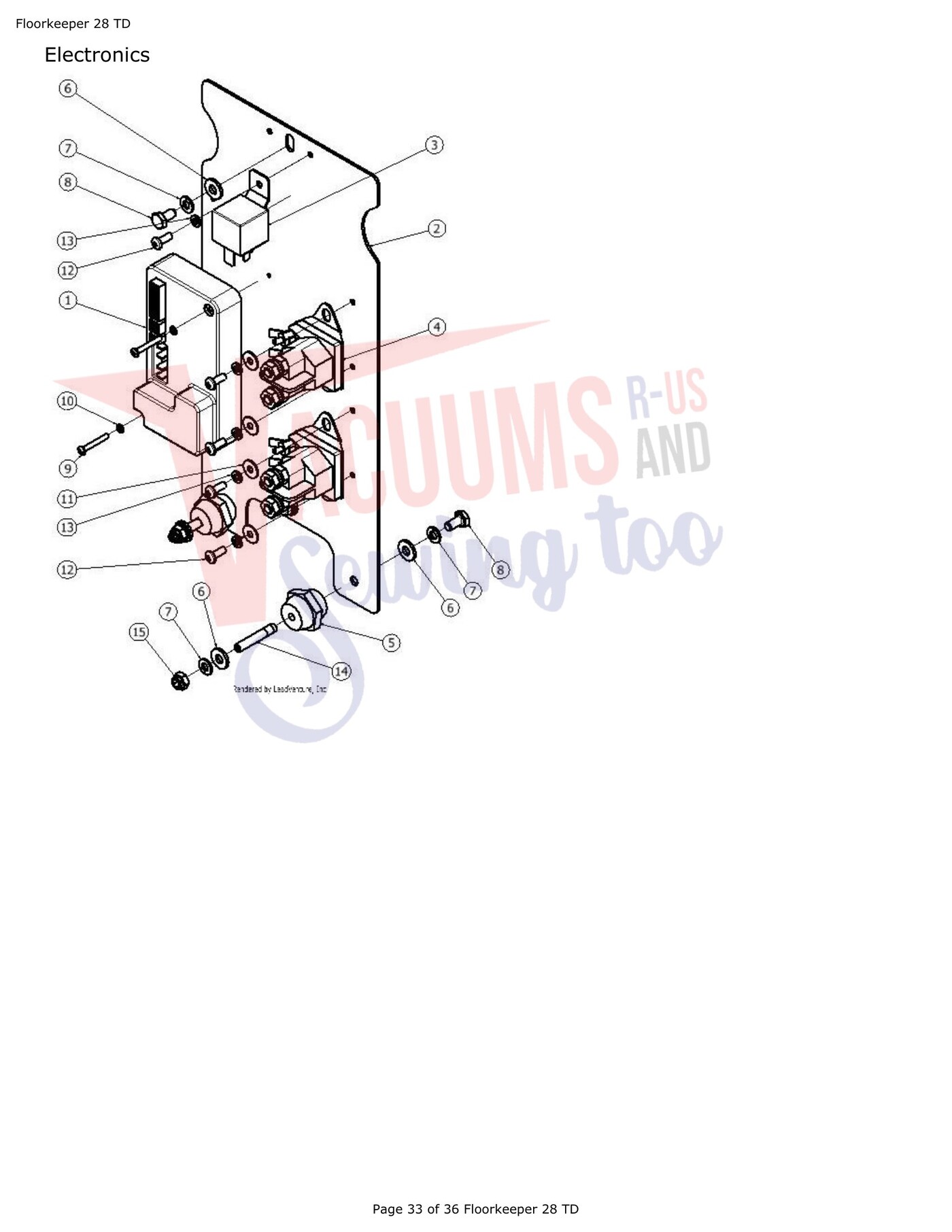

| # | Part image | Description | SKU | Price |
| 1 | No Image | Controller, I-Drive, Mid | 75234 | $840.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Panel, Electronics | 75242 | $137.99Read more |
| 3 | No Image | Contactor, 24Vdc, 70A | 75271 | $33.99Read more |
| 4 | No Image | Contactor, 24V, 100A | 75270 | $174.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Stand-Off, Insulated, .25-20 | 75115 | $19.99Read more |
| 6 | Not Available | Washer | W104D | Not Available |
| 7 | Not Available | Lock Washer | 75329 | Not Available |
| 8 | Not Available | Screw | W169D | Not Available |
| 9 | No Image | SCREW | W323D | $6.99Read more |
| 10 | Not Available | Lock Washer | 75334 | Not Available |
| 11 | No Image | WASHER | W401D | $7.99Read more |
| 12 | Not Available | Screw #10-32 x 1/2" | 75313 | Not Available |
| 13 | Not Available | Lock Washer | 75333 | Not Available |
| 14 | Not Available | Set Screw 1/4-20 x 1- 1/4" | 75309 | Not Available |
| 15 | Not Available | Lock Nut | 75293 | Not Available |

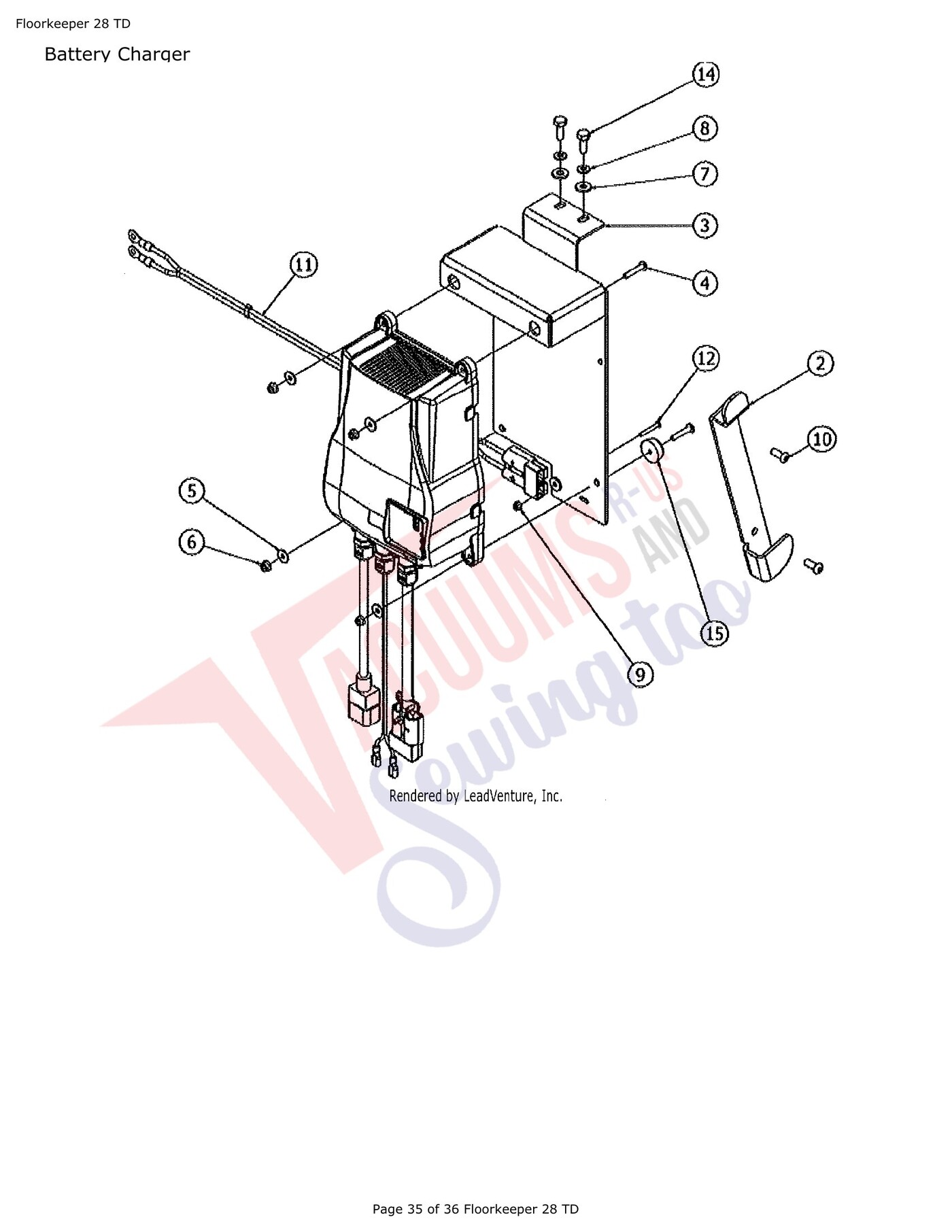

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Cord 18/3 X 10' Sjt | 75252 | $0.00Read more |
| 1 | No Image | Charger 24V 25A Universal Flooded/Agm/Gel | 75045 | $849.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Bracket, Mounting, Cord | 75023 | $45.99Read more |
| 3 | No Image | Bracket, Mounting, Charger | 75147 | $148.99Read more |
| 4 | No Image | Screw #10-32 X 1" | 75298 | $0.00Read more |
| 5 | No Image | WASHER | W401D | $7.99Read more |
| 6 | Not Available | Nylock Nut | 75291 | Not Available |
| 7 | Not Available | Washer | W104D | Not Available |
| 8 | Not Available | Lock Washer | 75329 | Not Available |
| 9 | No Image | Nut, Nylock, No 6-32, SS | 75282 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Screw 1/4-20 x 5/8" | 75300 | Not Available |
| 11 | No Image | Harness, Charger, Post | 75254 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SCREW | W323D | $6.99Read more |
| 14 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Bumper | 75005 | $18.99Read more |
| 15 | No Image | Bumper | 75005 | $18.99Read more |

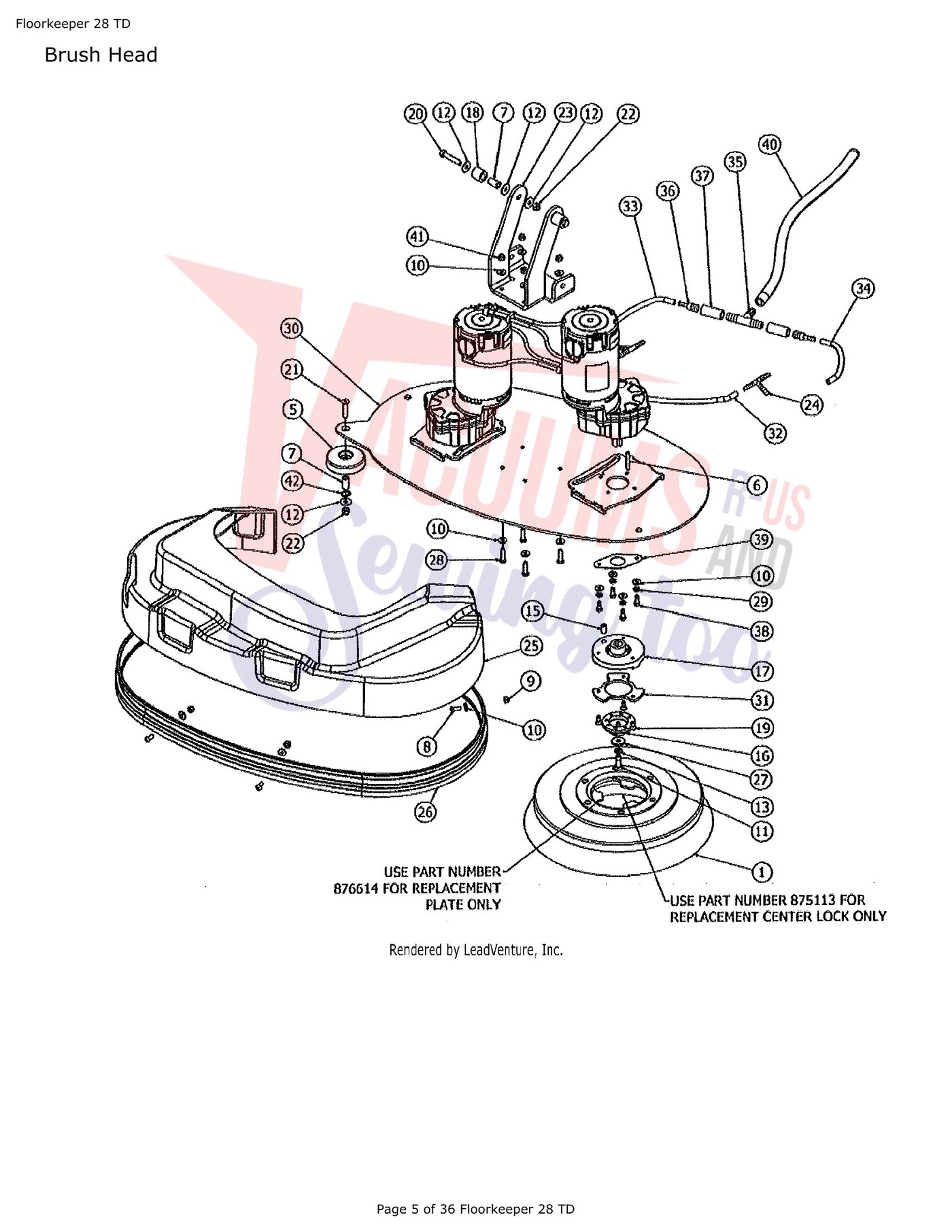

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Latching Bracket, for SOFTCASE | 75059 | $4.00Read more |
| Not Shown | No Image | -Handle Grey | 75032 | $17.25Read more |
| 1 | No Image | Brush, for 28 Inch Soft 99128D (Requires 2ea) | 99229 | $247.99Read more |
| 2 | No Image | Brush, for 28 Inch Medium 99128D (Requires 2ea) | 99230 | $186.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Brush, for 28 Inch Hard Grit 99128D (Requires 2ea) | 99231 | $308.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Driver, Pad for 28 Inch 99128D (Requires 2ea) | 99228 | $246.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Wheel, Guide | 75124 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Key, Square, 5mm X 5 X 40mm | 75276 | $33.99Read more |
| 7 | Not Available | Guide Wheel Spacer | 75109 | Not Available |
| 8 | Not Available | Screw 1/4-20 x 5/8" | 75300 | Not Available |
| 9 | Not Available | Nylock Nut | 75290 | Not Available |
| 10 | Not Available | Washer | W104D | Not Available |
| 11 | Not Available | Screw M8-1-1/4 x | 75320 | Not Available |
| 12 | Not Available | Washer | W243D | Not Available |
| 13 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 15 | No Image | Tubular Handle Light Beige | 75101 | $66.00Read more |
| 16 | No Image | Guide, Pad, Plastic | 75060 | $182.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Swivel Neck Support Bushing, for SOFTCASE | 75067 | $4.00Read more |
| 18 | No Image | -Lever Bracket Black/Brown | 75105 | $30.00Read more |
| 19 | Not Available | Screw 1/4-20 x 5/8" | 75308 | Not Available |
| 20 | Not Available | Screw 5/16-18 x 1-3/4" | 75305 | Not Available |
| 21 | No Image | Screw .31-18 x 1.5In | 75303 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Nylock Nut | 75279 | Not Available |
| 23 | No Image | Bracket, Support, Head | 75139 | $142.99Read more |
| 24 | No Image | Fitting Tee 1/4in | 75166 | $15.99Read more |
| 25 | No Image | Shroud, Head, 28 Inch | 75156 | $178.99Read more |
| 26 | No Image | Skirt, Bristle | 75229 | $431.99Read more |
| 27 | Not Available | Washer | 75343 | Not Available |
| 28 | Not Available | Screw 1/4-20 x 1" | 75299 | Not Available |
| 29 | Not Available | Lock Washer | 75329 | Not Available |
| 30 | No Image | Plate, Mtg, 28Inch, Tornado | 75202 | $704.99Read more |
| 31 | No Image | Guide, Driver, Right Hand | 75173 | $104.99Read more |
| 32 | No Image | Tubing, 1/4 Inch X 19 Inch | 75355 | $6.99Read more |
| 33 | No Image | Tubing, 1/4 Inch X 19 Inch | 75355 | $6.99Read more |
| 34 | No Image | Tubing, 1/4 Inch X 19 Inch | 75355 | $6.99Read more |
| 35 | No Image | Fitting, Tee .50 Inch | 75168 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Fitting, Reducer, 1/2 Inch to 1/4 Inch | 75050 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Screw M6 x | 75328 | Not Available |
| 39 | No Image | Bracket, Retaining, Seal | 75148 | $24.99Read more |
| 40 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Nylock Nut | 75278 | Not Available |
| 42 | Not Available | WASHER WAVE .50INCH | 75363 | Not Available |
| 43 | No Image | Motor, Gear, Brush | 75084 | $1,707.99Read more |

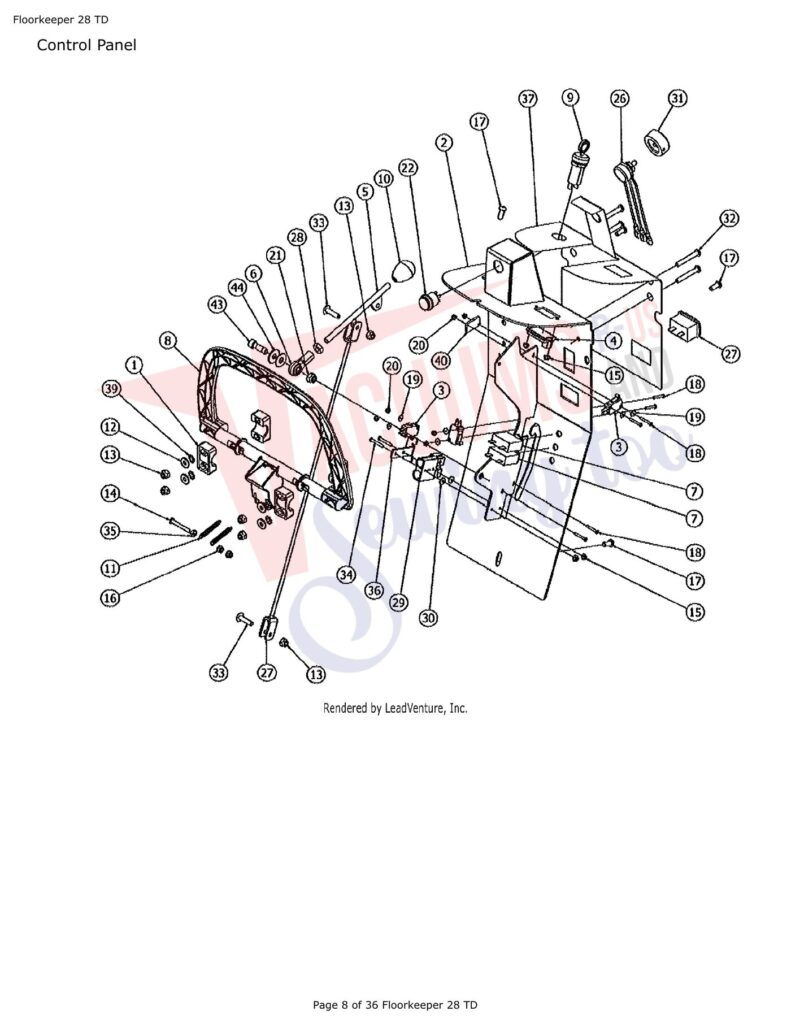

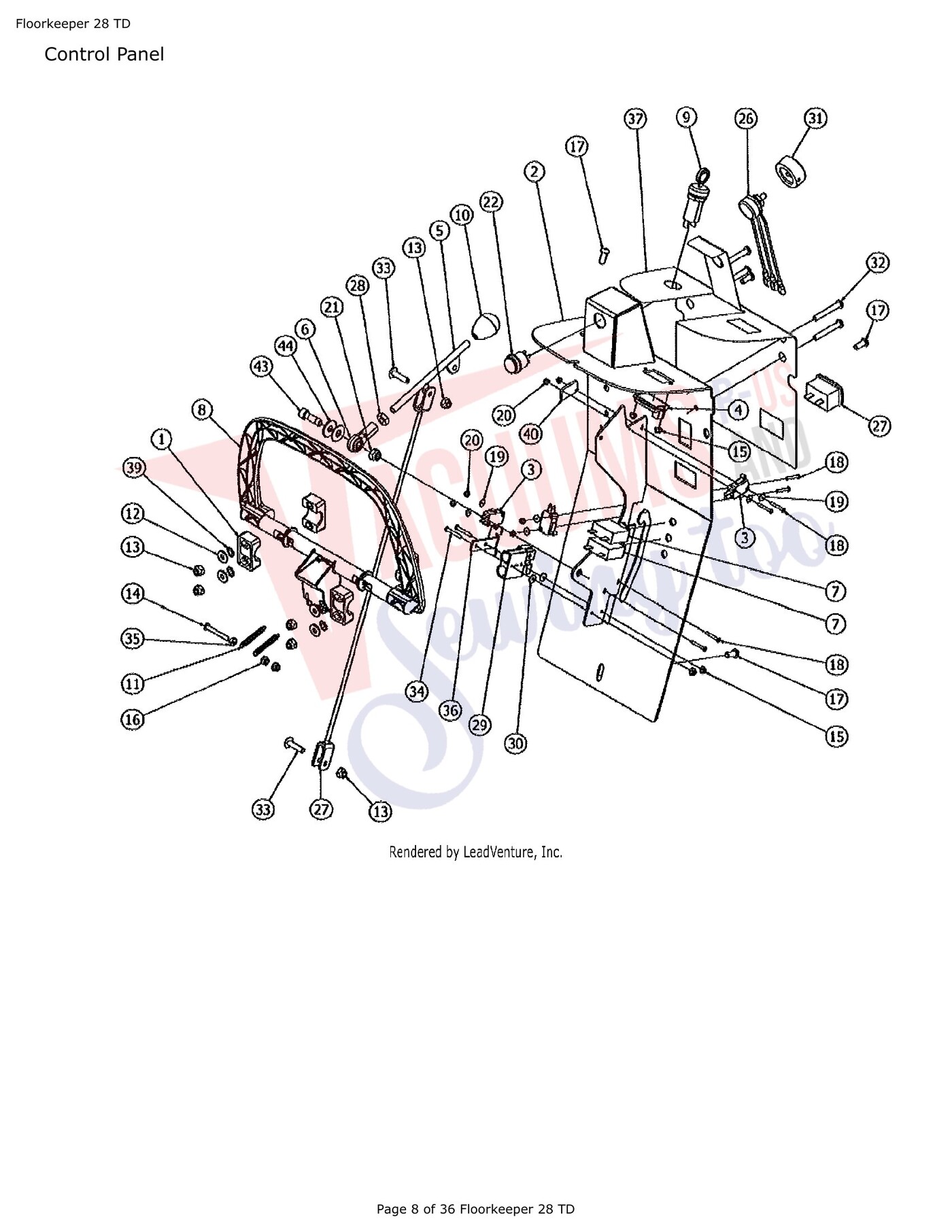

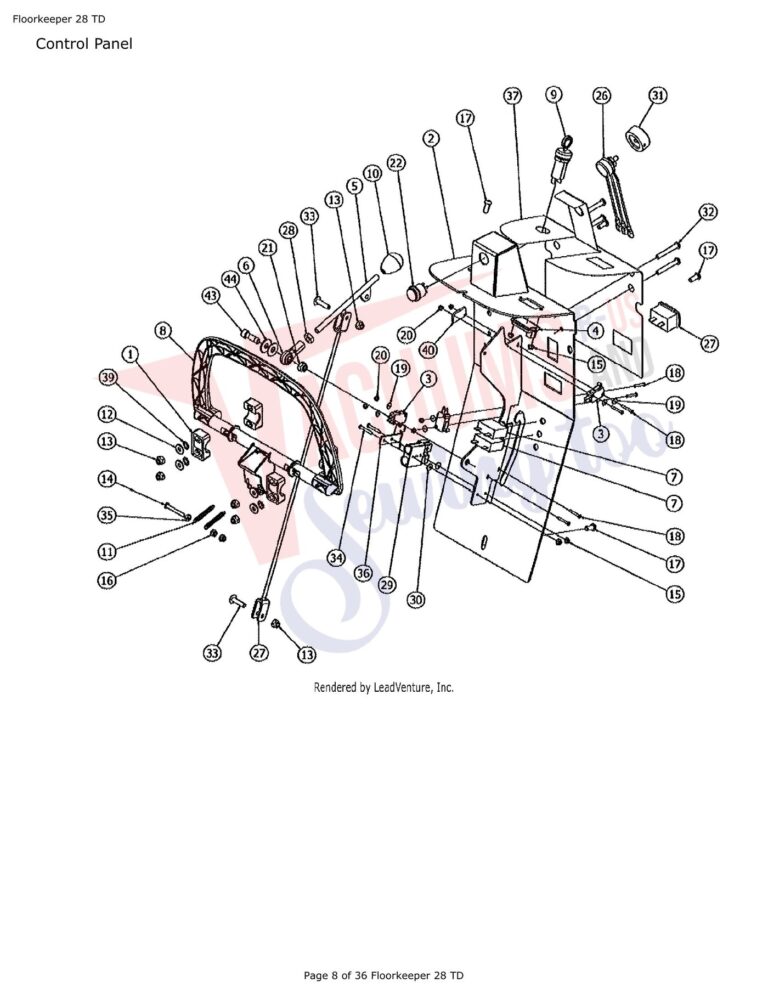

| # | Part image | Description | SKU | Price |
| XX | No Image | Key, Replacement, Scrubber | 75073 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Mount, Bearing, Plastic | 75088 | $5.99Read more |
| 2 | No Image | Panel, Controls | 75209 | $311.99Read more |
| 3 | No Image | Switch, Snap, With Roller | 75255 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Meter Battery | 75249 | $242.99Read more |
| 5 | No Image | Gasket, Motor Mounting SC3683D Part Number: 75079 for Eureka | 75079 | $10.28Read more |
| 6 | No Image | Bearing, Rod End, .31-24 | 75244 | $79.99Read more |
| 7 | No Image | Circuit Breaker, 30 Amps | 75250 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Bail, Molded | 75035 | $34.99Read more |
| 9 | No Image | Switch, Key | 75256 | $93.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Knob, Oval, .31-18 | 75070 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | -Lever Bracket Black/Brown | 75112 | $36.00Read more |
| 12 | Not Available | Washer | W104D | Not Available |
| 13 | Not Available | Nylock Nut | 75278 | Not Available |
| 14 | Not Available | Screw #10-32 x 1-1/2" | 75297 | Not Available |
| 15 | No Image | Nut, Nylock, No 6-32, SS | 75282 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Nylock Nut | 75291 | Not Available |
| 17 | Not Available | Screw 1/4-20 x 5/8" | 75300 | Not Available |
| 18 | Not Available | Screw #4-40 x 7/8" | 75307 | Not Available |
| 19 | Not Available | Washer | 75347 | Not Available |
| 20 | No Image | NUT | W385D | $7.99Read more |
| 21 | Not Available | Nylock Nut | 75279 | Not Available |
| 22 | No Image | Switch, Round, On Mom | 75257 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Potentiometer Assy, 5K | 75260 | $183.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Cable, Lift, Clevis | 75044 | $59.99Read more |
| 27 | No Image | Meter, Hour, With Reset | 75259 | $130.99Read more |
| 28 | Not Available | Nut | 75286 | Not Available |
| 29 | No Image | Harness, Charger, Post | 75254 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Washer | 75336 | Not Available |
| 31 | No Image | Knob, Adjust, .25 Bore | 75069 | $63.99Read more |
| 32 | Not Available | Screw 1/4-20 x 1-3/4" | 75301 | Not Available |
| 33 | No Image | Screw 1/4-20 X 1" | 75314 | $0.00Read more |
| 34 | No Image | SCREW | W132D | $7.99Read more |
| 35 | Not Available | Nut | 75280 | Not Available |
| 36 | No Image | Bracket, Plug | 75024 | $26.99Read more |
| 37 | No Image | Label, Control, Traction | 75190 | $29.99Read more |
| 39 | Not Available | External Star Washer | 75335 | Not Available |
| 40 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 40 | No Image | Harness, Power | 75265 | $403.99Read more |
| 41 | No Image | Harness, Signal | 75266 | $529.99Read more |
| 43 | Not Available | Screw Socket Cap .31 x 1 ss | 75311 | Not Available |
| 44 | Not Available | Washer | W243D | Not Available |

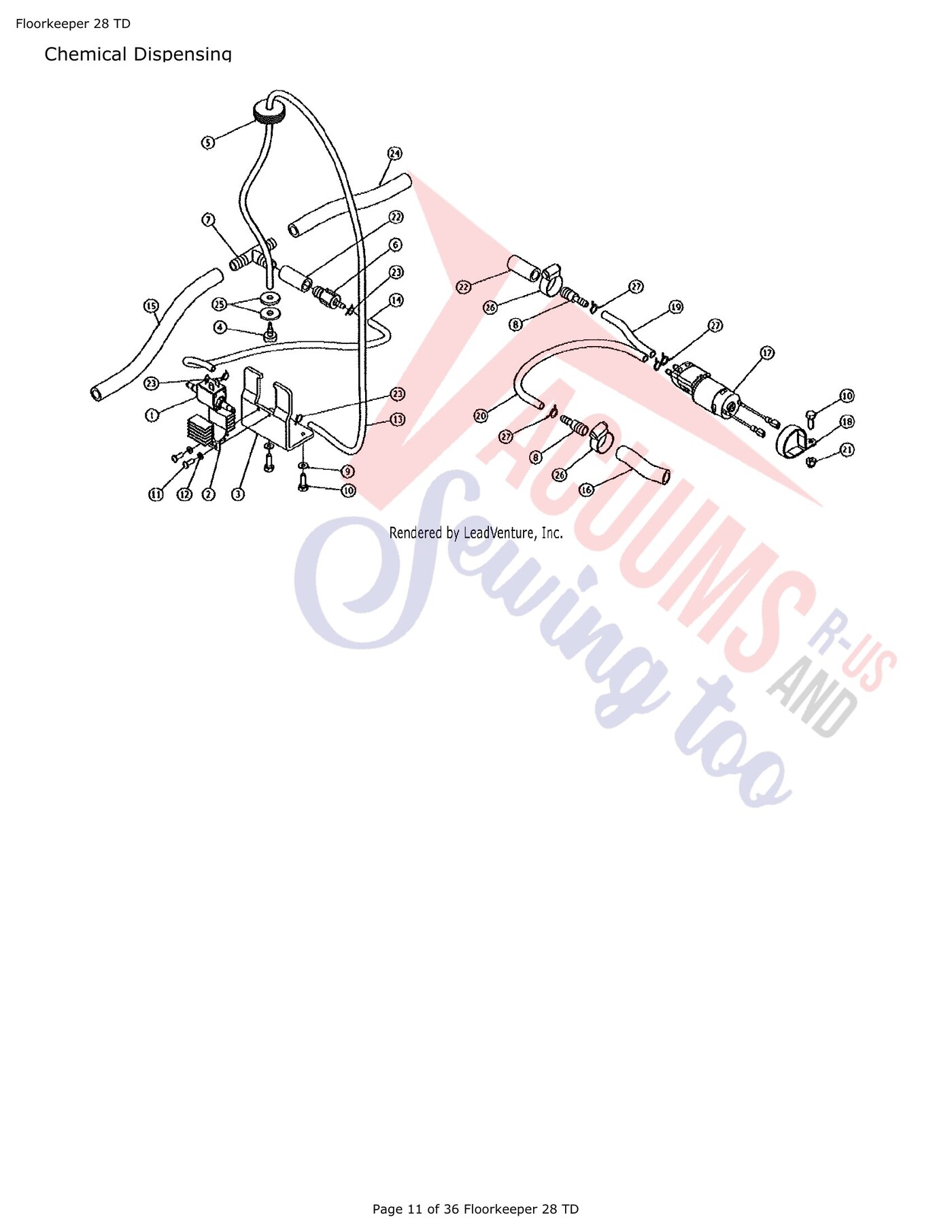

| # | Part image | Description | SKU | Price |
| 1 | No Image | Pump, 24Vdc, Solenoid, Emx08 | 75206 | $307.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Bracket, Heat Sink | 75142 | $174.99Read more |
| 3 | No Image | Bracket, Mounting, Heat Sink | 75143 | $95.99Read more |
| 4 | Not Available | Strainer Filter | 75378 | Not Available |
| 5 | No Image | Cap, 38mm, With Hole | 75152 | $26.99Read more |
| 6 | No Image | Valve, Check, .188 X .50 Barb | 75239 | $162.99Read more |
| 7 | No Image | Fitting, Tee .50 Inch | 75168 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Fitting, Reducer, 1/2 Inch to 1/4 Inch | 75050 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Lock Washer | 75329 | Not Available |
| 10 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Screw #10-32 x 1/2" | 75313 | Not Available |
| 12 | Not Available | Lock Washer | 75333 | Not Available |
| 13 | Not Available | 3/16" Tubing | 879003-42.0" | Not Available |
| 14 | Not Available | 3/16" Tubing | 879003-10.0" | Not Available |
| 15 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Pump | 75207 | Not Available |
| 18 | No Image | Clamp, P-Shaped, 1.5 Inch Diameter | 75153 | $8.99Read more |
| 19 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Nylock Nut | 75278 | Not Available |
| 22 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Clamp, Hose, .31, Wire | 75154 | $4.99Read more |
| 24 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Washer | 75343 | Not Available |
| 26 | Not Available | Hose Clamp | S453P | Not Available |
| 27 | No Image | Clamp, Hose, .38, Wire | 75155 | $4.99Read more |
| # | Part image | Description | SKU | Price |
| XX |  | Cap Hose Drain - Repl For 75062 | 75037 | $91.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Float, Shutoff | 75002 | $265.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Straight Fitting | 75052 | Not Available |
| 3 | No Image | Gasket Cover Press-In | 75171 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Hose, Vacuum, 1.5 Inch | 75064 | $151.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hinge | 75178 | Not Available |
| 6 | No Image | Hose, Squeegee, 90 Cuff | 75174 | $197.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Rubber Mount | 75089 | $0.00Read more |
| 9 | Not Available | Screw 3/8 x 1-3/4" | 75316 | Not Available |
| 10 | Not Available | Recovery Tank | 878603 | Not Available |
| 11 | Not Available | Washer | W104D | Not Available |
| 12 | Not Available | Lock Washer | 75329 | Not Available |
| 13 | No Image | Nut | 75285 | $0.00Read more |
| 14 | No Image | Bracket, Mounting, Isolator | 75141 | $109.99Read more |
| 15 | | Clamp, Hose, Worm | 75377 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | | Hose, Drain, Capped | 75062 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Cable Retention Mid Long | 75162 | $155.99Read more |
| 19 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Screw #10 X 1/2" | 75325 | $0.00Read more |
| 21 | No Image | Fitting, Modified 1.5 Inch Squeegee hose | 75054 | $69.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Recovery Tank Lid | 872301 | Not Available |
| 23 | No Image | Tray, Debris | 75235 | $16.99Read more |
| 24 | No Image | Puck, Bromine (4-Pack) | 75208 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Tray, Puck | 75236 | $32.99Read more |
| 26 | No Image | Motor, Vacuum, 24Vdc, 3-Stage | 75191 | $765.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Washer | 75342 | Not Available |
| 28 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 29 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 30 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 31 | No Image | Label, Instruct, Bromine | 75189 | $6.99Read more |
| 32 | No Image | Cover, Mounting, Vacuum | 75157 | $144.99Read more |
| 33 | No Image | Gasket, Foam, Vacuum | 75169 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | | Foam, Noise, Vacuum | 75053 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Noise Deadening Foam | 853309 | Not Available |

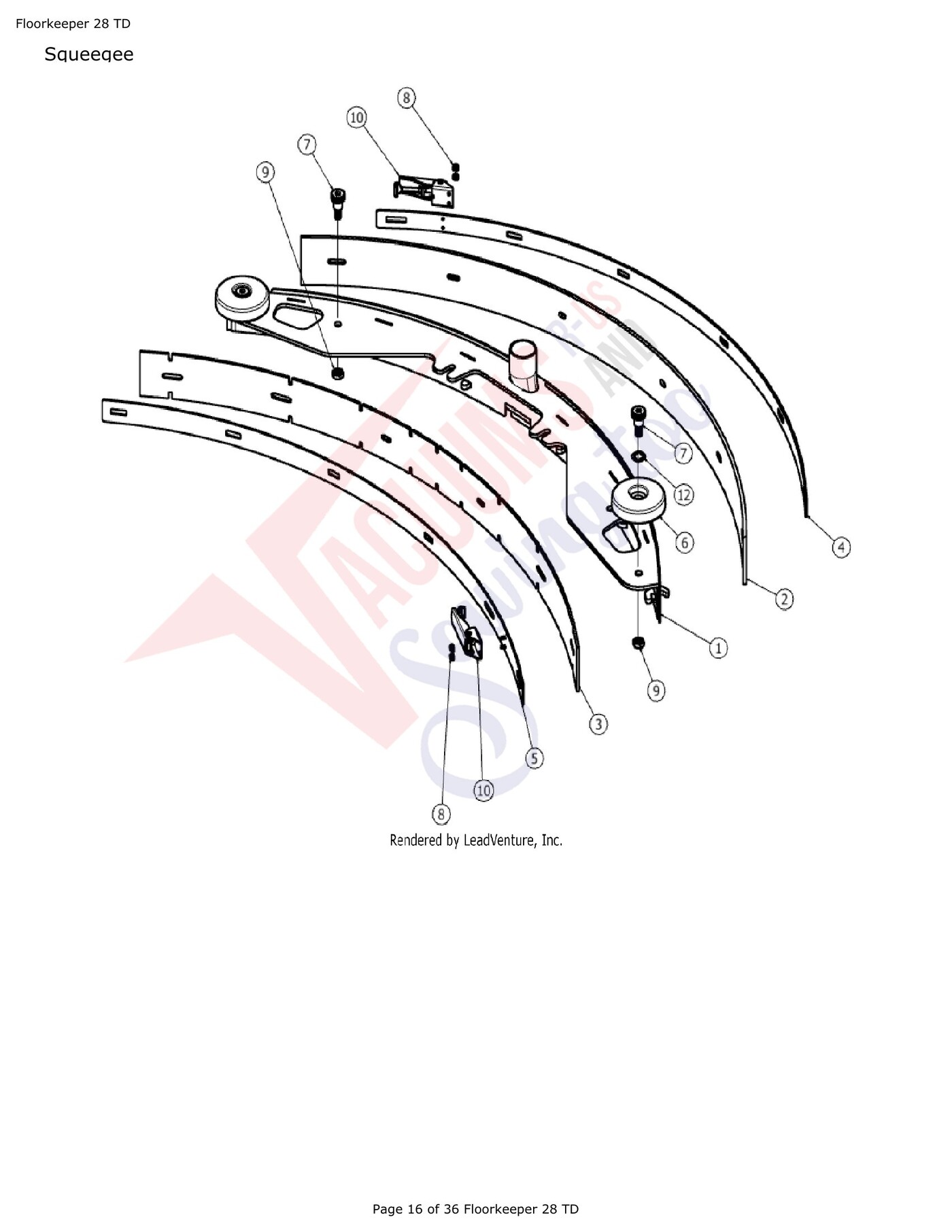

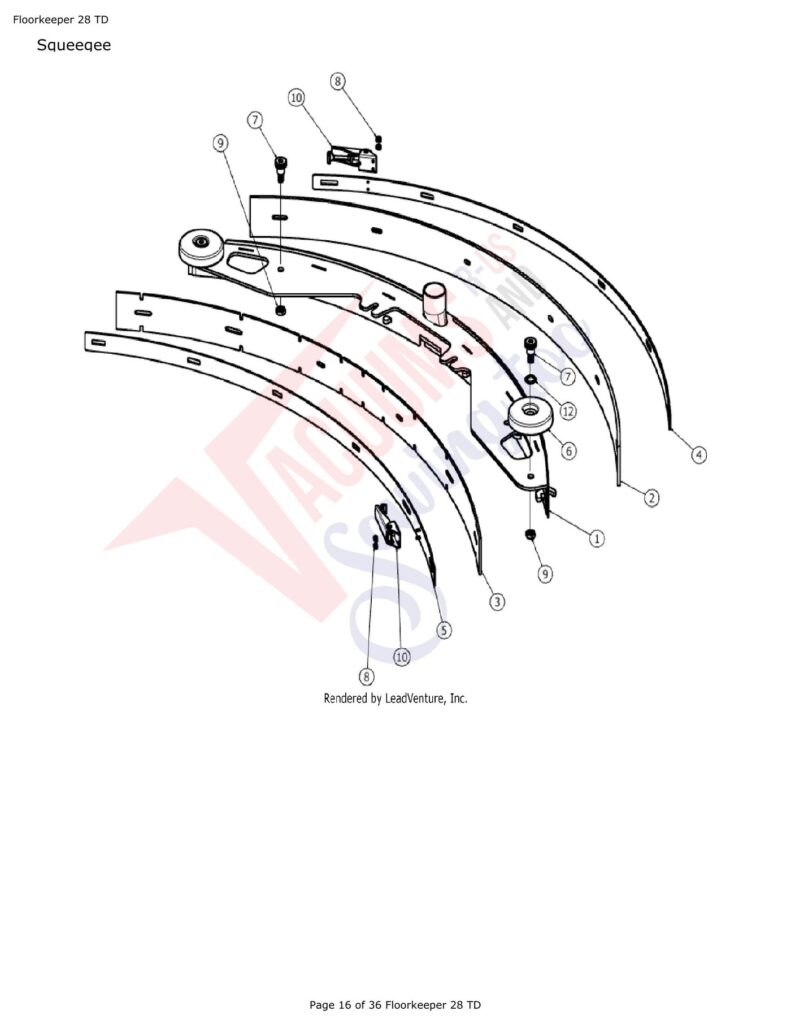

| # | Part image | Description | SKU | Price |
| 1 | No Image | Frame, Squeegee, 40 Inch | 75165 | $483.99Read more |
| 2 | No Image | Squeegee, Rear, 35Inch | 75128 | $185.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Squeegee, Rear, 35Inch (Urethane) | 75132 | $324.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Swivel Neck Support, R.H., for SOFTCASE | 75129 | $6.00Read more |
| 3 | No Image | Squeegee, Front, 35Inch (Urethane) | 75133 | $170.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Retainer, Squeegee Rear, 35 Inch | 75212 | $119.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Retainer, Squeegee Front, 35 Inch | 75213 | $207.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Wheel, Guide | 75124 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Screw, Shoulder, .50X.50 | 75319 | $30.99Read more |
| 8 | No Image | Nut, Nylock, No 6-32, SS | 75282 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Nut, Nyloc, .38-16, SS | 75283 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Clamp, Over-Center, Band | 75038 | $90.99Read more |
| 12 | Not Available | WASHER WAVE .50INCH | 75363 | Not Available |

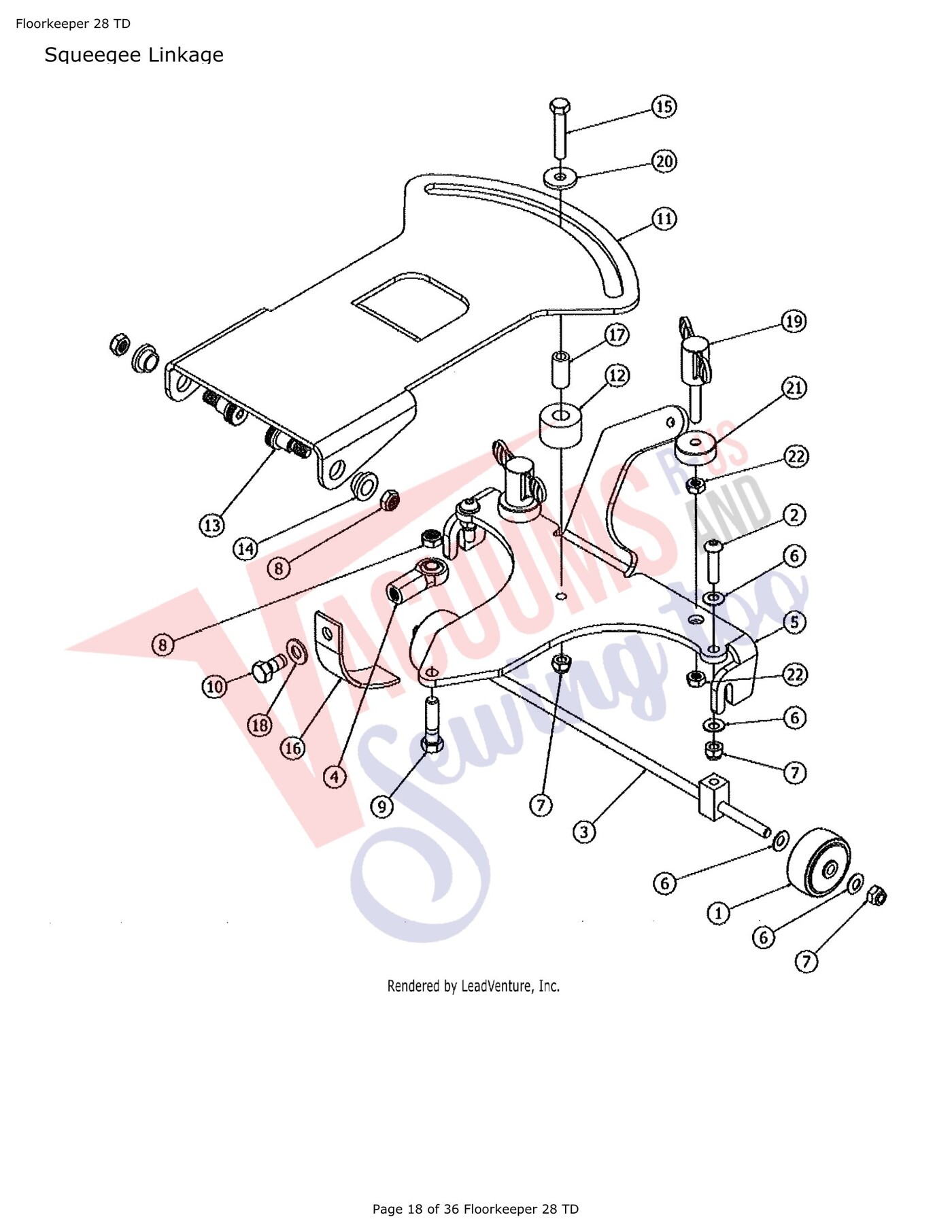

| # | Part image | Description | SKU | Price |
| 1 | No Image | Wheel, 2 OD, .31 ID | 75015 | $51.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw 5/16-18 x 1-1/4" | 75338 | Not Available |
| 3 | No Image | Axle, Wheel, Squeegee | 75016 | $160.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Bearing, Rod End, .38 Fem | 75245 | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Bracket, Link, Squeegee | 75137 | $150.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Plastic Thrust Washer | 75341 | Not Available |
| 7 | Not Available | Nylock Nut | 75284 | Not Available |
| 8 | No Image | Nut, Nyloc, .38-16, SS | 75283 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Screw 3/8-16 x 1-1/2" | 75296 | Not Available |
| 10 | Not Available | Screw 3/8-24 x 3/4" | 75295 | Not Available |
| 11 | No Image | Bracket, Swing, Squeegee | 75138 | $103.99Read more |
| 12 | No Image | Guide, Roller, Squeegee | 75216 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Screw, Shoulder, .50X.50 | 75319 | $30.99Read more |
| 14 | No Image | Bushing, Flange, .50 Inch | 75151 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Screw 5/16-18 x 1-3/4" | 75305 | Not Available |
| 16 | No Image | Strap, Grounding, Static | 75230 | $41.99Read more |
| 17 | Not Available | Squeegee Guide Spacer | 75222 | Not Available |
| 18 | Not Available | Washer | 75330 | Not Available |
| 19 | No Image | Knob, Threaded, .31-18 X 1.5 | 75180 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Washer | 75343 | Not Available |
| 21 | No Image | Retainer, Frame, Squeegee | 75214 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Nylock Nut | 75288 | Not Available |

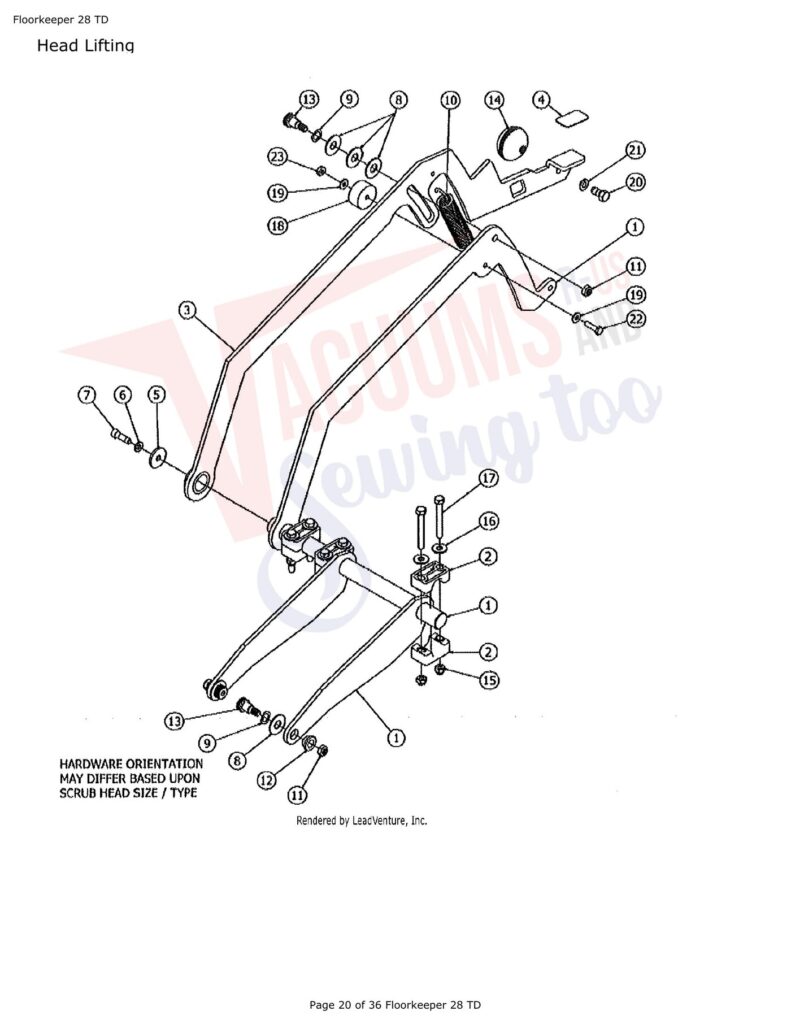

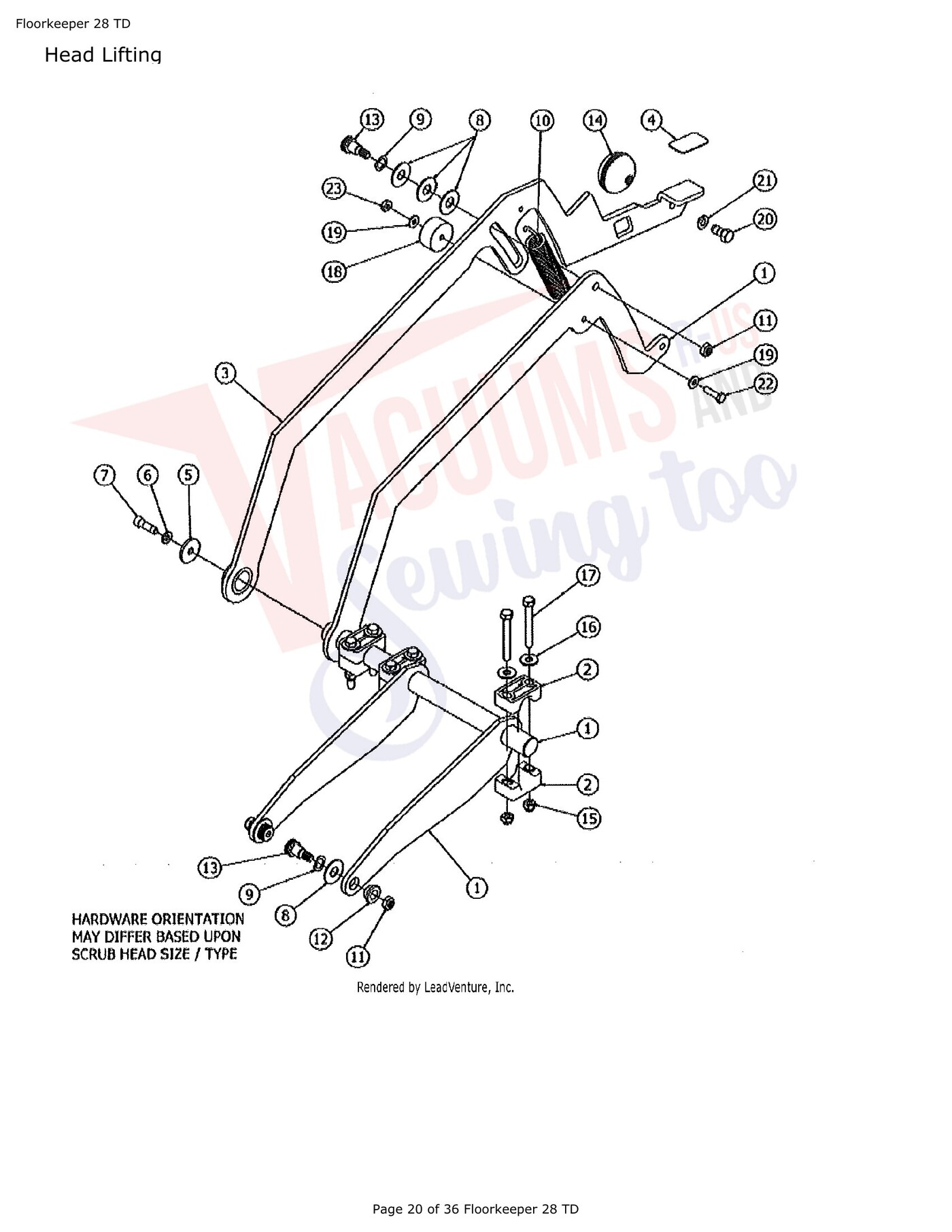

| # | Part image | Description | SKU | Price |
| 1 | No Image | Bracket, Lift, Head | 75136 | $356.99Read more |
| 2 | No Image | Mount, Bearing, Plastic | 75194 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Lever, Downpressure | 75188 | $206.99Read more |
| 4 | No Image | Label, Foot, Grip, Large | 75187 | $6.99Read more |
| 5 | Not Available | Washer | 75344 | Not Available |
| 6 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 7 | Not Available | Screw Socket Cap .31 x 1 ss | 75311 | Not Available |
| 8 | No Image | Washer, Nyl, .50 X 1.25 X .062 | 75345 | $0.00Read more |
| 9 | Not Available | WASHER WAVE .50INCH | 75363 | Not Available |
| 10 | No Image | Spring, Extension | 75227 | $97.99Read more |
| 11 | No Image | Nut, Nyloc, .38-16, SS | 75283 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Bushing, Flange, .50 Inch | 75151 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Screw, Shoulder, .50X.50 | 75319 | $30.99Read more |
| 14 | No Image | Knob, Plastic, Large | 75179 | $57.99Read more |
| 15 | Not Available | Nylock Nut | 75279 | Not Available |
| 16 | Not Available | Washer | W243D | Not Available |
| 17 | Not Available | Screw 5/16-18 x 2-1/2" | 75317 | Not Available |
| 18 | No Image | Spacer, Rubber | 75111 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Washer | W104D | Not Available |
| 20 | Not Available | Screw 3/8-24 x 3/4" | 75295 | Not Available |
| 21 | Not Available | Lock Washer | 75331 | Not Available |
| 22 | Not Available | Screw 1/4-20 x 1" | 75299 | Not Available |
| 23 | No Image | Nut | 75285 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Frame, Scrubber, 20 Inch Traction Drive | 75163 | $879.99Read more |
| 2 | Not Available | 24V Solenoid Valve | 859401 | Not Available |
| 3 | No Image | Filter, Screen, Bowl | 75013 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Bracket, Retaining, Trans | 75025 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | BRAKE CLAMP | 852001 | $70.99Read more |
| 6 | No Image | SCREW | W189D | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Nylock Nut | 75278 | Not Available |
| 8 | No Image | NUT | W405D | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Washer | W243D | Not Available |
| 10 | Not Available | Brake Bracket | 850810 | Not Available |
| 11 | Not Available | Knob | 850201 | Not Available |
| 12 | No Image | BRAKE PAD | 858401 | $129.99Read more |
| 13 | No Image | COMPRESSION SPRING | 858305 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Hose Clamp | S453P | Not Available |
| 15 | No Image | SET SCREW 8-32 X .38 | 962281 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Water Control Label | 855109 | Not Available |
| 17 | No Image | Knob, Adjust, .25 Bore | 75069 | $63.99Read more |
| 18 | Not Available | Screw 5/16-18 x 3/4" | 75304 | Not Available |
| 19 | Not Available | WASHER SPLIT LOCK .31 SS | 75339 | Not Available |
| 20 | Not Available | Screw 1/4-20 x 1" | 75299 | Not Available |
| 21 | No Image | Transaxle, 24Vdc | 75237 | $2,474.99Read more |
| 22 | Not Available | Nylock Nut | 75289 | Not Available |
| 23 | No Image | Key, Woodruff, 5mm | 75275 | $15.99Read more |
| 24 | Not Available | Washer | W104D | Not Available |
| 25 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | External Star Washer | 75335 | Not Available |
| 28 | No Image | Wheel, Urethane, 222mm | 75240 | $394.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | TUBING 1/2 IN X 24 IN | 75367 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | 4" Swivel Caster | 879709 | Not Available |
| 32 | No Image | Switch, Snap, Bent Lever | 75264 | $101.99Read more |
| 33 | Not Available | Washer | 75347 | Not Available |
| 34 | No Image | NUT | W385D | $7.99Read more |
| 35 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 36 | Not Available | Screw #4-40 x 1-1/4" | W317D | Not Available |
| 37 | Not Available | Grommet | 873804 | Not Available |
Report errors on this page HERE
