Schematic and parts book for Tornado 98838 ECO 500 AW . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

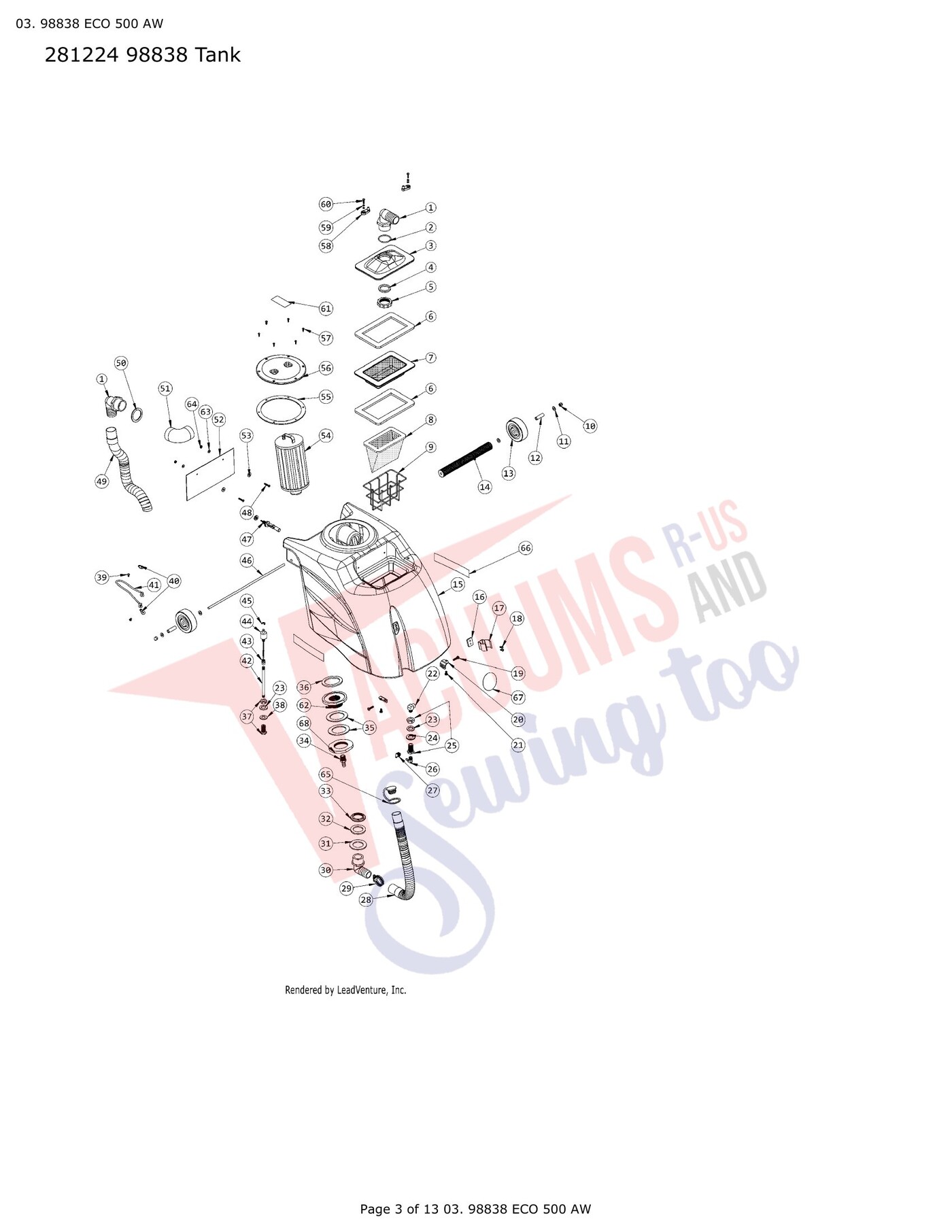

| # | Part image | Description | SKU | Price |
| 1 | No Image | 1-1/2H X 1-1/2M ELBOW BLACK POLYPROPYLENE | 7GR034B | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | O Ring Cover 98190 | 30063 | $2.95Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Lid, CFR Mid Size | 72790A | $39.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | GASKET, ECO 500 LID | X9654 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | NUT, PVC 1 1/2 FOR ECO 500 LID | X9655 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | GASKET, FILTER BASKET, 5/16 THK CFR MID SIZE | 72778D | $13.99Read more |
| 7 | No Image | Filter,Extractor,Inlet Basket,Mesh,Rev A | 72774B | $92.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Filter, Inlet Disposable 6 Pack | 72776B | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Frame, Filter CFR Mid Size | 72775A | $96.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | NUT, 5/16-18 CAP ZP | 72148A | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Handle, Mid Size Extractor | X9453 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Tank | 72773AYEL | Not Available |
| 16 | No Image | PAD SPRING CLIP | 72669A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | SCREW, 10-32X1/2 PHIL PAN MS 18-8 SS | 71651A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | SCREW, 1/4-20X1 PHIL PAN MS 18-8 SS | 7CU003 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Bracket, Tank Lock CFR Mid Size | 72767A | $27.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Gasket Fiber 1.125 OD X .75 ID X .156 Thick | PX48G | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Washer 3/4 Neoprene-Bond Galvanized | 72274A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Bulkhead, Fitting Brass .75 | PX48 | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | FITTING BRASS 90D ELBOW 1/4 NPTM X 1/4 HOSE BARB | PX212 | $10.99Read more |
| 27 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Hose, Drain CFR Midsize Extractor | 72797A | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | ELBOW 1-1/4H - 1-1/4M NYLON | 7GR016 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | WASHER, DRAIN FITTING, ECO 500 | 72817A | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | GASKET 1-1/4 FITTING | X9164 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | NUT LOCK 1-1/4 | X9165 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | BARB 1/2 X 1/2 MALE/MALE | PC25 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | GASKET, BULKHEAD CFR MID SIZE | 72793A | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | GASKET, FINAL FILTER CFR MID SIZE | 72792A | $8.99Read more |
| 37 | No Image | Connector Anchor 1/8 NPT | 7AJ004 | $20.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Washer 5/8x1-3/16 Bonded Seal Galvanized | 72115A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | SCREW, 10-24X3/8 PHIL PAN MS 18-8 SS | 72091A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | End Loop, With Two Holes 16G | X9069 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | ROPE SOLID BRAID | 72660A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | Not Available | Brass Nipple 1/8" MPT x 6" | 72799A | Not Available |
| 43 | No Image | Coupling 1/8-1/8 Pipe | 7DA001 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 44 | No Image | Switch Float 2 Pole | 70343A | $89.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 | No Image | E Ring 5/16 Shaft 1/4 Groove .025 SS | 71553A | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 46 | No Image | STUD, ALL-THREADS CFR MID SIZE | 72779A | $11.99Read more |
| 47 |  | Switch Float Horizontal CFR Midsize | 72798A | $218.99Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | SCREW 10-24X1 PHIL PAN MS 18-8 SS | 7CU001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 49 | No Image | HOSE VAC TOOLHEAD CASCADE 45 INCHES | 72384A | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 51 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | No Image | DEFLECTOR, ECO 500 | 72818A | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 53 |  | WASHER, RUBBER .29ID .688OD 1/8 80 DURO | 72667A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 54 | No Image | Filter,Extractor,In Tank | 72777B | $46.99Add to cart Special order: ships in 2 to 4 weeks |
| 55 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 56 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 57 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 58 | No Image | LID HOLDER CFR MID SIZE | 72789A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 59 |  | WASHER, LOCK #10 Part Number 1713 for Simplicity Models SCE | 1713 | Special order: ships in 2 to 4 weeks |
| 60 | No Image | SCREW, 10-32X3/4 PHIL PAN MS 18-8 SS | 7BR005 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 61 | Not Available | Defoamer Warning Label | X9003 | Not Available |
| 62 | Not Available | BULKHEAD 2 NPS | X1598 | Not Available |
| 63 |  | WASHER, No 10 FLAT S/S MS-15795 No. 841 | 7CM003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 64 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 66 | Not Available | LABEL SOLUTION TANK TORNADO (CFR) ECO 500 7.5 X 1.5 IN | X9210 | Not Available |
| 67 | Not Available | Tornado Label 3" | X9201 | Not Available |
| 68 | Not Available | NUT 2 NPS | X1599 | Not Available |

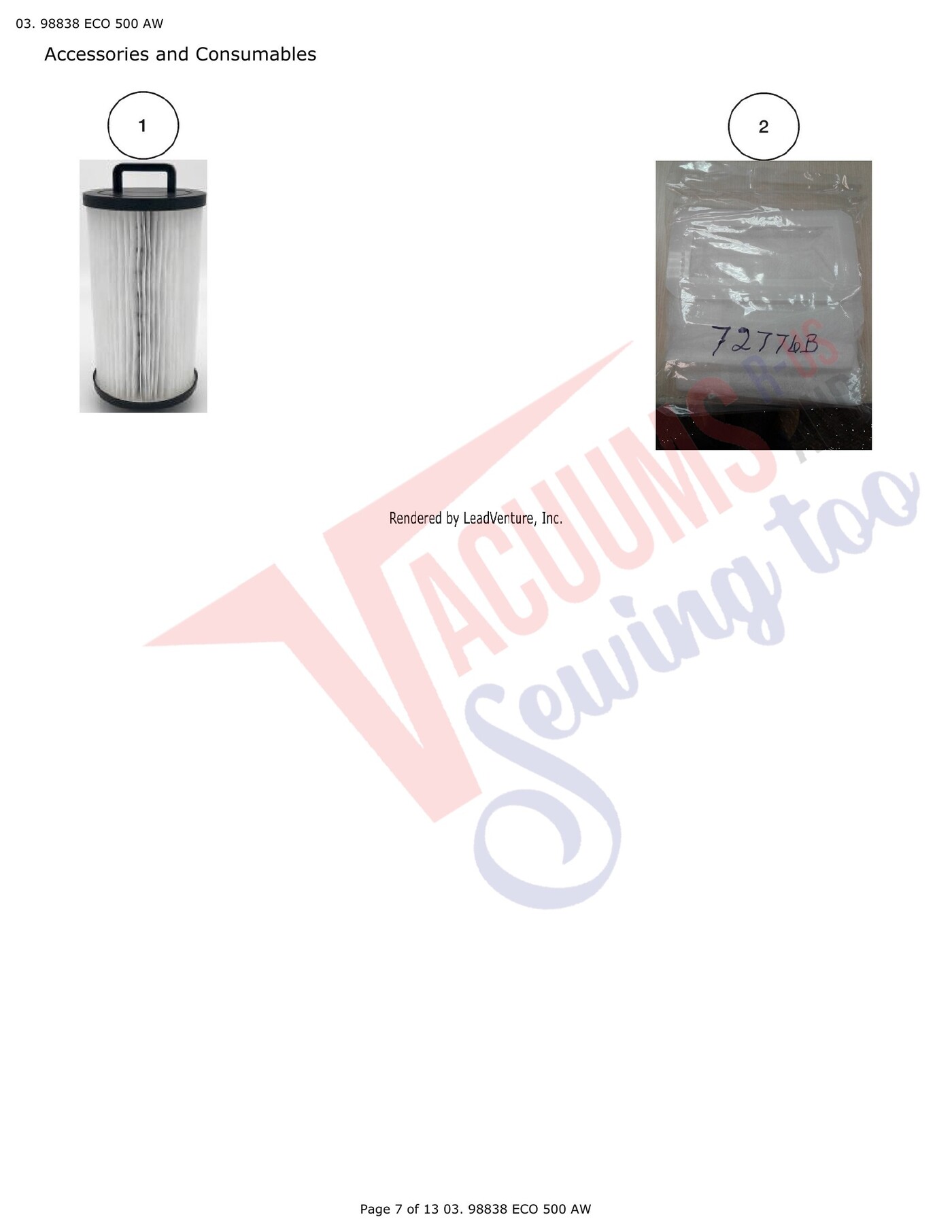

| # | Part image | Description | SKU | Price |
| 1 | No Image | Filter,Extractor,In Tank | 72777B | $46.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Filter, Inlet Disposable 6 Pack | 72776B | $25.99Add to cart Special order: ships in 2 to 4 weeks |

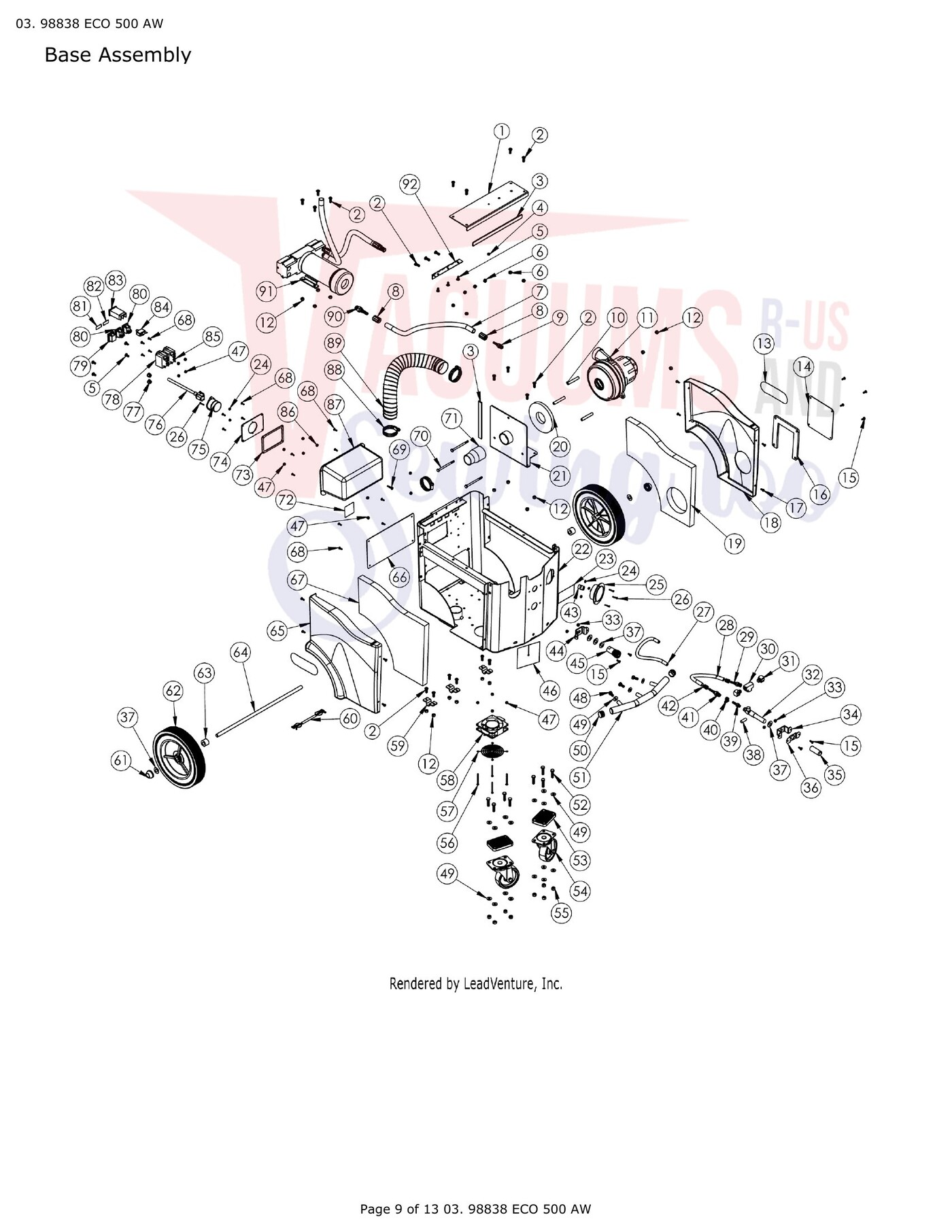

| # | Part image | Description | SKU | Price |
| 1 | No Image | BRACKET, BRACE, CFR MIDSIZE | 72795A | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | RUBBER EDGE TRIM ECO 500 | 72866A | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Hose 1500 P.S.I. | X8060 | $0.00Read more |
| 8 |  | Ferrule, Hydraulic 3/8 Hose | X9436 | $10.99Read more |
| 9 |  | Fitting, Hydraulic Swivel 1/4 | X9435 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Spacer, Vac Motor 2.375 | 72651B | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Motor,Extractor,120,VAC,Ametek,6.6,2 STG,Airwatt | 72855A | $360.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Nut 1/4-20 Lock Nylon Insert | X8237 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Side Label | 72858A | Not Available |
| 14 | No Image | VENT LOOVERED BLACK 5-3/4 X 5-3/4 PFX | PX53 | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SCREW, 10-24X1/2 PHIL PAN MS 18-8 SS | 7BS001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | GASKET, LOUVER ECO 500 | 72863A | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Screw, 10-32 1/2 Black PHMS | 72807A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | RT SIDE PANEL, BLACK RAL 9017 ECO500 | 72788ABLK | $126.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | LEFT FOAM SIDE PANEL CFR CFR MIDSIZE EXTRACTOR | 72796B | $46.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Gasket, Flat Airwatt Motor .5 Neoprene Blend | X9696 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | BRACKET VACUUM MOTOR 6.6 REV. 03 | 72856A | $105.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Base, Eco 500 | 72781G | $1,771.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | COVER, FRONT, HANDLE, ECO 500 | 72803A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | NUT, 6-32 LOCK W/NYLON INSERT ZINC | X8257 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | GAUGE PRESSURE 1000 PSI BACK MOUNT WITH MOUNTING RING | X0169 | $173.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Solution Hose | X8542 | $0.00Read more |
| 28 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 29 | No Image | Barb 1/4 X 1/4 Male Pipe Steel | X9492 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Tee Union 1/4 NPT | 7AV001 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Regulator Pressure Knurled Handle | 72059A | $282.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | NUT, 10-24 NYLON INSERT LOCK 18-8 SS | 7BF030 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Bracket, Mount Pressure Regulator | 70223A | $27.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Sleeve Regulator ECO 500 | 72808A | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | PLATE LIMIT PRESSURE REGULATER | 70222A | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Screw 3/8-24X1 Set Press Reg | 7EE003 | $2.99Read more |
| 39 | No Image | Barb Hose 1/4H 1/8 Male | PC66 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | Barb Swivel 1/4H X 1/4M | X9316 | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | No Image | Ferrule Hose .59 OD | PX161 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Coupling, 1/4 | 7DA002 | $11.99Read more |
| 44 | No Image | BRACKET COUPLER FOR Q/D ECO 500 | 71312A | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Coupler, Quick Disconnect SS 1/4 CFR Eco 500 | 72800A | $180.99Add to cart Special order: ships in 2 to 4 weeks |
| 46 | No Image | COVER, DRAIN HOSE, REV 02 ECO 500 | 72802A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 47 | No Image | Nut 8-32 Lock with Nylon Insert | X8260 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 48 | No Image | BOLT, 5/16-18X5/8 HEX TAP ZINC | 7DT001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 49 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | PLUG, BUMPER, ECO 500 | 72804A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 51 | No Image | Bumper, Front, Eco 500 | 72810A | $346.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | No Image | BOLT, 5/16-18 X 1-1/4 HEX TAP GR 2 ZINC | X8227 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 53 |  | SPACER, CASTER CFR MID SIZE | 72783A | $6.99Read more |
| 54 |  | Caster Assembly, Wheel 4 In., Grey, Extractors | X9153 | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 55 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 56 |  | SCREW, 8-32X2 PHIL PAN M/S ZINC BULK | 72703A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 57 | No Image | Cover Fan | 72702A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 58 | No Image | Fan Cooling 120V 92MM 35 Cfm | 72700A | $101.99Add to cart Special order: ships in 2 to 4 weeks |
| 59 | No Image | Bracket, Axle Wheel CFR Mid Size | 72770A | $27.99Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | WIRING HARNESS ECO 500 120V NON-HEATER CIRCUIT | 72860A | $123.99Add to cart Special order: ships in 2 to 4 weeks |
| 61 |  | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 62 |  | Wheel 10-1/2bore Blk with Gray Tire Midsize Ext | X9063 | $53.99Add to cart Special order: ships in 2 to 4 weeks |
| 63 | No Image | SPACER, WHEEL 10 CFR MID SIZE EXTRACTOR | 72801A | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 64 | No Image | Axle, Wheel CFR Mid Size | 72769A | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 65 | No Image | LT SIDE PANEL, BLACK RAL 9017 ECO500 | 72787ABLK | $126.99Add to cart Special order: ships in 2 to 4 weeks |
| 66 |  | ACCESS PANEL, CFR MID SIZE REV 05 | 72809A | $57.99Add to cart Special order: ships in 2 to 4 weeks |
| 67 | No Image | RIGHT FOAM SIDE PANEL CFR CFR MIDSIZE EXTRACTOR | 72796A | $46.99Add to cart Special order: ships in 2 to 4 weeks |
| 68 | No Image | SCREW, 8-32X1/2 PHIL PAN SS MS 18-8 SS | 7BS002 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 69 | | SCREW 10-24X1 PHIL PAN MS 18-8 SS | 7CU001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | SCREW, HHCS 1/4-20X3.5 PARTIAL THREADS ECO500 | 72862A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 71 |  | Cuff, Hose End 1.5 to 2 Wire Reinforced | HJ7 | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 72 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 73 | No Image | GASKET, ECO 500, PLUG PLATE | X1219 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 74 | No Image | Plate Eco 500 120V, 1 Plug Rev 01 | X1218 | $64.99Add to cart Special order: ships in 2 to 4 weeks |
| 75 | No Image | Receptacle, Flanged Inlet Straight Blade | X9429 | $25.99Read more |
| 76 | No Image | Cord,Extractors,25ft,Yellow,12/3 SJTW | M1374 | $149.99Add to cart Special order: ships in 2 to 4 weeks |
| 77 | No Image | Plug, 1/2 Inch Black Nylon | 71804A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 78 |  | RELAY DPDT 120V ECO 500 | 72837A | $92.99Add to cart Special order: ships in 2 to 4 weeks |
| 79 |  | Plug, Switch Hole PFX1350 Series | X9173 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 81 | No Image | Pump Label | 72842A | $0.00Read more |
| 82 | No Image | Vacuum Label | 72865A | $0.00Read more |
| 83 | No Image | HOUR METER CASCADE AC | 72411A | $253.99Read more |
| 84 | No Image | Circuit Breaker Extractor 5 amp | X9324 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 85 | No Image | Relay 25A 120V | 71379A | $81.99Add to cart Special order: ships in 2 to 4 weeks |
| 86 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 87 | No Image | Box, Electrical CFR Mid Size | 72772A | $108.99Add to cart Special order: ships in 2 to 4 weeks |
| 88 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 89 |  | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Fitting, Swivel, 3/8 BARB X 3/8 NPT Male | X9602 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 91 |  | Pump, Assembly 500PSI 10g units | PT400DC120 | $1,928.99Add to cart Special order: ships in 2 to 4 weeks |
| 92 | No Image | HINGE CFR MID SIZE | 72768A | $40.99Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
