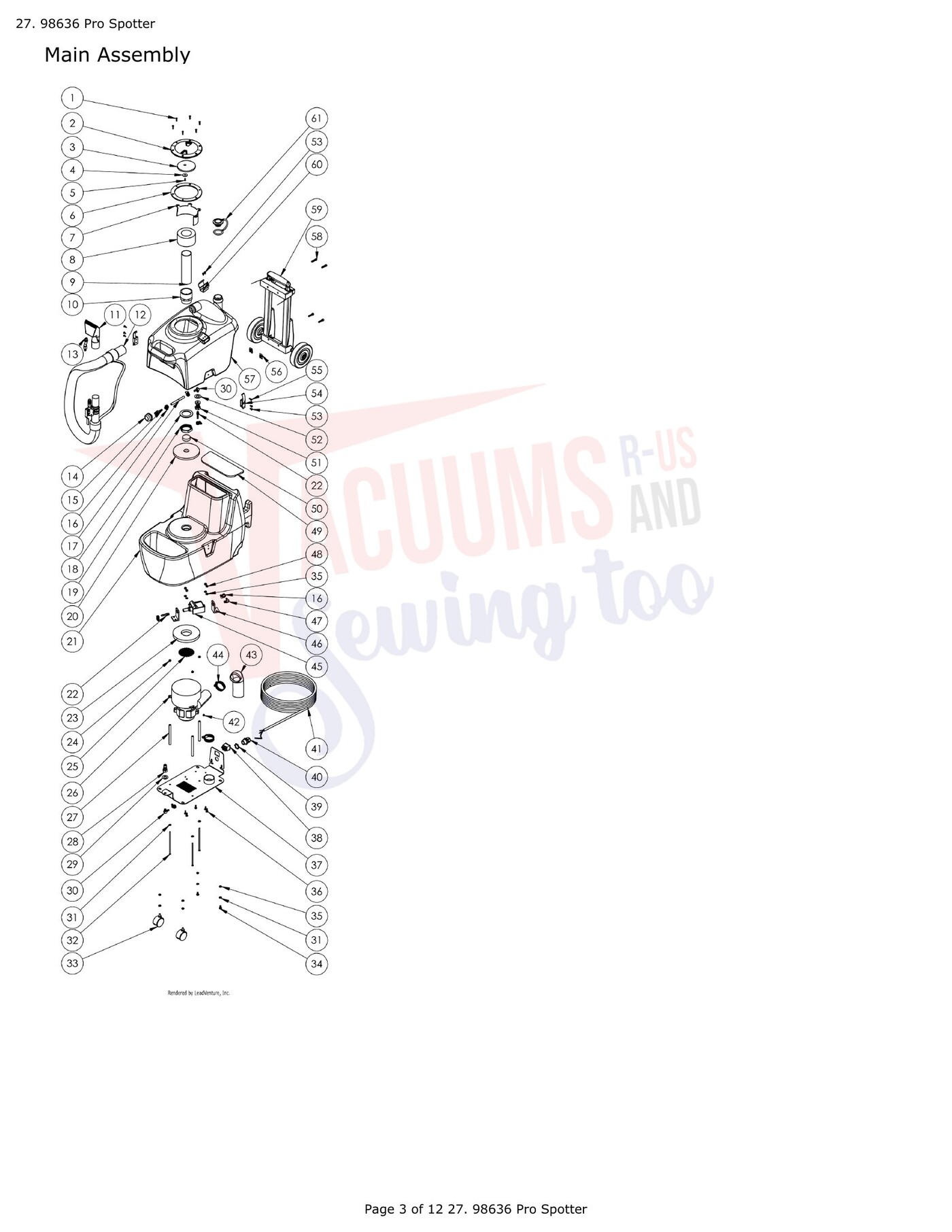

Schematic and parts book for Tornado 98636 Pro Spotter. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | LABEL, FILL LINE INDICATOR | X2045 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | Not Available | Spotter Wand | 98348 | Not Available |
| 1 | No Image | SCREW, No 8 X 3/4 PHIL FLAT TS TYPE A BLK ZINC | X8295 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | LID, 4 Inch Clear W/Blk Ring Spotter | PX103A | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Disk, Shut Off 0.250 X 3.5 Dia Clear Acrylic | X9061 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | WASHER, No 6X5/8 USS FLAT SS | X9087 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | SCREW, 8-18X1/2 PAN HD PHIL SS | X9088 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | GASKET LID 6 OD X 4.6 ID X 3/16 THICK SPOTTER | PX103AG | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Deflector | X9518 | $0.00Read more |
| 8 |  | Float Ring Vacuum Shutoff | X9062 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Pipe, PVC 1-1/2 Diameter Gray 6-1/2 Long | X9082 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | BULKHEAD 1-1/2 MPT X 1-1/2 FEMALE SLIP PVC | X9076 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Tool, Combo W/O Nozzle | 72821A | $304.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Hose, Assy Stretch 10 Ft Spotter PS35 | X9058 | $463.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hose and Receiver w/Valve Attached | 1509WD | Not Available |
| 13 |  | Adapter, Nozzle Spotter 6501 | 72764A | $126.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Filter Extractor Solution Tank Mesh 1/4 FPT | PX30 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | FITTING NYLON 1/4 NPTM X 1/4 HOSE BARB | PX213 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Hose, 1/4 Braided, 250 PSI | 71817A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Nut, Lock Die Cast 1.5 | PX46 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Gasket 3/8 Donut Tank Seal V1510 PVC | X9079 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Solution Tank Spotter 3.5gal Black 9017 | X1920BLK | $162.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Barb Hose 1/4H 1/8 Male | PC66 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Gasket, Flat Airwatt Motor .5 Neoprene Blend | X9696 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Nut 1/4-20 Lock Nylon Insert | X8237 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Screen, Vac Motor Spotter | X9060 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Kit, Motor Replacement 1942-B.2 For Spotters | 1942KIT | $110.99Read more |
| 26 | No Image | Motor Extractor 220 VAC Ametek 2Stg | 1989 | $286.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Mounting Post, 4.585 Spotter Metal | X9045 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | QD Male 1/8 X 1/8 FPT | PC10 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | WASHER, .434 OD .75 ID SEALED | X9412 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Barb Elbow 90 1/4-1/8 | 7AT006 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Scew, 1/4-20 X 5-1/2, Cap Zinc | X8291 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Caster Swivel 45MM 1/4-20 X 3/4 Ps35 | X9047 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | WASHER M6 X 20 X 1.65 FENDER SS CIMEX | 0006000503 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | SCREW PHIL. TRUSS HD No 10 24 X 5/8 (BLK.OX) | 30676 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Mounts,Extractors,Spotters,bottom Base,plate,weldment | X9046 | $98.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | SWITCH ROCKER | X9048 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Strain Relief 1/2” Part Number PD8 for Cleanmax Models CM-WAV | PD8 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Cord Dryer 20ft 18/3 SJTW | X9719 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Cord, 20M Mains(Orange) With Australian 15A Plug | 0435650000 | $119.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Cord,35ft,Black, 3x1.5mm,Euro | 71912A | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | SCREW, No8 X 3/8 PHIL PAN TYPE B TS ZINC | X8201 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Pump,Extractor,Spotter,VAC,Flojet,Oscillating,55PSI,pump only | FJ5082 | $90.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Pump,Extractor,230,VAC,Oscillating | FJ50822 | $94.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Pump Mount,Extractor, Spotter,Flojet | PX204 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 |  | FITTING NYLON 90D ELBOW 1/8 MNPT X 1/4 HOSE BARB | PX214 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 |  | NUT, 10-24 NYLON INSERT LOCK ZINC | X8271 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 |  | Gasket, 1/4 Inch Thick, Solution Tank Spotter | X9064 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | Filter,Extractor,Foam,1-1/2 OD X 1/2 Thick,Spotter | PX209 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Connector Anchor 1/8 NPT | 7AJ004 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Washer 5/8x1-3/16 Bonded Seal Galvanized | 72115A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | SCREW, 8-32 X 1/4 THPH BLK | X8262 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | Latch W/Keeper | X9059 | $0.00Read more |
| 55 | No Image | Screw 8-32x1/2 Pan Hd PH Blk Zinc | X8278 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 |  | Nut 1/4-20 J Type Blk Phosp coated Tinnerman | X9106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | No Image | Tank, Recovery, 3.5 Gallon Spotter, Yellow RAL No 1018 | X1921YEL | $136.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 |  | SCREW HEX SOCKET CAP 1/4-20X1 FACTORY BLACK | X9065 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 |  | Handle, Wheel Assembly Dryer | X8990 | $129.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

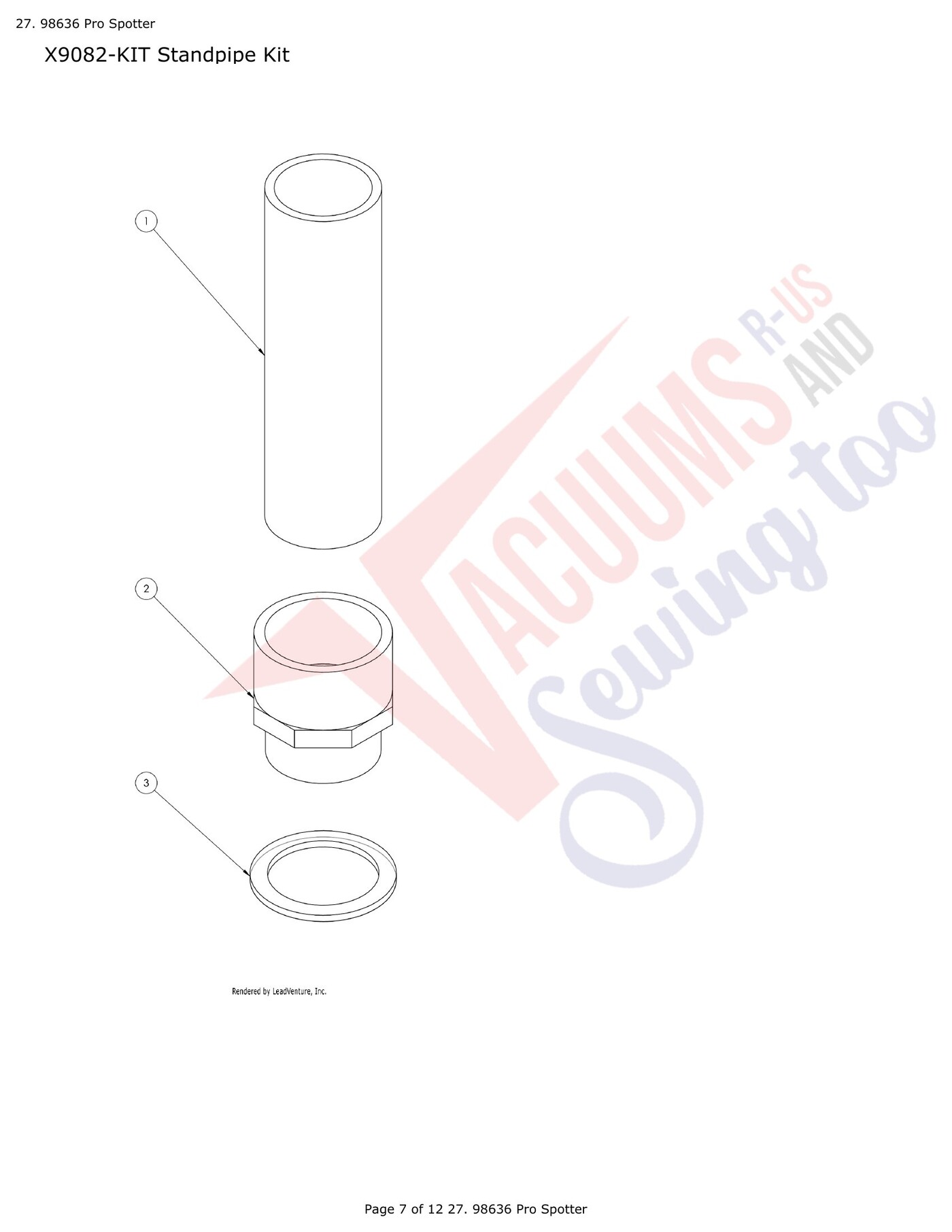

| 1 | | Pipe, PVC 1-1/2 Diameter Gray 6-1/2 Long | X9082 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | BULKHEAD 1-1/2 MPT X 1-1/2 FEMALE SLIP PVC | X9076 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |

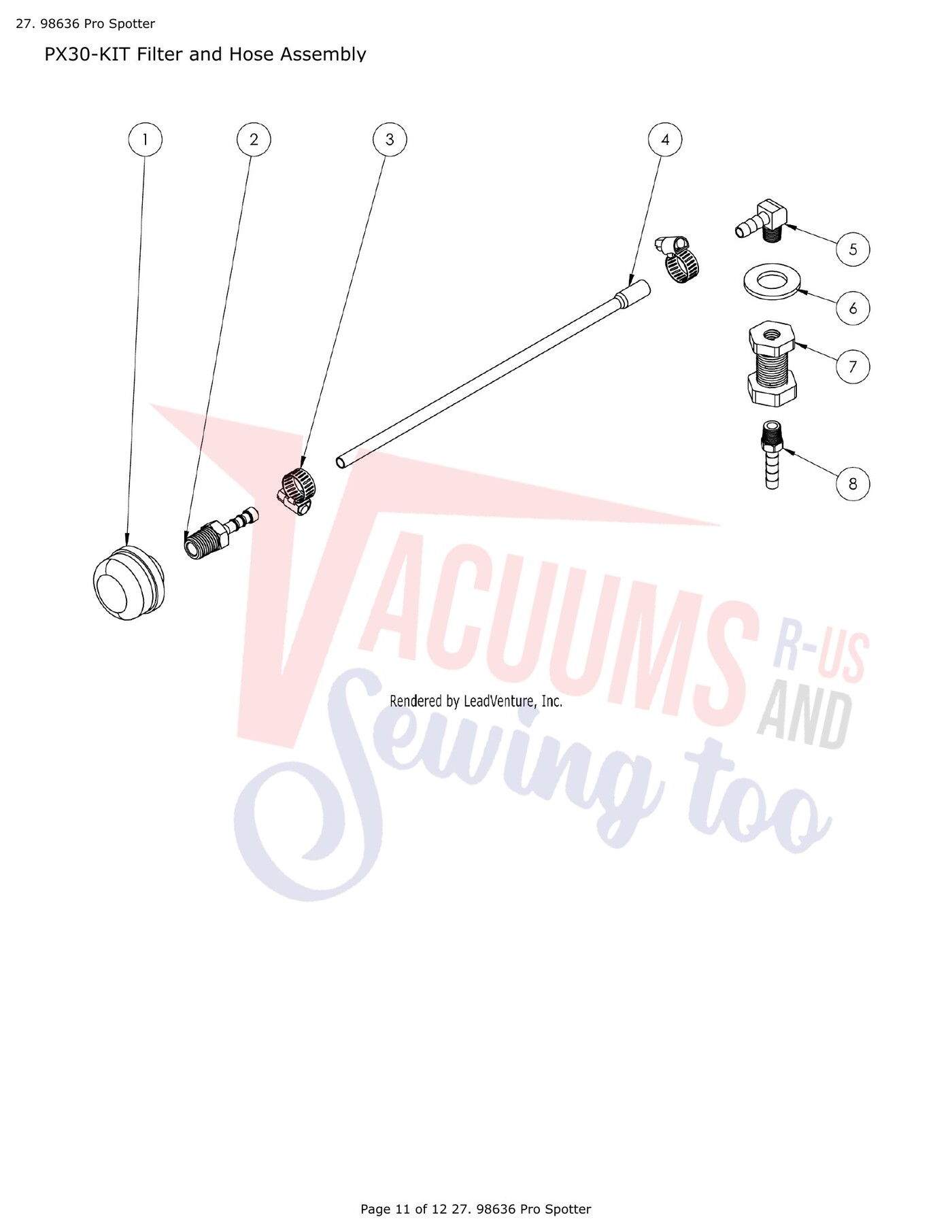

| 1 | No Image | Filter Extractor Solution Tank Mesh 1/4 FPT | PX30 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | FITTING NYLON 1/4 NPTM X 1/4 HOSE BARB | PX213 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Hose, 1/4 Braided, 250 PSI | 71817A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Barb Elbow 90 1/4-1/8 | 7AT006 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Washer 5/8x1-3/16 Bonded Seal Galvanized | 72115A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Connector Anchor 1/8 NPT | 7AJ004 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Barb Hose 1/4H 1/8 Male | PC66 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
