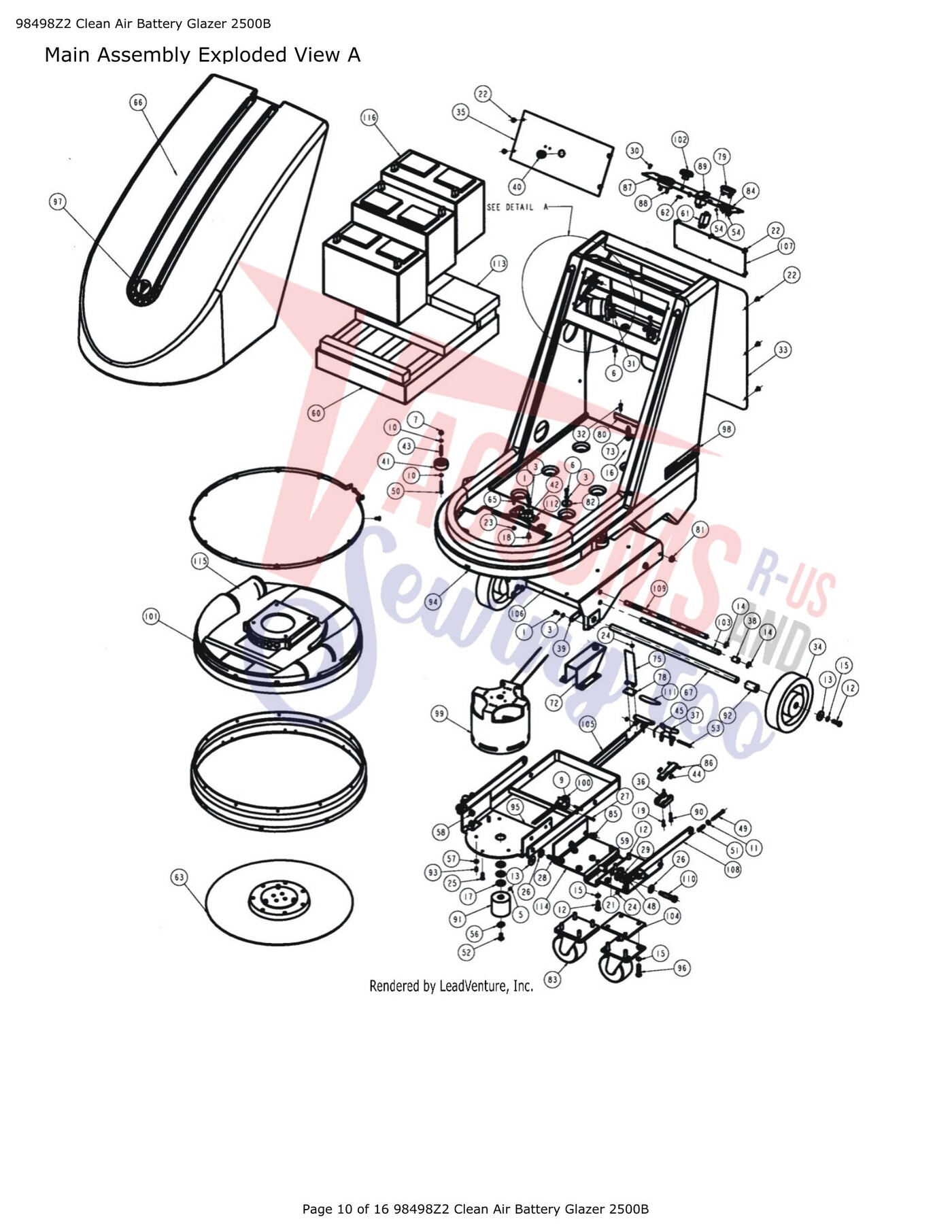

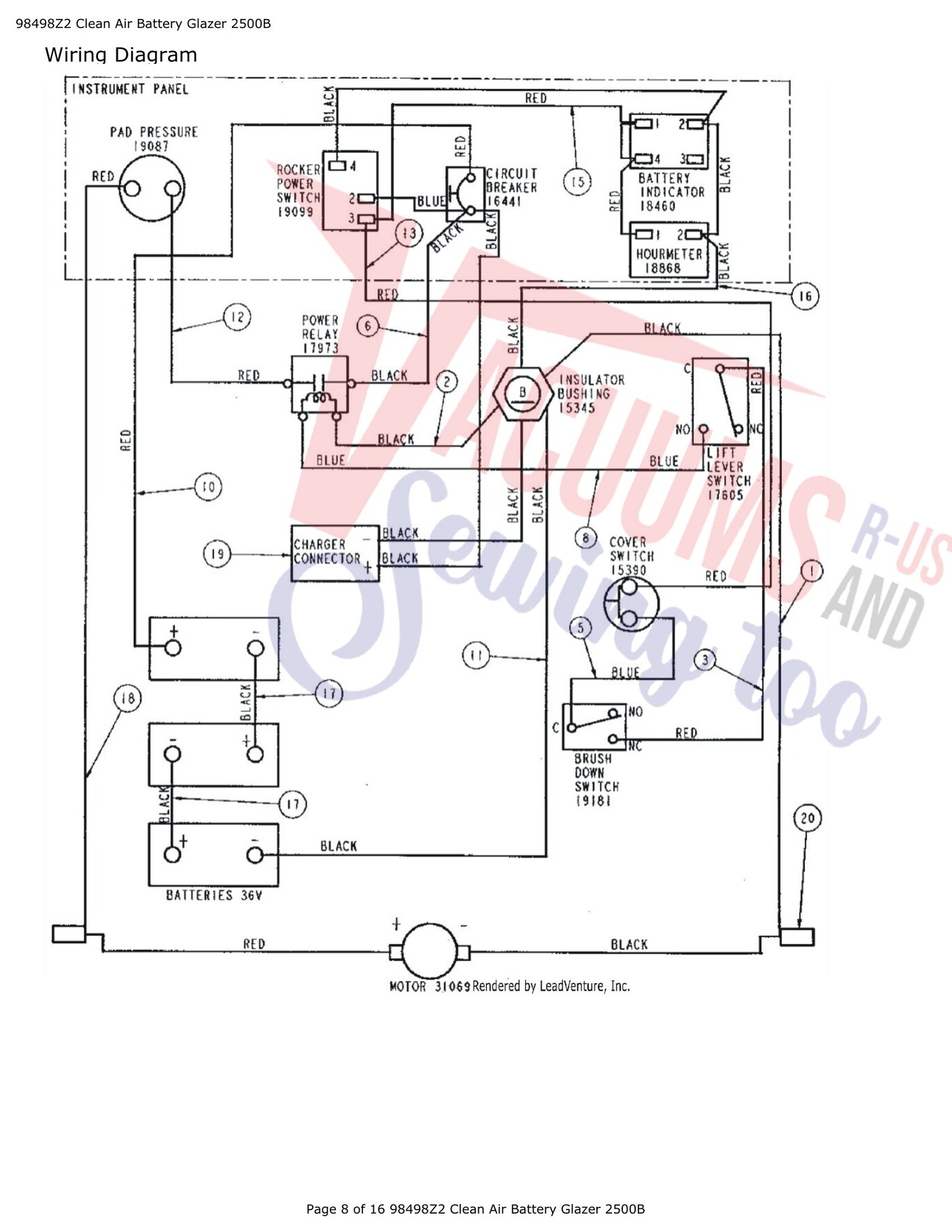

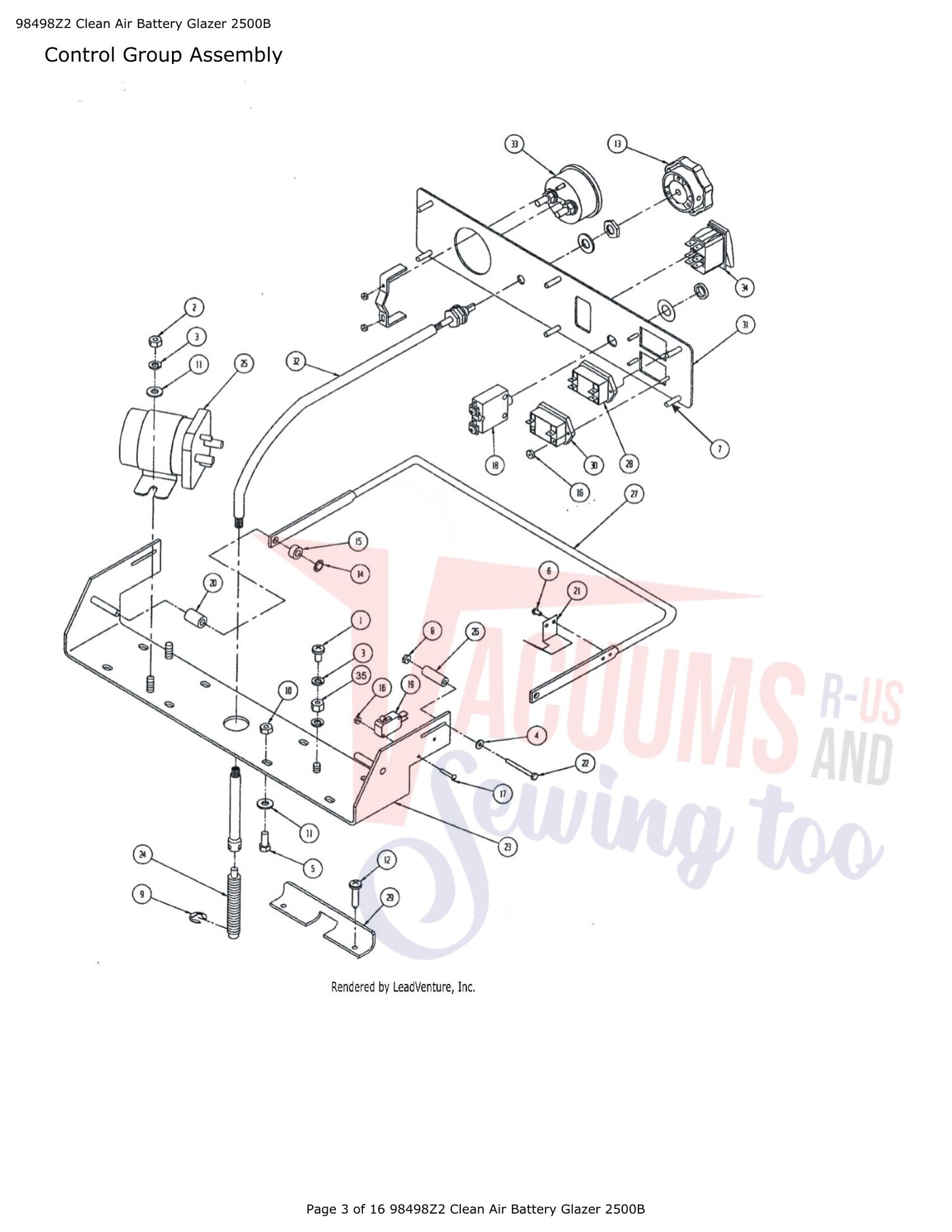

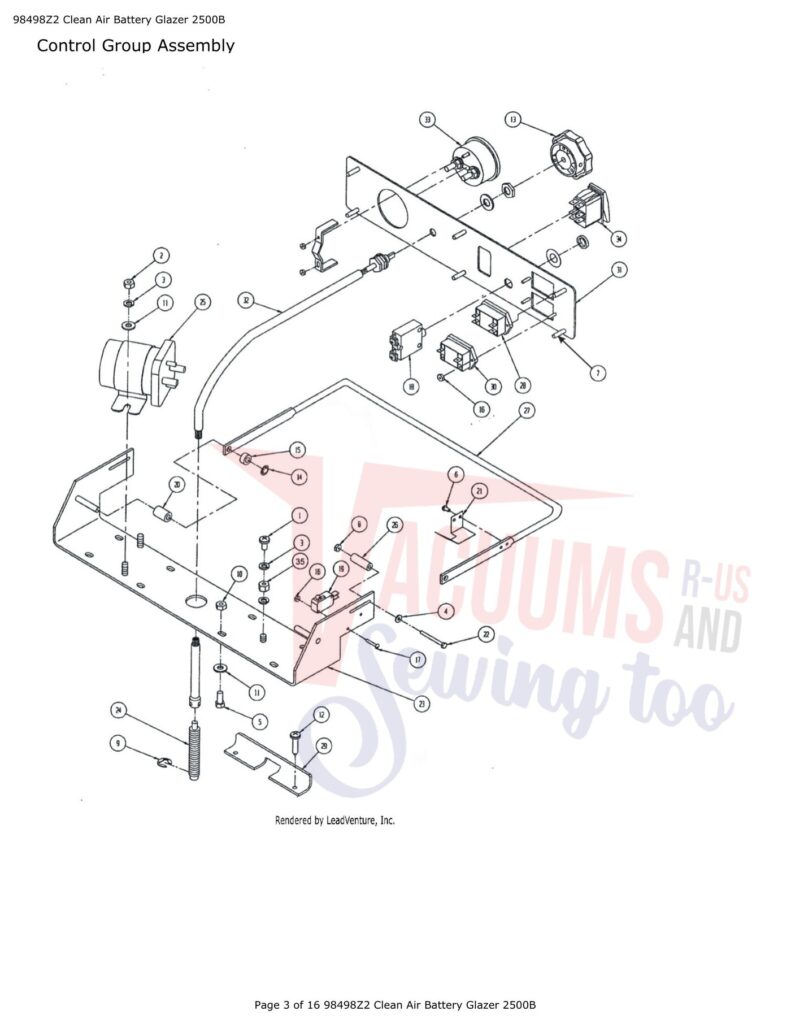

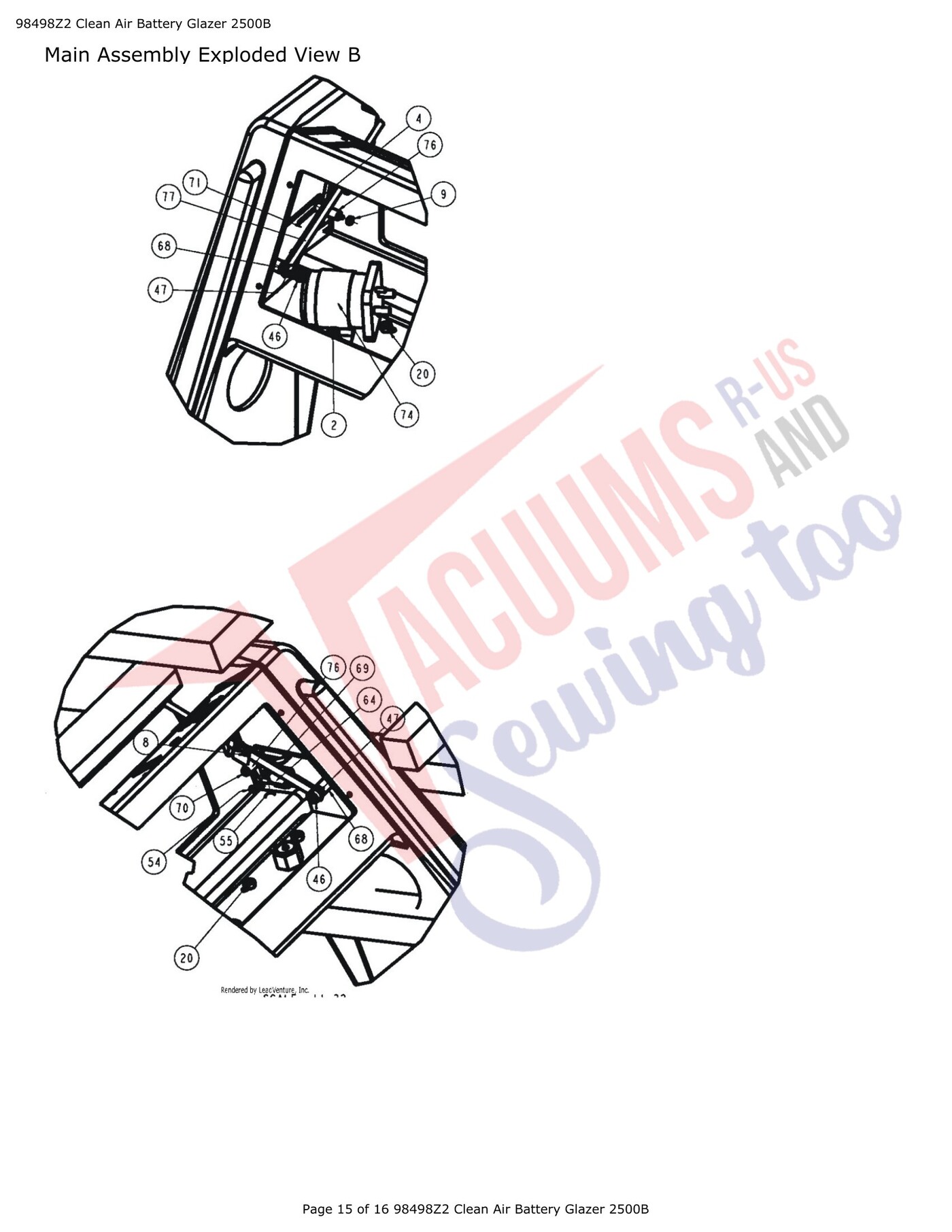

Schematic and parts book for Tornado 98498Z2, 2500b Clean Air Battery Glazer 2500B. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw Rnd Hd PH Machine 1/4 20x1/2 ZP | 00086 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Nut | 01497 | $0.00Read more |
| 3 | No Image | Lock Washer | 01574 | $0.00Read more |
| 4 | Not Available | Washer | 01575 | Not Available |
| 5 | No Image | Screw 1/4-20 X 5/8" | 02047 | $0.00Read more |
| 6 | No Image | Screw #6-32 X 3/8" | 02179 | $0.00Read more |
| 7 |  | SCREW, No 10 12 X 1/2 TFT (A) P.H. | 10677 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Keps Nut | 02958 | $0.00Read more |
| 9 | No Image | RING RETAINING EXT. 3/8 | 03947 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Nut Hex Lock P/T 1/4 20 | 07533 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SCREW, No 10 16 X 1 TFT AB P.H. | 15073 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | KNOB 1.75 OD X .25 INS PHENOLIC W/BRASS INSERT | 31470 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Handle Fastener | 15365 | $0.00Read more |
| 15 | No Image | SPACER HANDLE .25 I.D X .25 LG. NYLON | 15366 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | NUT, No 4 40 HEX.LOCK(KEPS) | 15560 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Screw #4-40 X 3/4" | 15561 | $0.00Read more |
| 18 | No Image | Circuit Breaker 70A | 16441 | $0.00Read more |
| 19 | Not Available | Switch | 17605 | Not Available |
| 28 | No Image | Battery Gauge | 18460 | $0.00Read more |
| 29 | No Image | Bracket | 18544 | $0.00Read more |
| 30 | No Image | Hour Meter | 18868 | $0.00Read more |
| 31 | Not Available | Instrument Panel | 19055 | Not Available |
| 32 | No Image | Flexible Pressure Adjustment Shaft | 19086 | $0.00Read more |
| 33 |  | Guage Amp Pad Pressure | 19087 | $111.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Rocker Switch 36V Dpst | 19099 | $0.00Read more |
| 35 | No Image | Insulator Bushing | 15345 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 10 | No Image | Battery Cable 6 Awg X 30" | 30810 | $0.00Read more |
| 11 | Not Available | Battery Cable 6 AWG x 44" | 30807 | Not Available |
| 17 |  | Cable Battery Jumper 6ga X 18 Blk | 30725 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Battery Charger Assembly | 19332 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw Rnd Hd PH Machine 1/4 20x1/2 ZP | 00086 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Lock Washer | 01574 | $0.00Read more |
| 5 | No Image | Screw 1/4-20 X 5/16" | 02011 | $0.00Read more |
| 6 | No Image | Screw 1/4-20 X 5/8" | 02047 | $0.00Read more |
| 7 | No Image | Acorn Nut | 02167 | $0.00Read more |
| 9 | No Image | Keps Nut | 02958 | $0.00Read more |
| 10 | No Image | Washer Plain .199 ID ZP | 03060 | $2.99Read more |
| 11 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Screw Hex HD Cap 3/8 16x1 ZP | 03320 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Washer | 03321 | Not Available |
| 14 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Lock Washer | 03536 | Not Available |
| 16 | No Image | RING RETAINING EXT. 3/8 | 03947 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | WASHER PLAIN 25/32 ID (ZP) | 03960 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Screw 1/4-20 X 1/2" | 04442 | $0.00Read more |
| 19 | No Image | SCREW SLO. RND HD MACH No 10 24 X 7/8 (ZP) | 07360 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | WASHER SPRING 1/2 (3 WAVE) | 07723 | $1.99Read more |
| 22 | | SCREW, No 10 12 X 1/2 TFT (A) P.H. | 10677 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV | 10892 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Nut 10-24 Nylon Insert Lock Zn | 10894 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Screw Ph Flat Hd 1/4 20x7/8 Machine ZP | 11276 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | WASHER Part Number 12554 for Simplicity Models SCE,SCE | 12554 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | SCREW, No 6 32 X 1 1/4 PHIL. FLAT HD MACH ZP | 12839 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Shoulder Screw 1/2" X 12" | 12922 | $0.00Read more |
| 29 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Screw #10-12 X 3/8" | 13330 | $0.00Read more |
| 31 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | SCREW, No 10 16 X 1 TFT AB P.H. | 15073 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Back Panel | 15251 | Not Available |
| 34 |  | Wheel, 8 Dia X 2 | 15274 | $69.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Access Cover | 15280 | Not Available |
| 36 | No Image | Latch Block | 15285 | $0.00Read more |
| 37 | No Image | Latch Release | 15286 | $0.00Read more |
| 38 | No Image | Spacer | 15313 | $0.00Read more |
| 39 | No Image | Axle Locking Plate | 15325 | $0.00Read more |
| 40 | | STRAIN RELIEF BUSHING Part Number 15330 for Simplicity Models SCE | 15330 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | WHEEL RUB 2 DIA/GREY | 15332 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | Insulator Bushing | 15345 | $0.00Read more |
| 43 | Not Available | Rub Wheel Axle | 15346 | Not Available |
| 44 | | Spring Part Number 15357 for Cleanmax Models CM-WAV | 15357 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Spring | 15358 | $0.00Read more |
| 48 | Not Available | Adjustment Slide | 15374 | Not Available |
| 49 | Not Available | Screw 1/4" x 2" | 15377 | Not Available |
| 50 | No Image | Screw #10-24 X 1-3/4" | 15378 | $0.00Read more |
| 51 | Not Available | Adjustment Spring | 15379 | Not Available |
| 52 | Not Available | Screw 5/16-24 x 3/4" | 15401 | Not Available |
| 53 |  | SCREW, No 10 24 X 2.00 SLO. RND HD MACH ZP | 15497 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | NUT, No 4 40 HEX.LOCK(KEPS) | 15560 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | Not Available | Spacer | 15633 | Not Available |
| 57 | No Image | Keps Nut | 16129 | $0.00Read more |
| 58 | No Image | NUT HEX.FLNGD.LOCK(WHZ) 3/8 16 | 16186 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | Not Available | Spacer | 16212 | Not Available |
| 60 |  | Tray, Battery EZ | 16317 | $115.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | No Image | Circuit Breaker 70A | 16441 | $0.00Read more |
| 62 | No Image | WASHER, 3/8 LOCK IT | 16586 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | Pad Holder Assembly | 17097 | $0.00Read more |
| 65 | No Image | Screw Ph Truss HD No.10 24x1/2 SS | 17848 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | Not Available | Top Housing | 17946 | Not Available |
| 75 | No Image | Toe Guard Bracket | 17975 | $0.00Read more |
| 78 | No Image | Rub Plate | 17986 | $0.00Read more |
| 79 | No Image | Battery Gauge | 18460 | $0.00Read more |
| 80 | No Image | Bracket | 18544 | $0.00Read more |
| 81 | No Image | NUT, 5/16 18 HEX.FLNGD.LOCK WHZ | 18562 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | No Image | Washer | 18642 | $0.00Read more |
| 83 | No Image | Caster, Swivel 4 Dia | 18773 | $146.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | No Image | Hour Meter | 18868 | $0.00Read more |
| 85 | No Image | Proheat Essential | 18872 | $323.98Read more |
| 86 |  | Latch, Assembly | 18988 | $76.99Read more |
| 87 | Not Available | Instrument Panel | 19055 | Not Available |
| 88 | | Guage Amp Pad Pressure | 19087 | $111.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | No Image | Rocker Switch 36V Dpst | 19099 | $0.00Read more |
| 90 | No Image | SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) | 19205 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 91 | No Image | Collar, Pad Retaining (98498 ) Steel Rnd.1018 | 19550 | $215.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 92 | No Image | Spacer | 19558 | $0.00Read more |
| 93 | No Image | SCREW SET SOCK. 1/4 20 X 3/4 | 19559 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 94 | Not Available | Bottom Housing Frame | 19560 | Not Available |
| 95 | Not Available | Motor Mounting Bracket | 19562 | Not Available |
| 96 | No Image | SCREW, 5/16 18 X 5/8 HEX HD CAP ZP | 19795 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 98 | No Image | Decal TOR with Logo 1.75x7.25 White | 30815 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 99 | No Image | Motor Burnisher 36 VDC Brush BGLZ 2000rpm | 31069 | $978.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Lever, Switch Angle Mounting (98498, 98499) | 31098 | $181.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 101 | No Image | Shroud Assembly | 31168 | $0.00Read more |
| 102 | | KNOB 1.75 OD X .25 INS PHENOLIC W/BRASS INSERT | 31470 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 103 | No Image | Axle 13-3/8" | 31616 | $0.00Read more |
| 104 | Not Available | Nylon Caster Spacer | 32028 | Not Available |
| 105 | Not Available | Lift Lever Weldment | 32051 | Not Available |
| 106 | Not Available | Chassis Weldment | 32052 | Not Available |
| 107 | Not Available | Back Circuit Breaker Panel Cover | 32075 | Not Available |
| 108 |  | FILTER HEPA STYLE 7916 Bissell repair part number: 32076 | 32076 | $18.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 108 |  | Compatible alternateBissell HEPA Filter Designed to Fit Style 9 HEPA Filter Part # 32076 More Product Details | BR18005 | $9.52Add to cart |
| 109 | Not Available | Axle | 32077 | Not Available |
| 110 | No Image | SCREW SOCKET HD SHOULDER 1/2D X 1 3/4 (ZP) | 32078 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 111 |  | PAD MOTOR LIFT PEDAL (E/Z and G/G) 2.50 WIDE | 19006 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 112 | No Image | Circuit Breaker Mounting Plate | 18355 | $0.00Read more |
| 114 | No Image | Caster, Chanel Weldment (Blk) Battery Glazer | 32496 | $195.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 115 | No Image | Filter,Burnisher,Dust | 19069 | $80.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 116 | No Image | Battery 12V 140 Ah Wet | 98799 | $0.00Read more |
| 117 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 118 | No Image | Screw #6-32 X 1" | 06686 | $0.00Read more |
| 119 | Not Available | Washer | 13739 | Not Available |
| 120 | No Image | Battery Caution Label | 13974 | $0.00Read more |
| 122 | No Image | Switch Pushbutton Bat G | 15390 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 123 | Not Available | Battery Arrangement Label | 15404 | Not Available |
| 124 | No Image | 36V Label | 15611 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 2 | No Image | Nut | 01497 | $0.00Read more |
| 4 | Not Available | Washer | 01575 | Not Available |
| 8 | No Image | Screw #6-32 X 3/8" | 02179 | $0.00Read more |
| 9 | No Image | Keps Nut | 02958 | $0.00Read more |
| 20 | No Image | Nut Hex Lock P/T 1/4 20 | 07533 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Handle Fastener | 15365 | $0.00Read more |
| 47 | No Image | SPACER HANDLE .25 I.D X .25 LG. NYLON | 15366 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | NUT, No 4 40 HEX.LOCK(KEPS) | 15560 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | No Image | Screw #4-40 X 3/4" | 15561 | $0.00Read more |
| 64 | Not Available | Switch | 17605 | Not Available |
