Schematic and parts book for Tornado 98494 Battery Glazer 17. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nyloc Nut | 00-0800-0751 | Not Available |
| 2 | Not Available | Screw M8 x | 00-0850-0091 | Not Available |
| 3 | No Image | SELF TAPPER CAS16 98494 | 0235180000 | $4.99Read more |

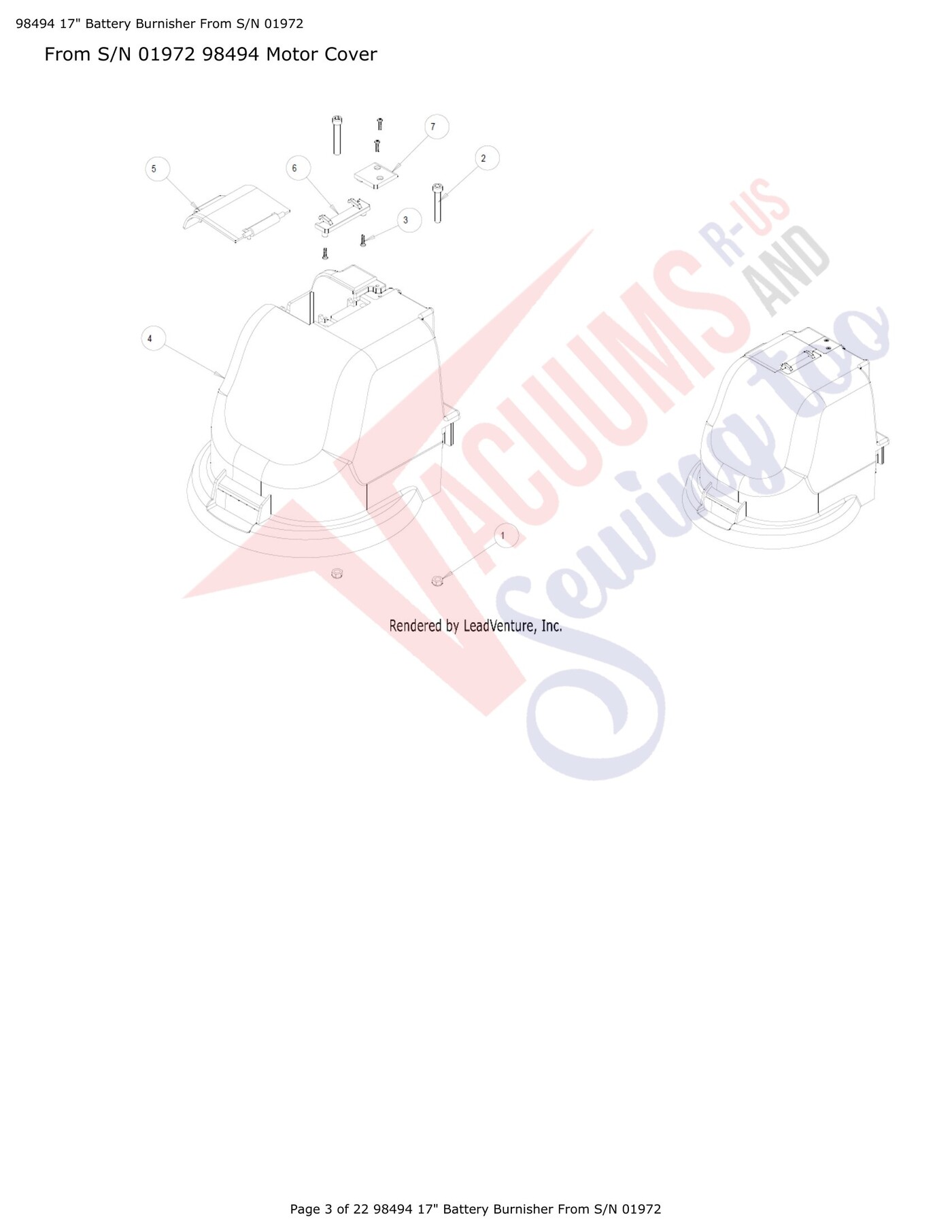

| 4 | No Image | COVER MOTOR YELLOW RAL1018 98494 | 0381430056 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | COVER CABLE - YELLOW RAL1018 98494 | 0381480056 | $13.99Read more |
| 6 | No Image | COVER HINGE YELLOW RAL1018 98494 | 0381490056 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Cable Clamp | 03-8150-0056 | Not Available |
| 8 | No Image | Motor Cover Assembly | 0545720000 | $0.00Read more |

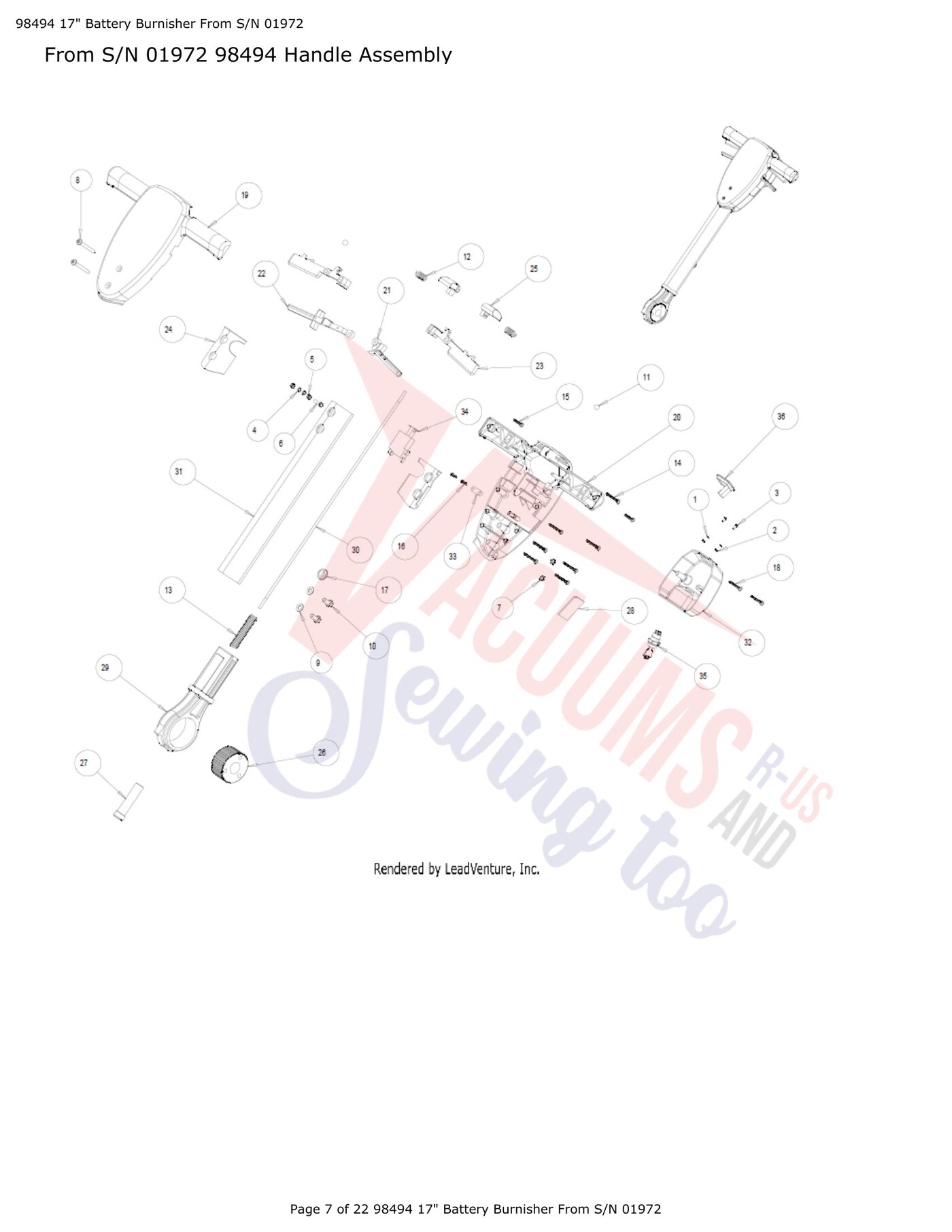

| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| XX | No Image | KEY ONLY 98494 SET OF 2 | 0245580000 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Washer | 00-0300-0501 | Not Available |
| 2 | Not Available | Nut | 00-0300-0701 | Not Available |
| 3 | Not Available | Screw M3 x | 00-0308-0011 | Not Available |
| 4 | No Image | M5 SPRING WASHER | 0005000511 | $2.99Read more |
| 5 | No Image | NUT M5 FULL Z/P 98494 CAS16 | 0005000701 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Screw M5 x | 00-0520-0111 | Not Available |
| 7 | Not Available | Nut | 00-0600-0771 | Not Available |
| 8 | No Image | SCREW M6 X 50 POZI PANHEAD Z/P 98494 | 0006500011 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Washer | 00-0800-0501 | Not Available |
| 10 | No Image | SCREW M8 X 16 HEX HTG 8.8 Z/P 98494 CAS16 | 0008160111 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Ball Bearing 10mm 98494 | 0231860000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SPRING HANDLE INTERLOCK 98494 CAS16 2 REQUIRED | 0235100000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | GEAR DOG SPRING CAS16 PAS14G | CAS22 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Screw, No 10 X 1 3/4 | X2295 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | KB50 x 25 Self Tap Screw Pozi Pan Head Zinc Plated | CAS24 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SELF TAPPER CAS16 98494 | 0235180000 | $4.99Read more |
| 17 | Not Available | Grommet | 02-3520-0000 | Not Available |
| 18 | Not Available | Screw 50 x | 02-4613-0000 | Not Available |
| 19 | Not Available | Control Box Front | 03-6086-0025 | Not Available |
| 20 | Not Available | Control Box Rear | 03-6087-0025 | Not Available |
| 21 | No Image | LEVER SOLUTION 98494 | 0360880067 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | LEVER GEAR OPERATING 98494 CAS16 PAS14G | 0360890067 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | TRIGGER 98494 PAS14G | 0360900067 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Rubber Molding | 03-6091-0000 | Not Available |
| 25 | No Image | HANDLE INTERLOCK FOR PAS14G | 0360920067 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Handle Adjustment Gear | 03-6096-0000 | Not Available |
| 27 | Not Available | Handle Adjustment Gear Dog | 03-6097-0000 | Not Available |
| 29 | No Image | Alum Knuckle Pressure Die Cast Drg SD017 | 0378310000 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Adjusting Rod | 0379190000 | $0.00Read more |
| 31 | No Image | HANDLE TUBE OVAL SOLARIS 98494 CAS16 | 0379270000 | $72.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Handle Box | 03-8157-0025 | Not Available |
| 33 | Not Available | Cable Clamp | 04-0237-0000 | Not Available |
| 34 |  | SCHULTE SWITCH CAS16 | CAS40 | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | KEYSWITCH 98494 | 0436540000 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | TRUCHARGE MODULE KIT 98494 | 0437230000 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 285 | No Image | HANDLE, SOCKET BLANKING PLATE RAL9005 | 0366930067 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Spring Washer | 0010000513 | $0.00Read more |
| 2 | No Image | Nut | 0010000701 | $0.00Read more |
| 3 | Not Available | Washer | 00-1200-0503 | Not Available |
| 4 | No Image | EXTERNAL CIRCLIPNOMINAL SHAFT 11MM 1400-11MM | 0241650000 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

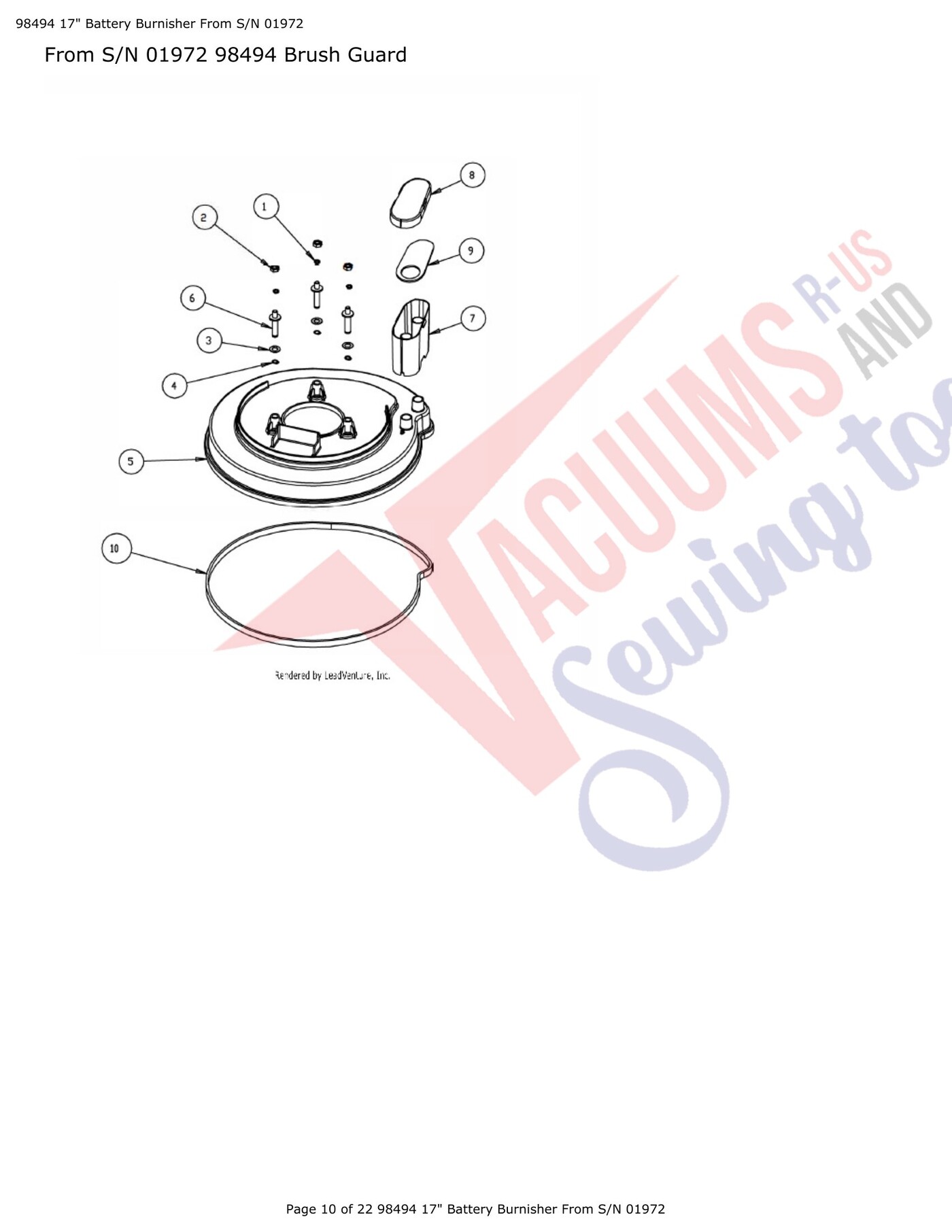

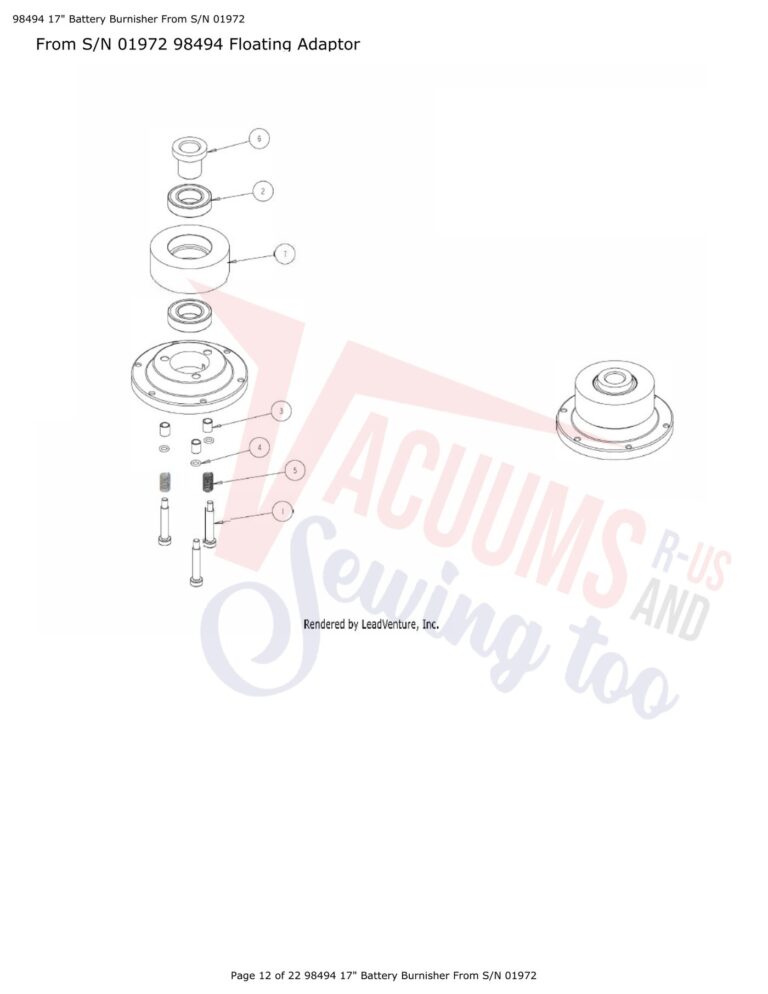

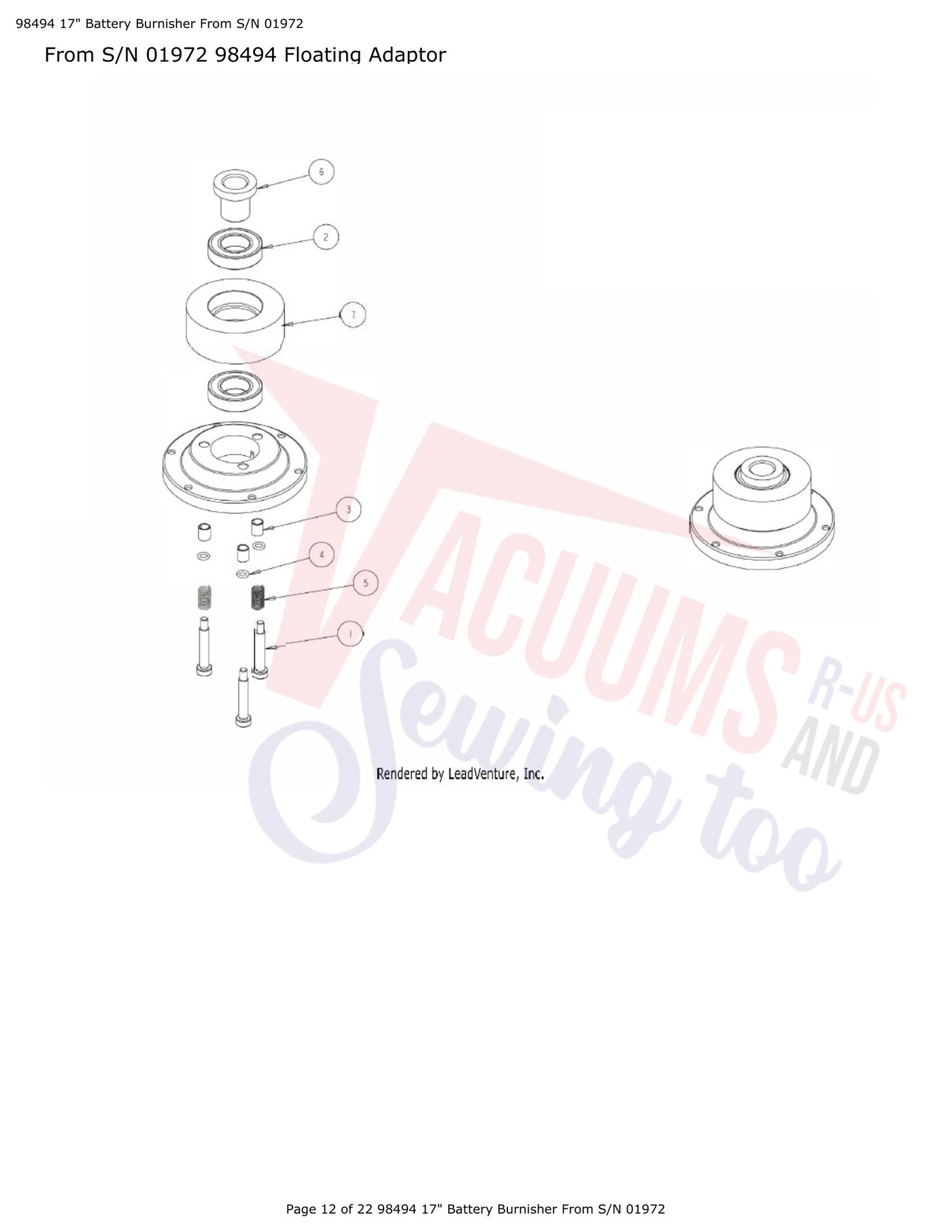

| 5 |  | BRUSH GUARD BLACK RAL9005 98494 | 0381370067 | $50.99Read more |
| 6 | No Image | Brush Guard Pillar | 0381380000 | $0.00Read more |
| 7 |  | DUST COLLECTOR 98494 | 0381510000 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Dust Collector Lid | 03-8152-0025 | Not Available |
| 9 | No Image | GASKET DUST COLLECTOR 98494 | 0381580000 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | STRIP FELT 98494 | 0381940000 | $13.99Read more |
| # | Part image | Description | SKU | Price |

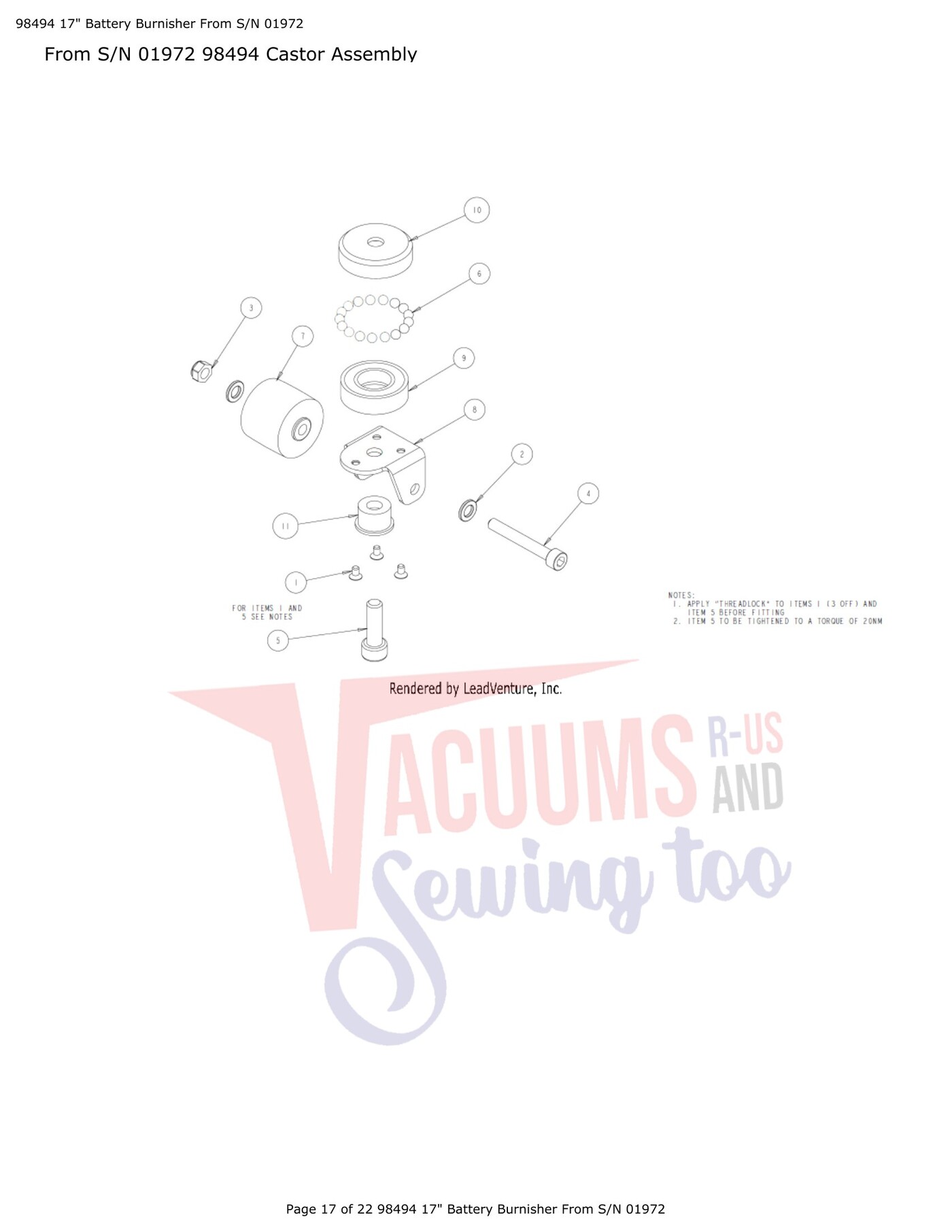

| 1 | No Image | BOLT M6 X 8 X 40 SHOULDER 98494 CAS16 | 0235230000 | $8.99Read more |
| 2 | Not Available | Bearing 6005-2RS | 02-3846-0000 | Not Available |
| 3 | No Image | BEARING PLAIN PAP 0812 P10 98494 | 0244940000 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | O-RING 7.5 X 2MM 98494 | 0244960000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | SPRING COMPRESSION 98494 | 0245410000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Bearing Support | 03-6718-0000 | Not Available |
| 7 | Not Available | Drive Pulley | 03-7987-0000 | Not Available |
| 8 | No Image | FLOATING ASSEMBLY 98494 | 0545610000 | $269.99Read more |

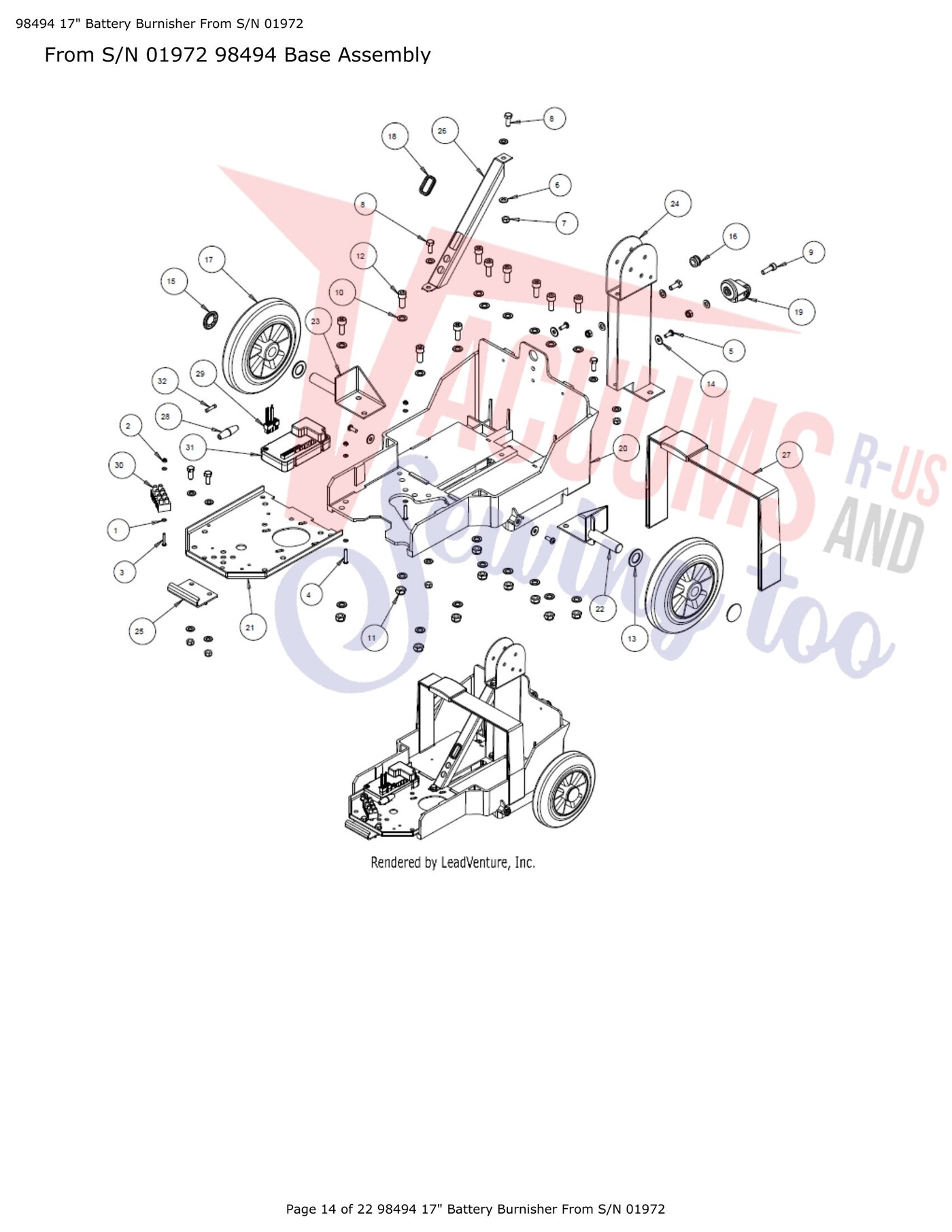

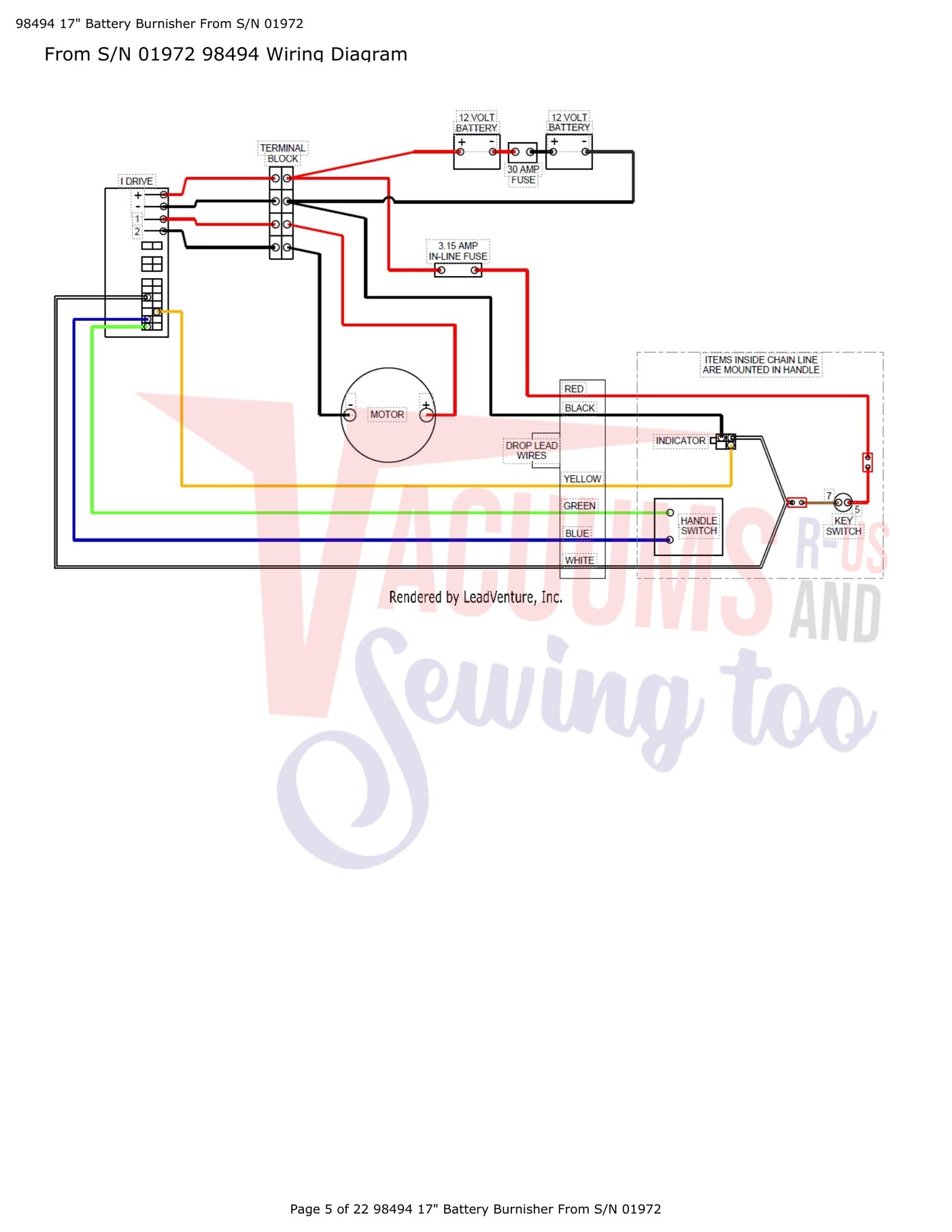

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Washer | 00-0400-0501 | Not Available |
| 2 | Not Available | Nyloc Nut | 00-0400-0721 | Not Available |
| 3 | Not Available | Screw M4 x | 00-0425-0023 | Not Available |
| 4 | Not Available | Screw M4 x | 00-0430-0011 | Not Available |
| 5 | Not Available | Screw M6 x | 00-0616-0011 | Not Available |
| 6 | No Image | WASHER, M8 FENDER SS CIMEX CAS16 | 0008000503 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Nyloc Nut | 00-0800-0751 | Not Available |
| 8 | Not Available | Bolt M8 x | 00-0820-0111 | Not Available |
| 9 | Not Available | Screw M8 x | 00-0825-0091 | Not Available |
| 10 | No Image | WASHER, M8 FENDER SS CIMEX CAS16 | 0008000503 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Nyloc Nut | 00-1000-0721 | Not Available |
| 12 | Not Available | Socket Head Bolt M10 x | 00-1025-0103 | Not Available |
| 13 | No Image | Washer | 0020000501 | $0.00Read more |
| 14 | Not Available | Washer | 02-3127-0000 | Not Available |
| 15 | No Image | CAP, 20MM STARLOCK | 0233730000 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Grommet | 02-4524-0000 | Not Available |
| 17 | No Image | WHEEL 200MM DIA ROLLER BEARING 98494 | 0246090000 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Grommet | 02-4610-0000 | Not Available |
| 19 | No Image | CASTER LIGHTWEIGHT 98494 | 0246110000 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Battery Burnisher Chassis Jet Blk | 0381330067 | $130.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Motor Tray | 03-8134-0000 | Not Available |
| 22 | Not Available | Stub Axle Left | 03-8135-0000 | Not Available |
| 23 | No Image | STUB AXLE - RIGHT HAND 98494 | 0381360067 | $17.99Read more |
| 24 | No Image | Handle Support | 0381390000 | $53.99Read more |
| 25 | Not Available | Lift Handle | 03-8140-0000 | Not Available |
| 26 | No Image | TIE BAR 98494 | 0381460000 | $9.99Read more |
| 27 | Not Available | Battery Strap | 03-8202-0000 | Not Available |
| 28 | Not Available | Inline Fuse Holder | 04-3631-0000 | Not Available |
| 29 | Not Available | Molex Connector | 04-3725-0000 | Not Available |
| 30 | Not Available | Terminal Block (3-Way) | 04-3884-0000 | Not Available |
| 31 | No Image | I DRIVE CONTROLLER D51123 98494 | 0438860000 | $324.99Read more |
| 32 | Not Available | In-Line Fuse 3.15A | 04-3895-0000 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw M4 x | 00-0406-0031 | Not Available |
| 2 | No Image | WASHER M6 X 20 X 1.65 FENDER SS CIMEX | 0006000503 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Nyloc Nut | 00-0600-0751 | Not Available |
| 4 | Not Available | Screw M6 x | 00-0645-0093 | Not Available |
| 5 | Not Available | Screw M8 x | 00-0825-0091 | Not Available |
| 6 | Not Available | Ball | 02-4607-0000 | Not Available |
| 7 | No Image | CASTOR 35MM DIA 98494 | 0246080000 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Caster Carrier | 03-8153-0000 | Not Available |
| 9 | No Image | RACE CASTER LOWER 98494 | 0381540000 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Upper Caster Race | 03-8155-0000 | Not Available |
| 11 | Not Available | Bushing | 03-8156-0000 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Washer | 00-0600-0501 | Not Available |
| 2 | Not Available | Spring Washer | 00-0600-0511 | Not Available |
| 3 | No Image | Screw M6 X 16 | 0006160091 | $0.00Read more |
| 4 | No Image | BOLT M6 X 16 HEX HEAD 98494 | 0006160111 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Nut | 00-0800-0701 | Not Available |
| 6 | Not Available | Bolt M8 x | 00-0860-0111 | Not Available |
| 7 | No Image | Washer | 0020000501 | $0.00Read more |
| 8 | No Image | Internal Tooth Lock Washer | 0020000521 | $0.00Read more |
| 9 | No Image | Nut | 0020000701 | $0.00Read more |

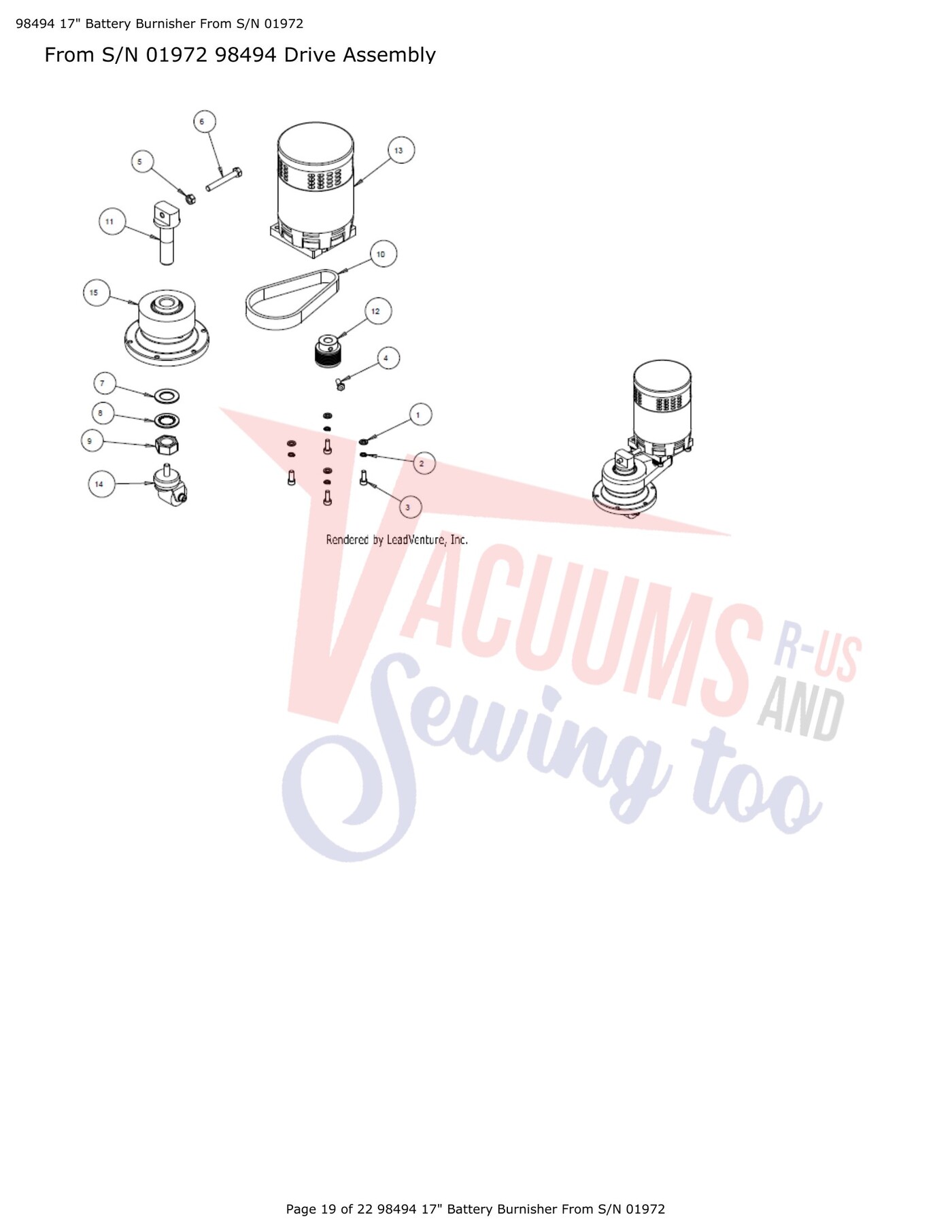

| 10 |  | Belt,Burnisher,Battery,V-Belt | 0245310000 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | CENTER SPINDLE 98494 | 0367190000 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | PULLEY MOTOR 98494 | 0379620000 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Motor, Pad Driver 98494 | 0439900000 | $205.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | CASTOR ASSEMBLY 98494 | 0545600000 | $68.99Read more |
| 15 | No Image | FLOATING ASSEMBLY 98494 | 0545610000 | $269.99Read more |

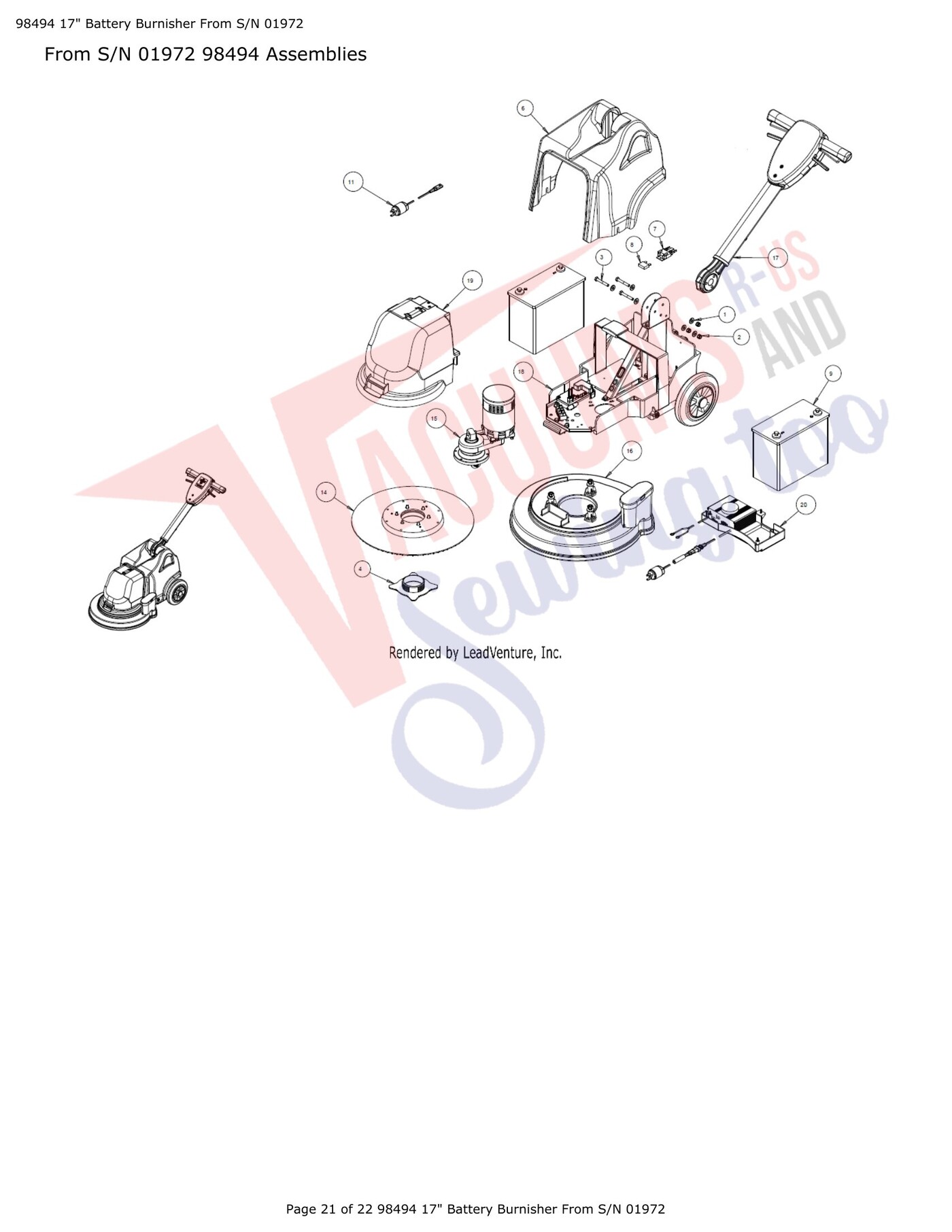

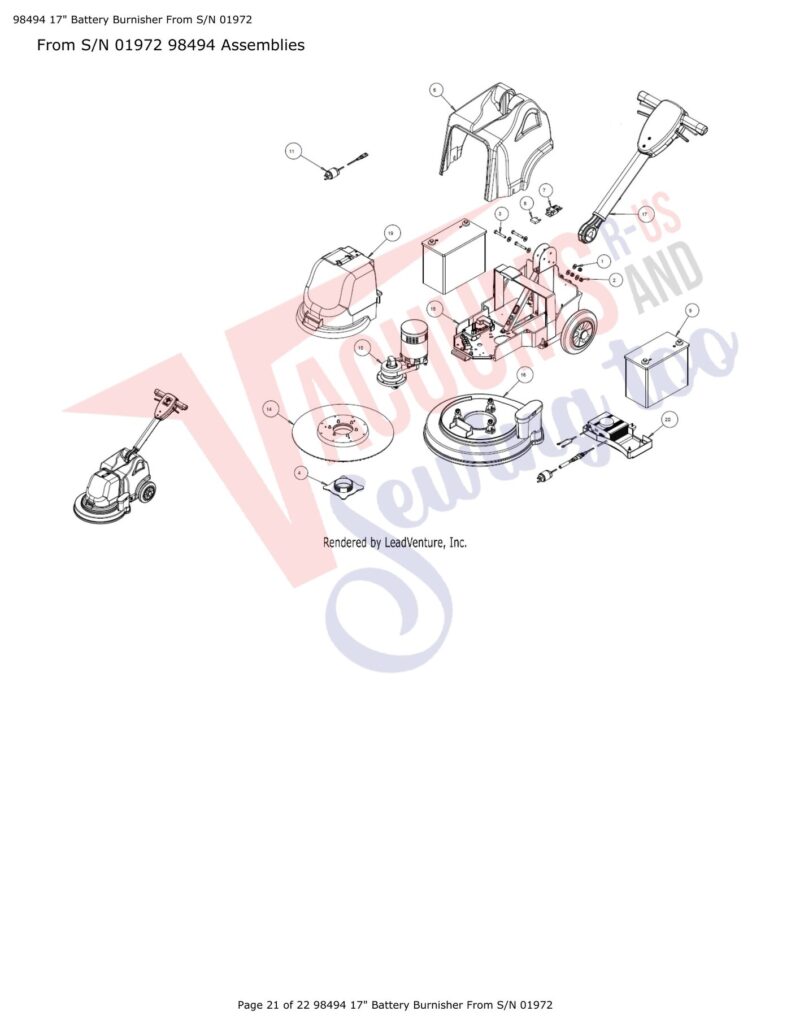

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | KEY ONLY 98494 SET OF 2 | 0245580000 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | WASHER M8 FORM C 98494 CAS16 | 0008000551 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | NUT M8 NYLOC CAS16 98494 | 0008000721 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Bolt M8 X 55 | 0008550121 | $0.00Read more |
| 4 |  | CENTER LOCK RING FOR 05-4085-0000 98494 | 0238530000 | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Black Battery Cover | 0381440025 | $0.00Read more |
| 7 | No Image | FUSE HOLDER 98494 | 0436650000 | $45.99Read more |
| 8 | No Image | FUSE 30A 98494 | 0437610000 | $10.99Read more |
| 9 |  | Battery Burnisher 12 AGM Discover 55A | 99562 | $596.99Read more |
| 11 | Not Available | Charger Cord - US | 04-3979-0000 | Not Available |
| 14 |  | Driver, Flex Pad 17 inch 98494 | 0540850500 | $134.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | DRIVE ASSEMBLY 98494 | 0545620000 | $513.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Guard, brush assembly for 98494 | 0545640000 | $115.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | HANDLE ASSEMBLY 98494 | 0545770000 | $480.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Base Assembly | 05-4566-0000 | Not Available |
| 19 | No Image | Motor Cover Assembly | 0545720000 | $0.00Read more |
| 20 |  | CHARGER ASSEMBLY USA 98494 | 0545790000 | $506.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
