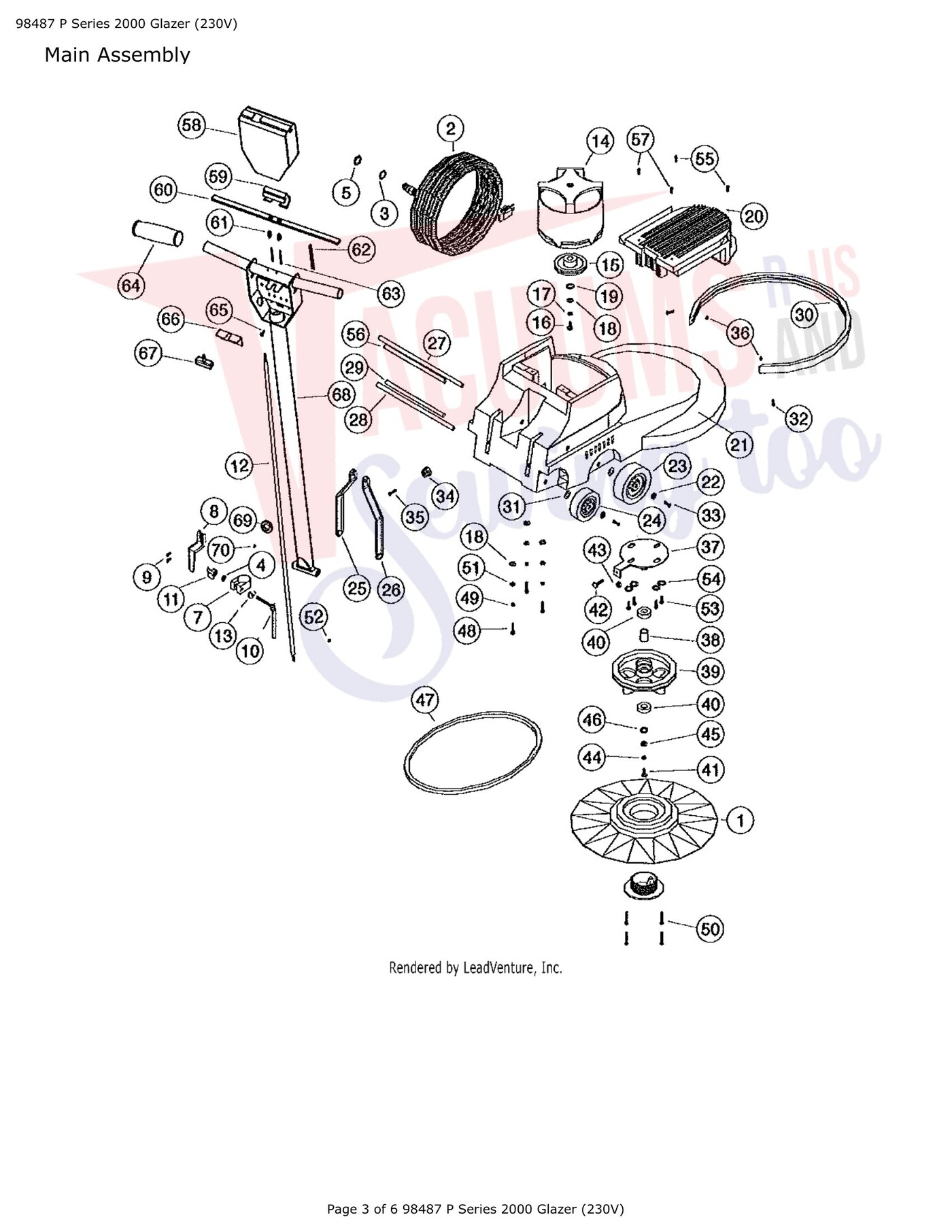

Schematic and parts book for Tornado 98487 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Pad Driver, Flexible | X8862 | $268.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Cord,Burnisher,75ft,Black,14/3,EURO | M1401EURO | $115.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 4 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Cord, Inline,Floor Machine/Burnisher,49 Inch,Black,14/3 SJTWA,W/Out Strain Relief | X8022 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Motor 230Vac | X80372D | $0.00Read more |
| 14 |  | Motor,Burnisher,220,VAC,1.5HP,Imperial Electric | X80372P | $1,625.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Pulley, M2000 O-Groove 4.063 OD | X9298 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW 5/16-18X 1 1/2 PHIL FLAT M/S ZINC | X8216 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | WASHER, 3/8 USS FLAT ZINC | X8230 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | COVER, BURNISHER MTR YELLOW TORNADO | X8041TOR | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | BURNISHER HOUSING M SERIES | X8050A | $383.99Read more |
| 22 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Axle, 1/2X14-1/2 M Burnisher | X8816 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Axle, 1/2X14-1/2 M Burnisher | X8816 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Shaft, Pivot Brace 1/2 X 10 M Style Burnisher | X8813 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | BUMPER 45.75 BLU/BLK | X8030G | $55.99Read more |
| 31 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | BOLT, 8-32 X 3/4 PHIL TRUSS MS BLK ZINC | X8821 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | BUMPER RECESSED POLYETHY 1-1/8 BASE 3/4 HGT 13/64 HOLE | X8258A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | SCREW, No 8 X 1 PHPH TYPE A | X8258AS | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | SPACER BLK NYL NO 8 .17ID X .25OD X .25L | X8822 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Weldment, Shaft And Plate | X8091 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Bearing Spacer | X8092 | $0.00Read more |
| 39 | No Image | Pulley, Main Burnisher | X8096 | $109.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Bearing, Ball Rubber Sealed On Both Sides | X8098 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | SCREW, 5/16 X 3/4 HEX CAP GRADE 8 | X9327 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | SCREW HEX HD CAP 5/16 18 X 1.00 (ZP) | 03361 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Nut 5/16-18 Hex Finish Zinc | X8231 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | WASHER, 3/8 USS FLAT ZINC | X8230 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | Belt 42.5 Inch Deep Vee Type B | X89314 | $0.00Read more |
| 48 | No Image | Screw Hex Head Cap 1/4-20x1-1/4 ZP Gr5 | X8226 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | SCREW 5/16-18X 1 1/2 PHIL FLAT M/S ZINC | X8216 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | SET SCREW 1/4-20X3/16 SOC SET FLAT PT W/LOC-TITE | X8222 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | SCREW, 3/8-16 X 3/4 HEX CAP GRADE 5 | X8223 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | WASHER, 3/8 USS FLAT ZINC | X8230 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | No Image | SCREW 8-32 X 1/2 TRUSS/PHIL BLK ZINC | X8272 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Shaft, Pivot Handle 1/2X10-1/2 M Style Burnisher | X8811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | No Image | BOLT, 8-32 X 3/4 PHIL TRUSS MS BLK ZINC | X8821 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 |  | Cover Switch Box Salvage from X8911 | X8912 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Trigger Handle | X8917 | Not Available |
| 61 | No Image | SPRING TRIGGER METAL HANDLE | X8916 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | ROLL PIN ALL METAL HANDLE | X8918 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 |  | GROMMET, 1/16 GR - 7/16 DIA 72713A | 7BG004 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | No Image | SET SCREW 1/4-20X3/16 SOC SET FLAT PT W/LOC-TITE | X8222 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 |  | Rectifier,Floor Machine,EDI Electric ,MF150/60A | X80342 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | No Image | Capacitor,Floor Machine,1.5HP,Start,0596422 | X8955 | $55.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 77 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
