Schematic and parts book for tornado 98485 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

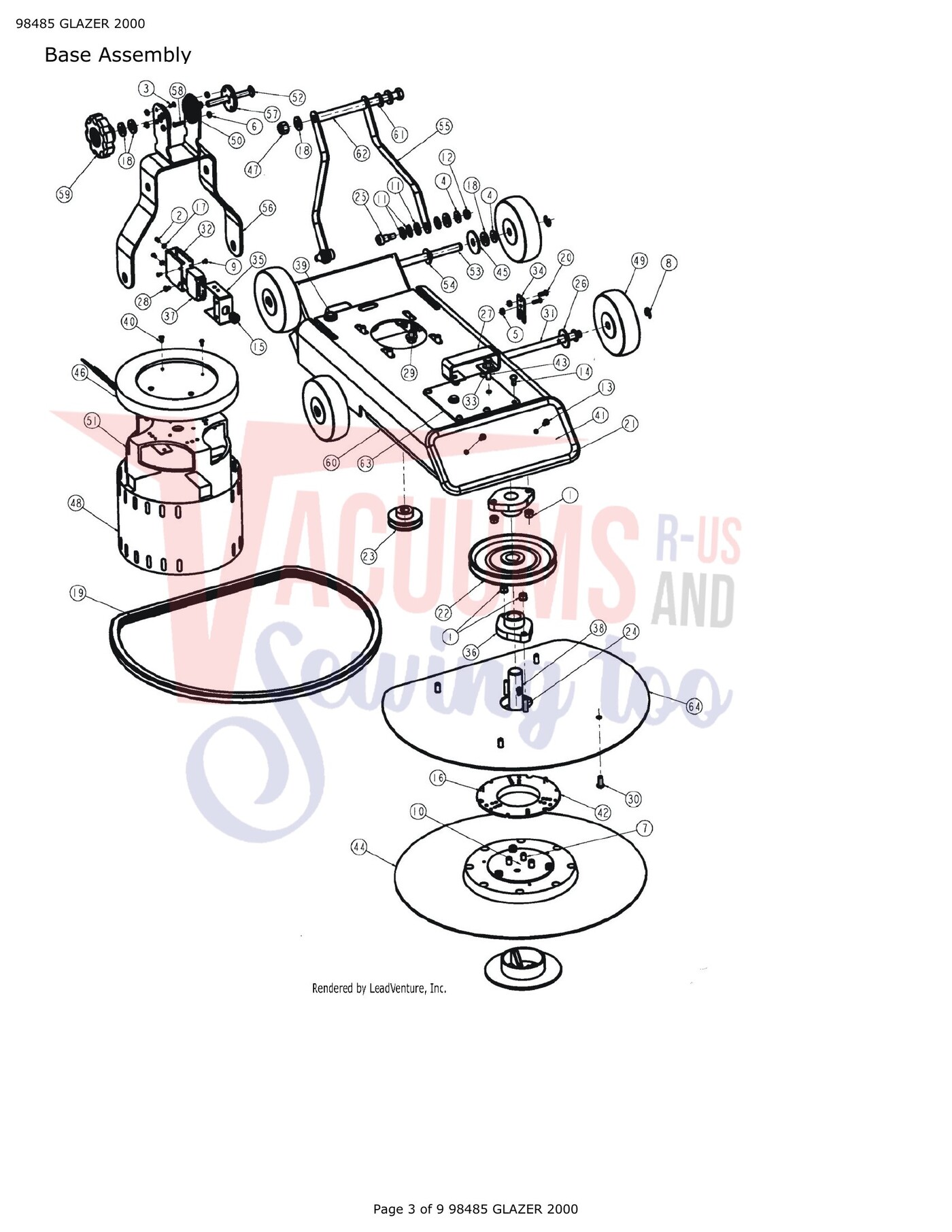

| # | Part image | Description | SKU | Price |
| 1 | No Image | Nut | 00067 | $0.00Read more |
| 2 |  | Screw PH Pan 6-32x3/8 MS Zn | 01734 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | SCREW PHIL. FLAT HD MACH No 8 32 X 7/16 (ZP) | 02495 | $24.99Read more |
| 4 |  | Washer 5/16 Plain ID ZP | 02568 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Bracket | 10262 | Not Available |
| 6 | No Image | Keps Nut | 02956 | $0.00Read more |
| 7 | No Image | Screw Hex HD Cap 3/8 16x1 ZP | 03320 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Rivet | 03488 | $0.00Read more |
| 10 | Not Available | Lock Washer | 03536 | Not Available |
| 11 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Screw Ph Flat HD Machine No.10 24x1/2 ZP | 04747 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Screw 1/4-20 X 5/8" | 05427 | $0.00Read more |
| 15 | Not Available | Strain Relief Bushing | 06721 | Not Available |
| 16 |  | SCREW, No 10 12 X 1/2 TFT (A) P.H. | 10677 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Lock Washer | 11850 | Not Available |
| 18 |  | WASHER Part Number 12554 for Simplicity Models SCE,SCE | 12554 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Bumper | 12895 | Not Available |
| 20 | No Image | SCREW, No 10 32 X 5/8 PHIL. RND HD MACH ZP | 12896 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Nameplate Panel Bumper | 12902 | Not Available |
| 22 | Not Available | Pulley | 12905 | Not Available |
| 23 |  | PULLEY MOTOR | 15476 | $255.99Read more |
| 24 | Not Available | Screw 5/16-18 x 1-1/4" | 12918 | Not Available |
| 25 | No Image | Shoulder Screw 1/2" X 12" | 12922 | $0.00Read more |
| 26 | | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Handle | 13064 | Not Available |
| 28 | No Image | Screw #10-12 X 3/8" | 13330 | $0.00Read more |
| 29 | Not Available | Screw | 13731 | Not Available |
| 30 | No Image | SCREW SOCKET BUT. HD CAP 5/16 18 X 3/4 (ZP) | 13773 | $24.99Read more |
| 31 | Not Available | Wheel Shaft | 14022 | Not Available |
| 32 | Not Available | Circuit Breaker Housing | 14025 | Not Available |
| 33 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Bracket | 14490 | Not Available |
| 35 | Not Available | Circuit Breaker Cover | 14741 | Not Available |
| 36 | Not Available | Bearing | 14742 | Not Available |
| 38 | Not Available | Drive Shaft | 14753 | Not Available |
| 39 | | STRAIN RELIEF BUSHING Part Number 15330 for Simplicity Models SCE | 15330 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | SCREW-PHILLIPS FLAT HEAD MACHINE #8-32 X 3/8 Part Number 15475 for Simplicity Models SCE | 15475 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | Pad Retainer | 15887 | $0.00Read more |
| 43 | No Image | Screw 5/16-18 X 1-1/2" | 16031 | $0.00Read more |
| 44 | No Image | PAD HOLDER S/A | 14546 | $256.99Read more |
| 45 | No Image | WASHER, .500 PLAIN ID ZP | 18666 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Motor Cover | 19277 | Not Available |
| 47 | No Image | Nyloc Nut | 19337 | $0.00Read more |
| 48 | Not Available | Warning Label | 19365 | Not Available |
| 49 |  | WHEEL BLUE 5X1.25 5/16 BORE | 19447 | $25.99Read more |
| 50 | No Image | Bracket Groove Handle WAV Extractor Black Plastic | 19798P | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | MOTOR BRUSH 1 1/2 HP. 31963/LIGHTand 31964/SPCR | 30729 | $897.99Read more |
| 53 | No Image | Axle 13-3/8" | 31616 | $0.00Read more |
| 65 | Not Available | V Belt (A37) | 17595 | Not Available |
| 66 | Not Available | Decal | 14143 | Not Available |
| # | Part image | Description | SKU | Price |

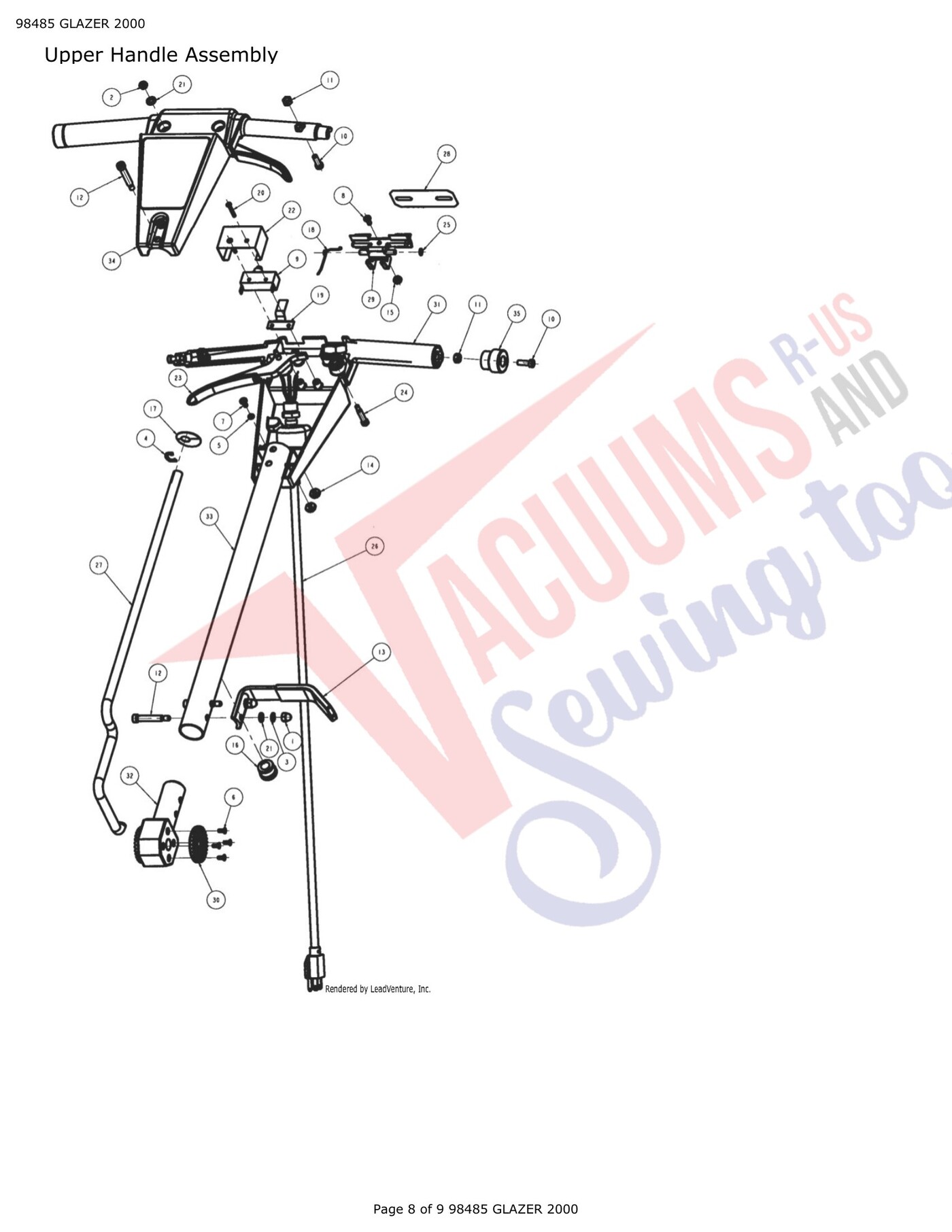

| # | Part image | Description | SKU | Price |
| 1 |  | NUT, 1/4 20 ACORN NICKEL | 00685 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | NUT, No 10 24 FINISHED HEX ZP | 01477 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Lock Washer | 01574 | $0.00Read more |
| 4 | No Image | Hog Ring | 01608 | $0.00Read more |
| 5 | Not Available | Lock Washer | 01713 | Not Available |
| 6 | No Image | Screw #8-32 X 3/8" | 01896 | $0.00Read more |
| 7 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 8 | No Image | Screw #10-24 X 7/16" | 03660 | $0.00Read more |
| 9 |  | SWITCH PUSH BUTTON 20AMP S.P.N.O. | 06685 | $95.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Screw 1/4-20 X 3/4" | 07532 | $0.00Read more |
| 11 | No Image | Nut Hex Lock P/T 1/4 20 | 07533 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Screw Socket HD Shoulder 5/16D x 1-1/2 ZP | 08079 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Cable Hook Assembly | 10407 | $0.00Read more |
| 14 | No Image | Nut Hex Jam 1/4 20 ZP | 10694 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Nut 10-24 Nylon Insert Lock Zn | 10894 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Strain Relief Bushing 7W 2 | 12047 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Strain Relief Washer | 15226 | $0.00Read more |
| 18 | No Image | Lock Lever Return Spring | 17157 | $0.00Read more |
| 21 | No Image | Washer | 17245 | $0.00Read more |
| 23 | No Image | Switch Activation Lever | 18969 | $0.00Read more |
| 24 | No Image | Screw 1/4" X 1" | 18991 | $0.00Read more |
| 25 | No Image | Washer | 19211 | $0.00Read more |
| 29 | No Image | Lever Lock (Start Guard) | 19651 | $0.00Read more |
| 30 | No Image | Bracket Groove Handle WAV Extractor Black Plastic | 19798P | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
