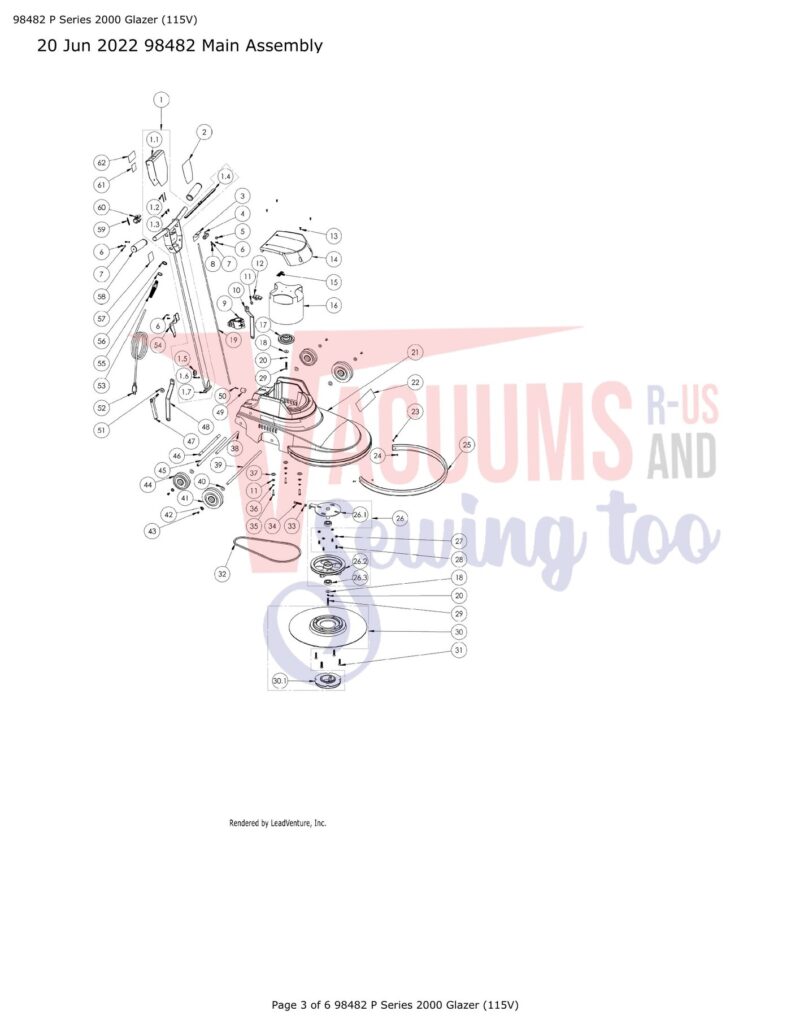

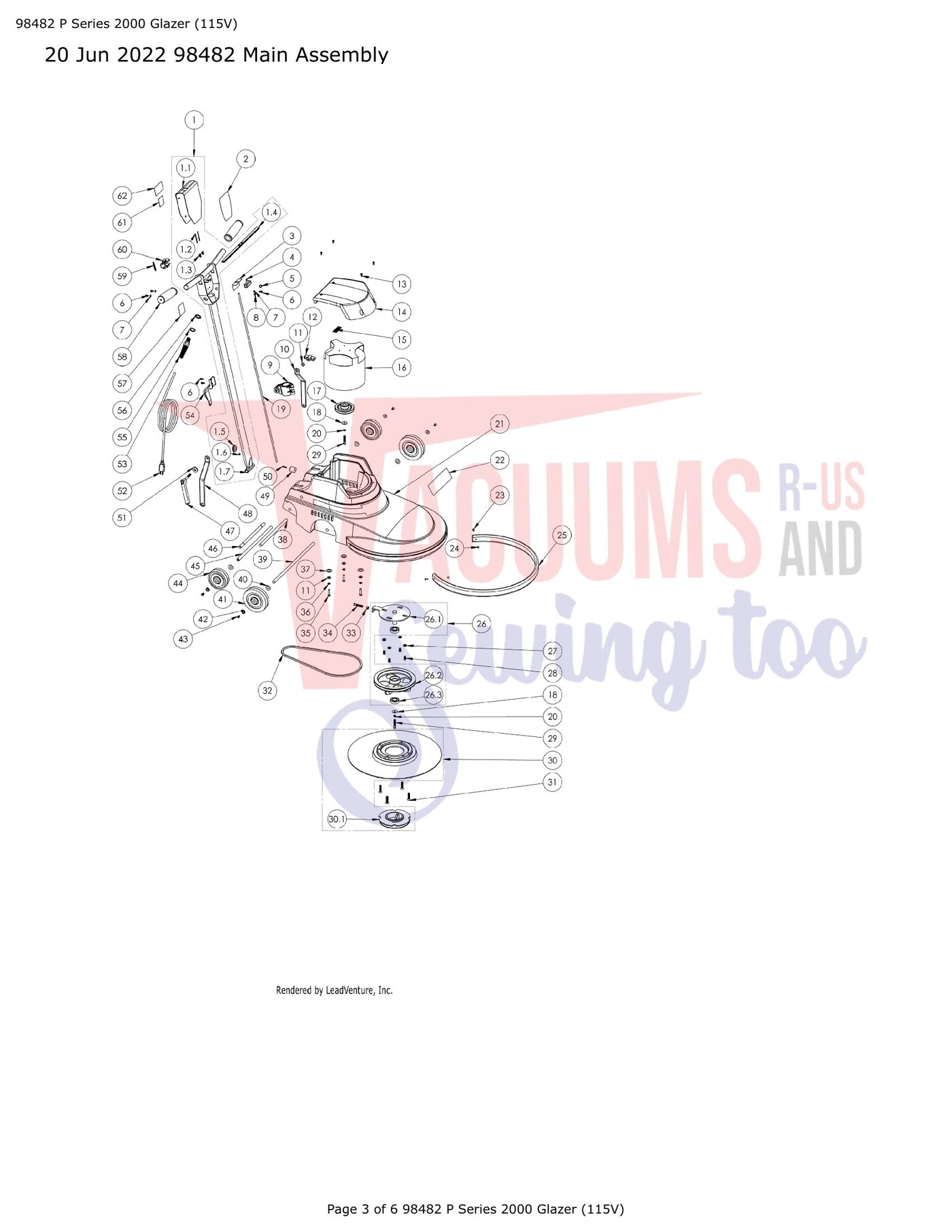

Schematic and parts book for Tornado 98482 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.1 |  | Cover Switch Box Salvage from X8911 | X8912 | $50.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.2 | No Image | ROLL PIN ALL METAL HANDLE | X8918 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.3 | No Image | SPRING TRIGGER METAL HANDLE | X8916 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.4 | Not Available | Trigger Handle | X8917 | Not Available |
| 1.5 |  | GROMMET, 1/16 GR - 7/16 DIA 72713A | 7BG004 | $27.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.6 | No Image | SET SCREW 1/4-20X3/16 SOC SET FLAT PT W/LOC-TITE | X8222 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.7 | Not Available | Handle Base | X8905B | Not Available |
| 2 | No Image | LABEL HANDLE FM / BURN TORNADO | X8815ATOR | $0.99Read more |
| 3 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Plug, Plastic Blk 7/16 Hole | X8151B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | SCREW 8-32 X 1/2 TRUSS/PHIL BLK ZINC | X8272 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Motor Cover, M Series, Blue | X1457 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | COVER, BURNISHER MTR YELLOW TORNADO | X8041TOR | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | LABEL DISCONNECT POWER CORD BEFORE SERVICING | X8413 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Motor,Burnisher,120,VAC,Tianan,Carbon Brush,Light,No plug | X8037TI | $966.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Pulley, M2000 O-Groove 4.063 OD | X9298 | $37.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | WASHER, 5/16 1OD .075 THICK | X9374 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Cord, Inline,Floor Machine/Burnisher,49 Inch,Black,14/3 SJTWA,W/Out Strain Relief | X8022 | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Housing, Black M Style Burnishr | X8050AP | $372.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Housing Label | X8400CTOR | $0.00Read more |
| 23 | No Image | BOLT, 8-32 X 3/4 PHIL TRUSS MS BLK ZINC | X8821 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | SPACER BLK NYL NO 8 .17ID X .25OD X .25L | X8822 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | Bumper, Black/Black In Inches | X8030K | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | MAIN PULLEY ASSEMBLY | X8096A | $165.99Add to cart Special order: ships in 2 to 4 weeks |
| 26.1 | No Image | Weldment, Shaft And Plate | X8091 | $47.99Add to cart Special order: ships in 2 to 4 weeks |
| 26.2 | No Image | Pulley, Main Burnisher | X8096 | $109.99Add to cart Special order: ships in 2 to 4 weeks |
| 26.3 | No Image | Bearing, Ball Rubber Sealed On Both Sides | X8098 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | WASHER, 3/8 USS FLAT ZINC | X8230 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | SCREW, 3/8-16 X 3/4 HEX CAP GRADE 5 | X8223 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | SCREW, 5/16 X 3/4 HEX CAP GRADE 8 | X9327 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Pad Driver, Flexible | X8862 | $268.99Add to cart Special order: ships in 2 to 4 weeks |
| 30.1 | No Image | Pad Driver RH Thread Center-Lok Blue X8862 | F44P | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | SCREW 5/16-18X 1 1/2 PHIL FLAT M/S ZINC | X8216 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Belt,Burnisher,V-Belt,40.5, Pulley | X80995 | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Nut 5/16-18 Hex Finish Zinc | X8231 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | SCREW, 5/16-18 X 3/4 HEX CAP GRADE 5 ZINC | X8215 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Screw Hex Head Cap 1/4-20x1-1/4 ZP Gr5 | X8226 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Shaft, Pivot Handle 1/2X10-1/2 M Style Burnisher | X8811 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | Axle, 1/2X14-1/2 M Burnisher | X8816 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 43 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 44 | No Image | Wheel, Black 4X1-1/2 | X8935 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Axle, 13 3/4 For 1 1/2 Wheel M-Series Burnisher | X8936 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 46 | No Image | Shaft, Pivot Brace 1/2 X 10 M Style Burnisher | X8813 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 47 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 48 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 49 | No Image | BUMPER RECESSED POLYETHY 1-1/8 BASE 3/4 HGT 13/64 HOLE | X8258A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | SCREW, No 8 X 1 PHPH TYPE A | X8258AS | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 51 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | No Image | Cord,Burnisher,75ft,Gray,12/3 SJTW | M1407G | $199.99Add to cart |
| 53 | No Image | Strain Relief, Metal Small | SR37 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 54 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 55 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 56 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 57 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 58 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 59 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 61 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 62 | Not Available | Warning Label | X1044 | Not Available |
