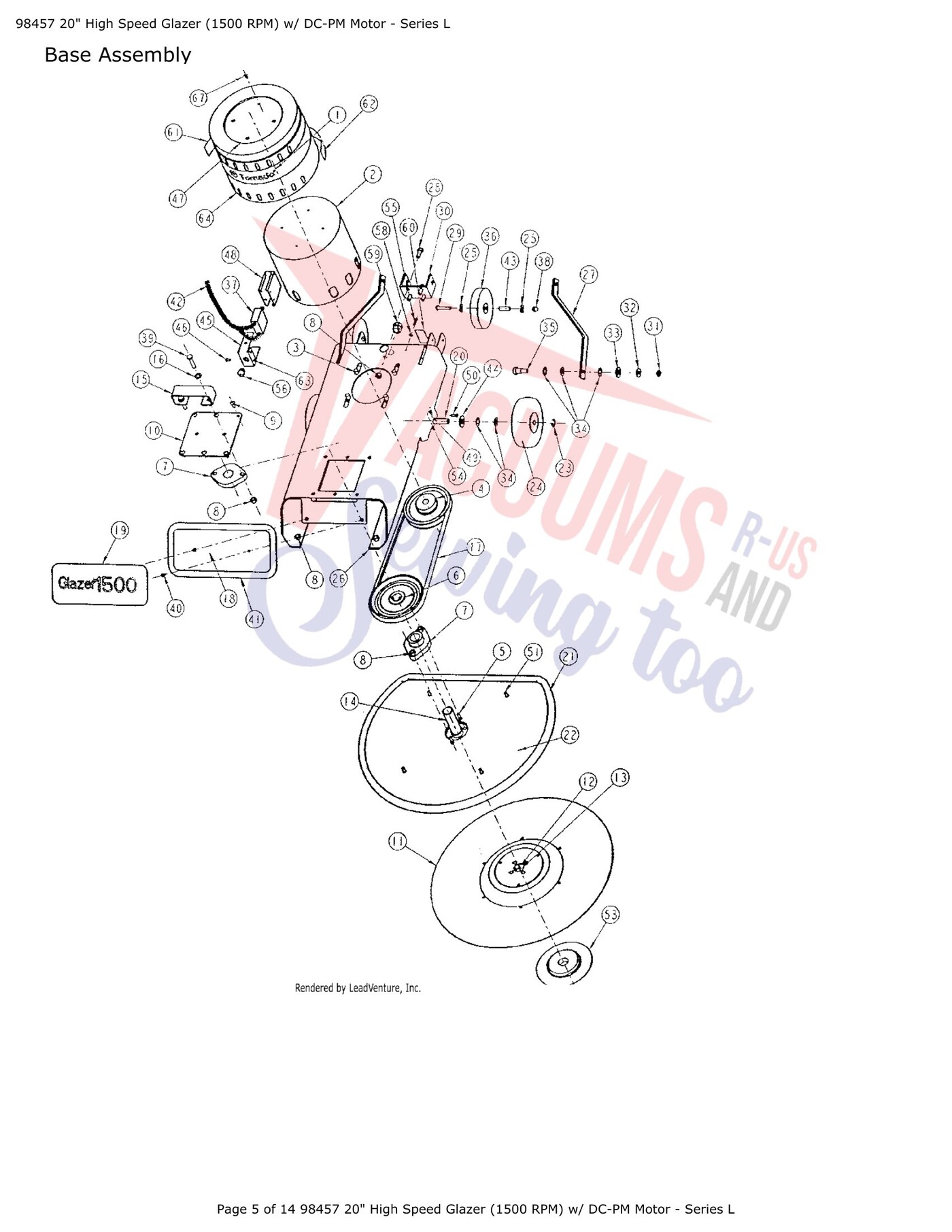

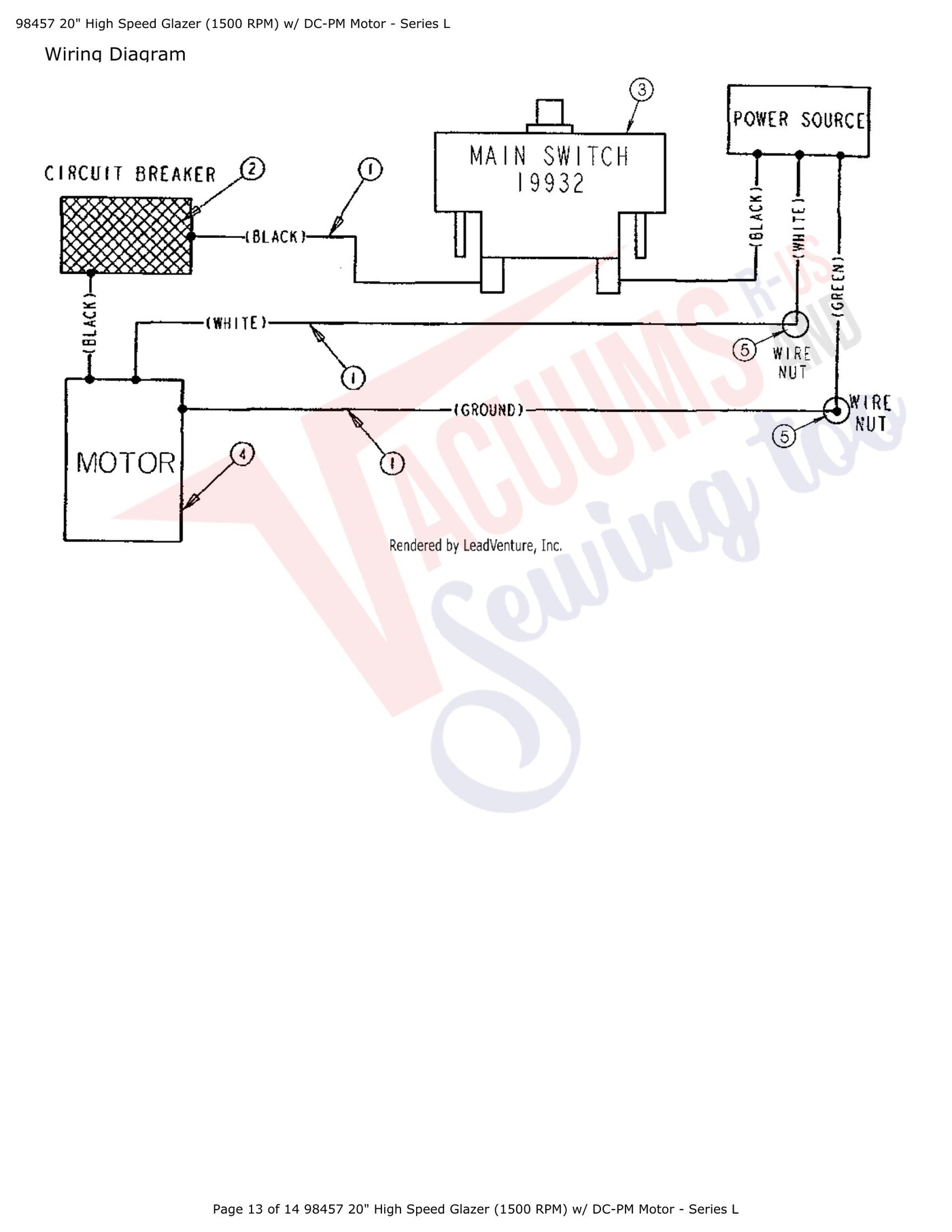

Schematic and parts book for Tornado 98457 20" speed glazer 1500 RPM. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Circuit Breaker | 14039 | Not Available |
| 1 | No Image | Tornado Decal Strip W/Logo | 11898 | $0.00Read more |
| 2 | No Image | MOTOR BRUSH 1 1/2 HP. 31963/LIGHTand 31964/SPCR | 30729 | $897.99Read more |
| 3 | Not Available | Screw | 13731 | Not Available |
| 4 | Not Available | Motor Pulley | 12916 | Not Available |
| 5 | Not Available | Screw 5/16-18 x 1-1/4" | 12918 | Not Available |
| 6 | Not Available | Pulley | 12905 | Not Available |
| 7 | Not Available | Bearing | 14742 | Not Available |
| 8 | No Image | Nut | 00067 | $0.00Read more |
| 9 | No Image | Screw 1/4-20 X 5/8" | 05427 | $0.00Read more |
| 10 | Not Available | Mounting Plate | 17305 | Not Available |
| 11 | No Image | PAD HOLDER S/A | 14546 | $256.99Read more |
| 12 | Not Available | Lock Washer | 03536 | Not Available |
| 13 | No Image | Screw 3/8-16 X 3/4" | 03959 | $0.00Read more |
| 14 | Not Available | Drive Shaft | 14753 | Not Available |
| 15 | Not Available | Handle | 13064 | Not Available |
| 16 |  | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | V Belt (A36) | 17283 | Not Available |
| 20 | Not Available | Wheel Shaft | 14022 | Not Available |
| 21 | Not Available | Bumper | 12895 | Not Available |
| 23 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | WHEEL BLUE 5X1.25 5/16 BORE | 19447 | $25.99Read more |
| 25 | No Image | Washer Spring 3/8 3 Wave | 07132 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Bracket | 13374 | Not Available |
| 28 | Not Available | Screw 5/16-18 x 3/4" | 02109 | Not Available |
| 29 | Not Available | Screw 1/4-20 x 1-1/2" | 01978 | Not Available |
| 30 | Not Available | Bracket | 12889 | Not Available |
| 31 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Washer 5/16 Plain ID ZP | 02568 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | | WASHER Part Number 12554 for Simplicity Models SCE,SCE | 12554 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Shoulder Screw 1/2" X 12" | 12922 | $0.00Read more |
| 36 |  | WHEEL 4DIA.(3/8BORE) BLACK(15/16WIDTH) | 11053 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | NUT, 1/4 20 ACORN NICKEL | 00685 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Screw 5/16-18 X 1-1/2" | 16031 | $0.00Read more |
| 40 | No Image | Screw Ph Flat HD Machine No.10 24x1/2 ZP | 04747 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Nameplate Panel Bumper | 12902 | Not Available |
| 42 | Not Available | Cable Assembly | 14030 | Not Available |
| 43 | No Image | BUSHING WHEEL SHAFT | 11077 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | Circuit Breaker Cover | 14741 | Not Available |
| 46 | No Image | Screw #10-12 X 3/8" | 13330 | $0.00Read more |
| 47 | Not Available | Motor Cover | 19277 | Not Available |
| 48 | Not Available | Circuit Breaker Housing | 14025 | Not Available |
| 49 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | SCREW, No 10 32 X 5/8 PHIL. RND HD MACH ZP | 12896 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | SCREW SOCKET BUT. HD CAP 5/16 18 X 3/4 (ZP) | 13773 | $24.99Read more |
| 52 |  | SCREW, No 10 12 X 1/2 TFT (A) P.H. | 10677 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Pad Retainer | 15887 | $0.00Read more |
| 54 | Not Available | Bracket | 14490 | Not Available |
| 55 |  | Screw PH Pan 6-32x3/8 MS Zn | 01734 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | Not Available | Strain Relief Bushing | 06721 | Not Available |
| 57 | No Image | Closed End Crimp Terminal | 06824 | $0.00Read more |
| 58 | Not Available | Lock Washer | 11850 | Not Available |
| 59 | No Image | Strain Relief Bushing 7W 2 | 12047 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Decal | 14143 | Not Available |
| 63 | No Image | Rivet | 03488 | $0.00Read more |
| 64 | Not Available | Warning Label | 19365 | Not Available |
| 65 | No Image | Screw | 10886 | $0.00Read more |
| 66 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | | SCREW-PHILLIPS FLAT HEAD MACHINE #8-32 X 3/8 Part Number 15475 for Simplicity Models SCE | 15475 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

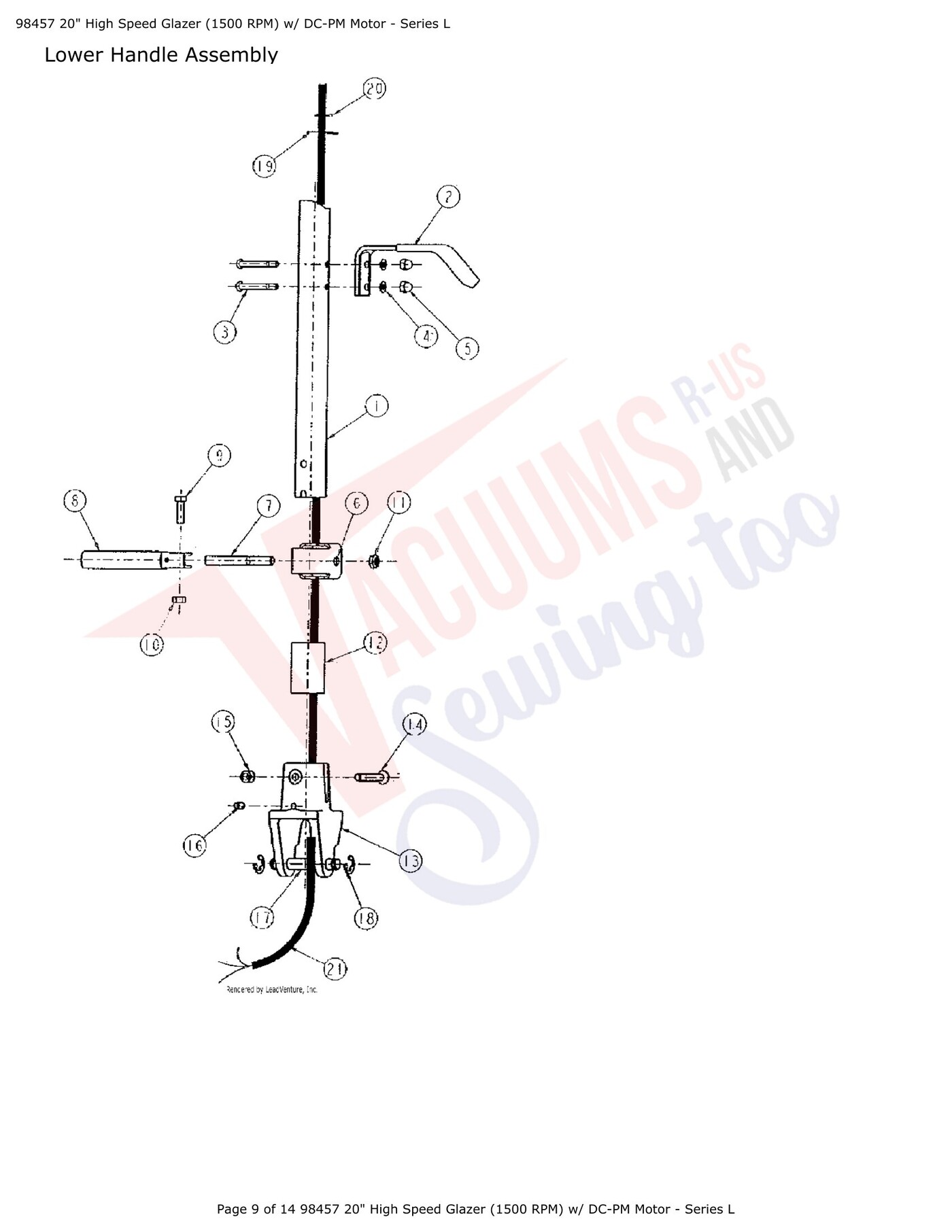

| 2 | No Image | Cable Hook Assembly | 10407 | $0.00Read more |
| 3 | No Image | Screw PH Rnd Hd Machine 1/4 20x1-7/8 ZP | 10398 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Lock Washer | 01574 | $0.00Read more |
| 5 | | NUT, 1/4 20 ACORN NICKEL | 00685 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Handle Tube Clamp Bracket | 07526 | $0.00Read more |
| 7 | No Image | Clamp, Lever Pivot Handle Tube | 07547 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Handle Tube Clamp Lever Assembly | 07883 | Not Available |
| 9 |  | SCREW HEX HD CAP 5/16 18 X 1.00 (ZP) | 03361 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | NUT FINISHED HEX W/ LOCTITE 5/16 18 (ZP) | 01589 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Spacer | 14037 | Not Available |
| 13 | Not Available | Yoke Handle | 10019 | Not Available |
| 14 | Not Available | Screw 5/16-18 x 2-1/4" | 04349 | Not Available |
| 15 | No Image | Nut | 00067 | $0.00Read more |
| 16 | Not Available | Grooved Pin | 00058 | Not Available |
| 17 | Not Available | Handle Yoke Pivot Pin | 07551 | Not Available |
| 18 | | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Strain Relief Washer | 15226 | $0.00Read more |
| 20 | No Image | Hog Ring | 01608 | $0.00Read more |
| 21 | Not Available | Handle Cable | 17470 | Not Available |
| # | Part image | Description | SKU | Price |

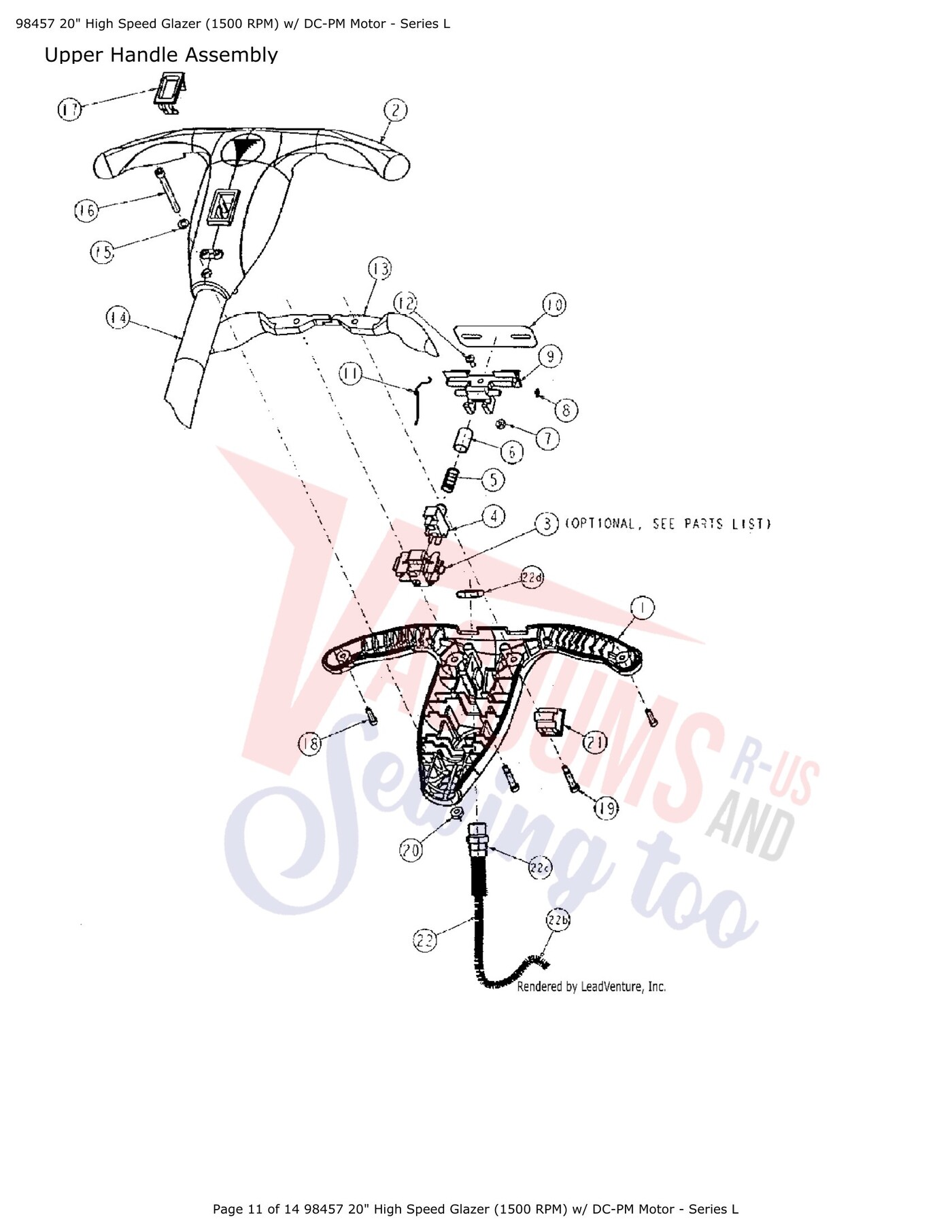

| XX |  | Switch Push Button DPST Wav 20A 125 250Vac 1hp | 19357 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | CAP NYLON SPRING (F/MandGLZR) FOR 19357 | 19915 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Switch Carrier | 19926 | Not Available |
| 4 | No Image | Pushbutton Switch | 19932 | $0.00Read more |
| 5 |  | White Plastic Standard Candle Covers | 19922 | $4.00Add to cart |
| 6 | No Image | Plastic Cap | 19924 | $0.00Read more |
| 7 |  | Nut 10-24 Nylon Insert Lock Zn | 10894 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Washer | 19211 | $0.00Read more |
| 9 | No Image | Lever Lock (Start Guard) | 19651 | $0.00Read more |
| 11 | No Image | Lock Lever Return Spring | 17157 | $0.00Read more |
| 12 | No Image | Screw #10-24 X 7/16" | 03660 | $0.00Read more |
| 15 | No Image | Lock Washer | 01574 | $0.00Read more |
| 16 | No Image | Screw 1/4-20 X 2-1/2" | 19619 | $0.00Read more |
| 17 | No Image | Larger Plug | 30214 | $0.00Read more |
| 19 | No Image | Screw 1/4" X 1" | 18991 | $0.00Read more |
| 20 | No Image | Nut | 19618 | $0.00Read more |
| 22 | Not Available | Power Cord 75' 14/3 SJTW | 19475 | Not Available |
| 22a |  | Terminal, Female .250 Blue .032 Amp | F25 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22b |  | Power Cord Part Number 19473 for Cleanmax Models CM-WAV | 19473 | $225.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22c |  | White Plastic Standard Candle Covers 8" | 19929 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22d |  | NUT HEX JAM 3/4 18 (ZP) SLO. | 30261 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
