Schematic and parts book for Tornado 98260 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

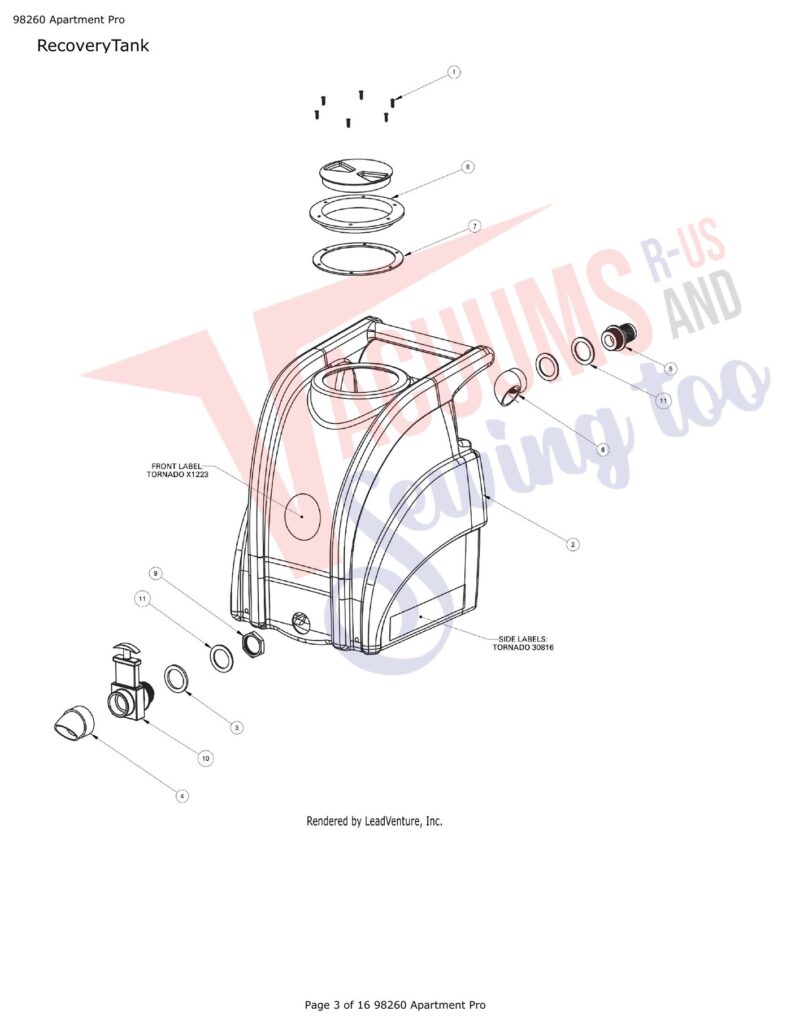

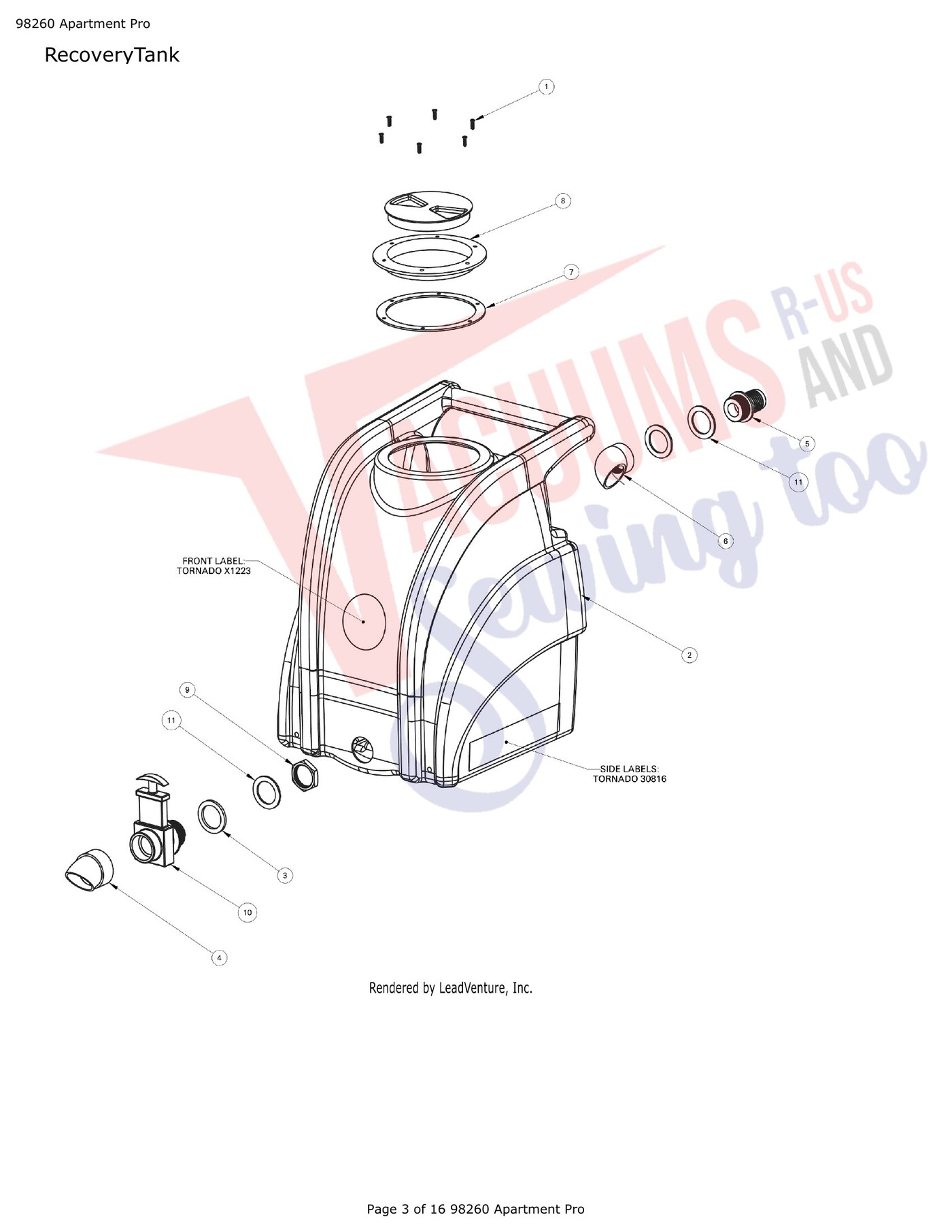

| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, No 8 X 3/4 PHIL FLAT TS TYPE A BLK ZINC | X8295 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Recovery,Extractor,Portable 13G Tornado | X1187 | $488.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | ELBOW PLASTIC 45 BLACK 2 SLIP X 2 SLIP | PX11 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Nut, Lock Die Cast 1.5 | PX46 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Valve, Drain 1.5 | PX10 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

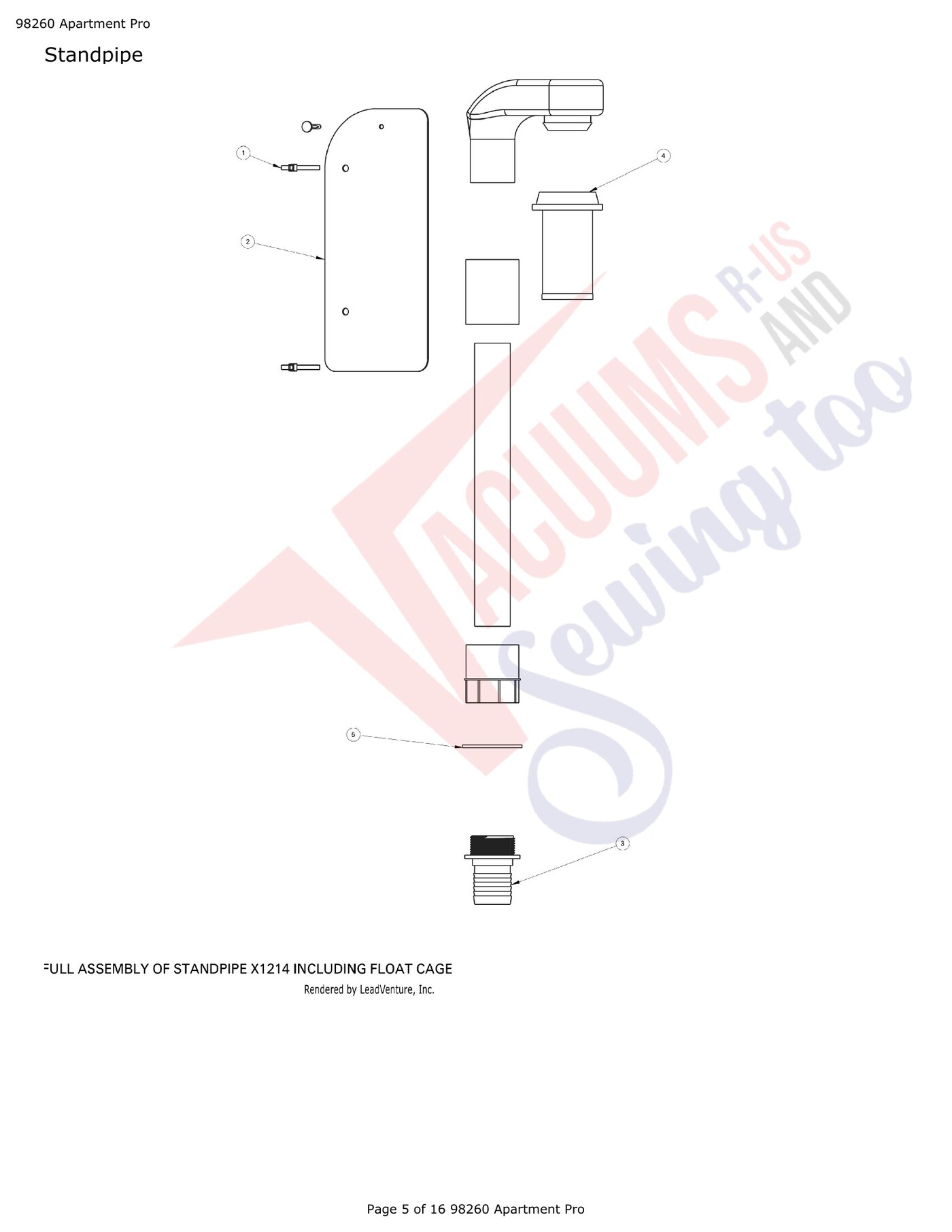

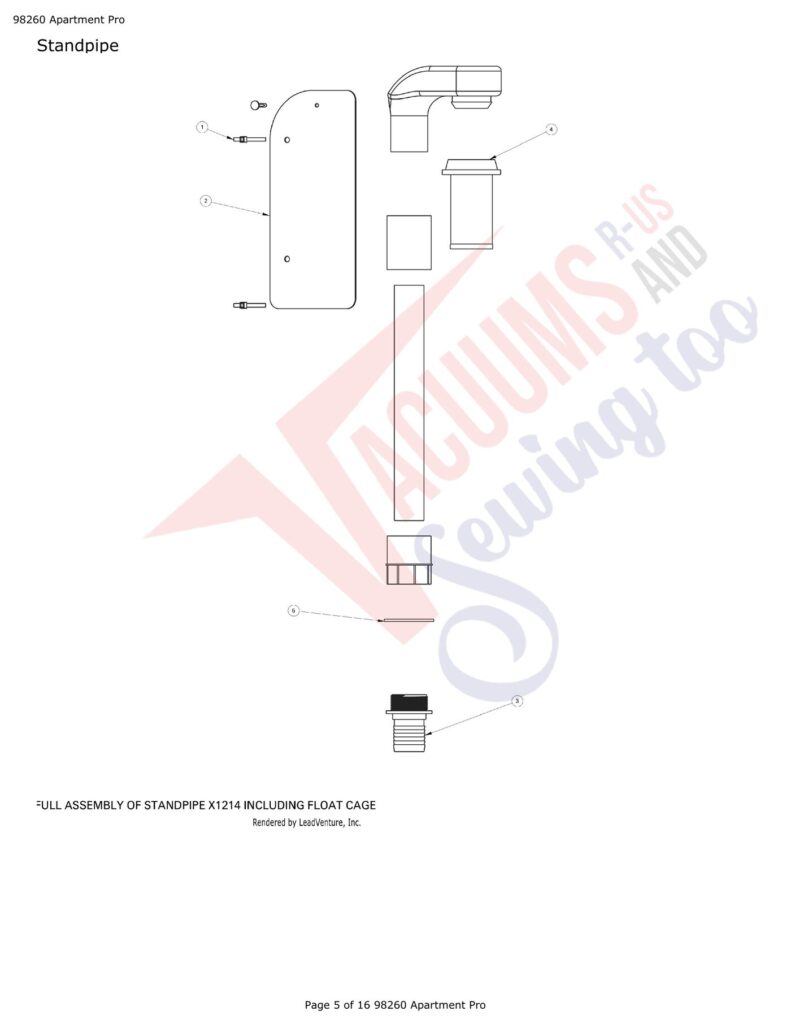

| # | Part image | Description | SKU | Price |
| 1 | No Image | CABLE TIE 14 1/2 TIE 40No NATURAL | X8150A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | DEFLECTOR PLATE, AP PRO | X1232 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Float Cage, W/1 1/2 NPT Neck Light Ball | X9053L | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

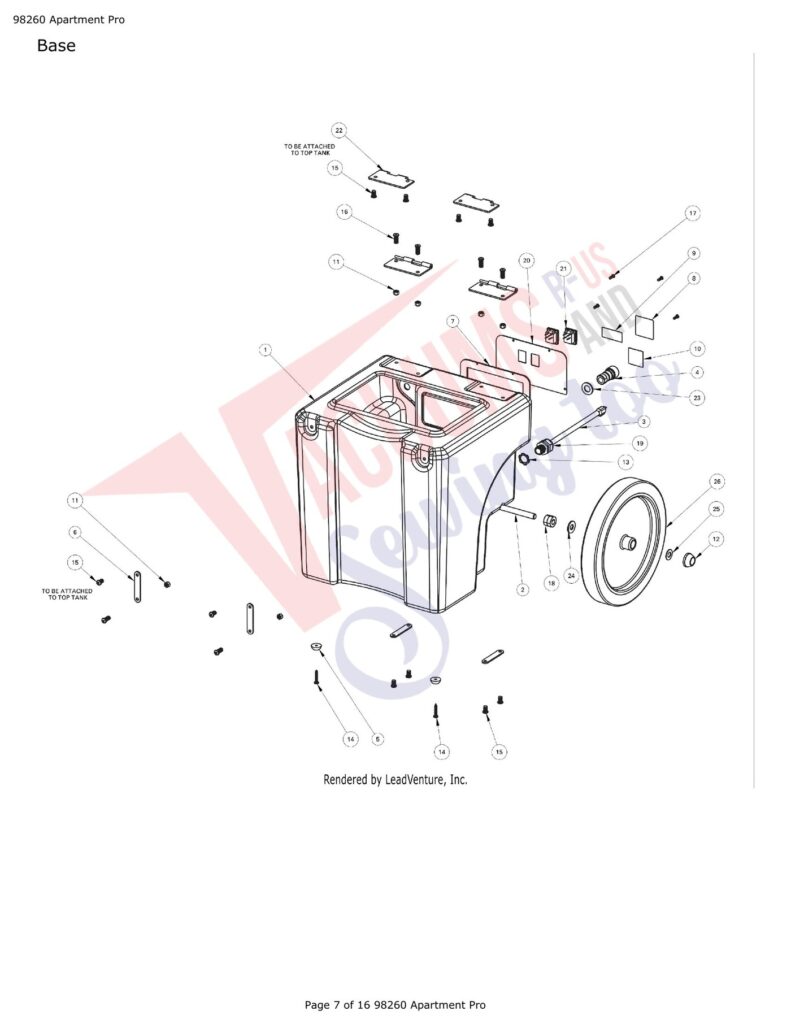

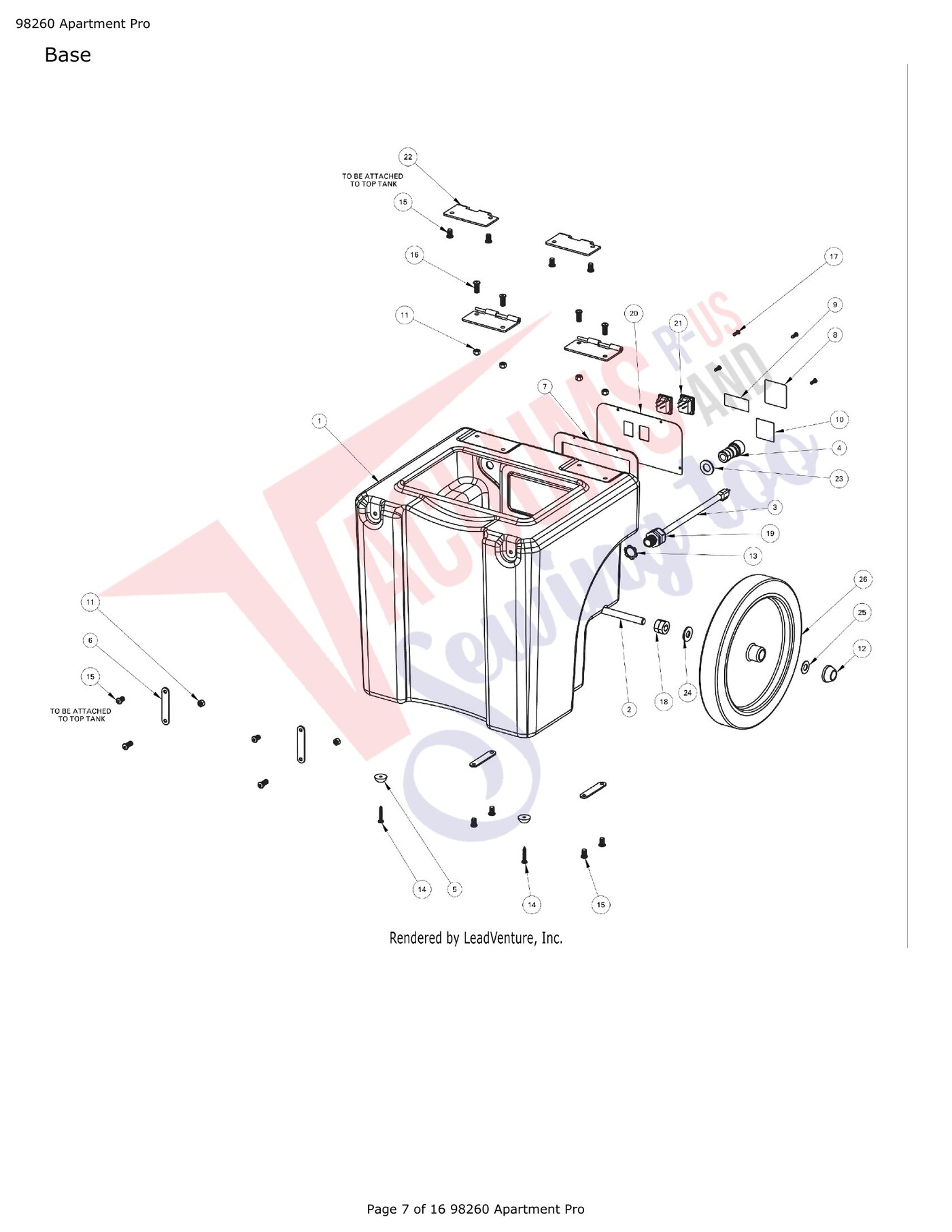

| # | Part image | Description | SKU | Price |
| 1 | No Image | Base Extractor Portable | X1186 | $257.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Axle, Wheel CFR Mid Size | 72769A | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Cord Dry 20ft Yellow 14/3 SJTW 105C 300V | X1002 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Quick Disconnect .25 Female | PX6 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | FOOT BLACK RUBBER N/S DRYER HANDLE SHORT | PD3C | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Strap, Front, Mid Size Extractor | X9444 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Gasket, Switch Plate Medex | X9484 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Warning Label Dryer and Spotter | X8976 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Nut 1/4-20 Lock Nylon Insert | X8237 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Screw A Point PH No. 10x1 Blk Zinc | X9098 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Screw 1/4 20x1/2 Phil PH Blk 18-8 SS | 7BS003BLK | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW, 1/4-20X3/4 PHIL PAN BLACK ZINC | X1220 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | SPACER, WHEEL 10 CFR MID SIZE EXTRACTOR | 72801A | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Strain Relief 1/2” Part Number PD8 for Cleanmax Models CM-WAV | PD8 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Switch Plate, 2-Switch 0-Light Midsize Extractor | X9935 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Tank Hinge PFX900S PFX1350 | X9014 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | WASHER 1/2 SAE FLAT ZINC | X8224 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Wheel 12x1-3/4 Blk with Gray Tire | X9066 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

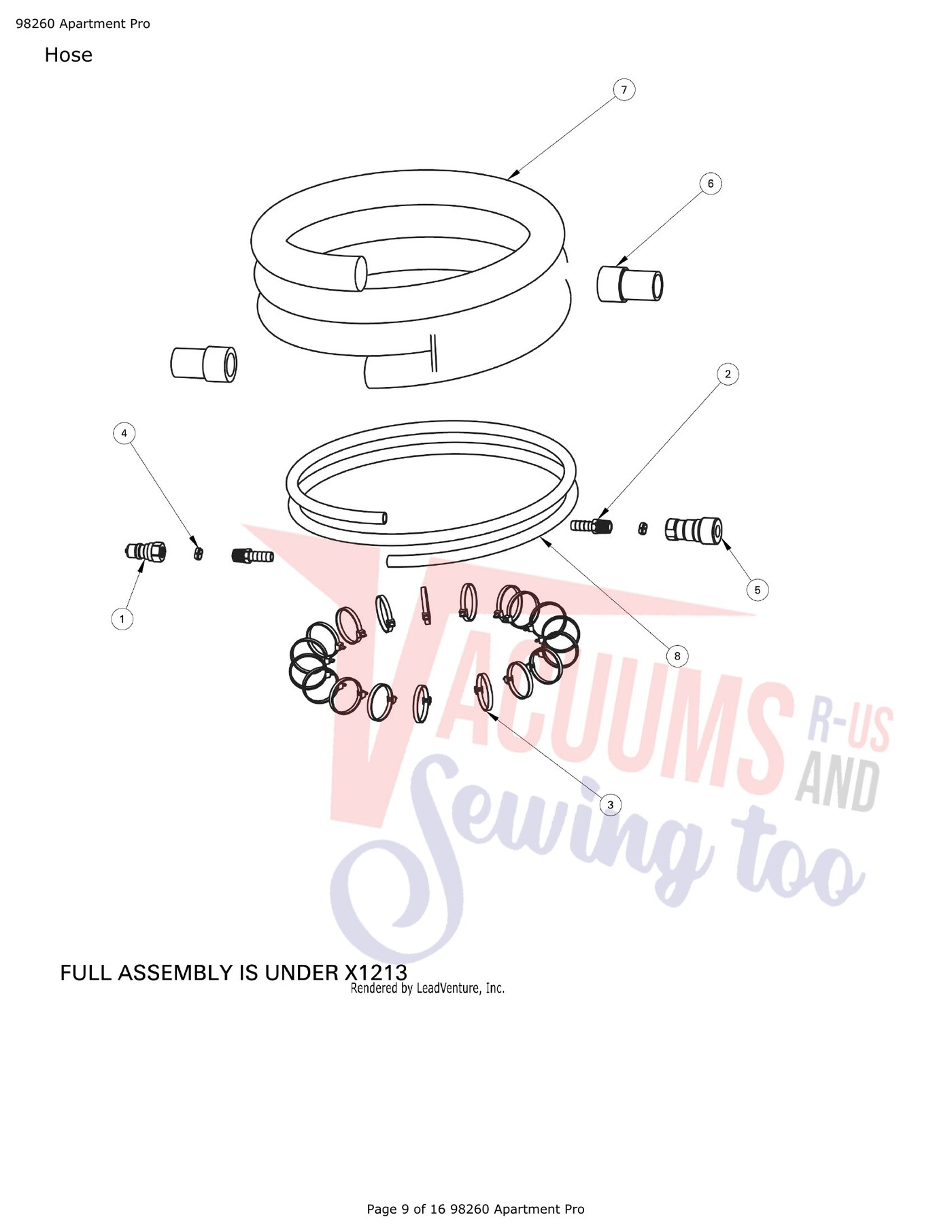

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Wand 2 Pc Single Bend | PFX2PC | $585.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | 50FT GREY OUTSIDER HOSE 1-1/4 TORNADO WITH SOLUTION HOSE | X1213T | $550.99Read more |
| 1 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Barb 1/4 X 3/8 Male/Male | PX85 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Cable Tie 11 50 lb Black Tie | X8150 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | 2 Ear Clamp | PX52 | $0.00Read more |
| 5 | | Quick Disconnect .25 Female | PX6 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Expander, 1-1/4 To 1-1/2 Gray Cuff | K1123 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Hose RCP 1-1/4x50ft Gray without Cuffs | K1131G | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Solution Hose | X8542 | $0.00Read more |

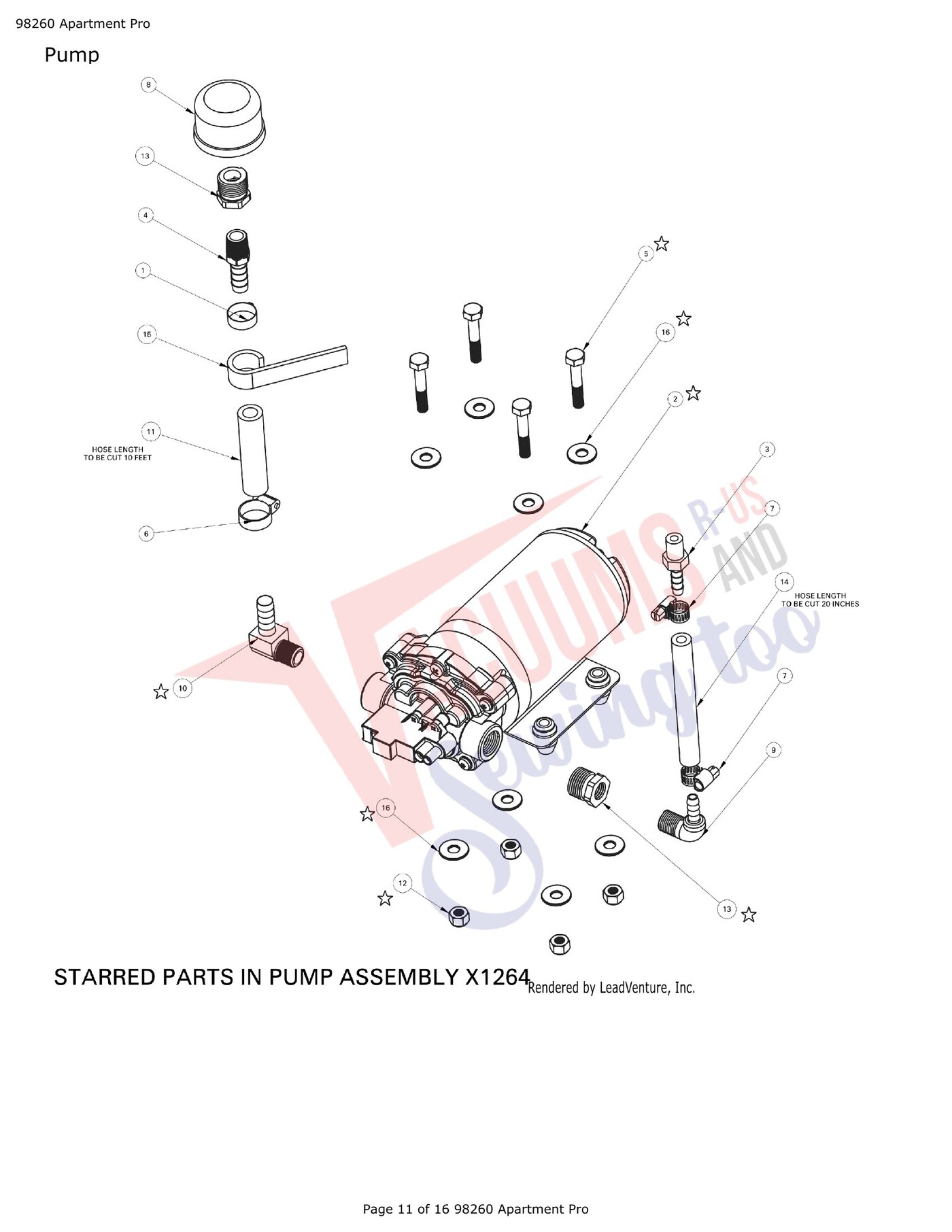

| # | Part image | Description | SKU | Price |
| XX | No Image | BASE PUMP ASSEMBLY APT. PRO AQ200 WITH BASIC BRASS FITTING | X1264 | $387.99Read more |
| 1 | No Image | Clamp Single Ear 18.5 mm | PX61A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Pump,Extractor,120,VAC,220psi,Aquatec | AQ200 | $442.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Barb, Hose 1/4 H - 1/4 M NPT | 7AT003 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Barb 1/4 X 3/8 Male/Male | PX85 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | BOLT, 1/4-20 X 1 1/2 HEX TAP BLACK ZINC | X9398 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Filter, Extractor, Solution Screen | 19525 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | FITTING BRASS 90D ELBOW 1/4 NPTM X 1/4 HOSE BARB | PX212 | $10.99Read more |
| 10 | No Image | Elbow, Hose Barb 90D 3/8 NPTM to 3/8 | X1270 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Hose 300PSI Solution 3/8 ID X 1/8 Wall | PX3H | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Nut 1/4-20 Lock Nylon Insert | X8237 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Reducer, 3/8 To 1/4 | PC20 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Solution Hose | X8542 | $0.00Read more |
| 15 | No Image | VELCRO, WRAP AROUND STRAP 24 | X1230 | $11.99Read more |
| 16 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

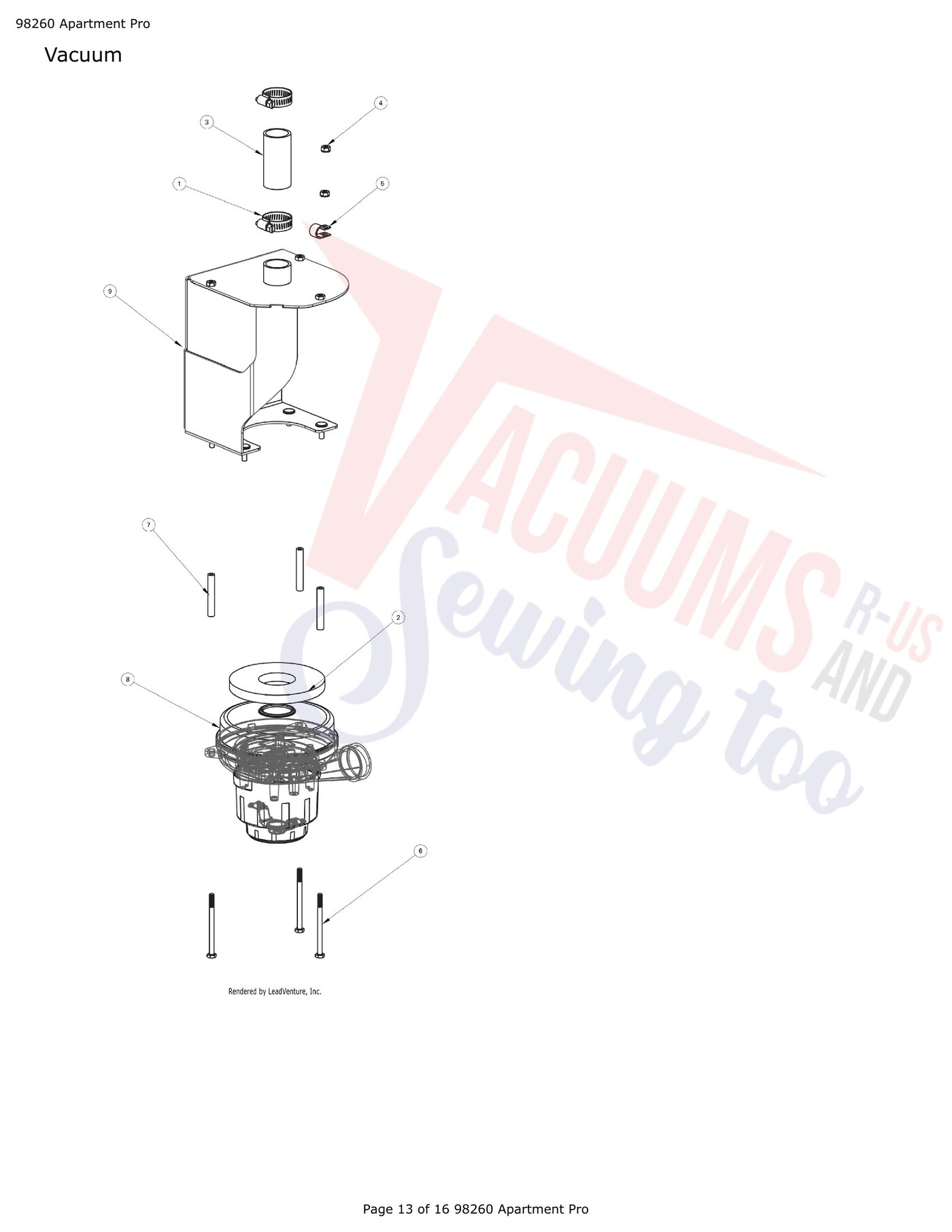

| # | Part image | Description | SKU | Price |
| 1 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Gasket, Flat Airwatt Motor .5 Neoprene Blend | X9696 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Hose 1-1/2 Wire-Reinforced Black | 72656A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | PCLIP STEEL 5/8D 1/2W VINYL 9/32 MOUNT HOLE | X1229 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | SCREW, HHCS 1/4-20X3.5 PARTIAL THREADS ECO500 | 72862A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Spacer, Vac Motor 2.375 | 72651B | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Motor,Extractor,120,VAC,Ametek,6.6,2 STG,Airwatt | 72855A | $360.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Bracket,Extractors,Air Watt,Motor | X1212 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
