Schematic and parts book for Tornado 98255ph Carpet Extraction Machine. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

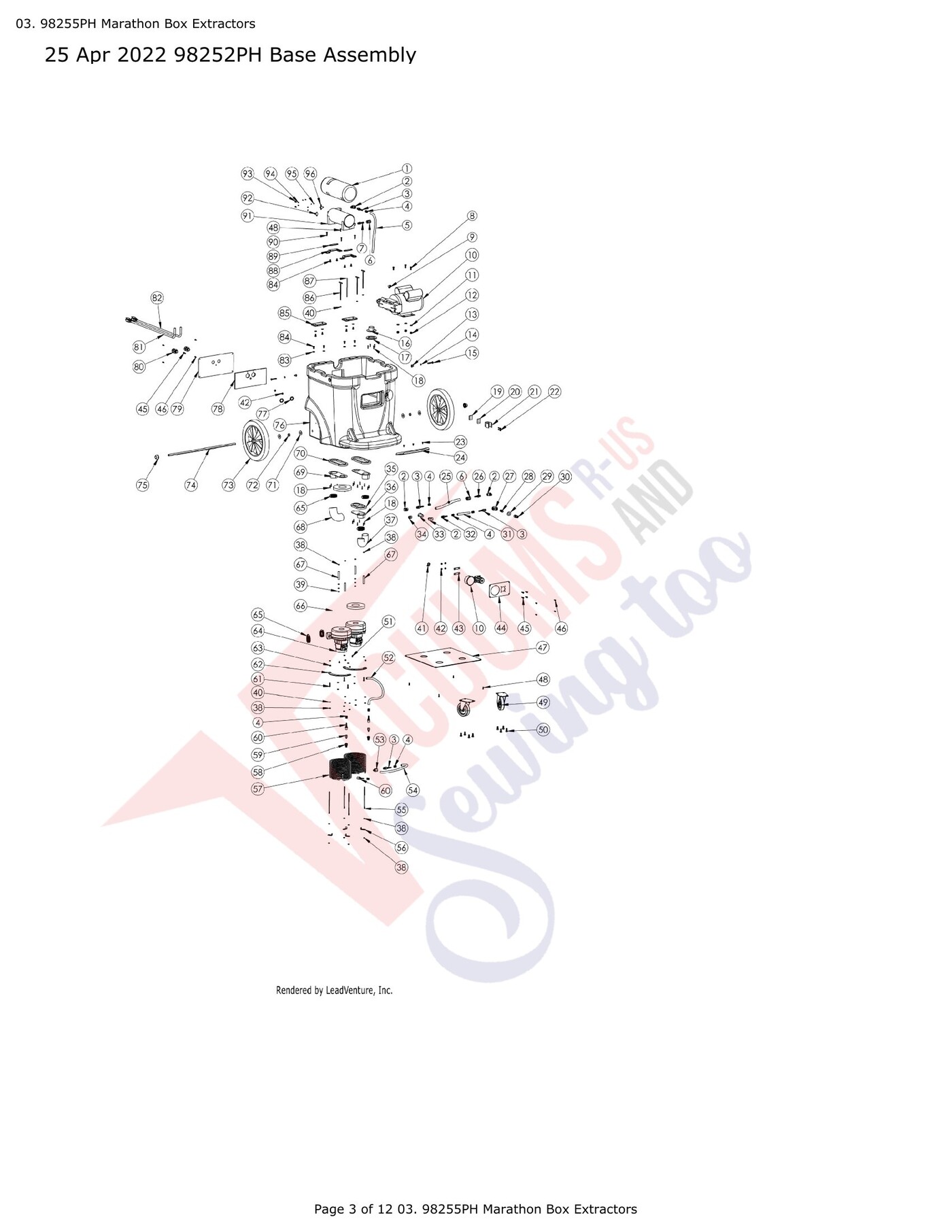

| # | Part image | Description | SKU | Price |
| 1 |  | Foam, Insulation for Heater | X9226 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Barb Swivel 1/4H X 1/4M | X9316 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Ferrule Hose .59 OD | PX161 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 6 |  | Ferrule, Hydraulic 3/8 Hose | X9436 | $10.99Read more |
| 7 |  | Fitiing, Hydraulic Rigid 1/4 | X9434 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | 500 P.S.I. Pump Assembly | 72643A | Not Available |
| 11 |  | WASHER, RUBBER .29ID .688OD 1/8 80 DURO | 72667A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Jacknut, 1/4-20 Steel No 8LJN | X8848 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | INSERT, 1/4-20 THREAD 1/2 HIGH .305 BARREL DIAMETER TEE NUT | 72665A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | WASHER, 1/4 STAR LOCK ZINC PLATED | X9703 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Screw, 1/4-20 X 1-3/4 THPH | X8264 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Cover, Vacuum Manifold Circle Pro 500 / PFX1350 | 72625A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Gasket, Vac Manifold, Circle | 72642A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | SCREW, No 6X3/4 PHIL PAN TS TYPE A 18-8 SS | 7CW002 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | PAD SPRING CLIP | 72669A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | SHIM SPRING CLIP | 72668A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Screw A Point PH No. 10x1 Blk Zinc | X9098 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | SCREW, No 10 X 1/2 FLAT PHIL SM BLACK UNDERCUT HEAD | 72662A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Holder, Wand PFX1350 / Pro 500 | 72661A | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Hose 1500 P.S.I. | X8060 | $0.00Read more |
| 26 |  | Fitting, Hydraulic Swivel 1/4 | X9435 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Tee Union 1/4 NPT | 7AV001 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Nipple Hex 1/4 MPT | 7CX002 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | WASHER .400 ID 1.50 OD ZP | X8239 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 32 | No Image | Barb 1/4 X 1/4 Male Pipe Steel | X9492 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Valve, 3-Way Perfect Heat | 72726A | $127.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Coupling, 1/4 | 7DA002 | $11.99Read more |
| 35 |  | Gasket, Vac Manifold Short Pro 500 / PFX1350 | 72641A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | COVER VACUUM MANIFOLD SHORT PRO 500 / PFX1350 | 72624A | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | SPACER, 1/8 | 72820A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | GASKET PAD MOUNTING REGULATOR PRO 500 / PFX 1350 | 72639A | $2.99Read more |
| 44 |  | Plate, Pressure Regulator Pro 500 / PFX1350 | 72638A | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | SCREW 10-32 X 1 PHIL PAN M/S BLK ZINC | X8851 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 |  | Cover, Bottom Base PFX1350 / Pro 500 | 72636A | $62.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | SCREW, No 10 x 5/8 TAPPING PHILLIPS SS PAN HEAD | 72388A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Wheel, 4 In Caster Black | PX65 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | BOLT, 5/16-18X5/8 HEX TAP ZINC | 7DT001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Screw TFT B PanHd Zn No.10 16x1/2 | 19565 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 53 |  | ADAPTER 1/4 FNPT X 1/8 MNPT | PC30 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 55 | No Image | ROD, PH COIL HOLDER ZINC PLTE | X9540 | $49.99Read more |
| 56 | No Image | Bracket,Extractors,BlackMax,PH Coil Holder | X9539 | $10.99Read more |
| 57 |  | Coil, Heater 2-Stage Vacuum | 72713A | $235.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 |  | Quick Disconnect Female X 1/8 MPT | 71130A | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 |  | Quick Disconnect male X 1/8 FPT | 70101A | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Barb, 1/4 X 1/8 Male Pipe | X9527 | $13.99Read more |
| 61 |  | SCREW 10-24X1 PHIL PAN MS 18-8 SS | 7CU001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | Bracket ,Extractors, Vac Motor Bracket | 72853A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 |  | NUT, 10-24 NYLON INSERT LOCK 18-8 SS | 7BF030 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | Kit Motor Repl 1942-B.2 10gal 13gal Extractor | 1942KIT2 | $140.99Read more |
| 65 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | Gasket, Flat Airwatt Motor 5/8in Neoprene Blend | X9740 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | No Image | Spacer, Vac Motor 2.375 | 72651B | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | | Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths | 7CZ001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 |  | Cover, Vacuum Manifold Long Pro 500 / PFX1350 | 72623A | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 |  | Gasket, Vac Manifold Long Pro 500 / PFX1350 | 72640A | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 71 |  | WASHER, 1/2 USS FLAT 18-8 SS | 7CM007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | No Image | Spacer 1/2 ID X 3/4 OD X 1/4 Long | 72635A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 73 | No Image | Wheel 12x1-3/4 Blk with Gray Tire | X9066 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 74 | No Image | Axle, 1/2 Dia. Pro500 PFX1350 PFX1380 PF85 | 72633A | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 |  | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 76 |  | Base, Black PFX1350 PF85 PF85DX. Black RAL No 9017 | 72620ABREPRO | $683.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 77 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | No Image | Foam | X9178 | $0.00Read more |
| 79 |  | Switch Panel,Extractors,Cord | X9131 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | Strain Relief 1/2” Part Number PD8 for Cleanmax Models CM-WAV | PD8 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 | No Image | Cord,Extractors,39 in,Black,12/3 SJTW,Pigtail | PX112 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 |  | Cord,Extractors,39 in,Red,12/3 SJT,Pigtail | PX112R | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 |  | WASHER, ID.299 OD.622 THK.055 ZINC PLATED | X8858 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | No Image | Tank Hinge PFX900S PFX1350 | X9014 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 86 |  | T-bolt, ROD 10 24 Stainless | X9204 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | No Image | Rod, 10/24 5.5 All Thread Stud 18-8 SS | 72000A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 88 |  | MOUNTING BRACKET HEATER | X9254 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 |  | PAD INSULATION HEATER | X9255 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | No Image | SCREW, No 12 X 1 SELF-TAP PHMS ZINC | 72020A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 91 |  | Heater, 1710W 120Vac Single Element 9 Ohm | X9256B | $529.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 92 |  | Thermostat, Disc Manual Reset .50 250F | PX158 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 93 | No Image | Screw 8-32X3/8 PHMS SS | 7DM004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 94 | No Image | CAP SCREW 4-40X1/4 18-8 SS | X9869 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 95 | No Image | WASHER NO 4 SPLIT LOCK 18-8 SS X9869 | X9869W | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 96 |  | Thermostat, Disc Auto Reset .50 190F | PX160 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| Not Shown |  | Gasket Foam Strip 1x14.25 PFX1350 between 2 tanks | X9149 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | Not Available | Standpipe Sub-Assembly | X9154-SUB | Not Available |
| Not Shown | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | Not Available | Standpipe Sub-Assembly | X9154-SUB | Not Available |

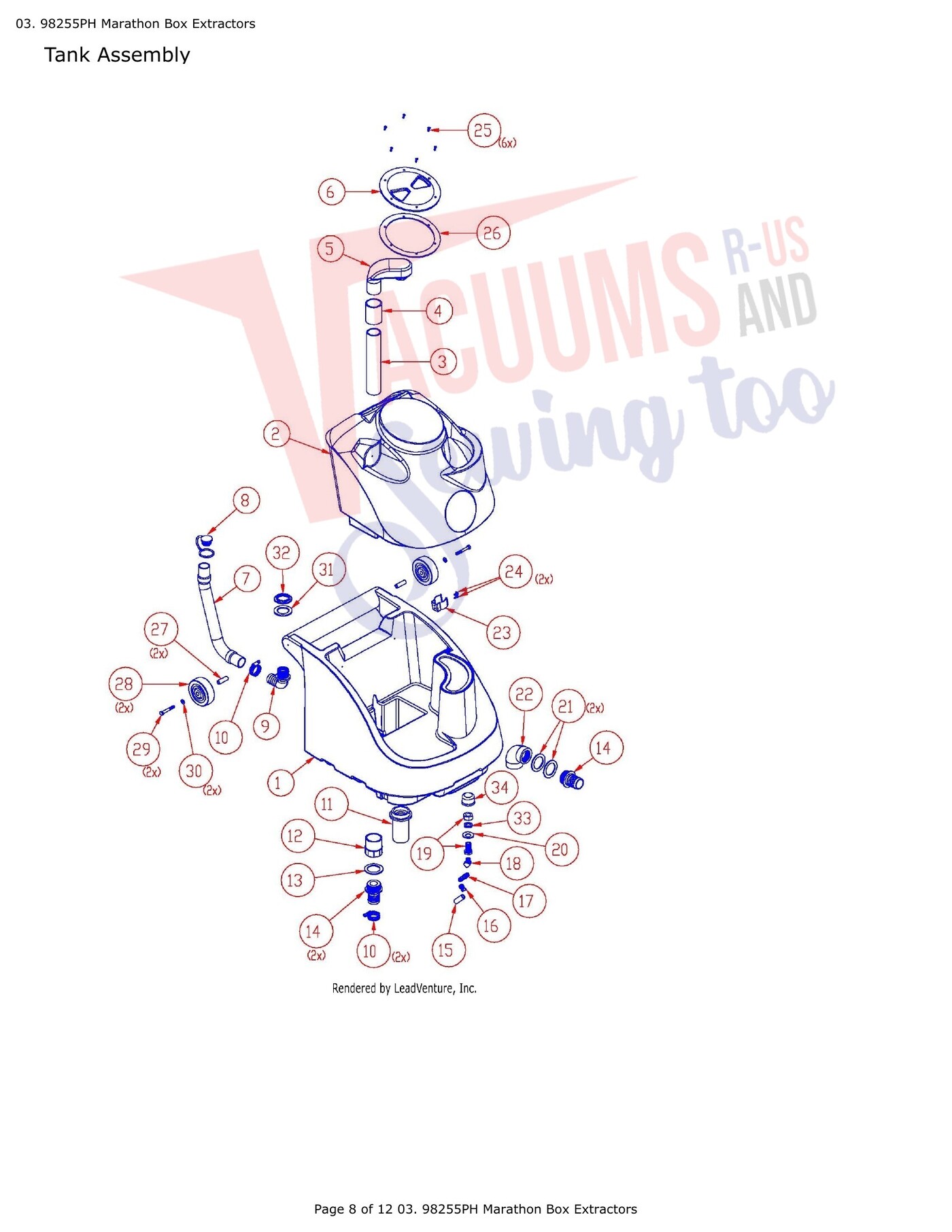

| 1 |  | Solution Tank PFX Yellow RAL 1018 Order with 33072 | 33071 | $527.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | TANK RECOVERY PFX EXTRACTOR | 33072 | $420.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | PIPE PVC SCHEDULE 40 1-1/2 9.5 LONG | X9154 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | COUPLING PVC 1-1/2 SLIP X SLIP | 72615A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Tube, Vacuum | PX33 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | ELBOW 1-1/4H - 1-1/4M NYLON | 7GR016 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Float, Cage W/Heavy Ball | PX31 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Coupler, Plastic 1.50 Slip X 1.50 FPT | PX63 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Gasket, Dump Valve .1875 Thick 1.75 ID X 2.50 OD | PX14 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Hose 300PSI Solution 3/8 ID X 1/8 Wall | PX3H | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 | 7DL003 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Barb 1/4 X 3/8 Male/Male | PX85 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Elbow, Street .25 NPT 45 Degrees Brass | PX17 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Bulkhead, Fitting Brass .75 | PX48 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Washer 3/4 Neoprene-Bond Galvanized | 72274A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | SCREW, 10-32X3/8 PHIL PAN MS 18-8 SS | 7BH004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Bolt 5/16-18 X 2-1/4 Hex | 72645A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | GASKET 1-1/4 FITTING | X9164 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | NUT LOCK 1-1/4 | X9165 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Gasket Fiber 1.125 OD X .75 ID X .156 Thick | PX48G | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Filter,Pumps,SLS 1/2 FNPT 30X30 SST | X9294 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

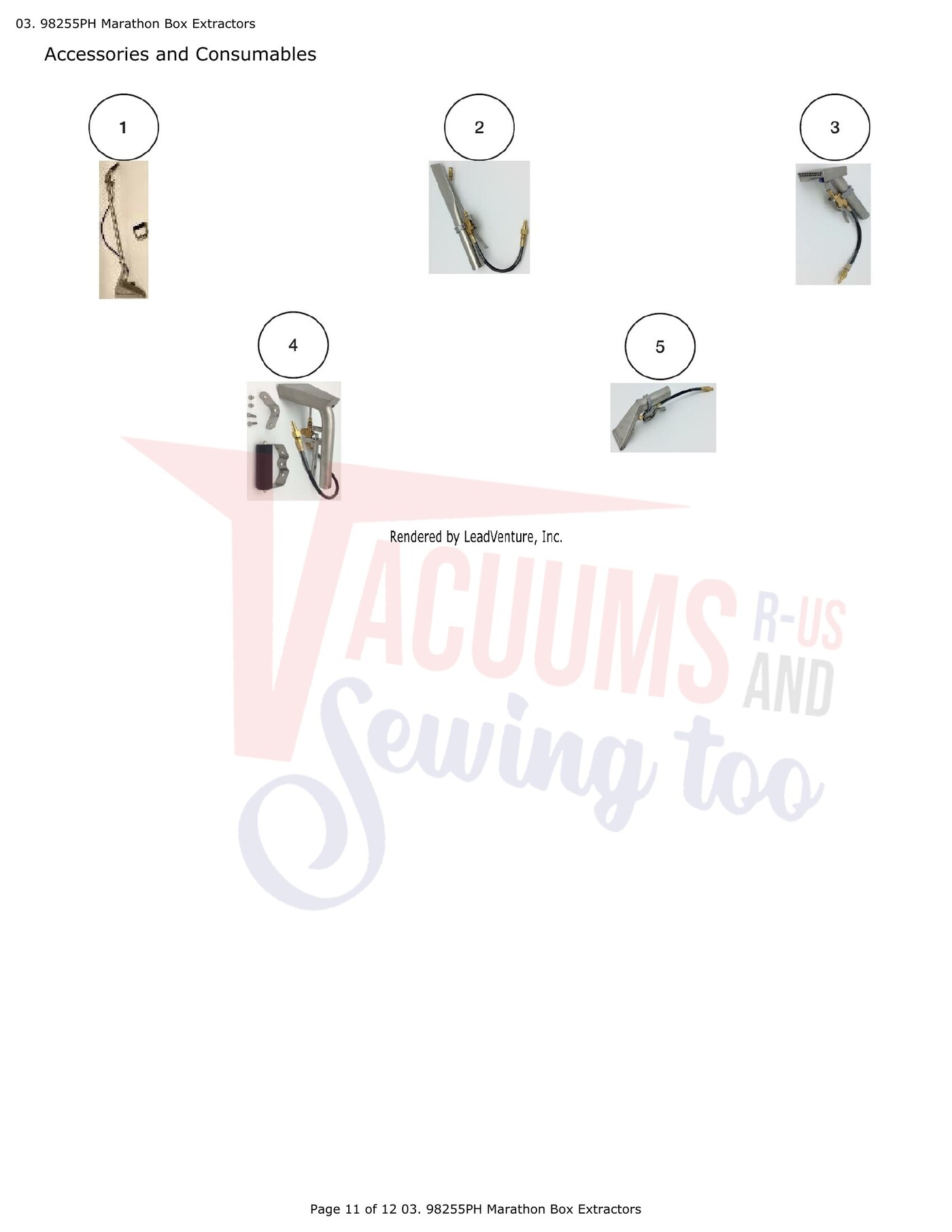

| 1 | Not Available | 12"Double Bend Wand 3 Jets 500 P.S.I. | 98398 | Not Available |
| 2 |  | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| 3 | No Image | Metal Upholstery Tool 500 P.S.I. | 98343 | $0.00Read more |
| 4 |  | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |
| 5 | No Image | 1-1/2" X 3-1/2" Detail Tool | 98350 | $0.00Read more |
