Schematic and parts book for Tornado 98190 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | Hose High Pressure 20Ft Tornado Vacuum Solution | 95567A | $439.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | 100PSI 12 DOUBLE BEND WAND WITH 2 JETS | 98397 | $710.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | Not Available | Drag Wand 12" | 98394 | Not Available |
| XX | No Image | 1-1/2" X 3-1/2" Detail Tool | 98350 | $0.00Read more |
| XX |  | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| XX | No Image | Metal Upholstery Tool 500 P.S.I. | 98343 | $0.00Read more |
| XX |  | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |

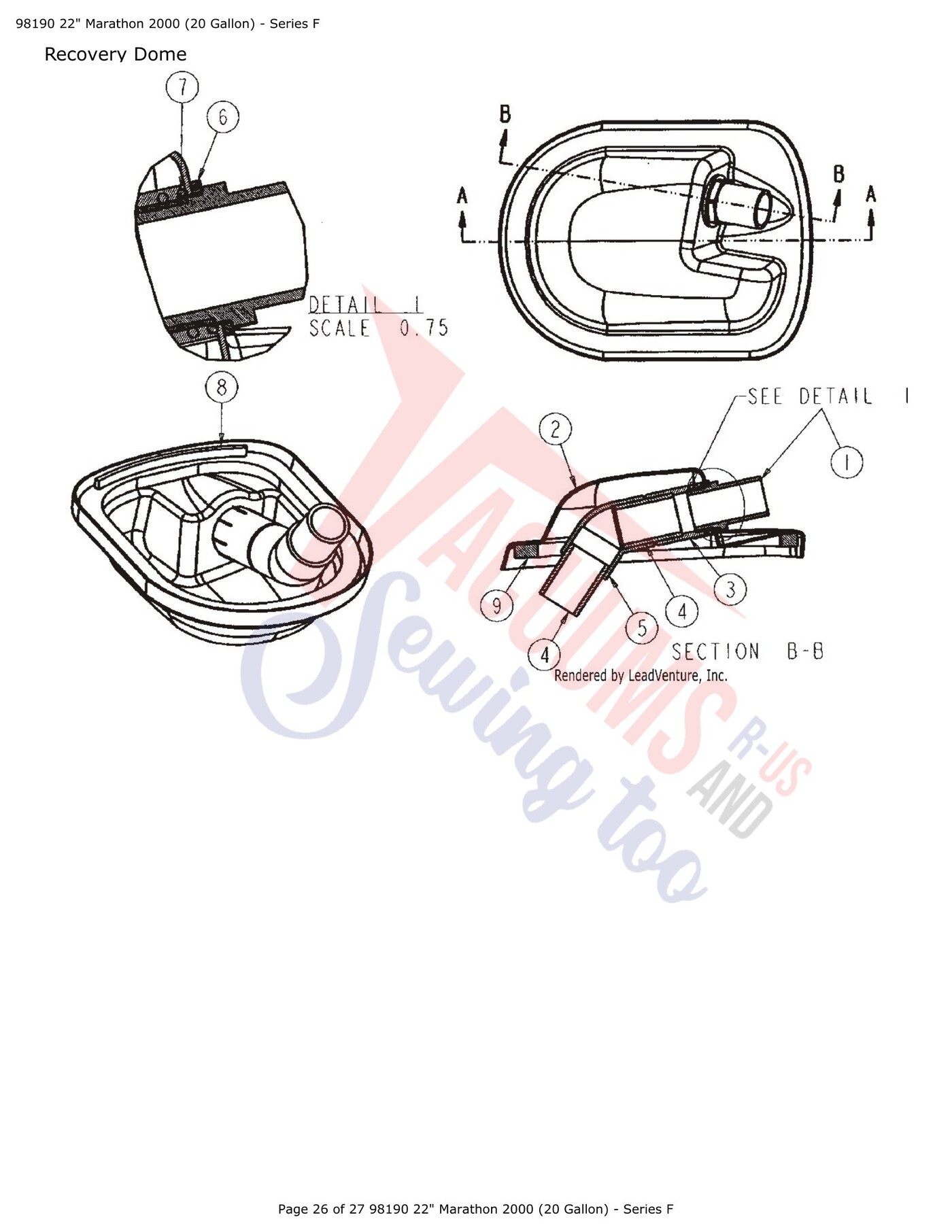

| # | Part image | Description | SKU | Price |
| XX | No Image | Assembly Top Cover Marathon 2000 | 30646 | $401.99Read more |
| 1 | No Image | Fitting, Recovery Hose 98166 98169 1.25 SMPT X 1.5 | 19270 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Cover, Top Tank (98190) | 30025 | $215.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Fitting Female Cover 98190 | 30059 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Pipe Cover 98190 White PVC 1.25x2 in | 30060 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Elbow Cover 45 degree 98190 | 30061 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Washer, Cover (98190) | 30062 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | O Ring Cover 98190 | 30063 | $2.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Gasket Support Mara | 31403 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Gasket Cover Top Housing 98190 | 31300 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

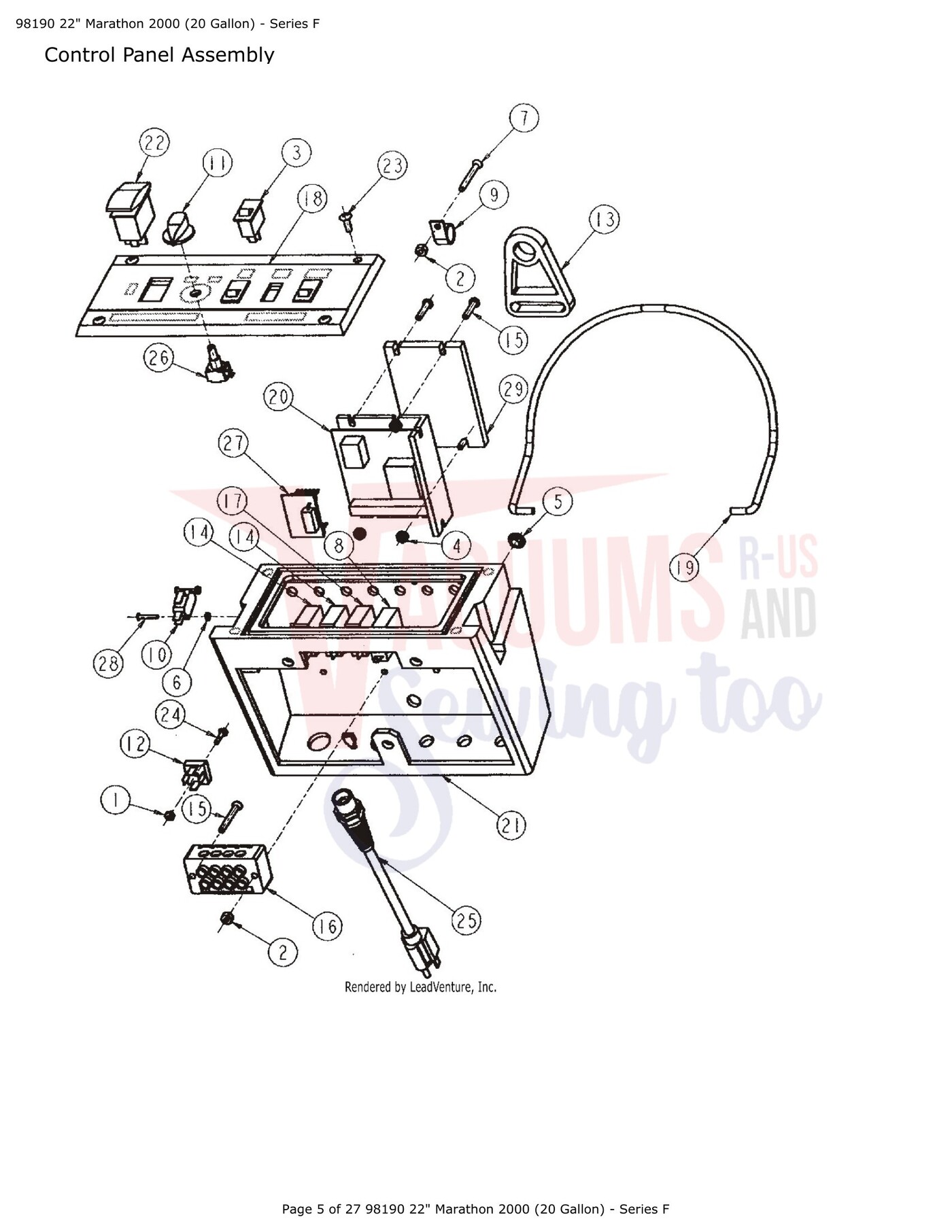

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nut | 00616 | Not Available |
| 2 | No Image | Nut | 01604 | $0.00Read more |
| 3 |  | SWITCH ROCKER 98164 68 | 10670 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV | 10892 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Hole Plug 1/2" | 14624 | $0.00Read more |
| 6 | No Image | NUT, No 4 40 HEX.LOCK(KEPS) | 15560 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Screw #10-32 x 1-3/4" | 16433 | Not Available |
| 8 | Not Available | Circuit Breaker 20A | 17780 | Not Available |
| 9 | No Image | CLAMP CABLE(5/8DIA.) | 18717 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | SWITCH BUTTON S.P.D.T. 10 AMPS EZ | 18818 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Knob | 18863 | $0.00Read more |
| 12 | No Image | Rectifier, 1000 V 35 Amp, Previously 19182 | X1193 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | B3526900 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Circuit Breaker,Extractor,2.5Amp,125V-250VAC | X1192 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Screw | 19617 | $0.00Read more |
| 16 | Not Available | Terminal Block | 19879 | Not Available |
| 17 |  | Circuit Breaker 15 Amp Part Number 19990 for Cleanmax Models CM-WAV | 19990 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Control Panel, (98190) | 30028 | $51.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Rod, Drive Actuation (98190) | 30038 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Driver PCB | 30042 | Not Available |
| 21 | Not Available | Control Housing | 30224 | Not Available |
| 22 | No Image | SWITCH ROCKER ON/OFF(DP) (WETDRY) 10A/250,15/125 | 30241 | $62.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | SCREW PHIL. TRUSS HD No 10 24 X 5/8 (BLK.OX) | 30676 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | SCREW PHIL. TRUSS HD No 6 32 X 3/4 (SS) | 30677 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Must Use Part Number | 30688 | Not Available |
| 26 | Not Available | Potentiometer Assembly | 30698 | Not Available |
| 27 | No Image | DAUGHTER BOARD (98190) ASSEMBLED TO MAIN 30042 | 30699 | $56.99Read more |
| 28 | No Image | SCREW, No 4 40 X 3/4 PHIL. TRUSS HD SS | 30703 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Heat Sink Plate | 30880 | $0.00Read more |

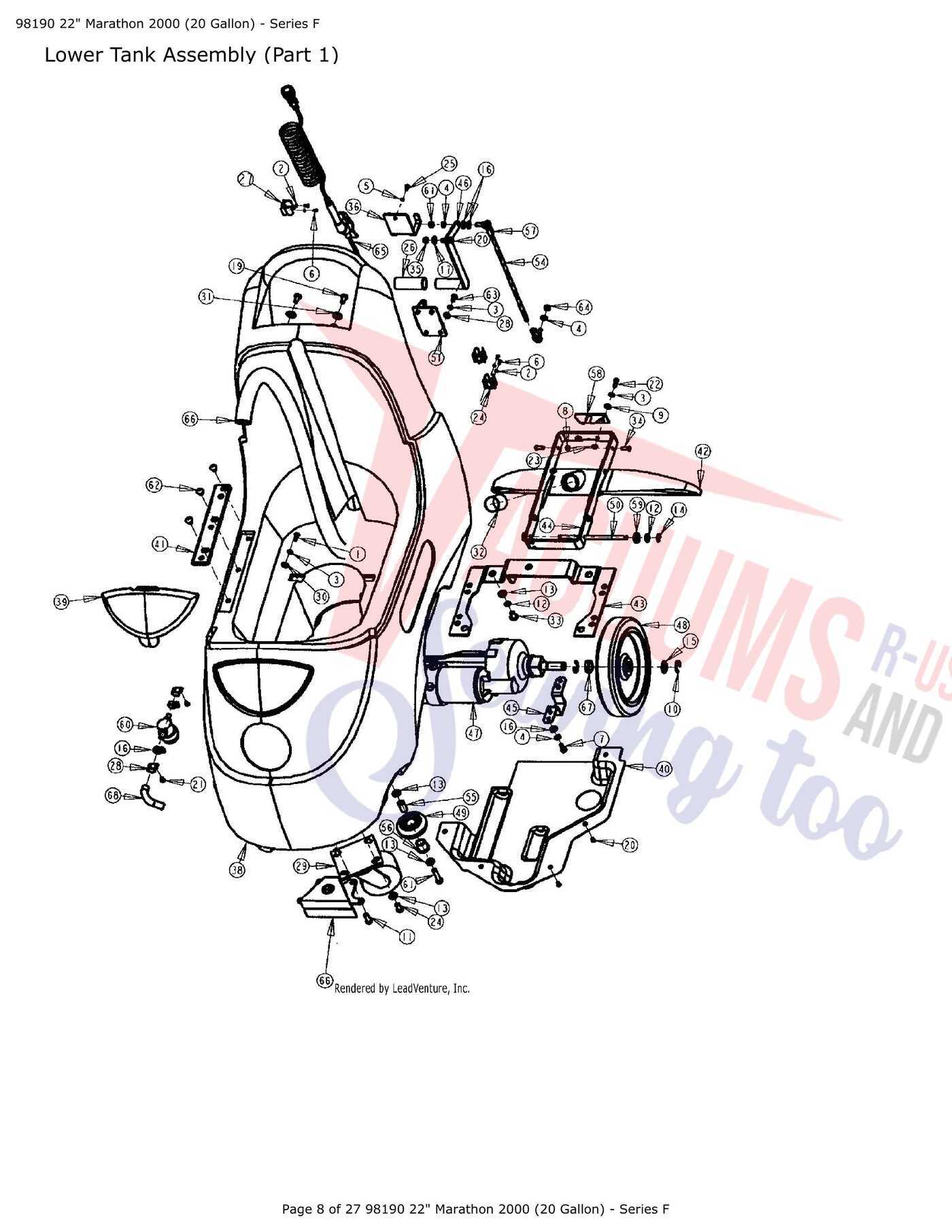

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw Oval PH HD Machine 1/4 20x3/4 SS | 00064 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Washer Lock No. 6 Zn Split | 01246 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Lock Washer | 01574 | $0.00Read more |
| 4 |  | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Lock Washer | 01713 | Not Available |
| 6 |  | Screw PH Pan 6-32x3/8 MS Zn | 01734 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Screw 5/16-18 x 3/4" | 02109 | Not Available |
| 8 | No Image | Nut Hex Jam Lock Nylock 1/4 20 ZP | 02217 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | RING RETAINING EXT. 3/4 | 03313 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Screw Hex HD Cap 3/8 16x1 ZP | 03320 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Lock Washer | 03536 | Not Available |
| 13 | Not Available | Washer | 03736 | Not Available |
| 14 | No Image | RING RETAINING EXT. 3/8 | 03947 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | WASHER PLAIN 25/32 ID (ZP) | 03960 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | SCREW PHIL. PAN HD MACH 5/16 18 X 3/4 (ZP) | 15067 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | SCREW SOCKET HD SHOULDER 3/8D X 3/8 (ZP) | 15677 | $11.99Read more |
| 21 | Not Available | Screw | 16583 | Not Available |
| 22 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | | NUT-FINISHED HEX 1/4-20 Part Number 17508 for Simplicity Models SCE | 17508 | |
| 24 | No Image | SCREW HEX HD CAP 3/8 16 X 3/4 (SS) | 17575 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Screw Ph Truss HD No.10 24x1/2 SS | 17848 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Grip, Round | 10721 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | CLIP SIGHT TUBE RETAIN BLACK | 18468 | $5.99Read more |
| 28 | No Image | CLAMP CABLE(5/8DIA.) | 18717 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Caster, Swivel 4 Dia | 18773 | $146.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 32 | No Image | Adapter, Tube Nozzle Hose | 19197 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) | 19207 | $3.99Read more |
| 34 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Hanger, Drain Hose (98190) | 19948 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Tank, Bottom 98190 Ord W/30022,30023,32382 | 30021 | $2,075.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Cover, Inlet Bottom Tank (98190) | 30026 | $159.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Cover, Pump (98190) | 30027 | $171.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hinge | 30030 | Not Available |
| 42 | No Image | Nozzle, Carpet Extractor (98190) | 30031 | $220.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Bracket, Bottom Tank (98190) | 30032 | $296.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | Bracket, Vacuum Nozzle (98190) | 30033 | $197.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Bracket, Transaxle (98190) | 30035 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Handle 98190 | 30036 | $122.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Transaxle 115VDC | 30040 | Not Available |
| 48 | Not Available | Wheel 10" x 2" | 30043 | Not Available |
| 49 | No Image | Wheel Bumper 3 x 7/8 Grey | 30044 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | Rod, Brush Attachment (98190) | 30048 | $55.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Bracket Handle Marathon Extractors Rev B | 30049 | $52.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | Rod, Lift Handle (98190) | 30056 | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | Bumper Wheel Spacer | 30570 | Not Available |
| 56 | Not Available | Bumper Wheel Bushing | 30571 | Not Available |
| 57 | No Image | Ball Joint Handle 98190 | 30577 | $44.99Read more |
| 58 | No Image | Bracket, Adjusting Screw (98190) | 30578 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | No Image | Spacer, Attachment Rod (98190) Delrin | 30581 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Solution Filter | 30585 | Not Available |
| 61 | No Image | SCREW HEX HD CAP 3/8 16 X 1 5/8 (SS) | 30660 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | SCREW, 3/8 16 X 1/2 PHIL. RND HD MACH SS | 30673 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | SCREW PHIL. PAN HD MACH 1/4 20 X 5/8 (SS) | 30674 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | NUT FINISHED HEX 5/16 24 (SS) | 30675 | $1.99Read more |
| 65 | No Image | ASSEMBLY SPRAY WAND MARATHON 2000 | 30687 | $302.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | Not Available | Front Weight (3.26 lbs.) | 30704 | Not Available |
| 67 | No Image | Spacer | 30922 | $0.00Read more |
| 68 | No Image | Hose, Steel Supported Grey 1 1/2 X 42 W/Cuffs | 31388 | $82.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

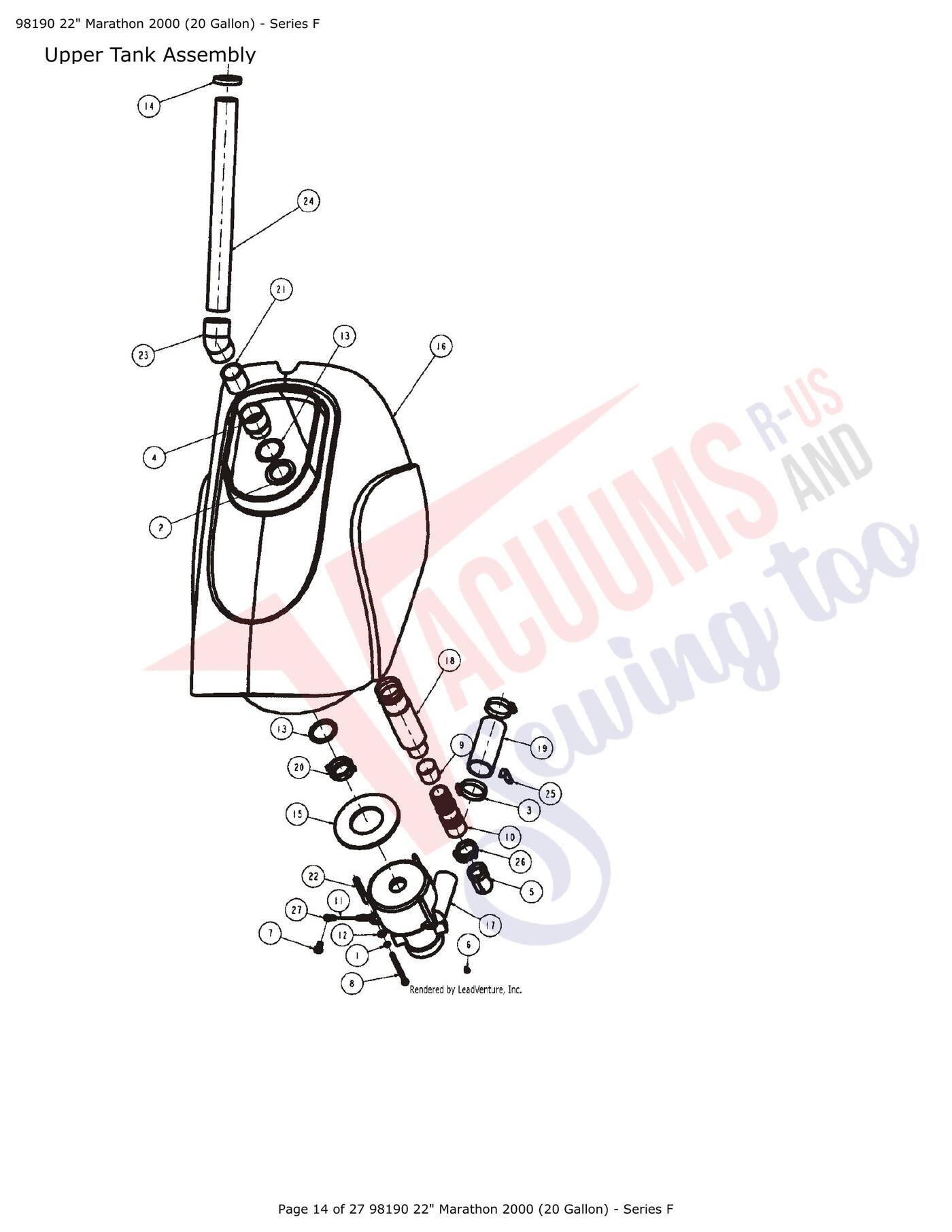

| # | Part image | Description | SKU | Price |
| 1 | No Image | Lock Washer | 01574 | $0.00Read more |
| 2 | No Image | Gasket 2.6 OD 1.875 ID 0.1875 Thick Rev01 | 05781 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | CLAMP-HOSE (SCREW) Part Number 14858 for Simplicity Models SCE | 14858 | $10.99Read more |
| 4 | Not Available | PVC Male Adapter | 15088 | Not Available |
| 5 |  | Plug, Retained Plug Drain Hose | 16089 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Screw | 16583 | Not Available |
| 7 |  | SCREW HEX HD CAP 3/8 16 X 5/8 (ZP) | 16671 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Screw Hex HD Cap 1/4 20x4.25 ZP | 17644 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | SLEEVE RECOVERY DRAIN HOSE | 18357 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Nozzle Drain Hose HM 4000 and F/KS | 18563 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Cable, Assembly (Steel) Tank Cover Retainer | 18789 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Washer,Plain 2.00 ID SS | 18886 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Filter,Extractor,Vac Motor Intake | 19097 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Gasket 3/8 Donut Tank Seal V1510 PVC | X9079 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Tank, Top 98190 Ord W/30021,30023,32382 | 30022 | $656.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Vacuum Motor | 30041 | Not Available |
| 18 | No Image | Bellow Hose Drain Top 1-1/2x35 EPDM Blk | 30051 | $127.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Hose, Steel Supported Blk 2 X 32 No Cuffs | 30066 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Vacuum Stand Pipe Nut | 30067 | Not Available |
| 21 | No Image | ADAPTER INSERT 2 | 15100 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Spacer, Vac Motor (98190) | 30070 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | 1-1/2" PVC Pipe Elbow | 30563 | Not Available |
| 24 | No Image | PIPE PVC 1 1/2 X 19 | 30564 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Bracket, Exhaust Hose .025 Thk (SS) (98190) | 30584 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | CLAMP HOSE 1 5/8DIA. BLACK | 31301 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Ring Split 98190 | 31303 | $1.99Read more |

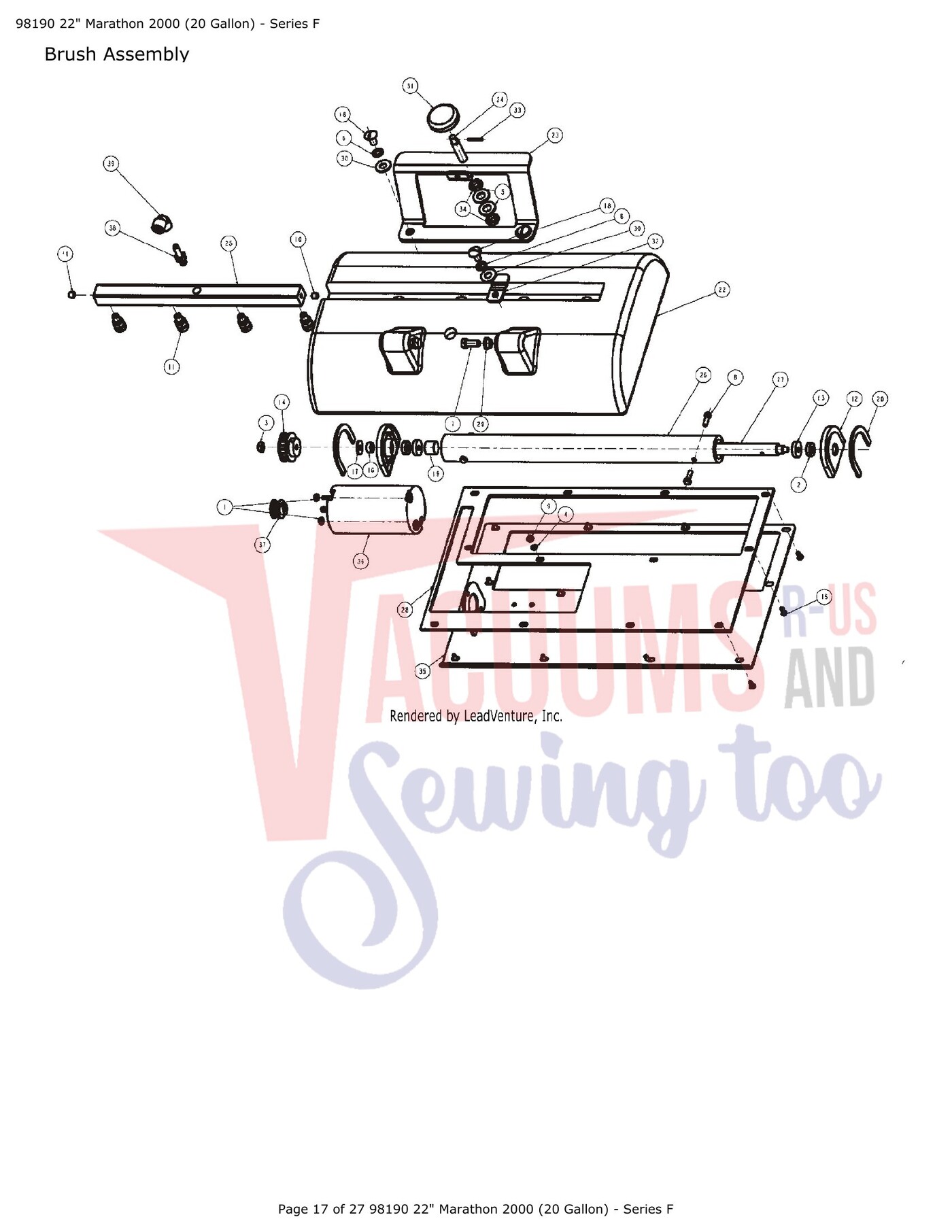

| # | Part image | Description | SKU | Price |
| 1 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Bearing 608-2RS | 05209 | Not Available |
| 3 | Not Available | Nut | 05282 | Not Available |
| 4 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Washer | 16581 | $0.00Read more |
| 6 | No Image | WASHER, 3/8 LOCK IT | 16586 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | SCREW HEX HD CAP 3/8 16 X 7/8 (ZP) | 16907 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 10 | | FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE | 19149 | |
| 11 | No Image | Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE | X9139 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE | 19157 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | BEARING SEAL Part Number 19158 for Simplicity Models SCE | 19158 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE | 19161 | $61.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | SCREW, No 10 24 X 1/2 PHIL. FLAT HD MACH SS | 19165 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE | 19190 | $4.39Read more |
| 17 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 18 | No Image | SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) | 19207 | $3.99Read more |
| 19 | No Image | Sleeve, Bearing .75 (Nyliner) | 19227 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | GASKET-BEARING BLOCK Part Number 19228 for Simplicity Models SCE | 19228 | $4.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Belt,Scrubbers,Timing,150XL X 3/8 | 19233 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Housing, Brush 98190 Ord W/30021,30022,32382 | 30023 | $402.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Bracket Brush Position Marathon Extractors | 30034 | $72.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Adjusting Screw 98190 | 30039 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Manifold Spraybar Aluminum 98190 | 30045 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Roller, Brush 20 (98190) | 30046 | $354.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Shaft, Brush 20 (98190) | 30047 | $278.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Gasket Brush Plate 98190 | 30057 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Shroud, Bushing Pivot Nylon | 19153 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Washer | 30075 | Not Available |
| 31 | No Image | Knob 98190 | 30562 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Bracket Spraybar 98190 | 30569 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | PIN SPRING 1/8 DIA X 1.00 LG (SLO) | 30707 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | NUT NYLON LOCK 1/2 13 THIN | 30920 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Brush Plate, Weldment and Motor Bracket | 30973 | $258.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Brush Motor Extractor 120VDC .25hp 3dia SCE SMB004 | X9002 | $301.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | | PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE | 32175 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | | STEM ADAPTER 3/8" Part Number 32181 for Simplicity Models SCE | 32181 | $5.49Read more |
| 39 | | SWIVEL ELBOW 3/8" Part Number 32189 for Simplicity Models SCE | 32189 | $17.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

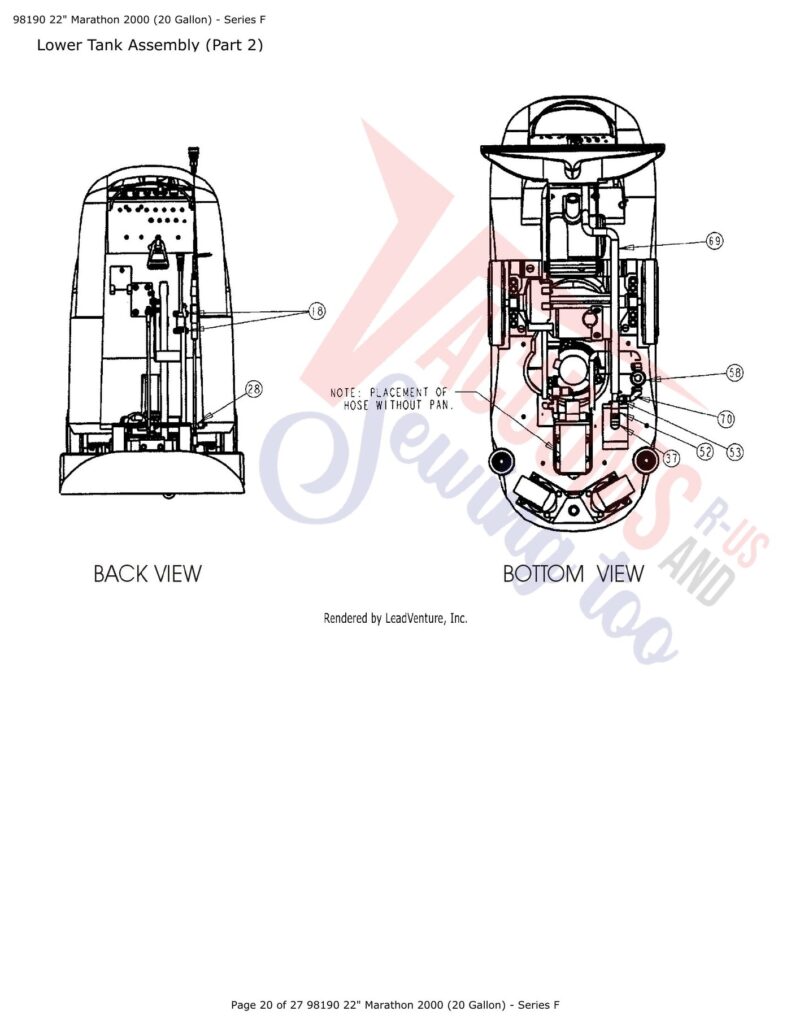

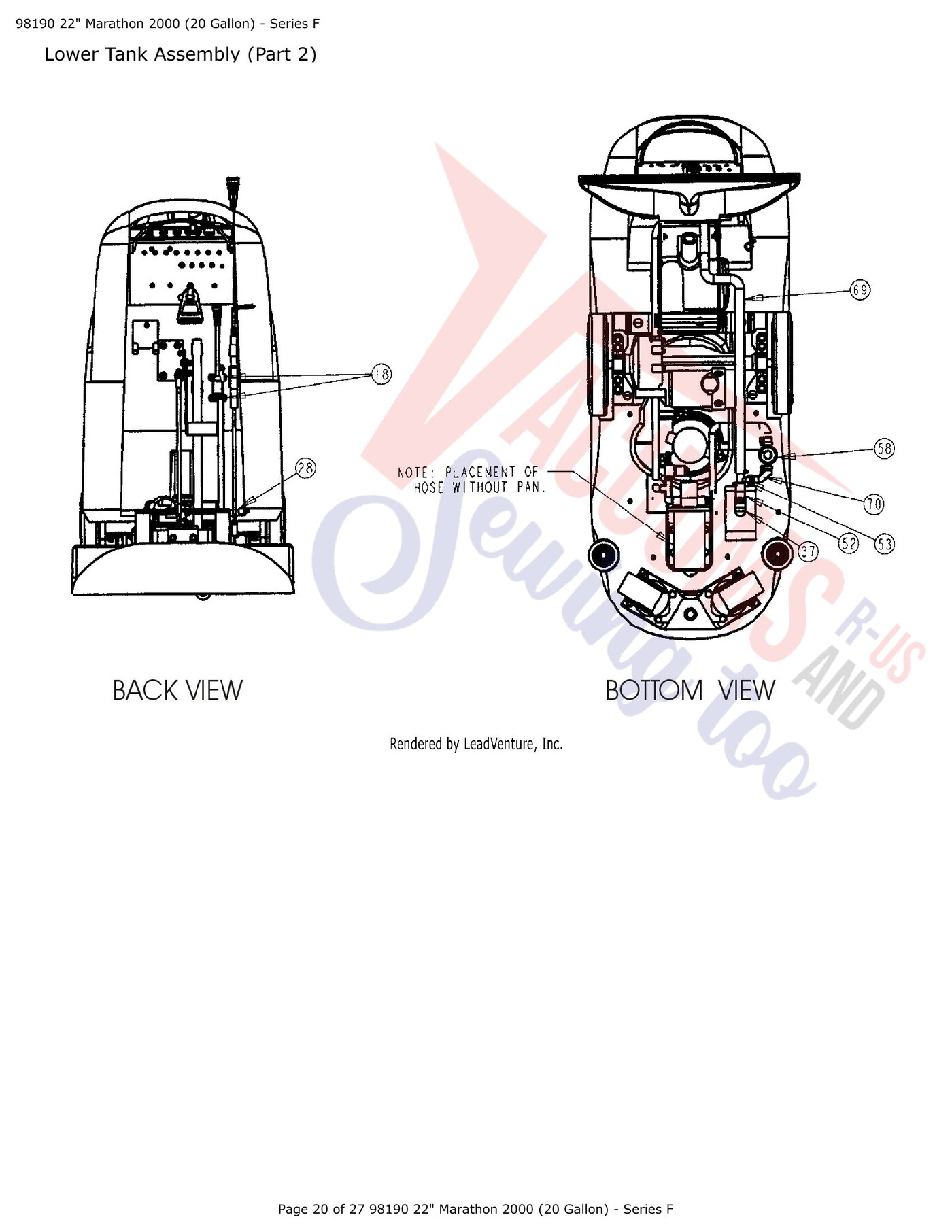

| 18 | Not Available | Nozzle Bar Clamp | 15061 | Not Available |
| 28 | No Image | CLAMP CABLE(5/8DIA.) | 18717 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | ELBOW 5/8 X 1/2 NYLON | 23292 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | Not Available | Tee Fitting | 30053 | Not Available |
| 53 | Not Available | Tee Fitting 5/8" x 3/8" x 5/8" | 30054 | Not Available |
| 58 | No Image | Bracket, Adjusting Screw (98190) | 30578 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 |  | Tube, PVC Clear Flexible 5/8 | 80827 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | Not Available | Hose 3/8" ID x 4" | 30575 | Not Available |
| # | Part image | Description | SKU | Price |

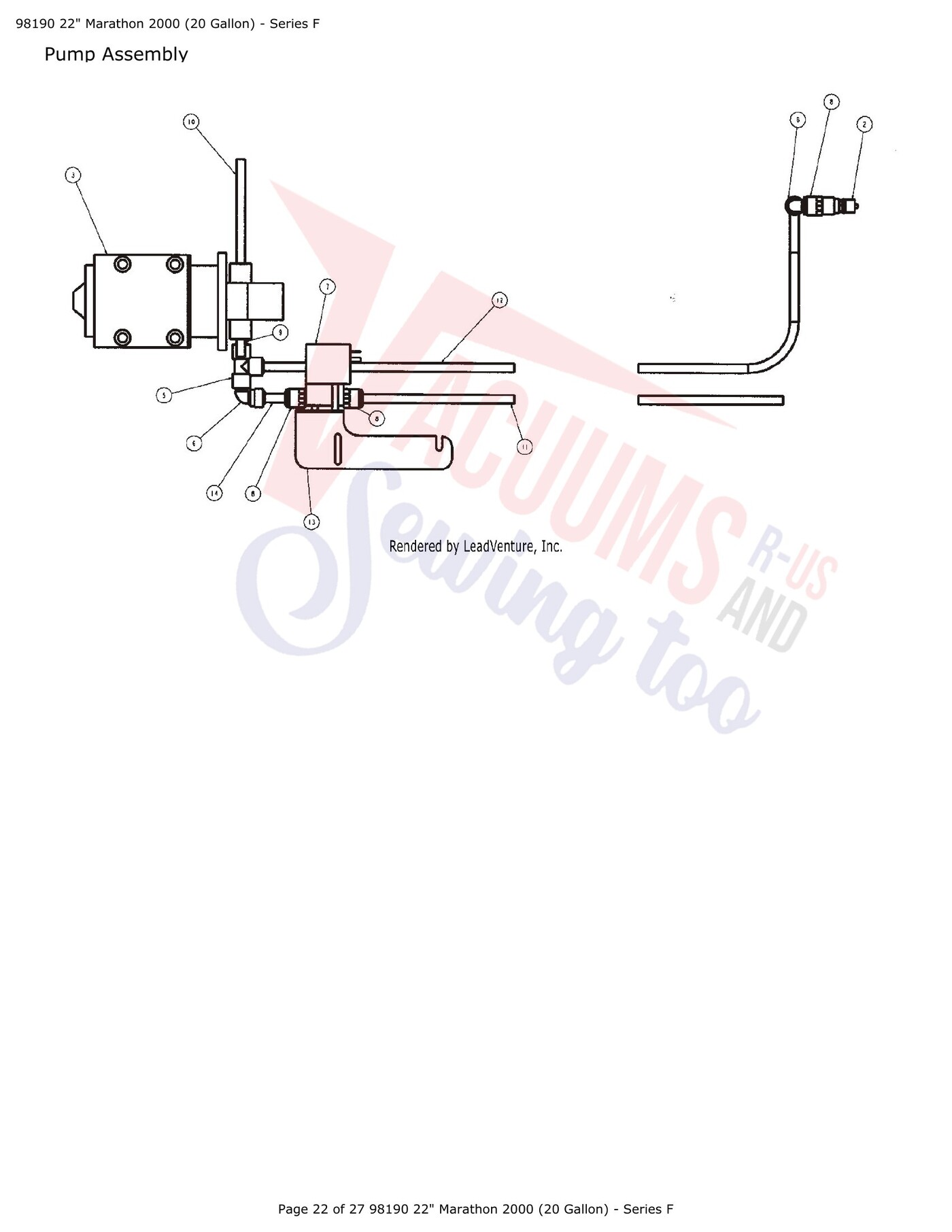

| 1 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Pump,Extractor,115V,VAC,100psi,50/60HZ | 32180 | $384.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | SCREW SLO. PAN HD M4 X .700 16 (ZP) | 23192 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | UNION TEE 3/8" Part Number 32182 for Simplicity Models SCE | 32182 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | PLUG IN ELBOW 3/8" Part Number 32183 for Simplicity Models SCE,SCE | 32183 | $19.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Valve Kit, 120 VAC Solenoid, 290 Psi | SW290KIT | $169.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE | 32186 | $13.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | HOSE 3/8OD X 1 3/4LG. (NATURAL TUBE) MARATHON | 32314 | $1.99Read more |
| 10 |  | HOSE 3/8OD X 3 1/4 LG. (NATURAL TUBE) MARATHON | 32316 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | HOSE 3/8OD X 22 LG. (NATURAL TUBE) MARATHON | 32317 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | HOSE 3/8OD X 39 LG. (NATURAL TUBE) MARATHON | 32318 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Bracket, Solenoid 240/120 Black Steel Marathon2000 | 32320 | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | HOSE 3/8OD X 2.5 LG. (NATURAL TUBE) MARATHON | 32342 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) | 19205 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
Report errors on this page HERE
