Schematic and parts book for Tornado 98190

Compatible with 1 Tornado model

98190

Schematic and parts book for Tornado 98190 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

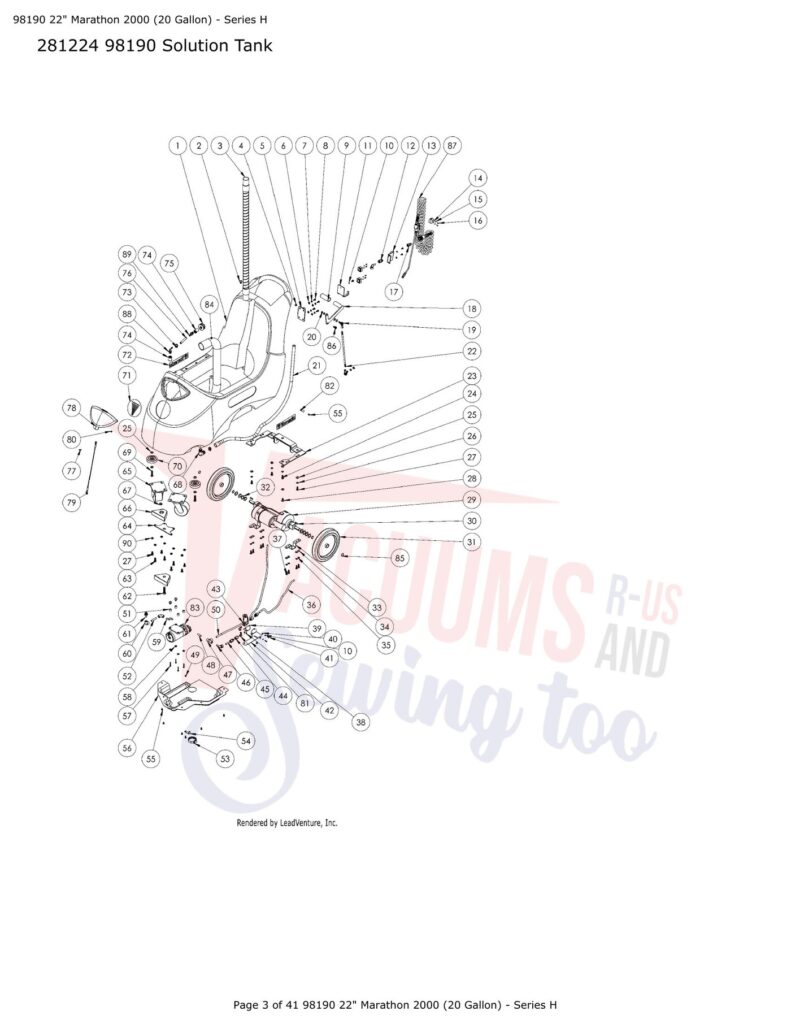

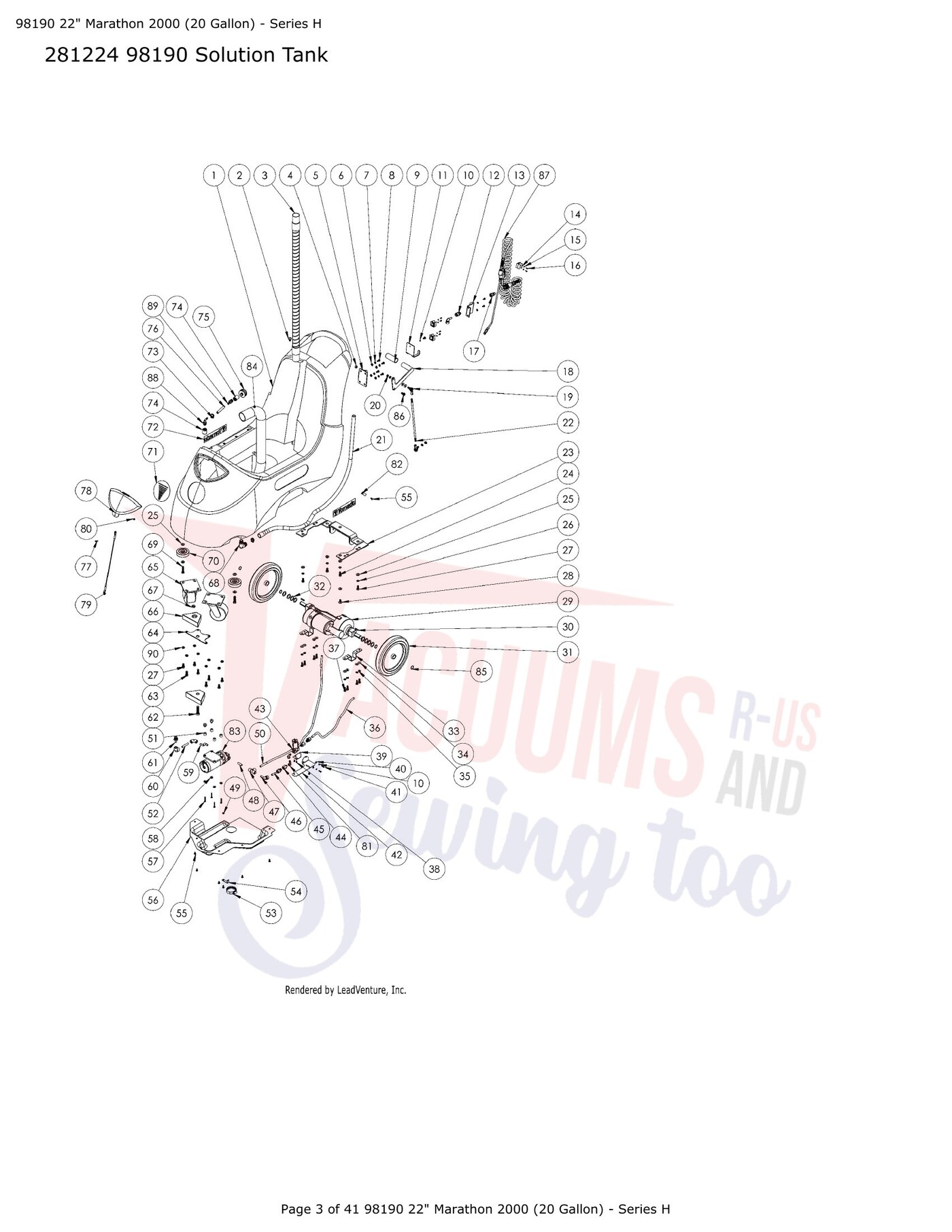

Tornado 98190 exploded schematic diagram (page 1)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	Tank, Bottom 98190 Ord W/30022,30023,32382 More Product Details	30021	$2,075.99Add to cart Special order: ships in 2 to 4 weeks
2	No Image	SCREW, 3/8 16 X 1/2 PHIL. RND HD MACH SS More Product Details	30673	$1.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	Hose, Steel Supported Grey 1 1/2 X 42 W/Cuffs More Product Details	31388	$82.99Add to cart Special order: ships in 2 to 4 weeks
4		Nut 5/16 Lock with Nylon Insert Zinc More Product Details	X8248	$2.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Bracket Handle Marathon Extractors Rev B More Product Details	30049	$52.99Add to cart Special order: ships in 2 to 4 weeks
6		Washer Plain 1/4 ID SS More Product Details	18885	$1.99Add to cart Special order: ships in 2 to 4 weeks
7		WASHER-LOCK (1/4") Part Number 1574 for Simplicity Models SCE More Product Details	1574	$0.00Read more
8	No Image	SCREW PHIL. PAN HD MACH 1/4 20 X 5/8 (SS) More Product Details	30674	$1.99Add to cart Special order: ships in 2 to 4 weeks
9	No Image	Grip, Round More Product Details	10721	$18.99Add to cart Special order: ships in 2 to 4 weeks
10		WASHER, LOCK #10 Part Number 1713 for Simplicity Models SCE More Product Details	1713	Price and Availability Special order: ships in 2 to 4 weeks
11	No Image	Hanger, Drain Hose (98190) More Product Details	19948	$47.99Add to cart Special order: ships in 2 to 4 weeks
12		MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE More Product Details	32186	$13.19Add to cart Special order: ships in 2 to 4 weeks
13		BRACKET SPRAY TOOL BLACK CRS MARATHON 2000 More Product Details	32319	$52.99Add to cart Special order: ships in 2 to 4 weeks
14	No Image	CLIP SIGHT TUBE RETAIN BLACK More Product Details	18468	$5.99Read more
15	Not Available	LOCKWASHER #6 ZINC SPLIT	1246	Not Available
16	No Image	Screw, 6-32 X 3/8 Phil Pan Ms Zinc More Product Details	1734	$0.00Read more
17		Quick Disconnect, .25 Male/Male 2 Way Shut Off More Product Details	PX5	$12.99Add to cart Special order: ships in 2 to 4 weeks
18	No Image	Handle 98190 More Product Details	30036	$122.99Add to cart Special order: ships in 2 to 4 weeks
19	No Image	Ball Joint Handle 98190 More Product Details	30577	$44.99Read more
20	No Image	NUT FINISHED HEX 5/16 24 (SS) More Product Details	30675	$1.99Read more
21		Tube, PVC Clear Flexible 5/8 More Product Details	80827	$2.99Add to cart Special order: ships in 2 to 4 weeks
22	No Image	Rod, Lift Handle (98190) More Product Details	30056	$85.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	Bracket, Bottom Tank (98190) More Product Details	30032	$296.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	SCREW HEX HD CAP 3/8 16 X 7/8 (ZP) More Product Details	16907	$1.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	WASHER 3/8 SAE FLAT ZINC More Product Details	X8219	$2.99Add to cart Special order: ships in 2 to 4 weeks
26		Washer-lock Part Number 3536 for Cleanmax Models CM-WAV More Product Details	3536	Order Info
27	No Image	SCREW HEX HD CAP 3/8 16 X 3/4 (SS) More Product Details	17575	$1.99Add to cart Special order: ships in 2 to 4 weeks
28	No Image	SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) More Product Details	19207	$3.99Read more
29		Transaxle, 120V With Keyway More Product Details	32352	$2,170.99Add to cart Special order: ships in 2 to 4 weeks
30	No Image	KEY SQUARE 3/16 x 1 LONG More Product Details	18115	$5.99Add to cart Special order: ships in 2 to 4 weeks
31		Wheel, Marathon 2000 More Product Details	32353	$180.99Add to cart Special order: ships in 2 to 4 weeks
32	Not Available	WASHER PLAIN 25/32 ID (ZP)	3960	Not Available
33	No Image	Bracket, Transaxle (98190) More Product Details	30035	$40.99Add to cart Special order: ships in 2 to 4 weeks
34	No Image	Washer 1/4 Flat USS Zinc More Product Details	X8235	$2.99Add to cart Special order: ships in 2 to 4 weeks
35	Not Available	5/16 SPLIT LOCKWASHER ZINC (REGULAR)	1577	Not Available
36		HOSE 3/8OD X 22 LG. (NATURAL TUBE) MARATHON More Product Details	32317	$5.99Add to cart Special order: ships in 2 to 4 weeks
37	No Image	SCREW HEX HD CAP 5/16 18 X 7/8 (ZP) More Product Details	16654	$1.99Add to cart Special order: ships in 2 to 4 weeks
38	No Image	Screw 8-32X3/8 PHMS SS More Product Details	7DM004	$2.99Add to cart Special order: ships in 2 to 4 weeks
39	No Image	Bracket, Solenoid Marathon, SW132B More Product Details	X1308B	$4.51Add to cart Special order: ships in 2 to 4 weeks
40	Not Available	WASHER PLAIN .199 ID (ZP)	3060	Not Available
41	No Image	SCREW SLO. PAN HD M4 X .700 16 (ZP) More Product Details	23192	$1.99Add to cart Special order: ships in 2 to 4 weeks
42		Bracket, Solenoid 240/120 Black Steel Marathon2000 More Product Details	32320	$30.99Add to cart Special order: ships in 2 to 4 weeks
43	Not Available	Solenoid Valve	SW290	Not Available
44		ADAPTER 1/4 FNPT X 1/8 MNPT More Product Details	PC30	$4.99Add to cart Special order: ships in 2 to 4 weeks
45	No Image	HOSE 3/8OD X 2.5 LG. (NATURAL TUBE) MARATHON More Product Details	32342	$1.99Add to cart Special order: ships in 2 to 4 weeks
46		PLUG IN ELBOW 3/8" Part Number 32183 for Simplicity Models SCE,SCE More Product Details	32183	$19.79Add to cart Special order: ships in 2 to 4 weeks
47		UNION TEE 3/8" Part Number 32182 for Simplicity Models SCE More Product Details	32182	$21.99Add to cart Special order: ships in 2 to 4 weeks
48	No Image	HOSE 3/8OD X 1 3/4LG. (NATURAL TUBE) MARATHON More Product Details	32314	$1.99Read more
49		Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV More Product Details	10892	$2.99Add to cart Special order: ships in 2 to 4 weeks
50		HOSE 3/8OD X 39 LG. (NATURAL TUBE) MARATHON More Product Details	32318	$8.99Add to cart Special order: ships in 2 to 4 weeks
51	No Image	SPACER SQUEEGEE LIFT More Product Details	15666	$10.99Add to cart Special order: ships in 2 to 4 weeks
52		HOSE 3/8OD X 2 LG. (NATURAL TUBE) MARATHON More Product Details	32258	$1.99Add to cart Special order: ships in 2 to 4 weeks
53		Clamp 2.5 Worm Gear SS Hex Slot Size 32 More Product Details	PX215	$8.99Add to cart Special order: ships in 2 to 4 weeks
54	No Image	Bracket, Exhaust Hose .025 Thk (SS) (98190) More Product Details	30584	$36.99Add to cart Special order: ships in 2 to 4 weeks
55	No Image	Screw Ph Truss HD No.10 24x1/2 SS More Product Details	17848	$2.99Add to cart Special order: ships in 2 to 4 weeks
56	No Image	Cover, Pump (98190) More Product Details	30027	$171.99Add to cart Special order: ships in 2 to 4 weeks
57	No Image	SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) More Product Details	19205	$1.99Add to cart Special order: ships in 2 to 4 weeks
58		Washer-plain 1/4 Part Number 851 for Cleanmax Models CM-WAV More Product Details	851	$0.00Read more
59		HOSE 3/8OD X 3 1/4 LG. (NATURAL TUBE) MARATHON More Product Details	32316	$1.99Add to cart Special order: ships in 2 to 4 weeks
60		SWIVEL ELBOW 3/8" Part Number 32189 for Simplicity Models SCE More Product Details	32189	$17.59Add to cart Special order: ships in 2 to 4 weeks
61	No Image	ADAPTER STEM 3/8 X 3/8 NPTF (NYLON) MARATHON More Product Details	32308	$4.99Read more
62	No Image	SCREW, 1/2-13X2 HEX HD CAP ZINC PLATE More Product Details	X1155	$1.99Add to cart Special order: ships in 2 to 4 weeks
63	Not Available	SCREW HEX HD CAP 3/8 16 X 1.00 (ZP)	3320	Not Available
64	No Image	Bracket, Front Weight (Marathon) More Product Details	31404	$67.99Add to cart Special order: ships in 2 to 4 weeks
65	No Image	Caster, Swivel 4 Dia More Product Details	18773	$146.99Add to cart Special order: ships in 2 to 4 weeks
66		Weight, Front (98190) Rev. D More Product Details	30696	$233.99Add to cart Special order: ships in 2 to 4 weeks
67	No Image	NUT NYLON LOCK 1/2 13 THIN More Product Details	30920	$1.99Add to cart Special order: ships in 2 to 4 weeks
68	No Image	ELBOW 5/8 X 1/2 NYLON More Product Details	23292	$8.99Add to cart Special order: ships in 2 to 4 weeks
69	No Image	SCREW HEX HD CAP 3/8 16 X 1 5/8 (SS) More Product Details	30660	$3.99Add to cart Special order: ships in 2 to 4 weeks
70	No Image	Wheel Bumper 3 x 7/8 Grey More Product Details	30044	$15.99Add to cart Special order: ships in 2 to 4 weeks
71		LABEL, LOGO SWIRL 5 IN DIA WAV More Product Details	31337	$1.99Add to cart Special order: ships in 2 to 4 weeks
72	No Image	LABEL, TORNADO W/ LOGO 2.25 WIDE X 9.50 LG. BLK More Product Details	30816	$2.99Add to cart Special order: ships in 2 to 4 weeks
73	No Image	Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 More Product Details	7DL008	$4.99Add to cart Special order: ships in 2 to 4 weeks
74	No Image	Coupler, (Alum) 3/8 NPT X 1.41 Lg. More Product Details	32177	$21.99Add to cart Special order: ships in 2 to 4 weeks
75	No Image	Strainer, Inline 3/8NPT 60 Mesh (Marathon) More Product Details	32178	$16.99Add to cart Special order: ships in 2 to 4 weeks
76	No Image	Hose Solution Screen EZ More Product Details	32643	$1.99Add to cart Special order: ships in 2 to 4 weeks
77	No Image	SCREW SLO. RND HD MACH No 6 32 X 3/4 (NYLON) More Product Details	19124	$1.99Add to cart Special order: ships in 2 to 4 weeks
78	No Image	Cover, Inlet Bottom Tank (98190) More Product Details	30026	$159.99Add to cart Special order: ships in 2 to 4 weeks
79		Cable, Assembly (Steel) Tank Cover Retainer More Product Details	18789	$29.99Add to cart Special order: ships in 2 to 4 weeks
80	No Image	Nut 6-32 Hex Nylon More Product Details	17883	$2.99Add to cart Special order: ships in 2 to 4 weeks
81	No Image	Elbow, Street .125 90 Degree Brass More Product Details	SW139	$10.99Add to cart Special order: ships in 2 to 4 weeks
82	No Image	CLAMP CABLE(5/8DIA.) More Product Details	18717	$1.99Add to cart Special order: ships in 2 to 4 weeks
83	No Image	Pump,Extractor,115V,VAC,100psi,50/60HZ More Product Details	32180	$384.99Add to cart Special order: ships in 2 to 4 weeks
84	No Image	Hose, Steel Supported Blk 2 X 32 No Cuffs More Product Details	30066	$35.99Add to cart Special order: ships in 2 to 4 weeks
85	Not Available	EXTERNAL RETAINING RING	3313	Not Available
86		SCREW SOCKET HD SHOULDER 3/8D X 3/8 (ZP) More Product Details	15677	$11.99Read more
87	No Image	ASSEMBLY SPRAY WAND MARATHON 2000 More Product Details	30687	$302.99Add to cart Special order: ships in 2 to 4 weeks
88		FITTING, PLASTIC ELBOW Part Number 18486 for Simplicity Models SCE More Product Details	18486	$3.29Add to cart Special order: ships in 2 to 4 weeks
89	No Image	FITTING PLASTIC CPLR 3/8 NPT X 3/8 More Product Details	18485	$1.99Add to cart Special order: ships in 2 to 4 weeks
90	No Image	3/8 FLAT WASHER PROLITE PF More Product Details	A0100500	$1.99Add to cart Special order: ships in 2 to 4 weeks

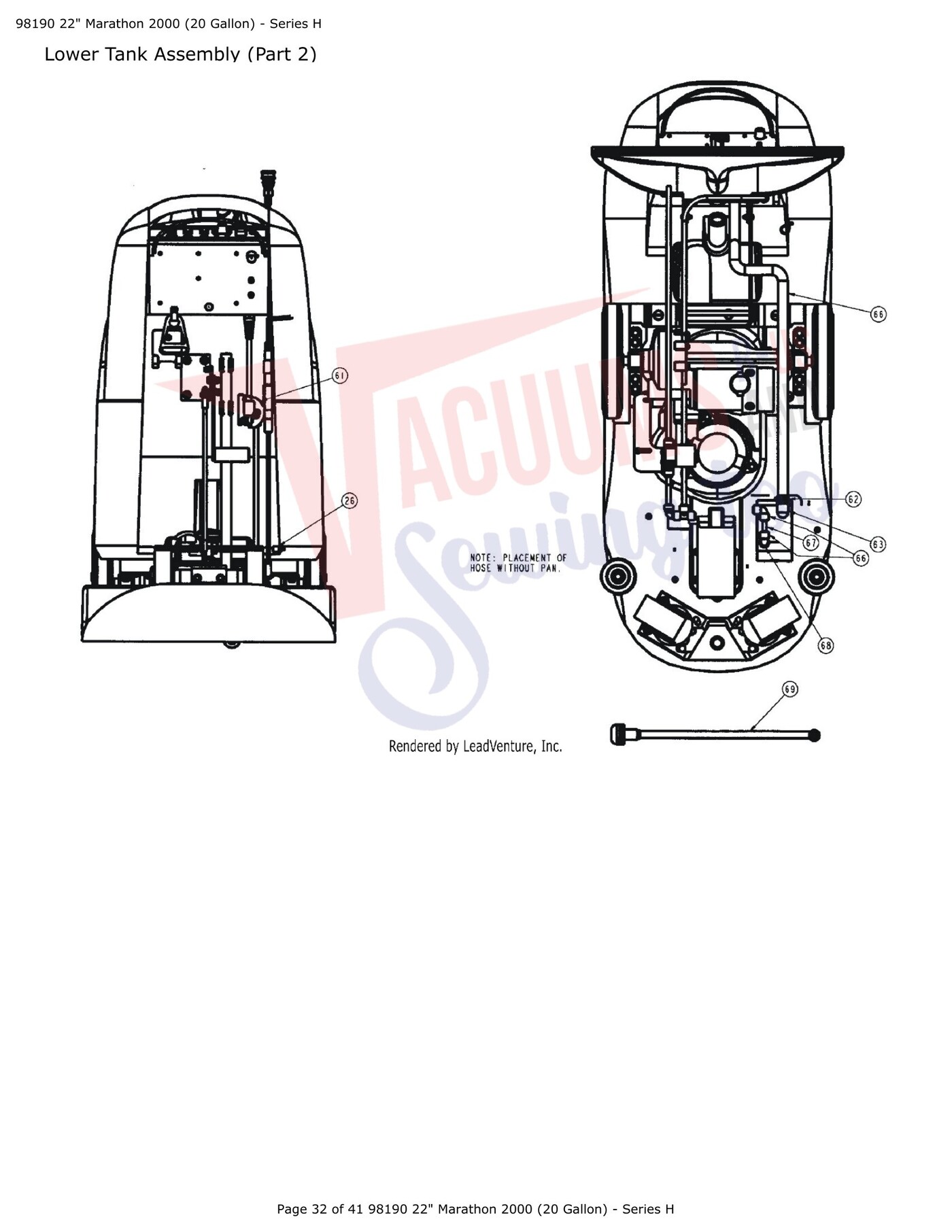

Tornado 98190 exploded schematic diagram (page 2)

Click to enlarge

#	Part image	Description	SKU	Price
26	No Image	CLAMP CABLE(5/8DIA.) More Product Details	18717	$1.99Add to cart Special order: ships in 2 to 4 weeks
61		Transaxle, 120V With Keyway More Product Details	32352	$2,170.99Add to cart Special order: ships in 2 to 4 weeks
62	No Image	Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 More Product Details	7DL008	$4.99Add to cart Special order: ships in 2 to 4 weeks
63	No Image	ELBOW 5/8 X 1/2 NYLON More Product Details	23292	$8.99Add to cart Special order: ships in 2 to 4 weeks
65		Tube, PVC Clear Flexible 5/8 More Product Details	80827	$2.99Add to cart Special order: ships in 2 to 4 weeks
66		SWIVEL ELBOW 3/8" Part Number 32189 for Simplicity Models SCE More Product Details	32189	$17.59Add to cart Special order: ships in 2 to 4 weeks
67		HOSE 3/8OD X 2 LG. (NATURAL TUBE) MARATHON More Product Details	32258	$1.99Add to cart Special order: ships in 2 to 4 weeks
68	No Image	ADAPTER STEM 3/8 X 3/8 NPTF (NYLON) MARATHON More Product Details	32308	$4.99Read more
69		Assembly Solution Filter Hose Marathon 2000 More Product Details	32315	$85.99Read more

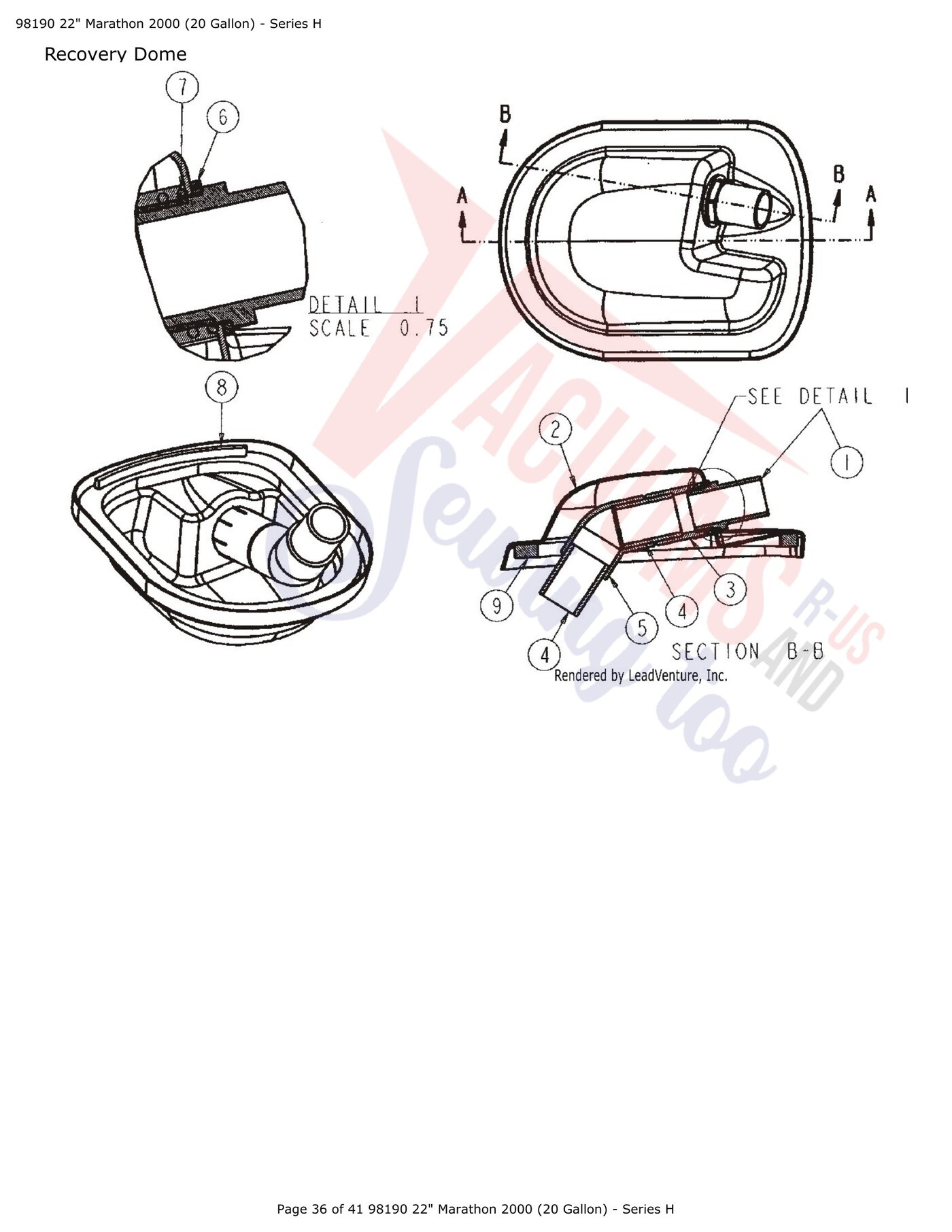

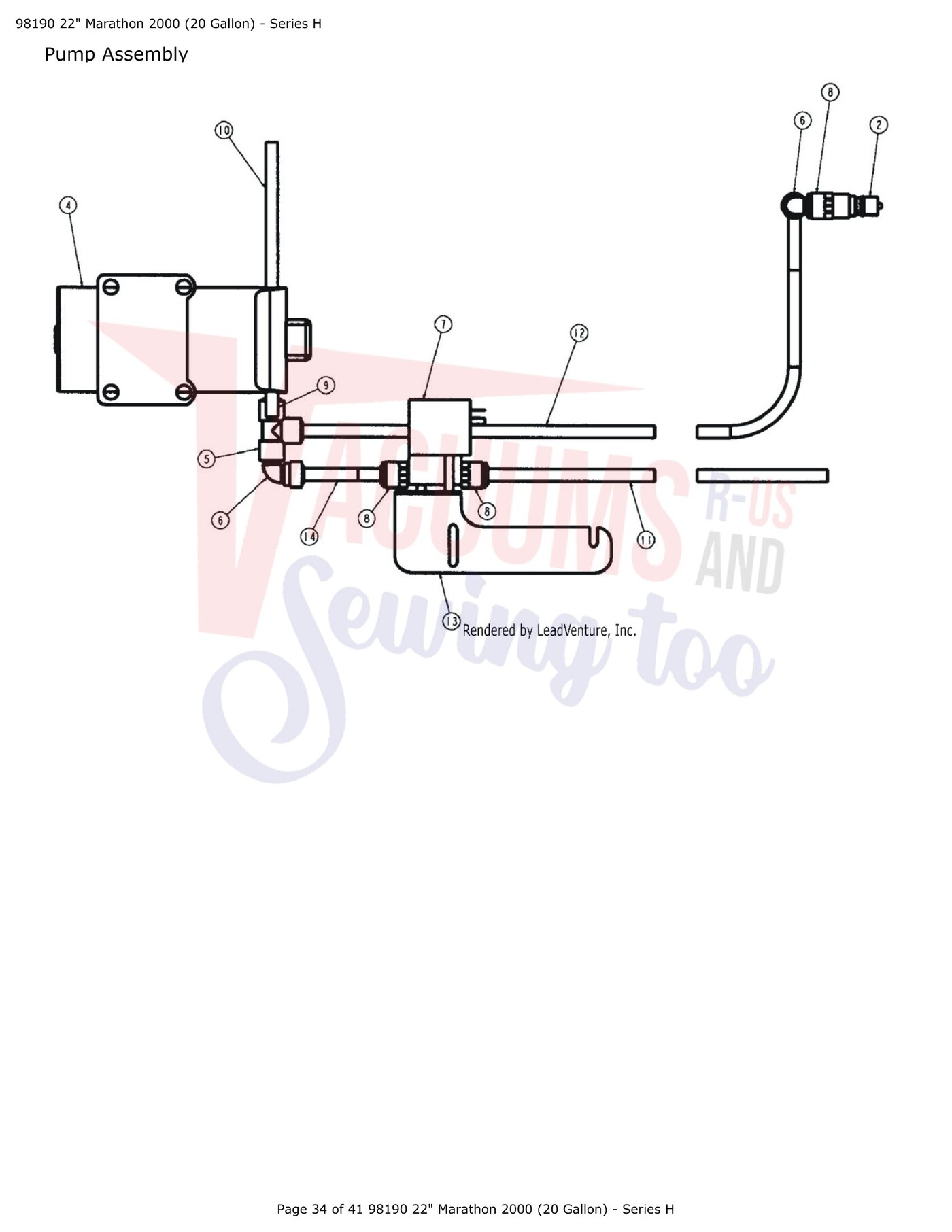

Tornado 98190 exploded schematic diagram (page 3)

Click to enlarge

#	Part image	Description	SKU	Price
1		Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE More Product Details	11007	$2.99Add to cart Special order: ships in 2 to 4 weeks
2		Quick Disconnect, .25 Male/Male 2 Way Shut Off More Product Details	PX5	$12.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	SCREW SLO. PAN HD M4 X .700 16 (ZP) More Product Details	23192	$1.99Add to cart Special order: ships in 2 to 4 weeks
4	No Image	Pump,Extractor,115V,VAC,100psi,50/60HZ More Product Details	32180	$384.99Add to cart Special order: ships in 2 to 4 weeks
5		UNION TEE 3/8" Part Number 32182 for Simplicity Models SCE More Product Details	32182	$21.99Add to cart Special order: ships in 2 to 4 weeks
6		PLUG IN ELBOW 3/8" Part Number 32183 for Simplicity Models SCE,SCE More Product Details	32183	$19.79Add to cart Special order: ships in 2 to 4 weeks
7		Valve Kit, 120 VAC Solenoid, 290 Psi More Product Details	SW290KIT	$169.99Add to cart Special order: ships in 2 to 4 weeks
8		MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE More Product Details	32186	$13.19Add to cart Special order: ships in 2 to 4 weeks
9	No Image	HOSE 3/8OD X 1 3/4LG. (NATURAL TUBE) MARATHON More Product Details	32314	$1.99Read more
10		HOSE 3/8OD X 3 1/4 LG. (NATURAL TUBE) MARATHON More Product Details	32316	$1.99Add to cart Special order: ships in 2 to 4 weeks
11		HOSE 3/8OD X 22 LG. (NATURAL TUBE) MARATHON More Product Details	32317	$5.99Add to cart Special order: ships in 2 to 4 weeks
12		HOSE 3/8OD X 39 LG. (NATURAL TUBE) MARATHON More Product Details	32318	$8.99Add to cart Special order: ships in 2 to 4 weeks
13		Bracket, Solenoid 240/120 Black Steel Marathon2000 More Product Details	32320	$30.99Add to cart Special order: ships in 2 to 4 weeks
14	No Image	HOSE 3/8OD X 2.5 LG. (NATURAL TUBE) MARATHON More Product Details	32342	$1.99Add to cart Special order: ships in 2 to 4 weeks
15	No Image	SPACER SQUEEGEE LIFT More Product Details	15666	$10.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) More Product Details	19205	$1.99Add to cart Special order: ships in 2 to 4 weeks
17	Not Available	Connector Assembly w/Wires	32207	Not Available

Tornado 98190 exploded schematic diagram (page 4)

Click to enlarge

#	Part image	Description	SKU	Price
XX	No Image	Assembly Top Cover Marathon 2000 More Product Details	30646	$401.99Read more
1	No Image	Fitting, Recovery Hose 98166 98169 1.25 SMPT X 1.5 More Product Details	19270	$33.99Add to cart Special order: ships in 2 to 4 weeks
2	No Image	Cover, Top Tank (98190) More Product Details	30025	$215.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	Fitting Female Cover 98190 More Product Details	30059	$4.99Add to cart Special order: ships in 2 to 4 weeks
4	No Image	Pipe Cover 98190 White PVC 1.25x2 in More Product Details	30060	$9.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Elbow Cover 45 degree 98190 More Product Details	30061	$11.99Add to cart Special order: ships in 2 to 4 weeks
6	No Image	Washer, Cover (98190) More Product Details	30062	$24.99Add to cart Special order: ships in 2 to 4 weeks
7	No Image	O Ring Cover 98190 More Product Details	30063	$2.95Add to cart Special order: ships in 2 to 4 weeks
8	No Image	Gasket Support Mara More Product Details	31403	$6.99Add to cart Special order: ships in 2 to 4 weeks
9	No Image	Gasket Cover Top Housing 98190 More Product Details	31300	$26.99Add to cart Special order: ships in 2 to 4 weeks

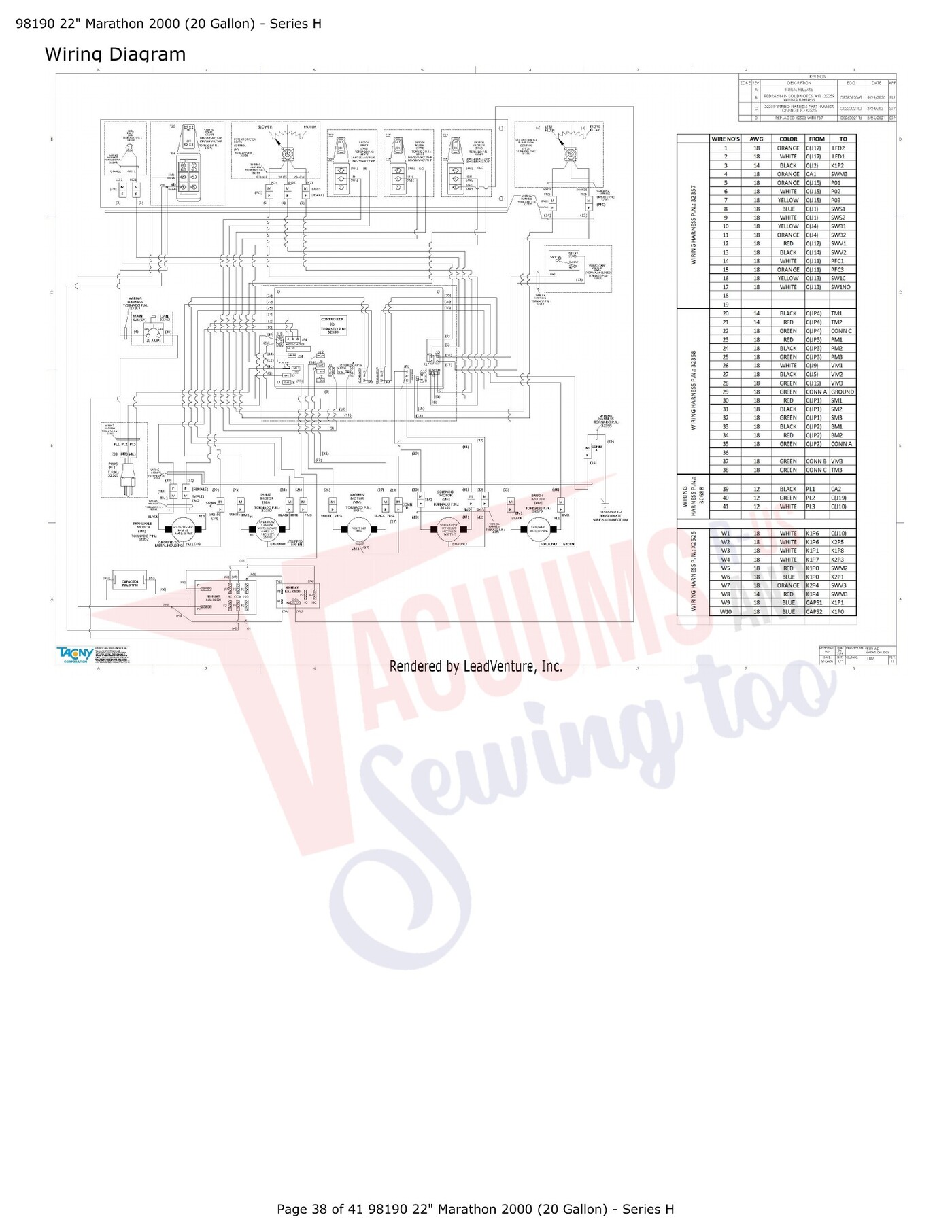

Tornado 98190 exploded schematic diagram (page 5)

Click to enlarge

Part image

Description

SKU

Price

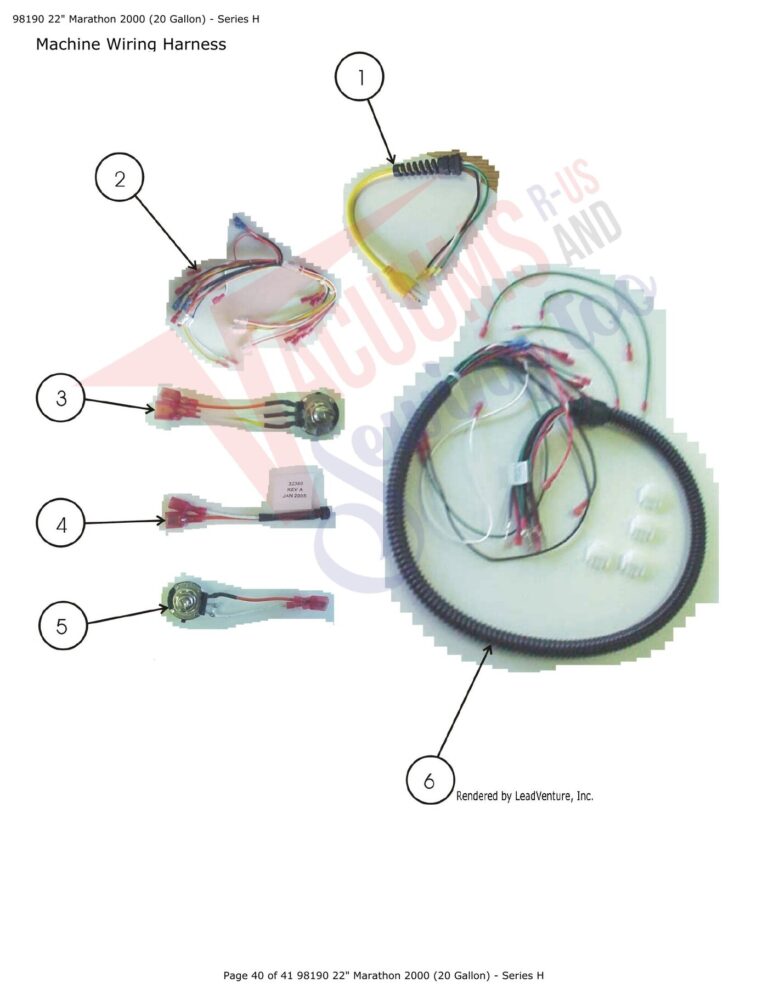

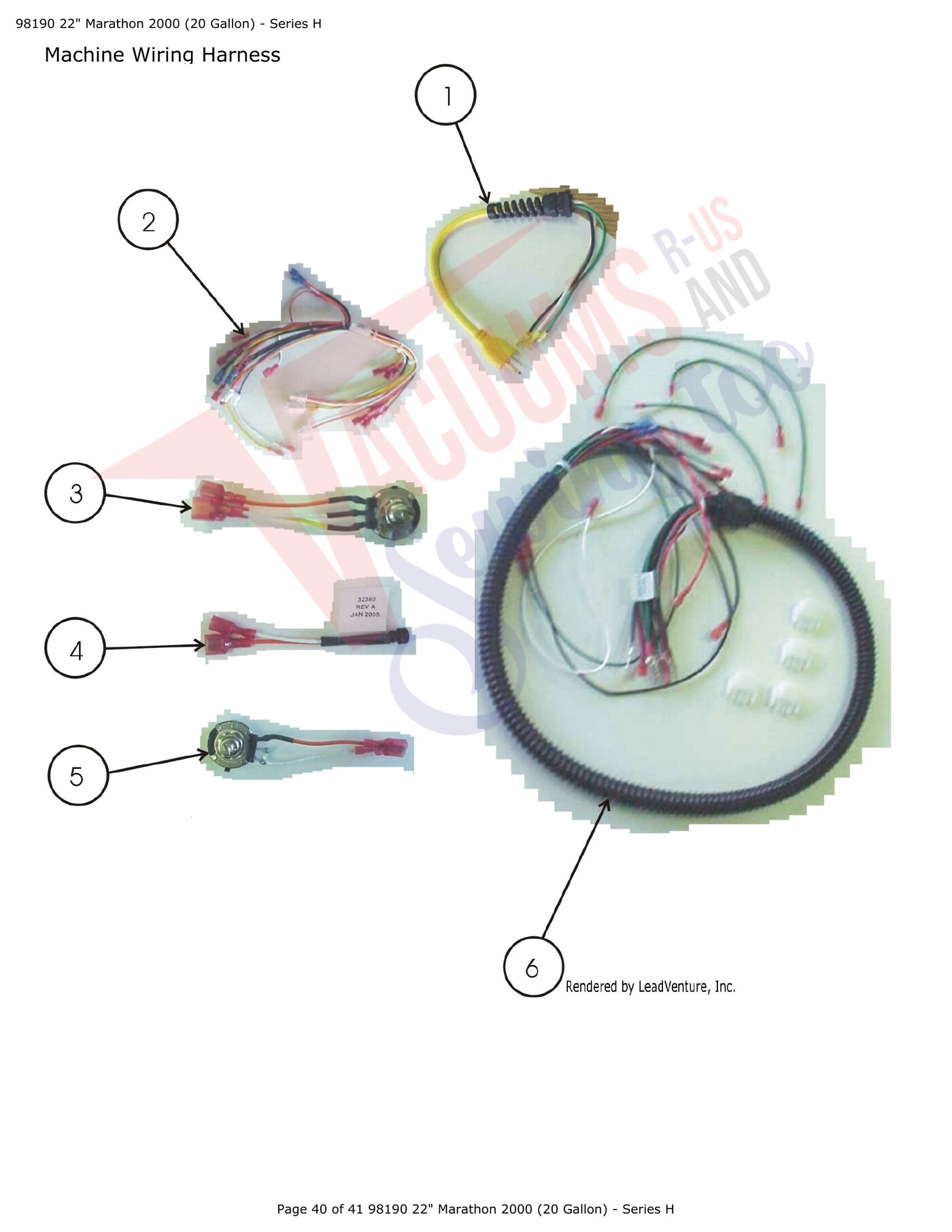

Tornado 98190 exploded schematic diagram (page 6)

Click to enlarge

#	Part image	Description	SKU	Price
1	Not Available	Must Use Part Number	30688	Not Available
2	No Image	Must Use Part Number 32364 More Product Details	32357	$0.00Read more
3	No Image	Must Use 32364 More Product Details	32359	$0.00Read more
4	No Image	Must Use 32364 More Product Details	32360	$0.00Read more
5	No Image	Must Use 32364 More Product Details	32361	$0.00Read more
6		Wiring Kit Control Panel Marathon 2000 115v More Product Details	32364	$753.99Add to cart Special order: ships in 2 to 4 weeks

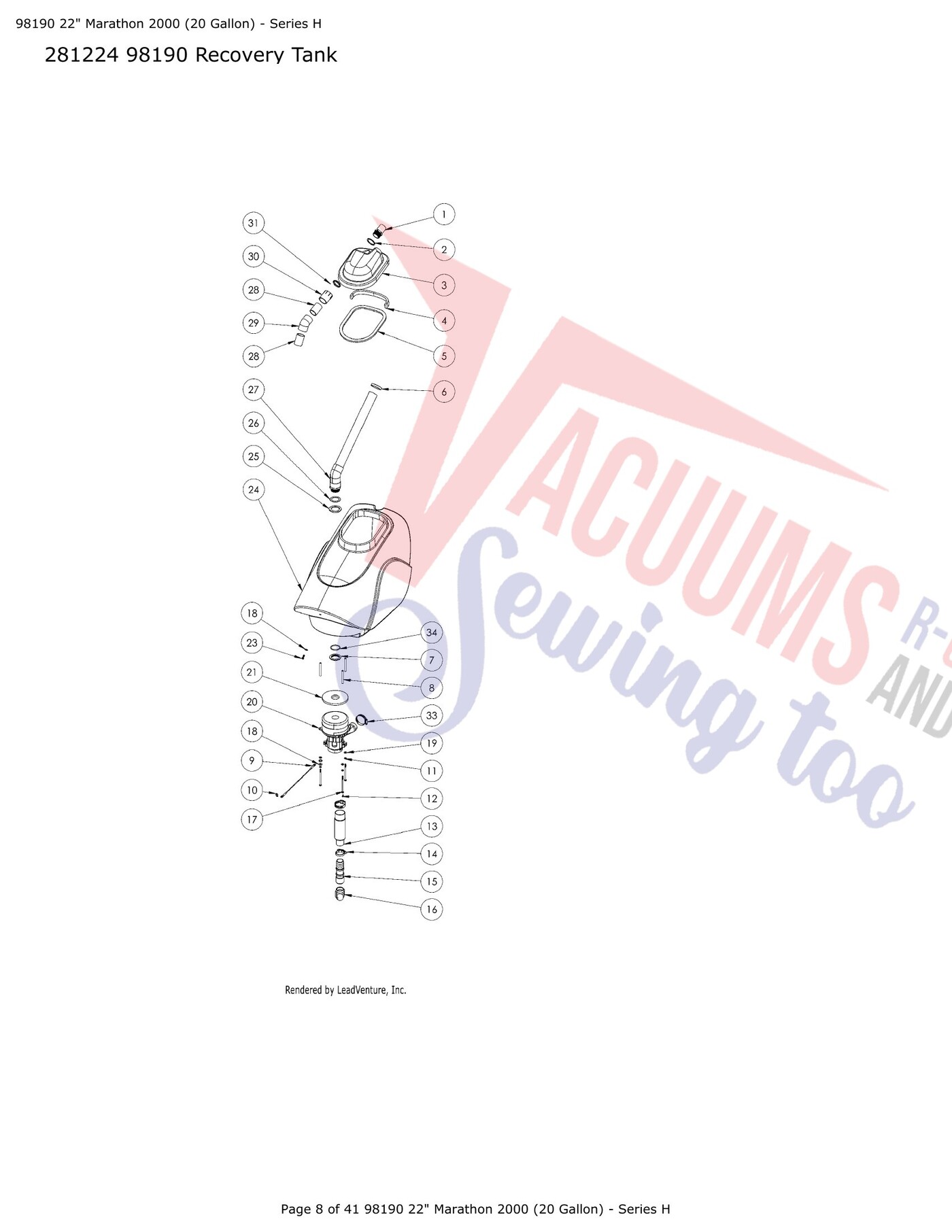

Tornado 98190 exploded schematic diagram (page 7)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	Fitting, Recovery Hose 98166 98169 1.25 SMPT X 1.5 More Product Details	19270	$33.99Add to cart Special order: ships in 2 to 4 weeks
2	No Image	Washer, Cover (98190) More Product Details	30062	$24.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	Cover, Top Tank (98190) More Product Details	30025	$215.99Add to cart Special order: ships in 2 to 4 weeks
4		Motor Strip Seal Ametek/Sam- sung (Sold by the inch, 13” used) Part Number 80632 for Riccar and S... More Product Details	80632	$2.19Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Gasket Cover Top Housing 98190 More Product Details	31300	$26.99Add to cart Special order: ships in 2 to 4 weeks
6	No Image	Filter,Extractor,Vac Motor Intake More Product Details	19097	$13.99Add to cart Special order: ships in 2 to 4 weeks
7		Nut, Lock Die Cast 1.5 More Product Details	PX46	$4.99Add to cart Special order: ships in 2 to 4 weeks
8	No Image	Spacer, Vac Motor (98190) More Product Details	30070	$12.99Add to cart Special order: ships in 2 to 4 weeks
9		Cable, Assembly (Steel) Tank Cover Retainer More Product Details	18789	$29.99Add to cart Special order: ships in 2 to 4 weeks
10	No Image	Ring Split 98190 More Product Details	31303	$1.99Read more
11		WASHER-LOCK (1/4") Part Number 1574 for Simplicity Models SCE More Product Details	1574	$0.00Read more
12		Screw #10 32 X 3/8 Part Number 3261 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE More Product Details	3261	Order Info
13	No Image	Bellow Hose Drain Top 1-1/2x35 EPDM Blk More Product Details	30051	$127.99Add to cart Special order: ships in 2 to 4 weeks
14	No Image	CLAMP HOSE 1 5/8DIA. BLACK More Product Details	31301	$5.99Add to cart Special order: ships in 2 to 4 weeks
15		Nozzle Drain Hose HM 4000 and F/KS More Product Details	18563	$17.99Add to cart Special order: ships in 2 to 4 weeks
16		Plug, Retained Plug Drain Hose More Product Details	16089	$47.99Add to cart Special order: ships in 2 to 4 weeks
17	No Image	SCREW, 1/4-20 X 4 HEX HEAD CAP ZP More Product Details	17645	$1.99Add to cart Special order: ships in 2 to 4 weeks
18	No Image	Washer 1/4 Flat USS Zinc More Product Details	X8235	$2.99Add to cart Special order: ships in 2 to 4 weeks
19		Washer Plain 1/4 ID SS More Product Details	18885	$1.99Add to cart Special order: ships in 2 to 4 weeks
20	No Image	Motor,Extractor,120,VAC,Ametek,3 STG,ETL More Product Details	X1038	$195.99Add to cart Special order: ships in 2 to 4 weeks
21	No Image	Gasket 3/8 Donut Tank Seal V1510 PVC More Product Details	X9079	$11.99Add to cart Special order: ships in 2 to 4 weeks
22	No Image	SCREW, 3/8 16 X 1/2 PHIL. RND HD MACH SS More Product Details	30673	$1.99Add to cart Special order: ships in 2 to 4 weeks
23		1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE More Product Details	17160	$2.19Add to cart Special order: ships in 2 to 4 weeks
24	No Image	Tank, Top 98190 Ord W/30021,30023,32382 More Product Details	30022	$656.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	Gasket Od 2.6 Id 1.875 Thickness 0.1875 Rev01 More Product Details	5781	$0.00Read more
26	No Image	Washer,Plain 2.00 ID SS More Product Details	18886	$18.99Add to cart Special order: ships in 2 to 4 weeks
27	No Image	Pipe Pvc 1 1/2 X 19 - Sub Assembly More Product Details	30564SUB	$53.99Add to cart Special order: ships in 2 to 4 weeks
28	No Image	Pipe Cover 98190 White PVC 1.25x2 in More Product Details	30060	$9.99Add to cart Special order: ships in 2 to 4 weeks
29	No Image	Elbow Cover 45 degree 98190 More Product Details	30061	$11.99Add to cart Special order: ships in 2 to 4 weeks
30	No Image	Fitting Female Cover 98190 More Product Details	30059	$4.99Add to cart Special order: ships in 2 to 4 weeks
31	No Image	O Ring Cover 98190 More Product Details	30063	$2.95Add to cart Special order: ships in 2 to 4 weeks
32	Not Available	Hinge	30030	Not Available
33		Clamp 2.5 Worm Gear SS Hex Slot Size 32 More Product Details	PX215	$8.99Add to cart Special order: ships in 2 to 4 weeks
34	No Image	RING O 1 5/8 DIA. (BLK) More Product Details	19140	$2.99Add to cart Special order: ships in 2 to 4 weeks

Tornado 98190 exploded schematic diagram (page 8)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	Hose High Pressure 20Ft Tornado Vacuum Solution More Product Details	95567A	$439.99Add to cart Special order: ships in 2 to 4 weeks
2		Crevice Tool 1-1/2in SS External Spray 120psi More Product Details	AA1601	$286.99Read more
3	No Image	Metal Upholstery Tool 500 P.S.I. More Product Details	98343	$0.00Read more
4		Stair Tool SS 6in head 800psi More Product Details	AA1921	$515.99Read more
5	No Image	Cord, Extension 14/3 X 50FT 300V Yellow More Product Details	32217	$148.99Add to cart Special order: ships in 2 to 4 weeks

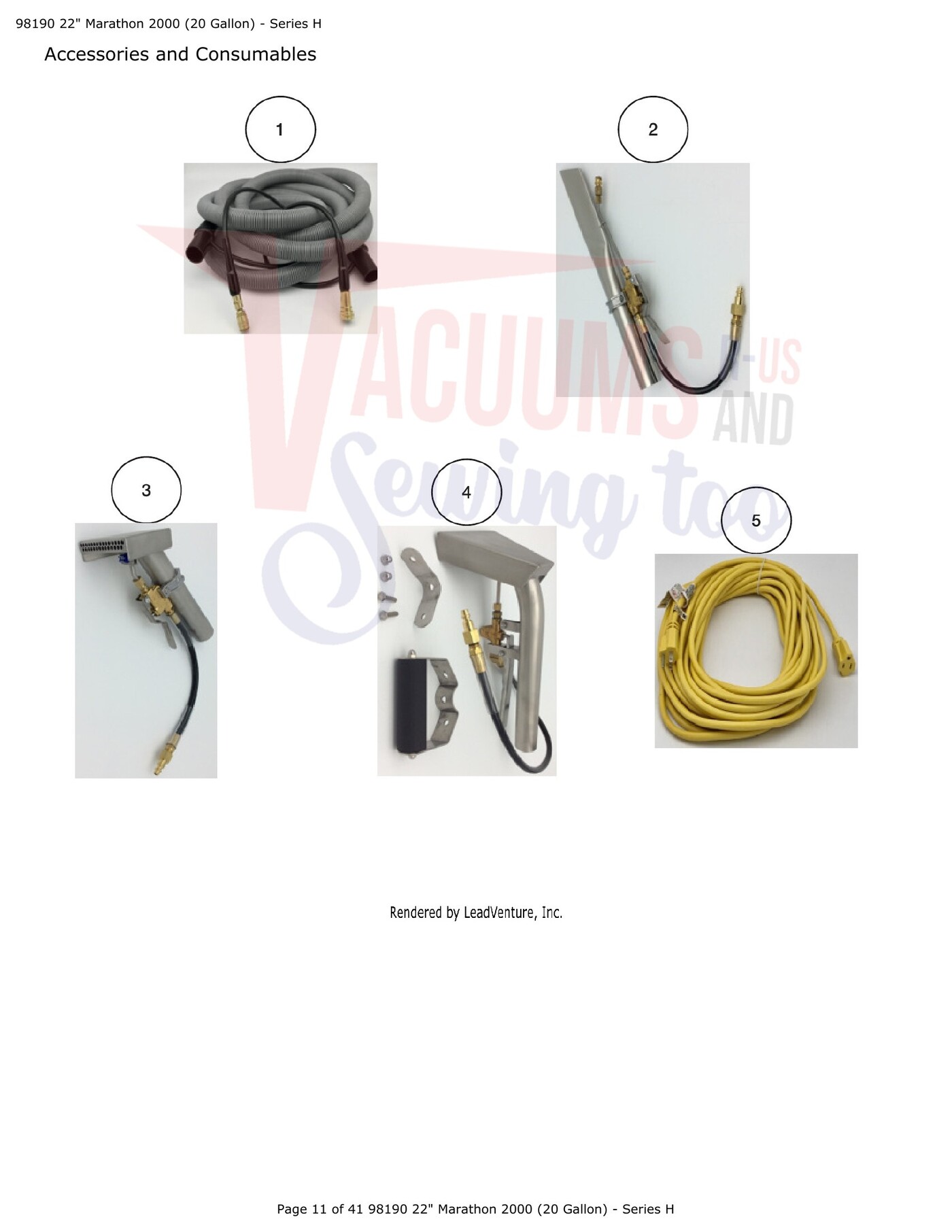

Tornado 98190 exploded schematic diagram (page 9)

Click to enlarge

#	Part image	Description	SKU	Price
Fuse	No Image	Fuse 5A Littelfuse Cartridge Style More Product Details	32571	$2.99Add to cart Special order: ships in 2 to 4 weeks
1	No Image	SCREW, No 4 40 X 3/4 PHIL. TRUSS HD SS More Product Details	30703	$1.99Add to cart Special order: ships in 2 to 4 weeks
2	No Image	SWITCH BUTTON S.P.D.T. 10 AMPS EZ More Product Details	18818	$10.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	SCREW PHIL. TRUSS HD No 10 24 X 5/8 (BLK.OX) More Product Details	30676	$1.99Add to cart Special order: ships in 2 to 4 weeks
4	No Image	SWITCH ROCKER ON/OFF(DP) (WETDRY) 10A/250,15/125 More Product Details	30241	$62.99Add to cart Special order: ships in 2 to 4 weeks
5		SWITCH, VACUUM, ROCKER ON-ON SPDT 16A 250VAC More Product Details	X2524	$14.99Add to cart Special order: ships in 2 to 4 weeks
6		SWITCH ROCKER 98164 68 More Product Details	10670	$3.99Add to cart Special order: ships in 2 to 4 weeks
7	No Image	Rod, Drive Actuation (98190) More Product Details	30038	$32.99Add to cart Special order: ships in 2 to 4 weeks
8	No Image	SCREW SLO. RND HD MACH No 6 32 X 3/4 (NYLON) More Product Details	19124	$1.99Add to cart Special order: ships in 2 to 4 weeks
9	No Image	Decal, Solution Control More Product Details	32377	$4.99Read more
10	No Image	Label Serial Number 2X2 Plain More Product Details	X8459	$2.99Add to cart Special order: ships in 2 to 4 weeks
11	No Image	Label Qualified Made In The USA 1.618 X 1.618 More Product Details	X1003	$2.99Add to cart Special order: ships in 2 to 4 weeks
12	No Image	Plug, Plastic Blk 7/16 Hole More Product Details	X8151B	$2.99Add to cart Special order: ships in 2 to 4 weeks
13	No Image	Screw #10-24 X 7/16" More Product Details	03660	$0.00Read more
14	No Image	CLAMP CABLE(5/8DIA.) More Product Details	18717	$1.99Add to cart Special order: ships in 2 to 4 weeks
15		Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q More Product Details	B3526900	$4.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	Housing, Control 98190/91 Ord W/30021,30022,30023 More Product Details	32382	$172.99Add to cart Special order: ships in 2 to 4 weeks
17		NUT, 10-24 NYLON INSERT LOCK 18-8 SS More Product Details	7BF030	$2.99Add to cart Special order: ships in 2 to 4 weeks
18	No Image	SCREW PHIL. PAN HD MACH 5/16 18 X 3/4 (ZP) More Product Details	15067	$1.99Add to cart Special order: ships in 2 to 4 weeks
19	No Image	WASHER 3/8 SAE FLAT ZINC More Product Details	X8219	$2.99Add to cart Special order: ships in 2 to 4 weeks
20	No Image	Cord,Extractors,75ft,Yellow,12/3 SJTW,EXT Cord More Product Details	72314A	$422.99Add to cart Special order: ships in 2 to 4 weeks
21	No Image	Miniature Power Relay 40A More Product Details	X2521	$0.00Read more
22	No Image	RELAY ,GEN PURPOSE DPDT 30A 120V, MARATHON 2000 More Product Details	X2522	$88.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	Nut 6-32 Hex Nylon More Product Details	17883	$2.99Add to cart Special order: ships in 2 to 4 weeks
24		Controller,Extractor,Self-Contained,115 VAC More Product Details	32330	$1,425.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	Control Panel, (98190) More Product Details	30028	$51.99Add to cart Special order: ships in 2 to 4 weeks
26	No Image	Must Use 32364 More Product Details	32359	$0.00Read more
27	No Image	NUT, No 4 40 HEX.LOCK(KEPS) More Product Details	15560	$1.99Add to cart Special order: ships in 2 to 4 weeks
28		Circuit Breaker,Extractor,Self-Contained,20Amp More Product Details	32362	$20.99Add to cart Special order: ships in 2 to 4 weeks
29	No Image	Must Use 32364 More Product Details	32361	$0.00Read more
30		Wiring Kit Control Panel Marathon 2000 115v More Product Details	32364	$753.99Add to cart Special order: ships in 2 to 4 weeks
31	Not Available	Must Use Part Number	30688	Not Available
32		CONTROL KNOB 1/4 DIA W/INDICATOR BLK More Product Details	32172	$26.99Add to cart Special order: ships in 2 to 4 weeks
33	No Image	Cap / Top Cover With Indicator For Knob 32172 More Product Details	X2539	$0.00Read more

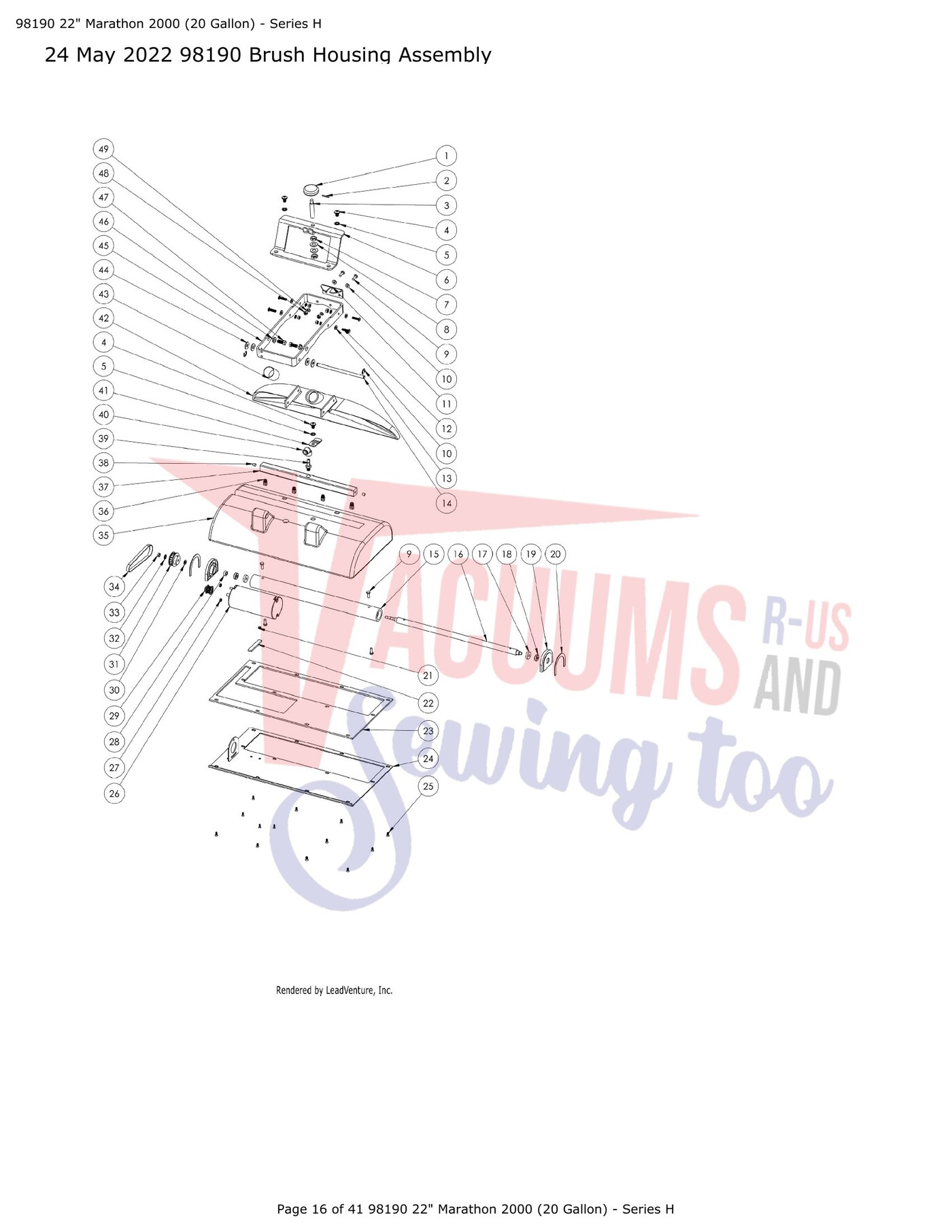

Tornado 98190 exploded schematic diagram (page 10)

Click to enlarge

#	Part image	Description	SKU	Price
Not Shown		BRUSH ROLLER ASSEMBLY 20 MARATHON 2000 98190 More Product Details	31805	$481.99Read more
1	No Image	Knob 98190 More Product Details	30562	$12.99Add to cart Special order: ships in 2 to 4 weeks
2	No Image	PIN SPRING 1/8 DIA X 1.00 LG (SLO) More Product Details	30707	$2.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	Adjusting Screw 98190 More Product Details	30039	$35.99Add to cart Special order: ships in 2 to 4 weeks
4	No Image	SCREW, 3/8 16 X 1/2 PHIL. RND HD MACH SS More Product Details	30673	$1.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	WASHER, 3/8 LOCK IT More Product Details	16586	$1.99Add to cart Special order: ships in 2 to 4 weeks
6	No Image	Bracket Brush Position Marathon Extractors More Product Details	30034	$72.99Add to cart Special order: ships in 2 to 4 weeks
7	No Image	NUT NYLON LOCK 1/2 13 THIN More Product Details	30920	$1.99Add to cart Special order: ships in 2 to 4 weeks
8		Washer-plain Part Number 19616 for Cleanmax Models CM-WAV More Product Details	19616	$2.99Add to cart Special order: ships in 2 to 4 weeks
9		1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE More Product Details	17160	$2.19Add to cart Special order: ships in 2 to 4 weeks
10		Washer Plain 1/4 ID SS More Product Details	18885	$1.99Add to cart Special order: ships in 2 to 4 weeks
11	No Image	Bracket, Adjusting Screw (98190) More Product Details	30578	$40.99Add to cart Special order: ships in 2 to 4 weeks
12	No Image	SCREW, 1/4-20X1 PHIL PAN MS 18-8 SS More Product Details	7CU003	$1.99Add to cart Special order: ships in 2 to 4 weeks
13	No Image	RING RETAINING EXT. 3/8 More Product Details	03947	$7.99Add to cart Special order: ships in 2 to 4 weeks
14	No Image	Rod, Brush Attachment (98190) More Product Details	30048	$55.99Add to cart Special order: ships in 2 to 4 weeks
15	No Image	Roller, Brush 20 (98190) More Product Details	30046	$354.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	Shaft, Brush 20 (98190) More Product Details	30047	$278.99Add to cart Special order: ships in 2 to 4 weeks
17		BEARING SEAL Part Number 19158 for Simplicity Models SCE More Product Details	19158	$6.99Add to cart Special order: ships in 2 to 4 weeks
18	Not Available	Bearing 608-2RS	05209	Not Available
19		BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE More Product Details	19157	$12.99Add to cart Special order: ships in 2 to 4 weeks
20		GASKET-BEARING BLOCK Part Number 19228 for Simplicity Models SCE More Product Details	19228	$4.39Add to cart Special order: ships in 2 to 4 weeks
21		Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV More Product Details	10892	$2.99Add to cart Special order: ships in 2 to 4 weeks
22		GASKET MATL. NEOPRENE 3/16 X 1/2 (CLSD CELL) More Product Details	80605	$2.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	Gasket Brush Plate 98190 More Product Details	30057	$20.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	Brush Plate, Weldment and Motor Bracket More Product Details	30973	$258.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	SCREW, No 10 24 X 1/2 PHIL. FLAT HD MACH SS More Product Details	19165	$1.99Add to cart Special order: ships in 2 to 4 weeks
26		Brush Motor Extractor 120VDC .25hp 3dia SCE SMB004 More Product Details	X9002	$301.99Add to cart Special order: ships in 2 to 4 weeks
27	No Image	NUT, 10-32 KEP ZINC More Product Details	7BF008	$2.99Add to cart Special order: ships in 2 to 4 weeks
28		SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE More Product Details	19190	$4.39Read more
29		PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE More Product Details	32175	$18.99Add to cart Special order: ships in 2 to 4 weeks
30	No Image	WASHER PLAIN .328 ID (SS) More Product Details	19191	$1.99Read more
31		PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE More Product Details	19161	$61.59Add to cart Special order: ships in 2 to 4 weeks
32		LOCK WASHER 5/16" Part Number 32245 for Simplicity Models SCE More Product Details	32245	$1.99Add to cart Special order: ships in 2 to 4 weeks
33	Not Available	Nut	05282	Not Available
34	No Image	Belt,Scrubbers,Timing,150XL X 3/8 More Product Details	19233	$15.99Add to cart Special order: ships in 2 to 4 weeks
35	No Image	Housing, Brush 98190 Ord W/30021,30022,32382 More Product Details	30023	$402.99Add to cart Special order: ships in 2 to 4 weeks
36	No Image	Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE More Product Details	X9139	$40.99Add to cart Special order: ships in 2 to 4 weeks
37	No Image	Manifold Spraybar Aluminum 98190 More Product Details	30045	$49.99Add to cart Special order: ships in 2 to 4 weeks
38		FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE More Product Details	19149	Price and Availability
39		STEM ADAPTER 3/8" Part Number 32181 for Simplicity Models SCE More Product Details	32181	$5.49Read more
40		SWIVEL ELBOW 3/8" Part Number 32189 for Simplicity Models SCE More Product Details	32189	$17.59Add to cart Special order: ships in 2 to 4 weeks
41	No Image	Bracket Spraybar 98190 More Product Details	30569	$26.99Add to cart Special order: ships in 2 to 4 weeks
42	No Image	Nozzle, Carpet Extractor (98190) More Product Details	30031	$220.99Add to cart Special order: ships in 2 to 4 weeks
43	No Image	Adapter, Tube Nozzle Hose More Product Details	19197	$33.99Add to cart Special order: ships in 2 to 4 weeks
44	No Image	Spacer, Attachment Rod (98190) Delrin More Product Details	30581	$6.99Add to cart Special order: ships in 2 to 4 weeks
45	No Image	Bracket, Vacuum Nozzle (98190) More Product Details	30033	$197.99Add to cart Special order: ships in 2 to 4 weeks
46	No Image	Shroud, Bushing Pivot Nylon More Product Details	19153	$5.99Add to cart Special order: ships in 2 to 4 weeks
47	No Image	SCREW HEX HD CAP 3/8 16 X 7/8 (ZP) More Product Details	16907	$1.99Add to cart Special order: ships in 2 to 4 weeks
48	No Image	NUT, 1/4-20 HEX SS More Product Details	7CN001	$2.99Add to cart Special order: ships in 2 to 4 weeks
49	No Image	Lock Washer More Product Details	01574	$0.00Read more

Tornado 98190 exploded schematic diagram (page 11)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	Lock Washer More Product Details	01574	$0.00Read more
2	Not Available	Washer	03736	Not Available
3	No Image	Gasket 2.6 OD 1.875 ID 0.1875 Thick Rev01 More Product Details	05781	$3.99Add to cart Special order: ships in 2 to 4 weeks
4		Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV More Product Details	10892	$2.99Add to cart Special order: ships in 2 to 4 weeks
5		Washer Plain Part Number 11219 for Cleanmax Models CM-WAV More Product Details	11219	$2.99Add to cart Special order: ships in 2 to 4 weeks
6		CLAMP-HOSE (SCREW) Part Number 14858 for Simplicity Models SCE More Product Details	14858	$10.99Read more
7	No Image	ELBOW 45 DEGREE 1 1/2 More Product Details	14918	$10.99Add to cart Special order: ships in 2 to 4 weeks
8	No Image	ADAPTER INSERT 2 More Product Details	15100	$10.99Add to cart Special order: ships in 2 to 4 weeks
9		Plug, Retained Plug Drain Hose More Product Details	16089	$47.99Add to cart Special order: ships in 2 to 4 weeks
10	No Image	SCREW HEX HD CAP 3/8 16 X 3/4 (SS) More Product Details	17575	$1.99Add to cart Special order: ships in 2 to 4 weeks
11	No Image	Screw Hex HD Cap 1/4 20x4.25 ZP More Product Details	17644	$2.99Add to cart Special order: ships in 2 to 4 weeks
12	No Image	Screw Ph Truss HD No.10 24x1/2 SS More Product Details	17848	$2.99Add to cart Special order: ships in 2 to 4 weeks
13		Nozzle Drain Hose HM 4000 and F/KS More Product Details	18563	$17.99Add to cart Special order: ships in 2 to 4 weeks
14		Cable, Assembly (Steel) Tank Cover Retainer More Product Details	18789	$29.99Add to cart Special order: ships in 2 to 4 weeks
15		Washer Plain 1/4 ID SS More Product Details	18885	$1.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	Washer,Plain 2.00 ID SS More Product Details	18886	$18.99Add to cart Special order: ships in 2 to 4 weeks
17	No Image	Filter,Extractor,Vac Motor Intake More Product Details	19097	$13.99Add to cart Special order: ships in 2 to 4 weeks
18	No Image	WASHER PLAIN .328 ID (SS) More Product Details	19191	$1.99Read more
19	No Image	Tank, Top 98190 Ord W/30021,30023,32382 More Product Details	30022	$656.99Add to cart Special order: ships in 2 to 4 weeks
20	Not Available	Vacuum Motor	30041	Not Available
21	No Image	Bellow Hose Drain Top 1-1/2x35 EPDM Blk More Product Details	30051	$127.99Add to cart Special order: ships in 2 to 4 weeks
22	No Image	Hose, Steel Supported Blk 2 X 32 No Cuffs More Product Details	30066	$35.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	Spacer, Vac Motor (98190) More Product Details	30070	$12.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	PIPE PVC 1 1/2 X 19 More Product Details	30564	$25.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	Bracket, Exhaust Hose .025 Thk (SS) (98190) More Product Details	30584	$36.99Add to cart Special order: ships in 2 to 4 weeks
26	No Image	CLAMP HOSE 1 5/8DIA. BLACK More Product Details	31301	$5.99Add to cart Special order: ships in 2 to 4 weeks
27	No Image	Ring Split 98190 More Product Details	31303	$1.99Read more
28		Nut, Lock Die Cast 1.5 More Product Details	PX46	$4.99Add to cart Special order: ships in 2 to 4 weeks
29		BULKHEAD 1-1/2 MPT X 1-1/2 FEMALE SLIP PVC More Product Details	X9076	$4.99Add to cart Special order: ships in 2 to 4 weeks
30	No Image	Gasket 3/8 Donut Tank Seal V1510 PVC More Product Details	X9079	$11.99Add to cart Special order: ships in 2 to 4 weeks

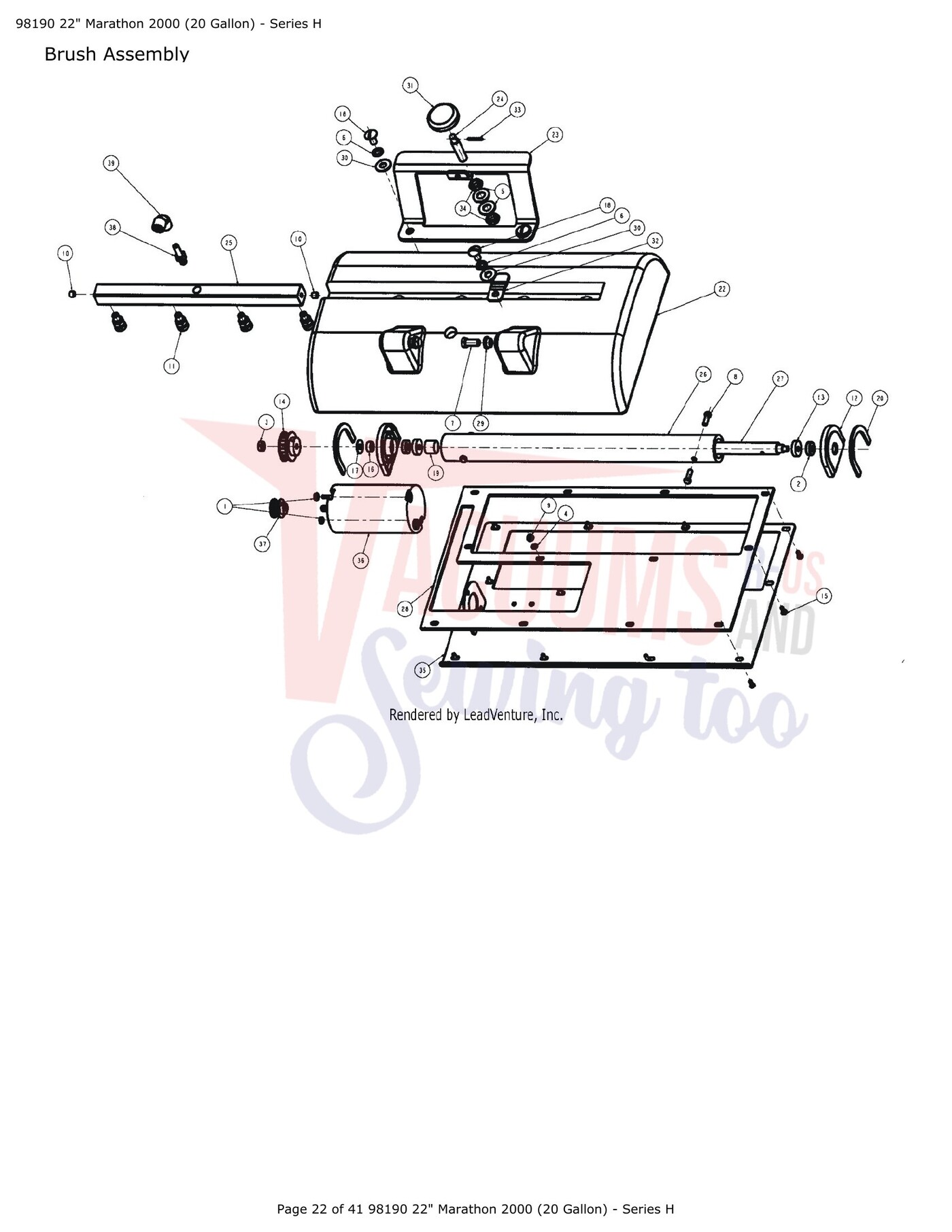

Tornado 98190 exploded schematic diagram (page 12)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	NUT, 10-32 KEP ZINC More Product Details	7BF008	$2.99Add to cart Special order: ships in 2 to 4 weeks
2	Not Available	Bearing 608-2RS	05209	Not Available
3	Not Available	Nut	05282	Not Available
4		Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE More Product Details	11007	$2.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Washer More Product Details	16581	$0.00Read more
6	No Image	WASHER, 3/8 LOCK IT More Product Details	16586	$1.99Add to cart Special order: ships in 2 to 4 weeks
7	No Image	SCREW HEX HD CAP 3/8 16 X 7/8 (ZP) More Product Details	16907	$1.99Add to cart Special order: ships in 2 to 4 weeks
8		1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE More Product Details	17160	$2.19Add to cart Special order: ships in 2 to 4 weeks
9		NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE More Product Details	19145	Price and Availability
10		FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE More Product Details	19149	Price and Availability
11	No Image	Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE More Product Details	X9139	$40.99Add to cart Special order: ships in 2 to 4 weeks
12		BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE More Product Details	19157	$12.99Add to cart Special order: ships in 2 to 4 weeks
13		BEARING SEAL Part Number 19158 for Simplicity Models SCE More Product Details	19158	$6.99Add to cart Special order: ships in 2 to 4 weeks
14		PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE More Product Details	19161	$61.59Add to cart Special order: ships in 2 to 4 weeks
15	No Image	SCREW, No 10 24 X 1/2 PHIL. FLAT HD MACH SS More Product Details	19165	$1.99Add to cart Special order: ships in 2 to 4 weeks
16		SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE More Product Details	19190	$4.39Read more
17	No Image	WASHER PLAIN .328 ID (SS) More Product Details	19191	$1.99Read more
18	No Image	SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) More Product Details	19207	$3.99Read more
19	No Image	Sleeve, Bearing .75 (Nyliner) More Product Details	19227	$22.99Add to cart Special order: ships in 2 to 4 weeks
20		GASKET-BEARING BLOCK Part Number 19228 for Simplicity Models SCE More Product Details	19228	$4.39Add to cart Special order: ships in 2 to 4 weeks
21	No Image	Belt,Scrubbers,Timing,150XL X 3/8 More Product Details	19233	$15.99Add to cart Special order: ships in 2 to 4 weeks
22	No Image	Housing, Brush 98190 Ord W/30021,30022,32382 More Product Details	30023	$402.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	Bracket Brush Position Marathon Extractors More Product Details	30034	$72.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	Adjusting Screw 98190 More Product Details	30039	$35.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	Manifold Spraybar Aluminum 98190 More Product Details	30045	$49.99Add to cart Special order: ships in 2 to 4 weeks
26	No Image	Roller, Brush 20 (98190) More Product Details	30046	$354.99Add to cart Special order: ships in 2 to 4 weeks
27	No Image	Shaft, Brush 20 (98190) More Product Details	30047	$278.99Add to cart Special order: ships in 2 to 4 weeks
28	No Image	Gasket Brush Plate 98190 More Product Details	30057	$20.99Add to cart Special order: ships in 2 to 4 weeks
29	No Image	Shroud, Bushing Pivot Nylon More Product Details	19153	$5.99Add to cart Special order: ships in 2 to 4 weeks
30	Not Available	Washer	30075	Not Available
31	No Image	Knob 98190 More Product Details	30562	$12.99Add to cart Special order: ships in 2 to 4 weeks
32	No Image	Bracket Spraybar 98190 More Product Details	30569	$26.99Add to cart Special order: ships in 2 to 4 weeks
33	No Image	PIN SPRING 1/8 DIA X 1.00 LG (SLO) More Product Details	30707	$2.99Add to cart Special order: ships in 2 to 4 weeks
34	No Image	NUT NYLON LOCK 1/2 13 THIN More Product Details	30920	$1.99Add to cart Special order: ships in 2 to 4 weeks
35	No Image	Brush Plate, Weldment and Motor Bracket More Product Details	30973	$258.99Add to cart Special order: ships in 2 to 4 weeks
36		Brush Motor Extractor 120VDC .25hp 3dia SCE SMB004 More Product Details	X9002	$301.99Add to cart Special order: ships in 2 to 4 weeks
37		PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE More Product Details	32175	$18.99Add to cart Special order: ships in 2 to 4 weeks
38		STEM ADAPTER 3/8" Part Number 32181 for Simplicity Models SCE More Product Details	32181	$5.49Read more
39		SWIVEL ELBOW 3/8" Part Number 32189 for Simplicity Models SCE More Product Details	32189	$17.59Add to cart Special order: ships in 2 to 4 weeks
40		LOCK WASHER 5/16" Part Number 32245 for Simplicity Models SCE More Product Details	32245	$1.99Add to cart Special order: ships in 2 to 4 weeks

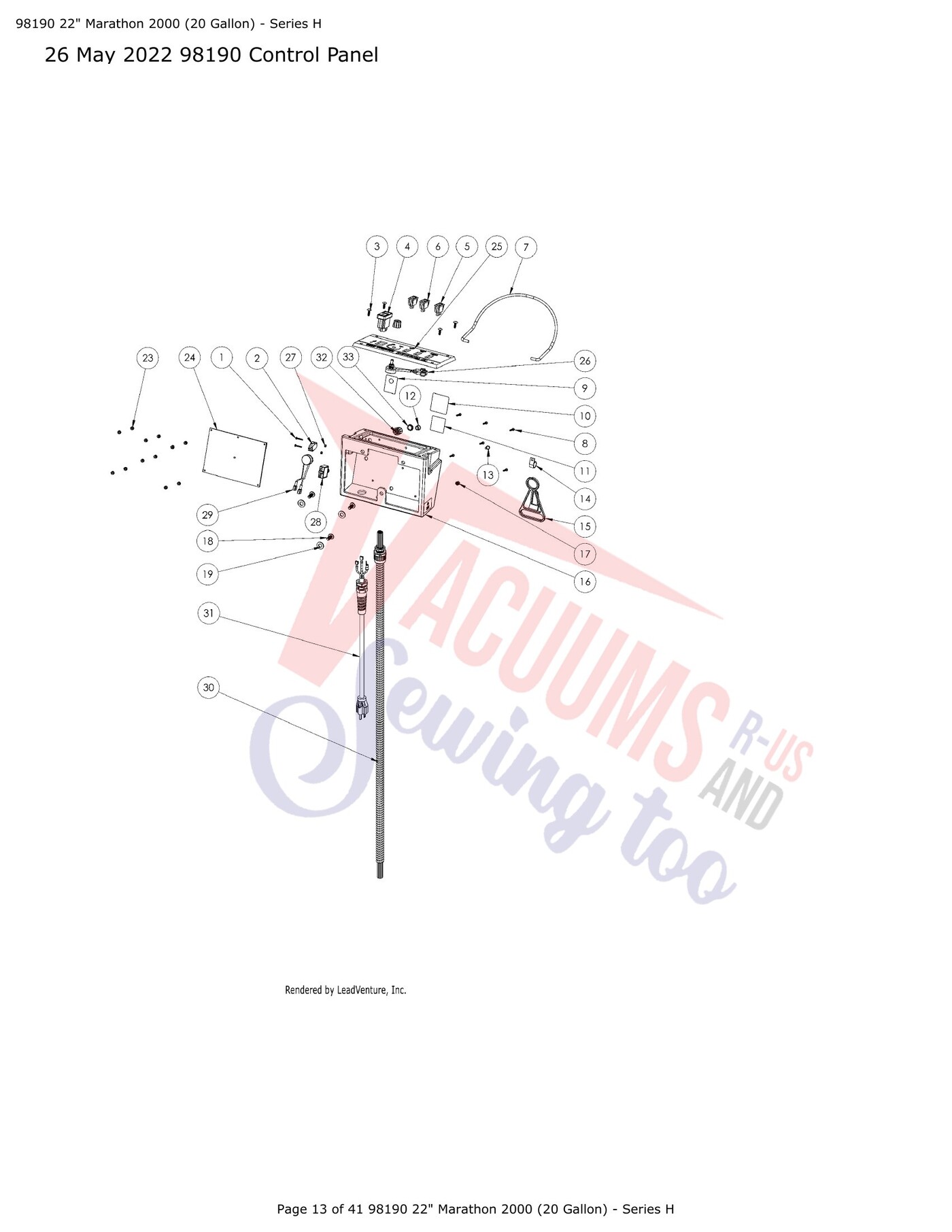

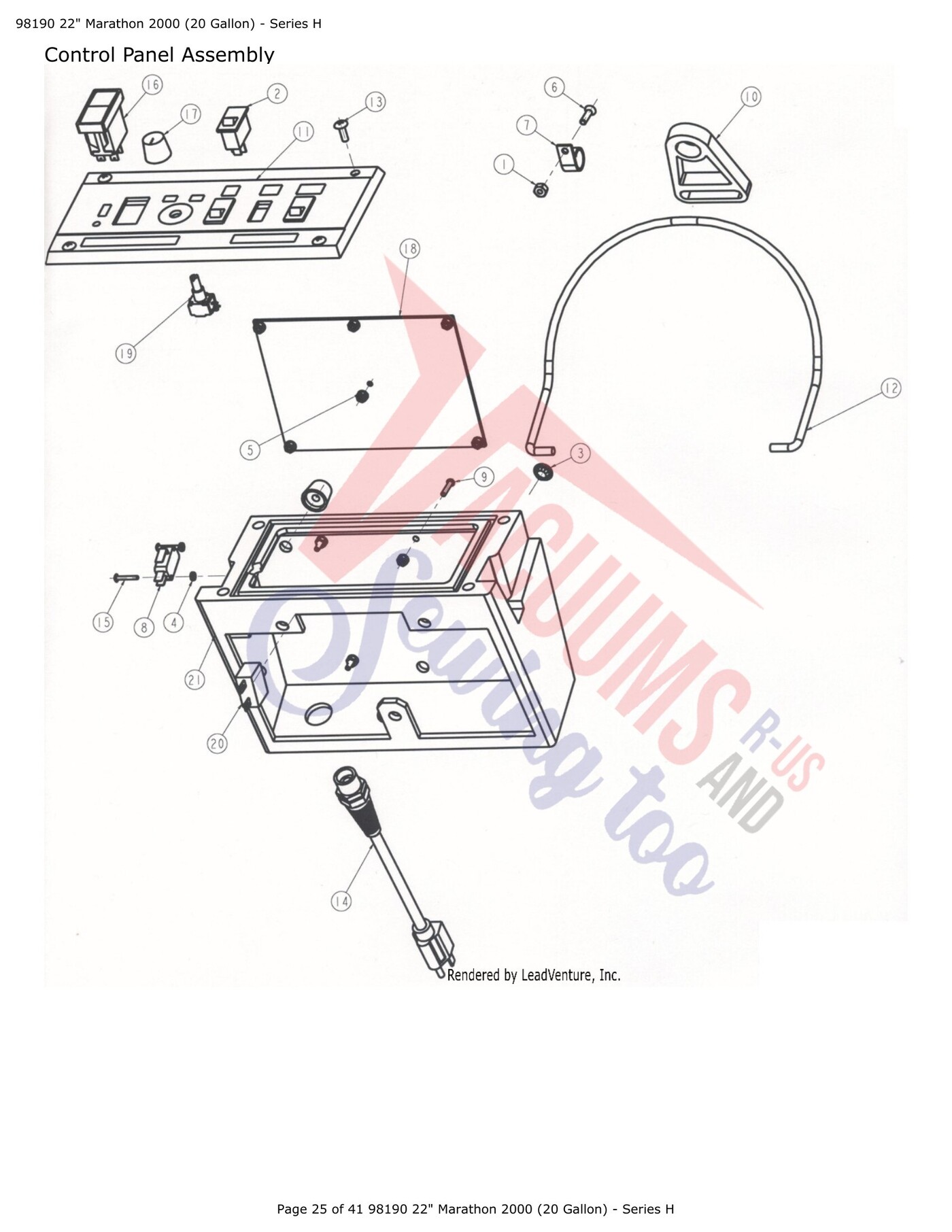

Tornado 98190 exploded schematic diagram (page 13)

Click to enlarge

#	Part image	Description	SKU	Price
XX		SWITCH, VACUUM, ROCKER ON-ON SPDT 16A 250VAC More Product Details	X2524	$14.99Add to cart Special order: ships in 2 to 4 weeks
1	No Image	NUT, No 10 24 FINISHED HEX ZP More Product Details	01477	$2.99Add to cart Special order: ships in 2 to 4 weeks
2		SWITCH ROCKER 98164 68 More Product Details	10670	$3.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	Hole Plug 1/2" More Product Details	14624	$0.00Read more
4	No Image	NUT, No 4 40 HEX.LOCK(KEPS) More Product Details	15560	$1.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Nut 6-32 Hex Nylon More Product Details	17883	$2.99Add to cart Special order: ships in 2 to 4 weeks
6	No Image	SCREW, No 10 24 X 3/4 PHIL. FLAT HD MACH SS More Product Details	18339	$1.99Add to cart Special order: ships in 2 to 4 weeks
7	No Image	CLAMP CABLE(5/8DIA.) More Product Details	18717	$1.99Add to cart Special order: ships in 2 to 4 weeks
8	No Image	SWITCH BUTTON S.P.D.T. 10 AMPS EZ More Product Details	18818	$10.99Add to cart Special order: ships in 2 to 4 weeks
9	No Image	SCREW SLO. RND HD MACH No 6 32 X 3/4 (NYLON) More Product Details	19124	$1.99Add to cart Special order: ships in 2 to 4 weeks
10		Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q More Product Details	B3526900	$4.99Add to cart Special order: ships in 2 to 4 weeks
11	No Image	Control Panel, (98190) More Product Details	30028	$51.99Add to cart Special order: ships in 2 to 4 weeks
12	No Image	Rod, Drive Actuation (98190) More Product Details	30038	$32.99Add to cart Special order: ships in 2 to 4 weeks
13	No Image	SCREW PHIL. TRUSS HD No 10 24 X 5/8 (BLK.OX) More Product Details	30676	$1.99Add to cart Special order: ships in 2 to 4 weeks
14	Not Available	Must Use Part Number	30688	Not Available
15	No Image	SCREW, No 4 40 X 3/4 PHIL. TRUSS HD SS More Product Details	30703	$1.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	SWITCH ROCKER ON/OFF(DP) (WETDRY) 10A/250,15/125 More Product Details	30241	$62.99Add to cart Special order: ships in 2 to 4 weeks
17		CONTROL KNOB 1/4 DIA W/INDICATOR BLK More Product Details	32172	$26.99Add to cart Special order: ships in 2 to 4 weeks
18		Controller,Extractor,Self-Contained,115 VAC More Product Details	32330	$1,425.99Add to cart Special order: ships in 2 to 4 weeks
19	No Image	Must Use 32364 More Product Details	32359	$0.00Read more
20		Circuit Breaker,Extractor,Self-Contained,20Amp More Product Details	32362	$20.99Add to cart Special order: ships in 2 to 4 weeks
21	No Image	Housing, Control 98190/91 Ord W/30021,30022,30023 More Product Details	32382	$172.99Add to cart Special order: ships in 2 to 4 weeks
23		Wiring Kit Control Panel Marathon 2000 115v More Product Details	32364	$753.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	Decal, Solution Control More Product Details	32377	$4.99Read more

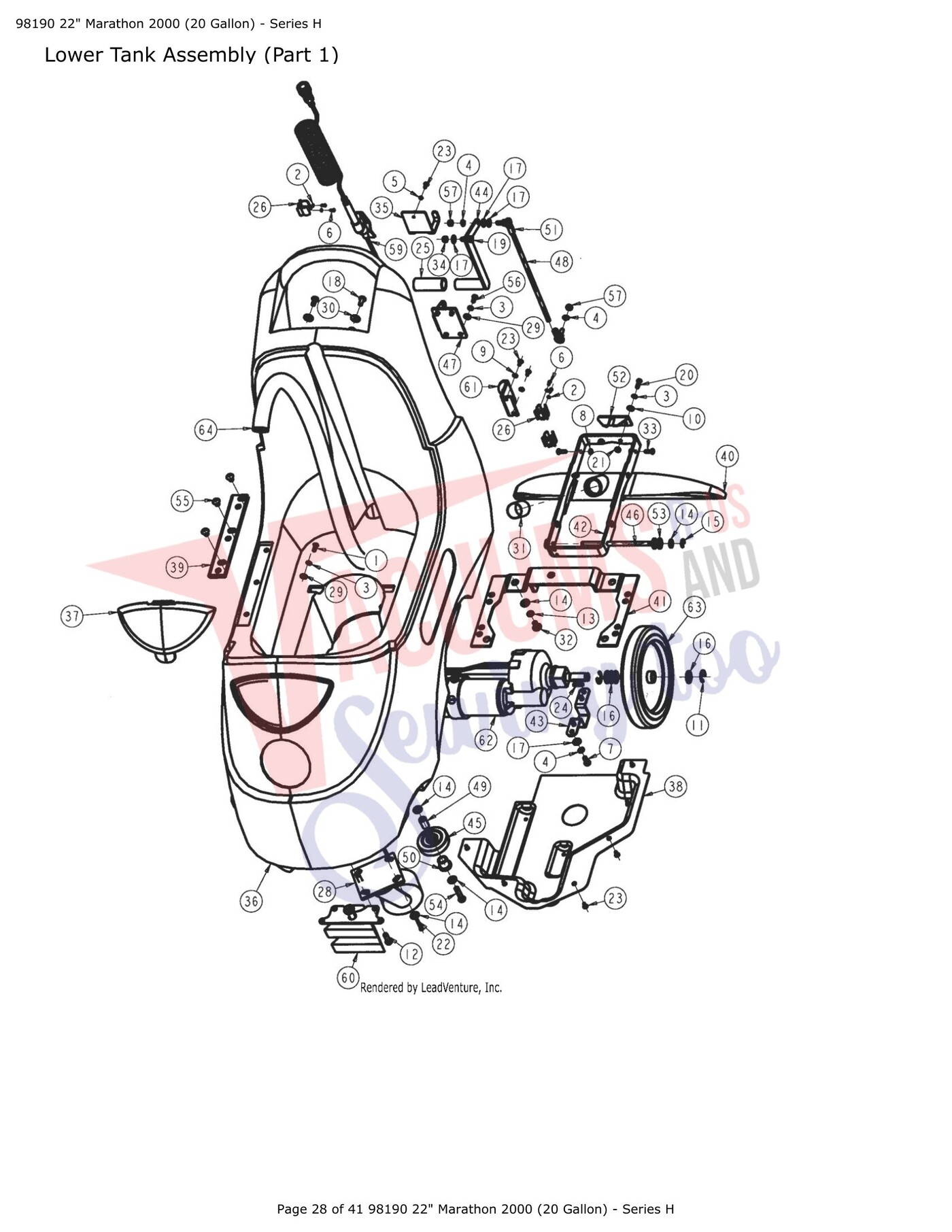

Tornado 98190 exploded schematic diagram (page 14)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	Screw Oval PH HD Machine 1/4 20x3/4 SS More Product Details	00064	$2.99Add to cart Special order: ships in 2 to 4 weeks
2	No Image	Washer Lock No. 6 Zn Split More Product Details	01246	$1.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	Lock Washer More Product Details	01574	$0.00Read more
4		Washer Lock Split 5/16 Zn Regular More Product Details	01577	$2.99Add to cart Special order: ships in 2 to 4 weeks
5	Not Available	Lock Washer	01713	Not Available
6		Screw PH Pan 6-32x3/8 MS Zn More Product Details	01734	$2.99Add to cart Special order: ships in 2 to 4 weeks
7	Not Available	Screw 5/16-18 x 3/4"	02109	Not Available
8	No Image	Nut Hex Jam Lock Nylock 1/4 20 ZP More Product Details	02217	$1.99Add to cart Special order: ships in 2 to 4 weeks
9	No Image	Washer Plain .199 ID ZP More Product Details	03060	$2.99Read more
10		Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV More Product Details	14142	$2.99Add to cart Special order: ships in 2 to 4 weeks
11	No Image	RING RETAINING EXT. 3/4 More Product Details	03313	$1.99Add to cart Special order: ships in 2 to 4 weeks
12	No Image	Screw Hex HD Cap 3/8 16x1 ZP More Product Details	03320	$1.99Add to cart Special order: ships in 2 to 4 weeks
13	Not Available	Lock Washer	03536	Not Available
14	Not Available	Washer	03736	Not Available
15	No Image	RING RETAINING EXT. 3/8 More Product Details	03947	$7.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	WASHER PLAIN 25/32 ID (ZP) More Product Details	03960	$3.99Add to cart Special order: ships in 2 to 4 weeks
17		Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV More Product Details	14142	$2.99Add to cart Special order: ships in 2 to 4 weeks
18	No Image	SCREW PHIL. PAN HD MACH 5/16 18 X 3/4 (ZP) More Product Details	15067	$1.99Add to cart Special order: ships in 2 to 4 weeks
19		SCREW SOCKET HD SHOULDER 3/8D X 3/8 (ZP) More Product Details	15677	$11.99Read more
20		1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE More Product Details	17160	$2.19Add to cart Special order: ships in 2 to 4 weeks
21		NUT-FINISHED HEX 1/4-20 Part Number 17508 for Simplicity Models SCE More Product Details	17508	Price and Availability
22	No Image	SCREW HEX HD CAP 3/8 16 X 3/4 (SS) More Product Details	17575	$1.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	Screw Ph Truss HD No.10 24x1/2 SS More Product Details	17848	$2.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	KEY SQUARE 3/16 x 1 LONG More Product Details	18115	$5.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	Grip, Round More Product Details	10721	$18.99Add to cart Special order: ships in 2 to 4 weeks
26	No Image	CLIP SIGHT TUBE RETAIN BLACK More Product Details	18468	$5.99Read more
28	No Image	Caster, Swivel 4 Dia More Product Details	18773	$146.99Add to cart Special order: ships in 2 to 4 weeks
29		Washer Plain 1/4 ID SS More Product Details	18885	$1.99Add to cart Special order: ships in 2 to 4 weeks
30	No Image	WASHER PLAIN .328 ID (SS) More Product Details	19191	$1.99Read more
31	No Image	Adapter, Tube Nozzle Hose More Product Details	19197	$33.99Add to cart Special order: ships in 2 to 4 weeks
32	No Image	SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) More Product Details	19207	$3.99Read more
33		Screw 1/4 20x3/4 Phil PH MS SS More Product Details	7EW001	$2.99Add to cart Special order: ships in 2 to 4 weeks
34		Nut 5/16 Lock with Nylon Insert Zinc More Product Details	X8248	$2.99Add to cart Special order: ships in 2 to 4 weeks
35	No Image	Hanger, Drain Hose (98190) More Product Details	19948	$47.99Add to cart Special order: ships in 2 to 4 weeks
36	No Image	Tank, Bottom 98190 Ord W/30022,30023,32382 More Product Details	30021	$2,075.99Add to cart Special order: ships in 2 to 4 weeks
37	No Image	Cover, Inlet Bottom Tank (98190) More Product Details	30026	$159.99Add to cart Special order: ships in 2 to 4 weeks
38	No Image	Cover, Pump (98190) More Product Details	30027	$171.99Add to cart Special order: ships in 2 to 4 weeks
39	Not Available	Hinge	30030	Not Available
40	No Image	Nozzle, Carpet Extractor (98190) More Product Details	30031	$220.99Add to cart Special order: ships in 2 to 4 weeks
41	No Image	Bracket, Bottom Tank (98190) More Product Details	30032	$296.99Add to cart Special order: ships in 2 to 4 weeks
42	No Image	Bracket, Vacuum Nozzle (98190) More Product Details	30033	$197.99Add to cart Special order: ships in 2 to 4 weeks
43	No Image	Bracket, Transaxle (98190) More Product Details	30035	$40.99Add to cart Special order: ships in 2 to 4 weeks
44	No Image	Handle 98190 More Product Details	30036	$122.99Add to cart Special order: ships in 2 to 4 weeks
45	No Image	Wheel Bumper 3 x 7/8 Grey More Product Details	30044	$15.99Add to cart Special order: ships in 2 to 4 weeks
46	No Image	Rod, Brush Attachment (98190) More Product Details	30048	$55.99Add to cart Special order: ships in 2 to 4 weeks
47	No Image	Bracket Handle Marathon Extractors Rev B More Product Details	30049	$52.99Add to cart Special order: ships in 2 to 4 weeks
48	No Image	Rod, Lift Handle (98190) More Product Details	30056	$85.99Add to cart Special order: ships in 2 to 4 weeks
49	No Image	Wheel Bumper 3 x 7/8 Grey More Product Details	30044	$15.99Add to cart Special order: ships in 2 to 4 weeks
50	Not Available	Bumper Wheel Bushing	30571	Not Available
51	No Image	Ball Joint Handle 98190 More Product Details	30577	$44.99Read more
52	No Image	Bracket, Adjusting Screw (98190) More Product Details	30578	$40.99Add to cart Special order: ships in 2 to 4 weeks
53	No Image	Spacer, Attachment Rod (98190) Delrin More Product Details	30581	$6.99Add to cart Special order: ships in 2 to 4 weeks
54	No Image	SCREW HEX HD CAP 3/8 16 X 1 5/8 (SS) More Product Details	30660	$3.99Add to cart Special order: ships in 2 to 4 weeks
55	No Image	SCREW, 3/8 16 X 1/2 PHIL. RND HD MACH SS More Product Details	30673	$1.99Add to cart Special order: ships in 2 to 4 weeks
56	No Image	SCREW PHIL. PAN HD MACH 1/4 20 X 5/8 (SS) More Product Details	30674	$1.99Add to cart Special order: ships in 2 to 4 weeks
57	No Image	NUT FINISHED HEX 5/16 24 (SS) More Product Details	30675	$1.99Read more
58	No Image	Screw Ph Truss HD No.10 24x1/2 SS More Product Details	17848	$2.99Add to cart Special order: ships in 2 to 4 weeks
59	No Image	ASSEMBLY SPRAY WAND MARATHON 2000 More Product Details	30687	$302.99Add to cart Special order: ships in 2 to 4 weeks
60	Not Available	Front Weight (3.26 lbs.)	30704	Not Available
61		BRACKET SPRAY TOOL BLACK CRS MARATHON 2000 More Product Details	32319	$52.99Add to cart Special order: ships in 2 to 4 weeks
62		Transaxle, 120V With Keyway More Product Details	32352	$2,170.99Add to cart Special order: ships in 2 to 4 weeks
63		Wheel, Marathon 2000 More Product Details	32353	$180.99Add to cart Special order: ships in 2 to 4 weeks
64	No Image	Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 More Product Details	7DL008	$4.99Add to cart Special order: ships in 2 to 4 weeks
66	No Image	Hose, Steel Supported Grey 1 1/2 X 42 W/Cuffs More Product Details	31388	$82.99Add to cart Special order: ships in 2 to 4 weeks

Report errors on this page HERE

Schematic and parts book for Tornado 98190

Compatible with 1 Tornado model

Shop

Parts & Supplies

Service & Help

Company

Your cart (items: 0)
