Schematic and parts book for Tornado 98169 20" Marathon 1200 (12 Gallon 230V) Series E. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

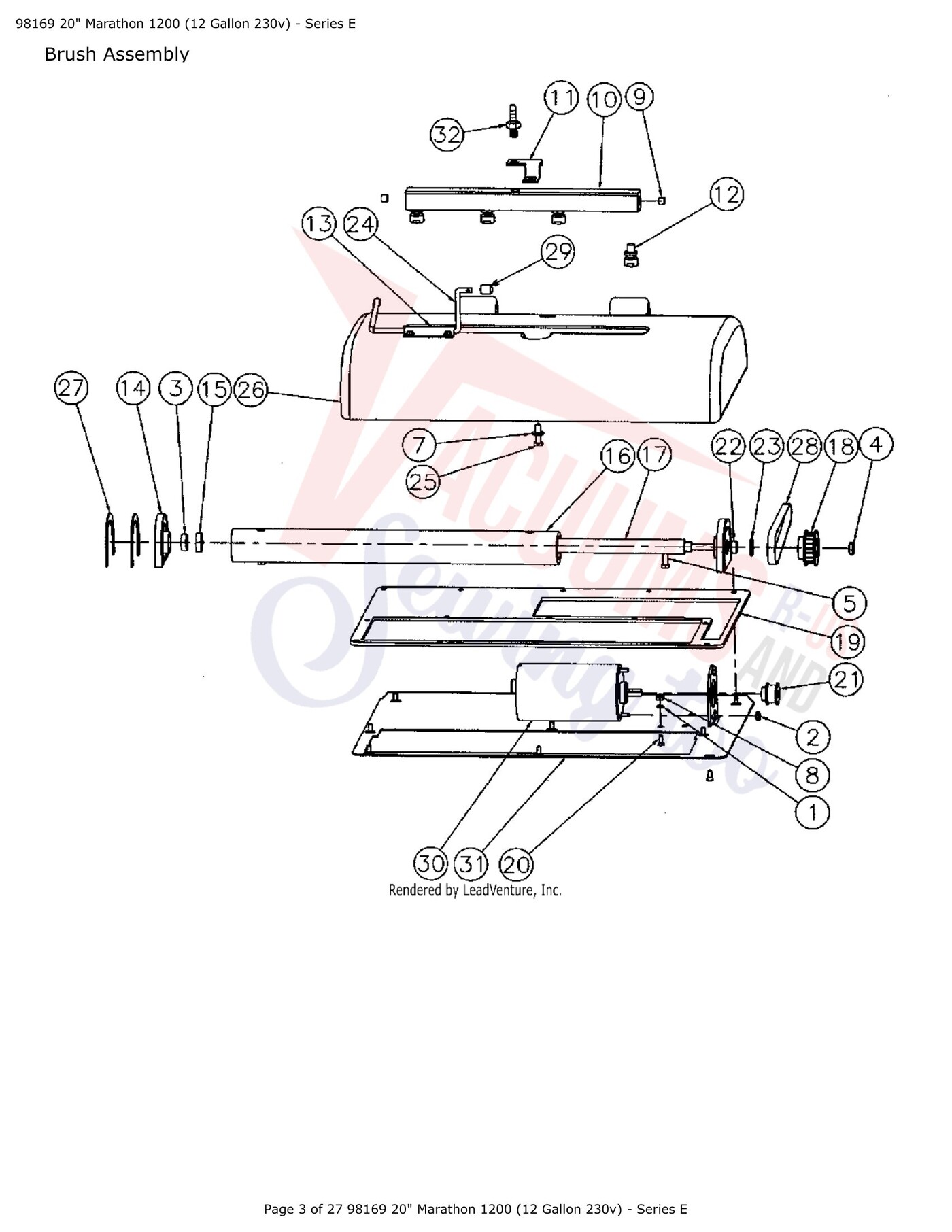

| XX | No Image | Brush Roller Assy 17 Marathon 800/1200 98166 98168 | 31806 | $599.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | Not Available | Lock Washer | 01713 | Not Available |
| 2 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Bearing 608-2RS | 05209 | Not Available |
| 4 | Not Available | Nut | 05282 | Not Available |
| 5 |  | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 9 | | FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE | 19149 | |
| 10 | No Image | Spray Bar Manifold | 19150 | $0.00Read more |
| 11 | No Image | Bracket, Weldment Manifold Retaining | 19152 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE | X9139 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | CLAMP SHROUD LATCH LEVER | 19156 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE | 19157 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | BEARING SEAL Part Number 19158 for Simplicity Models SCE | 19158 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Roller, Brush 17 Carpet Scrub(Marathon) | 19159 | $255.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Shaft, Brush Rotation 18 (Marathon 800/1200) | 19160 | $300.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE | 19161 | $61.59Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Gasket, Shroud Base Plate (Marathon 800/1200) | 19164 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | SCREW, No 10 24 X 1/2 PHIL. FLAT HD MACH SS | 19165 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE | 32175 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE | 19190 | $4.39Read more |
| 23 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 24 | No Image | Latch, Lever Shroud | 19192 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | BOLT, 1/4-20 X 1 HEX SS | X8282 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | ASSEMBLY BRUSH WELDMENT | 31754 | $586.99Read more |
| 27 | | GASKET-BEARING BLOCK Part Number 19228 for Simplicity Models SCE | 19228 | $4.39Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Belt,Scrubbers,Timing,150XL X 3/8 | 19233 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | CAP SHROUD LATCH LEVER | 19275 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Motor,Extractor,115 VDC,1860 RPM,Kit-Motor Pulley | 32495 | $212.99Read more |
| 31 | No Image | Brush Plate Weldment Complete Shroud Use 31754 | 30959 | $189.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Gasket | 31425 | $0.00Read more |
| # | Part image | Description | SKU | Price |

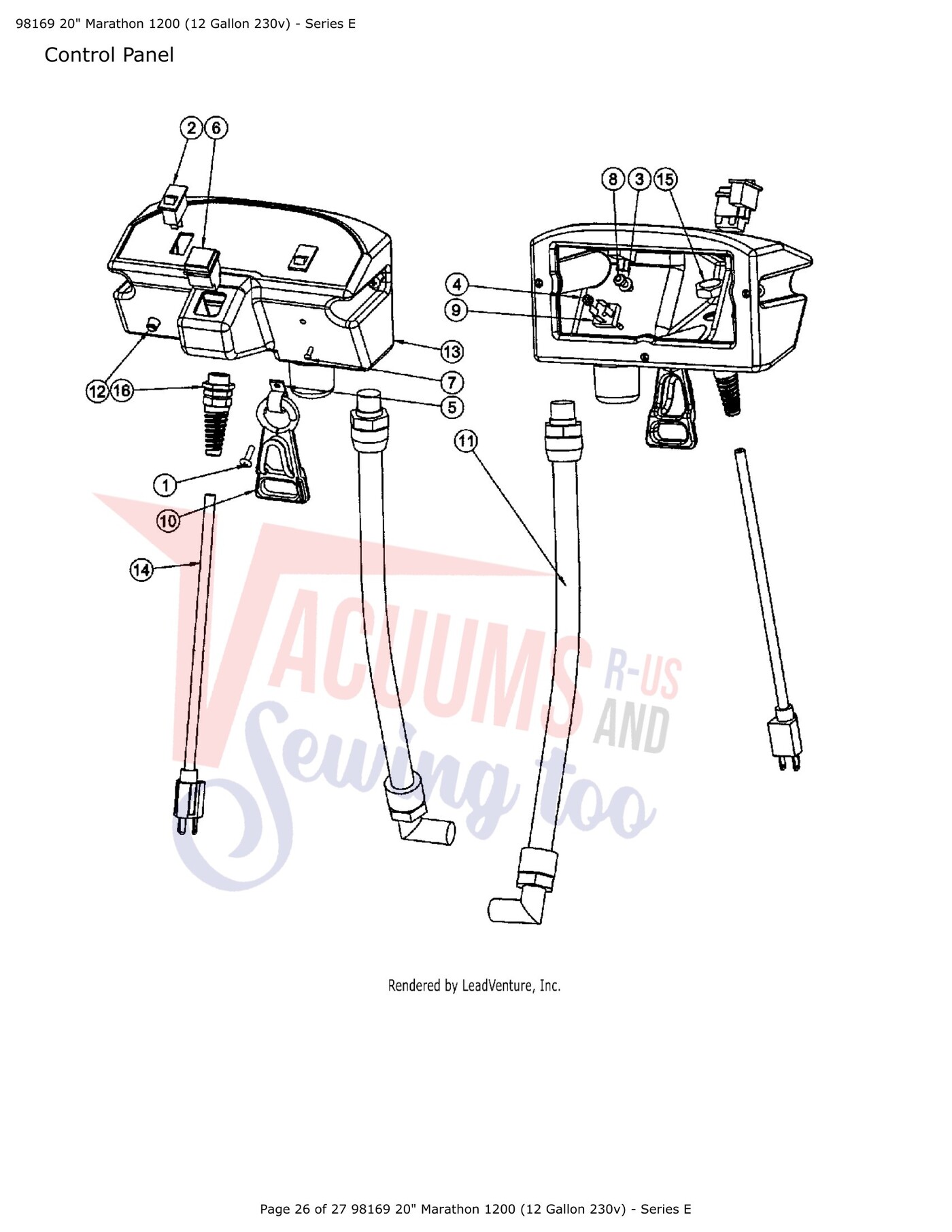

| XX | No Image | Module, Control 800 | 19214 | $120.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 |  | Screw Ph Truss HD No.10 24x3/4 ZP | 04735 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SWITCH ROCKER 98164 68 | 10670 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Nut 6-32 Hex Nylon | 17883 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | CLAMP CABLE(5/8DIA.) | 18717 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SWITCH-PUSH BUTTON Part Number 19121 for Simplicity Models SCE | 19121 | $28.59Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | SCREW SLO. RND HD MACH No 6 32 X 3/4 (NYLON) | 19124 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 9 | No Image | Rectifier, 1000 V 35 Amp, Previously 19182 | X1193 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | B3526900 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Wiring Harness, Main Marathon 800/1200 | 32221 | $412.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Circuit Breaker,Extractor,2.5Amp,125V-250VAC | X1192 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Control Module | 19315 | $0.00Read more |
| 14 | No Image | Power Cord Assembly 230V Eu Plug | 31094 | $0.00Read more |
| 15 |  | NUT HEX JAM 3/4 18 (ZP) SLO. | 30261 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | White Plastic Standard Candle Covers 8" | 19929 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

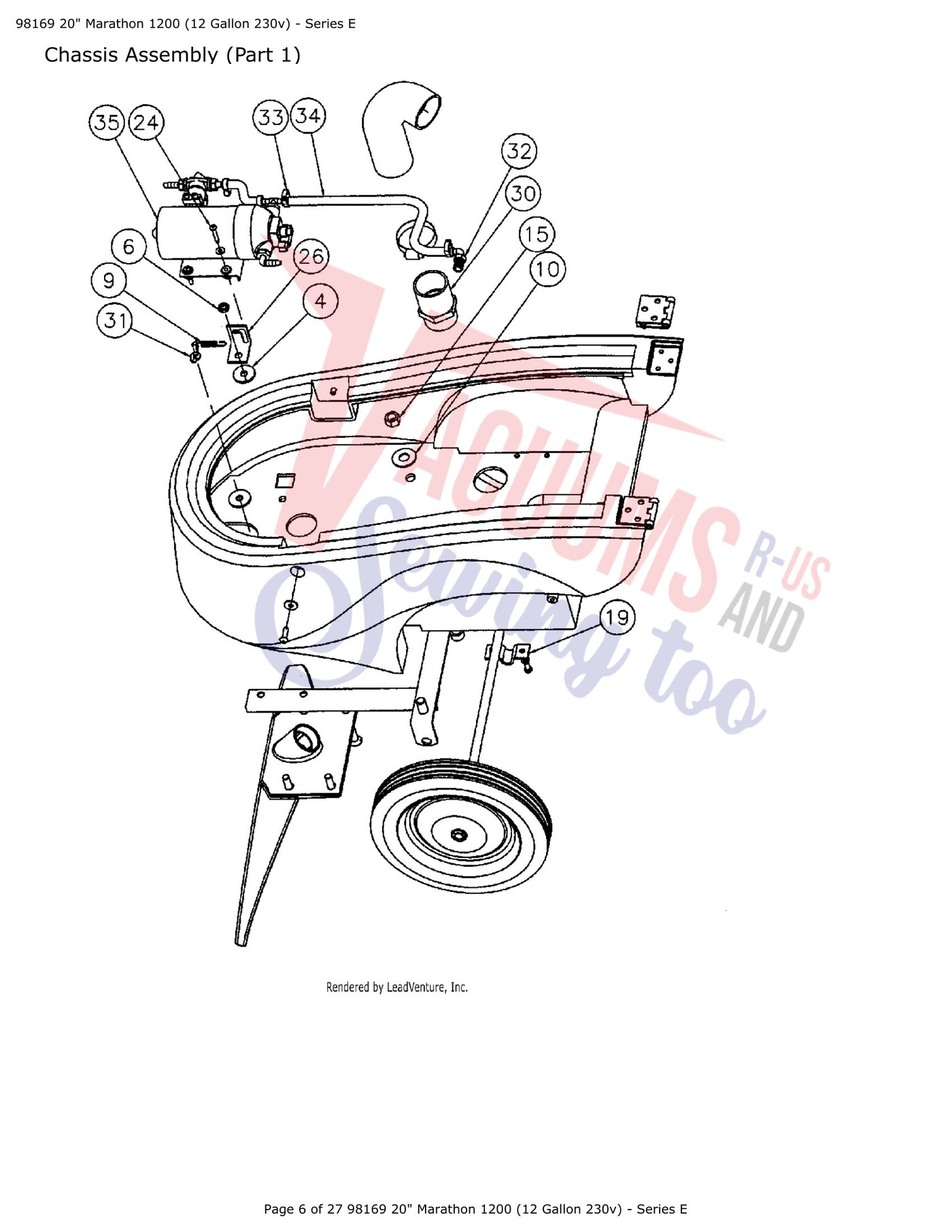

| # | Part image | Description | SKU | Price |
| 4 | Not Available | Washer | 03321 | Not Available |
| 6 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Bar, Cross Spring | 10841 | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | NUT FINISHED HEX 1/2 13 (SS) | 16673 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Clamp, Axle Retaining (98166 ) | 19144 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) | 19205 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Bracket,Extractors,Marathon,Shroud Latch | 19239 | $19.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Fitting Motor Exhaust Hose Marathon | 19260 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | NUT WING 3/8 16 W/HOLES SPRING RETAINING | 19301 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Brass Elbow Fitting 45° | 15075 | $0.00Read more |
| 37 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

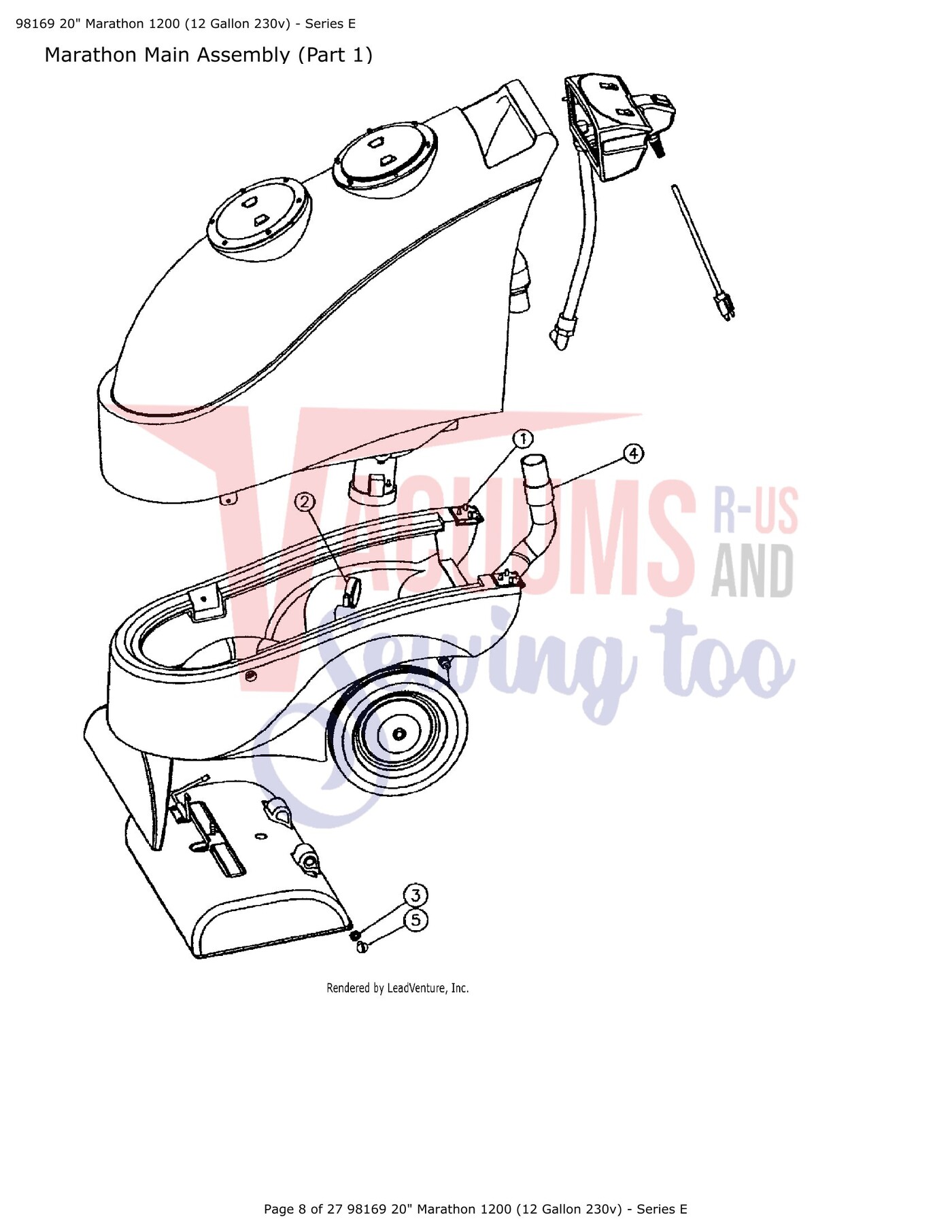

| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW SLOT. TRUSS HD 1/4 20 X 1/2 (ZP) | 10353 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CLAMP-HOSE (SCREW) Part Number 14858 for Simplicity Models SCE | 14858 | $10.99Read more |
| 3 | No Image | Shroud, Bushing Pivot Nylon | 19153 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Hose, Steel Supported Grey 1 1/2 X 42 W/Cuffs | 31388 | $82.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) | 19207 | $3.99Read more |
| 9 | No Image | Adapter, Tube Nozzle Hose | 19197 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX |  | Hose, Steel Supported Blk 1 1/2 X 64 W/Cuffs | 18967 | $94.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | No Image | Cord, Extension 14/3 X 50FT 300V Yellow | 32217 | $148.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | Not Available | Power Cord 50' 230V EU Plug | 31070 | Not Available |

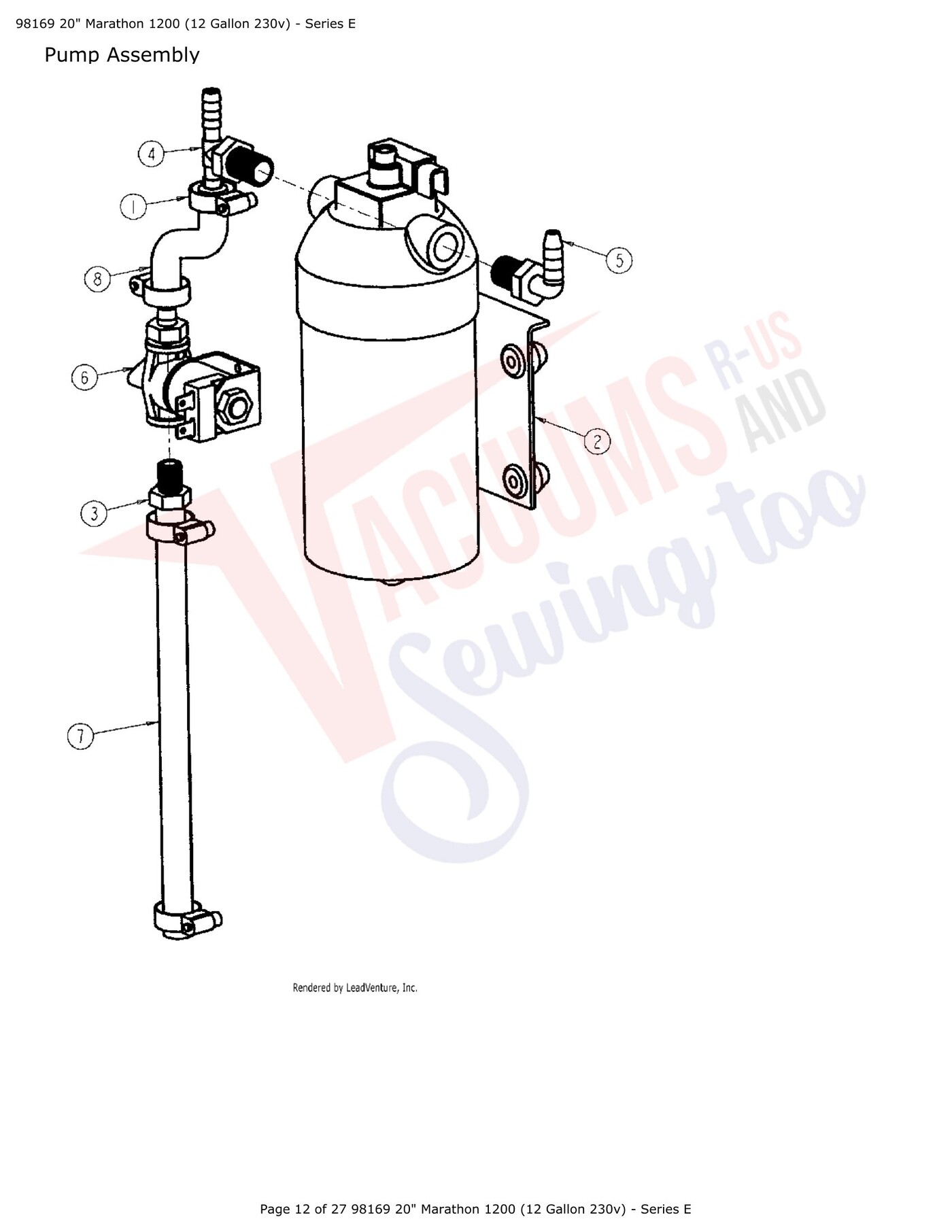

| # | Part image | Description | SKU | Price |
| XX | No Image | Water Valve 230V | 31109 | $0.00Read more |
| 1 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Pump assembly,Extractor,VAC,w/Fittings | 32202 | $424.99Read more |
| 6 |  | Valve Kit, 120 VAC Solenoid, 290 Psi | SW290KIT | $169.99Add to cart Special order: ships in 2 to 4 weeks |

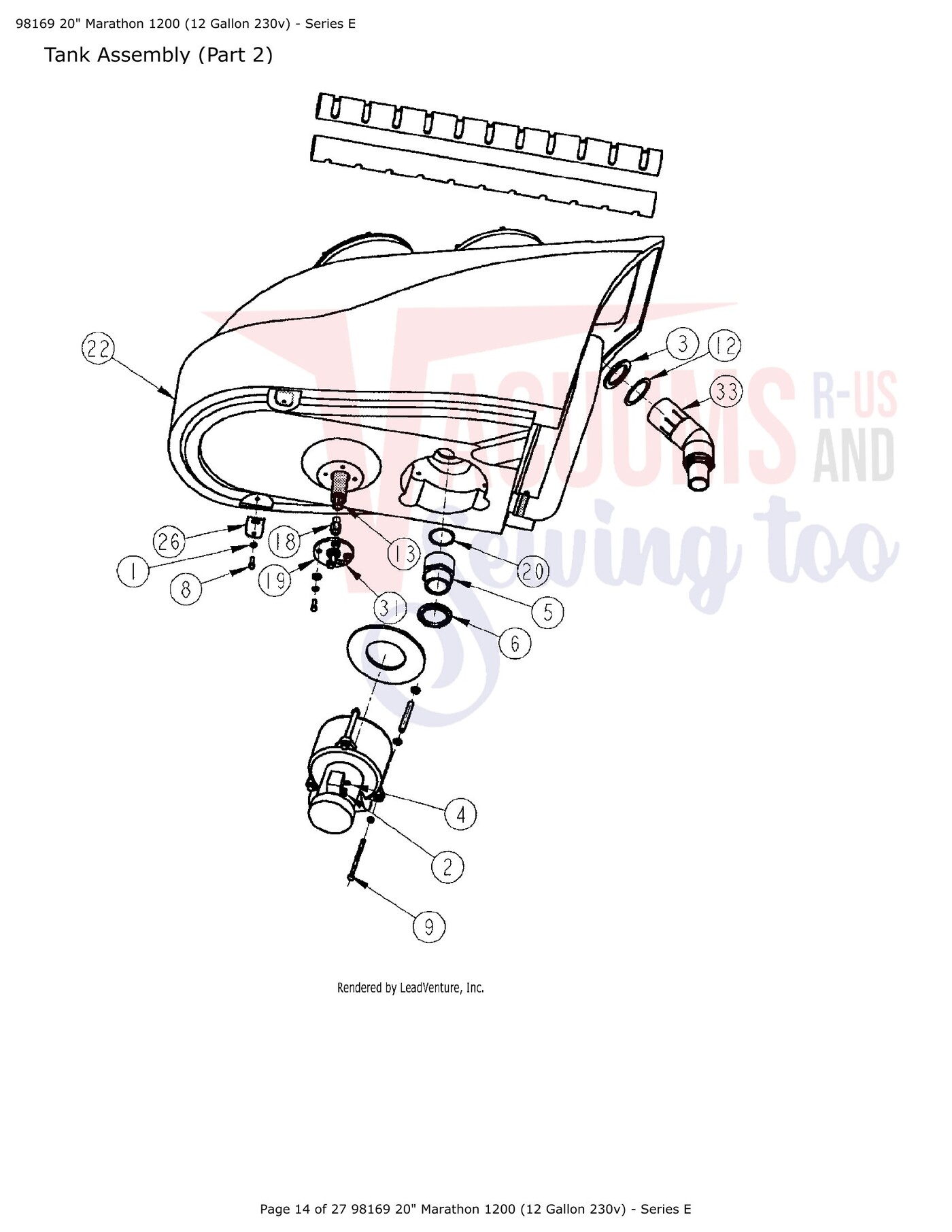

| # | Part image | Description | SKU | Price |
| 1 | No Image | Lock Washer | 01574 | $0.00Read more |
| 2 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 3 | No Image | Gasket 2.6 OD 1.875 ID 0.1875 Thick Rev01 | 05781 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | PVC Male Adapter | 15088 | Not Available |
| 6 | | NUT-HEX FLANGED LOCK 1-1/2 NPT Part Number 15092 for Simplicity Models SCE | 15092 | |
| 8 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Screw Hex HD Cap 1/4 20x4.25 ZP | 17644 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Washer,Plain 2.00 ID SS | 18886 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Filter,Extractor,Pumps,Soloscreen,Bladder | 19096 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Brass Adaptor Fitting | 19133 | $0.00Read more |
| 19 | No Image | Bladder Mounting Plate | 19134 | $0.00Read more |
| 20 | No Image | RING O 1 5/8 DIA. (BLK) | 19140 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Tank, Recovery (98166) Order W/19241 | X3857 | $639.91Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Bracket Extractor Marathons Recover Tank Retaining | 19272 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Recovery Tank External Pipe Assembly | 31051 | Not Available |

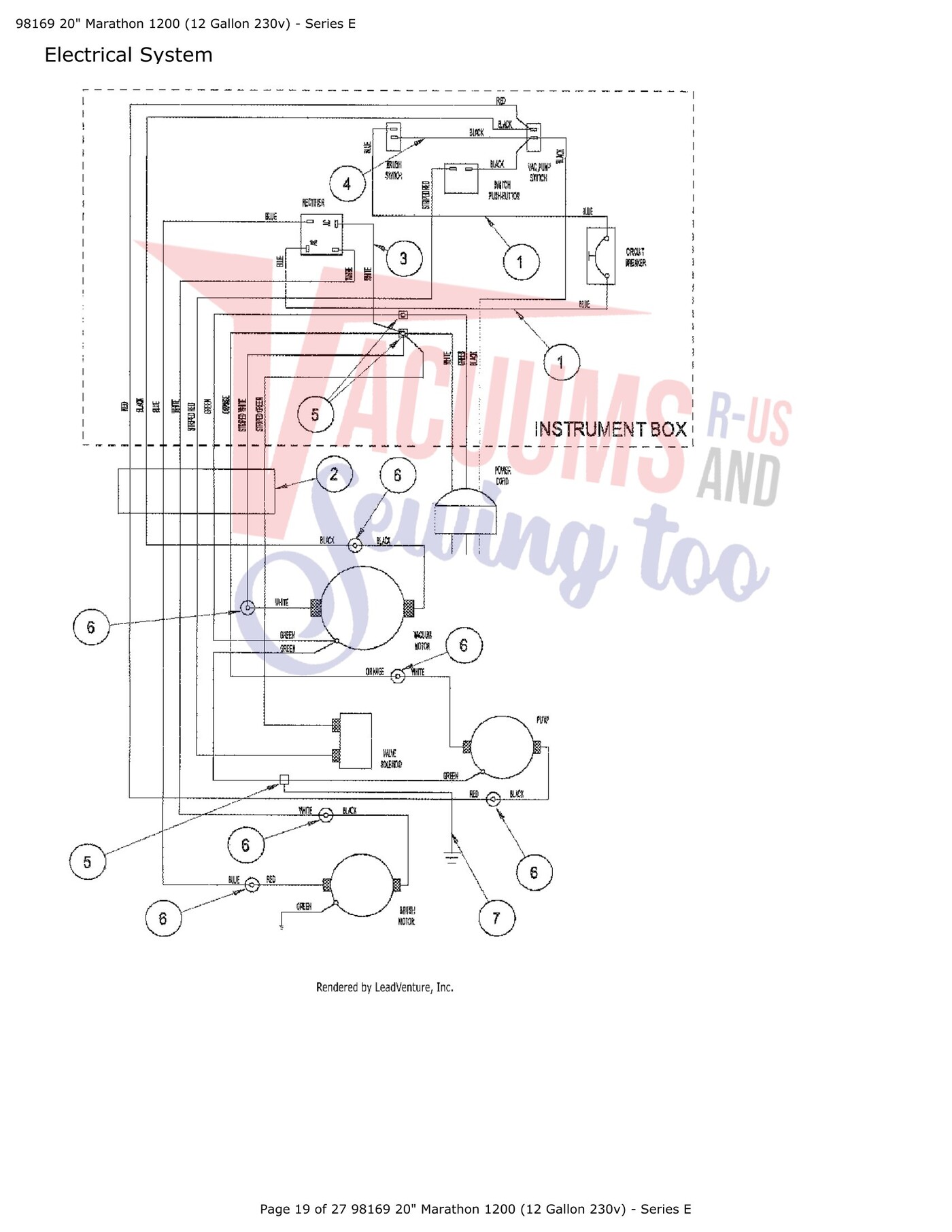

| # | Part image | Description | SKU | Price |
| XX | No Image | Clip, Lead Retaining Selfadhesive | 10428 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| XX |  | WIRE TIE 7 WHITE | 14560 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Hose, Steel Supported Blk 1 1/2 X 64 W/Cuffs | 18967 | $94.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | Not Available | Power Cord 50' 230V EU Plug | 31070 | Not Available |
| 1 | No Image | Lead 16 Awg X 7" Blue | 19231 | $0.00Read more |
| 2 | No Image | Wiring Harness, Main Marathon 800/1200 | 32221 | $412.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Lead 16 Awg X 2" White | 19303 | $0.00Read more |
| 4 | No Image | Switches Wiring Harness Assembly | 19304 | $0.00Read more |
| 5 | No Image | Closed End Crimp Terminal | 06824 | $0.00Read more |
| 6 | Not Available | Male Q.D. Terminal | 19229 | Not Available |
| 7 | No Image | Lead 18 Awg X 16" Green | 19369 | $0.00Read more |

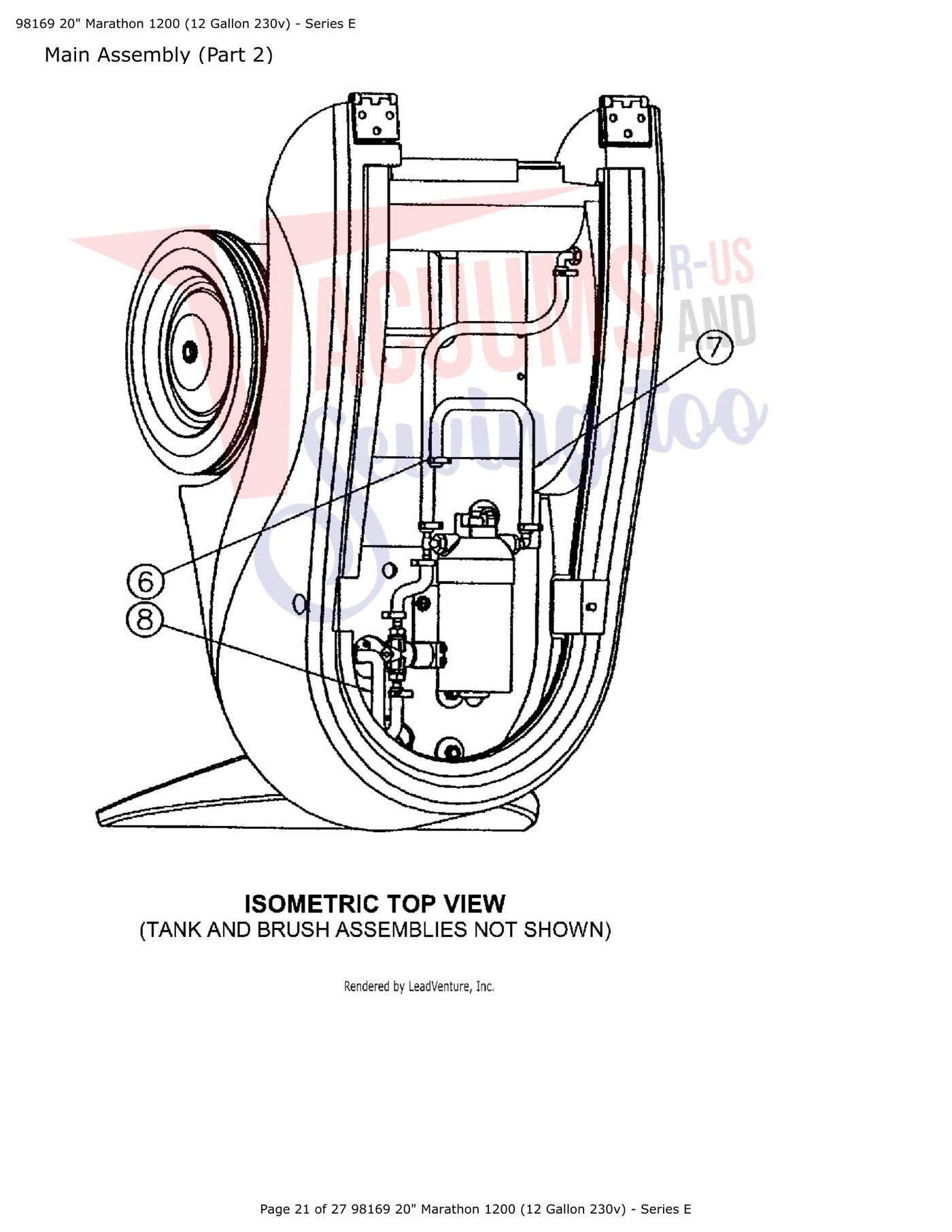

| # | Part image | Description | SKU | Price |
| 6 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Drain Hose Bellow 1-1/2" X 40" | 31237 | $0.00Read more |

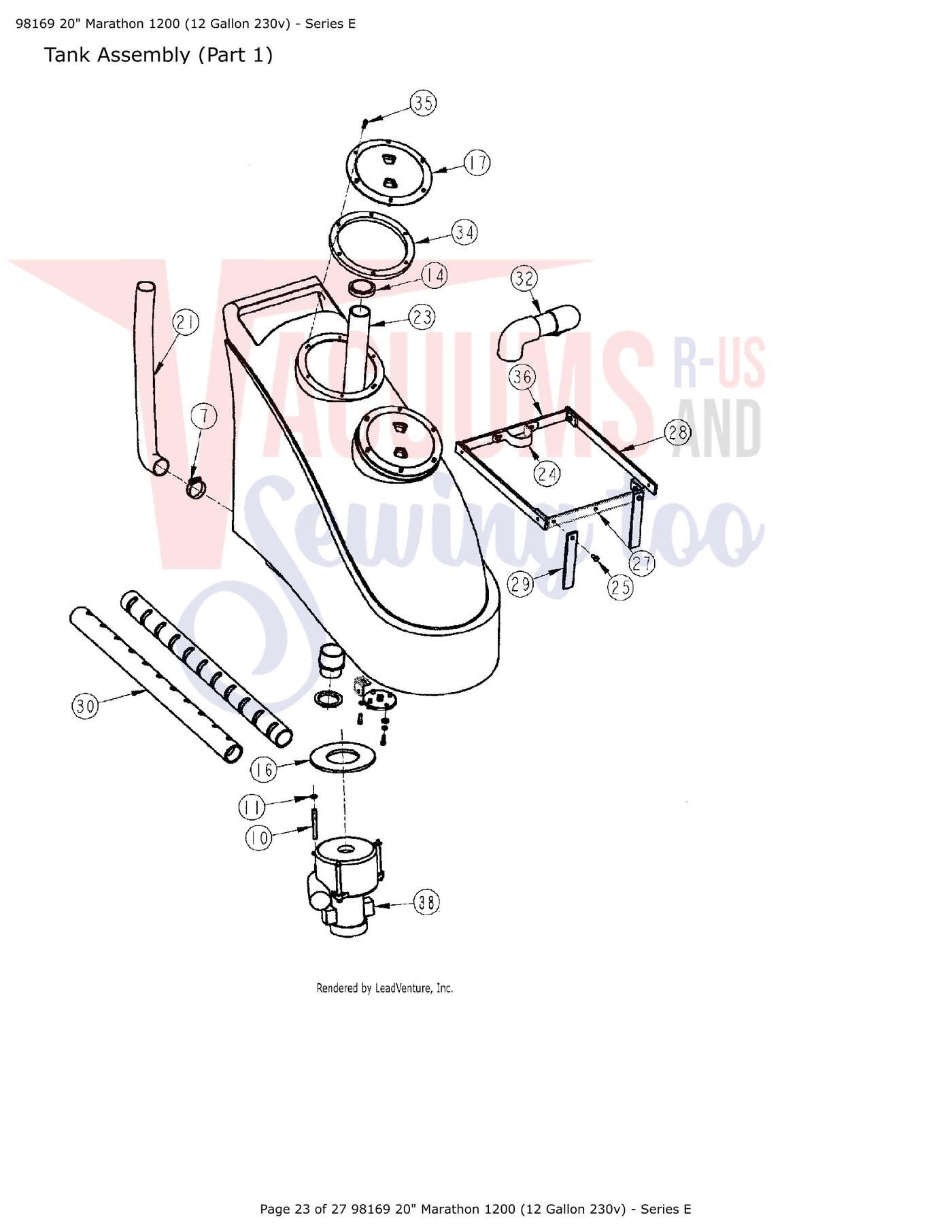

| # | Part image | Description | SKU | Price |
| XX | Not Available | Bladder (8 Gallon) | 19215 | Not Available |
| 7 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Spacer, Vac Motor (98190) | 30070 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Filter,Extractor,Vac Motor Intake | 19097 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Gasket 3/8 Donut Tank Seal V1510 PVC | X9079 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Bellow Hose EPDM/Blk Revc 1-1/2x23-1/2 Lg Crush | 16620 | $72.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Clamp, Standpipe Mounting | 19217 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Frame, Member Tank 11 In. Support(Front) | 19316 | $43.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Frame, Member Tank Rev B Support(Sides) | 19317 | $50.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Frame, Member Tank | 19318 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Recovery Tank Channel | 19325 | $0.00Read more |
| 32 | No Image | ASSY INTERN.PIP(DRAWING) (98166, 169) RECOVERY | 31050 | $19.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Gasket Tank Access Cover Marathon | 31416 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | SCREW, 10-32 X 5/8 FLAT HD SS | X9118 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Frame, Member Tank 12 In. Support | 19220 | $42.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Bladder, 12 Gallon (Marathon 1200) | 19264 | $658.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Motor,Extractor,120,VAC,Ametek,3 STG,ETL | X1038 | $195.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | Self-Locking Insert | 12787 | $0.00Read more |
