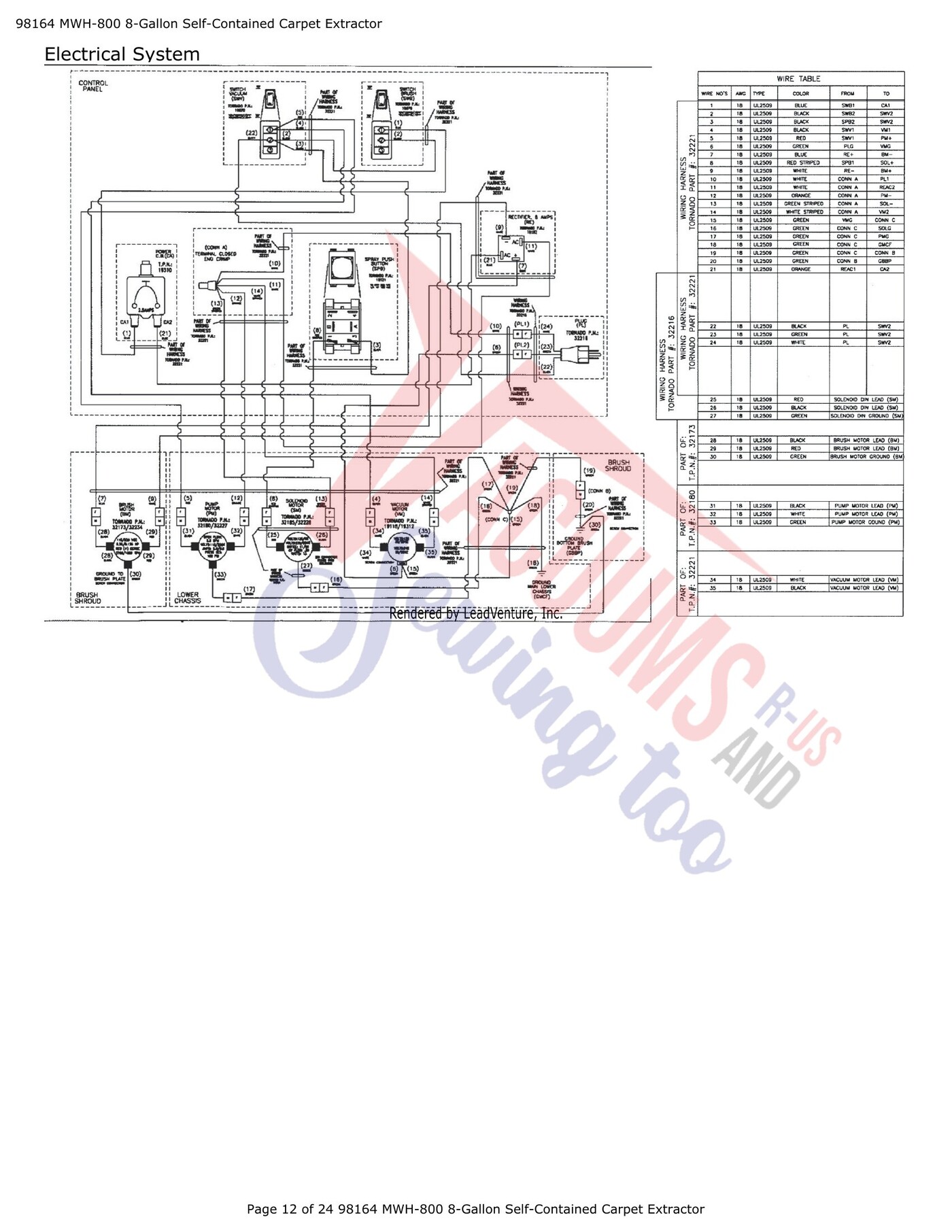

Schematic and parts book for Tornado 98164 MWH-800 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

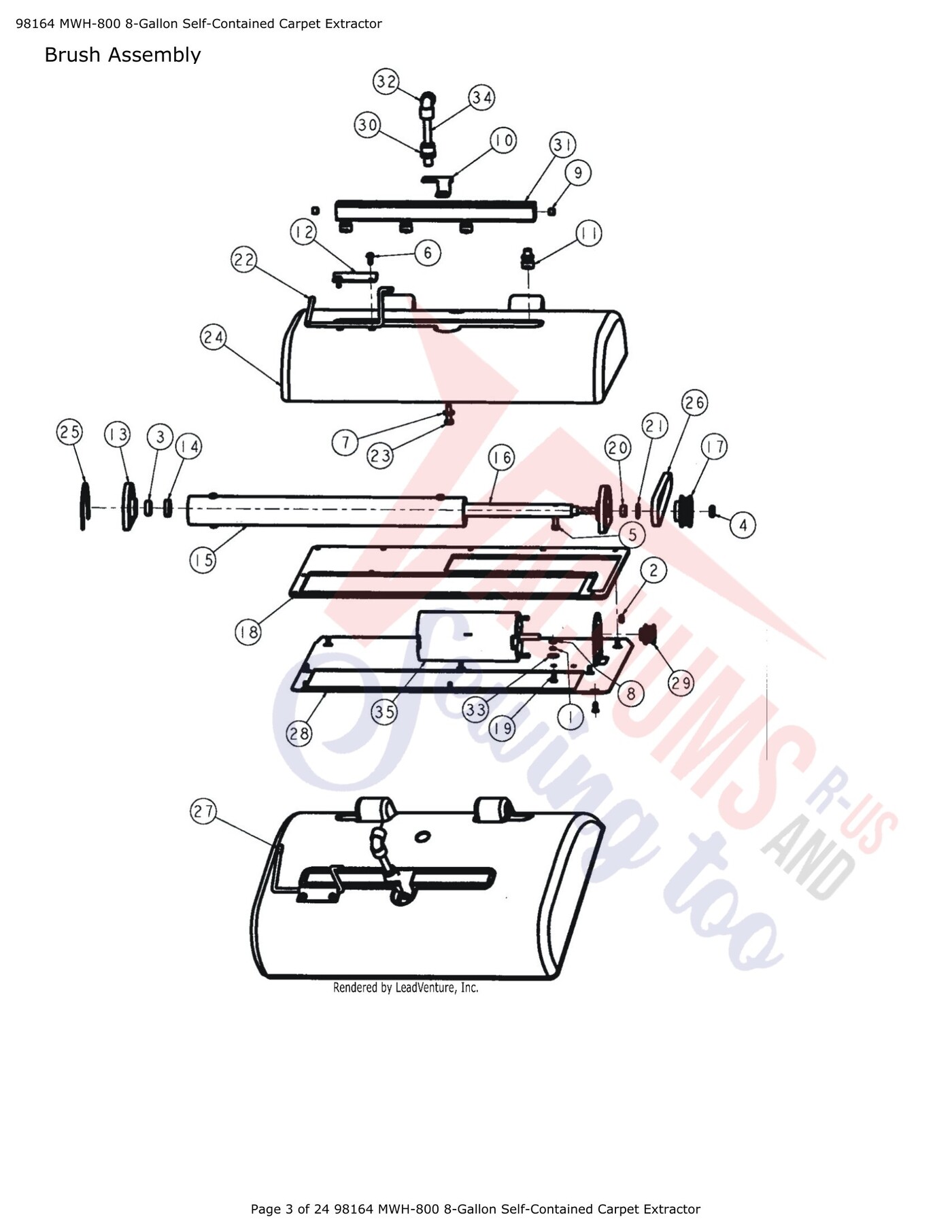

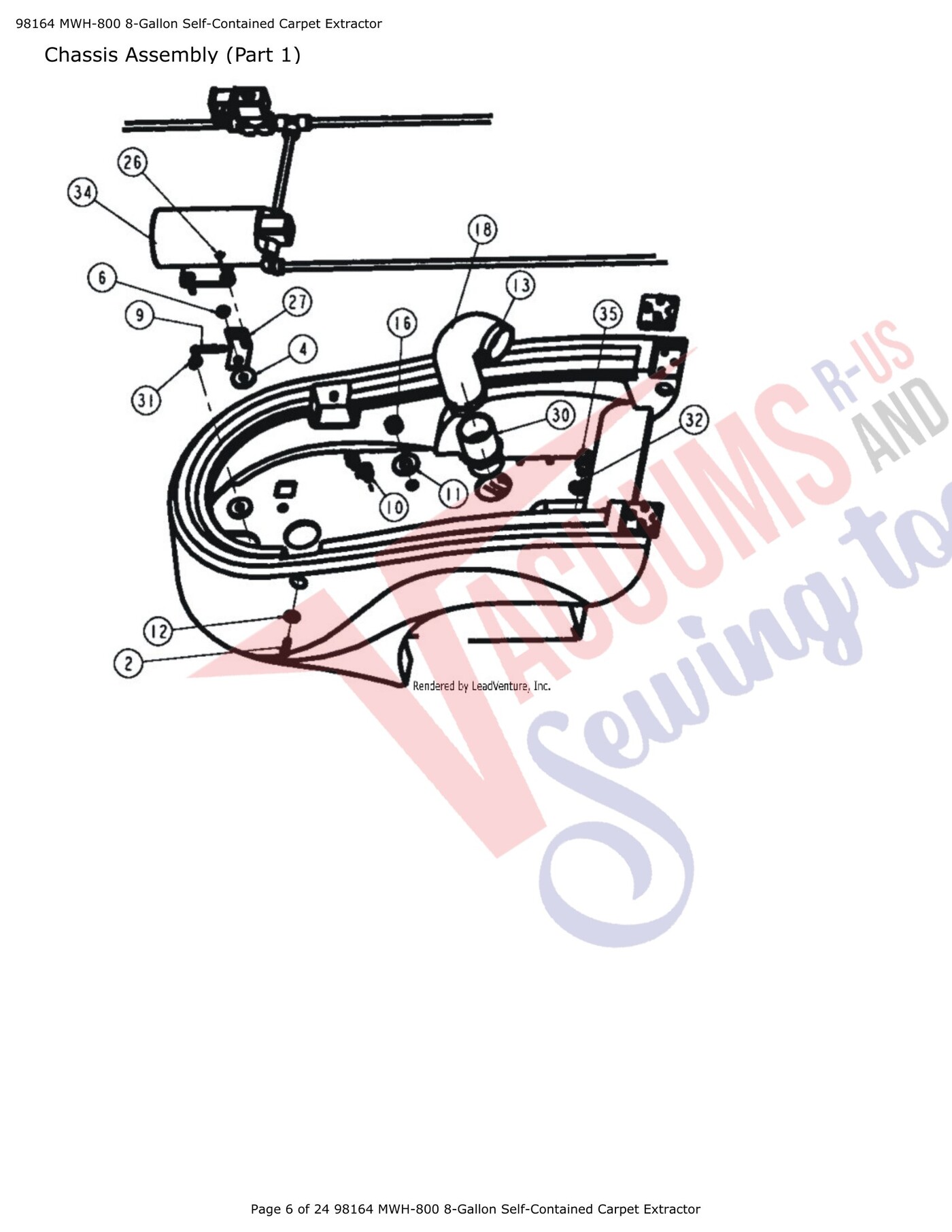

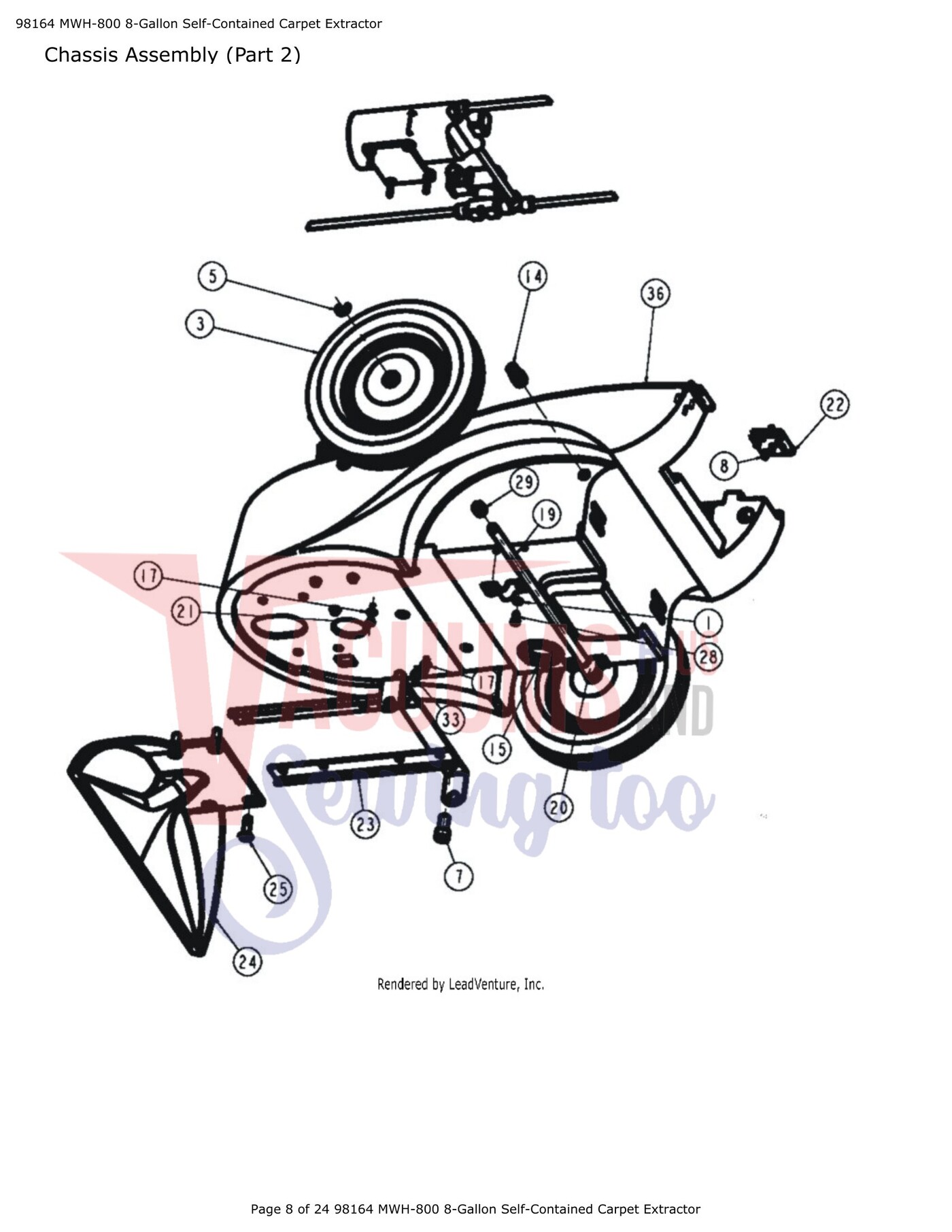

| # | Part image | Description | SKU | Price |
| XX | No Image | Brush Roller Assy 17 Marathon 800/1200 98166 98168 | 31806 | $599.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | Not Available | Lock Washer | 01713 | Not Available |
| 2 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Bearing 608-2RS | 05209 | Not Available |
| 4 | Not Available | Nut | 05282 | Not Available |
| 5 |  | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | SCREW HEX HD CAP No 10 24 X 1/2 (ZP) | 17957 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 9 | | FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE | 19149 | |
| 10 | No Image | Bracket, Weldment Manifold Retaining | 19152 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE | X9139 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | CLAMP SHROUD LATCH LEVER | 19156 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE | 19157 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | BEARING SEAL Part Number 19158 for Simplicity Models SCE | 19158 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Roller, Brush 17 Carpet Scrub(Marathon) | 19159 | $255.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Shaft, Brush Rotation 18 (Marathon 800/1200) | 19160 | $300.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE | 19161 | $61.59Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Gasket, Shroud Base Plate (Marathon 800/1200) | 19164 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | SCREW, No 10 24 X 1/2 PHIL. FLAT HD MACH SS | 19165 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE | 19190 | $4.39Read more |
| 21 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 22 | No Image | Latch, Lever Shroud | 19192 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | BOLT, 1/4-20 X 1 HEX SS | X8282 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | ASSEMBLY BRUSH WELDMENT | 31754 | $586.99Read more |
| 25 | | GASKET-BEARING BLOCK Part Number 19228 for Simplicity Models SCE | 19228 | $4.39Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Belt,Scrubbers,Timing,150XL X 3/8 | 19233 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | CAP SHROUD LATCH LEVER | 19275 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Brush Plate Weldment Complete Shroud Use 31754 | 30959 | $189.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE | 32175 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE | 32186 | $13.19Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Spraybar, Manifold 1/4 Aluminum | 32187 | $49.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | SWIVEL ELBOW 3/8" Part Number 32189 for Simplicity Models SCE | 32189 | $17.59Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | LOCK WASHER 5/16" Part Number 32245 for Simplicity Models SCE | 32245 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | HOSE 3/8OD X 2 LG. (NATURAL TUBE) MARATHON | 32258 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Motor,Extractor,115 VDC,1860 RPM,Kit-Motor Pulley | 32495 | $212.99Read more |
| 36 | No Image | GASKET NEOPRENE SPONGE 1.5 (MARATHON BRUSH MOTOR) | 32512 | $9.99Read more |
| # | Part image | Description | SKU | Price |
| 2 | No Image | SCREW PHIL. RND HD MACH 1/4 20 X 7/8 (NICK) | 02053 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Washer | 03321 | Not Available |
| 6 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Bar, Cross Spring | 10841 | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Washer Plain Part Number 11219 for Cleanmax Models CM-WAV | 11219 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | CLAMP-HOSE (SCREW) Part Number 14858 for Simplicity Models SCE | 14858 | $10.99Read more |
| 16 | No Image | NUT FINISHED HEX 1/2 13 (SS) | 16673 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | HOSE STEEL SUPPORTED BLK 2 X 36 NO CUFFS | 18687 | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) | 19205 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Bracket,Extractors,Marathon,Shroud Latch | 19239 | $19.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Fitting Motor Exhaust Hose Marathon | 19260 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | NUT WING 3/8 16 W/HOLES SPRING RETAINING | 19301 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE | 32186 | $13.19Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | SPONGE 2 VAC MOTOR PROTECTION | 32527 | $9.99Read more |
| 38 | Not Available | Washer | 30075 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Lock Washer | 01574 | $0.00Read more |
| 3 | No Image | Wheel 10 Black Hub | 02661 | $98.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | SCREW SOCKET HEAD CAP 1/2 13 X 1.00 (SS) | 05441 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Screw 1/4-20 x 1/2" | 06192 | Not Available |
| 14 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | NUT-HEX FLANGED LOCK 1-1/2 NPT Part Number 15092 for Simplicity Models SCE | 15092 | |
| 17 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Axle, Marathon 800/ 1200 | 19143 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Clamp, Axle Retaining (98166 ) | 19144 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 22 | No Image | Hinge, 1/4 Dia. X 2 SS W/Slots Marathon | 19148 | $61.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Bracket, Weldment Shroud/Nozzle Mounting | 19155 | $85.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Nozzle 20 Vac Alum 98166 98169 Order with 19197 | 19168 | $192.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | SCREW SLOT. FLAT HD MACH 3/8 16 X 1 1/4 (SS) | 19171 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Spacer 1/2 Replaces 03144 | 19259 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | SCREW SLO. PAN HD M4 X .700 16 (ZP) | 23192 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Chassis | 32334 | $0.00Read more |
| # | Part image | Description | SKU | Price |

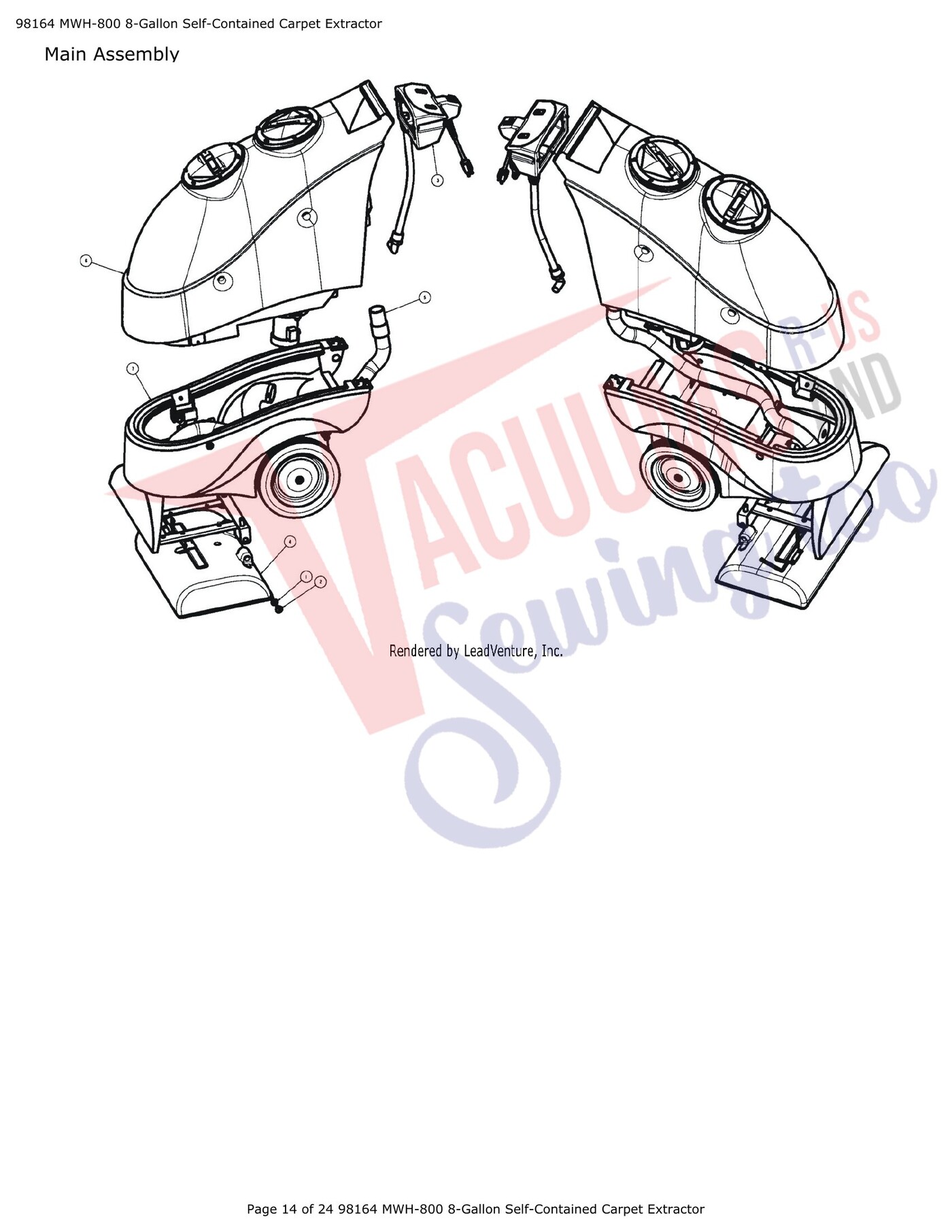

| # | Part image | Description | SKU | Price |
| 1 | No Image | Shroud, Bushing Pivot Nylon | 19153 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) | 19207 | $3.99Read more |
| 3 | Not Available | Control Panel Assembly | 30972 | Not Available |
| 4 | Not Available | Brush/Spray Assembly | 30980 | Not Available |
| 5 | No Image | Hose, Steel Supported Grey 1 1/2 X 42 W/Cuffs | 31388 | $82.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Recovery Tank Assembly | 32354 | $0.00Read more |
| 7 | No Image | Chassis Assembly | 32355 | $0.00Read more |
| 8 | No Image | SCREW, 3/8 16 X 1.00 SLOT. FLAT HD MACH BRASS | 03913 | $4.99Read more |
| 9 | No Image | Clip, Lead Retaining Selfadhesive | 10428 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hose, Steel Supported Blk 1 1/2 X 64 W/Cuffs | 18967 | $94.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Adapter, Tube Nozzle Hose | 19197 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Male Q.D. Terminal | 19229 | Not Available |
| 13 | No Image | Decal TOR with Logo 1.75x7.25 White | 30815 | $0.99Add to cart Special order: ships in 2 to 4 weeks |

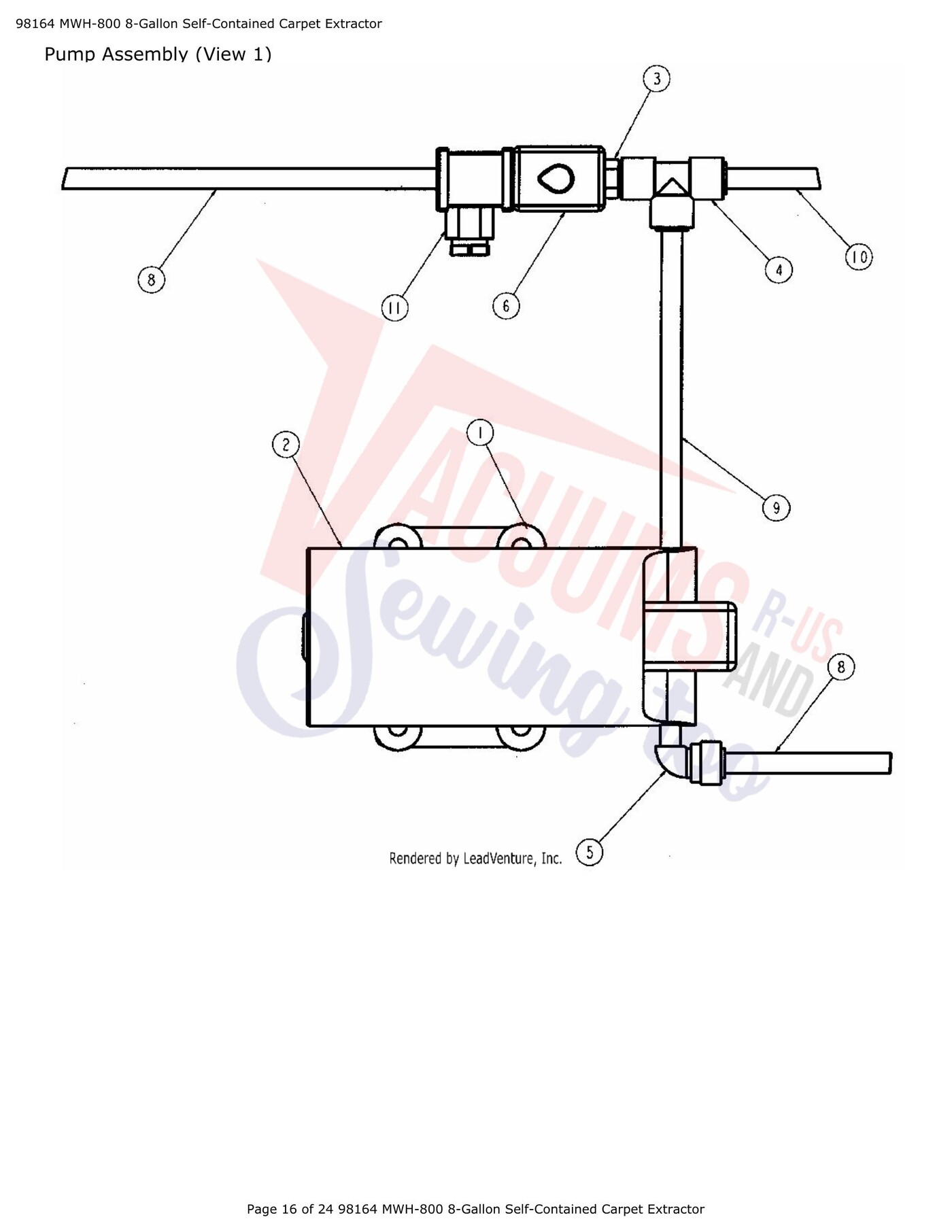

| # | Part image | Description | SKU | Price |
| 1 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 2 | No Image | Pump,Extractor,115V,VAC,100psi,50/60HZ | 32180 | $384.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | STEM ADAPTER 3/8" Part Number 32181 for Simplicity Models SCE | 32181 | $5.49Read more |
| 4 | | UNION TEE 3/8" Part Number 32182 for Simplicity Models SCE | 32182 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | PLUG IN ELBOW 3/8" Part Number 32183 for Simplicity Models SCE,SCE | 32183 | $19.79Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Valve Kit, 120 VAC Solenoid, 290 Psi | SW290KIT | $169.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | HOSE 3/8OD X 36 LG. CHECK X9534 WHEN OUT | 32192 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | HOSE 3/8OD X 7 1/2 LG. (NATURAL TUBE) MARATHON | 32193 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | HOSE 3/8OD X 22 LG. (NATURAL TUBE) MARATHON | 32317 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Connector Assembly w/Wires | 32207 | Not Available |

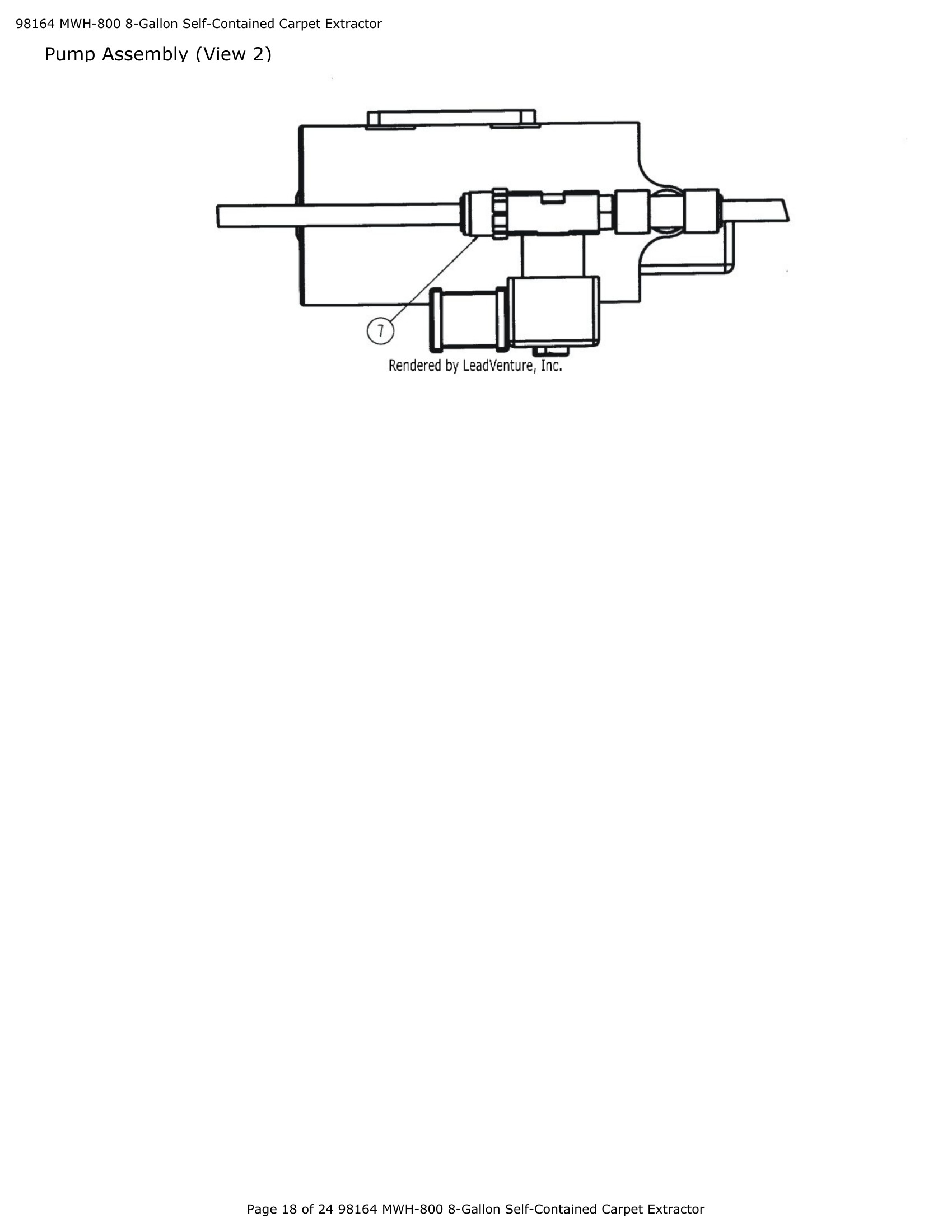

| # | Part image | Description | SKU | Price |
| 7 | | MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE | 32186 | $13.19Add to cart Special order: ships in 2 to 4 weeks |

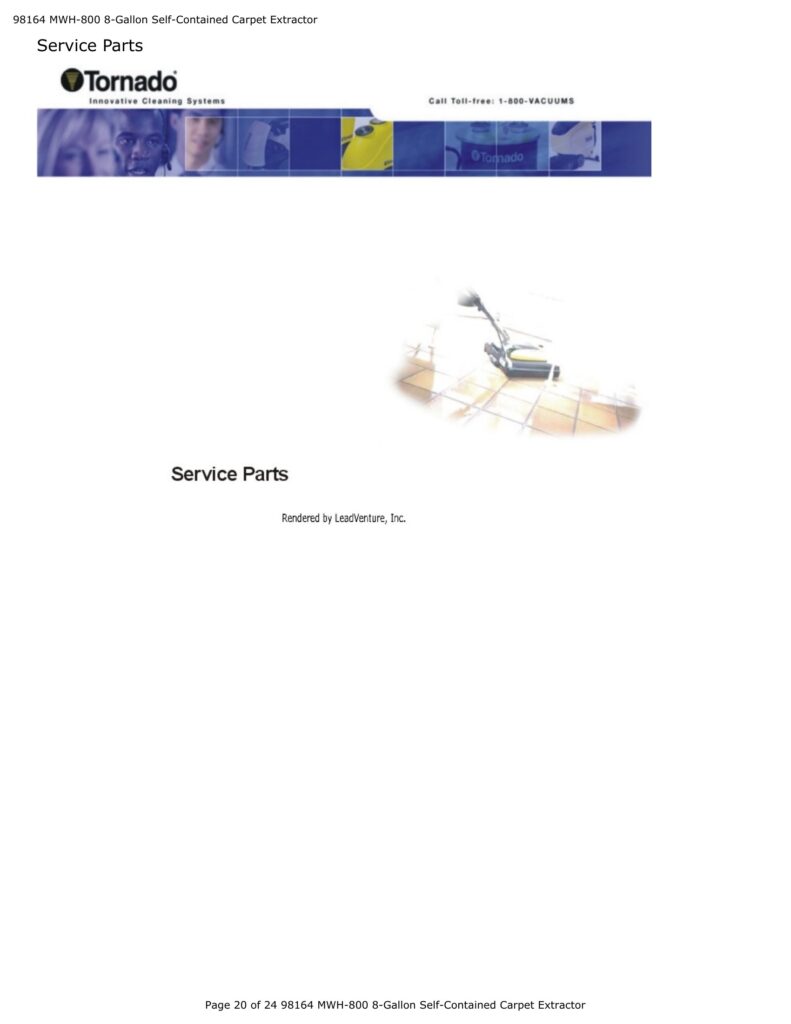

| # | Part image | Description | SKU | Price |
| XX | No Image | Brush Roller Assy 17 Marathon 800/1200 98166 98168 | 31806 | $599.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | Wheel 10 Black Hub | 02661 | $98.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Bellow Hose EPDM/Blk Revc 1-1/2x23-1/2 Lg Crush | 16620 | $72.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Filter,Extractor,Vac Motor Intake | 19097 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Gasket 3/8 Donut Tank Seal V1510 PVC | X9079 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE | X9139 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Roller, Brush 17 Carpet Scrub(Marathon) | 19159 | $255.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Belt,Scrubbers,Timing,150XL X 3/8 | 19233 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Strainer, Inline 3/8NPT 60 Mesh (Marathon) | 32178 | $16.99Add to cart Special order: ships in 2 to 4 weeks |

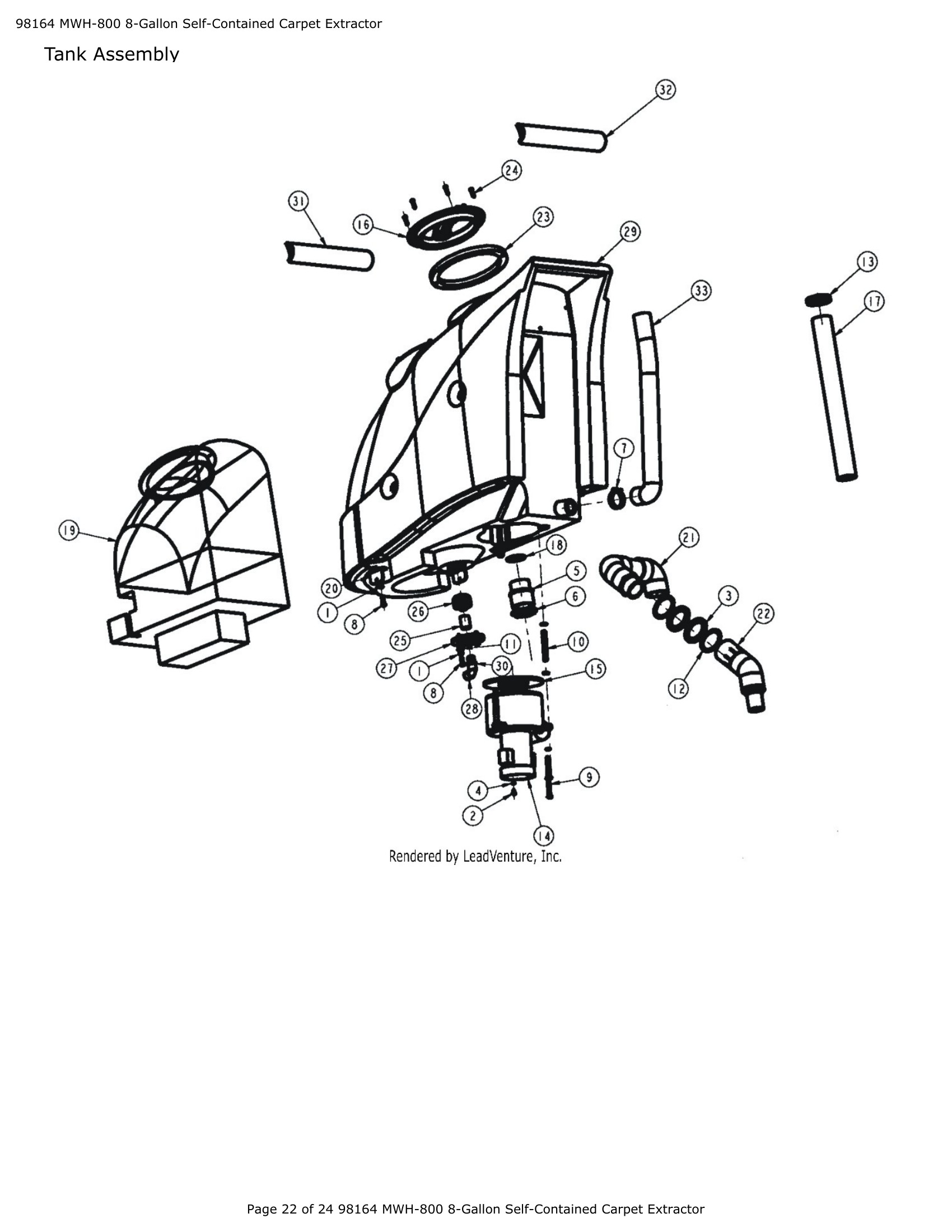

| # | Part image | Description | SKU | Price |
| 1 | No Image | Lock Washer | 01574 | $0.00Read more |
| 2 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 3 | No Image | GASKET,2.63 OD X 1.94FT ID X 1/8 405 DURO | 06825 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | PVC Male Adapter | 15088 | Not Available |
| 6 | | NUT-HEX FLANGED LOCK 1-1/2 NPT Part Number 15092 for Simplicity Models SCE | 15092 | |
| 7 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Screw Hex HD Cap 1/4 20x4.25 ZP | 17644 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Spacer, Vac Motor (98190) | 30070 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Washer,Plain 2.00 ID SS | 18886 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Filter,Extractor,Vac Motor Intake | 19097 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Motor,Extractor,120,VAC,Ametek,3 STG,ETL | X1038 | $195.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Gasket 3/8 Donut Tank Seal V1510 PVC | X9079 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | STANDPIPE 16-3/4 RECVRY TANK | 19139 | $39.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | RING O 1 5/8 DIA. (BLK) | 19140 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Bladder (8 Gallon) | 19215 | Not Available |
| 20 | No Image | Bracket Extractor Marathons Recover Tank Retaining | 19272 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | ASSY INTERN.PIP(DRAWING) (98166, 169) RECOVERY | 31050 | $19.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Recovery Tank External Pipe Assembly | 31051 | Not Available |
| 23 | No Image | Gasket Tank Access Cover Marathon | 31416 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | SCREW, 10-32 X 5/8 FLAT HD SS | X9118 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | Coupler, (Alum) 3/8 NPT X 1.41 Lg. | 32177 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Strainer, Inline 3/8NPT 60 Mesh (Marathon) | 32178 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Plate, Bladder Lower Mnt Marathon 800/1200 | 32179 | $45.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | SWIVEL ELBOW 3/8" Part Number 32189 for Simplicity Models SCE | 32189 | $17.59Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Black Recovery Tank | 32302 | $0.00Read more |
| 30 | No Image | ADAPTER STEM 3/8 X 3/8 NPTF (NYLON) MARATHON | 32308 | $4.99Read more |
| 31 | No Image | Front Tank Support Tube | 32348 | $0.00Read more |
| 32 | No Image | Rear Tank Support Tube | 32349 | $0.00Read more |
| 33 | No Image | Bellow Hose EPDM/Blk Revc 1-1/2x23-1/2 Lg Crush | 16620 | $72.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
