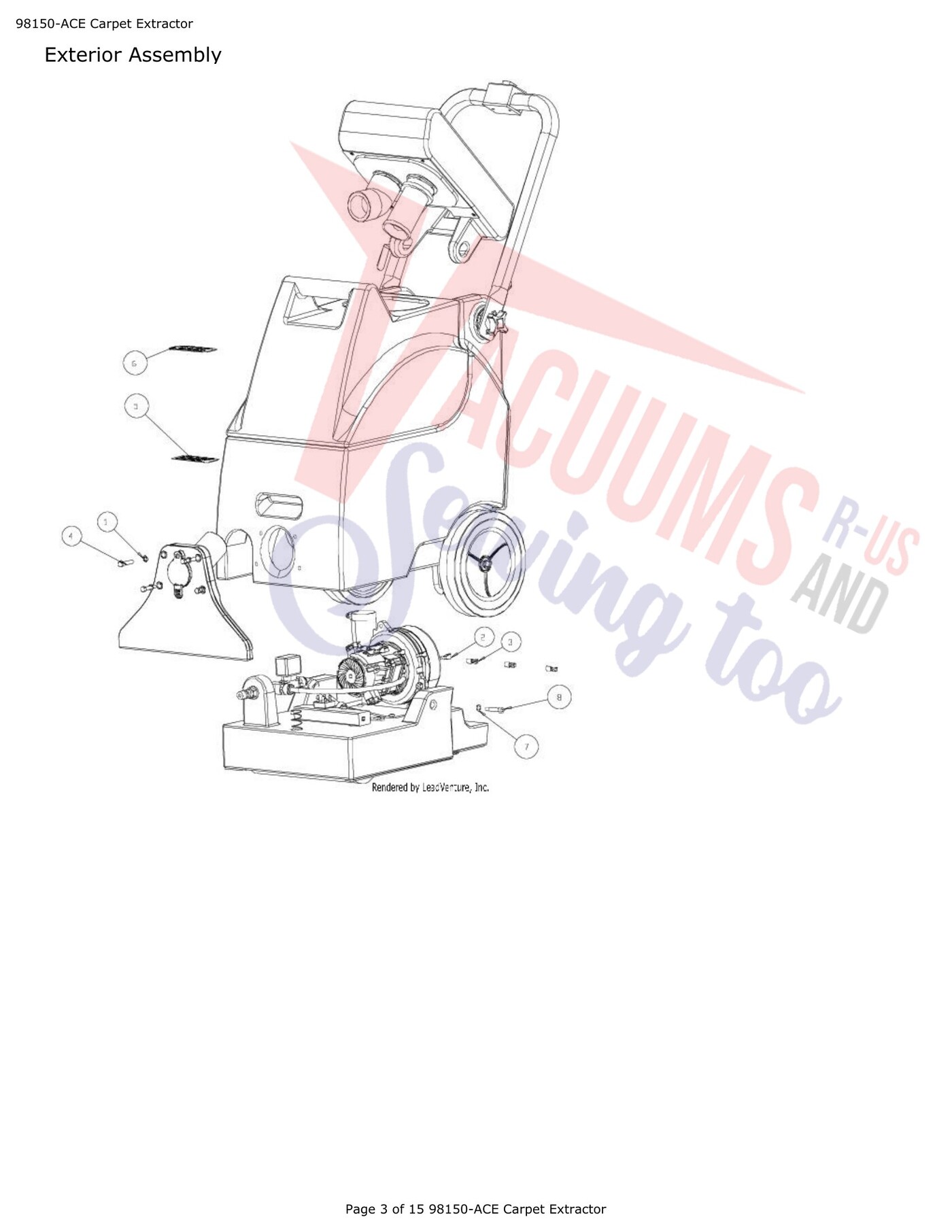

Schematic and parts book for Tornado 98150-ACE . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Lock Washer | 07870 | $0.00Read more |
| 2 |  | Terminal, Female .250 Blue .032 Amp | F25 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | 1/4" PIGGYBACK TERMINAL Part Number 15391 for Simplicity Models SCE | 15391 | $2.19Read more |
| 4 |  | SCREW, 1/4-20X1 1/4 HCS SS | 7DC001 | $1.99Read more |
| 7 | | 5/16 ID X 15/32 OD STEEL WASHER Part Number 33066 for Simplicity Models SCE | 33066 | $3.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | SHOULDER BOLT, 1/4-20 X 1.25L, SS Part Number 33408 for Simplicity Models SCE | 33408 | $7.69Add to cart Product is special order please allow 2-4 weeks for delivery. |

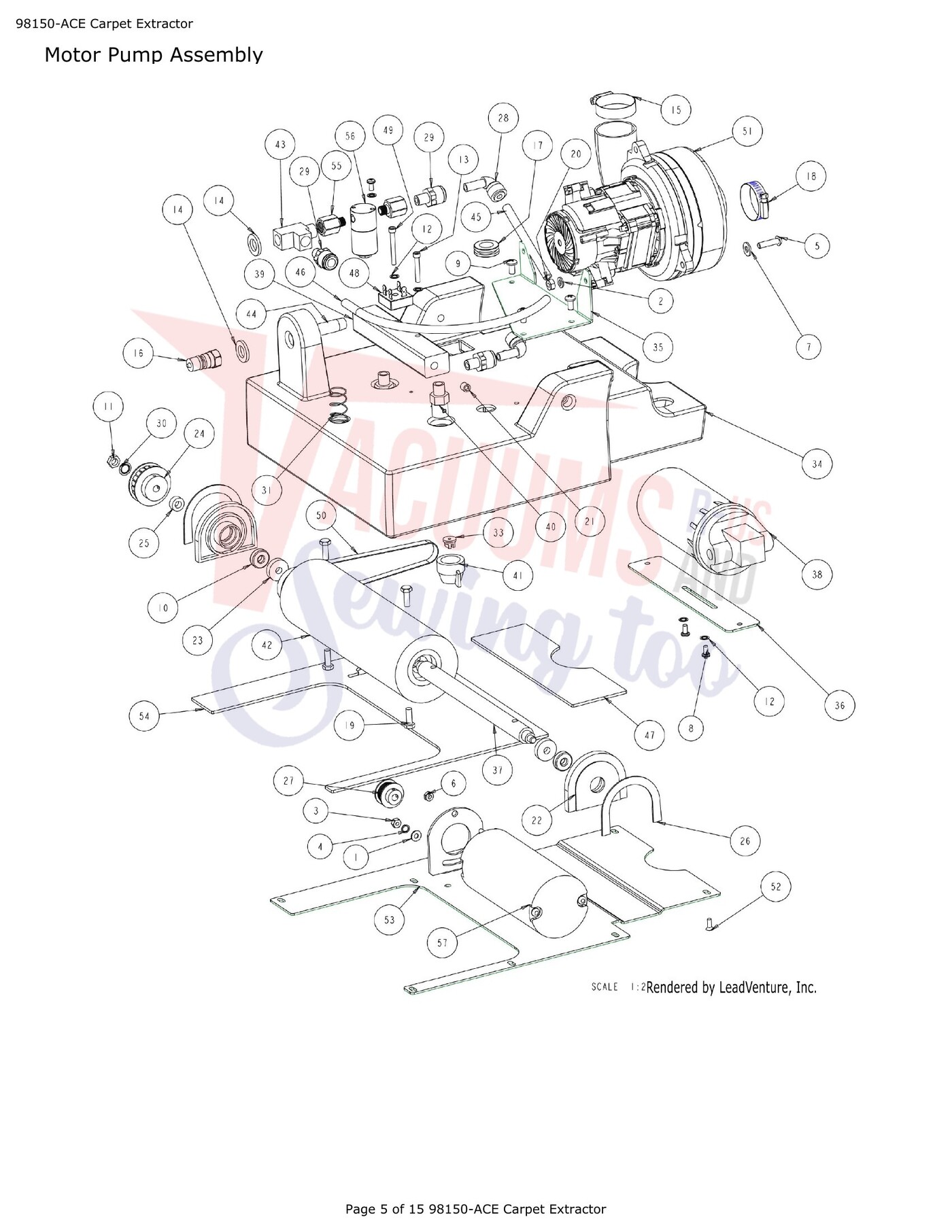

| # | Part image | Description | SKU | Price |
| 1 | No Image | Washer | 00696 | $0.00Read more |
| 2 | No Image | Lock Washer | 01574 | $0.00Read more |
| 3 | No Image | Nut | 01604 | $0.00Read more |
| 4 | Not Available | Lock Washer | 01713 | Not Available |
| 5 | Not Available | Screw 1/4-20 x 1" | 02038 | Not Available |
| 6 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 9 | No Image | Screw 1/4-20 X 1/2" | 04442 | $0.00Read more |
| 10 | Not Available | Bearing 608-2RS | 05209 | Not Available |
| 11 | Not Available | Nut | 05282 | Not Available |
| 12 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | | SCREW-SOCKET HD CAP #10-32 x 1-1/4 Part Number 11733 for Simplicity Models SCE | 11733 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | WASHER Part Number 12554 for Simplicity Models SCE,SCE | 12554 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | STRAIN RELIEF BUSHING Part Number 15330 for Simplicity Models SCE | 15330 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | NUT-FINISHED HEX 1/4-20 Part Number 17508 for Simplicity Models SCE | 17508 | |
| 21 | | FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE | 19149 | |
| 22 | | BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE | 19157 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | BEARING SEAL Part Number 19158 for Simplicity Models SCE | 19158 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | | PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE | 19161 | $61.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE | 19190 | $4.39Read more |
| 26 | | GASKET-BEARING BLOCK Part Number 19228 for Simplicity Models SCE | 19228 | $4.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE | 32175 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | | PLUG IN ELBOW 3/8" Part Number 32183 for Simplicity Models SCE,SCE | 32183 | $19.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | | MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE | 32186 | $13.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | LOCK WASHER 5/16" Part Number 32245 for Simplicity Models SCE | 32245 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | CLEVIS PIN SPRING Part Number 32905 for Simplicity Models SCE | 32905 | $13.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | | SPRAY NOZZLE TIP Part Number 32937 for Simplicity Models SCE | 32937 | $39.59Read more |
| 34 | Not Available | Motor/Pump Housing (Blue) | 32943 | Not Available |
| 35 | | VACUUM BRACKET Part Number 32946 for Simplicity Models SCE | 32946 | $45.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | | PUMP BRACKET Part Number 32948 for Simplicity Models SCE | 32948 | $34.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | | 10.25" BRUSH AXLE Part Number 32959 for Simplicity Models SCE | 32959 | $162.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | | SOLUTION PUMP Part Number 32962 for Simplicity Models SCE | 32962 | |
| 39 | | SPRAY MANIFOLD Part Number 32973 for Simplicity Models SCE | 32973 | $59.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | SPRAY CAP CONNECTOR Part Number 32974 for Simplicity Models SCE | 32974 | $20.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | | SPRAY NOZZLE CAP Part Number 32975 for Simplicity Models SCE | 32975 | $8.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | | BRUSH-20'' ROLLER, CARPET SCRUBBING Part Number 32982 for Simplicity Models SCE | 32982 | $63.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | | 1/4 NPTF F X F X M TEE Part Number 33000 for Simplicity Models SCE | 33000 | $20.89Read more |
| 44 | | 2" THREADED PIPE Part Number 33002 for Simplicity Models SCE | 33002 | $7.69Read more |
| 45 | | HOSE-3/8" X 4.5" LG. (NATURAL TUBE) Part Number 33006 for Simplicity Models SCE,SCE | 33006 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | | HOSE-3/8" X 14" LG. (NATURAL TUBE) Part Number 33007 for Simplicity Models SCE | 33007 | $4.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | | GASKET-LOWER HOUSING (SMALL) Part Number 33015 for Simplicity Models SCE | 33015 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | | 25a Rectifier Part Number 33061 for Cleanmax and Simplicity Models CM-WAV,SCE | 33061 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | | SCREW-SOCKET HD CAP #10-32 x 1-5/8 Part Number 33063 for Simplicity Models SCE | 33063 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | 17" BELT - 98150 Part Number 33073 for Simplicity Models SCE | 33073 | $18.69Read more |
| 51 | | 120V 1200W TANGENTIAL BYPASS VAC MOTOR Part Number 33086 for Simplicity Models SCE | 33086 | $208.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | | #10-32 X 3/8" FLAT HEAD SCREW Part Number 33094 for Simplicity Models SCE,SCE | 33094 | $2.19Read more |
| 53 | | BOTTOM PLATE ASSEMBLY Part Number 33427 for Simplicity Models SCE | 33427 | $185.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | | GASKET-LOWER HOUSING (LARGE) Part Number 33450 for Simplicity Models SCE | 33450 | $27.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 |  | ADAPTER 1/4 FNPT X 1/8 MNPT | PC30 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 |  | Valve Kit, 120 VAC Solenoid, 290 Psi | SW290KIT | $169.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | Brush Motor Extractor 120VDC .25hp 3dia SCE SMB004 | X9002 | $301.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

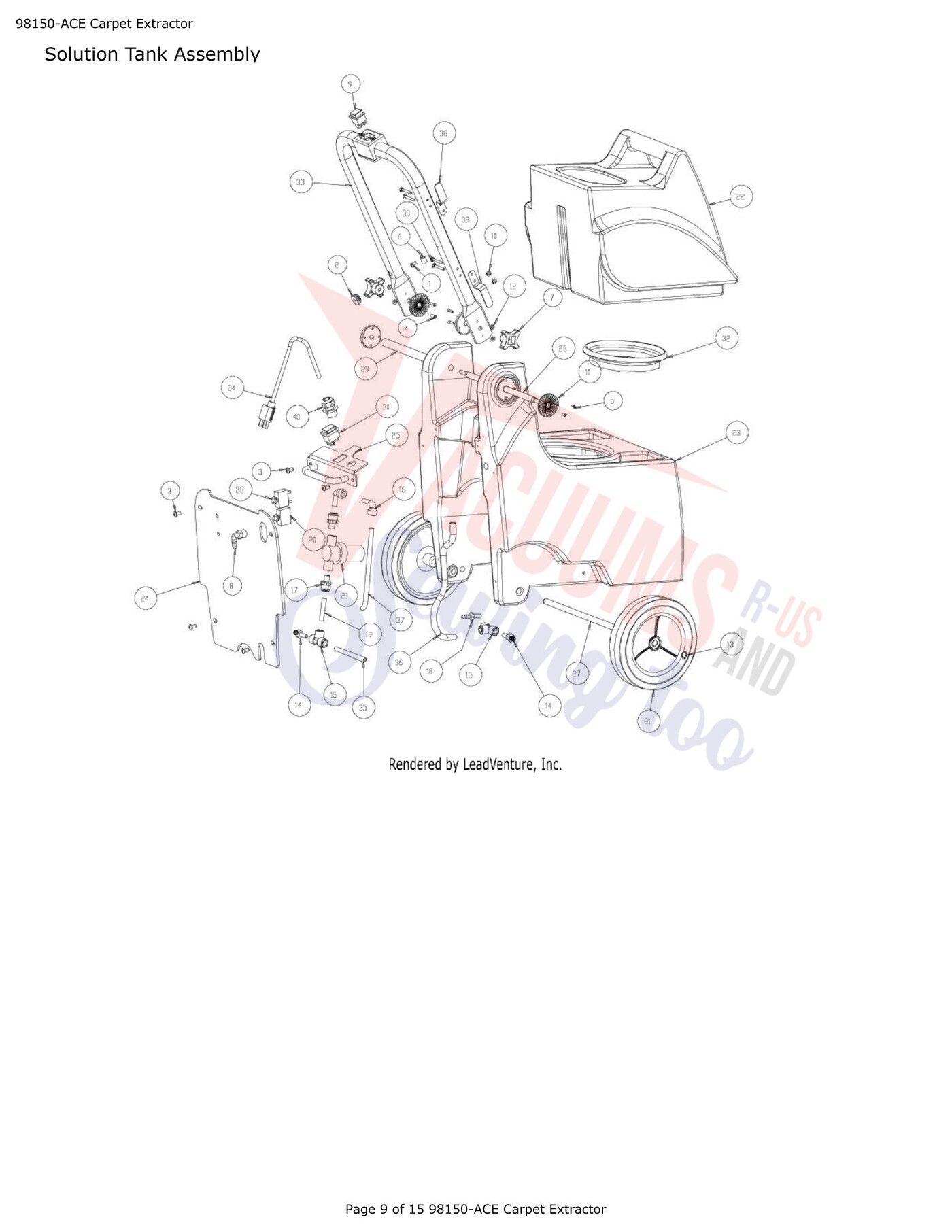

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 2 | No Image | Grommet | 04145 | $0.00Read more |
| 3 | No Image | Screw 1/4-20 X 1/2" | 04442 | $0.00Read more |
| 3 | No Image | Nut | 01604 | $0.00Read more |
| 4 | No Image | Screw 8-32X1/2 Flat Soc Cap Allow Zn | X2708 | $0.00Read more |
| 5 | | SCREW-PHILLIPS FLAT HEAD MACHINE #8-32 X 3/8 Part Number 15475 for Simplicity Models SCE | 15475 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | CLAMP, CABLE (CCH 5/16) Part Number 17392 for Simplicity Models SCE | 17392 | |
| 7 | | NUT, THUMB 5/16-18 Part Number 18119 for Simplicity Models SCE | 18119 | $8.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | FITTING, PLASTIC ELBOW Part Number 18486 for Simplicity Models SCE | 18486 | $3.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | SWITCH-PUSH BUTTON Part Number 19121 for Simplicity Models SCE | 19121 | $28.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 11 | No Image | Bracket Groove Handle WAV Extractor Black Plastic | 19798P | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Nut-hex.lock # 8-32 Part Number 30074 for Cleanmax and Simplicity Models CM-WAV,SCE | 30074 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Snap Ring Part Number 30507 for Cleanmax and Simplicity Models CM-WAV,SCE | 30507 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | STEM ADAPTER 3/8" Part Number 32181 for Simplicity Models SCE | 32181 | $5.49Read more |
| 15 | | UNION TEE 3/8" Part Number 32182 for Simplicity Models SCE | 32182 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | | PLUG IN ELBOW 3/8" Part Number 32183 for Simplicity Models SCE,SCE | 32183 | $19.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | MALE CONECTOR 3/8" Part Number 32186 for Simplicity Models SCE | 32186 | $13.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | FITTING, STEM 3/8"X3/8" Part Number 32257 for Simplicity Models SCE | 32257 | $8.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | HOSE 3/8OD X 2 LG. (NATURAL TUBE) MARATHON | 32258 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | 3 AMP CIRCUIT BREAKER Part Number 32935 for Simplicity Models SCE | 32935 | $20.89Read more |
| 21 |  | Filter,Extractor,Inline | 32938 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | RECOVERY TANK SMALL EXTRACTOR | 32941 | $419.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Solution Tank | 32942 | Not Available |
| 24 | | BACK COVER Part Number 32944 for Simplicity Models SCE | 32944 | $56.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | CONTROL PANEL ASSEMBLY Part Number 32952 for Simplicity Models SCE | 32952 | $133.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | HINGE BAR Part Number 32954 for Simplicity Models SCE | 32954 | $93.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | WHEEL AXLE Part Number 32955 for Simplicity Models SCE | 32955 | $36.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | | 10 AMP CIRCUIT BREAKER Part Number 32964 for Simplicity Models SCE | 32964 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | | HINGE BAR SLEEVE Part Number 32965 for Simplicity Models SCE | 32965 | $14.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | | 8" WHEEL Part Number 32969 for Simplicity Models SCE | 32969 | $74.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | BAG FILTER Part Number 32970 for Simplicity Models SCE | 32970 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | | TUBULAR HANDLE ASSEMBLY Part Number 32989 for Simplicity Models SCE | 32989 | $185.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Broom, Wayclean Wide Angle Part Number: 33003 for Casabella | 33003 | $35.52Read more |
| 35 | | HOSE-3/8" X 4.5" LG. (NATURAL TUBE) Part Number 33006 for Simplicity Models SCE,SCE | 33006 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | | HOSE, SOLUTION DRAIN Part Number 33008 for Simplicity Models SCE | 33008 | $7.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | | HOSE-3/8" X 11.5" LG. (NATURAL TUBE) Part Number 33010 for Simplicity Models SCE | 33010 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | | HOSE-3/8" X 11.5" LG. (NATURAL TUBE) Part Number 33010 for Simplicity Models SCE | 33010 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | | CARRIAGE BOLT, #10-24 X 1.5L Part Number 33078 for Simplicity Models SCE | 33078 | $2.19Read more |
| 40 | | Strain Relief 1/2” Part Number PD8 for Cleanmax Models CM-WAV | PD8 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | | NUT-HEX FLANGED LOCK 1-1/2 NPT Part Number 15092 for Simplicity Models SCE | 15092 | |
| 2 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Product is special order please allow 2-4 weeks for delivery. |

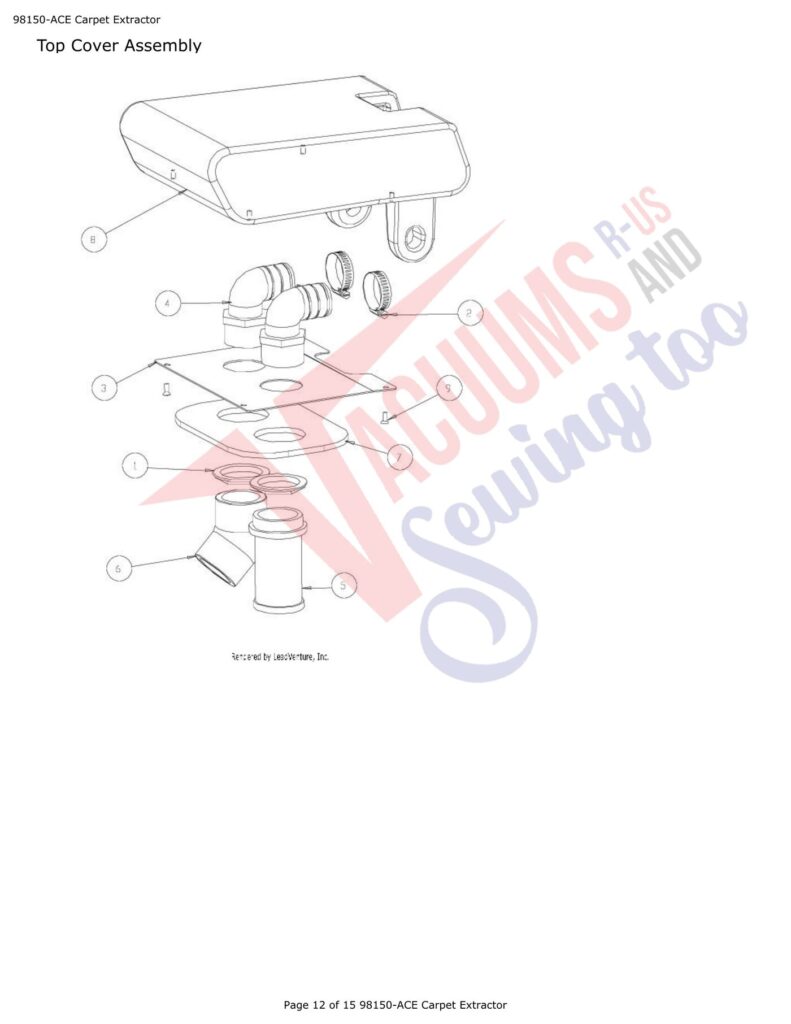

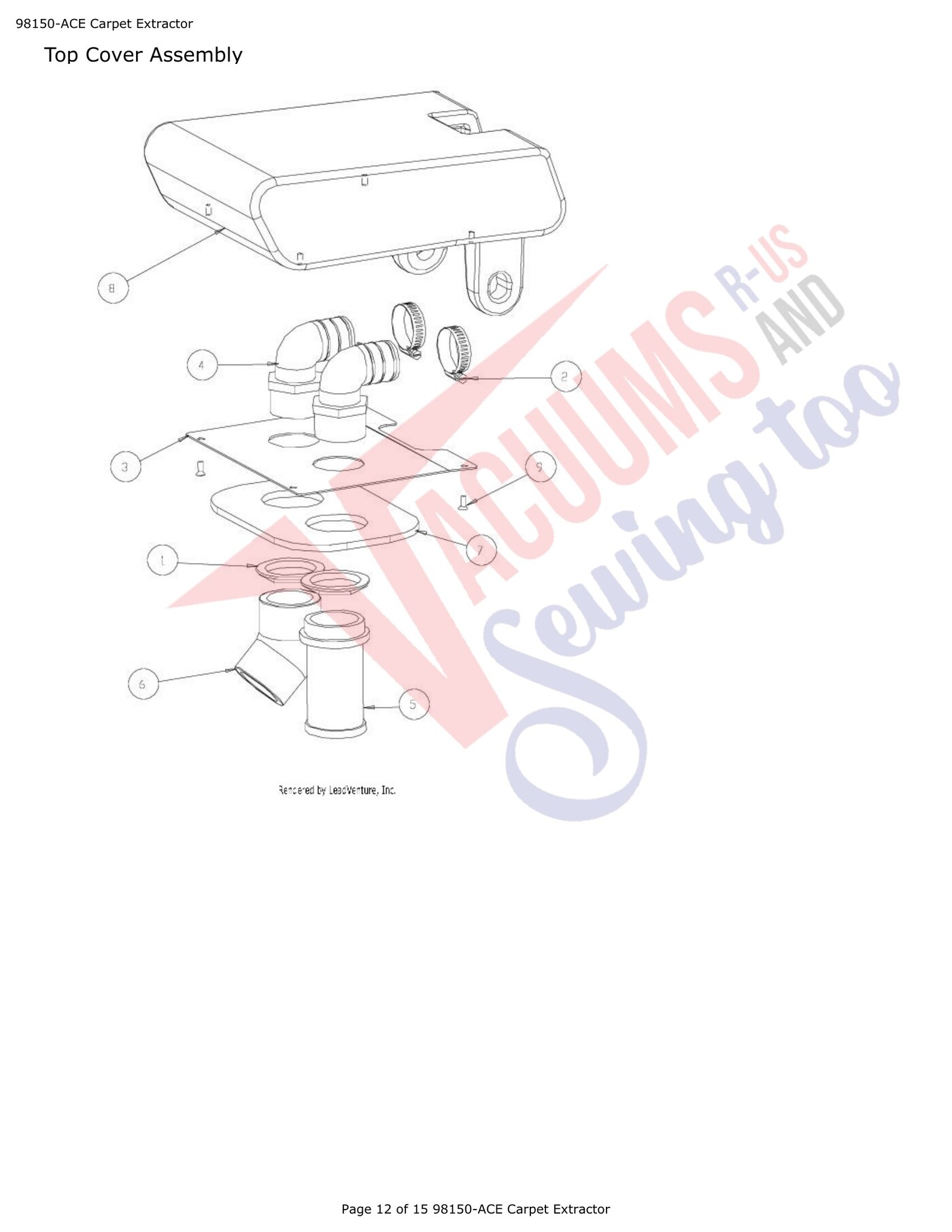

| 3 | | TOP COVER Part Number 32950 for Simplicity Models SCE | 32950 | $58.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | 1-1/2H X 1-1/2M ELBOW BLACK POLYPROPYLENE | 7GR034B | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | BALL FLOAT Part Number 32977 for Simplicity Models SCE | 32977 | $42.89Add to cart Product is special order please allow 2-4 weeks for delivery. |

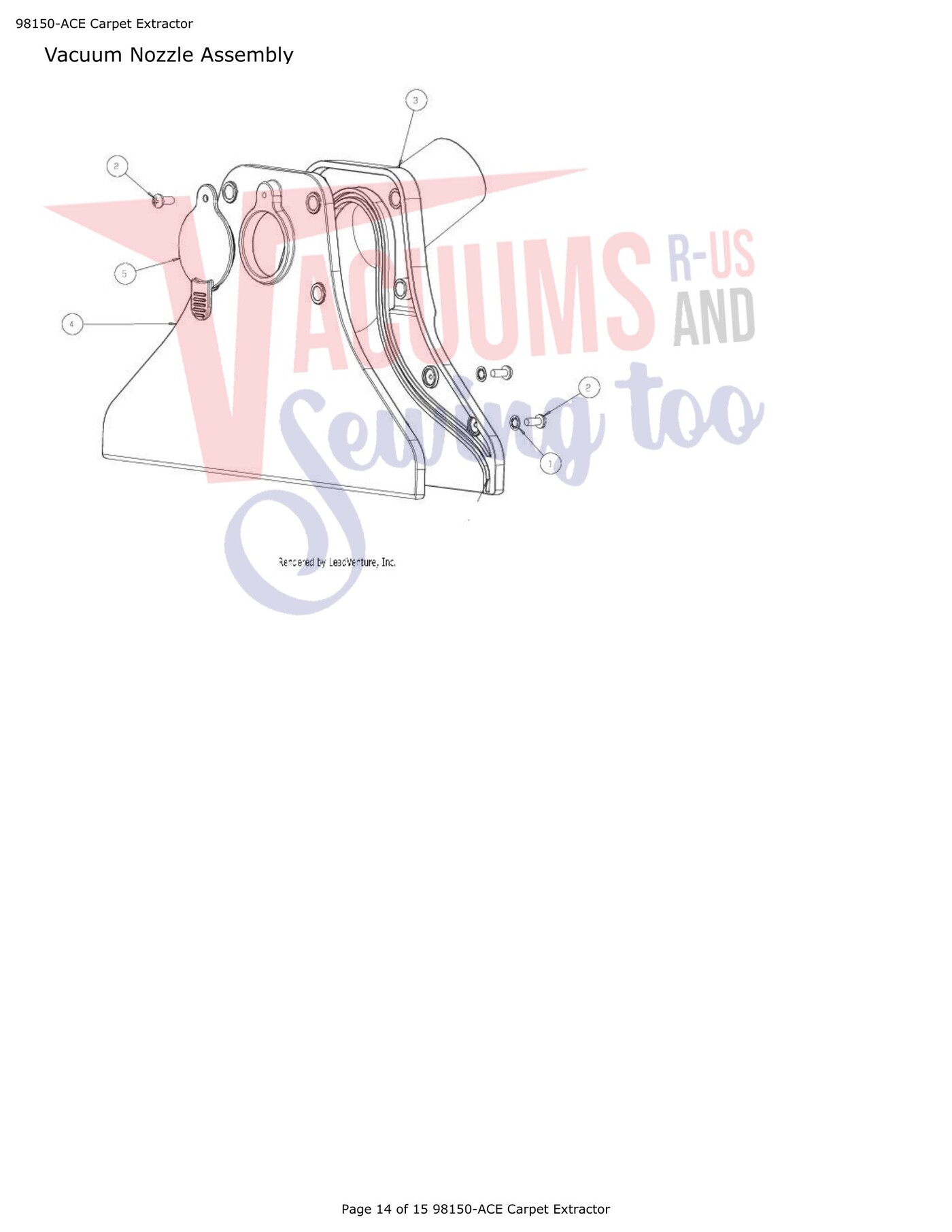

| # | Part image | Description | SKU | Price |
| 1 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | #10 PLASTITE HI-LO SCREW, .500 LONG Part Number 32654 for Simplicity Models SCE | 32654 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | VACUUM NOZZLE-BACK Part Number 32956 for Simplicity Models SCE | 32956 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | VACUUM NOZZLE-FRONT Part Number 32957 for Simplicity Models SCE | 32957 | $45.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | INTAKE CAP Part Number 32958 for Simplicity Models SCE | 32958 | $145.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
