Schematic and parts book for Tornado 98145 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| #1 | No Image | SHOE ASSEMBLY 98147 | 39327 | $44.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 |  | Packing Top Half Part Number A09 for Cleanmax and Simplicity Models CMPS-QD, VPPB, CMPS-Q,SHD-1T | A09 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Vented Support Fitting | B0171200 | $2.99Add to cart |
| 3 |  | Riccar and Simplicity Vibrance Series Single Belt - Replaces RS20-B2 sub for PR1016 | B0140714 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Motor,Vacuum,120,VAC,W/Cover | 39401 | $142.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Motor Shroud | BA01983031 | Not Available |
| 6 | No Image | Wire, Temperature, Motor - PF99, PF99G | X1242 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Front Rubber Motor Mount Part Number CM031002 for Cleanmax Models CMPB, CMPS1N | CM031002 | $0.00Read more |
| 8 |  | Back Motor Mount Part Number B113-0230 for Simplicity and Maytag and Riccar Models 6100, 6370, 64... | B1130230 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Sound Suppresser | 33567 | $0.00Read more |
| 10 | No Image | MOTOR SLEEVE 98147 | 39326 | $2.99Read more |
| 11 | No Image | Toothed Washer | 4301156 | $0.00Read more |
| 12 | No Image | Set Screw M4 X 6 | 004240056 | $0.00Read more |
| 13 |  | Clean max CMNR-QD Baseplate CM011007 | WP11912 | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Base Plate Wheel Axle Part Number B010-0500 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-... | B0100500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Wheel | B010-0413 | Not Available |
| 16 |  | Base Plate Wheel Push Nut Part Number A732-2100 for Cleanmax and Simplicity Models CMPB, CMPS1N,S... | A7322100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Base Plate Gasket Part Number CM031001 for Cleanmax Models CMPB, CMPS1N | CM031001 | $0.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Plastic Insert | AEA0493001 | $0.00Read more |
| 19 | | Screw Part Number A732-1100 for Cleanmax Models CMPB, CMPS1N | A7321100 | $0.00Read more |
| 20 | No Image | Latch | AEA0473003 | $0.00Read more |
| 21 | | Base Plate Latch Left Part Number CM011008 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | CM011008 | $0.00Read more |
| 22 | | Base Plate Latch Right Part Number CM011009 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | CM011009 | $0.00Read more |
| 23 |  | Base Plate Latch Stud Screw Part Number CM011012 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, ... | CM011012 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

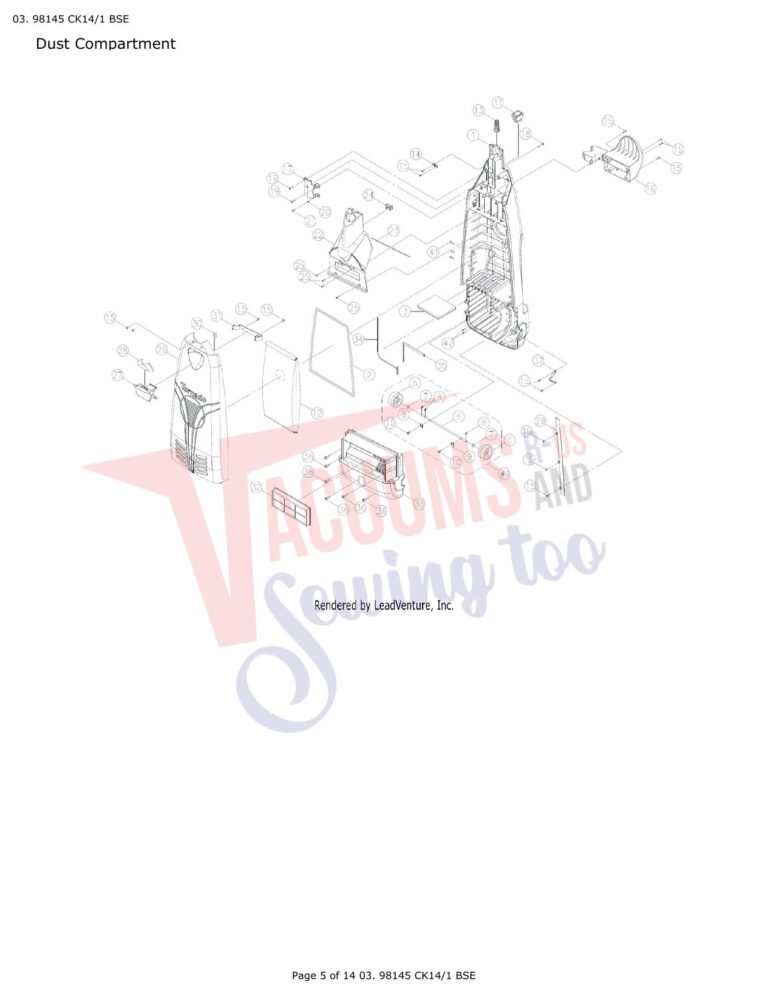

| # | Part image | Description | SKU | Price |
| #1 | No Image | Wheel Assembly 98147 | 39311 | $41.99Read more |
| XX |  | FRONT COVER FOR 98147 VACUUM | 39307 | $47.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | Housing Bag 98147 | 39306 | $90.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | SEAL KIT | 39308 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Filter,Vacuum,Foam,In Lieu of Hepa | 90146 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Rear Wheel Part Number B210-0531 for Cleanmax Models CMPB, CMPS1N | B2100531 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Rear Wheel Axle Part Number 54.135 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB,... | 54135 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Rear Axle Wheel Washer Part Number A328-0100B for Cleanmax and Riccar and Simplicity Models CMPB,... | A3280100B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | E-Clip 5mm Part Number A732-0300 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Axle Clamp | 54.136 | Not Available |
| 10 |  | Clamp for Rear Axle Part Number A732-8500 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD... | A7328500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Switch,Vacuum,Upright,Seesaw | X1082 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Bag,Vacuum,HEPA,Carton of 25 each of B211-5800 | x1999 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | STRAIN RELIEF, CORD 98147 CLEANMAX HEYCO | 39303 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Cord Clip | 39302 | $0.00Read more |
| 15 | | Screw Part Number A732-1100 for Cleanmax Models CMPB, CMPS1N | A7321100 | $0.00Read more |
| 16 | No Image | Hose Hanger Bracket | 39305 | $0.00Read more |
| 17 | No Image | Bracket, Handle Fitting - PF99, PF99G | X1164 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Screw, Handle (M5X45) | x1180 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Screw Part Number A732-1100 for Cleanmax Models CMPB, CMPS1N | A7321100 | $0.00Read more |
| 20 | No Image | Toothed Washer | 4301156 | $0.00Read more |
| 21 | No Image | Set Screw M4×8 | 42414406 | $0.00Read more |
| 22 | No Image | COVER, SWITCH 98147 | 39300 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Switch Cover Seal Part Number 54.128 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPP... | 54128 | |
| 24 | No Image | Cord Clip | 39302 | $0.00Read more |
| 25 | | Screw Part Number A732-1100 for Cleanmax Models CMPB, CMPS1N | A7321100 | $0.00Read more |
| 26 | No Image | Dust Cover | 33515 | $0.00Read more |
| 27 | No Image | Dust Cover Release Handle | 33517 | $0.00Read more |
| 28 | No Image | Dust Cover Deco | AEB0343582 | $0.00Read more |
| 29 | No Image | Wire Harness Cover | 39320 | $0.00Read more |
| 30 | No Image | Latch Spring | 33516 | $0.00Read more |
| 31 | No Image | Dust Cover Latch Mount | AEB0083008 | $0.00Read more |
| 32 | No Image | Plastic Frame | AEA1374582 | $0.00Read more |
| 33 |  | COVER, MOTOR 98147 | 39309 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Motor Cover Seal 1 | 33511 | $0.00Read more |
| 35 | No Image | Motor Cover Seal 2 | 33512 | $0.00Read more |
| 36 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 37 | No Image | Motor Bracket | AEA0223006 | $0.00Read more |
| 41 | No Image | Rivet | AEB1063011 | $0.00Read more |
| 42 | No Image | Set Screw M5 X 12 | 42504511 | $0.00Read more |

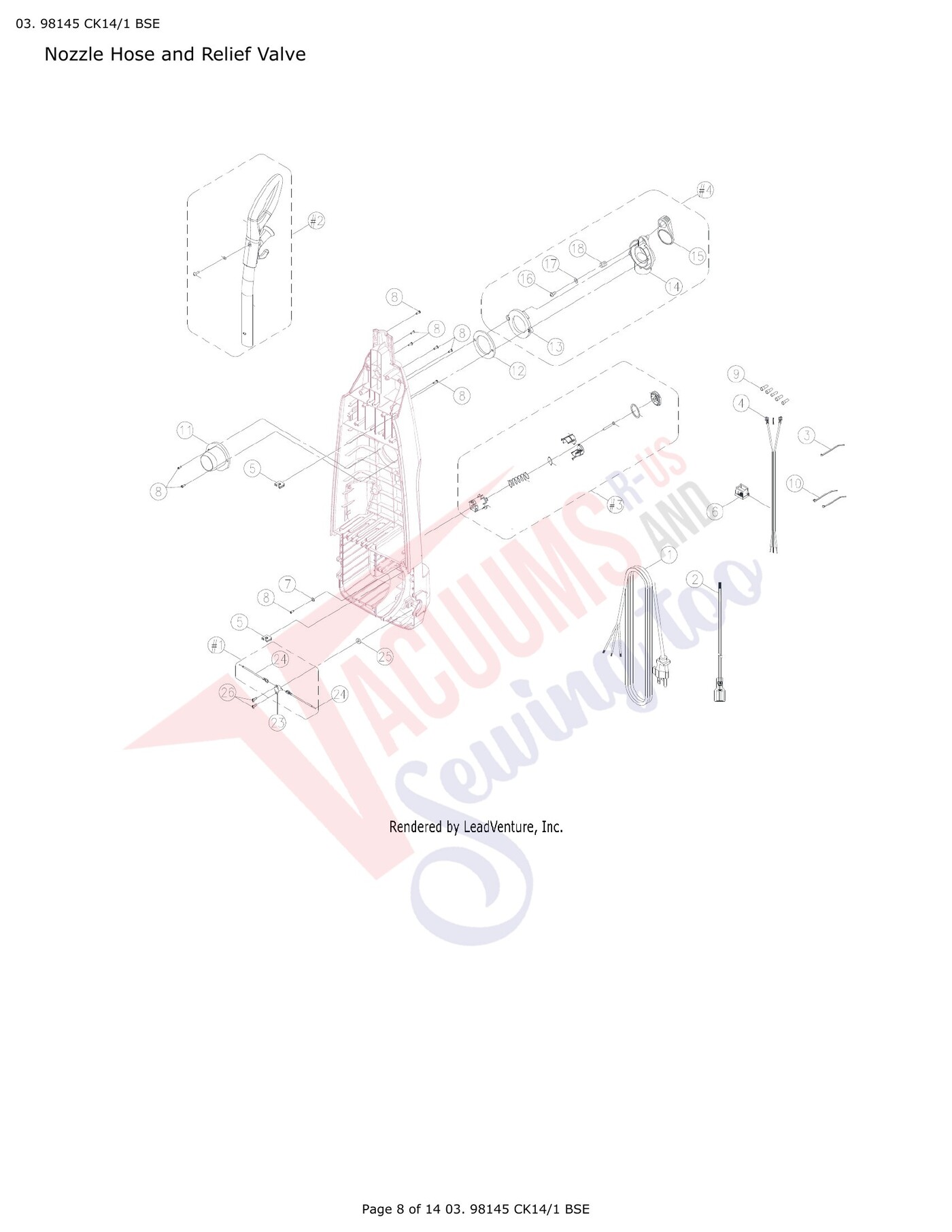

| # | Part image | Description | SKU | Price |
| #1 | No Image | SWITCH, THERMAL 98147 | 39318 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| #2 | No Image | HANDLE ASSEMBLY 98147 | 39313 | $66.99Add to cart Special order: ships in 2 to 4 weeks |
| #3 |  | VALVE, RELIEF ASSEMBLY 98147 | 39315 | $12.99Read more |
| #4 | Not Available | Complete Suction Inlet | D625-0231 | Not Available |
| 1 |  | Power Cord Part Number CMPS-50C for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | CMPS50C | $81.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Wire Harness | 008AEB0001 | Not Available |
| 3 | Not Available | Zip Tie | 34350 | Not Available |
| 4 | No Image | WIRE HARNESS ASSEMBLY 98147 | 39321 | $7.99Read more |
| 5 | No Image | Cord Clip | 33532 | $0.00Read more |
| 6 | | Wire Bushing Part Number A732-4114 for Simplicity and Cleanmax Models 7300, 7350, 7850,7200, 7250... | A7324114 | $0.00Read more |
| 7 | No Image | Washer | 4300032 | $0.00Read more |
| 8 |  | Screw for Handle Spring Part Number CM031000 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | CM031000 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Wire Connector Md. Part Number B123-0100 for Simplicity and Cleanmax and Maytag and Riccar Models... | B1230100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Zip Tie | 34350 | Not Available |
| 11 | | Nobt Red Bag Collar Part Number B211-0230 for Cleanmax Models CMPB, CMPS1N | B2110230 | $0.00Read more |
| 12 |  | Swivel Inlet Gasket Part Number Z19 for Cleanmax and Simplicity Models CMPS-QD, VPPB, CMPS-Q,SHD-1T | Z19 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Inlet Gasket (No Tools Models) Part Number A721-0214 for Simplicity and Cleanmax Models 7200, 725... | A7210214 | $0.00Read more |
| 14 | Not Available | Suction Inlet | B625-0831 | Not Available |
| 15 | Not Available | Suction Inlet Cover | B625-0931 | Not Available |
| 16 |  | Motor Cover Replacement Kit Slate Gray (7400 7450 7900 7950) Part Number A732-1200 for Simplicit... | A7321200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Washer 4.5x12x0.8 (No Tools Models) Part Number B625-0105 for Simplicity and Cleanmax Models 7200... | B6250105 | $0.00Read more |
| 18 | | Suction Spring (No Tools Models) Part Number B625-0805 for Simplicity and Cleanmax Models 7200, 7... | B6250805 | $2.19Read more |
| 23 | No Image | SWITCH, THERMAL 98147 | 39318 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Wire, Temperature, Motor Housing - PF99, PF99G | X1185 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Thermal Switch Seal Part Number B333-0600 for Simplicity and Cleanmax and Maytag and Riccar Model... | B3330600 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Switch Screw Part Number A732-0700 for Simplicity Models SHD-1T | A7320700 | $0.00Read more |

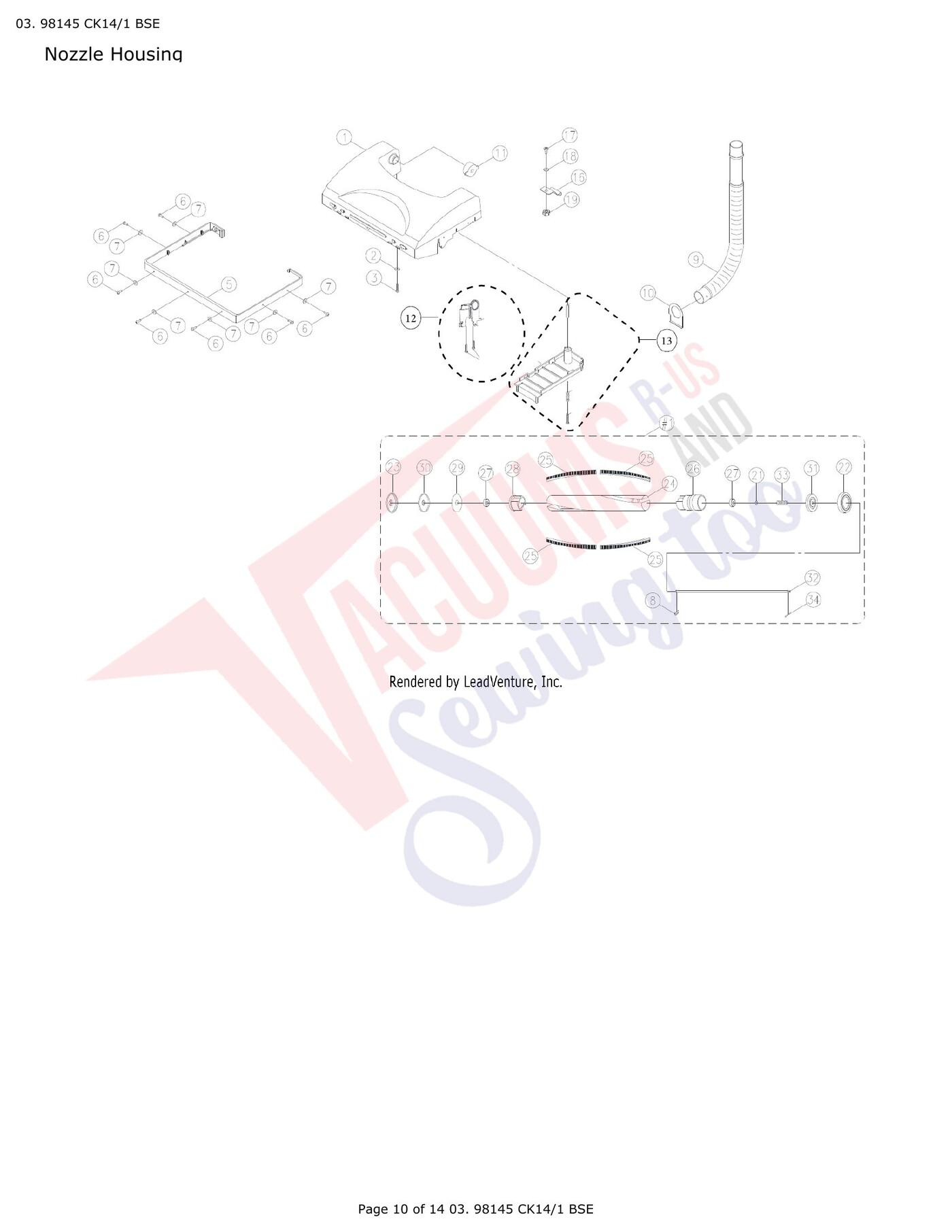

| # | Part image | Description | SKU | Price |
| #1 |  | Pinned Brush Roll Assembly 98147 | 33574 | $42.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 |  | HOUSING ASSY, BRUSH BASE 98147 | 39328 | $60.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Washer | 4300032 | $0.00Read more |
| 3 | No Image | Set Screw M4 X 15 | 004240896 | $0.00Read more |
| 5 |  | Fuller Brush Nozzle Guard-fuller Brush Fbbp14-pw Uprighttc6000 | AEA0753582 | $22.40Read more |
| 6 | Not Available | Rivet | AEA2673003 | Not Available |
| 7 | Not Available | Washer | 43420023 | Not Available |
| 8 |  | E-Clip 4mm Part Number A732-0200 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Nozzle Hose Nobt Part Number C44-E for Cleanmax Models CMPB, CMPS1N | C44E | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | COLLAR, HOSE 98147 | 39322 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | COLLAR, BRUSH BASE 98147 | 39324 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Bracket ,Vacuums,Upright,Belt Support Bracket | 39330 | $3.99Read more |
| 13 |  | COVER, BELT ASSEMBLY 98147 | 39331 | $20.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Handle Catch Spring | 53.008 | Not Available |
| 17 | | Screw for Handle Spring Part Number CM031000 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | CM031000 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Washer | 4600656 | Not Available |
| 19 | Not Available | Nut | 48500010 | Not Available |
| 21 | Not Available | Washer | 43000066 | Not Available |
| 22 |  | Rubber End Cover Right Part Number B012-0114 for Simplicity and Cleanmax and Riccar Models 7200, ... | B0120114 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Rubber End Cover Left Part Number B012-0214 for Simplicity and Cleanmax and Maytag and Riccar Mod... | B0120214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Agitator Core | 33572 | $0.00Read more |
| 25 |  | Simplicity Symmetry, Riccar Vibrance Brush Strip single strip | B012-2400B | $5.99Add to cart |
| 26 | | Spring Clip Part Number B012-0400 for Simplicity Models SHD-1T | B0120400 | $0.00Read more |
| 27 | No Image | Bearing 626D | B0121300 | $0.00Read more |
| 28 | No Image | Agitator Bearing Holder | B0120500 | $0.00Read more |
| 29 |  | Riccar Simplicity Felt Cover for Brush Roll Bearings | B0120600 | $2.99Add to cart |
| 30 |  | End Cap Left Part Number B012-0700 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 7400... | B0120700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | End Cap Right Part Number B012-0800 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 740... | B0120800 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Agitator Shaft Part Number B012-1000 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B0121000 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Spacing Spring Part Number B624-0100 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B6240100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Agitator Spring Clip Part Number A732-0400 for Simplicity and Cleanmax and Maytag and Riccar Mode... | A7320400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

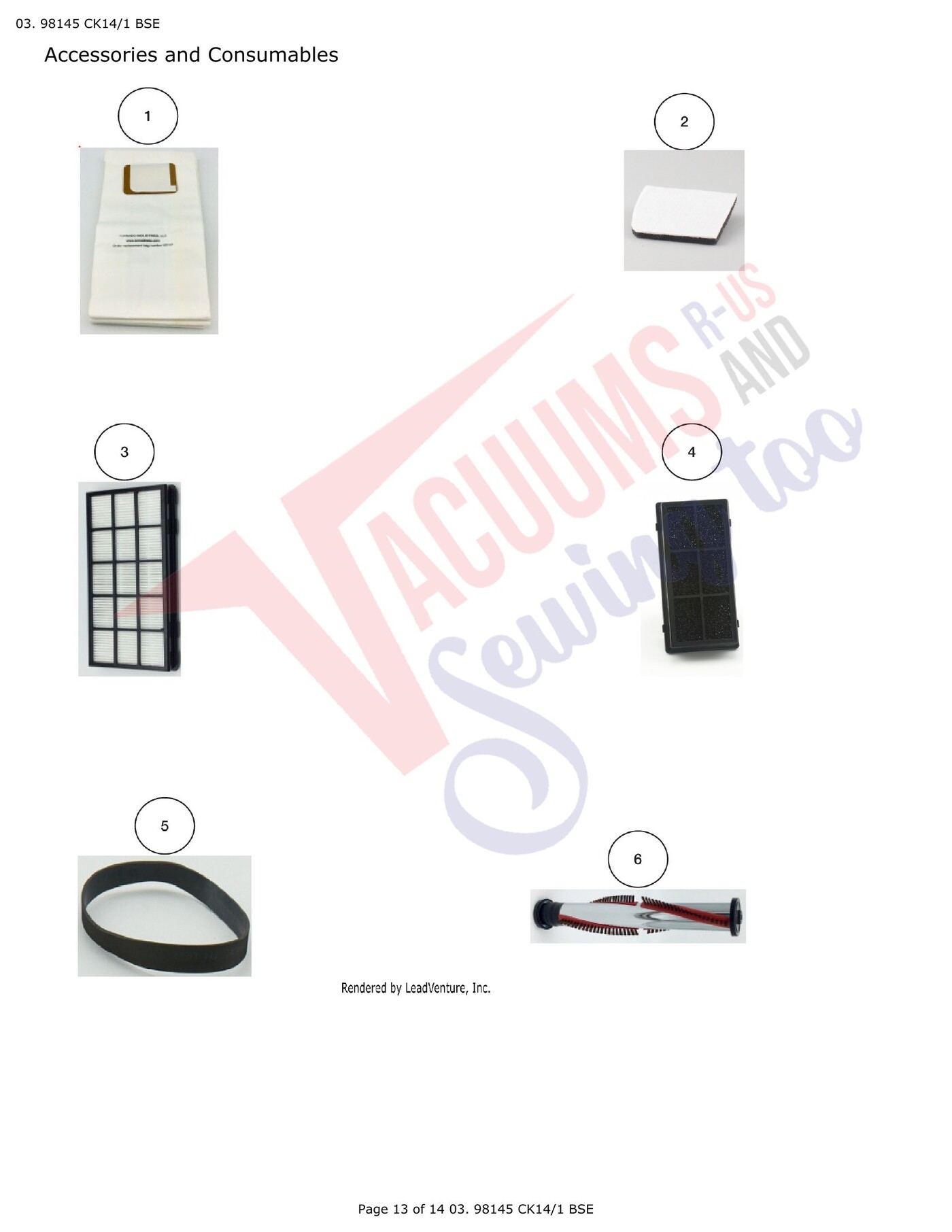

| # | Part image | Description | SKU | Price |
| 1 |  | BAG PAPER VACUUM 10PK | 90147 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FILTER VACUUM INTAKE MOTOR | 90145 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Filter,Vacuum,HEPA,Cartridge | 90144 | $7.99Read more |
| 4 | | Filter,Vacuum,Foam,In Lieu of Hepa | 90146 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Riccar and Simplicity Vibrance Series Single Belt - Replaces RS20-B2 sub for PR1016 | B0140714 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Pinned Brush Roll Assembly 98147 | 33574 | $42.99Add to cart Special order: ships in 2 to 4 weeks |
