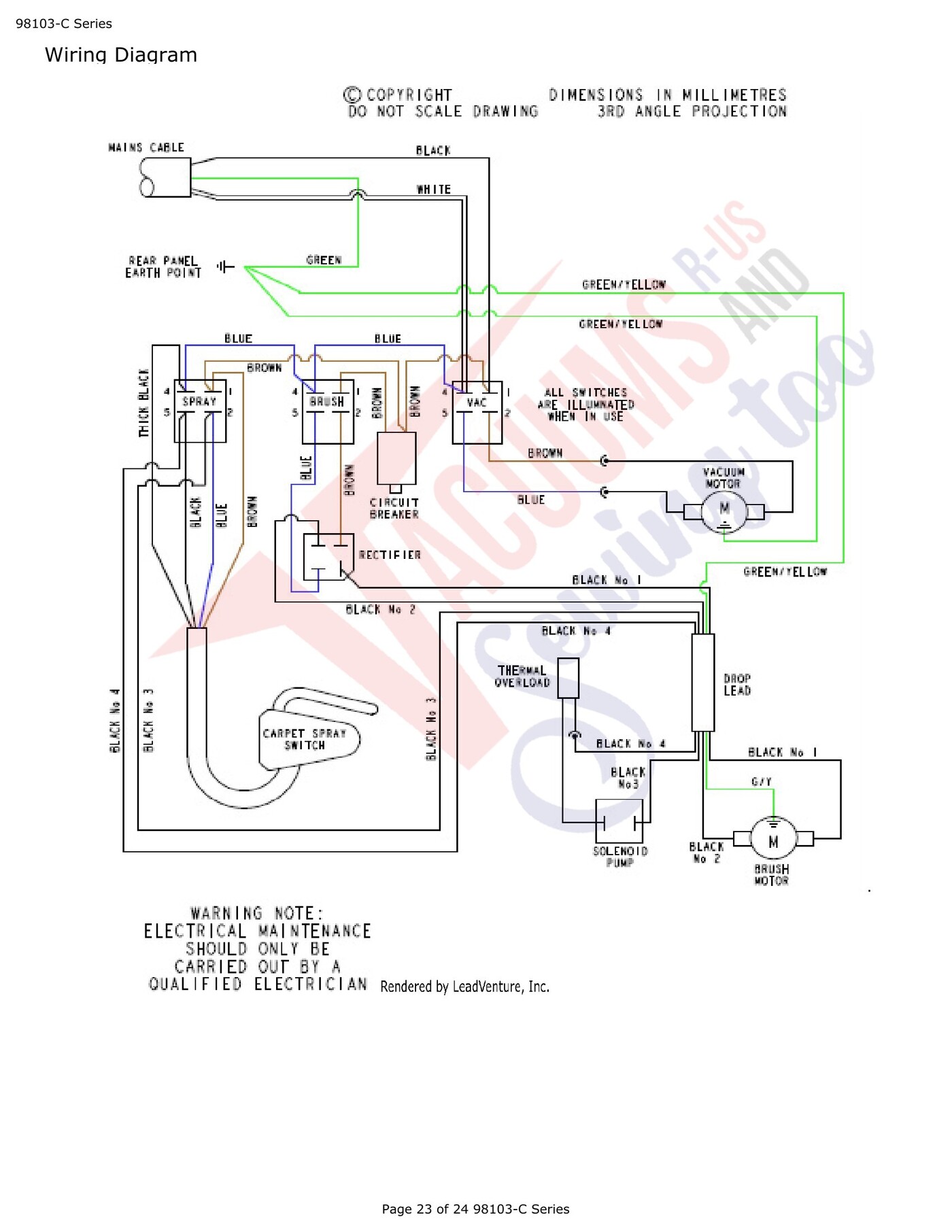

Schematic and parts book for Tornado 98103-C Series . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

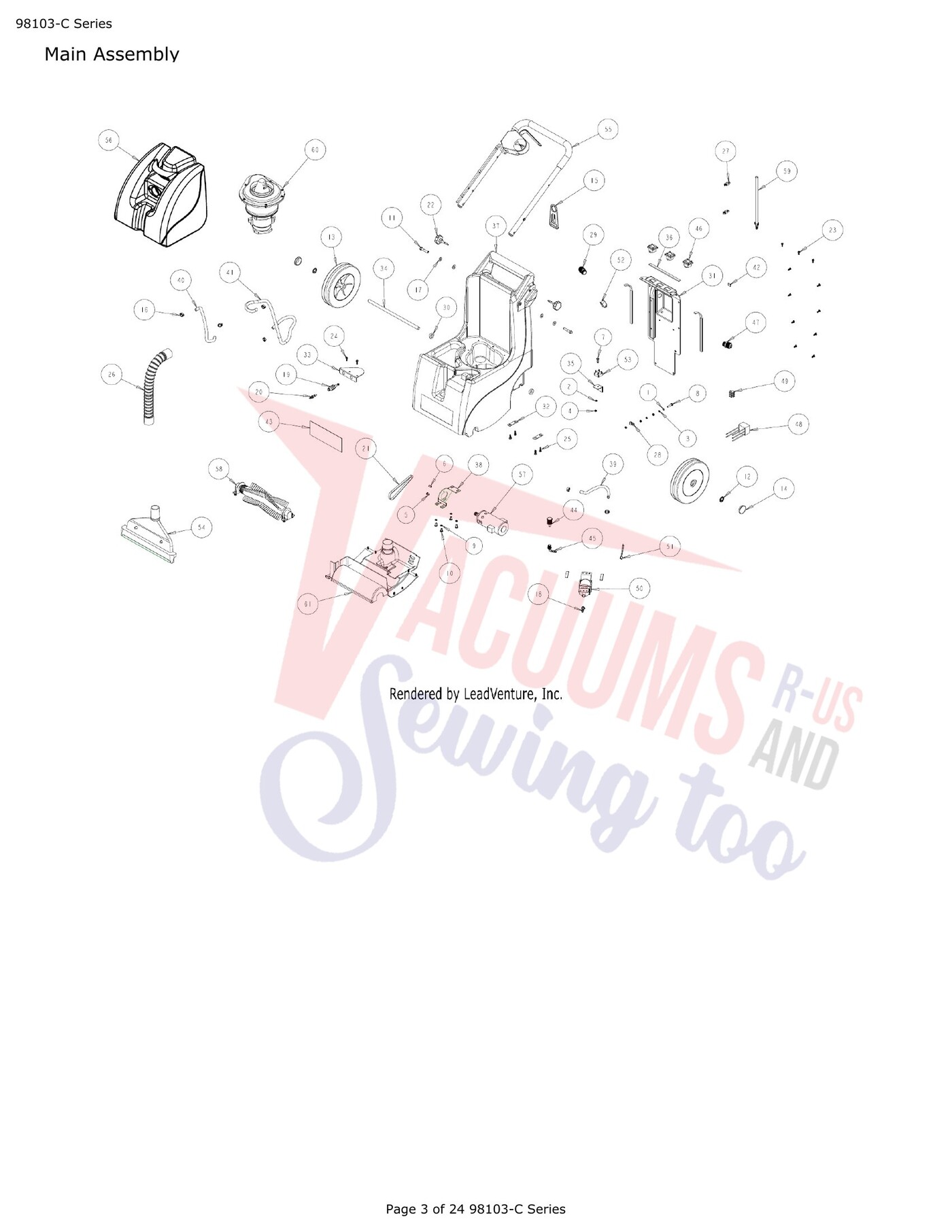

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Washer | 00-0500-0501 | Not Available |
| 2 | No Image | M5 SPRING WASHER | 0005000511 | $2.99Read more |
| 3 | No Image | M5 INTERNAL SHAKEPROOF WASHER | 0005000521 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | NUT M5 FULL Z/P 98494 CAS16 | 0005000701 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Screw M5 x | 00-0510-0011 | Not Available |
| 6 | No Image | SCREW PFX3S | SC132 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | M5 X 20MM POZI PAN HEAD SCREW CAS16 | CAS124 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | M5 X 25MM POZI PAN HEAD SCREW CAS16 | CAS102 | $1.99Read more |
| 9 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Screw | SC136 | Not Available |
| 11 | Not Available | Bolt M8 x | 00-0835-0125 | Not Available |
| 12 | No Image | STARLOCK WASHER 12.7 ID REF: BV6143 CAS16 | 0202540000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | WHEEL PFX3S CAS16 | SC339 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | WHEEL CAP PFX3S CAS16 | SC340 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Cable Strain Relief Bracket | 02-3152-0000 | Not Available |
| 16 | Not Available | Hose Clip | 02-3381-0000 | Not Available |
| 17 | Not Available | Nylon Washer | 02-3417-0000 | Not Available |
| 18 | No Image | 1/8MALE BARB | SC231 | $4.99Read more |
| 19 | No Image | FEMALE COUPLING BULKHEAD | SC303 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | DRAIN HOSE CONNECTOR MALE PFX3S-KNS HOSE ASSY | SC305 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | BRUSH DRIVE BELT | SC309 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | HANDLE LOCK KNOB | SC311 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | SCREW M5 x 12 | 0234650000 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | SCREW KN50 X 16 POZI PAN PT SCREW S/TAP SS | FD66 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | WN1412 KB60 x 18 Pozi Pan Pt Screw S/Tap Zinc Plated | SC347 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | VACUUM PICK UP HOSE | SC312 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Hose Clamp | 02-3478-0000 | Not Available |
| 28 | Not Available | Strain Relief | 02-3708-0000 | Not Available |
| 29 | Not Available | Wire Nut Connector | 02-4622-0000 | Not Available |
| 30 | No Image | WHEEL AXLE SPACER | 0357360000 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Rear Panel | 0359870500 | $0.00Read more |
| 32 | No Image | Axle Retaining Plate | 0359910000 | $0.00Read more |
| 33 | No Image | Bracket | SC341 | $0.00Read more |
| 34 | No Image | WHEEL AXLE | 0360000500 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Bracket | 0360010000 | $0.00Read more |
| 36 |  | GASKET STRIP | SC131 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Solution Tank | 0360130067 | $0.00Read more |
| 38 | No Image | Bracket | SC214 | $0.00Read more |
| 39 | No Image | 13in x 1/4in FEED TO PUMP HOSE 98103 | 0360410000 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Hose | 0360430000 | $0.00Read more |
| 41 | No Image | SPRAYJET HOSE | 0360440000 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Label | X8400A | $0.00Read more |
| 44 |  | Filter,Scrubber,Element | SC333 | $4.99Read more |
| 45 | No Image | 1/4 METAL ELBOW | 0383230000 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 |  | SWITCH WITH COVER | SC327 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | Cable Gland | 0432120000 | $0.00Read more |
| 49 | No Image | Terminal Block | 0433320000 | $0.00Read more |
| 50 |  | Pump,Extractor,Spotter,VAC,Flojet,Oscillating,55PSI,pump only | FJ5082 | $90.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | THERMAL OVERLOAD HC250 REF P82-070-05-100 | 0433960000 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | Not Available | Circuit Breaker 3Amp | SC11 | Not Available |
| 53 | No Image | Rectifier | 0434090000 | $0.00Read more |
| 54 | No Image | Pick Up Assembly | 0360150039 | $0.00Read more |
| 55 | No Image | HANDLE ASSEMBLY | 0534190000 | $193.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | Not Available | Recovery Tank Assembly | 03-6014-0039 | Not Available |
| 57 | Not Available | Brush Motor Assembly | 05-4359-0000 | Not Available |
| 58 |  | REPLACEMENT BRUSH ASSEMBLY | 0534230000 | $222.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 |  | DRAIN HOSE ASSEMBLY | 0534270000 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 |  | Motor Extractor 120 VAC Ametek | 0432560000 | $230.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 |  | BOTTOM COVER ASSEMBLY | 0537280000 | $143.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

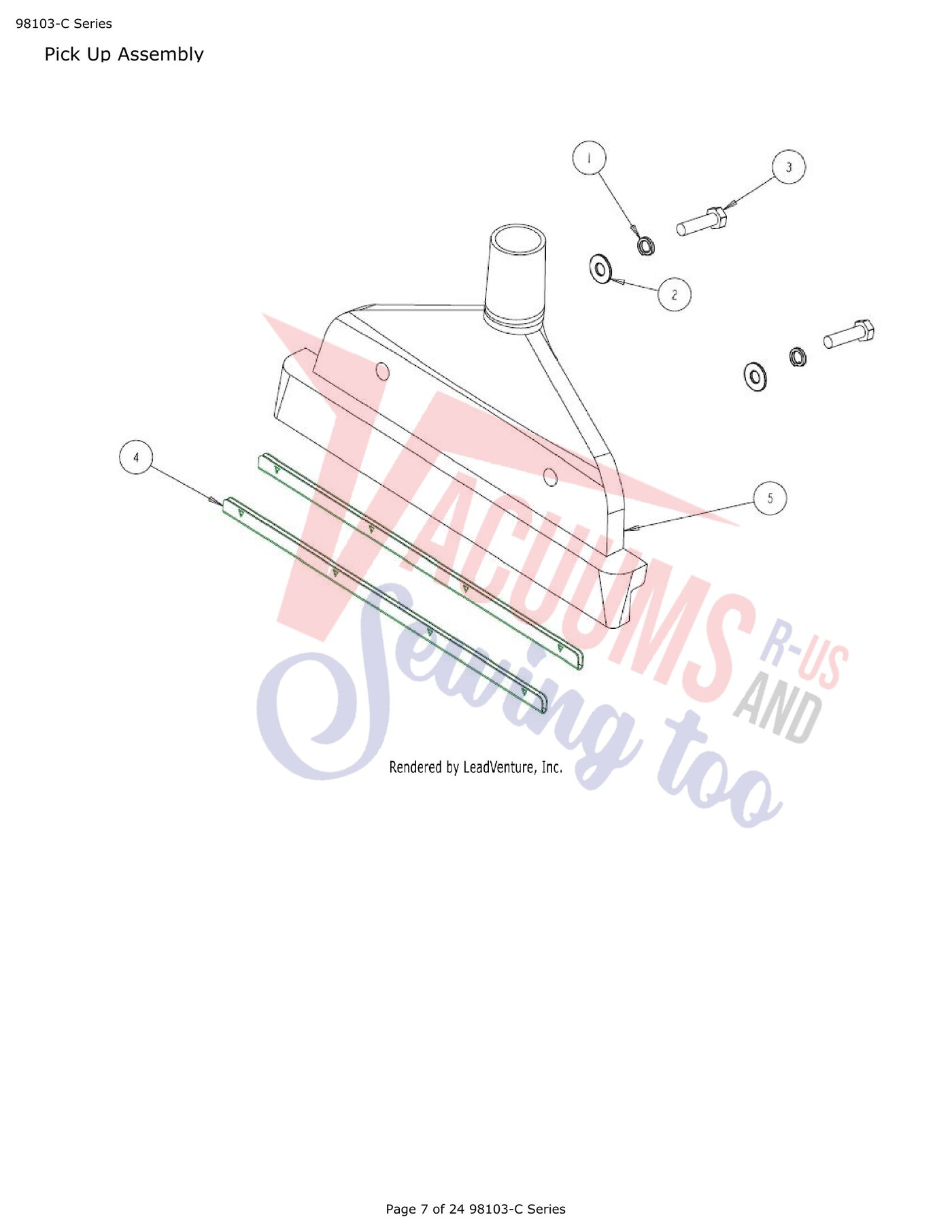

| # | Part image | Description | SKU | Price |
| XX |  | PICK UP ASSEMBLY | 0534170000 | $79.99Read more |
| 1 | Not Available | Washer | 00-0800-0513 | Not Available |
| 2 | Not Available | Washer | 00-0800-0553 | Not Available |
| 3 | Not Available | Bolt M8 x | 00-0830-0113 | Not Available |
| 4 | No Image | PICK UP STRIP ASSY. PFX3S | SC147 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Pick Up Shoe | SC146 | Not Available |
| # | Part image | Description | SKU | Price |

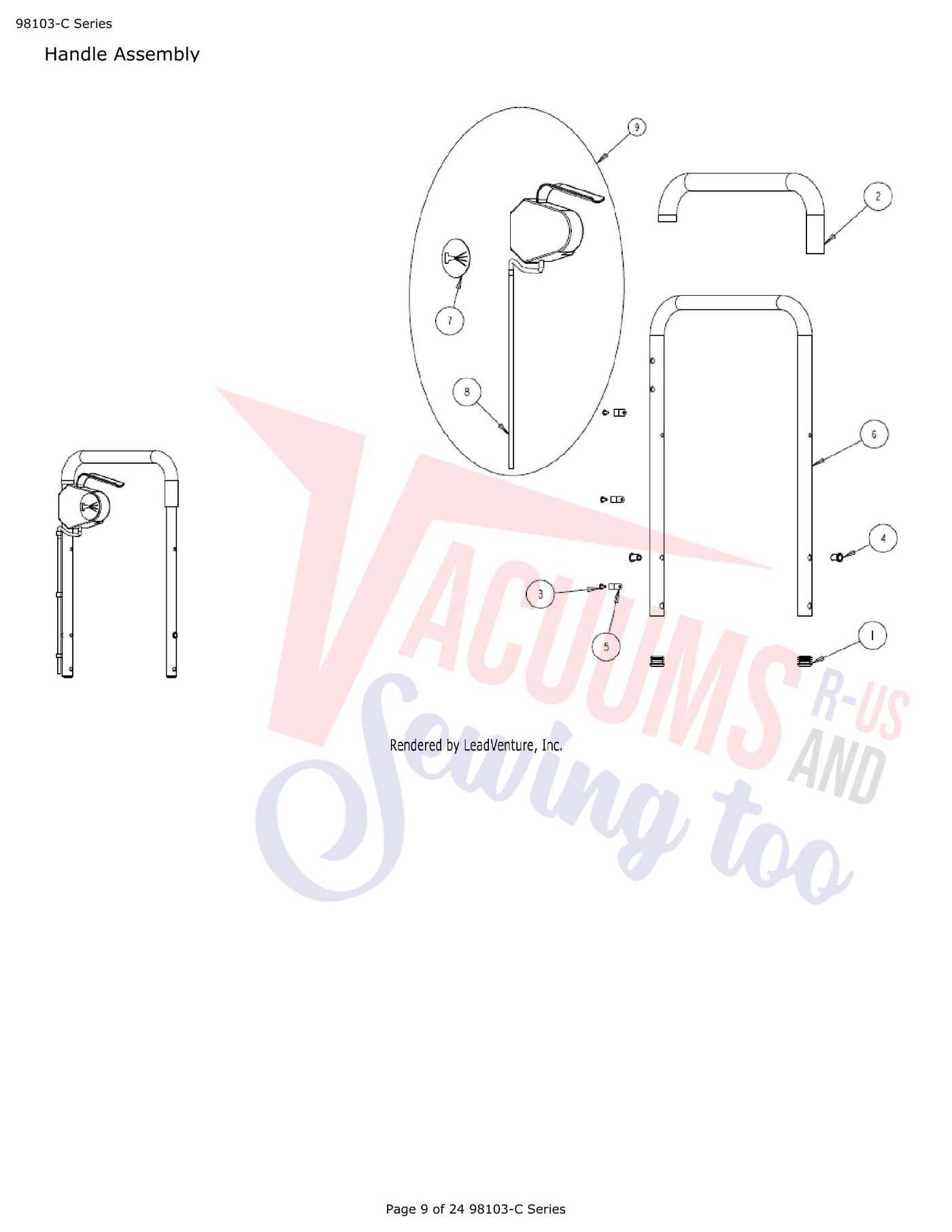

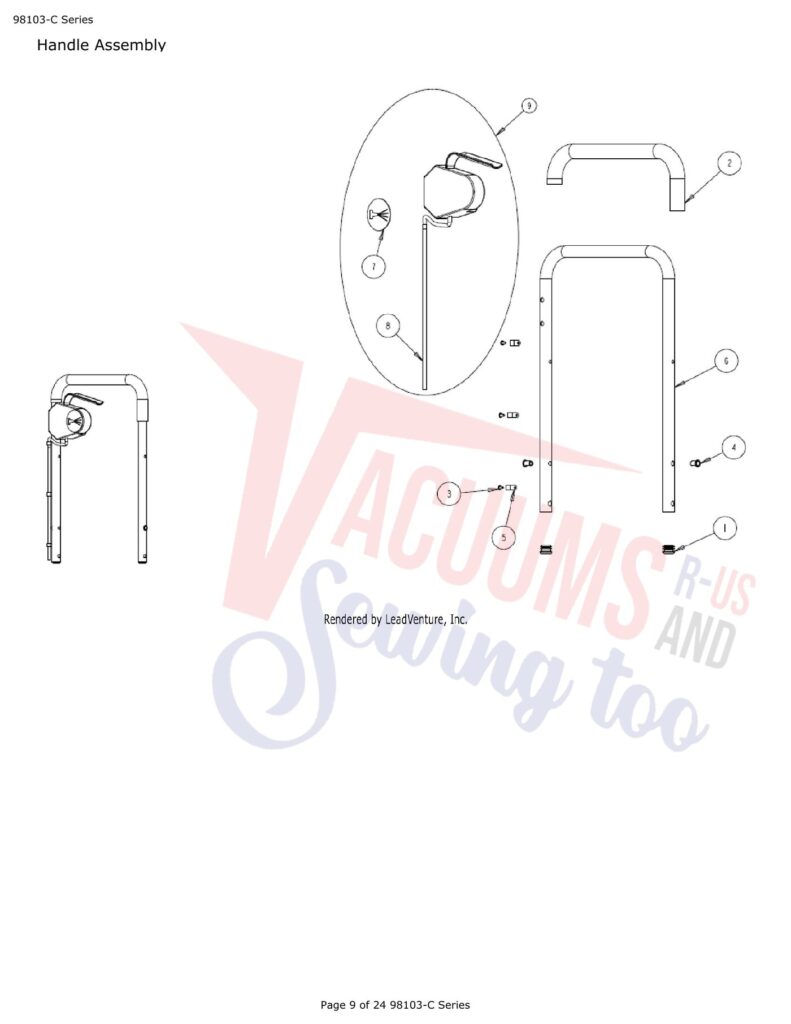

| 1 | Not Available | Tube End Cap | 02-3457-0000 | Not Available |
| 2 | Not Available | Handle Grip | SC336 | Not Available |
| 3 | Not Available | Screw | 02-3464-0000 | Not Available |
| 4 | No Image | M6 HANDLE INSERT PFX3S | SC116 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | CLAMP, 1/4 CABLE BLACK | 0245760000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Handle Tube | SC320 | Not Available |
| 7 | Not Available | Spray Jet Label | 03-6011-0000 | Not Available |
| 8 | No Image | Switch,Handle | SC324 | $111.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Complete Handle Switch Assembly | 0534200000 | $0.00Read more |
| # | Part image | Description | SKU | Price |

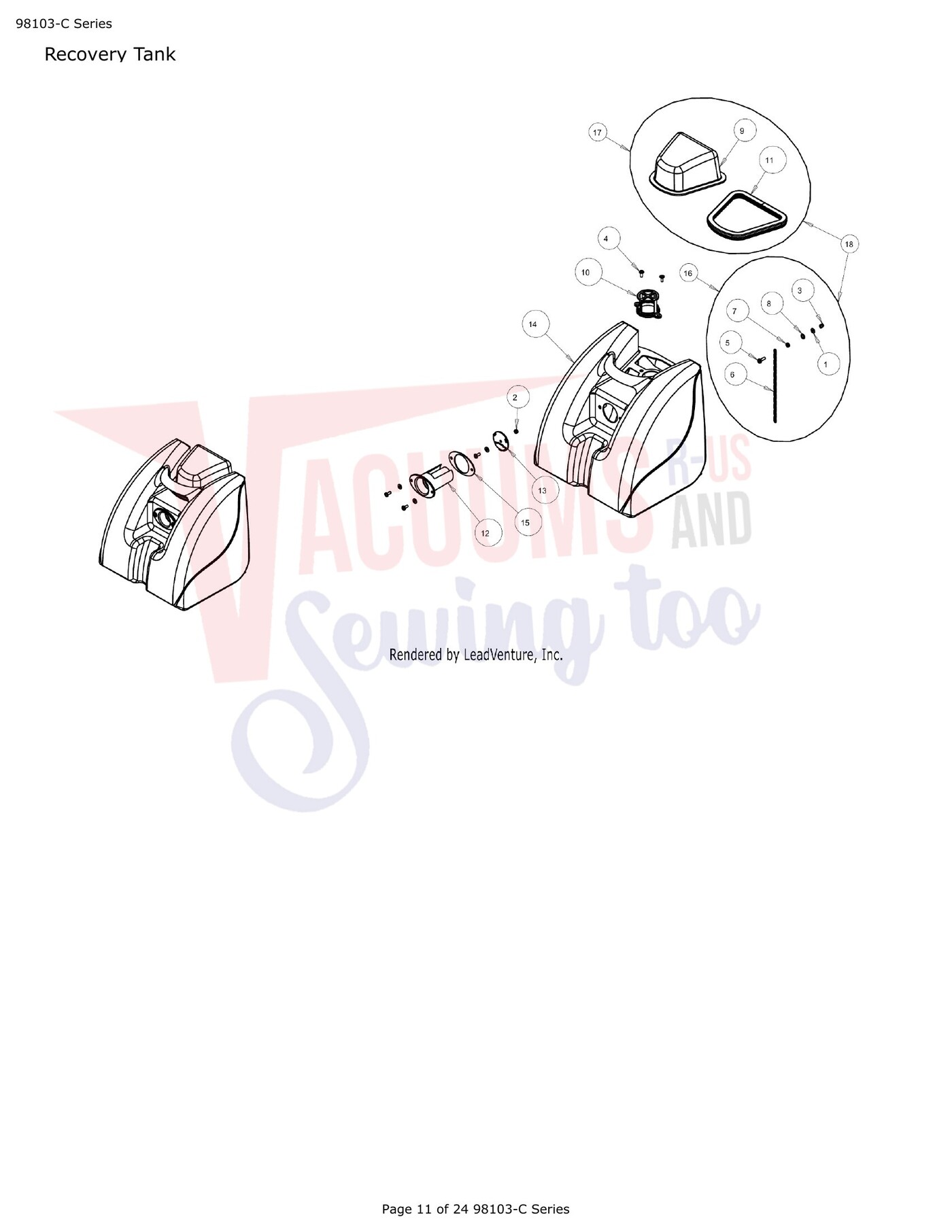

| 1 | Not Available | Washer | 00-0500-0553 | Not Available |
| 2 | Not Available | Nyloc nut | 00-0500-0723 | Not Available |
| 3 | Not Available | Nut | SC225 | Not Available |
| 4 | Not Available | Screw M5 x | 00-0512-0013 | Not Available |
| 5 | No Image | SCREW M5 X 16 PAN POZI MC A2 | 0005160013 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Chain 265Mm Long | 02-3525-0000 | Not Available |
| 7 | Not Available | Spacer | 02-3527-0000 | Not Available |
| 8 | Not Available | O-Ring | 02-3778-0000 | Not Available |
| 9 | Not Available | Vacuum Lid | 03-5989-0000 | Not Available |
| 10 | No Image | Waste Tank Filter Element | SC335 | $50.99Read more |
| 11 | No Image | VACUUM LID SEAL | SC323 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Air Inlet Baffle | 03-8338-0000 | Not Available |
| 13 | Not Available | Air Inlet Cap | 03-8339-0000 | Not Available |
| 14 | No Image | Recovery Tank | 0383040056 | $0.00Read more |
| 15 | Not Available | Air Inlet Gasket | 03-8399-0000 | Not Available |
| 16 | Not Available | Lid Chain Assembly | 05-3519-0000 | Not Available |
| 17 | No Image | VACUUM LID SEAL AND CHAIN | SC317 | $152.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | VACUUM LID SEAL AND CHAIN | SC317 | $152.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

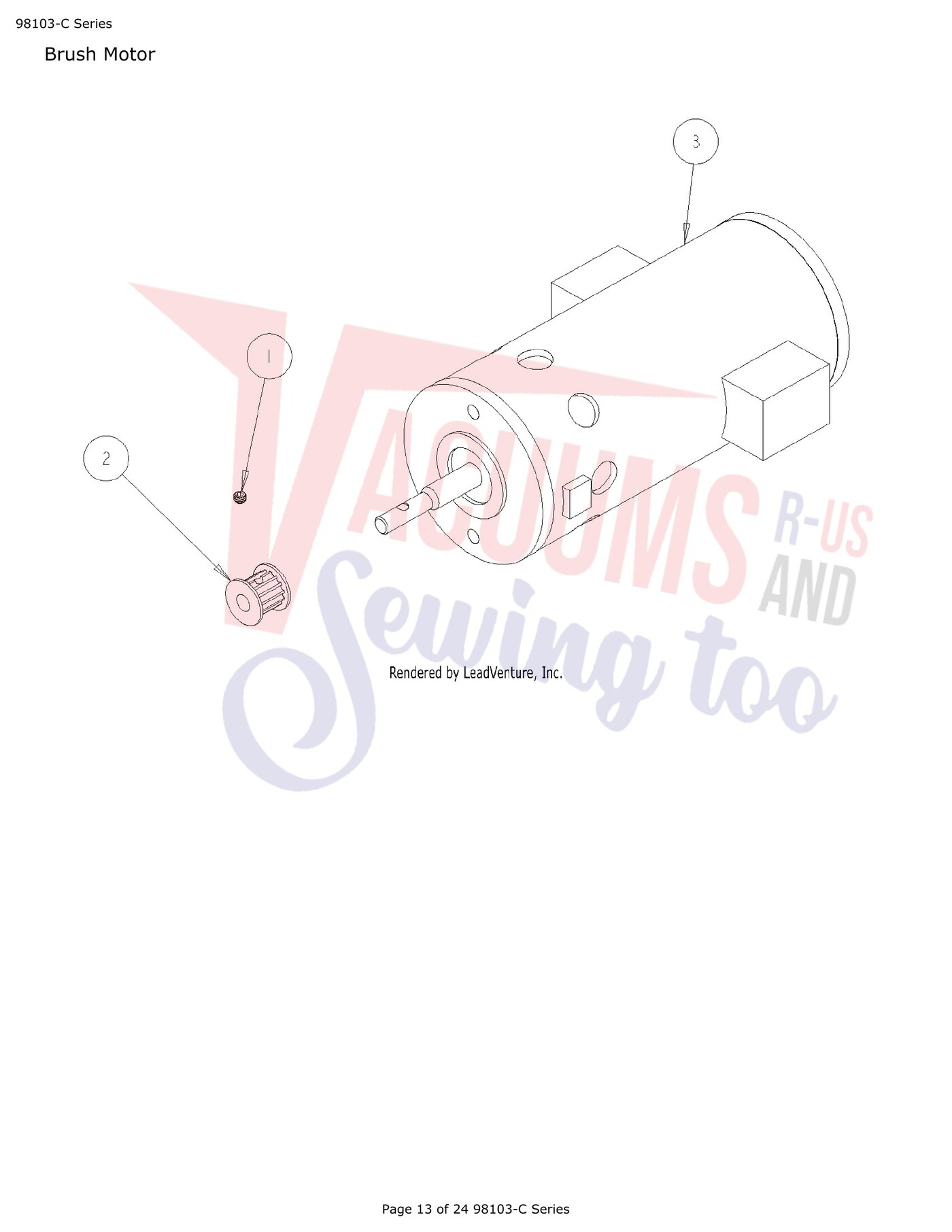

| # | Part image | Description | SKU | Price |

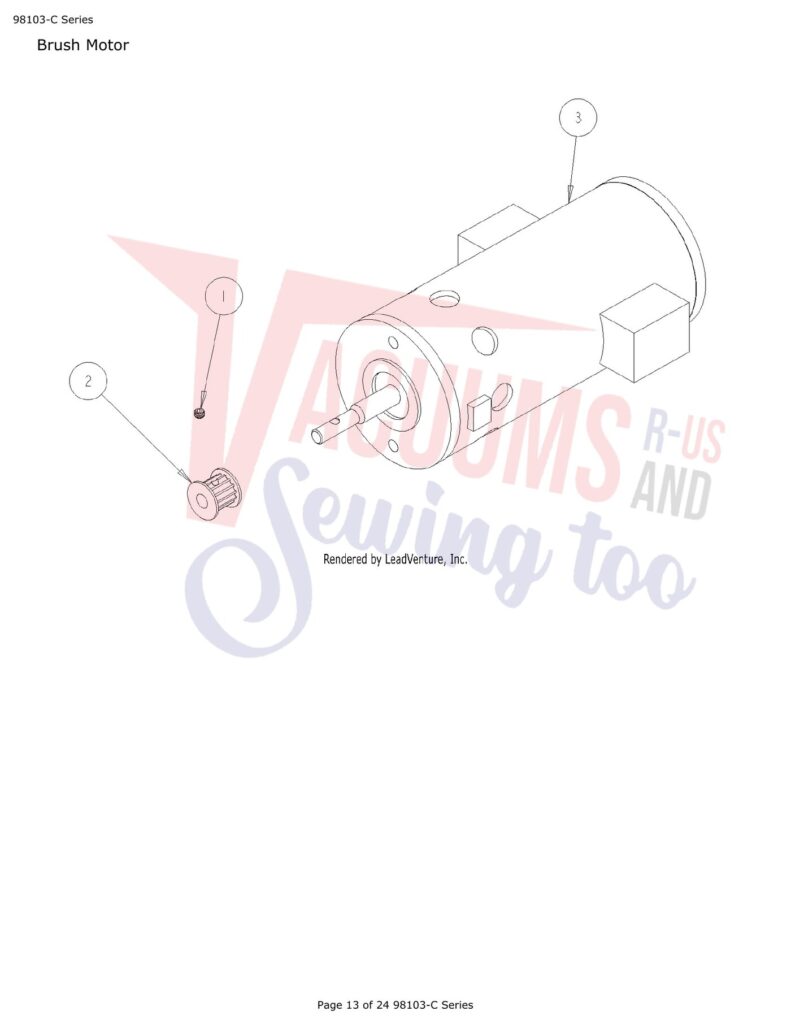

| 1 | No Image | SCREW PFX3S | SC132 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | MOTOR PULLEY | SC308 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Motor,Extractor,120,VAC,Truvox,Brush | SC325 | $164.99Read more |
| # | Part image | Description | SKU | Price |

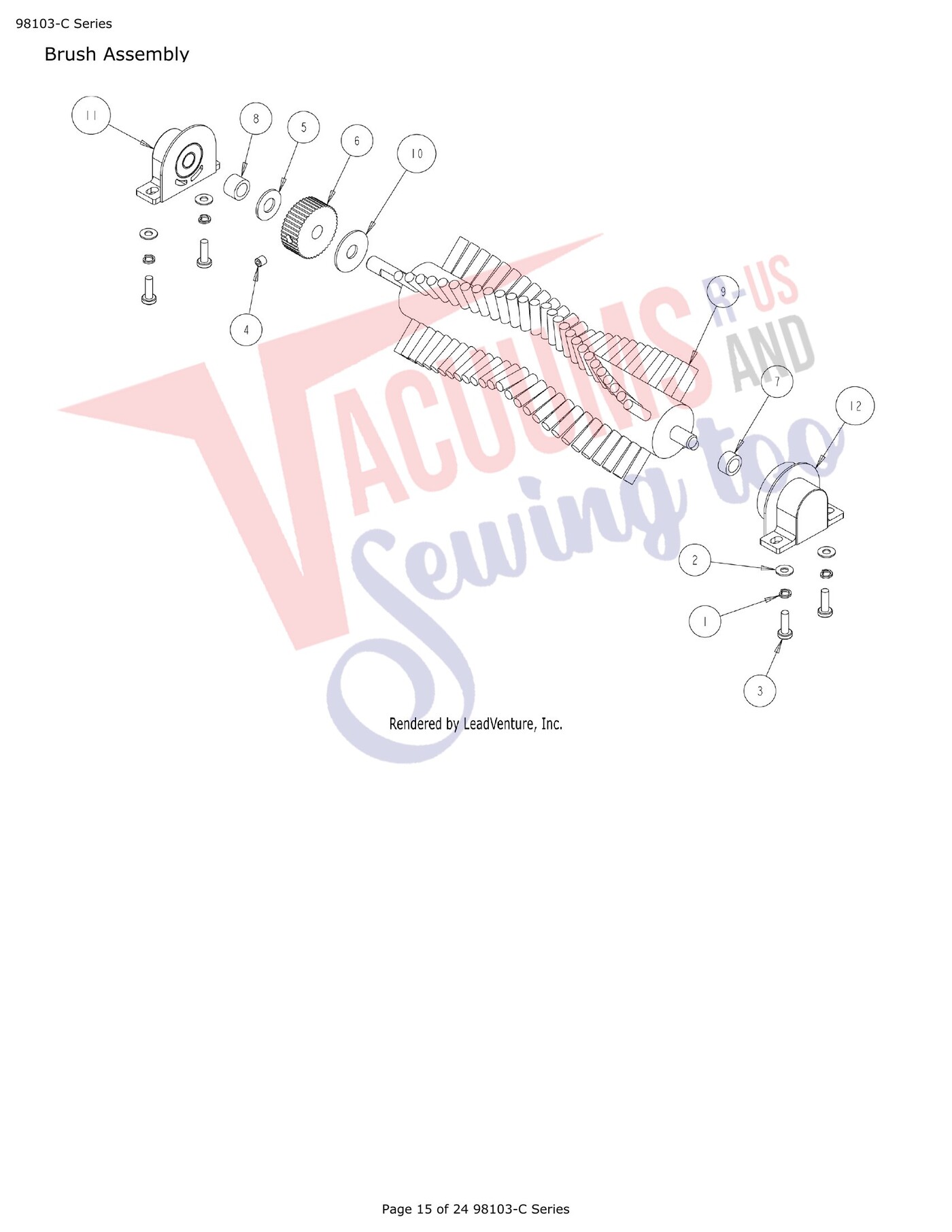

| XX | | REPLACEMENT BRUSH ASSEMBLY | 0534230000 | $222.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Spring Washer | 00-0500-0513 | Not Available |
| 2 | Not Available | Washer | 00-0500-0553 | Not Available |
| 3 | No Image | SCREW M5 X 16 PAN POZI MC A2 | 0005160013 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | SCREW M6 X 6 SOCKET SET CIMEX CAS16 | 0006060171 | $2.99Read more |
| 5 | Not Available | Spacer | 02-3433-0000 | Not Available |
| 6 | No Image | BRUSH PULLEY | SC334 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | BRUSH SPACER | SC313 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Spacer | SC215 | Not Available |
| 9 | No Image | BRUSH BODY | SC319 | $83.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Washer | 03-6654-0000 | Not Available |
| 11 | No Image | BEARING, SEAL AND HOUSING | SC314 | $14.99Read more |
| 12 | No Image | PROTECTED BEARING HOUSING PFX3S | SC322 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

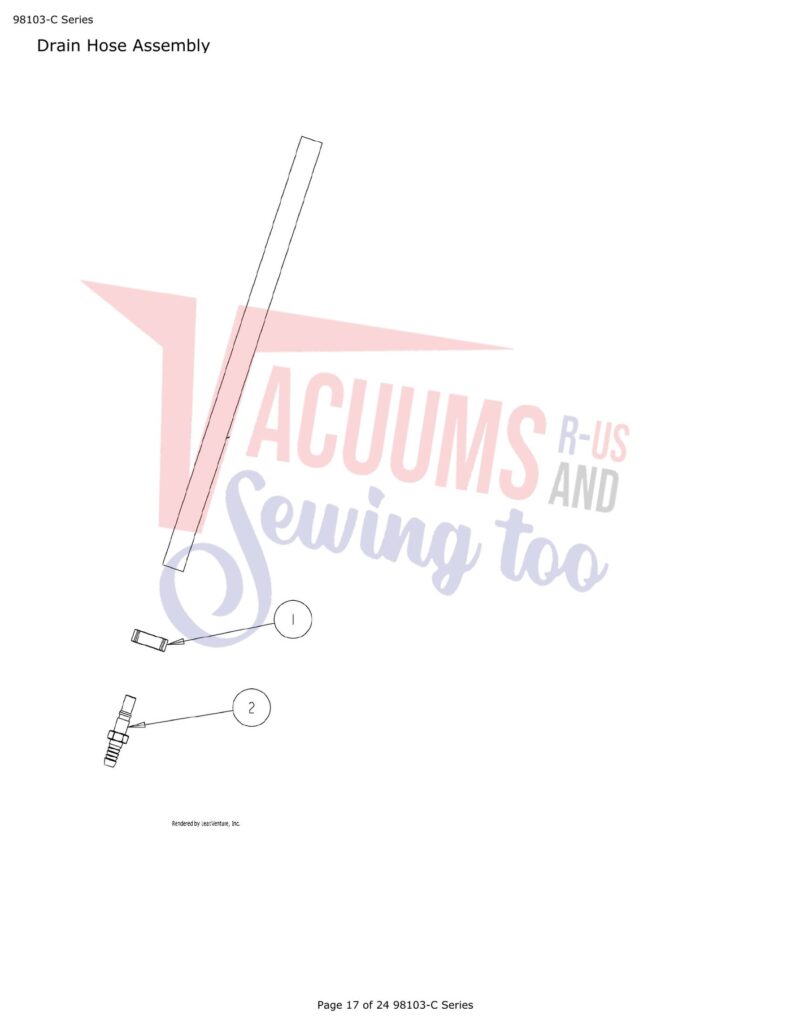

| # | Part image | Description | SKU | Price |

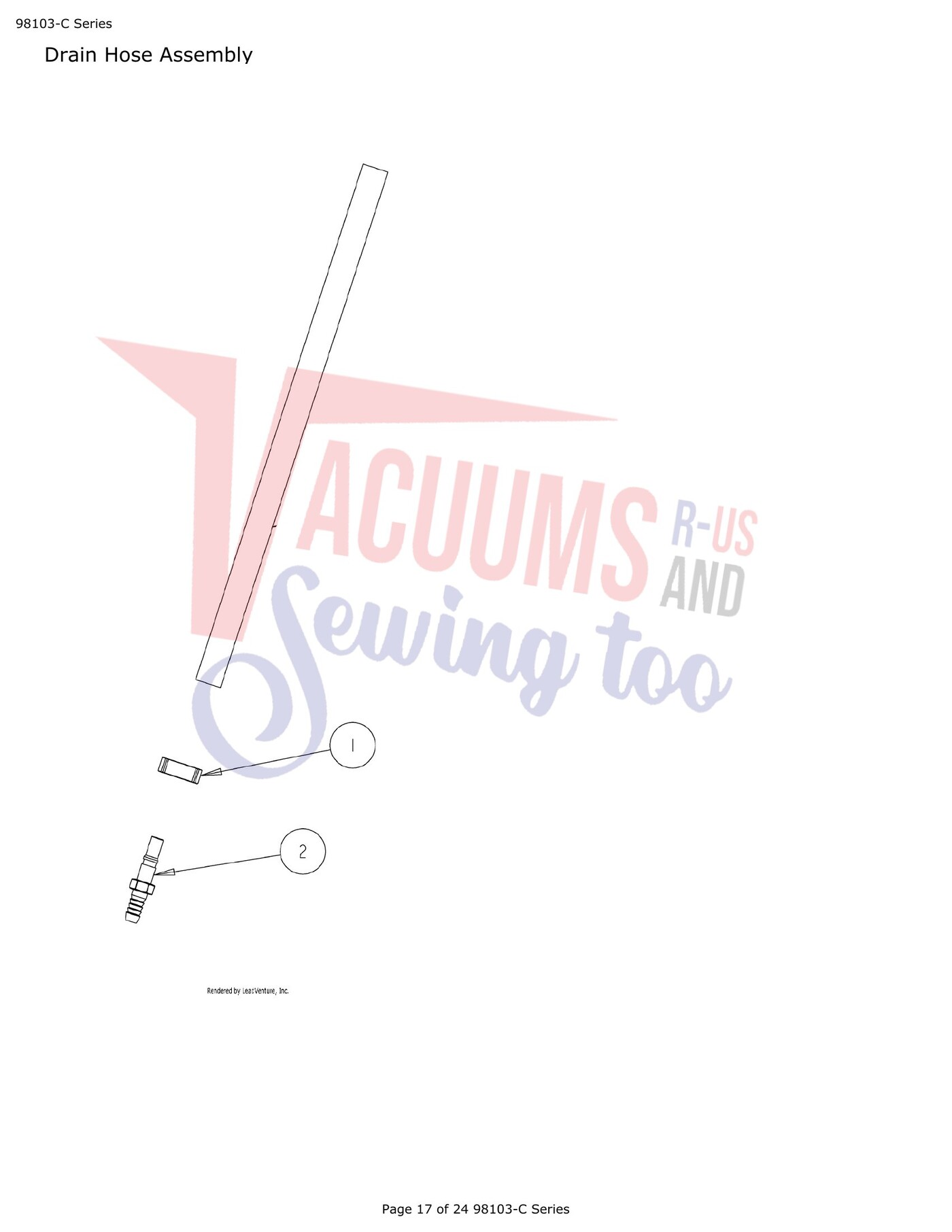

| XX | | DRAIN HOSE ASSEMBLY | 0534270000 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Hose Clamp | PX42 | Not Available |
| 2 | No Image | DRAIN HOSE CONNECTOR MALE PFX3S-KNS HOSE ASSY | SC305 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

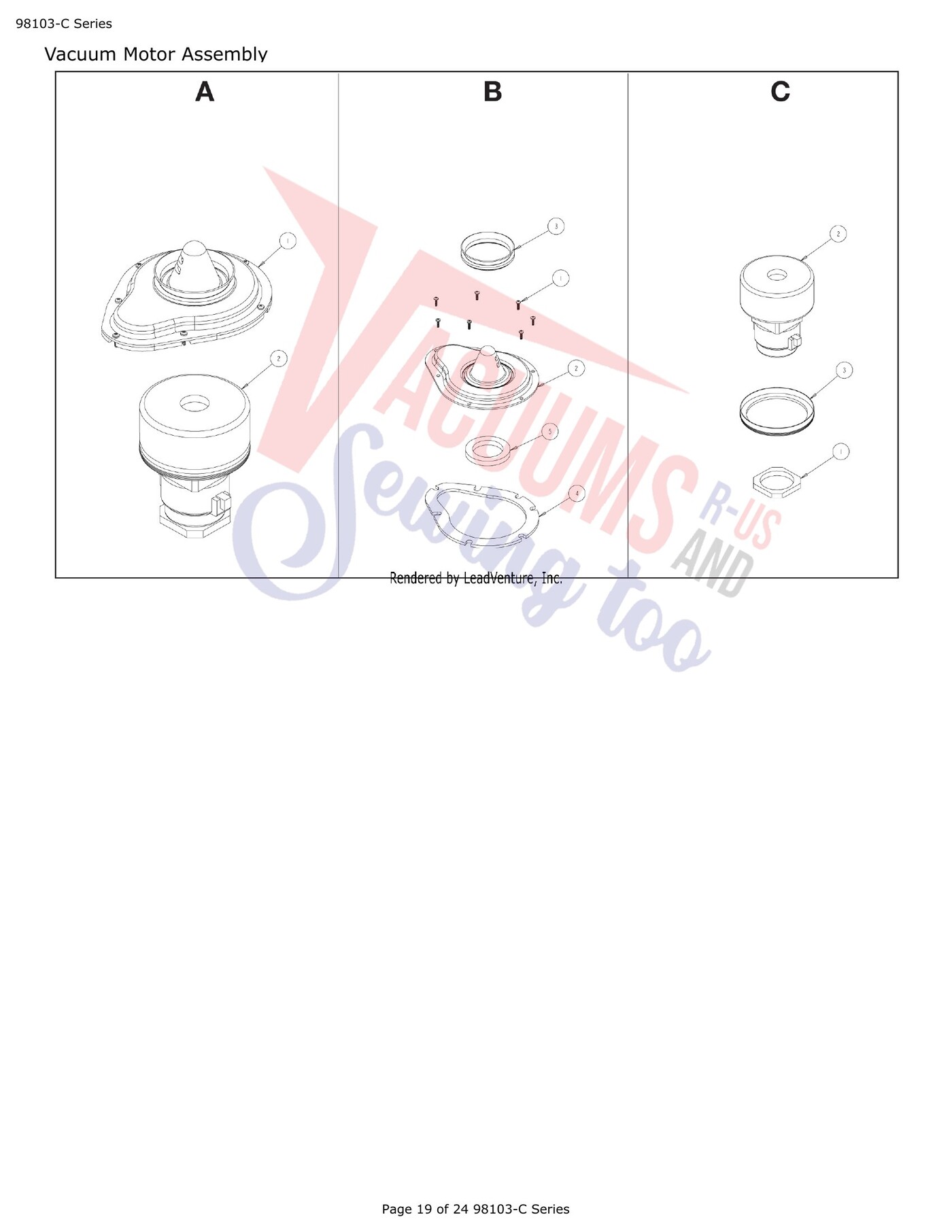

| A | Not Available | Complete Vacuum Motor Assembly | 05-3497-0000 | Not Available |
| A1 | No Image | VAC MOTOR COVER ASSEMBLY | 0534180000 | $86.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| A2 | | Motor Extractor 120 VAC Ametek | 0432560000 | $230.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| B | No Image | VAC MOTOR COVER ASSEMBLY | 0534180000 | $86.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| B1 | No Image | SCREW KN50 X 16 POZI PAN PT SCREW S/TAP SS | FD66 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| B2 | Not Available | Vacuum Motor Cover | SC316 | Not Available |
| B3 | No Image | VAC LIP SEAL PFX3S | SC331 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| B4 | Not Available | Vacuum Motor Cover Outer Seal | 03-6132-0000 | Not Available |
| B5 | Not Available | Vacuum Motor Cover Inner Seal | 03-6133-0000 | Not Available |
| C | Not Available | Vacuum Motor Assembly | 05-3502-0000 | Not Available |
| C1 | Not Available | Vacuum Motor Inner Seal | 03-6692-0000 | Not Available |
| C2 | | Motor Extractor 120 VAC Ametek | 0432560000 | $230.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| C3 | No Image | LIP SEAL VACUUM MOTOR | SC130 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

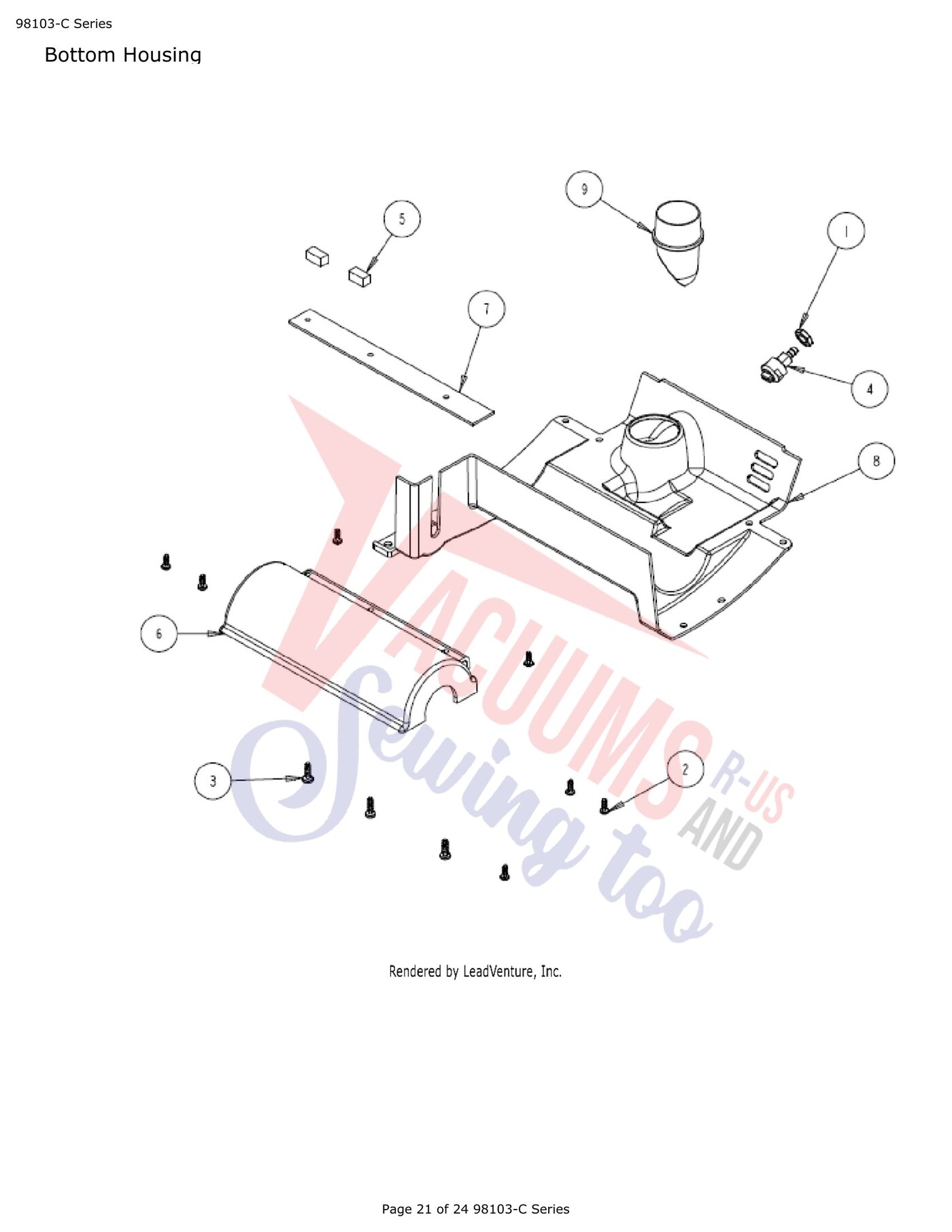

| # | Part image | Description | SKU | Price |
| 1 | No Image | SPRAY NOZZLE RETAINING NUT | SC307 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | SCREW M5 x 12 | 0234650000 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | WN1412 KB60 x 18 Pozi Pan Pt Screw S/Tap Zinc Plated | SC347 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | JET ASMB 110 DEGREE SPRAY PATTERN PFX3S 4S 7S 9S | SC31 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | GASKET BOLT 10MM PAD | 0360100000 | $1.99Read more |
| 6 | No Image | BRUSH ROLLER TRAY FOR PFX3S | SC159 | $206.99Read more |
| 7 | Not Available | Seal | 03-6653-0000 | Not Available |
| 8 | Not Available | Bottom Housing | SC318 | Not Available |
| 9 | Not Available | Exhaust Port | 03-8300-0000 | Not Available |
