Schematic and parts book for Tornado 97607 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

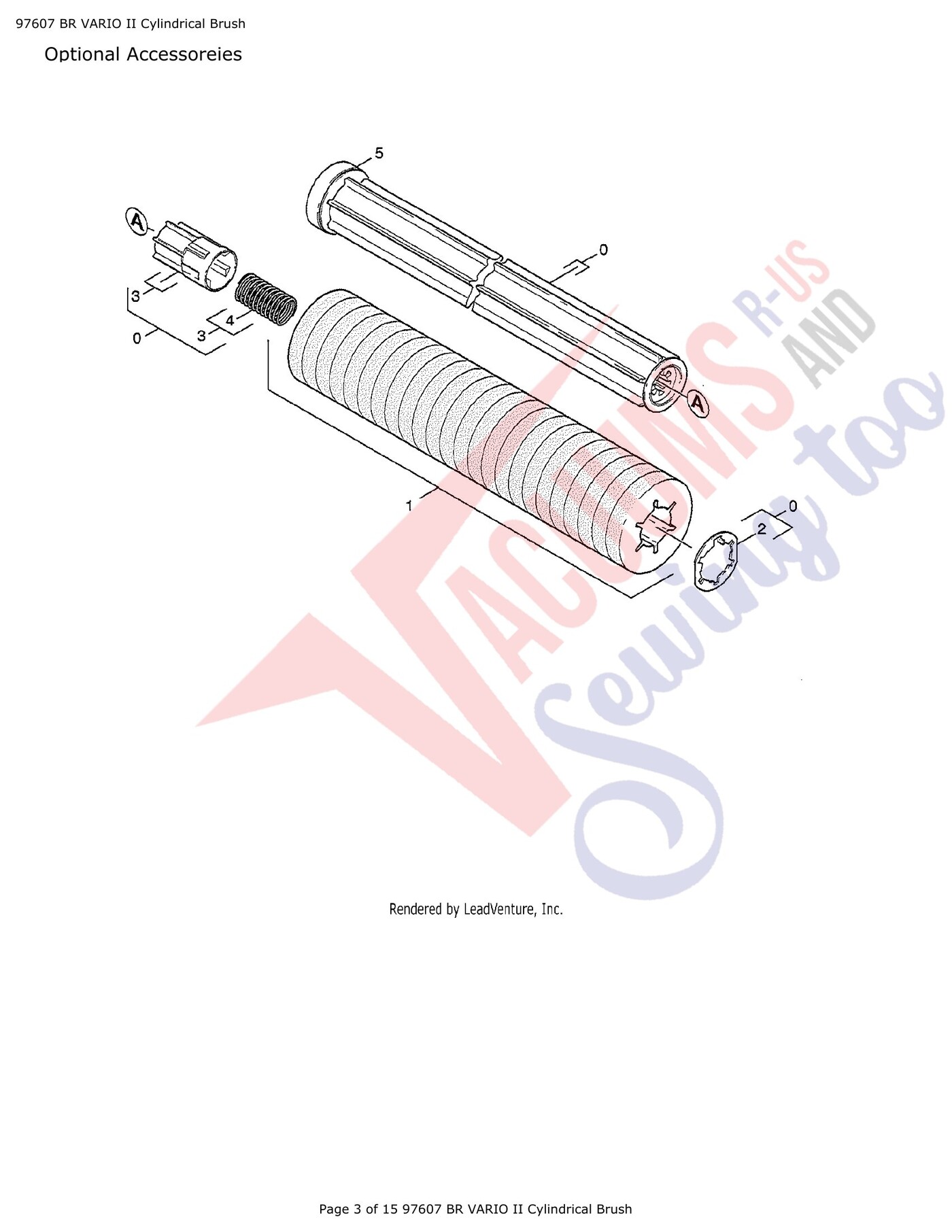

| 1 | No Image | Roller Pad on Sleeve Hard Vario | K63697250 | $103.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Roller Pad on Sleeve Med Vario | K63697260 | $123.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Roller Pad on Sleeve (Very Soft) | K63697270 | Not Available |
| 1 | No Image | Roller Pad on Sleeve Soft Vario | K63697240 | $121.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Washer | K41150030 | Not Available |
| 3 | Not Available | Roller Pad Hub | K51203130 | Not Available |
| 4 | No Image | HELICAL SPRING | K53324690 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | SHEET METAL COMPONENT THREAD REFLECTOR | K40386770 | $37.99Read more |
| # | Part image | Description | SKU | Price |

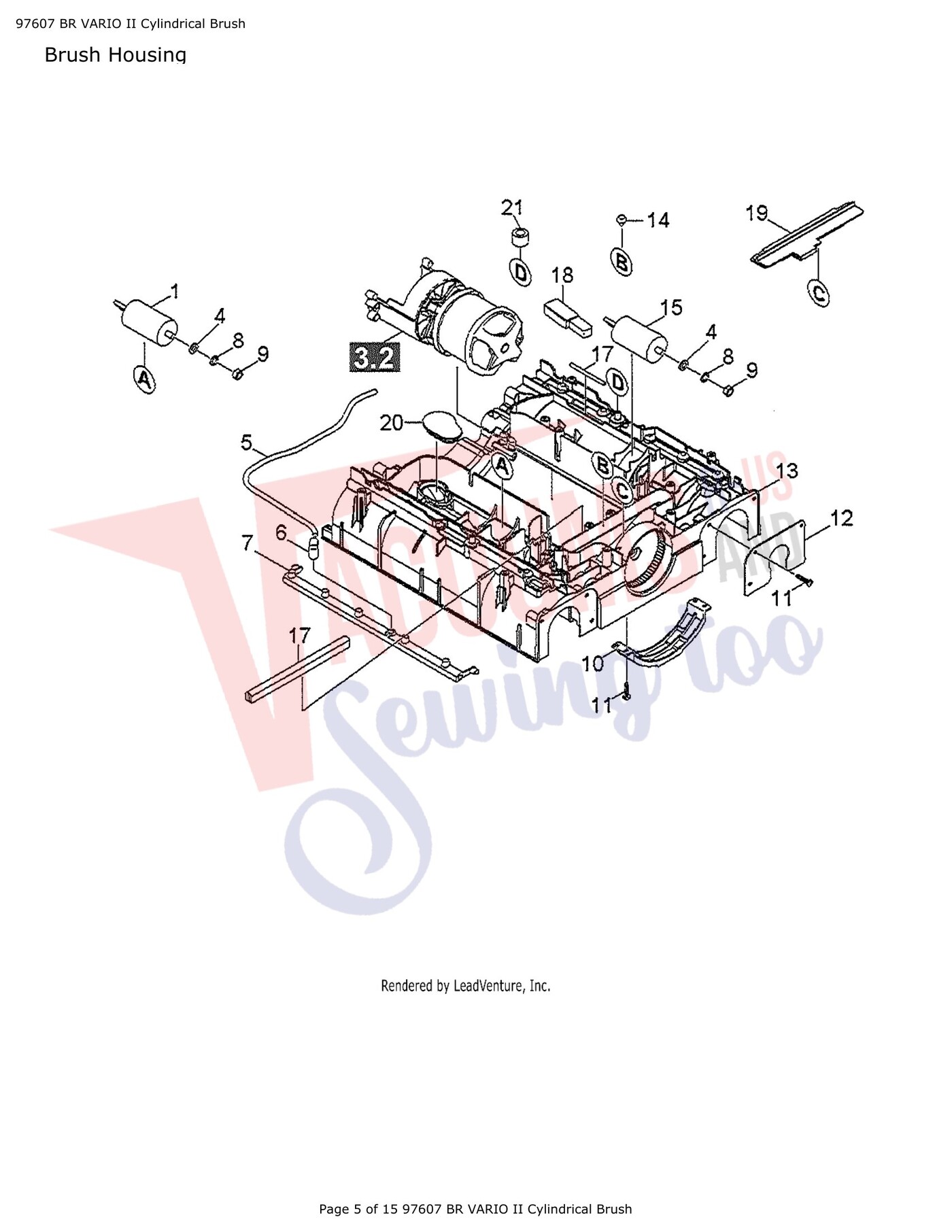

| 1 | No Image | CAPACITOR | K66612200 | $75.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | WASHER 8 200HV P3E ISO 7090 | K73120040 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | HOSE SOLD IN INCHES | K63882160 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | ANGLE BUSHING | K50504110 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | WATER DISTRIBUTOR | K50509920 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Serrated Lock Washer | K73122330 | $0.00Read more |
| 9 | No Image | Nut | K73110040 | $0.00Read more |
| 10 | No Image | Edge Protection | K50505920 | $0.00Read more |
| 11 | No Image | Screw M5 X 20 | K73032120 | $0.00Read more |
| 12 | No Image | Brush Holder Plate | K50347990 | $0.00Read more |
| 13 | No Image | Brush Housing | K50503070 | $0.00Read more |
| 14 | No Image | Rubber Buffer | K63392490 | $0.00Read more |
| 15 | No Image | CAPACITOR | K66612210 | $76.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Profile Gasket (To Order As Cut Goods) | K62730550 | $0.00Read more |
| 18 | No Image | Starting Electronics MAS d 100-120V | K66829750 | $565.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Seal | K50504210 | $0.00Read more |
| 20 | No Image | Cover | K50504220 | $0.00Read more |
| 21 | No Image | Gasket | K50348940 | $0.00Read more |
| # | Part image | Description | SKU | Price |

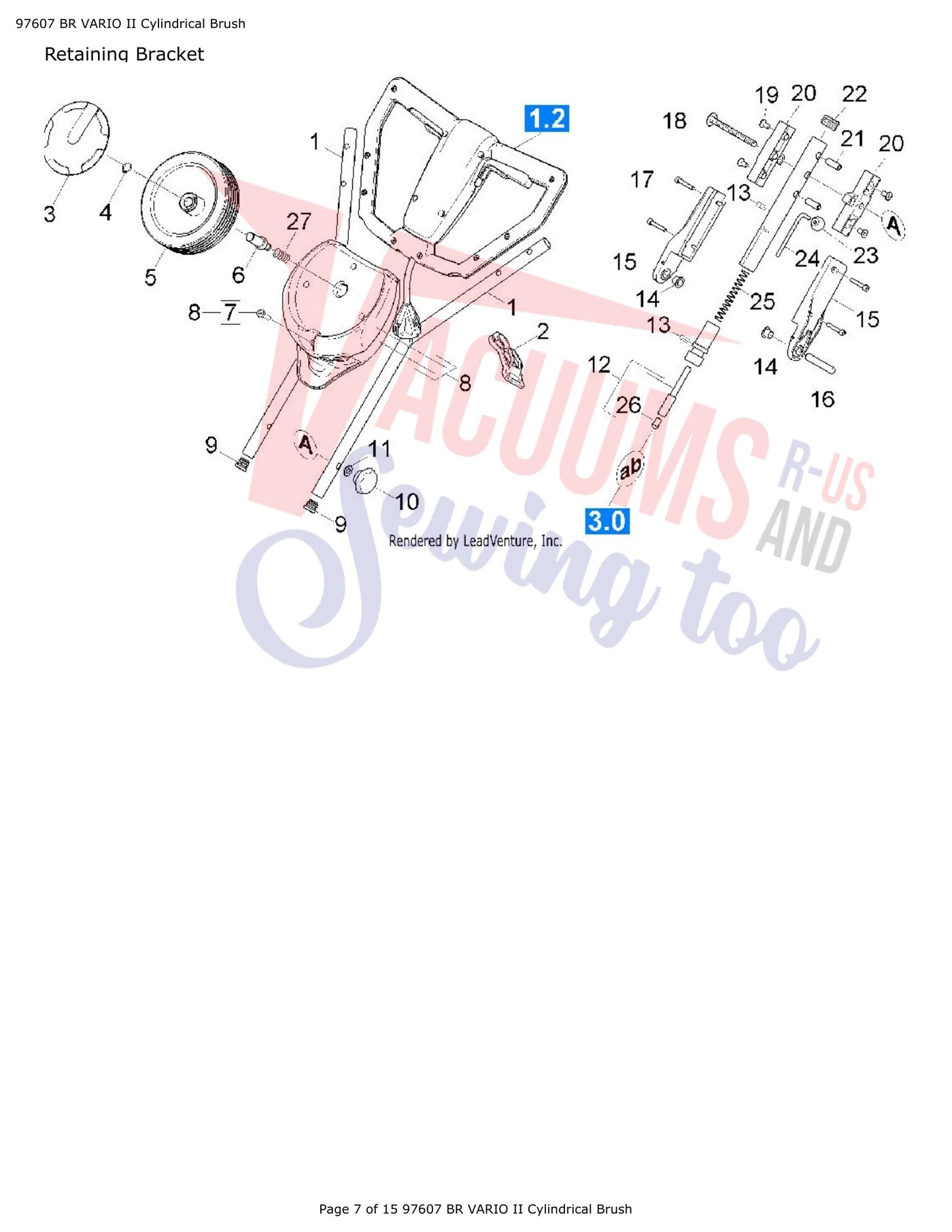

| 1 | Not Available | Retaining Bracket Top Part | K50348190 | Not Available |
| 2 |  | PULL RELIEF | K66417760 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Wheel Cap | K64353490 | Not Available |
| 4 | No Image | SPRING CLIP | K73430050 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | WHEEL D 180 | K64351960 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | AXLE FEED WHEEL | K50347950 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Screw 5x20, Tempest | K73031080 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | WHEEL HOLDER COMPLETE | K47830030 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Plug | K63684190 | Not Available |
| 10 | Not Available | Star Grip M10 | K63212460 | Not Available |
| 11 | No Image | Washer, Castor, Tempest | K73120050 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SPRING CATCH BOLT CAP | K40341620 | $134.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | RETAINING BRACKET BOTTOM | K40341610 | $207.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | BUSHING | K63470840 | $6.99Read more |
| 15 | No Image | MOLDED PART PUSH HANDLE | K50315060 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Bolt | K53168520 | Not Available |
| 17 | No Image | CHEESE HEAD SCREW | K73060250 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Screw | K73032010 | Not Available |
| 19 | Not Available | Screw M8 x | K73056370 | Not Available |
| 20 | Not Available | Handle Clamp | K50348220 | Not Available |
| 21 | Not Available | Threaded Sleeve | K51108250 | Not Available |
| 22 | Not Available | Plug | K63857830 | Not Available |
| 23 | No Image | SPHERICAL HEAD C 25-KU.SW DIN 319 - BALL BUTTON | K73210300 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | BAR PUSH HANDLE LOCK-IN POSITION | K50348210 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | HELICAL SPRING | K53323200 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Cap | K53680020 | $0.00Read more |
| 27 | No Image | PRESSURE SPRING | K53329810 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw 5x20, Tempest | K73031080 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Switch Actuaator | K50504330 | $0.00Read more |
| 3 |  | MAIN SWITCH | K66304260 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | MOTOR PROTECTING SWITCH 9A | K66304280 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | SPRING CONICAL | K53329440 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | SWITCH WATER PUMP | K66304270 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | POWER CABLE NEMA 5-15 | K66496950 | $104.99Read more |
| 8 | Not Available | Handle | K47830120 | Not Available |
| 9 | Not Available | Handle Cable Harness | K66496620 | Not Available |
| # | Part image | Description | SKU | Price |

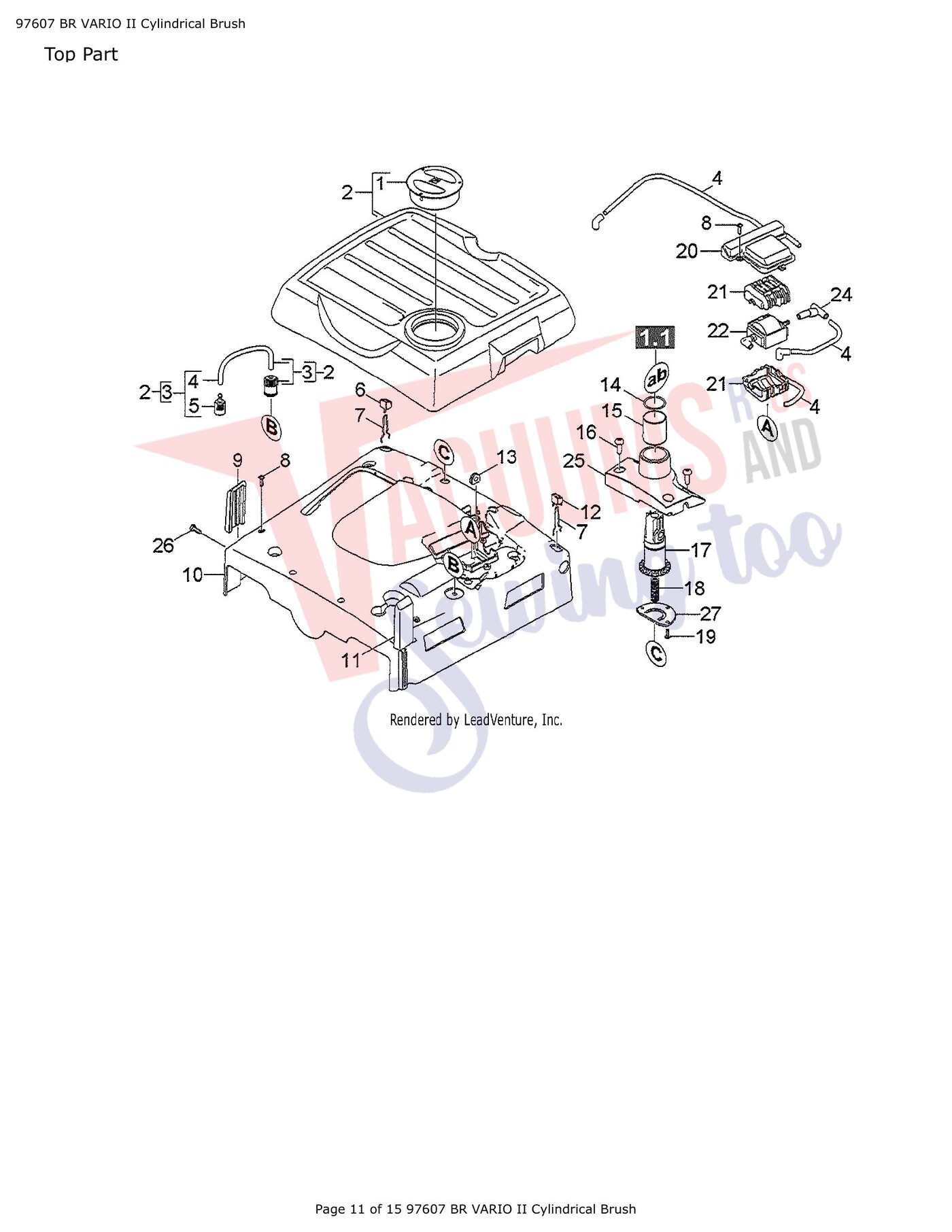

| 1 | No Image | COVER | K50636500 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Tank Cover | K47830110 | Not Available |
| 3 | Not Available | Valve | K40341590 | Not Available |
| 4 | | HOSE SOLD IN INCHES | K63882160 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Filter | K57316090 | Not Available |
| 6 | No Image | WHEEL RELEASE BUTTON BR 16 3 | K50504480 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | WHEEL RELEASE BUTTON SPRING | K50348390 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Screw 5x20, Tempest | K73031080 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Right Bumper | K50505160 | Not Available |
| 10 | No Image | COVER BR VARIO | K50509240 | $207.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Left Bumper | K50505170 | Not Available |
| 12 | Not Available | Wheel Latch | K50504470 | Not Available |
| 13 | Not Available | Cable Bushing | K66480640 | Not Available |
| 14 | No Image | GASKET 36 17X 2 62 | K63626050 | $3.99Read more |
| 15 | No Image | PLAIN BEARING | K64030420 | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW M8X25 | K73030690 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | MOLDED PART BEAM JOINT | K50334790 | $8.99Read more |
| 18 | No Image | PRESSURE SPRING | K63301400 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Screw M6 x | K73061930 | Not Available |
| 20 | No Image | PUMP COVER VARIO AND BR 16 3 | K50504100 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | BEARING PUMP | K50504080 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Pump Motor,Extractor,120V,60 hz | K64735320 | $462.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | CHECK VALVE | K40509560 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Swivel Joint Mount | K50505270 | Not Available |
| 26 | Not Available | Screw | K63030570 | Not Available |
| 27 | No Image | PLATE STOP SWIVEL JOINT | K40608350 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

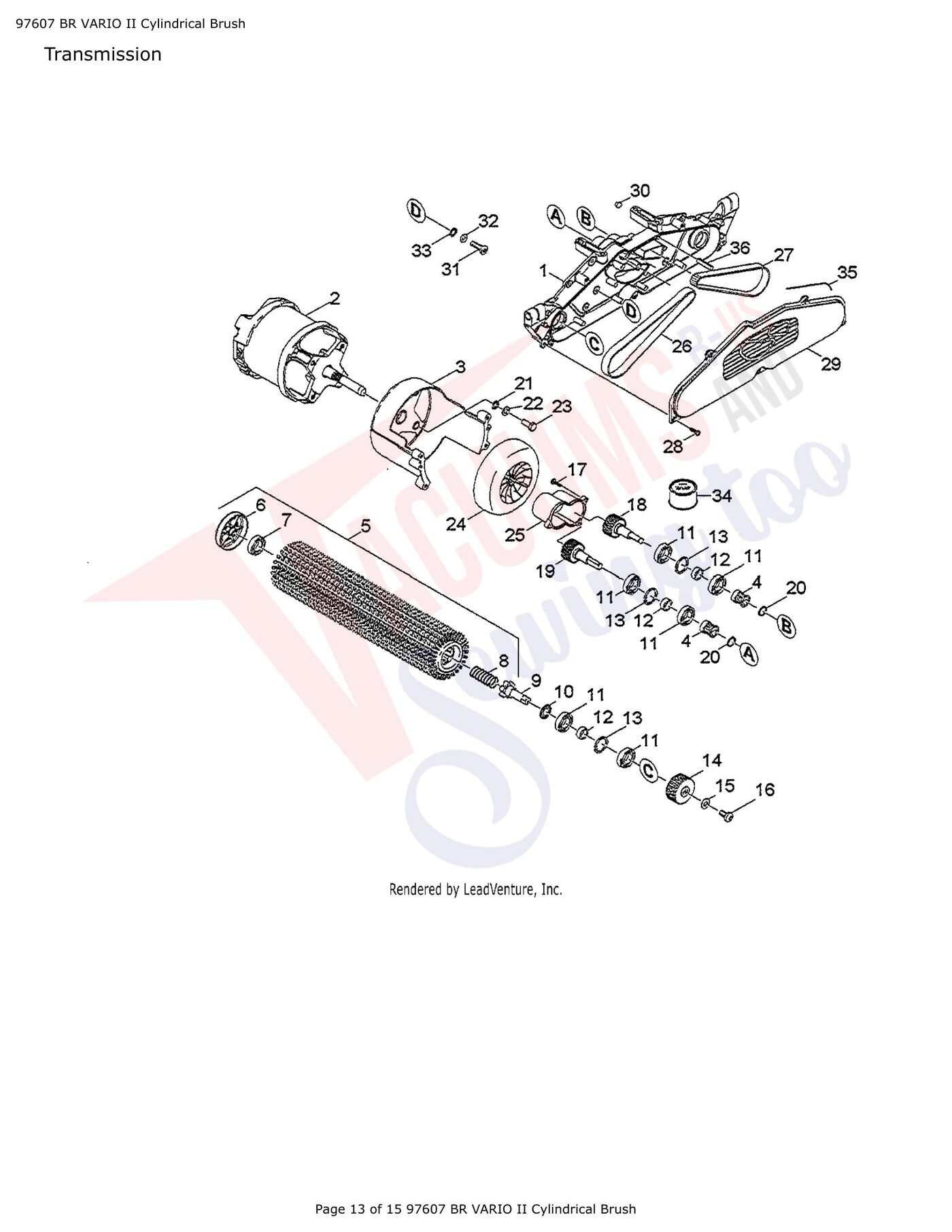

| 1 | Not Available | Gear Case | K50504450 | Not Available |
| 2 | Not Available | Brush Motor | K66800460 | Not Available |
| 3 | Not Available | Motor Flange | K50504320 | Not Available |
| 4 | No Image | PULLEY 21Z | K56253180 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | ROLLER BRUSH RED COMPLETE | K47620030 | $83.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Roller Brush Hard Grit 400 mm | K47622520 | $322.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Roller Brush (Very Hard) | K47624810 | Not Available |
| 5 | No Image | Brush, Roller (High/Low) 400 MM | K47622510 | $138.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Brush, Roller (Soft) 400 MM | K47622500 | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Very Soft Polishing 400 mm Vario | K47622740 | $184.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | SHEET METAL COMPONENT THREAD REFLECTOR | K40386770 | $37.99Read more |
| 7 | No Image | BALL BEARING | K64013630 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | HELICAL SPRING | K53321140 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Drive Shaft | K51005710 | Not Available |
| 10 | Not Available | Gasket | K63632920 | Not Available |
| 11 | No Image | BALL BEARING | K74011150 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SPACER SLEEVE | K51106860 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | SPRING CLIP | K73432310 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | PULLEY 56Z | K56253570 | $29.99Read more |
| 15 | No Image | WASHER | K73122920 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Screw M6 x | K73061920 | Not Available |
| 17 | Not Available | Screw M5 x | K73030390 | Not Available |
| 18 | Not Available | Left Gear Shaft | K41001250 | Not Available |
| 19 | Not Available | Right Gear Shaft | K41002340 | Not Available |
| 20 | No Image | SAFETY RING | K73430030 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Serrated Lock Washer | K73122330 | $0.00Read more |
| 22 | Not Available | Washer | K73120170 | Not Available |
| 23 | Not Available | Screw M8 x | K73043970 | Not Available |
| 24 | Not Available | Blower Wheel | K50503580 | Not Available |
| 25 | Not Available | Gear Cover | K50503570 | Not Available |
| 26 | No Image | Belt,Vacuums,Toothed | K63482650 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Belt,Floor Machines,Toothed | K63484310 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Screw 5x20, Tempest | K73031080 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | COVER GEAR CASE | K50503100 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Cap | K63683470 | Not Available |
| 31 | Not Available | Screw M6 x | K73061050 | Not Available |
| 32 | Not Available | Washer | K73120030 | Not Available |
| 33 | Not Available | Serrated Lock Washer | K73122320 | Not Available |
| 34 | Not Available | Gear Oil 50g | K62880950 | Not Available |
| 35 | Not Available | Seal | K62730370 | Not Available |
| 36 | Not Available | Pin | K73149440 | Not Available |
