Schematic and parts book for Tornado 97595 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | LABEL HANDLE FM / BURN TORNADO | X8815ATOR | $0.99Read more |
| 7 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Warning Label | X1044 | Not Available |
| 9 | No Image | Handle, 2 Piece - Upper | X1000A | $97.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Wire, Lead 14G Black 4 With One F26 | X8009 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Circuit Breaker,Floor Machine,17Amp,W/Nuts | X8023A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Ring Retaining Ext. E 1/2(Heavy Duty) | 3470 | $0.00Read more |
| 27 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Driver, Pad Trilok 19 Built In Clutch Plate | TL19 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Screw Hex Head Cap 1/4-20x1 | X8211 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | 20 Inch One Piece Chassis with Bumper | X8968B | $347.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | LABEL DISCONNECT POWER CORD BEFORE SERVICING | X8413 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Cover, Motor Top Chrome | 17731 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | SCREW, 10-32X1 PHIL PAN ZINC PLATED | 71661A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | LABEL, CLASSIC FM, FRONT TORNADO | X9483 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 46 | No Image | Strain Relief, Metal Small | SR37 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | Cord Floor Machine 50Ft Yellow14/3 SJTW | M1369B | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Handle, 2 Piece - Lower | X1000B | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | Carriage Bolt, 5/16 - 18 X 2 , Zinc | X2272 | $0.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Washer, Curved 1.5In | X2273 | $0.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | RUBBER BUMPER 20 CLASSIC FM | X8968R | $58.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | LABEL HANDLE FM / BURN TORNADO | X8815ATOR | $0.99Read more |
| 7 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Warning Label | X1044 | Not Available |
| 9 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9.1 |  | Cover Switch Box Salvage from X8911 | X8912 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9.2 | No Image | SPRING TRIGGER METAL HANDLE | X8916 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9.3 | No Image | ROLL PIN ALL METAL HANDLE | X8918 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9.4 | Not Available | Handle Base | X8905B | Not Available |
| 9.5 | No Image | SET SCREW 1/4-20X3/16 SOC SET FLAT PT W/LOC-TITE | X8222 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9.6 | Not Available | Trigger Handle | X8917 | Not Available |
| 9.7 |  | GROMMET, 1/16 GR - 7/16 DIA 72713A | 7BG004 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Wire, Lead 14G Black 4 With One F26 | X8009 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Circuit Breaker,Floor Machine,17Amp,W/Nuts | X8023A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Driver, Pad Trilok 19 Built In Clutch Plate | TL19 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | | 20 Inch One Piece Chassis with Bumper | X8968B | $347.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Base, Motor Metal | X8966 | $176.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | LABEL DISCONNECT POWER CORD BEFORE SERVICING | X8413 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | | Cover, Motor Top Chrome | 17731 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | SCREW, 10-32X1 PHIL PAN ZINC PLATED | 71661A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | LABEL, CLASSIC FM, FRONT TORNADO | X9483 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 48 |  | Fit All, Commercial Strain Relief Metal Large | SR42 | $37.20Read more |
| 49 | No Image | Cord Floor Machine 50Ft Yellow14/3 SJTW | M1369B | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

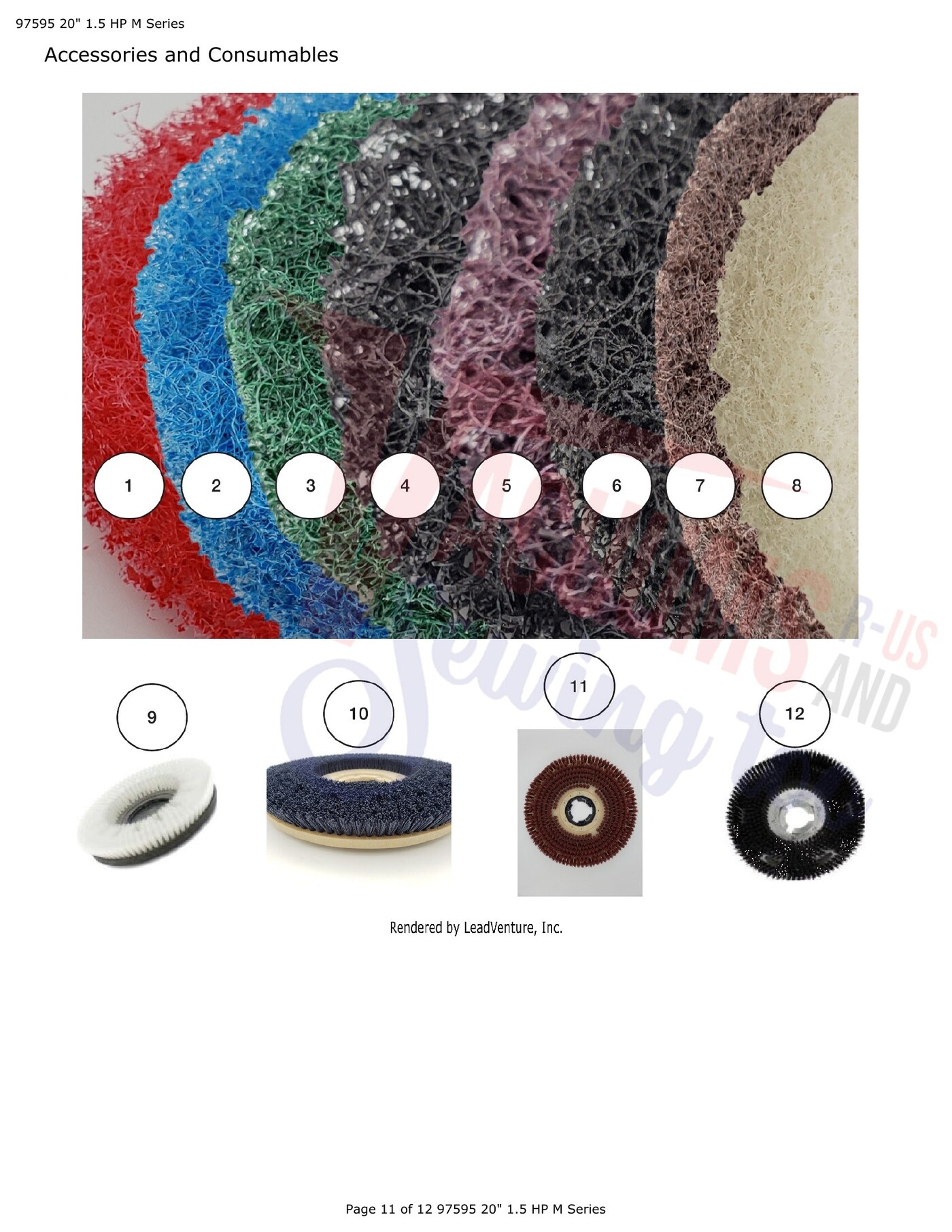

| # | Part image | Description | SKU | Price |
| 1 |  | Floor Pad General Scrub/Spray Buff Red 20in 5/cs | RD0520 | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Floor Pad Blue Cleaner 20in 5/case | BL0520 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Floor Pad Green Scrub 20in 5/case | GR0520 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Floor Pad Black Stripping 20in 5/case | BK0520 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Pad Dominator Aggressive Stripping Burgundy 20in | DM0520 | $98.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Floor Pad HD Black Strip 20in 5/case | BH0520 | $93.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | 20" Maroon Ecoprep Pad Case Of 10 | EPO20 | $0.00Read more |
| 8 | No Image | Floor Pad White Polish 20in 5/case | WT0520 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | 19" Soft Nylon Scrub Brush W/Clutch Plate | SF719 | $0.00Read more |
| 10 | No Image | 19" Medium Grit Scrub Brush (180 Grit) | PFMG19 | $0.00Read more |
| 11 | No Image | 19" Ex-Heavy Grit 46 Scrub Brush | PST19 | $0.00Read more |
| 12 | No Image | Brush Carpet 19in .022 Med Fill Poly Showerfeed | SF219 | $319.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
